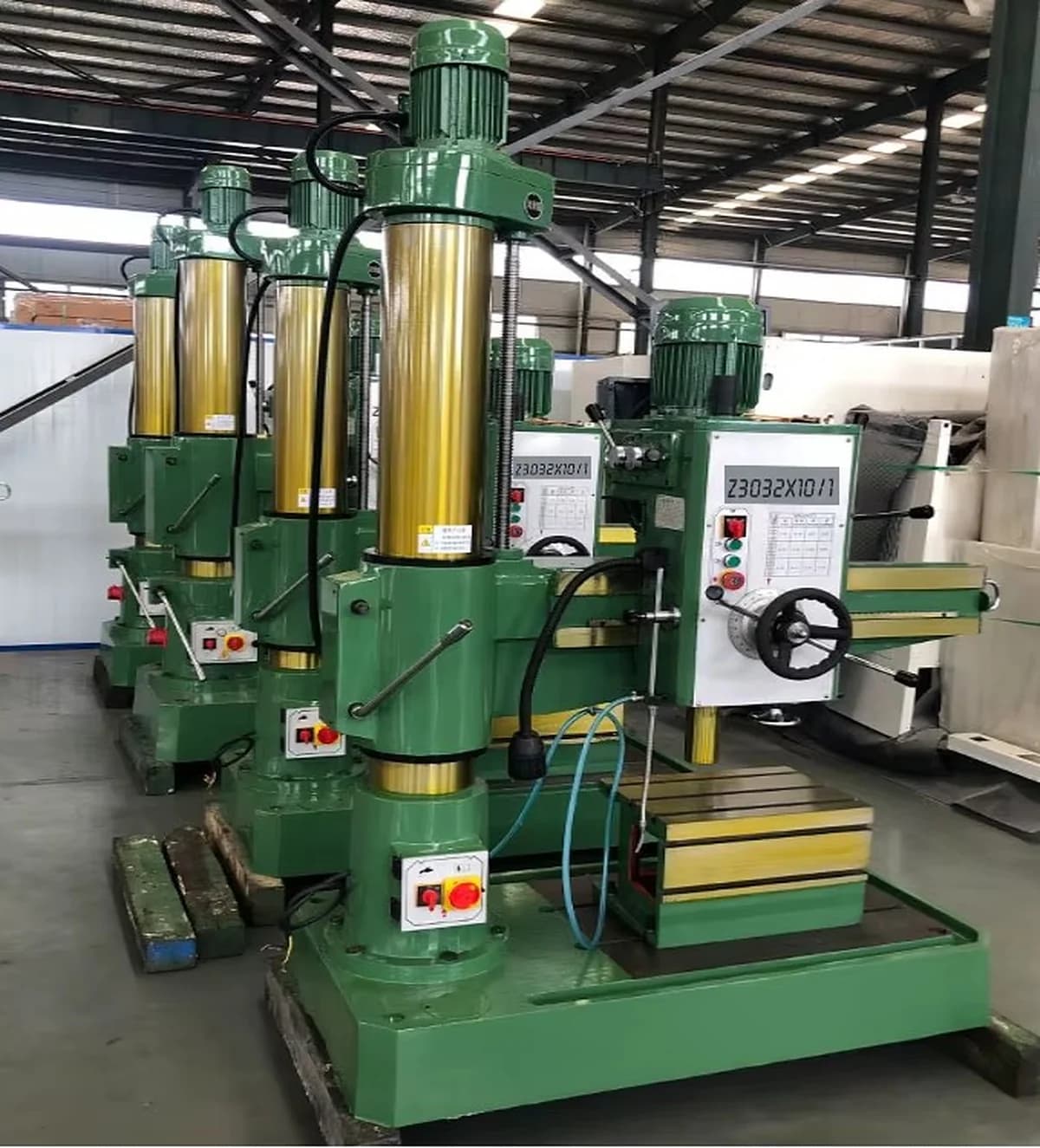

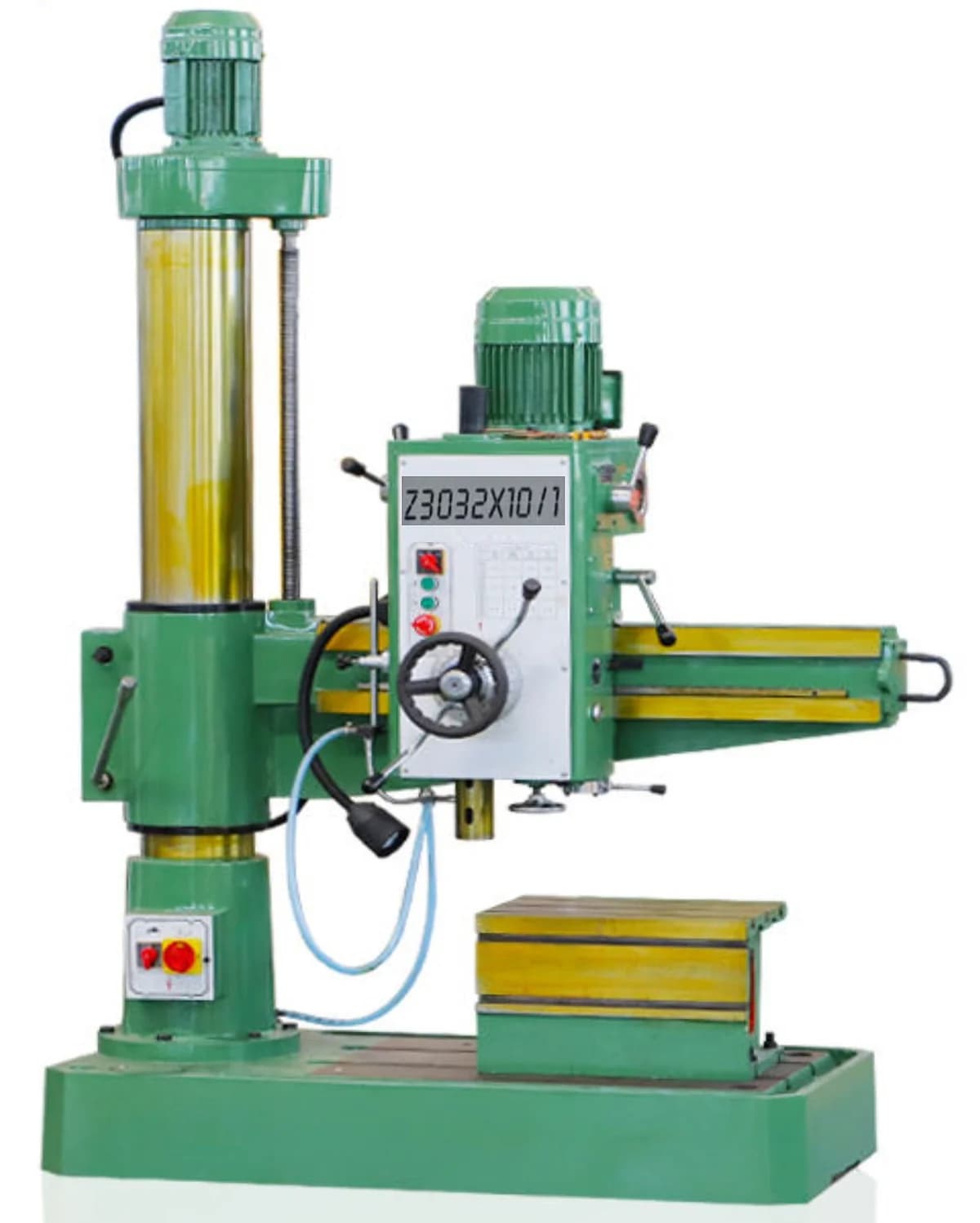

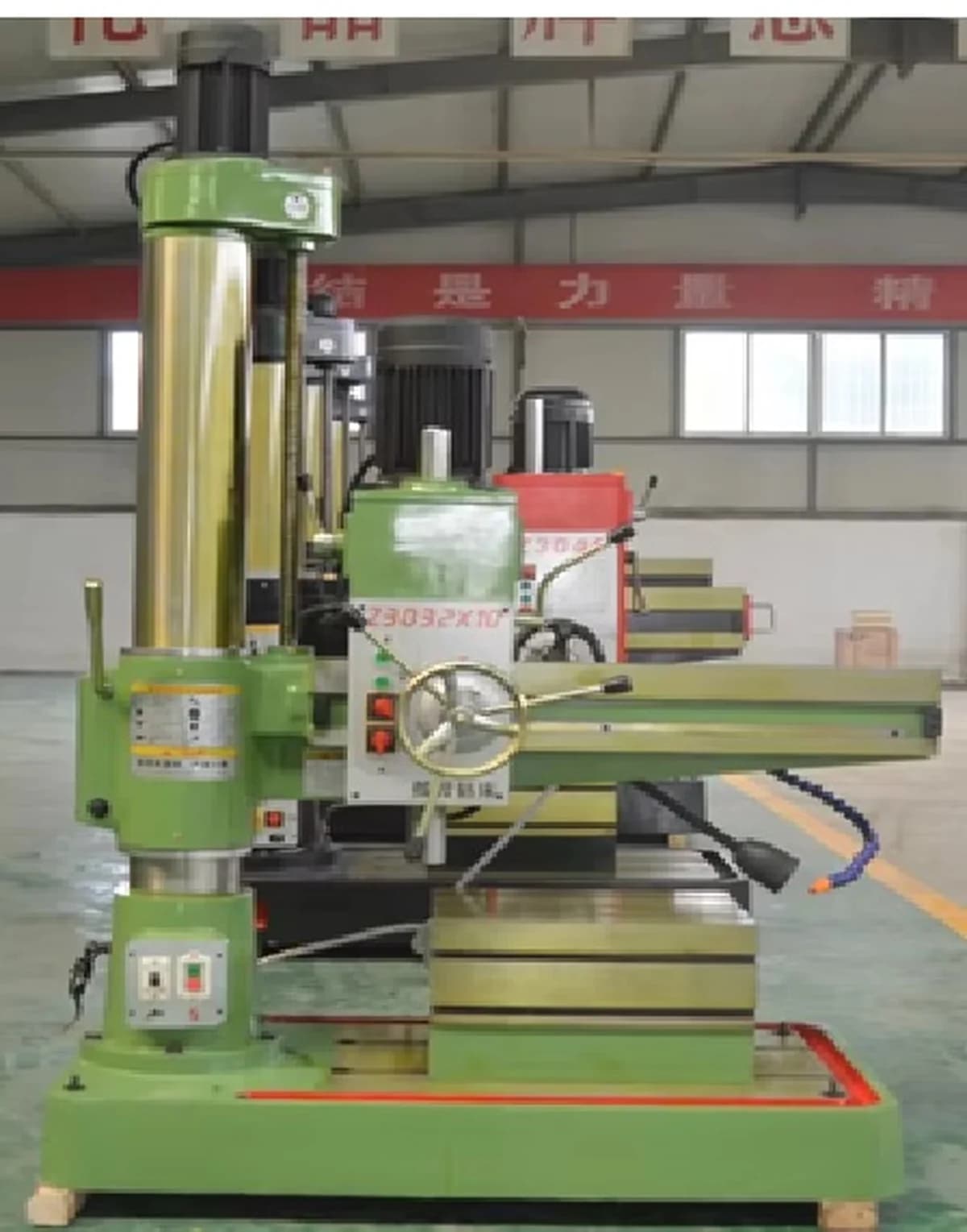

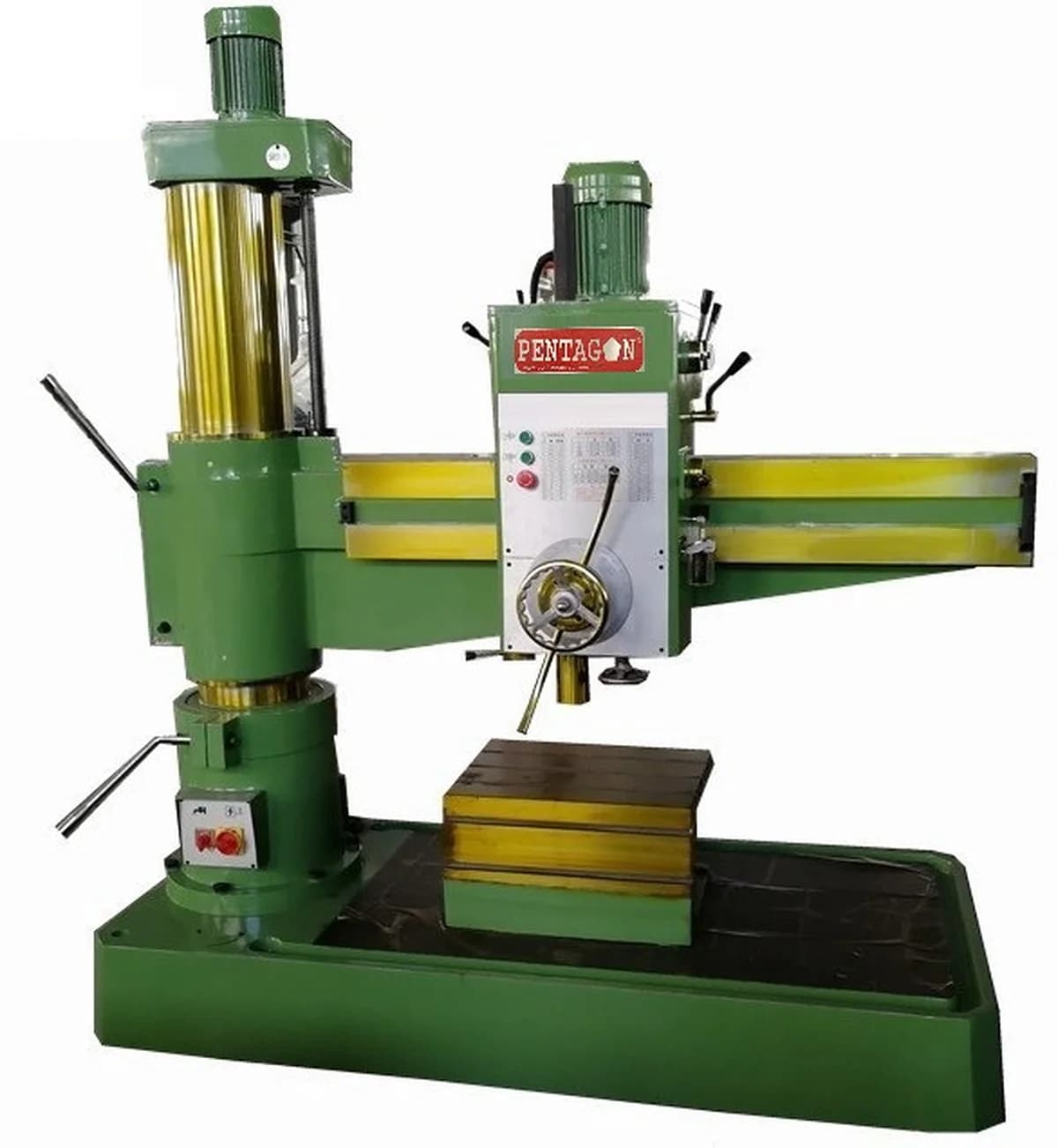

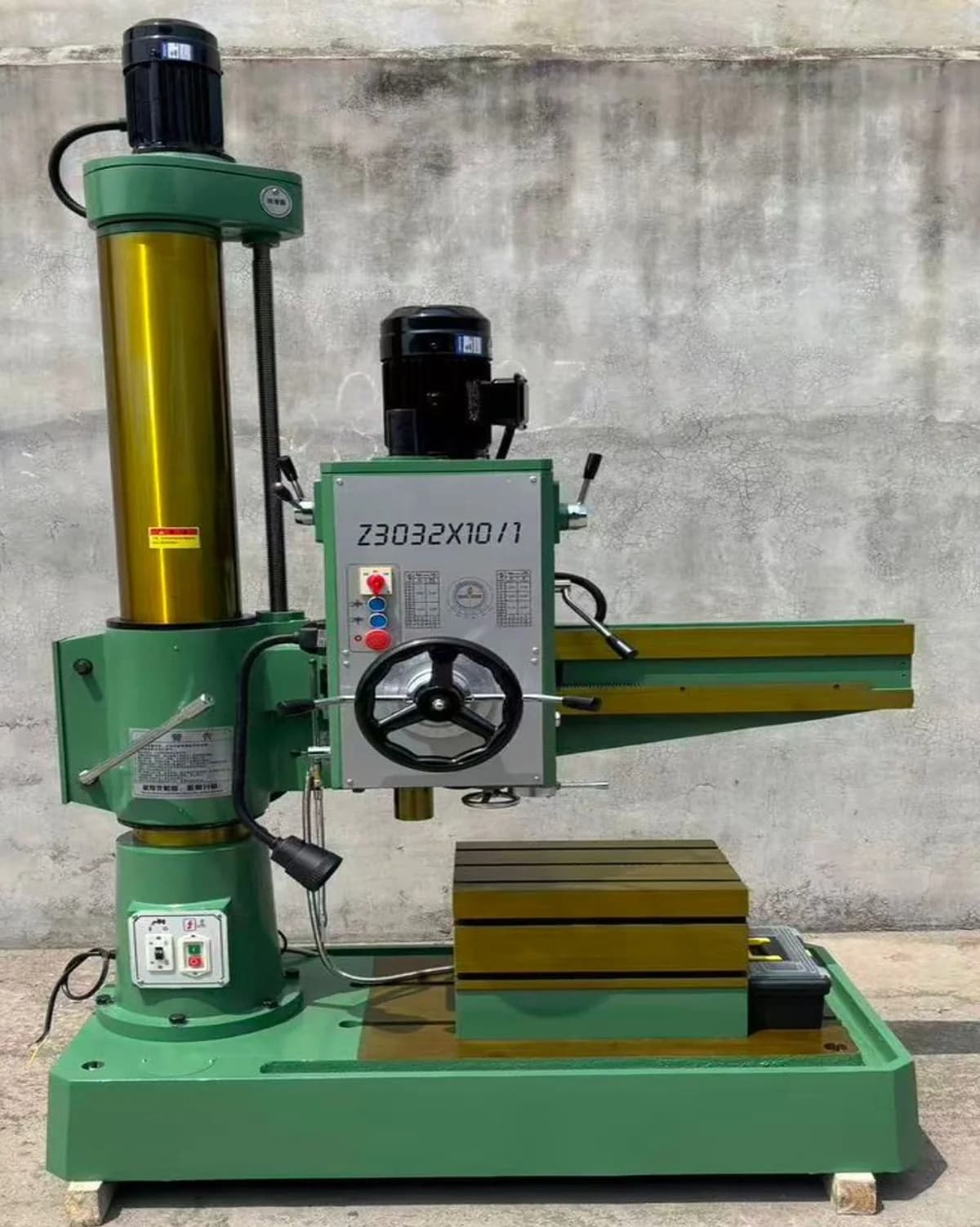

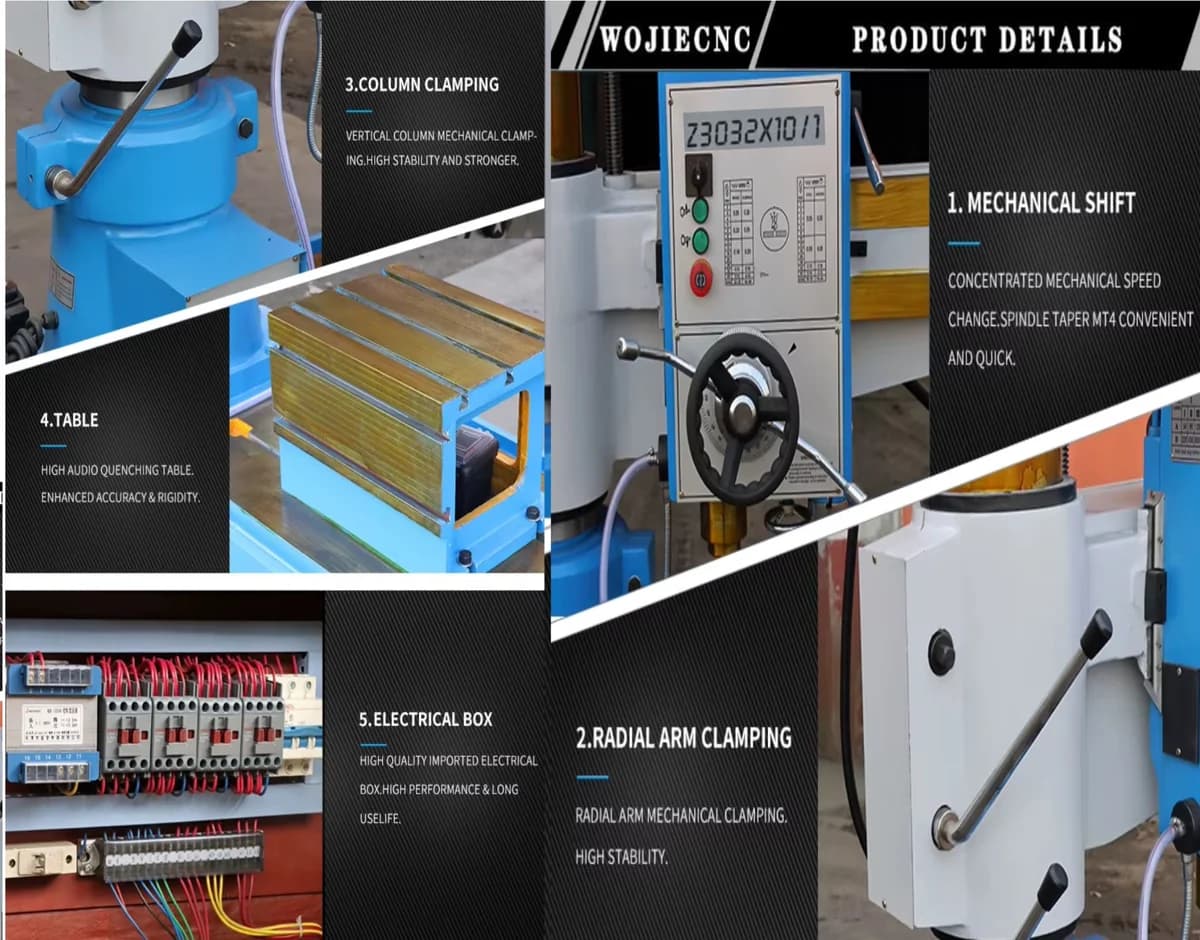

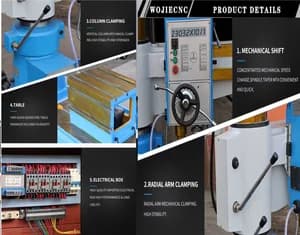

All Geared Auto Feed Radial Drilling Machine with Mechanical locking system Model Z3032×10
Suitable for workshop environments, this single column model provides compact efficiency for standard machining needs. The 1100 mm arm length balances reach with floor space requirements. • 32 mm drilling capacity in steel • 3 auto feed rates for precision • 900 Kg weight ensures minimal vibration

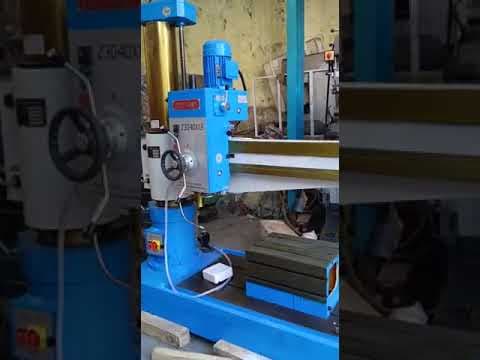

See it in action
Specifications
For: Z3032×10- Model
- Z3032×10 single column
- Maximum drilling dia
- 32/40 mm steel/cast Iron
- Distance from spindle centerline to column centerline (minimum-maximum)
- 300 – 1000 mm
- Distance from spindle end face to workbench (minimum-maximum)
- 230-1120 mm
- Travel of spindle
- 180 mm
- Spindle taper
- MT4
- Number of speed changes on spindle
- 6+6 Nos
- Range of spindle speeds
- 34-1220 rpm
- Arm Rotating angle
- 0±180°
- Horizontal movement distance of the spindle box
- 220 – 980 mm
- Spindle feed rate & No of auto feeds
- 0.10, 0.16, 0.25 mm/rev (3 Nos)
- Main Spindle motor power
- 1.5/2.2 Kw
- Power of the lifting and lowering motor
- 1.1 Kw
- Weight of the machine
- 1100 Kgs
- Packing Dimension
- 1500×700×2100 mm
- Arm Length
- 1000 mm
- Column diameter
- 200 mm
- Max Drilling Capacity (MS)
- 32 mm
- Motor Power
- 1.5Kw
Configurations

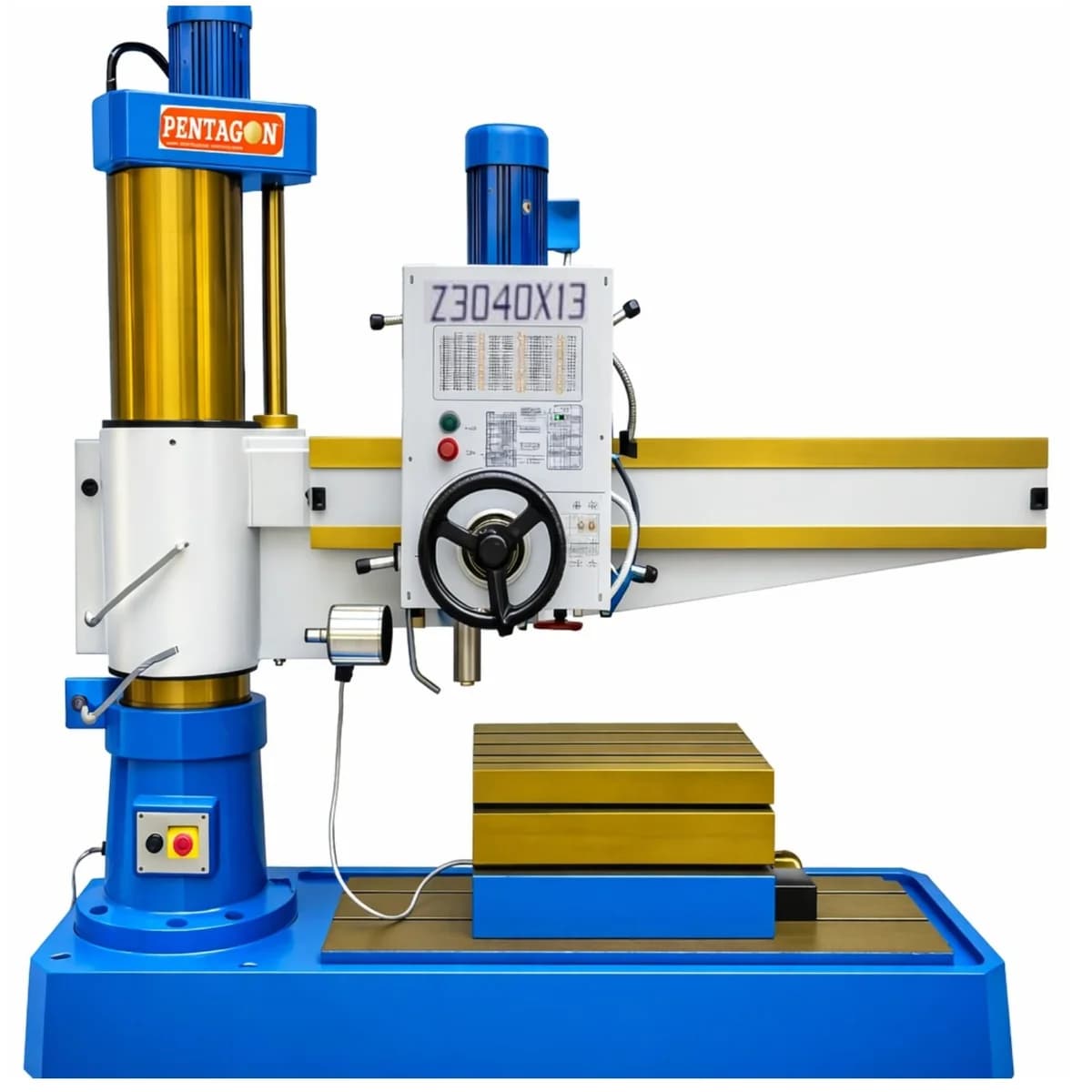

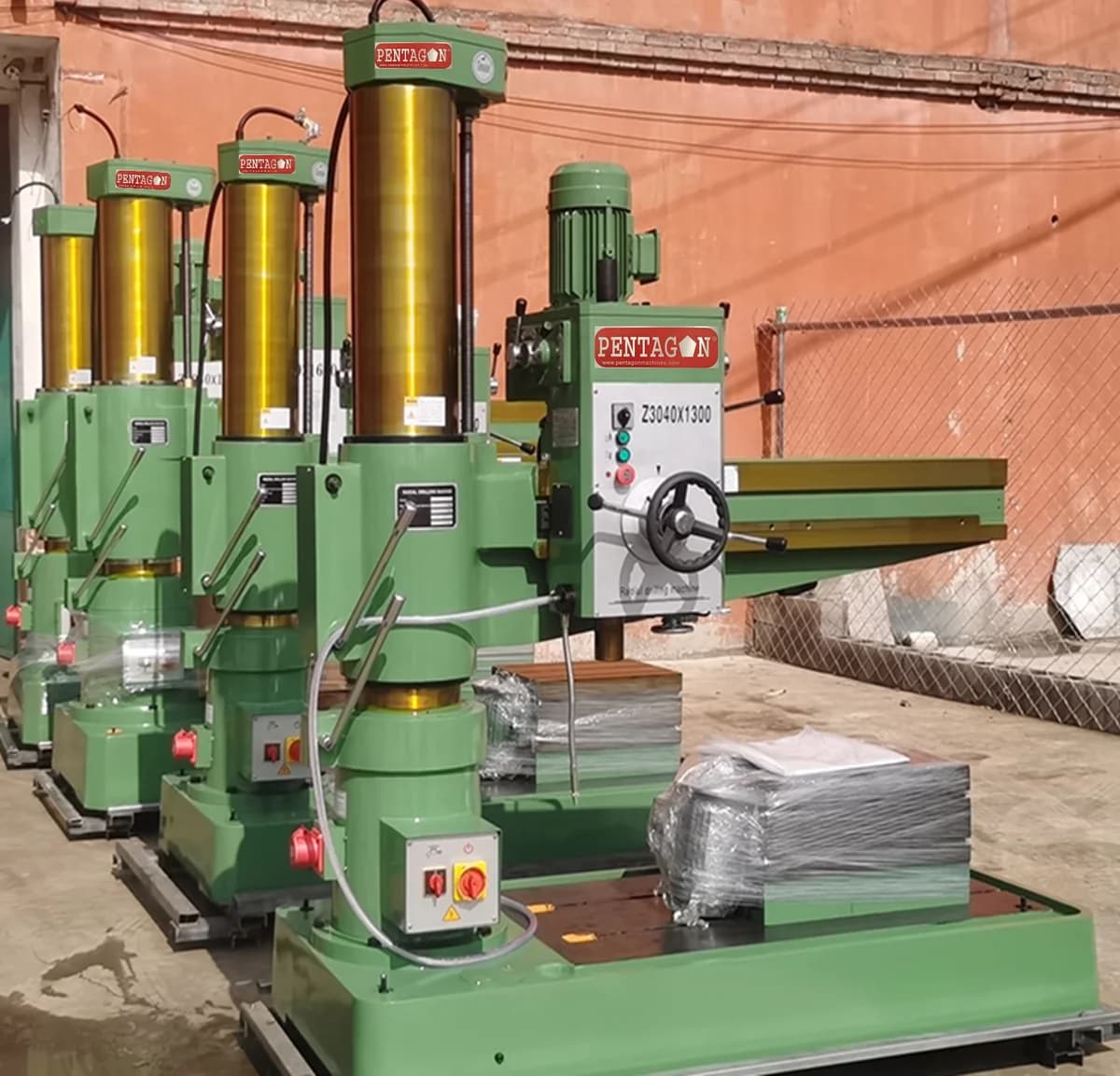

Click a row to switch| Variant | Maximum drilling dia | Spindle taper | Main Spindle motor power | Spindle feed rate & No of auto feeds | Price |
|---|---|---|---|---|---|
| Z3040x13 | 40/45 mm steel/cast Iron | MT4 | 1.5/2.2 Kw | 0.10, 0.16, 0.25 mm/rev (3 Nos) | ₹3,27,000 |

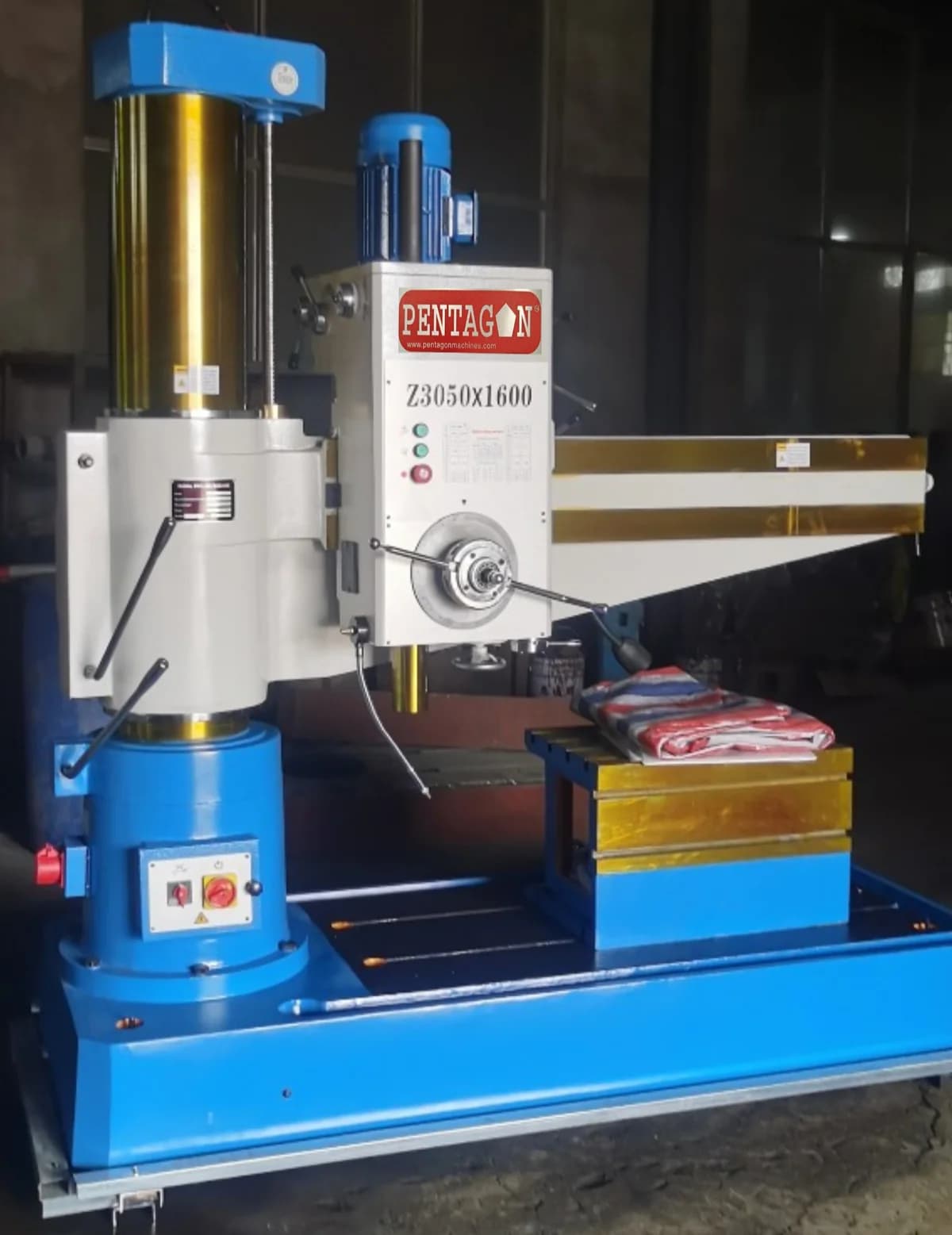

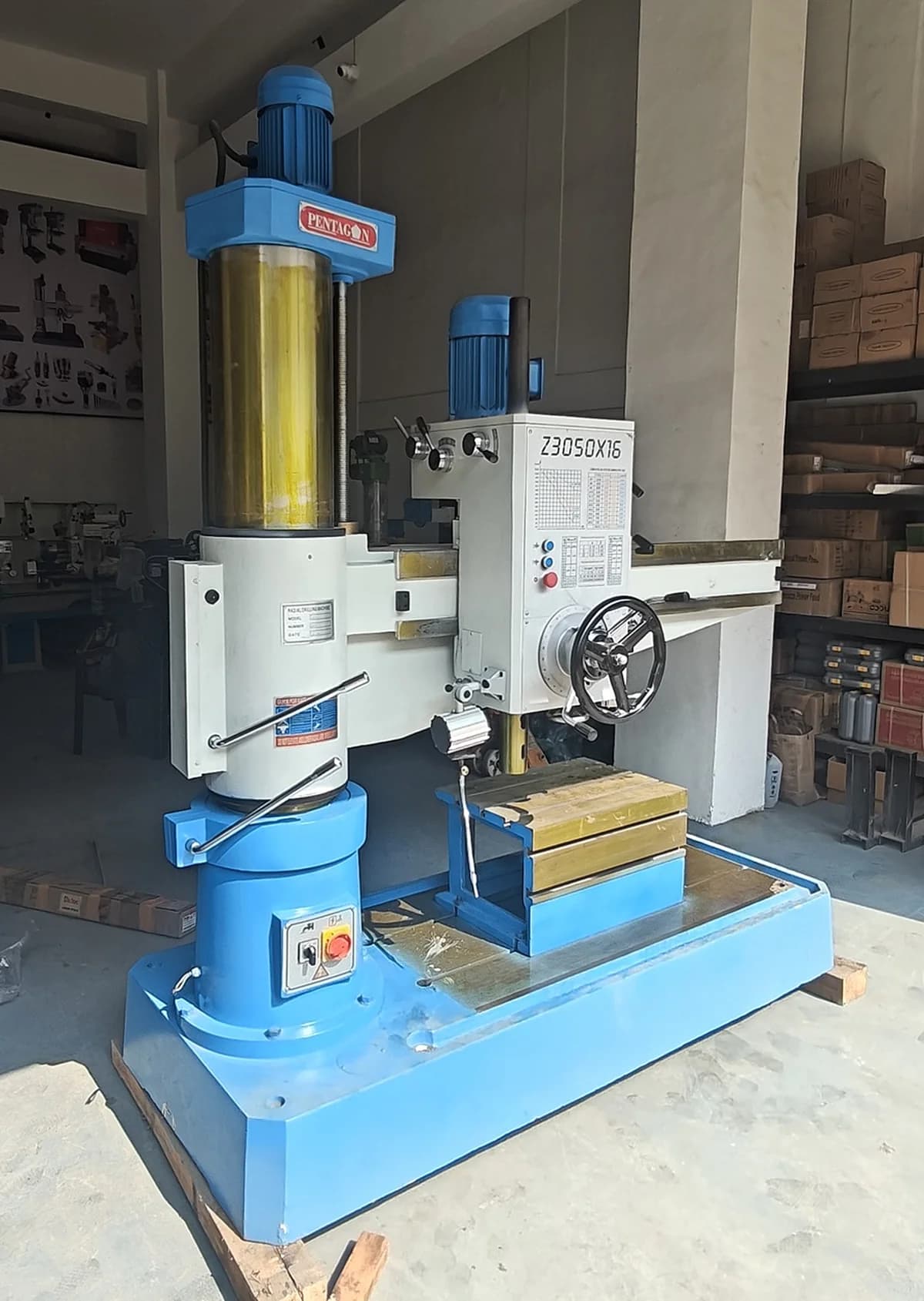

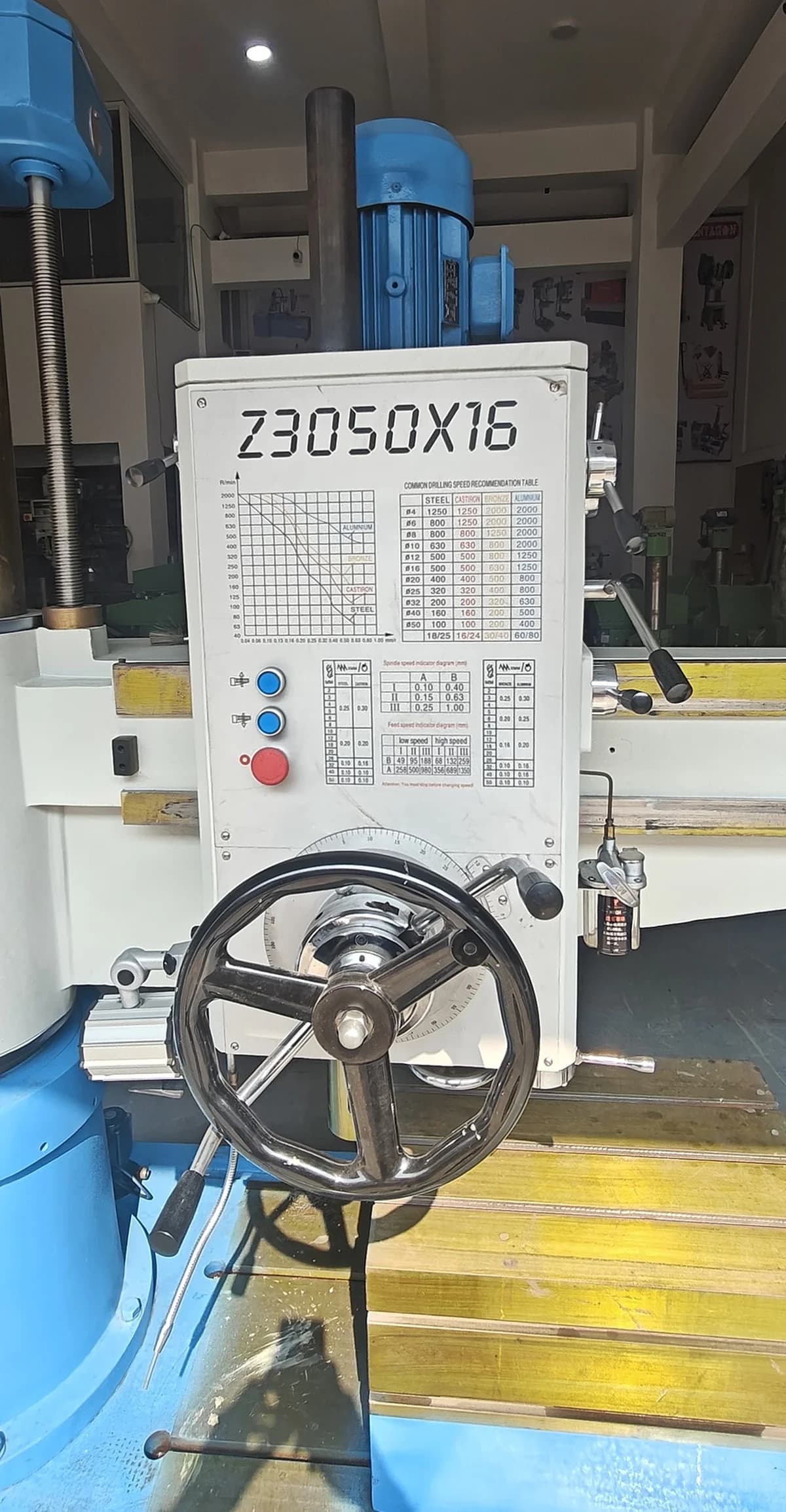

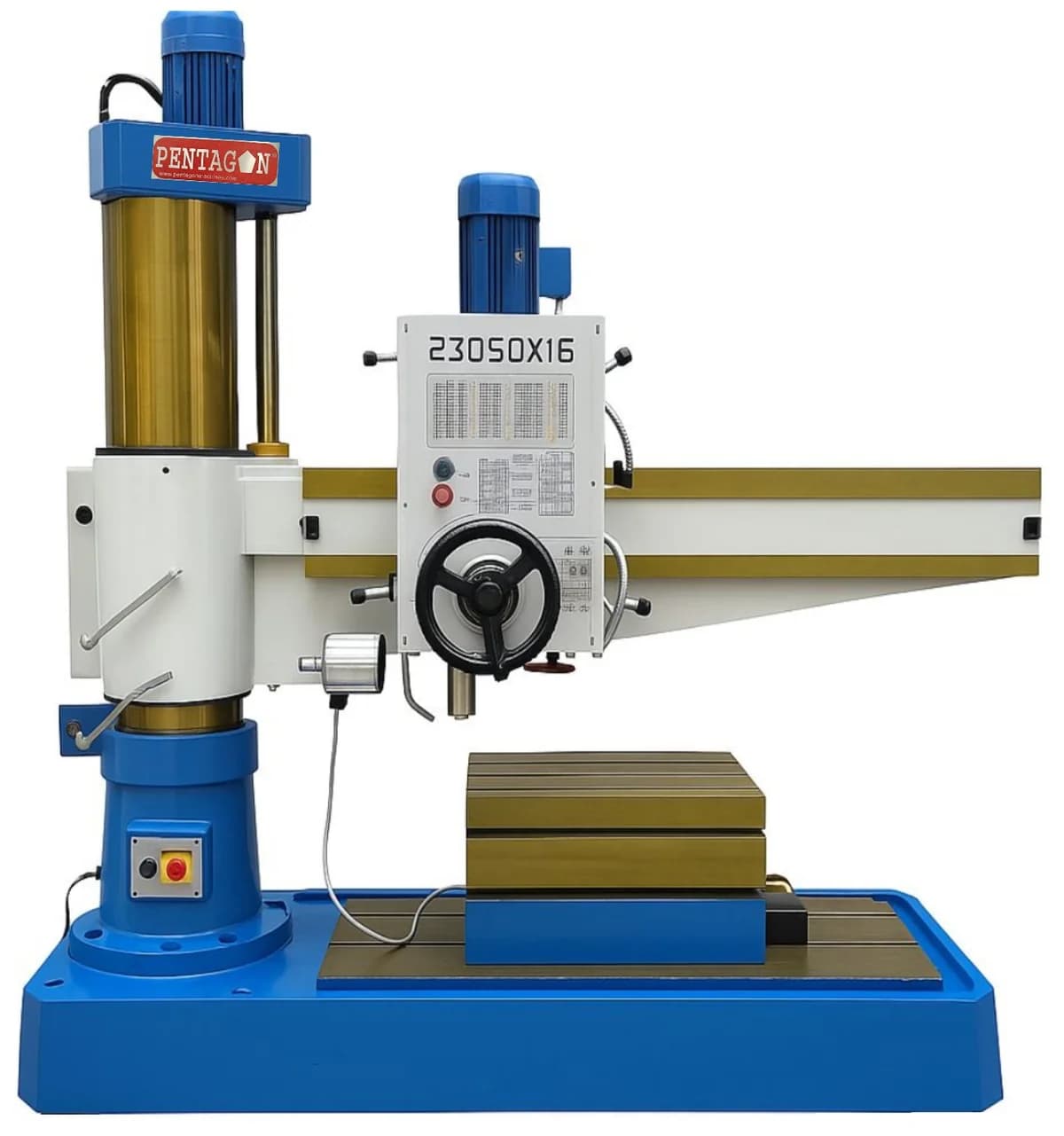

| Z3050x16 | 50/60 mm steel/cast Iron | MT5 | 1.5/2.2 Kw | 0.10, 0.16, 0.25 mm/rev (3 Nos) | ₹6,25,000 |

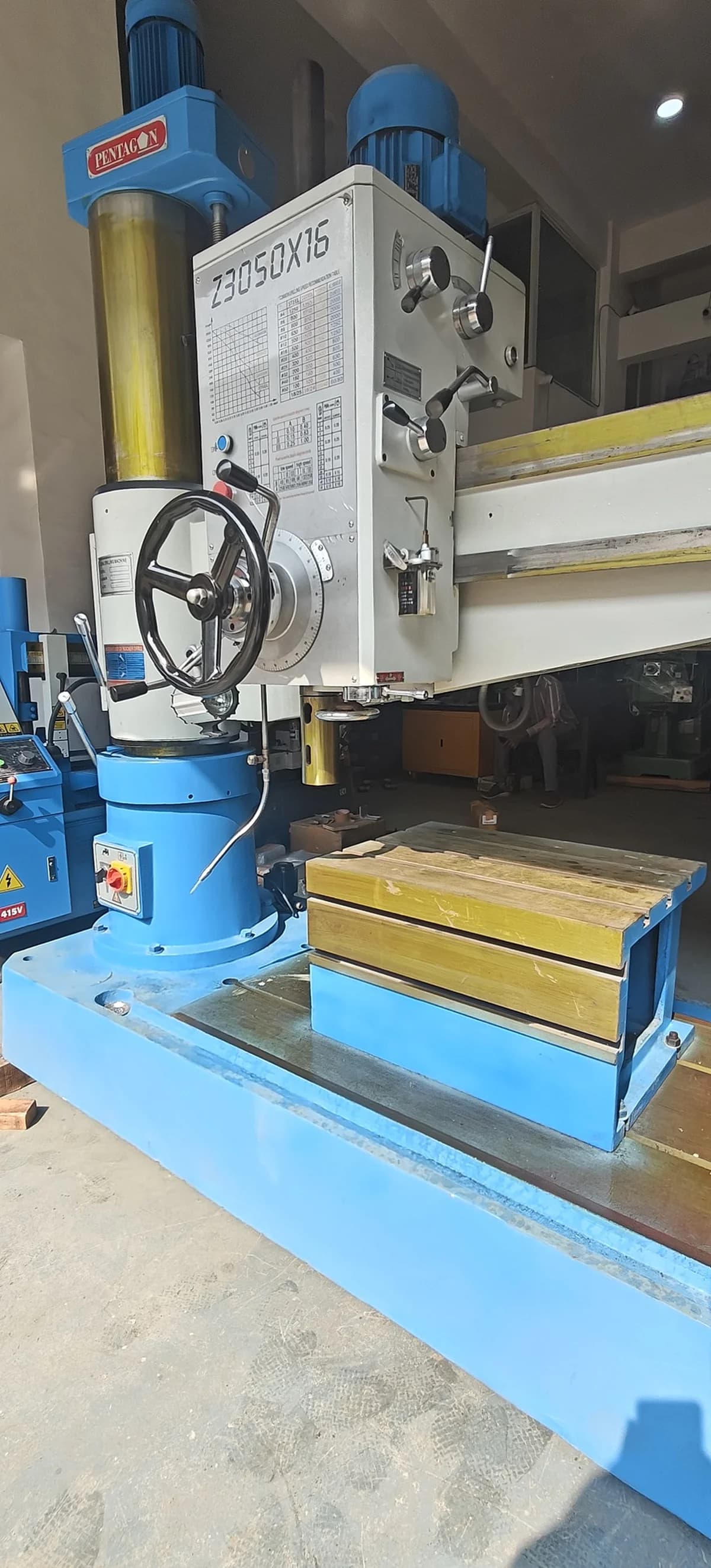

| Z3063x20 | 60/70 mm steel/cast Iron | MT5 | 1.5/2.2 Kw | 0.10, 0.16, 0.25 mm/rev (3 Nos) | ₹10,90,000 |
| Z3032×10 | 32/40 mm steel/cast Iron | MT4 | 1.5/2.2 Kw | 0.10, 0.16, 0.25 mm/rev (3 Nos) | ₹2,85,000 |
Common Buyer Questions
Q: Can this machine handle materials harder than mild steel? A: Yes, it is designed for steel and cast iron with speed adjustments. Q: Is the spindle box lock manual or automatic? A: The mechanical locking system is manually engaged to stabilize the box. Q: What is the maximum capacity for drilling diameters? A: Capacity varies by model but supports standard industrial drilling needs. Q: Does the machine include auto feed for all speeds? A: Geared auto feed rates are available across the standard speed range.
Productivity and Feed Control
- Auto feed rates reduce operator fatigue during long drilling cycles
- Quick speed changes minimize downtime between operations
- Stable spindle box locking reduces setup time for heavy cuts
- Optimized power consumption supports energy-efficient schedules
- Consistent feed control improves surface finish and accuracy
Robust Construction and Stability
- Robust motor power delivers consistent torque for continuous use
- Precision-machined spindle taper ensures accurate tool alignment
- Heavy-duty frame minimizes vibration during high-torque processes
- Sealed gearing protects internal mechanisms from chips and coolant
- Ergonomic controls facilitate easy operation for skilled machinists
Ideal Industries and Use Cases
- Ideal for maintenance workshops requiring versatile radial drilling
- Supports high-volume industrial production environments effectively
- Handles heavy-duty drilling tasks in steel fabrication settings
- Suitable for foundry environments with cast iron machining needs
- Effective for large component machining where table movement is limited
Operational Versatility and Reach
- Adjustable arm rotation allows 0–180° positioning for flexible access
- Spindle box horizontal movement provides extended reach capabilities
- Wide range of spindle speeds enables efficient machining processes
- Vertical travel accommodates varying workbench heights and thicknesses
- Mechanical gearing ensures reliable power transmission under load
Standard Accessories
- Coolant system
- Work light
- Suitable size box table
- Key type Drill chuck size 1-13 mm
- MT4-MT3 reduction sleeve
- JT6 drill chuck arbor
- Electrical control panel with safety features
- Operation Manual
Core Functional Capabilities
- Mechanical locking system stabilizes spindle box during heavy cutting
- Geared auto feed rates ensure consistent hole quality across materials
- Multiple spindle speeds accommodate diverse tooling requirements
- Designed for precision steel and cast iron machining operations
- Available in single and double column configurations for flexibility
Optional Accessories
- Tapping attachment model GT24/MT4-MT3
- Tap collets M5 to M36 any size
- Tilting Type Box table of suitable size
More questions buyers ask
What is an all-geared radial drilling machine?
An all-geared radial drilling machine uses a series of gears to transmit power from the motor to the spindle, providing high torque and consistent speed control for heavy-duty drilling tasks.
What are the key benefits of auto-feed in radial drills?
Auto-feed mechanisms ensure a consistent feed rate, which improves hole accuracy, surface finish, and reduces operator fatigue during repetitive or deep-hole drilling operations.
What materials can the Pentagon radial drill handle?
These machines are designed for high-performance drilling in steel, cast iron, and other industrial metals, offering robust power for demanding workshop environments.
What is the purpose of the mechanical locking system?
The mechanical locking system securely holds the spindle box and arm in place during drilling, minimizing vibration and ensuring precision even under heavy cutting loads.
Are these machines suitable for tapping operations?
Yes, with the optional tapping attachment, these radial drilling machines can perform efficient tapping operations on various components.
What does the 'Z3032x10' model designation mean?
The 'Z3032' indicates a 32mm maximum drilling capacity, and 'x10' refers to the 1000mm arm length, defining the machine's reach and work envelope.
How do I choose the right radial drill size?
Selection depends on your maximum drilling diameter requirements, the size of the workpieces, and the required reach (arm length) for your specific industrial applications.
Does the machine come with a coolant system?
Yes, the Pentagon radial drilling machine includes a standard coolant system to manage heat during continuous drilling operations.
What is the spindle taper specification?
The Z3032 model typically features an MT4 spindle taper, while larger models like the Z3050 and Z3063 use MT5 for heavier tooling.
Is installation and training provided?
Pentagon provides comprehensive operation manuals, and our support team can assist with guidance on installation and safe operation practices.
Who should choose the Z3032x10 model?
Ideal for small to medium-sized engineering workshops and fabrication units requiring a versatile, compact, and reliable radial drill for up to 32mm drilling.
Who should choose the Z3040x13 model?
Best for medium-heavy fabrication shops needing increased drilling capacity (40mm) and a longer arm reach for larger workpieces.
Who should choose the Z3050x16 model?
Designed for heavy-duty industrial production environments requiring 50mm drilling capacity and extended reach for large-scale component machining.
Who should choose the Z3063x20 model?
The top-tier choice for heavy engineering and foundry applications needing maximum 63mm drilling capacity and the largest work envelope.
How does the Z3032 compare to the Z3063 in capacity?
The Z3032 is a compact 32mm capacity machine, whereas the Z3063 is a heavy-duty 63mm capacity machine, offering significantly higher torque and reach.
Is the Z3040 more versatile than the Z3032?
The Z3040 offers a larger drilling capacity and longer arm, providing greater versatility for larger components compared to the more compact Z3032.
Which model is best for heavy-duty steel fabrication?
For heavy-duty steel fabrication, the Z3050x16 or Z3063x20 are recommended due to their higher motor power and robust construction.
