Hydraulic NC Press Brake Machine with Estun-21 controller — 63T/2500 mm
Hydraulic NC Press brake model WC67Y 63T/2500 mm with motorized back gauge with ball screw supported motion along with NC control system E-21 and with complete all std accessories, WC67Y-63/2500 is a robust Hydraulic NC Press Brake designed for precise and consistent sheet metal bending. Equipped with an Estun-21 NC Controller, it enables efficient programming, accurate stroke control.

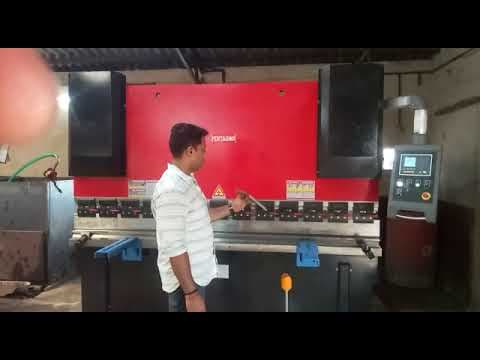

See it in action
Specifications
For: 63T/2500 mm- Model
- WC67Y 63T/2500
- Machine Type
- Hydraulic NC Press brake Machine
- Controller
- Estun E-21
- Back gauge adjustment Range
- 500 mm
- Stroke per Min
- 12 Stroke
- Bending Length
- 2500 mm
- Material to be Bend
- MS / SS / Aluminium / Copper
- Bending Capacity
- 4mm MS and 2mm SS
- Nominal Pressure
- 630 Kn
- Throat Depth
- 250 mm
- Ram Stroke
- 120 mm
- Distance Between Columns
- 2000 mm
- Max Shut Height
- 320 mm
- Body frame
- Heavy Welded Steel Fabricated
- Motor Power
- 7.5 Hp (5.5 Kw)
- Oil Tank Capacity
- 120-150 Liters
- Working Speed
- 12 mm/s
- Return Speed
- 150 mm/s
- Machine Dimensions
- 2850x1350x2250 mm
- Machine Weight
- 4200 Kgs
Configurations
Click a row to switch| Variant | Bending Length | Bending Capacity | Distance Between Columns | Max Shut Height | Price |
|---|---|---|---|---|---|
| 63T/2500 mm | 2500 mm | 4mm MS and 2mm SS | 2000 mm | 320 mm | ₹9,26,000 |
| 125T/2500 mm | 2500 mm | 6mm MS and 3mm SS | 2000 mm | 350 mm | ₹14,70,000 |
| 125T/3200 mm | 3200 mm | 5mm MS and 2.5mm SS | 2600 mm | 360 mm | ₹16,32,000 |
| 100T/4000 mm | 4000 mm | 6mm MS and 3mm SS | 3100 mm | 380 mm | ₹17,12,000 |
| 100T/3200 mm | 3200 mm | 6mm MS and 3mm SS | 2600 mm | 380 mm | ₹14,96,000 |
| 80T/2500 mm | 2500 mm | 5mm MS and 2.5mm SS | 2000 mm | 360 mm | ₹12,25,000 |
| 80T/3200 mm | 3200 mm | 5mm MS and 2.5mm SS | 2600 mm | 360 mm | ₹12,91,999 |
| 63T/3200 mm | 3200 mm | 4mm MS and 2mm SS | 2600 mm | 320 mm | ₹12,28,000 |
| 100T/2500 mm | 2500 mm | 6mm MS and 3mm SS | 2000 mm | 380 mm | ₹13,56,000 |
| 125T/4000 mm | 4000 mm | 5mm MS and 2.5mm SS | 3100 mm | 380 mm | ₹18,38,000 |
| 160T/3200 mm | 3200 mm | 6mm MS and 3mm SS | 2600 mm | 460 mm | ₹20,01,000 |
| 160T/2500 mm | 2500 mm | 7mm MS and 3.5mm SS | 2000 mm | 450 mm | ₹18,78,000 |
Description
The WC67Y Hydraulic NC Press Brake is a precision sheet metal bending machine engineered for accurate, efficient, and repeatable forming operations. Built with a heavy-duty welded steel structure, the machine ensures minimal deformation during bending and long-term mechanical stability. Its hydraulic drive system delivers smooth and powerful pressing force suitable for bending mild steel sheets up to 16 mm thickness across a 6000 mm working length.
Equipped with the Estun-21 NC controller, the machine provides improved operational control, enabling quick parameter setting, stroke adjustment, and back-gauge positioning for consistent bending quality. The back-gauge system enhances accuracy for repetitive tasks, making it ideal for production environments.
Advantages
High Bending Accuracy & Repeatability
- Hydraulic system and NC controller ensure consistent forming quality across production batches.
Robust Structural Design
- Heavy-duty welded frame minimizes deflection during bending and increases durability.
Efficient NC Control System
- Estun-21 enhances programming efficiency, stroke control, and back-gauge positioning for precision bends.
Enhanced Productivity for Medium-Volume Fabrication
- Reduced setup time and repeatable performance make it suitable for continuous job work.
Smooth Hydraulic Operation
- Provides stable pressing force for uniform bending on a wide range of sheet thicknesses.
Operator Safety & Accessibility
- Side guards and ergonomic layout improve safety while enabling convenient operation and maintenance.
Low Maintenance Requirements
- Proven hydraulic components and simple drive mechanisms ensure long service life with reduced downtime.
Versatile Bending Capabilities
- Supports various profiles such as channels, trays, angles, and brackets across multiple industries.
Features
- The main frames are constructed from stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads
- Hydraulic / Mechanical ram, synchronized positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder
- Parallelism is ensured by torsion bar structure
- Segmented heavy duty 86° offset top punch and whole one die block
- Quick action top punch tool holder system with wedge type adjustment
- Multi vee ('V') bottom die is made from one piece solid die block design
- Power operated ball screw back gauge with quality support fingers
- Front sheet supports enabling a wide range of material sizes to be aligned
- Integrated quality Rexroth hydraulic system
- Material selection bending charts mounted on front beam for easy access
- Front sheet support arms
- E21 NC display ram Y and back gauge X movement
- Emergency stop buttons conveniently located on control panel and foot control
- Foot pedal control
- Metal constructed safety side guarding machine
Applications
The WC67Y-63/2500 Hydraulic NC Press Brake is suitable for precision sheet metal forming across a wide range of industrial fabrication environments. Typical applications include:
Electrical and Control Panel Fabrication
- Production of enclosures, boxes, brackets, and busbar supports.
HVAC and Ducting Systems
- Forming of duct panels, air handling components, and ventilation parts.
Automotive and Transportation Components
- Fabrication of chassis brackets, body panels, and structural sheet assemblies.
Metal Furniture and Storage Solutions
- Bending of cabinets, drawers, racks, and modular metal structures.
General Sheet Metal Job Work
- Production of trays, channels, angles, frames, and customized profiles.
Appliances and Consumer Product Housing
- Forming casings, shells, and cover panels for industrial and consumer goods.
Fabrication Workshops & SMEs
- Ideal for medium to high-volume bending operations with repeat accuracy.
Standard Accessories
- Hydraulic NC Press brake model WC67Y 63T/2500 mm with motorized back gauge with ball screw supported motion along with NC control system E-21 and with complete all std accessories
- Electrical System Schneider
- Hydraulic System Rexroth
- E21 NC system Estun
- Gear Pump Shanghai Maoxin
- Motors Chinese Famous Brand
- Seals Japan Valqua
More questions buyers ask
What is a WC67Y Hydraulic Press Brake?
The WC67Y is a hydraulic sheet metal bending machine designed for precision folding of metal plates using a hydraulic system and NC controller.
What does the E-21 NC controller do?
The Estun E-21 controller manages the ram stroke (Y-axis) and back-gauge position (X-axis) for repeatable, accurate bending results.
What materials can this press brake bend?
It is suitable for bending mild steel (MS), stainless steel (SS), aluminium, and copper sheets.
What is the bending capacity of the 63T/2500 model?
The 63T/2500 model can bend up to 4mm mild steel and 2mm stainless steel across its full 2500mm length.
Is this machine suitable for small workshops?
Yes, its compact design, ease of use, and high repeatability make it ideal for fabrication workshops and SMEs.
What safety features are included?
The machine features side guards, emergency stop buttons on the control panel and foot pedal, and an ergonomic layout.
Does it come with a warranty?
Yes, Pentagon provides standard manufacturer warranty and after-sales support across India.
How is the bending accuracy maintained?
Accuracy is maintained through the torsion bar structure for parallelism and the NC-controlled back-gauge system.
What is the power requirement?
The 63T/2500 model is equipped with a 7.5 HP (5.5 kW) motor.
Can I bend different profiles?
Yes, the machine supports various profiles including channels, trays, angles, and brackets.
Who should choose the 63T/2500 model?
Choose this model if you require a compact, reliable machine for standard 2500mm sheet metal bending tasks up to 4mm thickness.
Who should choose the 160T/3200 model?
Choose this heavy-duty model for high-tonnage requirements, thicker materials, and longer bending lengths up to 3200mm.
How does the 63T compare to the 160T model?
The 63T is for lighter, standard fabrication, while the 160T offers significantly higher pressing force and capacity for heavy-duty industrial applications.
Is the 2500mm length sufficient for my needs?
If your standard work involves sheets up to 2.5 meters, the 2500mm models are ideal; for larger sheets, consider the 3200mm or 4000mm variants.
