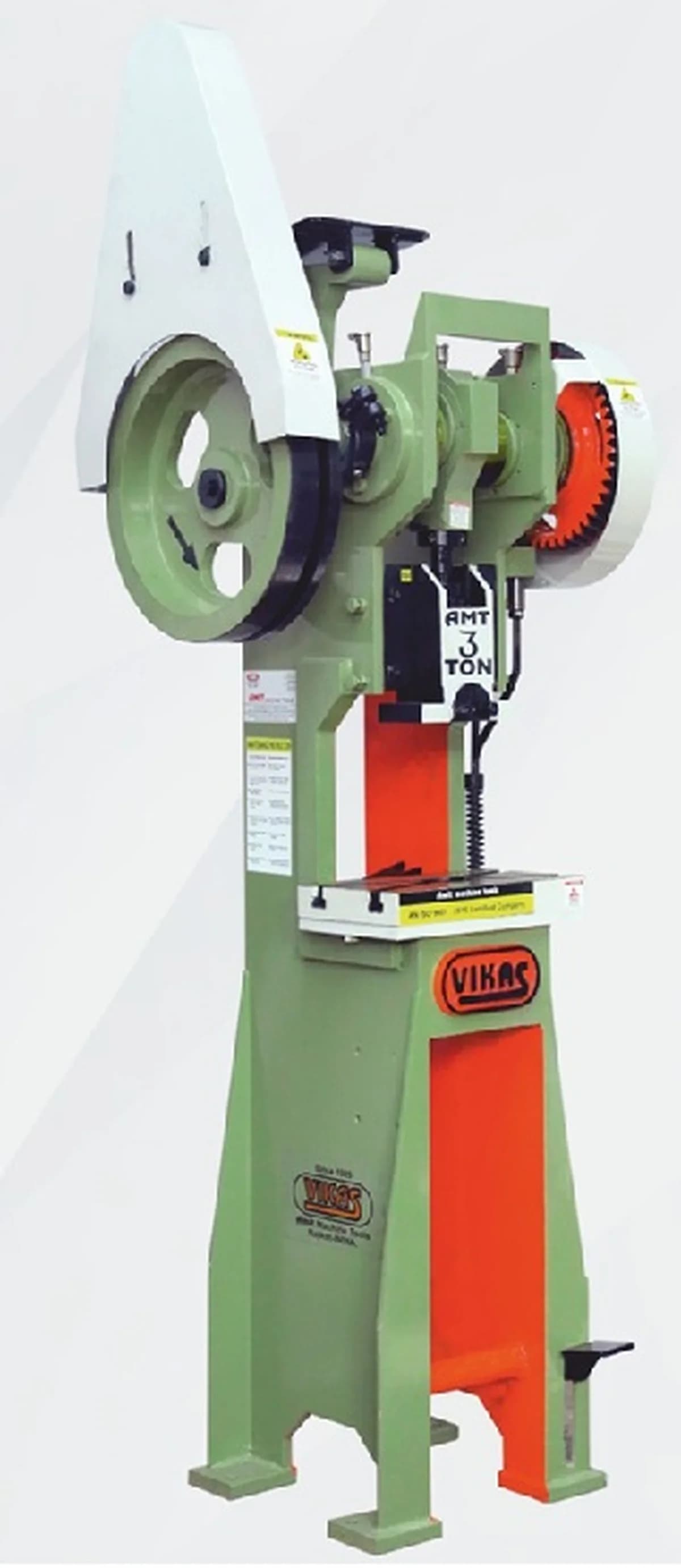

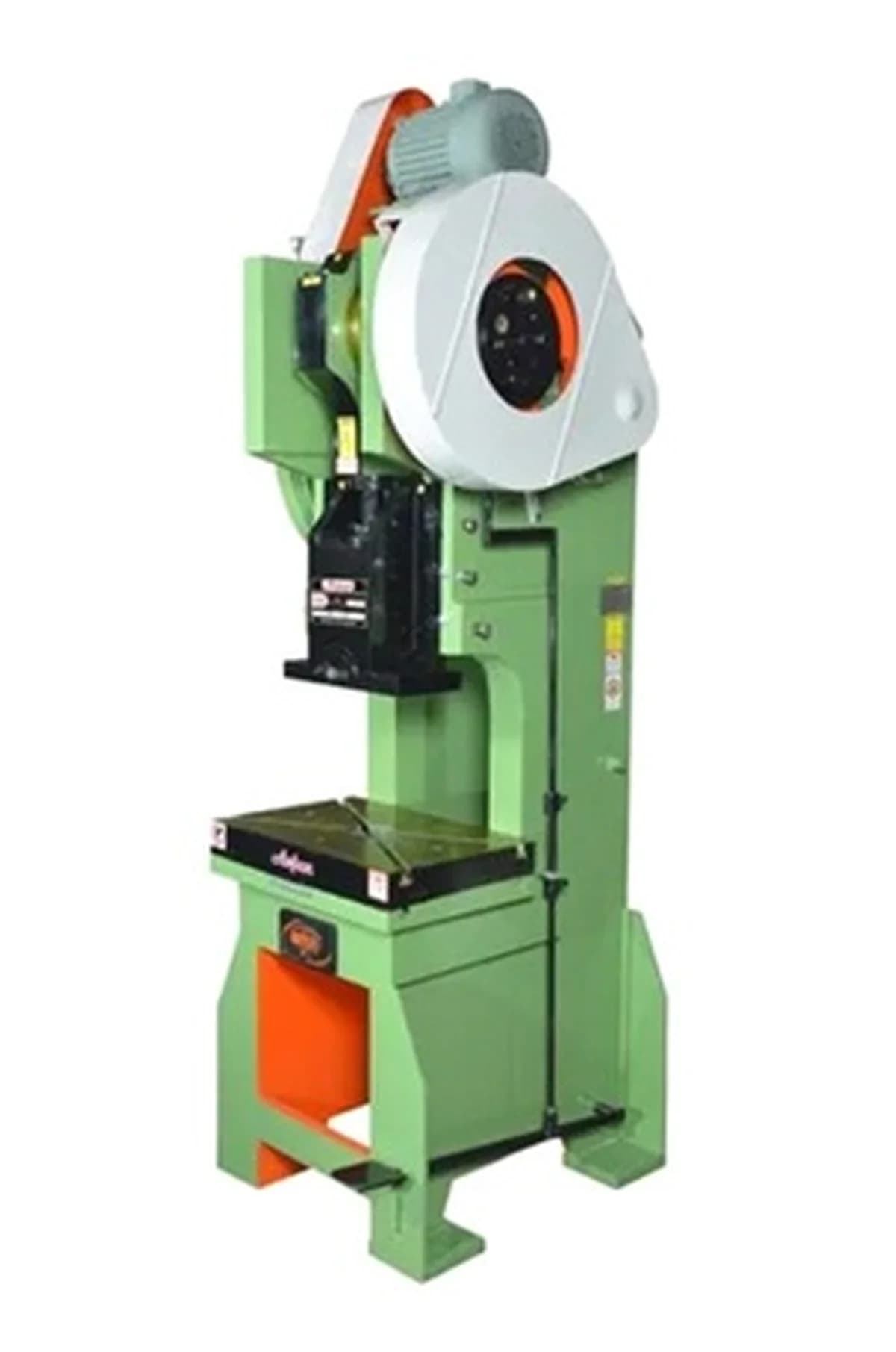

Mechanical C Type Power Press Model 3 Ton
Compact press for light-duty metal forming operations in small workshops. • 3 Ton capacity with 25 mm stroke • 250x150x31.75 mm bed size • 0.5 HP motor for energy efficiency • Used for punching and bending thin sheets

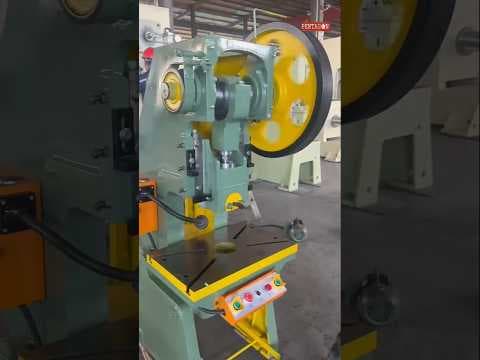

See it in action

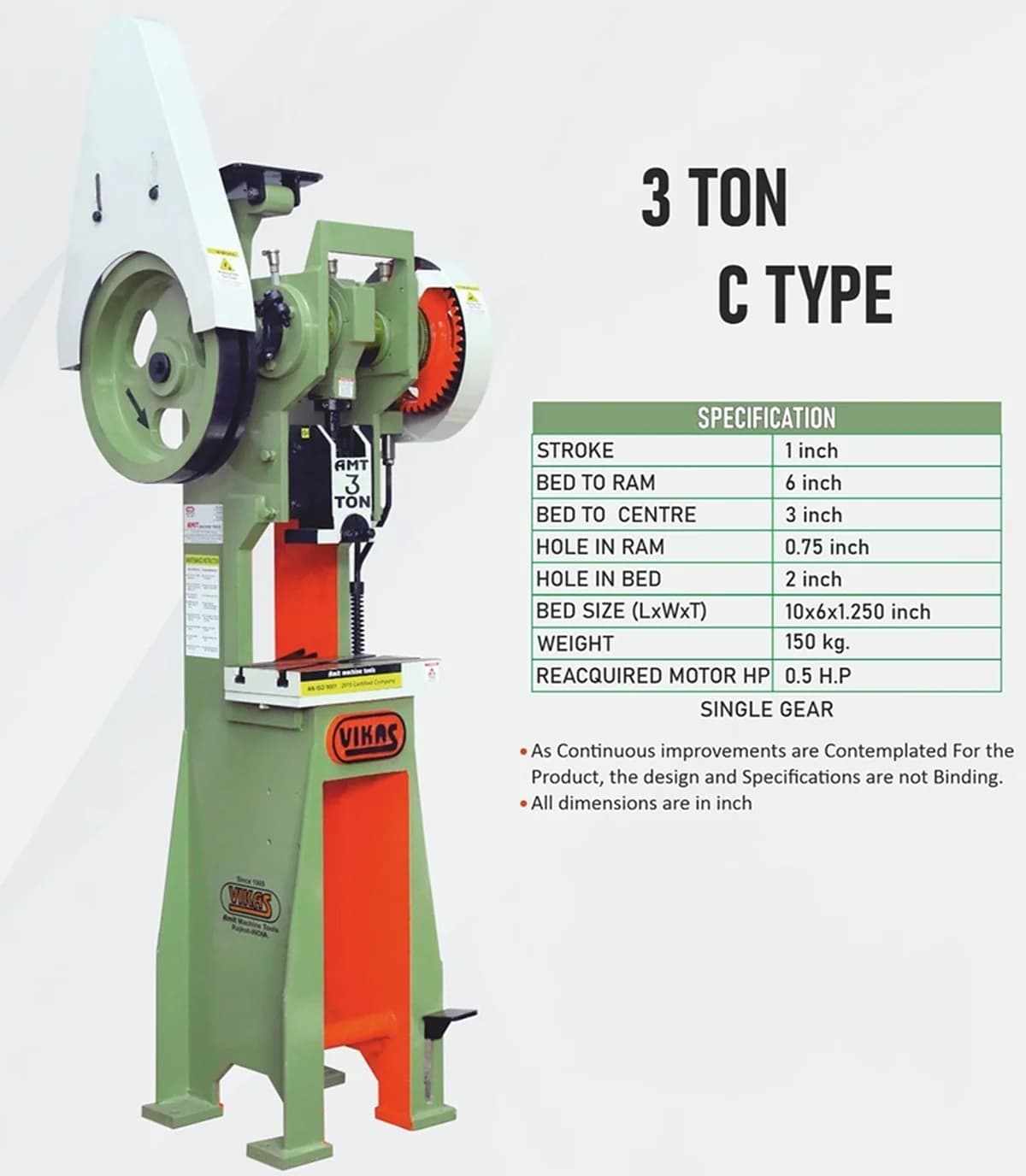

Specifications
For: 3 Ton- Capacity
- 3 Ton
- Machine Type
- C Type Mechanical Press
- Stroke
- 25 mm (1")
- Distance Bed To Ram
- 150 mm (6")
- Distance Bed to Center
- 75 mm (3")
- Hole In Bed
- 50 mm (2")
- Hole In Ram
- 19 mm (0.75")
- Bed Size (LxWxT) in MM
- 250x150x31.75 mm
- Weight Approx.
- 150 Kgs
- Motor Power required
- 0.5 HP
Configurations
Click a row to switch| Variant | Capacity | Distance Bed To Ram | Stroke | Bed Size (LxWxT) in MM | Price |
|---|---|---|---|---|---|
| 3 Ton | 3 Ton | 150 mm (6") | 25 mm (1") | 250x150x31.75 mm | ₹59,500 |
| 5 Ton | 5 Ton | 200 mm (8") | 38 mm (1.5") | 325x200x38 mm | ₹89,000 |
| 10 Ton | 10 Ton | 250 mm (10") | 50 mm (2") | 400x250x50 mm | ₹1,55,000 |
| 20 Ton | 20 Ton | 300 mm (12") | 75 mm (3") | 500x300x62 mm | ₹2,35,000 |
| 30 Ton | 30 Ton | 355 mm (14") | 75 mm (3") | 550x350x75 mm | ₹3,55,000 |
| 50 Ton | 50 Ton | 400 mm (16") | 112.5 mm (4.5") | 650x400x88 mm | ₹5,45,000 |
| 80T | 80 Ton | 381 mm | 114 mm | 250x150x31.75 mm | ₹7,45,000 |
| 100T | 100 Ton | 432 mm | 127 mm | 250x150x31.75 mm | ₹9,45,000 |
Common Buyer Questions
Q: What is the maximum tonnage available? A: This machine series ranges from 3 T to 100 T capacity options. Q: Can I change the operating speed? A: Yes, single or double gear options are available for varied speeds. Q: Is this suitable for bending operations? A: Yes, it is ideal for punching, blanking, bending, and embossing tasks.
Operational Flexibility & Advantages
- Versatile capacity range meets requirements from small workshops to factories
- Open frame structure simplifies maintenance and die setup procedures
- Mechanical drive system offers predictable force application
- Cost-effective solution for general purpose metal forming tasks
Mechanical Configuration & Reliability
- Single or double gear options for varied speeds to match process needs
- Robust frame design minimizes vibration during high-force operations
- Engineered for stability under heavy load conditions
- Compatible with standard industrial power supply requirements
Ideal Applications & Operations
- Ideal for punching, blanking, bending, and embossing tasks in fabrication shops
- Delivers reliable force for consistent sheet metal forming results
- Handles high-volume production runs with stable mechanical performance
- Supports diverse fabrication workflows requiring precision cutting
Capacity & Design Overview
- C type Mechanical Power press Machine available from 3 T – 100 T capacity
- Open C-frame design ensures easy die access for tooling changes
- Rigid construction supports continuous production cycles without fatigue
- Suitable for light to heavy duty industrial sheet metal operations
Optional Accessories
- Two-hand safety control
- Die cushion
- Adjustable stroke mechanism
- Auto lubrication system
- Safety guards
- Foundation bolts
Standard Accessories
- Electric motor with pulley
- Flywheel assembly
- Mechanical clutch and brake
- Foot switch / push button control
- Tool mounting T-slots
More questions buyers ask
What is a C-type power press?
A C-type or C-frame power press has a frame shaped like the letter 'C'. This open-sided design provides easy access for loading and unloading material and mounting dies, making it popular for a wide range of stamping, punching, and forming operations.
What are the applications of a mechanical power press?
Mechanical power presses are used for a variety of sheet metal operations, including punching, blanking, bending, coining, and embossing. They are widely used in the automotive, appliance, and electronics industries.
What is the price of a PENTAGON power press in India?
The price of a PENTAGON C-Type Power Press varies depending on the tonnage capacity. The range starts from approximately ₹59,500 for the 3-ton model to ₹9,45,000 for the 100-ton model. Please check the latest prices for each variant.
Do you provide a warranty on these machines?
Yes, all our PENTAGON power presses come with a manufacturer's warranty. We also provide after-sales support and service across India.
Is GST invoice available for this purchase?
Yes, we provide a proper GST invoice for all purchases, allowing you to claim input tax credit for your business.
Do you deliver across India?
Yes, we offer pan-India delivery to all major cities and industrial areas. Shipping charges may vary based on your location.
What is the power requirement for these machines?
The motor power required varies by model, from 0.5 HP for the 3-ton press up to 10 HP for the 100-ton press. Please refer to the specifications for the exact requirement of each variant.
How to choose the right tonnage for a power press?
The required tonnage depends on the material thickness, type of material, and the complexity of the operation (punching, bending, etc.). Our technical team can assist you in selecting the perfect machine for your specific application.
What is the difference between a mechanical and hydraulic press?
Mechanical presses, like this one, use a flywheel and clutch mechanism, offering high speed and efficiency for stamping and punching. Hydraulic presses use a fluid-based system, providing constant pressure throughout the stroke, which is ideal for deep drawing and forming operations.
Are spare parts available for these machines?
Yes, we maintain a ready stock of common spare parts for all our PENTAGON machine models to ensure minimum downtime for your production.
Who should choose the 3 Ton model?
The 3 Ton PENTAGON C-Type Power Press is ideal for small workshops, startups, and for light-duty operations like punching and embossing on thin sheet metal. Its low power consumption and compact size make it a very economical choice.

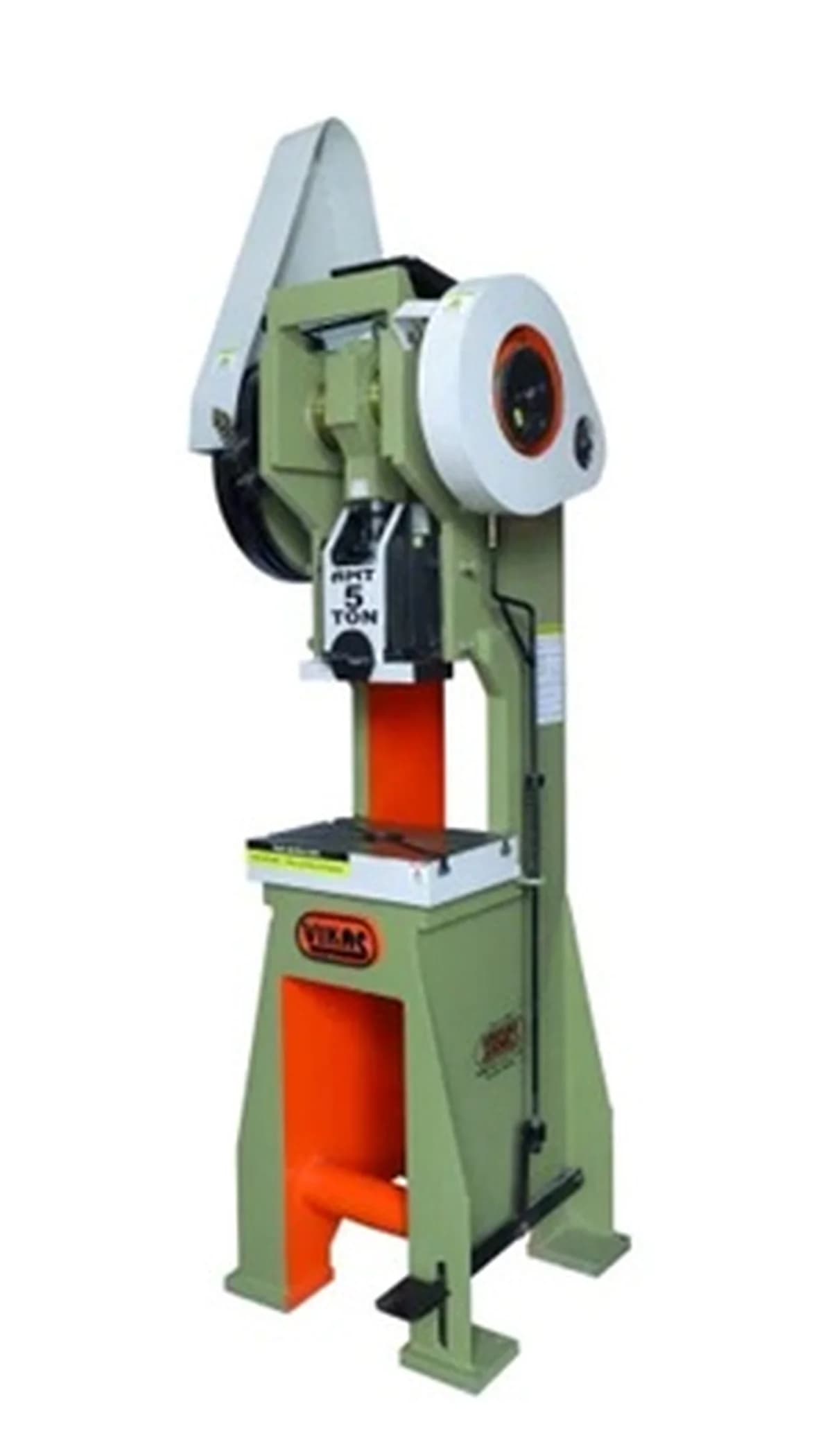

Who should choose the 5 Ton model?
The 5 Ton model offers a step-up in capacity for workshops handling slightly thicker materials or requiring more force for their blanking and forming operations. It's a versatile machine for general fabrication.

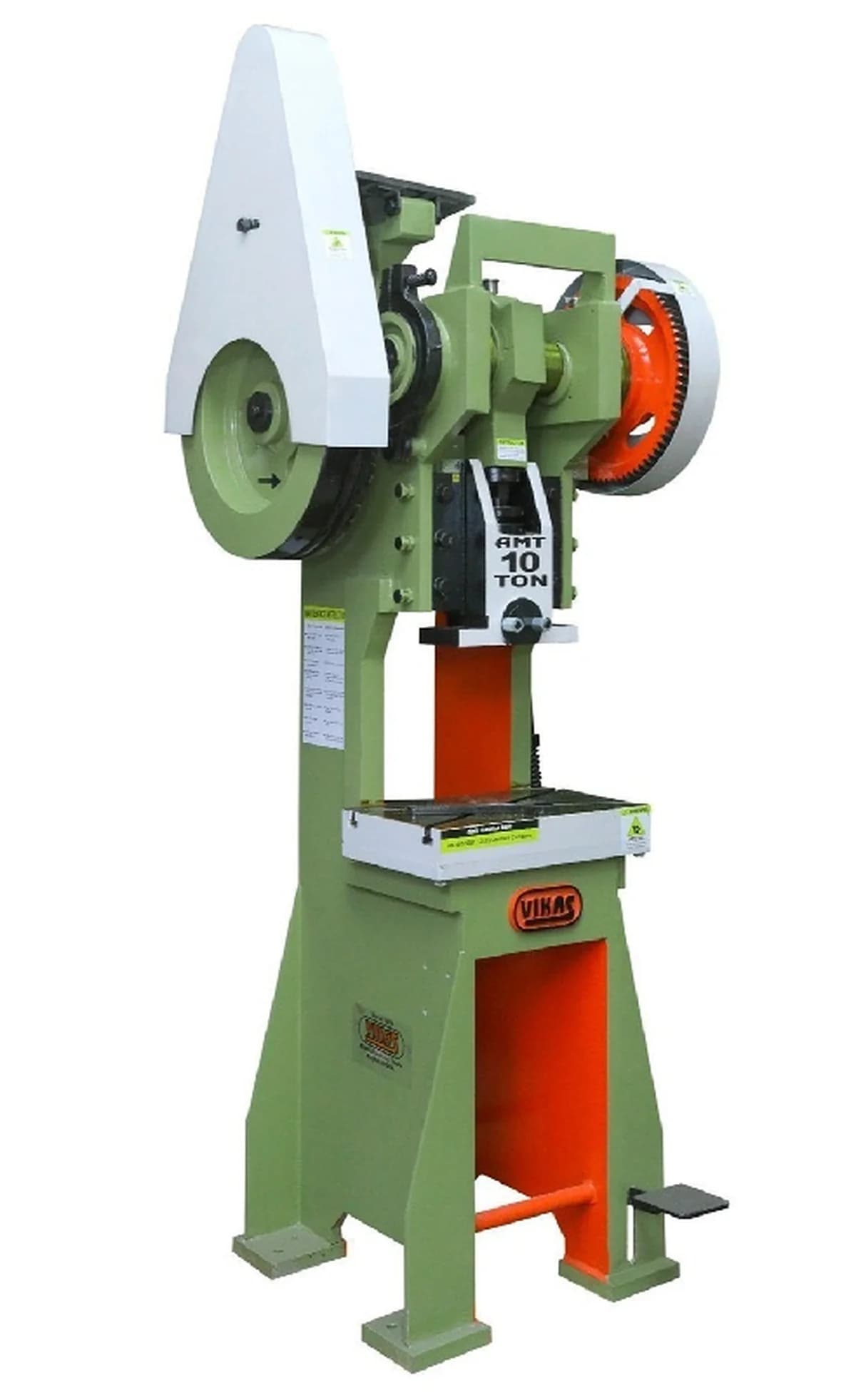

Who should choose the 10 Ton model?
The 10 Ton press is a popular choice for small to medium-sized enterprises (SMEs) engaged in series production. It provides a good balance of power, price, and performance for various sheet metal components.
Who should choose the 20 Ton model?
With double the capacity of the 10-ton model, the 20 Ton PENTAGON press is suited for medium-duty applications, including manufacturing of automotive parts, electrical enclosures, and other fabricated goods requiring significant force.

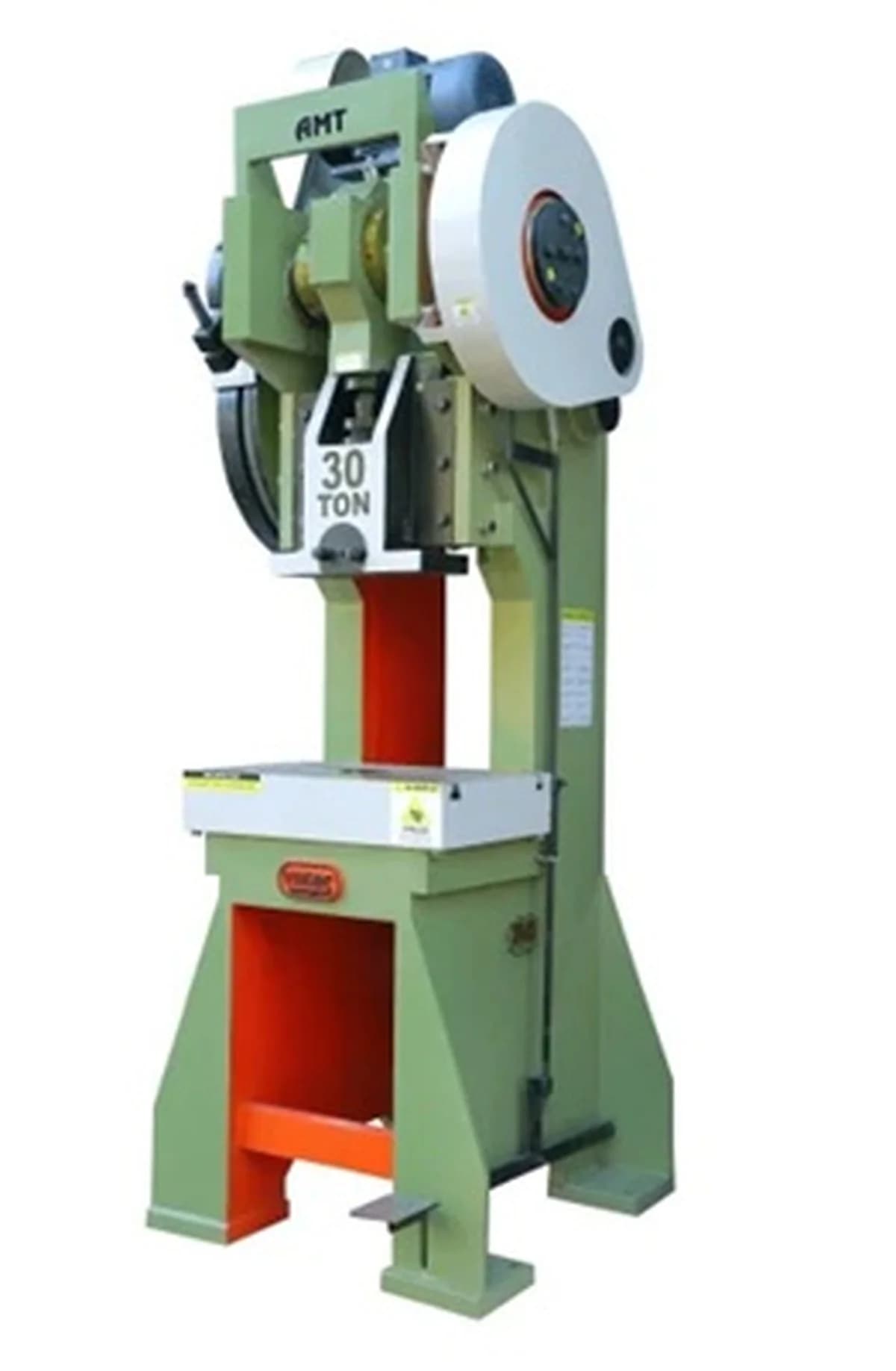

Who should choose the 30 Ton model?
The 30 Ton model is a robust machine for industrial-scale production. It is suitable for blanking, piercing, and forming thicker gauge materials and is a workhorse for demanding manufacturing environments.

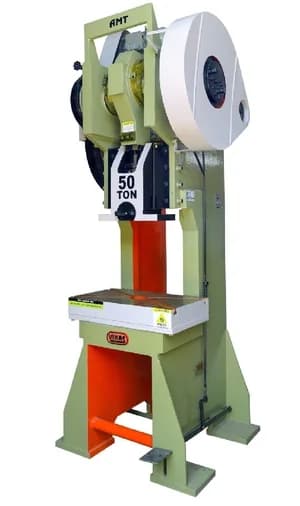

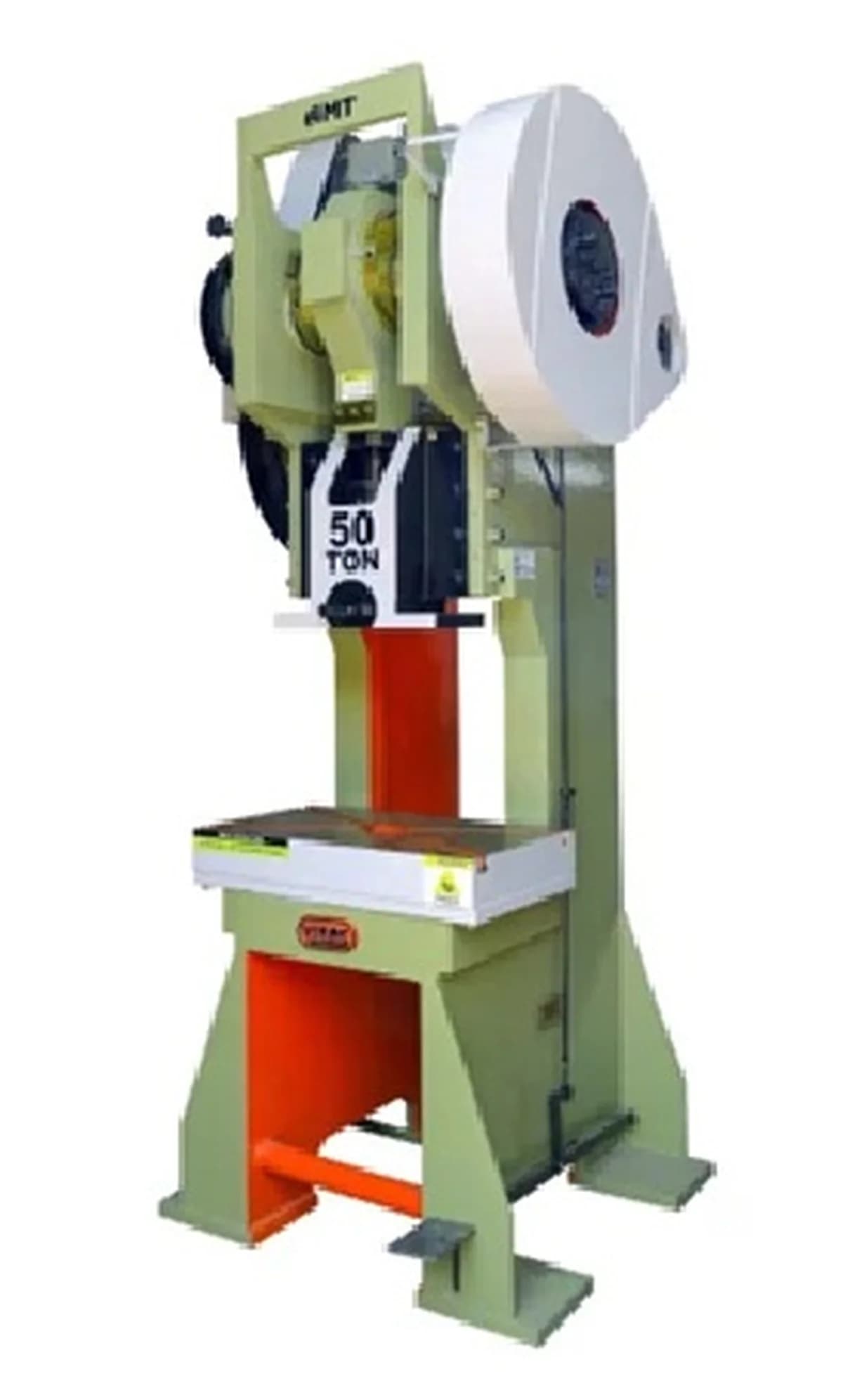

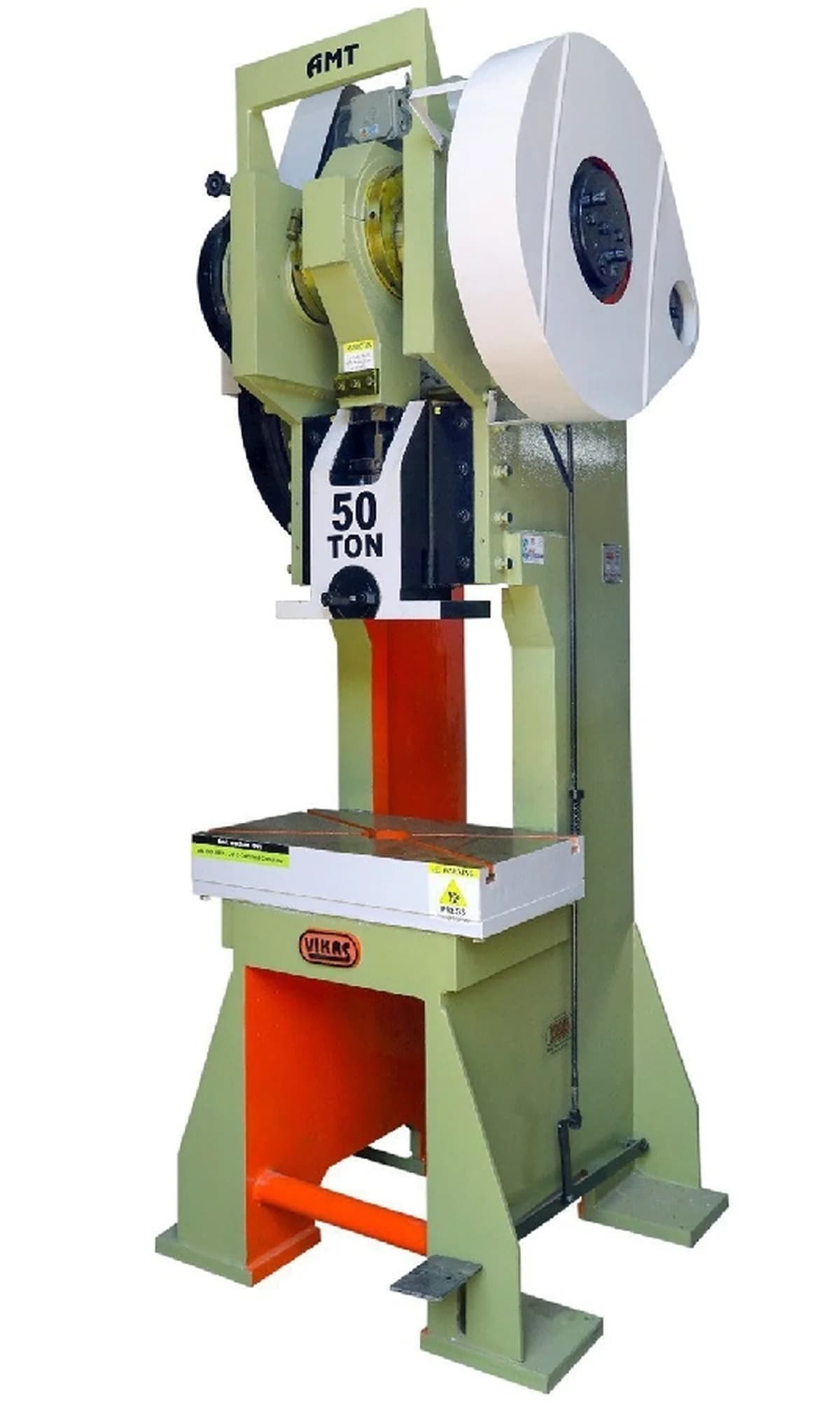

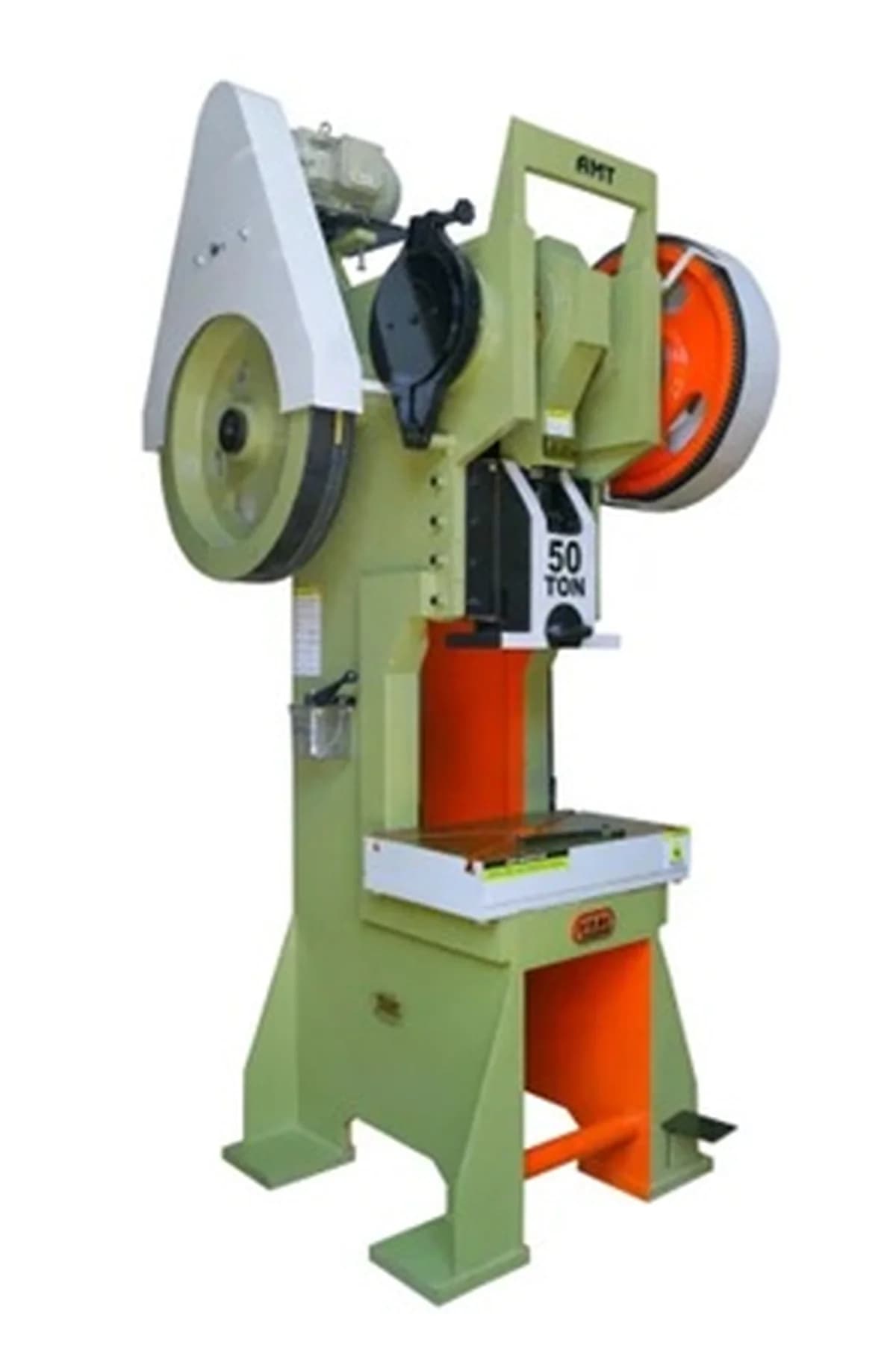

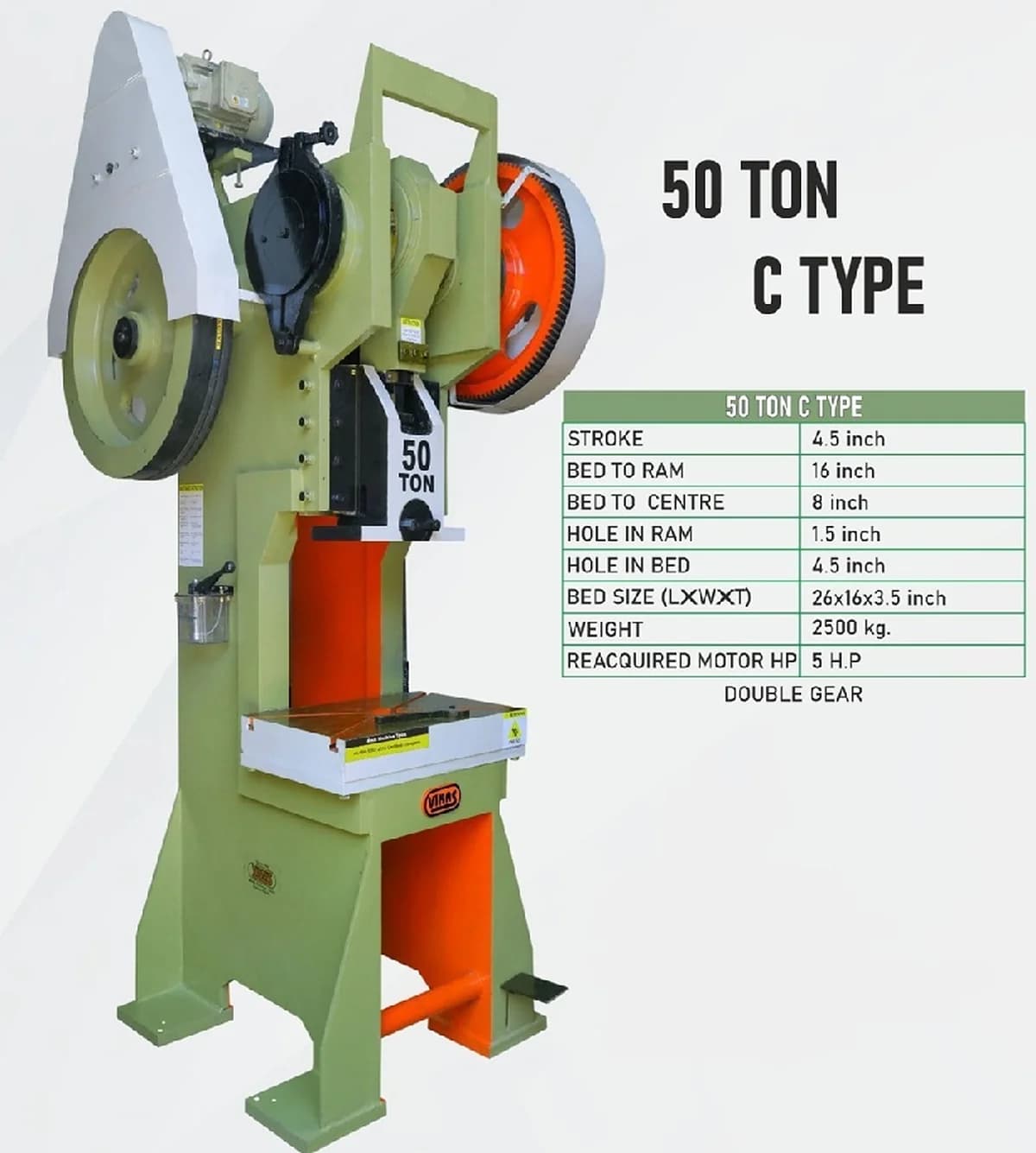

Who should choose the 50 Ton model?
The 50 Ton C-Type Power Press is designed for heavy-duty industrial applications. It's the right choice for manufacturers producing larger components or working with tougher materials that require substantial stamping force.

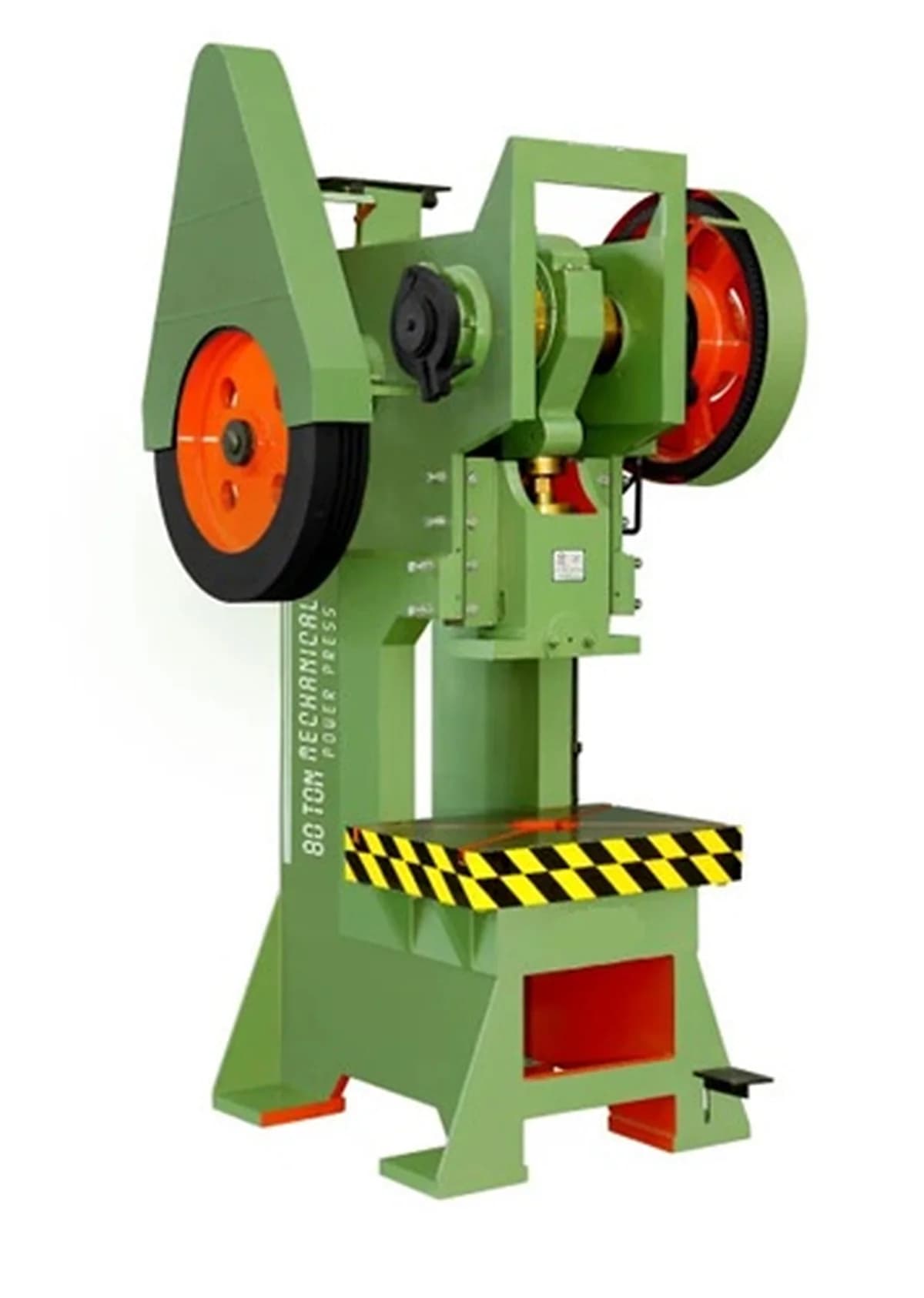

Who should choose the 80T model?
The 80 Ton model is a heavy-duty press for large-scale manufacturing and fabrication plants. It is capable of handling thick plates and large dies, making it suitable for producing structural components and other demanding industrial parts.
Who should choose the 100T model?
The 100 Ton PENTAGON Power Press is the highest capacity model in this series. It is built for the most demanding press-work applications in heavy industries, capable of handling large and thick materials with ease.
What is the main difference between the 10 Ton and 20 Ton models?
The primary difference is the force capacity (10 tons vs. 20 tons). The 20-ton model also features a larger bed size, higher motor power (2 HP vs 1.5 HP), and a more robust frame to handle the increased force, making it suitable for heavier jobs.
How does the 50 Ton model compare to the 100 Ton model?
The 100 Ton model offers double the pressing force of the 50 Ton model. It is significantly larger and heavier, with a more powerful 10 HP motor compared to the 5 HP motor on the 50-ton press. The 100-ton machine is designed for extremely heavy-duty work that is beyond the capability of the 50-ton press.
Which model is best for a small workshop?
For a small workshop, the 3 Ton or 5 Ton models are typically the best choice. They are compact, require less power, and are highly cost-effective for light-duty work and getting started with press operations. The 3-ton is perfect for very light work, while the 5-ton offers more versatility.
