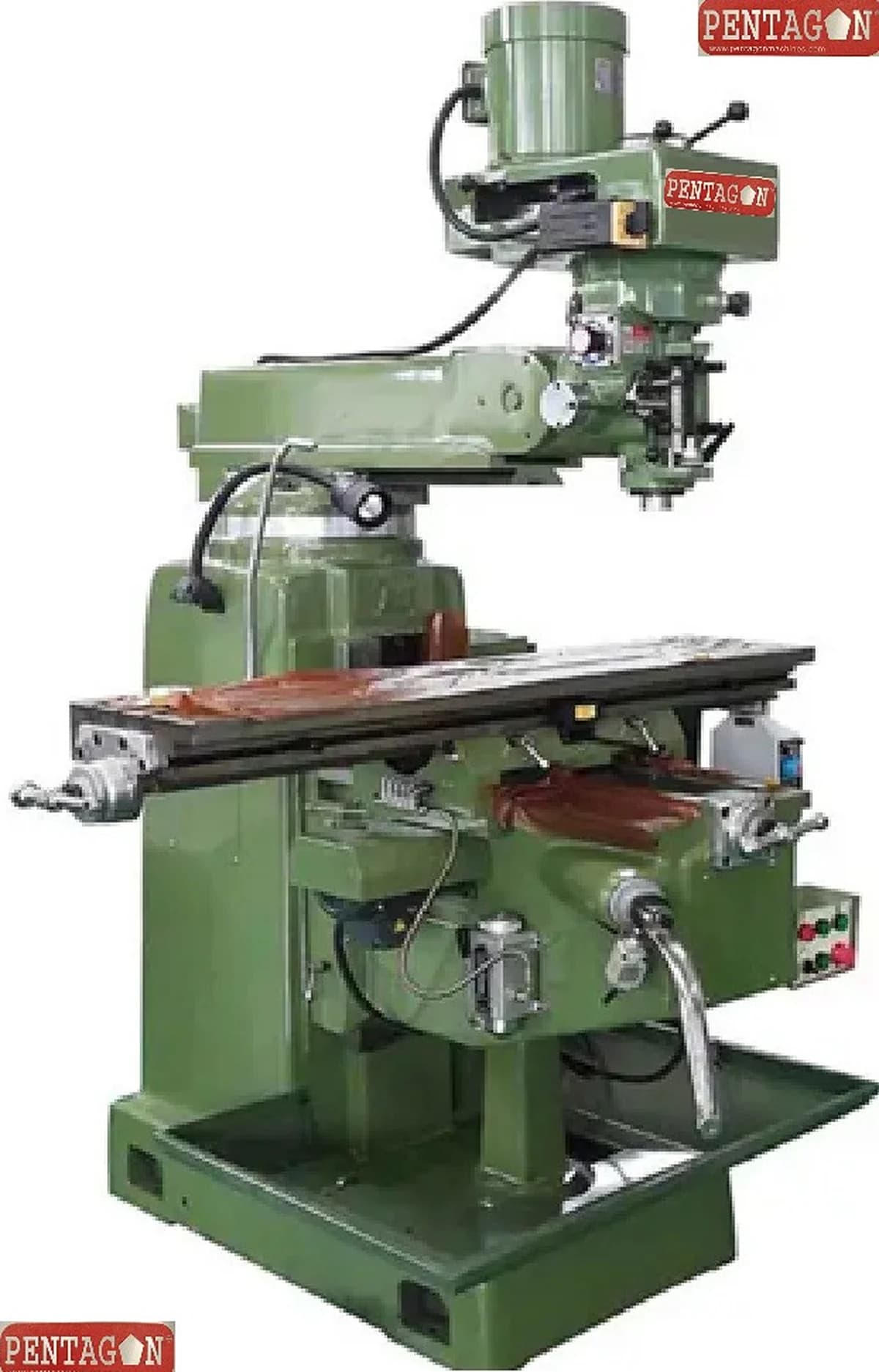

Ram Turret Milling Machine M4 is a versatile and precision-engineered RAM-type vertical milling machine designed for accurate metal cutting, shaping, and drilling operations. Equipped with an ISO30 spindle, robust 1270×254 mm table, and rigid turret construction, it ensures smooth operation, excellent stability, and reliable performance for toolrooms, workshops, and production environments.
Specifications
For: Vertical RAM Turret Milling table Model M4 ISO30 size 1270×254 mm 1-6- Auto quill feeds per revolution
- 0.40/0.08/0.15 mm/rev
- Head swivel FxB
- 45°
- Machine Model
- M4 R8/ISO30
- Spindle Speed
- 45-5440 rpm(60Hz)
- Ram Travel
- 580 mm
- Quill Dia
- 86 mm
- Quill Travel
- 127 mm
- Spindle Nose To Table
- 500 mm
- Brake Mounting Type
- Top Brake
- Steps of Speeds
- 16 steps
- Z Axis Guideways
- V type
- Table Size
- 1270x254 mm
- Spindle Nose Taper
- R8/ISO30/NT30
- Head Swivel LxR
- 90°
- Machine Weight Approx
- 1250 Kgs
- Vertical Travel of Table
- 400 mm
- Max Load on Table
- 300 Kgs
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Longitudinal Travel of Table
- 800 mm
- Milling Head Type
- Round/Square
- Cross Travel of Table
- 400 mm
- Cross Guideways
- V Type
Description

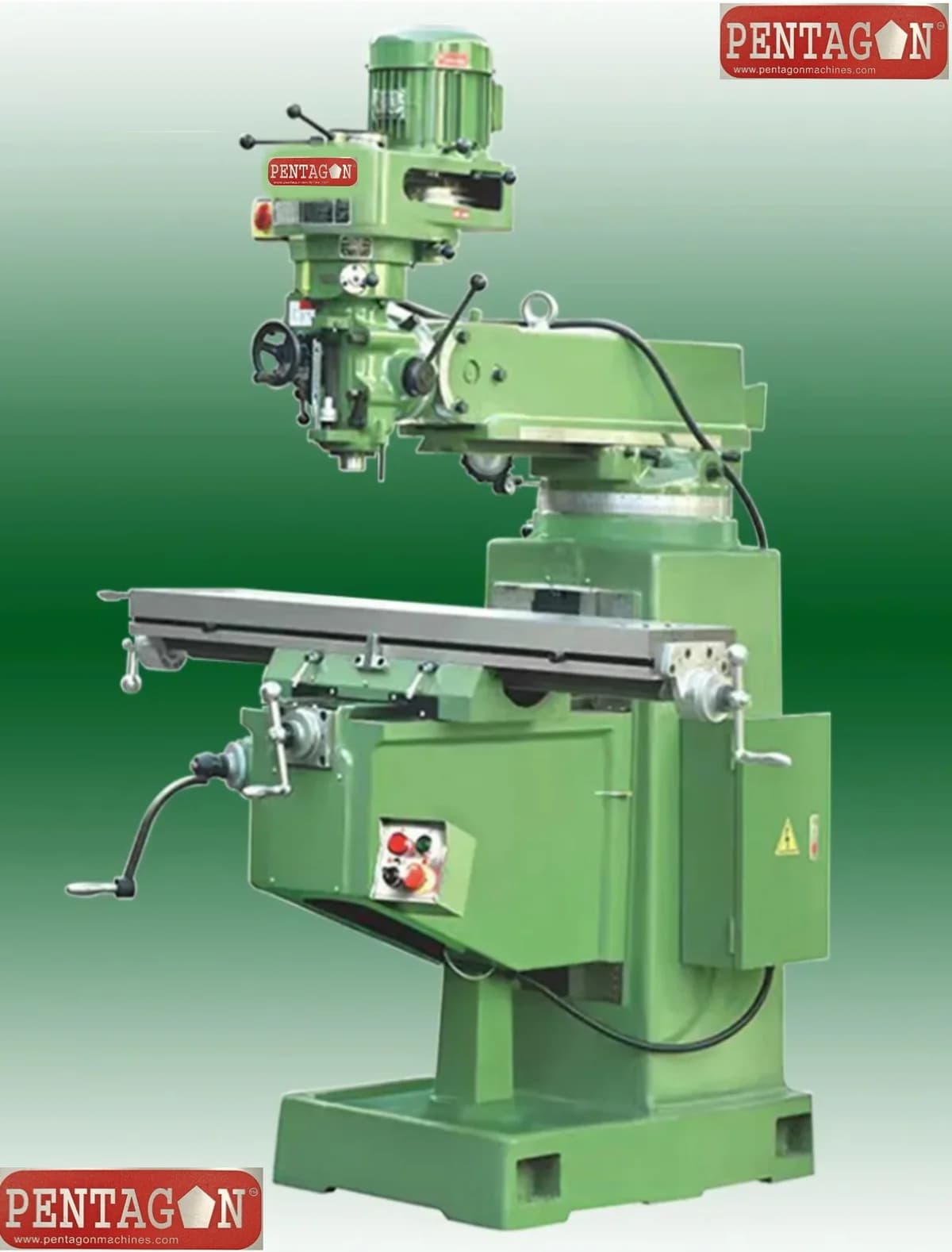

The M4 ISO30 Vertical Ram Turret Milling Machine is designed for precision machining operations such as milling, drilling, boring, and slotting. Its robust construction and flexible ram-type design allow the operator to position the spindle head at multiple angles and directions, enhancing versatility for toolroom and production environments.

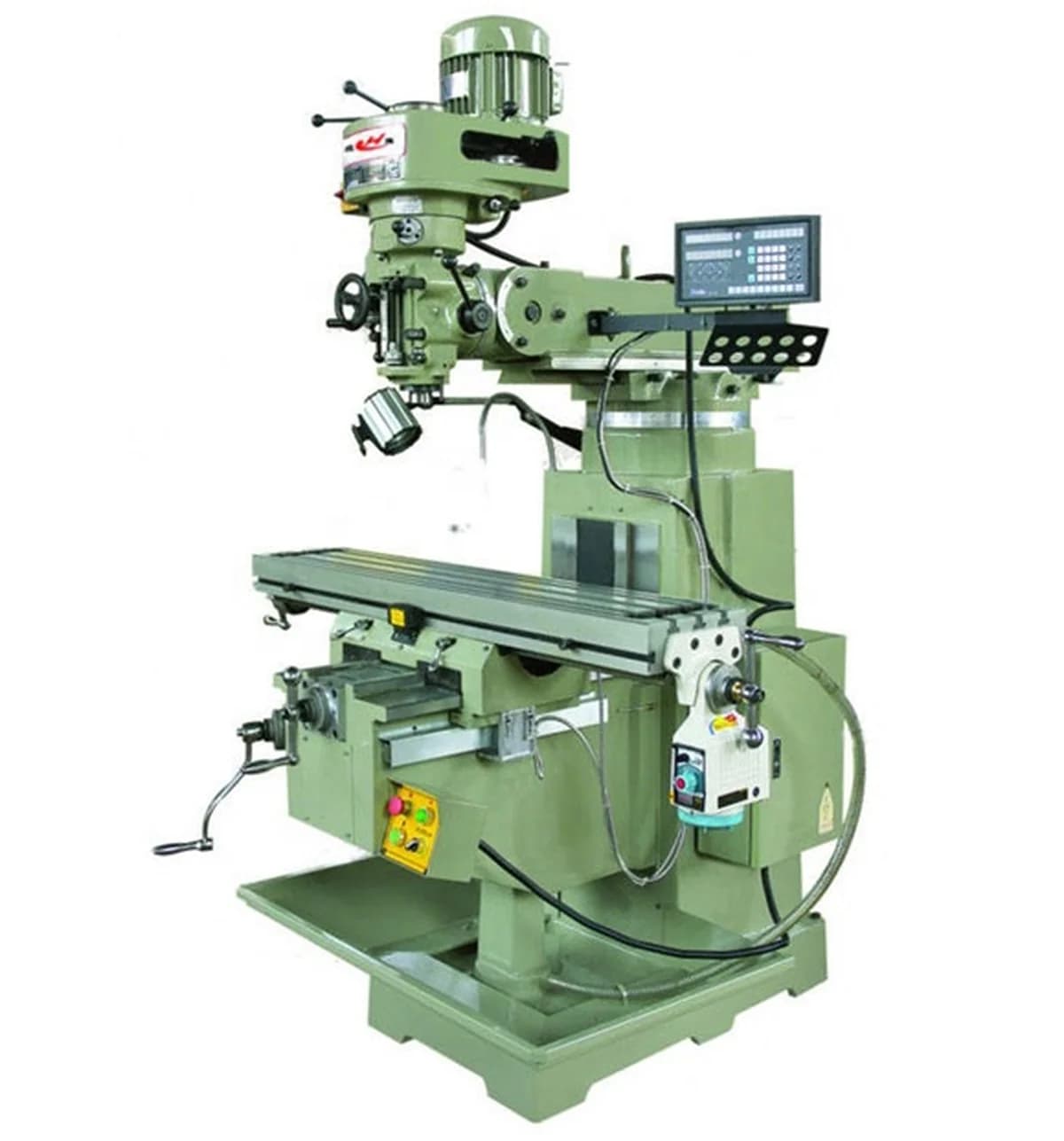

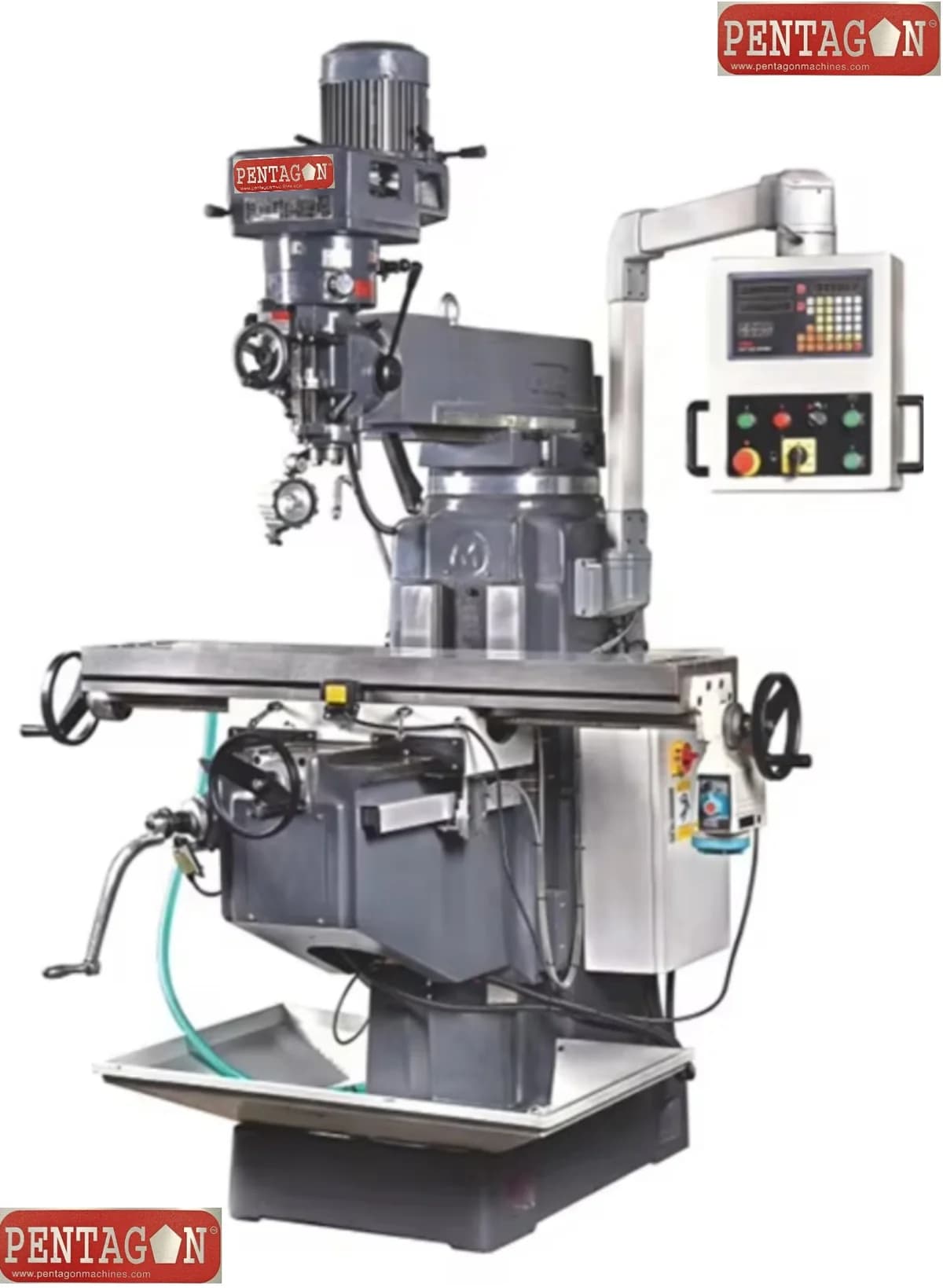

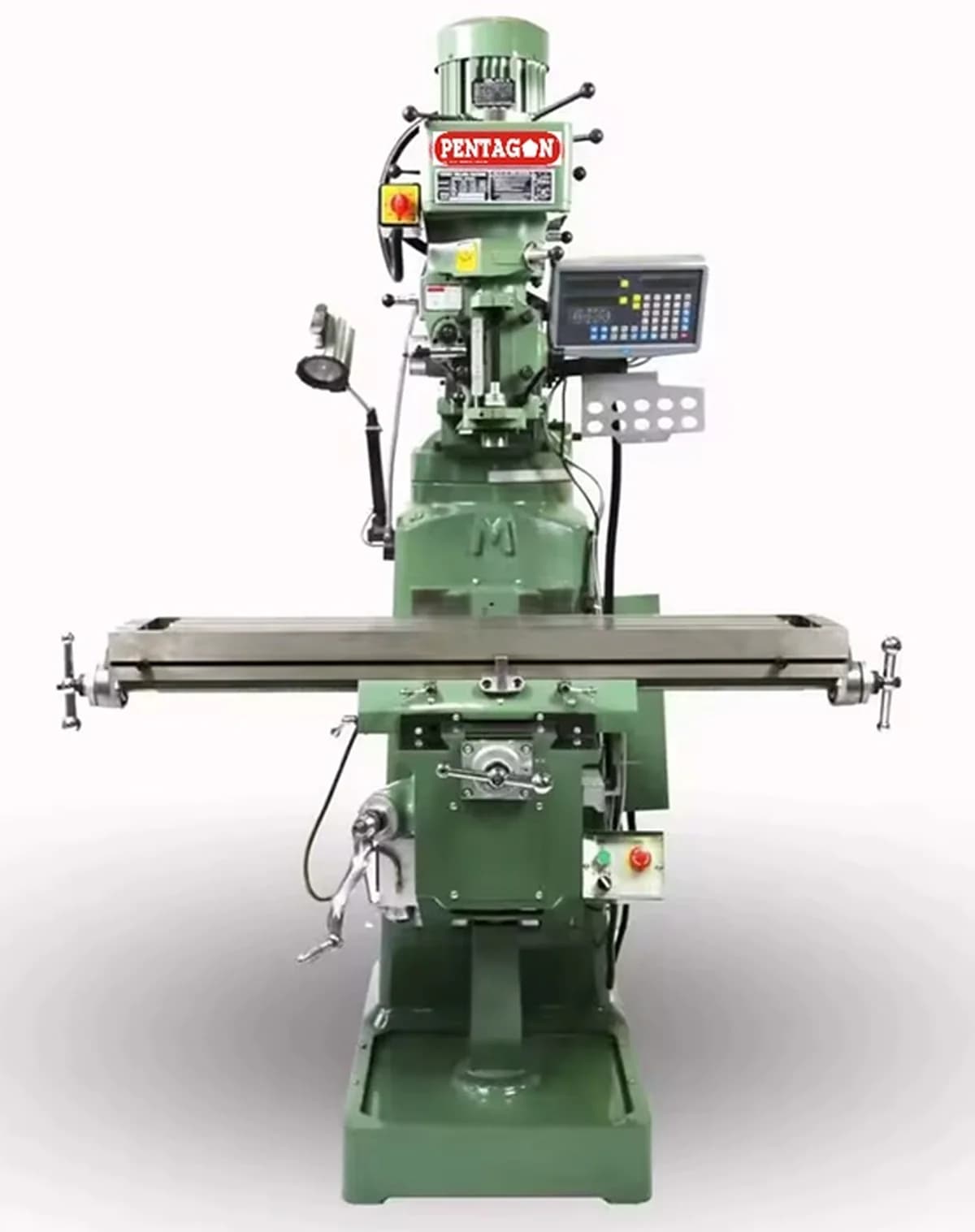

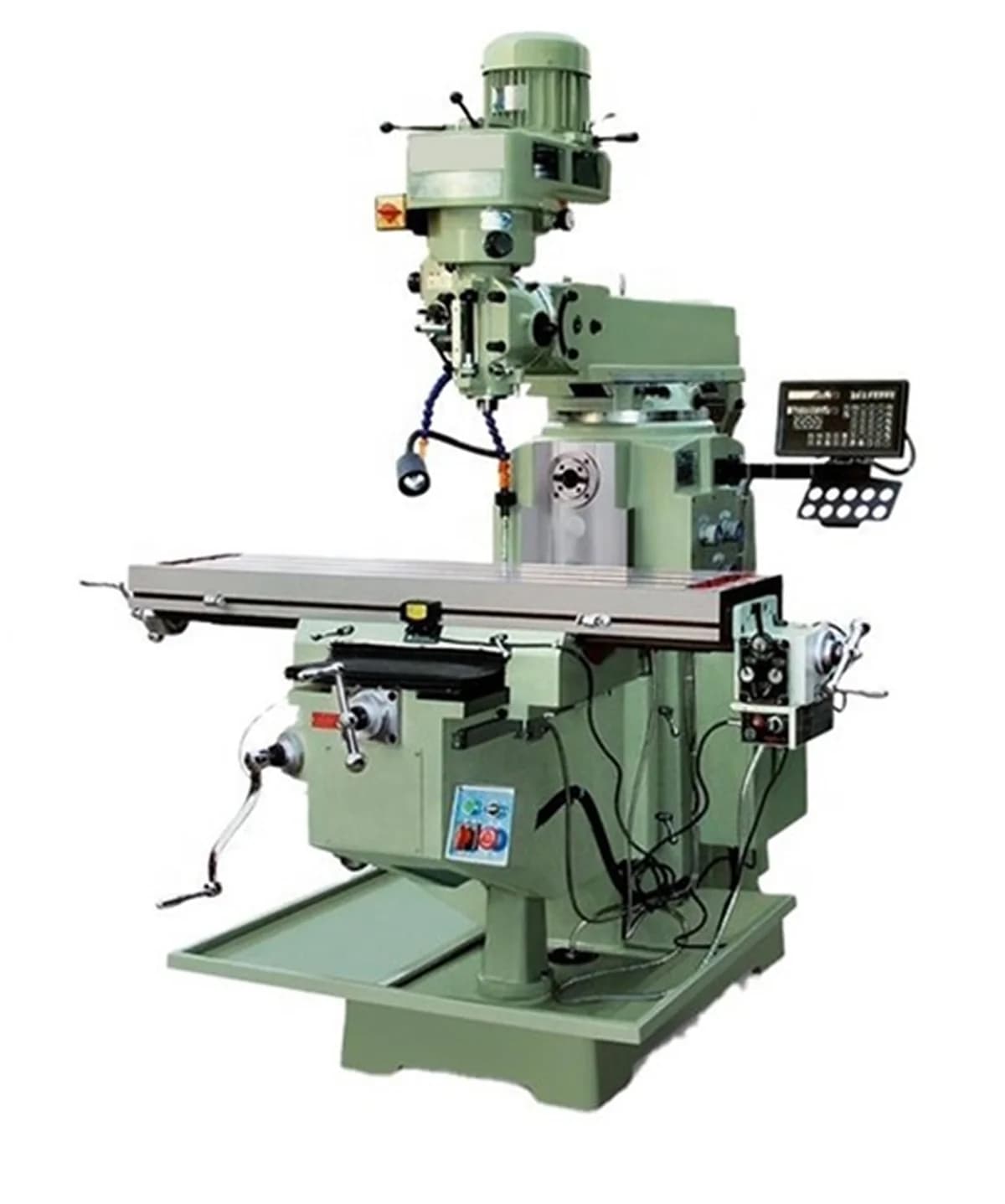

PENTAGON Vertical RAM Turret Milling table Model M4 size 1270×254 mm with ISO30 spindle with two axis DRO and standard accessories package: 1. Machine vice swivel base type 150 mm opening, 2. Clamping kit M12 Type 58 Pcs set, 3. Collet set 11/10 pcs set box, 4. Keyless Drill chuck Integrated type, 5. Micro Boring Head wit Suitable Shank and 6. Edge finder.
Features
1. The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
2. The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360 Degree
on the machine bed, for the processing range can be greater than the table size
3. The speed of milling head is rather high and it makes the machine especially good working with small cutters
4. This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing
5. Robust construction and heavy duty design
6. The machine body is made of Meehanite cast iron
7. The milling head is made of SCM-21.Imported from Taiwan

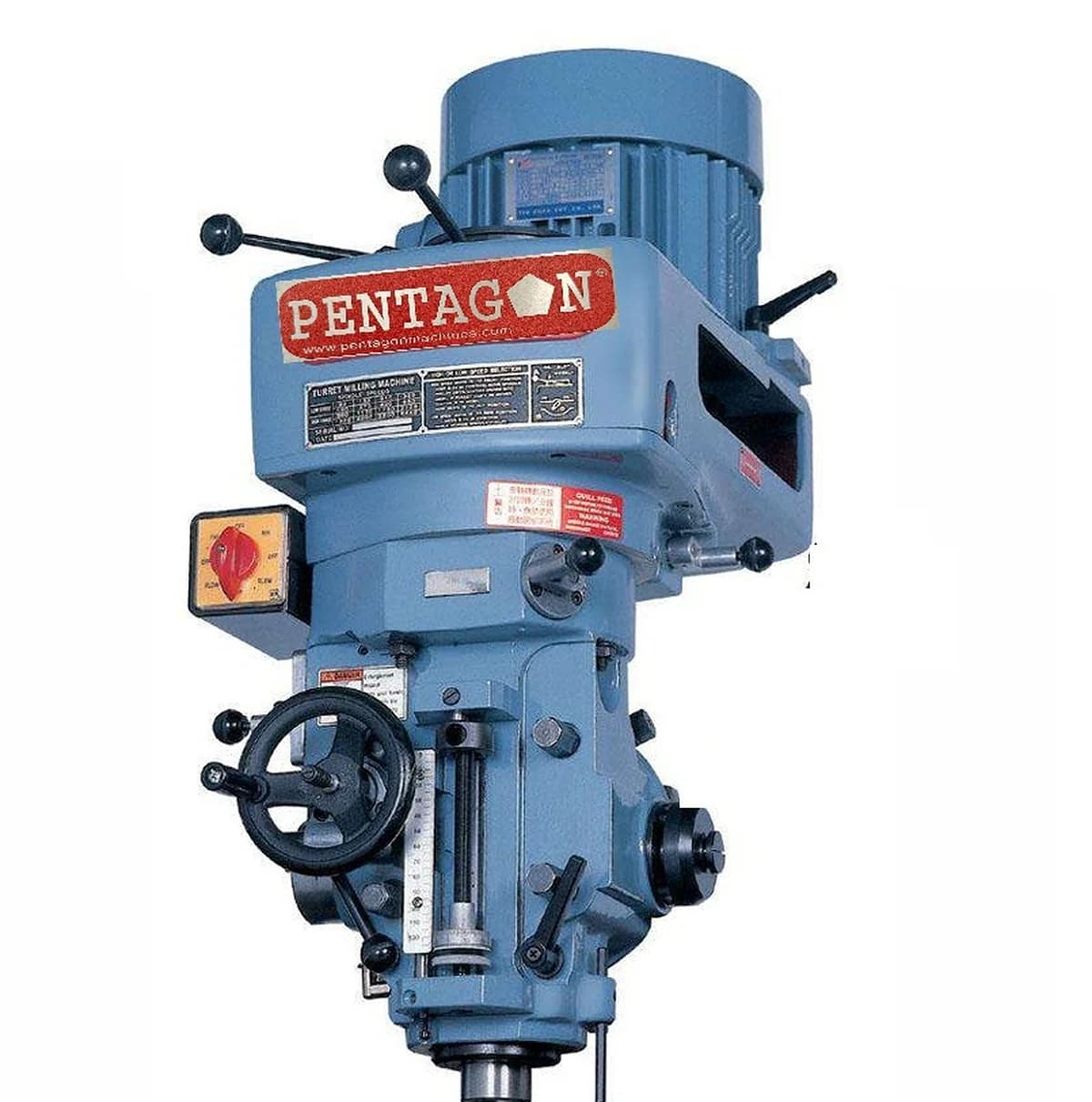

8. The milling head can swing 90 Degree right and left side, 45 Degree front and back side
9. The ram can swing 180 Degree horizontally

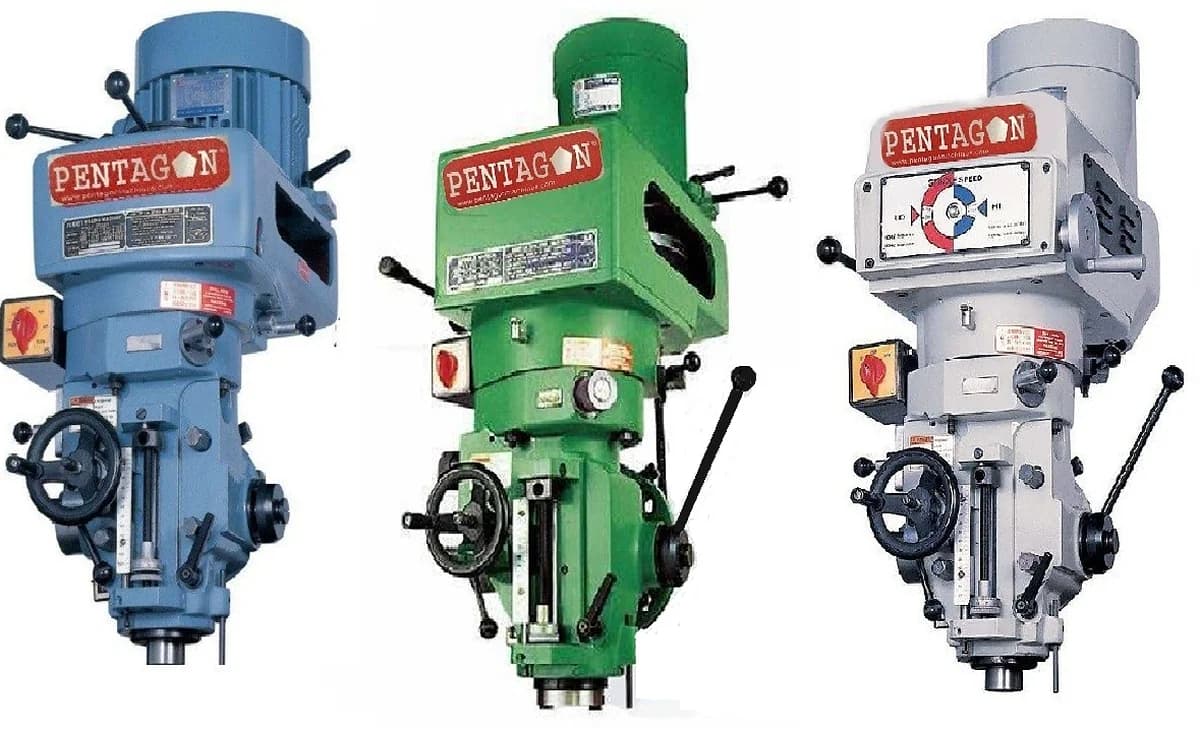

10. High-precision spindle: R8 or ISO 30/40 taper with smooth speed control.
11. Adjustable ram movement: Extends and retracts to position the spindle optimally.
12. Tilting & swiveling head: Allows angular machining for complex components.
13. Heavy-duty table (1270×254 mm): Provides stability and supports larger workpieces.
14. Auto feed on X/Y (optional): Improves machining efficiency.
15. Central lubrication system: Ensures smooth, reliable machine operation.
Advantages
1. Enhanced Precision: The machine's design ensures high accuracy, reducing the need for rework.
2. Increased Productivity: The versatility and efficiency of the machine contribute to higher output.
3. Durability: Constructed with high-quality materials, ensuring long service life.
4. Ease of Operation: User-friendly controls and DRO systems simplify complex machining tasks.
5. High flexibility for different machining operations.
6. Ideal for toolrooms, maintenance workshops, and small to medium industries.
7. Easy to set up and operate, even for angular machining.
8. Strong, vibration-free construction ensures consistent accuracy.
9. Suitable for precision jobs and batch production.
Standard Accessories

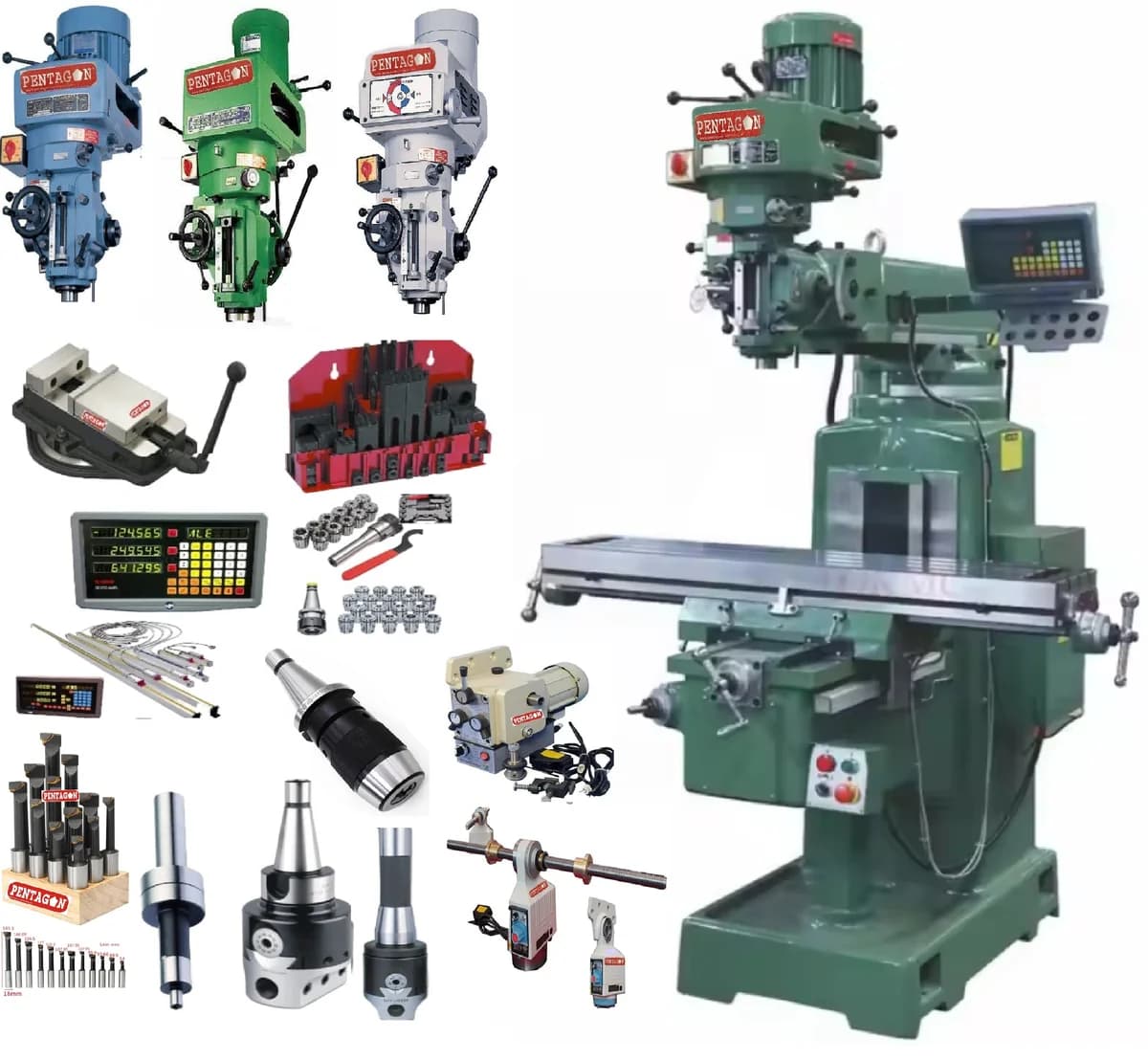

Packaged Included with Machine

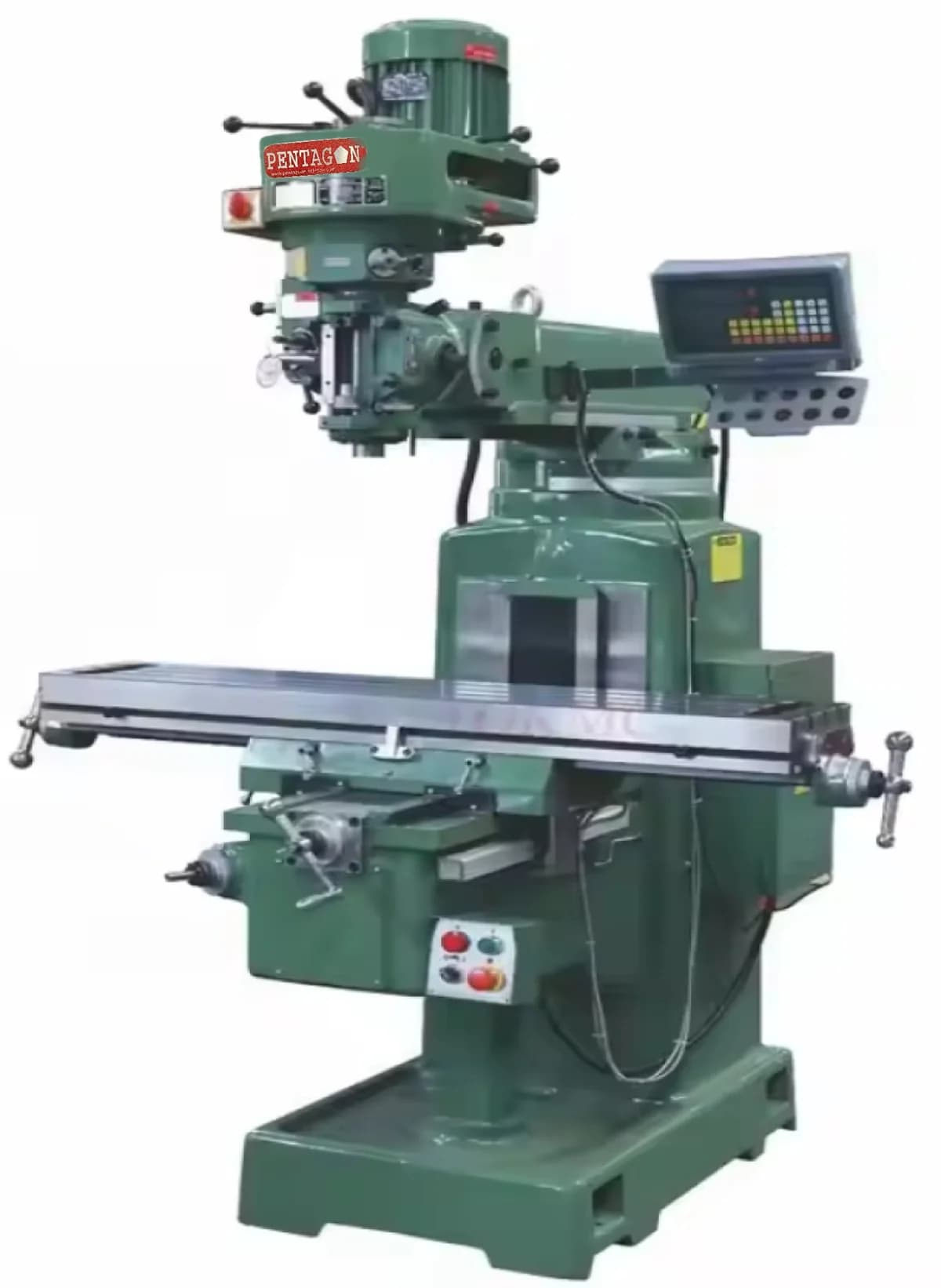

- DRO 2 Axis with suitable linear scales fitted in machine
- Coolant Pump with fitting
- Machine Lamp
- Rear and front bellow cover set
- Suitable draw bar set
- Central Lubrication unit
- Electrical cabinet with 110/220 V output
- Tool Box with essential tools
- Operation manual with machine test certificate
- Swivel base Acculock type machine vice 150 mm jaw opening
- Clamping kit M12 Type 58 Pcs set
- Collet set ER32 type 10/11 pcs set
- Integrated type keyless drill chuck with intact suitable arbor
- Micro boring head F-18 with suitable Shank
- Mechanical Edge Finder/Edge Sensor
Optional Accessories
- For 3 axis DRO set with suitable size of linear scale
- Reduction sleeve R8/ISO30-MT3
- Reduction sleeve R8/ISO30-MT2
- X axis table auto power feeder 110V type
- Y axis table auto power feeder 110V type
- H-V Rotary table
- Semi Universal dividing head with tail stock soft jaws Indexing plates
- Splash Tray/Chip Tray
- Boring bar dia 18 mm set of 12 pcs
- keyless drill chuck with intact suitable arbor
- Mechanical Gear box Power feeder 380V
Applications
- The Vertical RAM Turret Milling Machine is ideal for a wide range of applications, including:
- 1. Drilling and Tapping: Precise hole-making and threading operations.
- 2. Slotting and Keyway Milling: Creating slots and keyways with high accuracy.
- 3. Face Milling and End Milling: Surface finishing and contouring tasks.
- 4. Jig Boring: High-precision boring operations for tool and die making.
More questions buyers ask
What is the table size of the Pentagon M4 ISO30 Milling Machine?
The machine features a robust table size of 1270x254 mm, providing ample space for various machining operations.
What type of spindle taper does the M4 machine use?
It uses an R8/ISO30/NT30 spindle nose taper, ensuring compatibility with a wide range of tooling.
What is the spindle motor power of this milling machine?
The machine is equipped with a powerful 3 HP (Double Speed) motor operating at 415V/50 or 60Hz.
What is the maximum load capacity on the table?
The table can support a maximum load of up to 300 Kgs, making it suitable for heavy workpieces.
What are the spindle speeds available on the Pentagon M4?
It offers 16 steps of speeds ranging from 45 to 5440 rpm (at 60Hz), allowing for precise control over different materials.
Does the machine come with a Digital Readout (DRO)?
Yes, it includes a 2-Axis DRO with suitable linear scales fitted as a standard accessory.
What type of guideways are used for the Z-axis?
The Z-axis features V-type guideways for enhanced stability and precision during vertical movements.
What is the quill travel distance?
The quill travel is 127 mm, providing sufficient depth for drilling and boring tasks.
Is a coolant pump included with the machine?
Yes, a coolant pump with fittings is included as a standard accessory to maintain optimal cutting temperatures.
What is the approximate weight of the Pentagon M4 milling machine?
The machine weighs approximately 1250 Kgs, ensuring a rigid and stable platform for machining.
Can the milling head be swiveled?
Yes, the head can swivel 90° left and right, and 45° front and back, offering great flexibility.
What is the longitudinal travel of the table?
The table has a longitudinal travel of 800 mm and a cross travel of 400 mm.
Who should choose the Pentagon M4 ISO30 1270x254mm variant?
This variant is ideal for toolrooms, workshops, and production environments that require a versatile, high-precision RAM-type vertical milling machine for accurate metal cutting, shaping, and drilling.
How does the M4 ISO30 compare to other models in terms of table size?
With its 1270x254 mm table, the M4 ISO30 offers a larger working area compared to standard models, accommodating bigger workpieces and more complex setups.
What makes the M4 ISO30 suitable for heavy-duty operations compared to smaller variants?
Its robust construction, 1250 Kg weight, and 300 Kg table load capacity provide the necessary rigidity and stability for heavy-duty milling and boring operations.
Why choose the ISO30 spindle over other taper types?
The ISO30 spindle offers a strong and rigid connection for tooling, which is essential for maintaining high precision and surface finish during demanding machining tasks.
