High Precision Quill Sleeve for Vertical Milling Machine Model High Precision Quill Sleeve for Vertical Milling Machine Model B-0142
High-precision Quill Sleeve B142+133 for vertical turret milling machines. Made from hardened alloy steel with a precision-ground finish, it ensures smooth quill movement, accurate spindle alignment, and reliable tool holding performance. Ideal replacement part for Bridgeport-type vertical mills.
Specifications
For: High Precision Quill Sleeve for Vertical Milling Machine Model B-0142- Model No.
- B-0142
- Product Name
- Spindle Quill Sleeve / Quill Body Assembly
- Outer Diameter
- 85.7 mm
- Total Length
- 263 mm
- Inner Diameter Top
- 63.6 mm
- Inner Diameter Bottom
- 72 mm
- Step Height
- 80 mm
- Keyway Slot
- 9x69 mm (2 side)
- Material
- High-strength alloy steel
- Thread Type
- Left Hand Thread
- Product dimension
- 300x100x100
- Weight
- 5.4 Kgs
Description
The B-0142 Vertical Milling Machine Quill Sleeve is engineered to deliver superior accuracy and stability for demanding machining operations. This sleeve houses and guides the spindle, maintaining precise axial alignment to minimize runout and vibration.
Made from high-strength alloy steel and heat-treated for durability, it withstands heavy-duty workloads and ensures long-term operational reliability.
Its finely machined inner and outer surfaces guarantee smooth quill travel, making it ideal for replacement or maintenance of milling machine quill assemblies. The sleeve fits a wide range of vertical and turret milling machines that follow Bridgeport-style design standards.
Features:
Precision-Ground:
Ensures accurate tool holding, minimal run-out, and stable machining performance.
High-Strength Alloy Steel Construction:
Manufactured from durable, heat-treated steel for maximum rigidity, wear resistance, and long service life.
Smooth Quill Movement:
The polished outer surface provides effortless vertical travel inside the quill housing.
Feed Mechanism Spline/Thread Section:
Provides perfect engagement with the milling machine’s quill feed system, ensuring smooth and controlled Z-axis feed.
Corrosion-Resistant Finish:
Precision ground surfaces reduce friction and protect against rust and wear.
OEM-Style Fitment:
Designed to match Bridgeport-type turret milling machines, ensuring easy installation and full compatibility.
Stable and Low-Vibration Operation:
Enhances surface finish quality and reduces tool wear.
Improved Spindle Accuracy:
Restores original alignment and precision of the milling machine’s spindle assembly.
Applications:
Vertical Turret Milling Machines:
Used as a primary spindle housing sleeve in Bridgeport-type and compatible turret mills.
Z-Axis Quill Movement System:
Supports smooth vertical travel of the spindle during drilling, boring, reaming, and milling operations.
Precision Machining Tasks:
Ensures accurate tool alignment for operations requiring high precision, such as surface machining, pocket milling, and fine drilling.
Machine Repair & Restoration:
Ideal replacement component when the original quill sleeve becomes worn, scratched, or damaged, restoring machine accuracy.
Maintenance of Spindle Systems:
Ensures tight and stable tool holding for collets and milling holders using the R8/NT30/NT40 taper.
Workshops & Industrial Machine Shops:
Commonly used in CNC retrofit shops, fabrication units, tool rooms, and maintenance departments.
Heavy-Duty Milling Applications:
Suitable for demanding cutting tasks where consistent spindle movement and rigidity are essential.
About the Product:

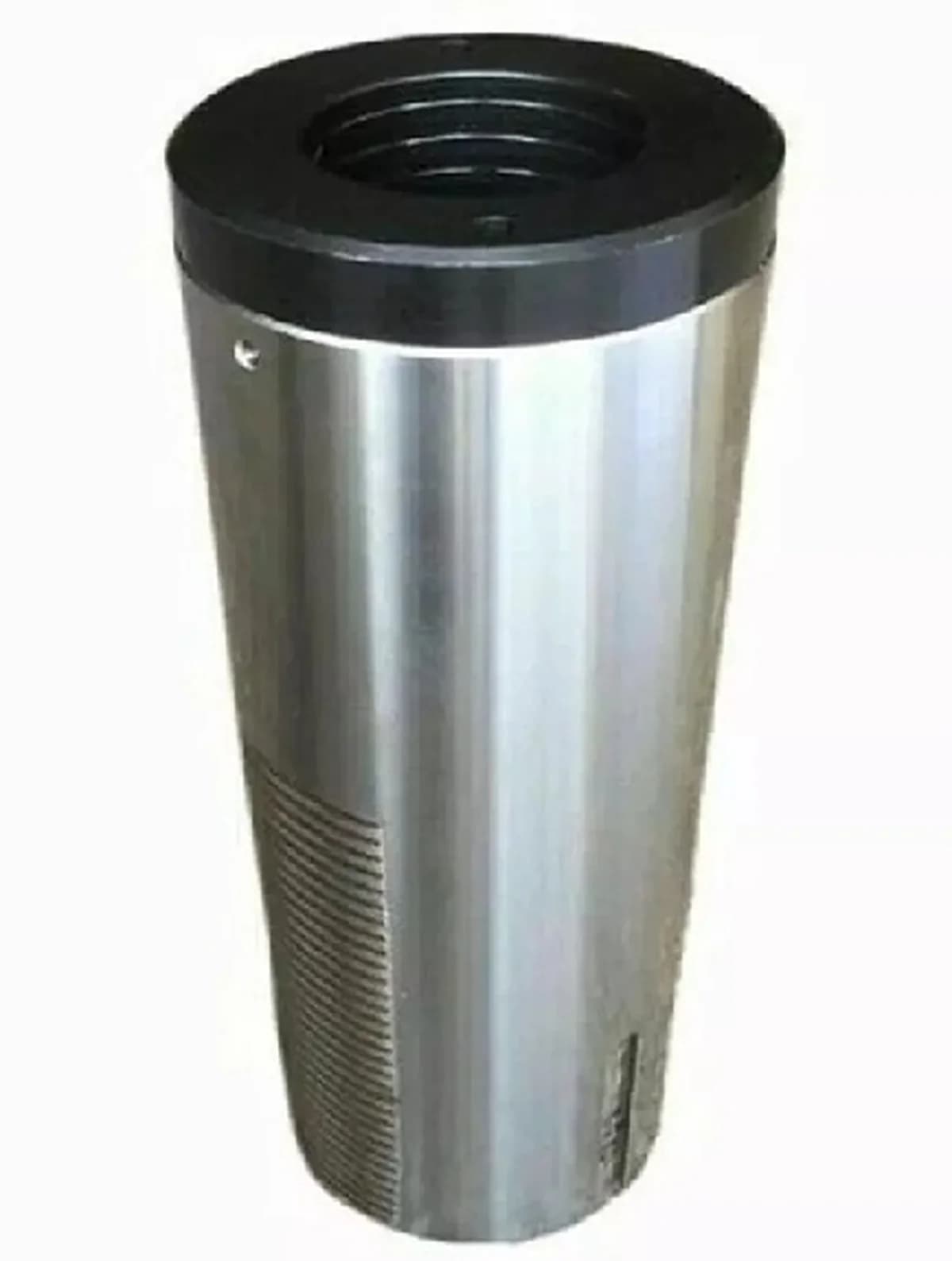

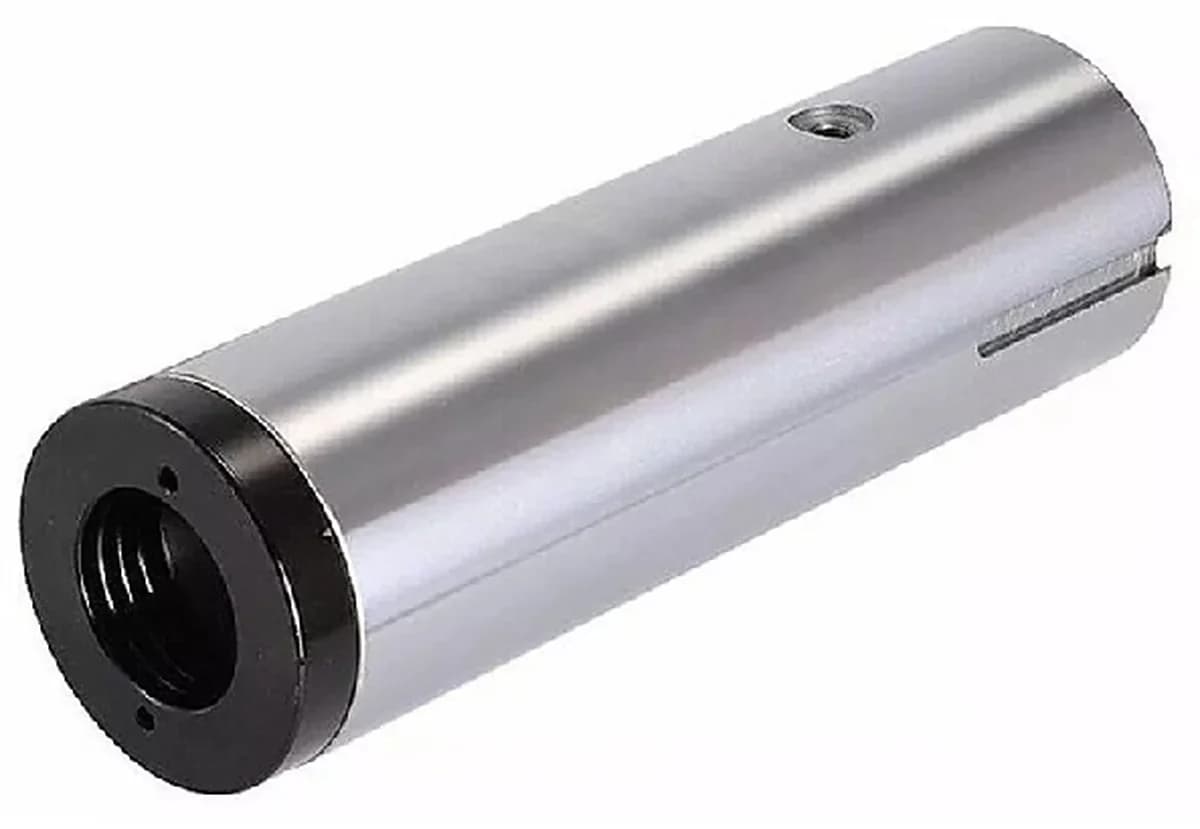

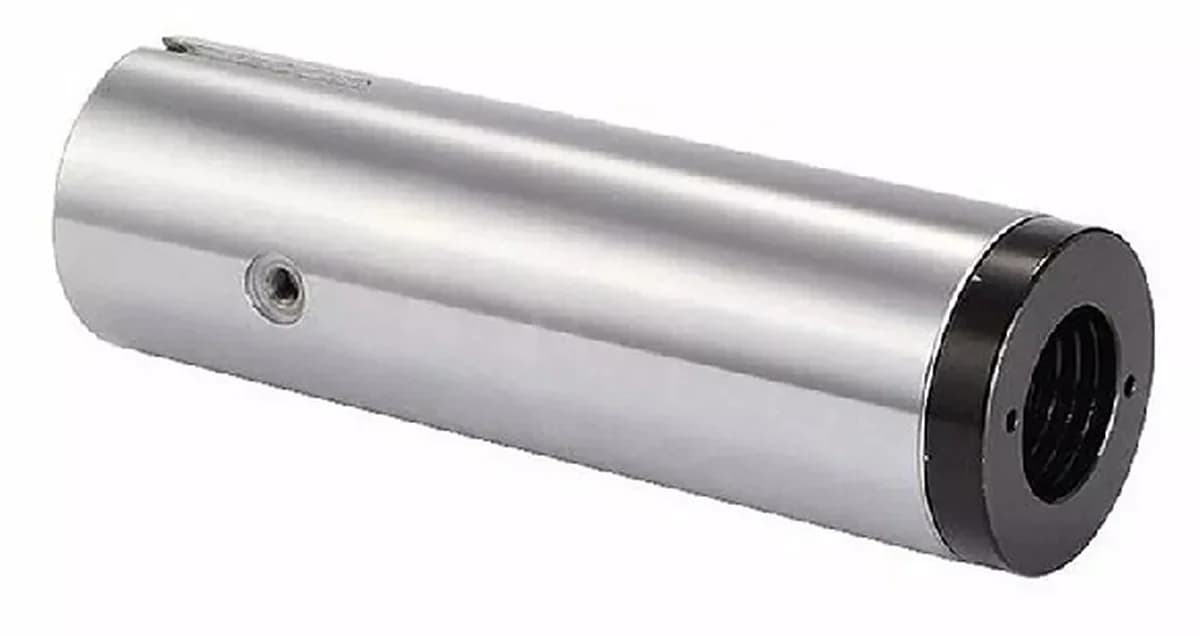

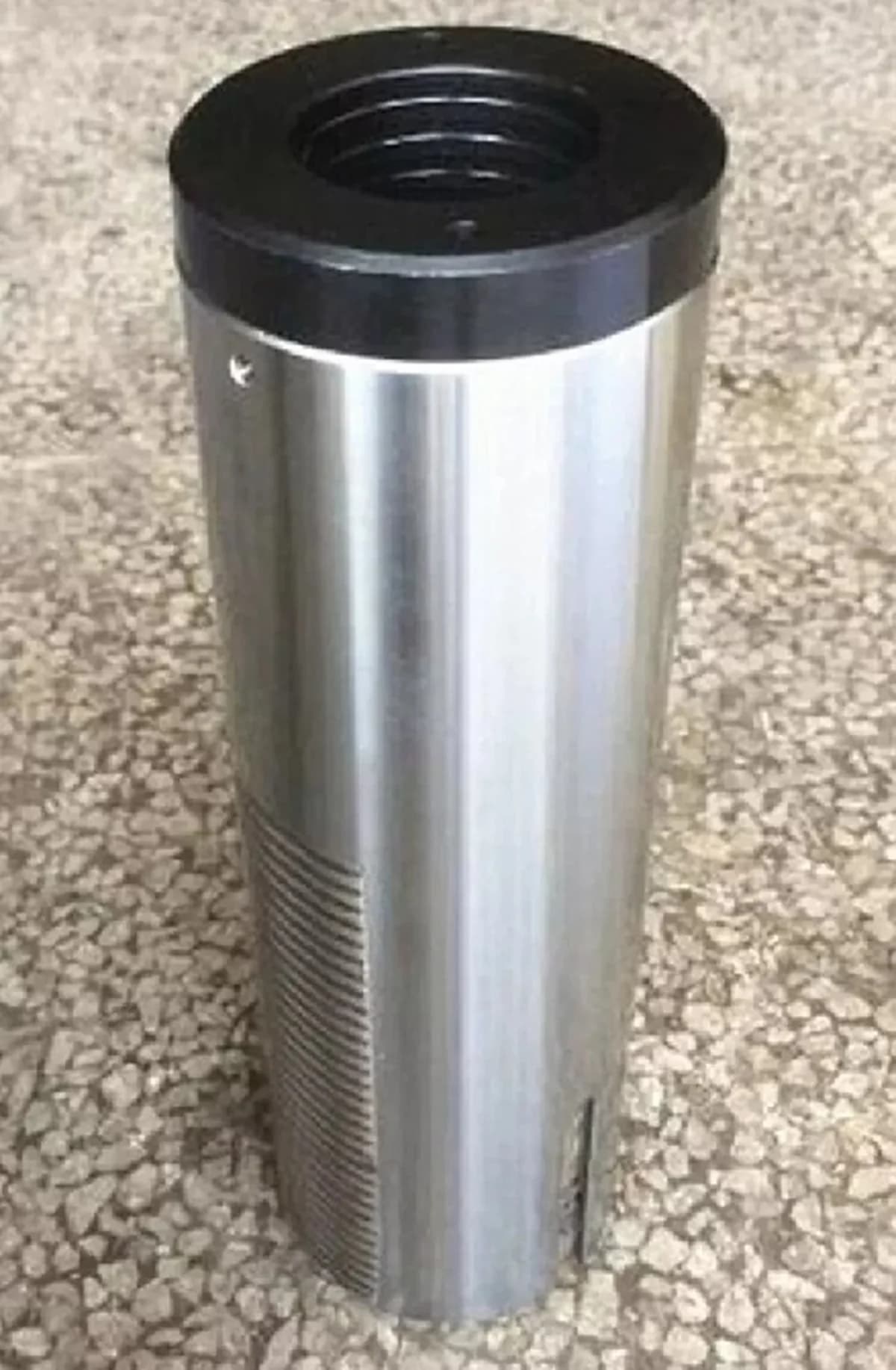

This product is a Vertical Milling Machine Quill Sleeve, a key component used in turret and vertical milling machines such as Bridgeport-type mills. The quill sleeve houses and supports the spindle, allowing precise vertical (Z-axis) movement during machining operations.

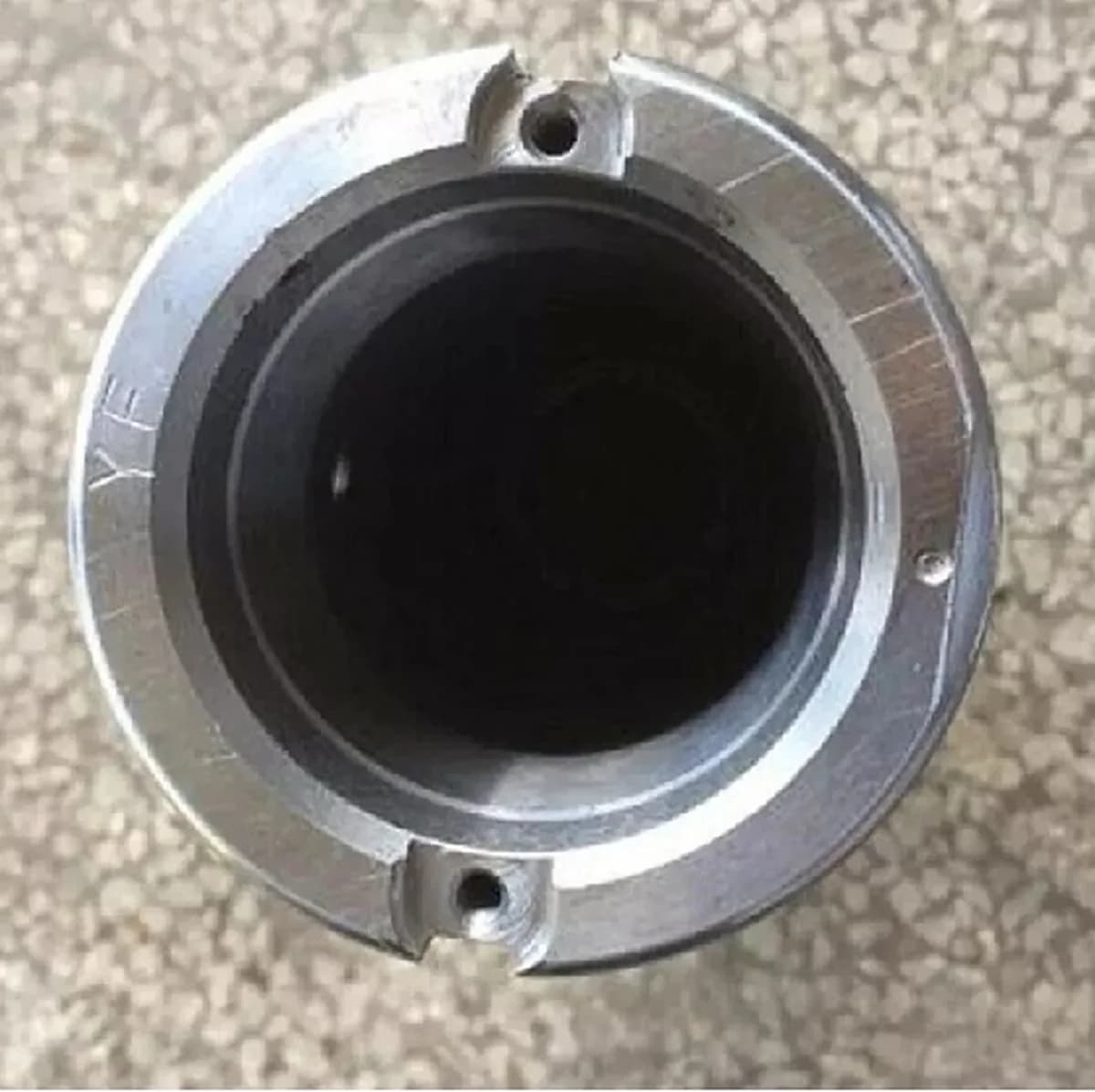

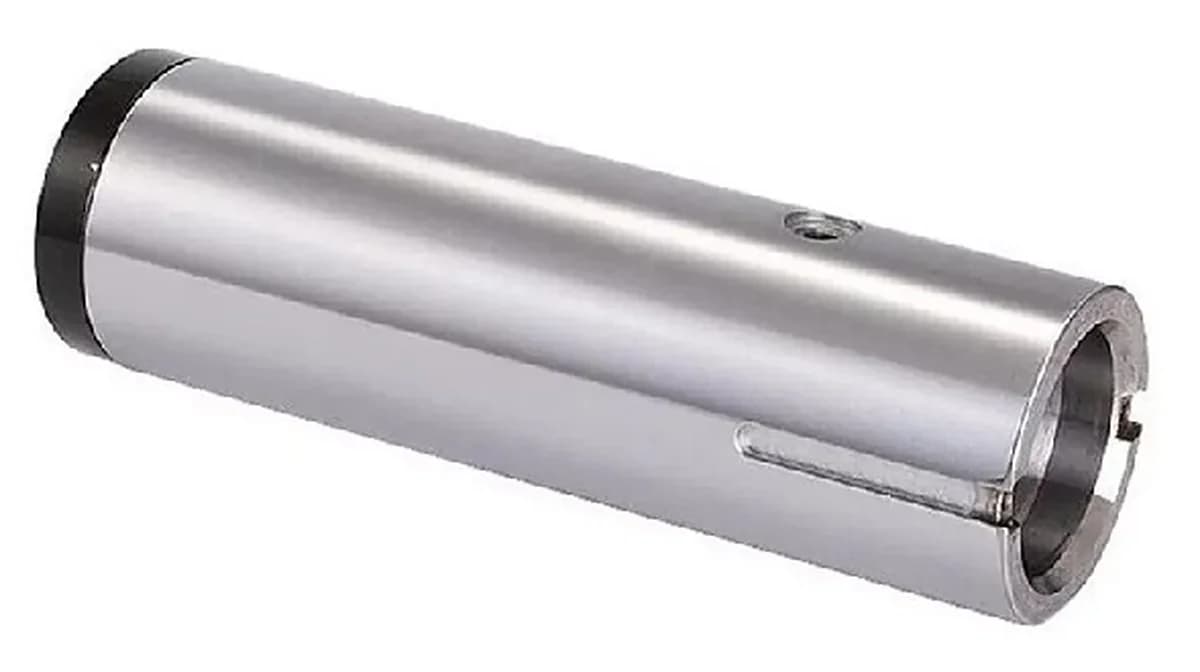

The sleeve shown is made from high-strength alloy steel, fully heat-treated and precision-ground to ensure maximum rigidity and smooth movement. Its hardened exterior helps resist wear, while the internal R8 taper provides secure and accurate tool holding for drills, end mills, and other cutting tools.

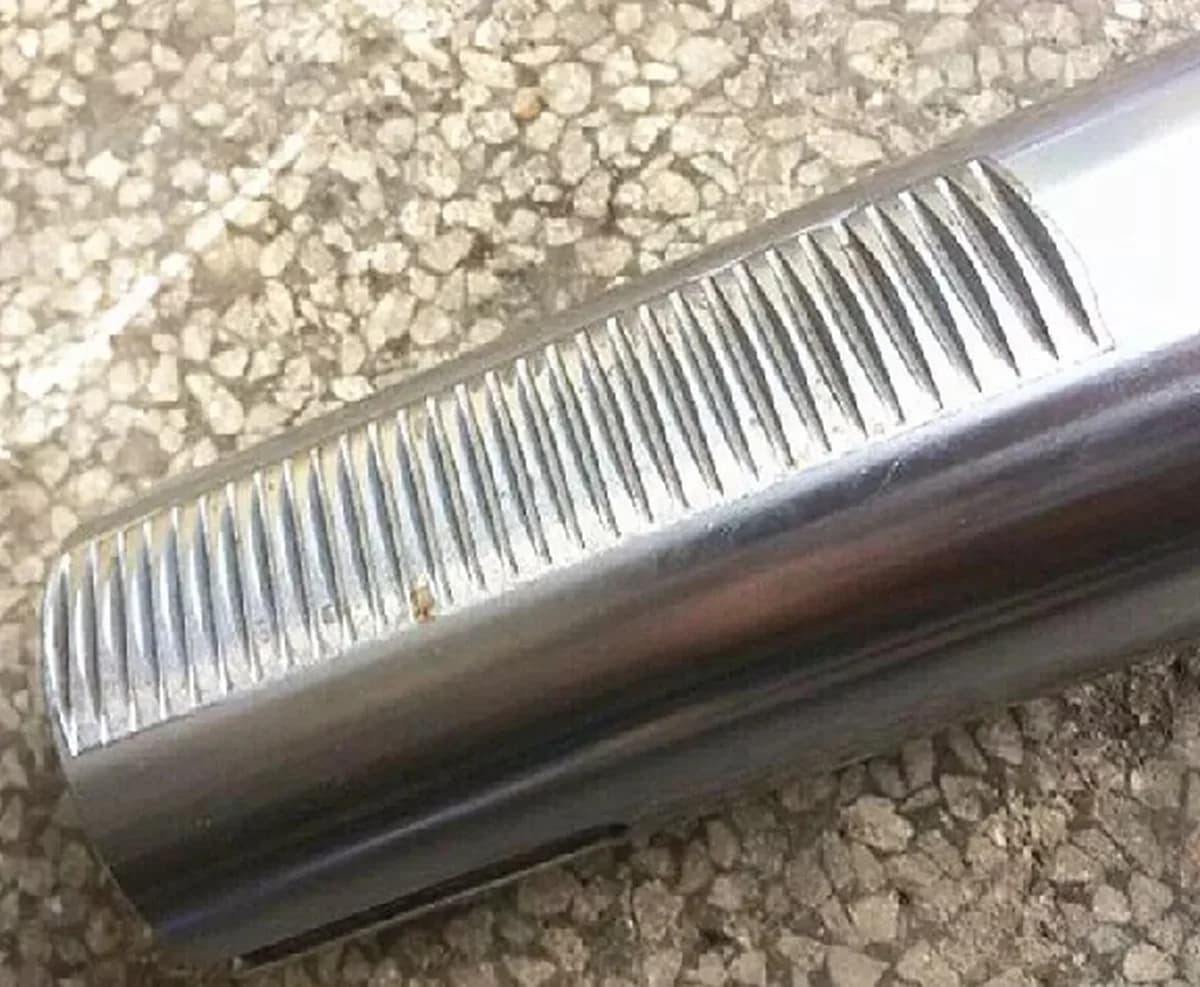

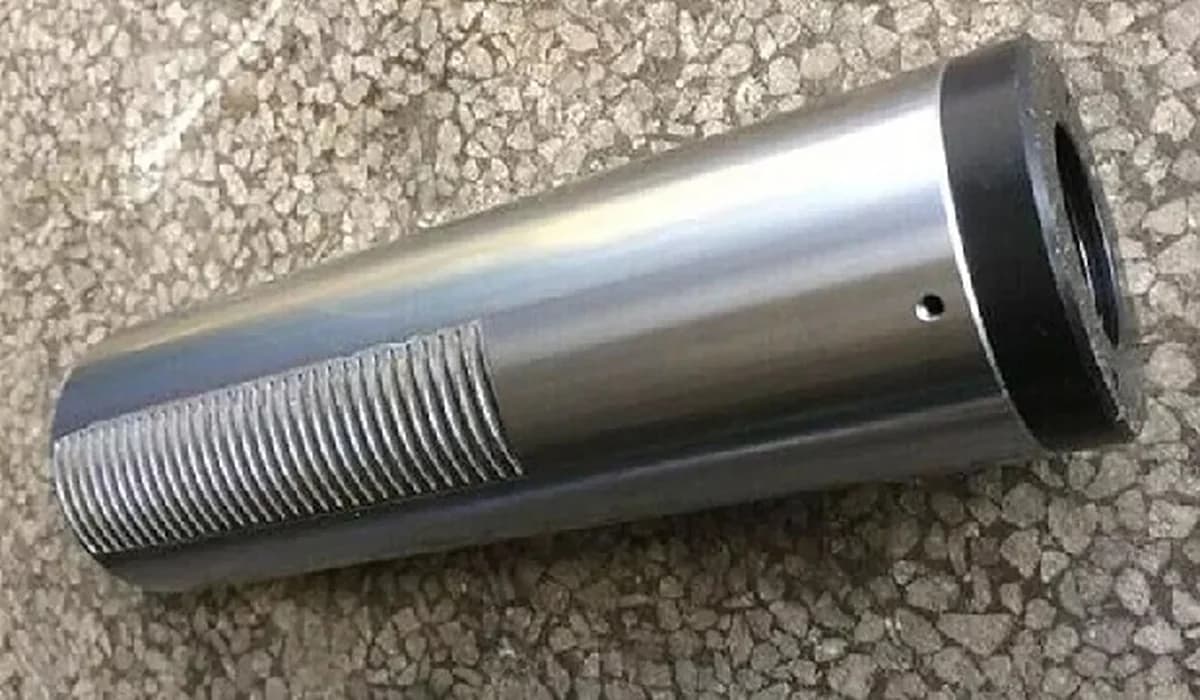

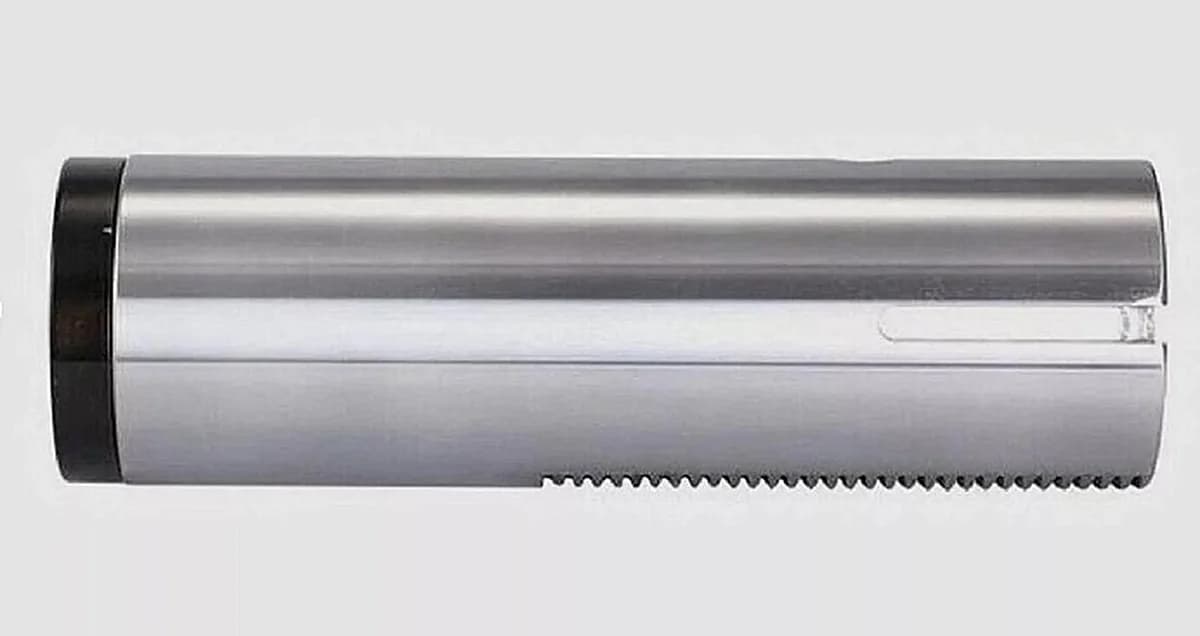

The machined splines/threads visible on the sleeve provide proper engagement with the feed mechanism, ensuring stable and controlled down feed. This sleeve is typically used as a replacement part for worn or damaged quill sleeves to restore machine accuracy and smooth spindle travel.
Advantages:
- Provides high spindle accuracy for precision machining
- Designed for standard taper of Spindle compatibility
- Manufactured from hardened alloy steel for long service life
- Reduces vibration and enhances surface finish quality
- Ensures smooth, stable quill movement
- Resistant to wear, heat, and deformation
- Easy to install and maintain
- Excellent replacement part for Bridgeport-type vertical mills
More questions buyers ask
What is a quill sleeve in a milling machine?
A quill sleeve is a crucial component in a vertical milling machine's headstock. It houses and guides the spindle, allowing for precise vertical movement (the Z-axis) during drilling, boring, and milling operations.
What is the function of a quill sleeve?
The primary function of a quill sleeve is to support the spindle and ensure its smooth, accurate, and rigid movement along the Z-axis. It plays a vital role in maintaining the overall precision and stability of the milling machine.
What are the signs of a worn-out quill sleeve?
Signs of a worn-out quill sleeve include excessive spindle runout, vibration, noise during operation, and difficulty in achieving fine adjustments. A worn sleeve can lead to poor surface finish and inaccurate machining.
How to replace a quill sleeve?
Replacing a quill sleeve is a complex task that requires disassembling the milling machine's head. It is recommended to have it done by a qualified technician to ensure proper alignment and functionality.
What is the material of the PENTAGON B-0142 Quill Sleeve?
The PENTAGON B-0142 Quill Sleeve is made from high-strength alloy steel, which is hardened and precision-ground for maximum durability, wear resistance, and dimensional accuracy.
Is the PENTAGON B-0142 compatible with my milling machine?
The B-0142 is designed for Bridgeport-type vertical turret milling machines. Please check the specifications, such as inner/outer diameters and length, to ensure compatibility with your specific machine model.
What is the warranty on the PENTAGON B-0142 Quill Sleeve?
The PENTAGON B-0142 Quill Sleeve comes with a 1-year warranty against manufacturing defects. We offer pan-India service and support.
Do you provide installation support for the quill sleeve?
While we do not provide on-site installation, our technical team is available to offer guidance and support to your technicians during the installation process.
Can I get a GST invoice for my purchase?
Yes, we provide a GST invoice for all purchases. You can claim input tax credit on your purchase.
Do you deliver to my location in India?
Yes, we offer pan-India delivery for the PENTAGON B-0142 Quill Sleeve. We have a wide logistics network to ensure timely delivery to your workshop or factory.
Who should choose the PENTAGON B-0142 Quill Sleeve?
The PENTAGON B-0142 Quill Sleeve is ideal for workshops and manufacturing units that operate Bridgeport-type vertical milling machines and require a high-quality, reliable replacement part to maintain machining accuracy and performance.
PENTAGON B-0142 vs. other quill sleeve models: What's the difference?
The PENTAGON B-0142 is specifically designed for Bridgeport-type mills and is manufactured to high-precision standards. The key differences compared to other models would be in dimensions, material quality, and manufacturing tolerances. Always choose a model that matches your machine's specifications.
When should I choose a PENTAGON quill sleeve over a generic one?
Choose a PENTAGON quill sleeve when you need guaranteed compatibility, high-quality materials, and precision manufacturing. Generic or unbranded sleeves may not offer the same level of performance, durability, or fit, which can compromise your machining quality and even damage your machine.
What are the key advantages of the B-0142 quill sleeve?
The key advantages of the B-0142 quill sleeve are its high-strength alloy steel construction, precision-ground finish for smooth operation, and design for low runout and high rigidity. This results in improved machining accuracy, better surface finishes, and longer tool life.
