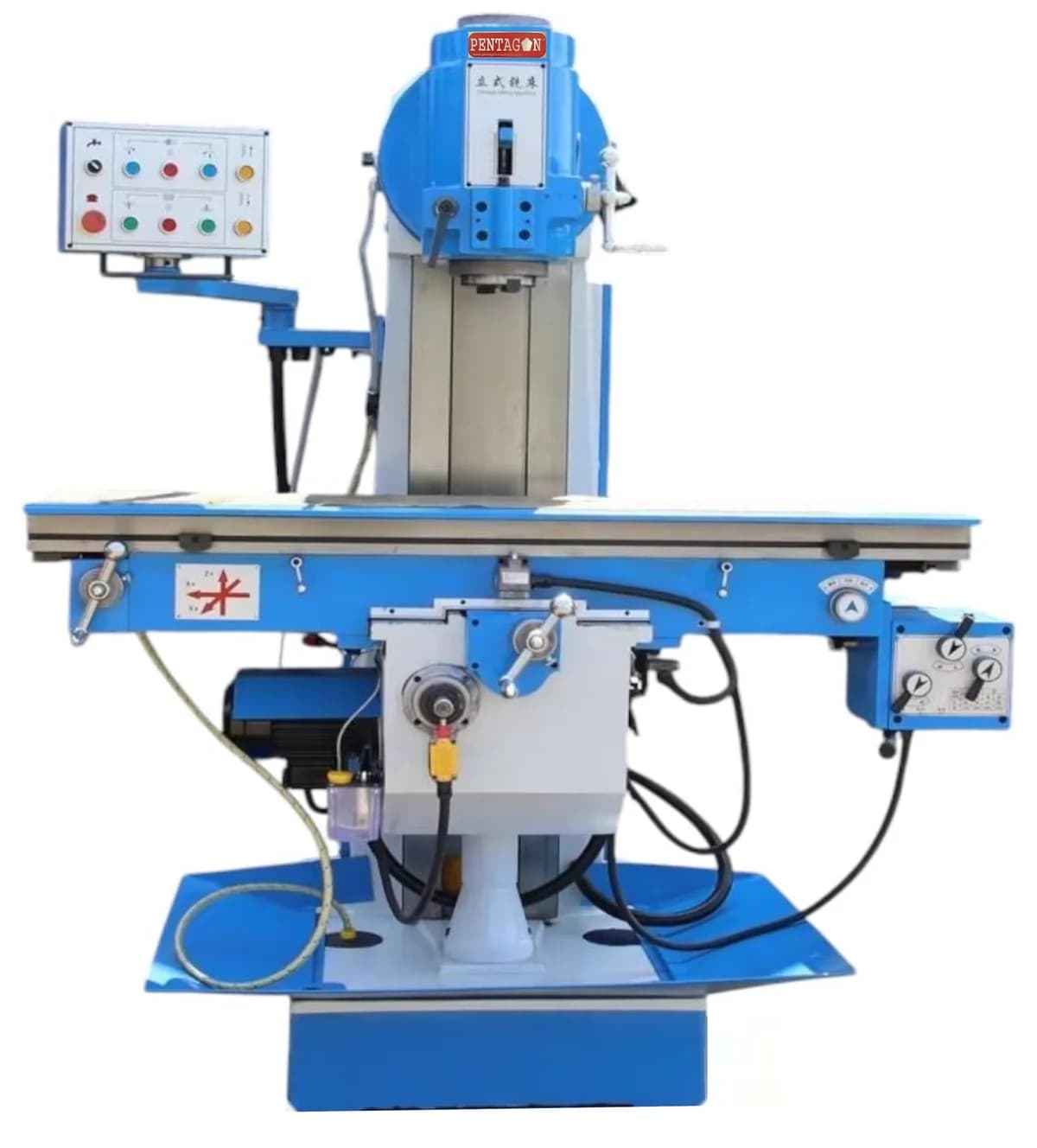

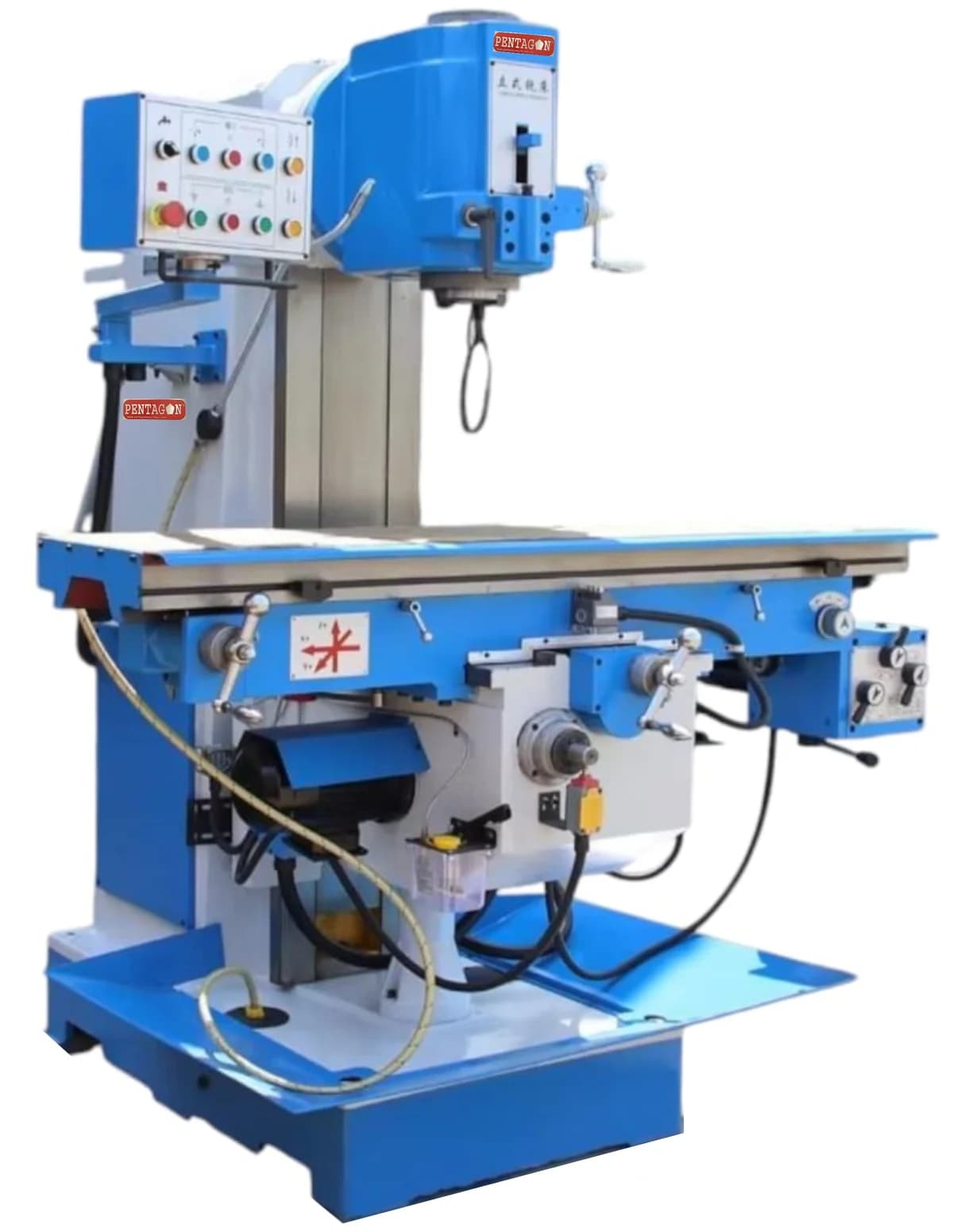

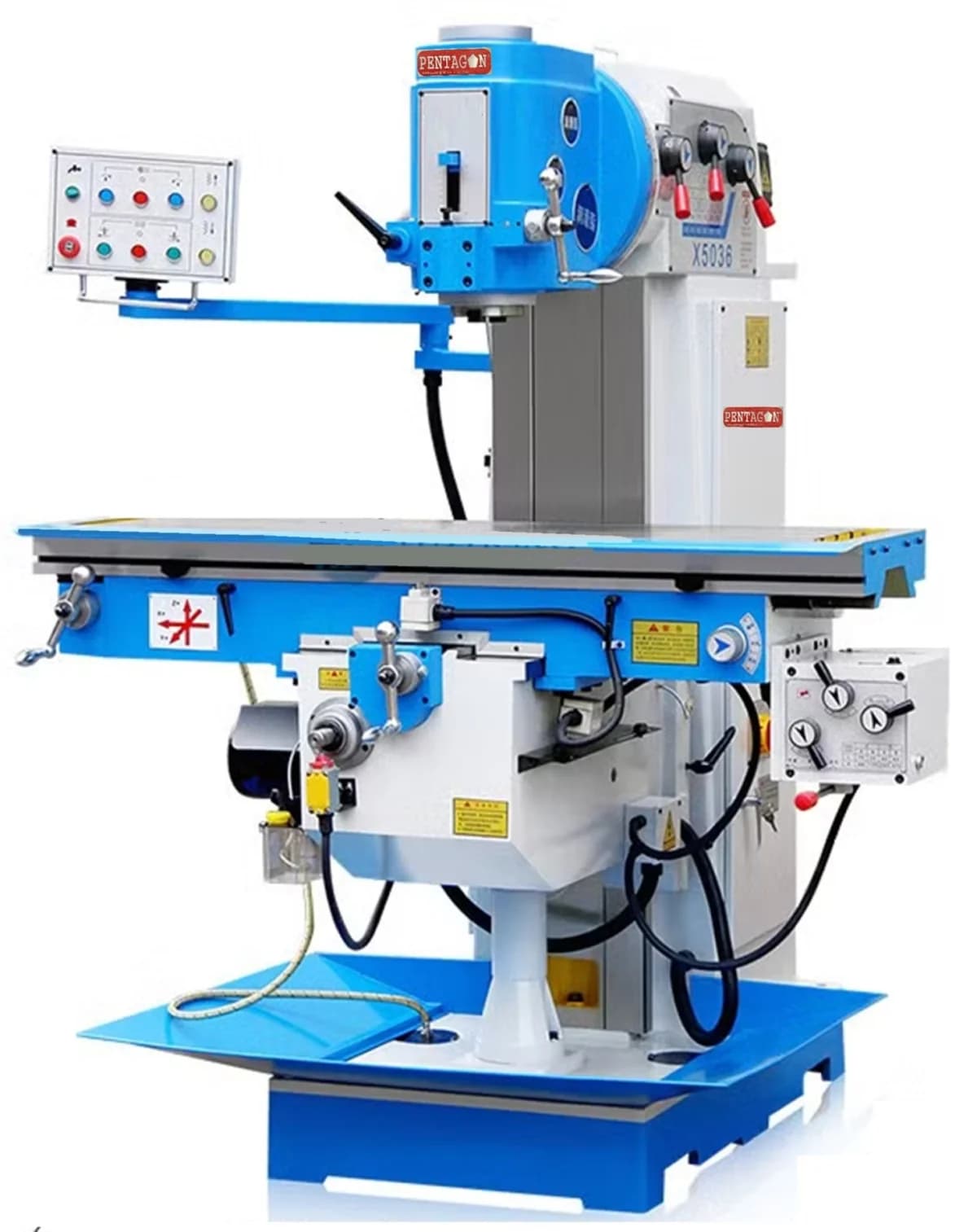

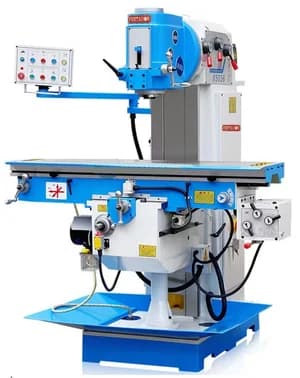

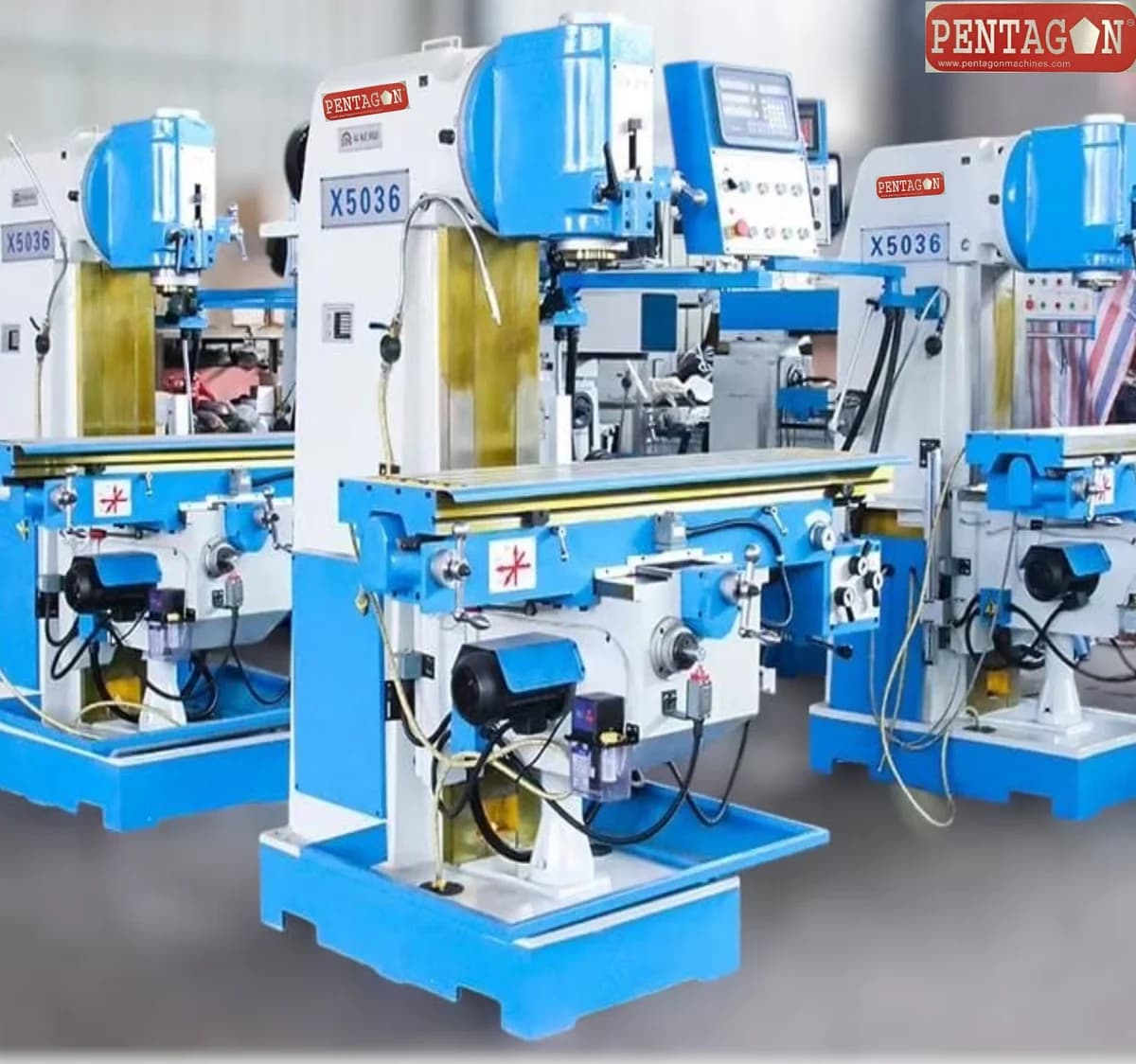

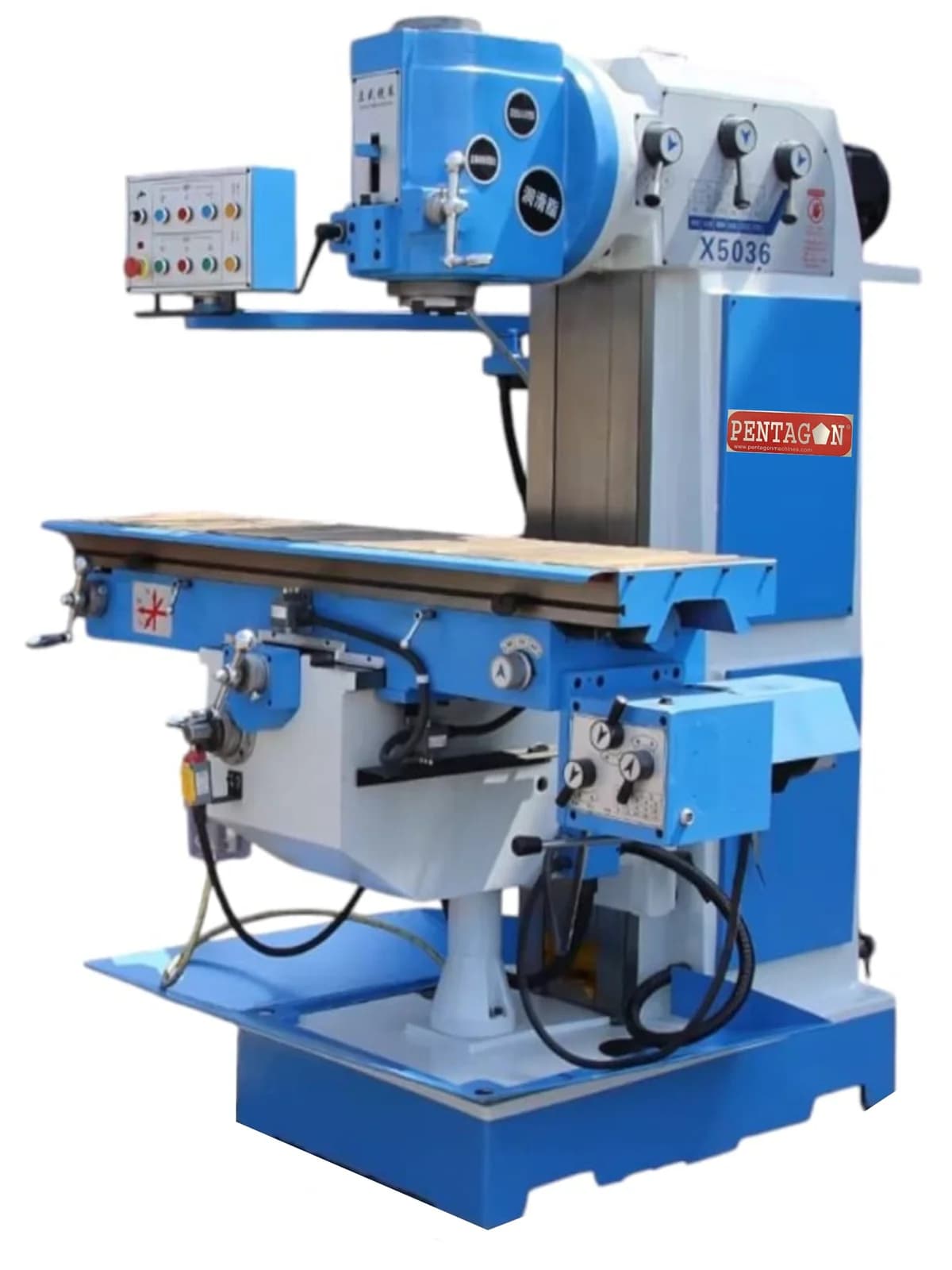

Pentagon X5036 Vertical Milling Machine Price in India
This heavy-duty vertical knee milling machine delivers precision for general-purpose machining tasks. Ideal for manufacturing workshops, it supports versatile operations on moderate to large workpieces. • Rigid knee and column construction ensures stability • Auto table feeds for X, Y, and Z axes increase efficiency • Swivel milling head offers additional flexibility for complex cuts • Suitable for flat milling, slotting, and drilling operations

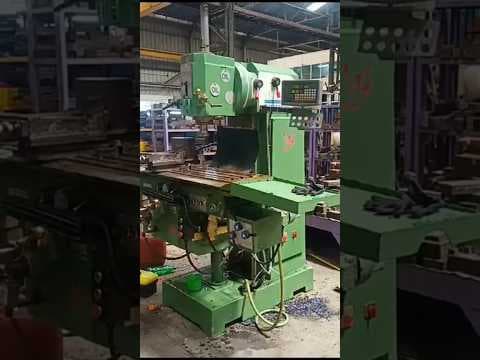

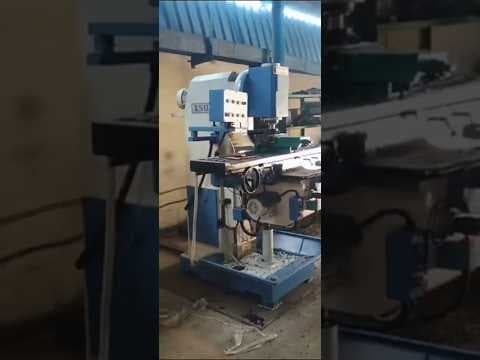

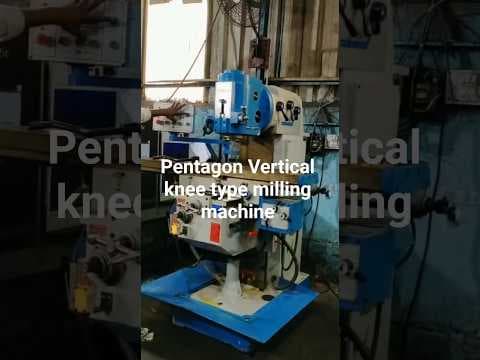

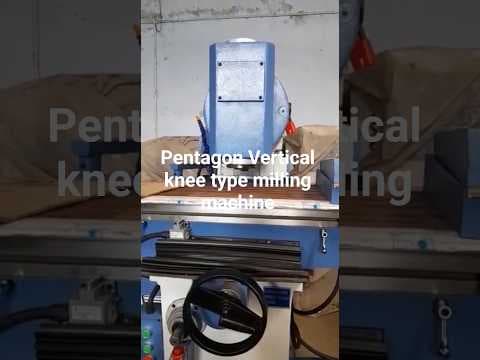

See it in action

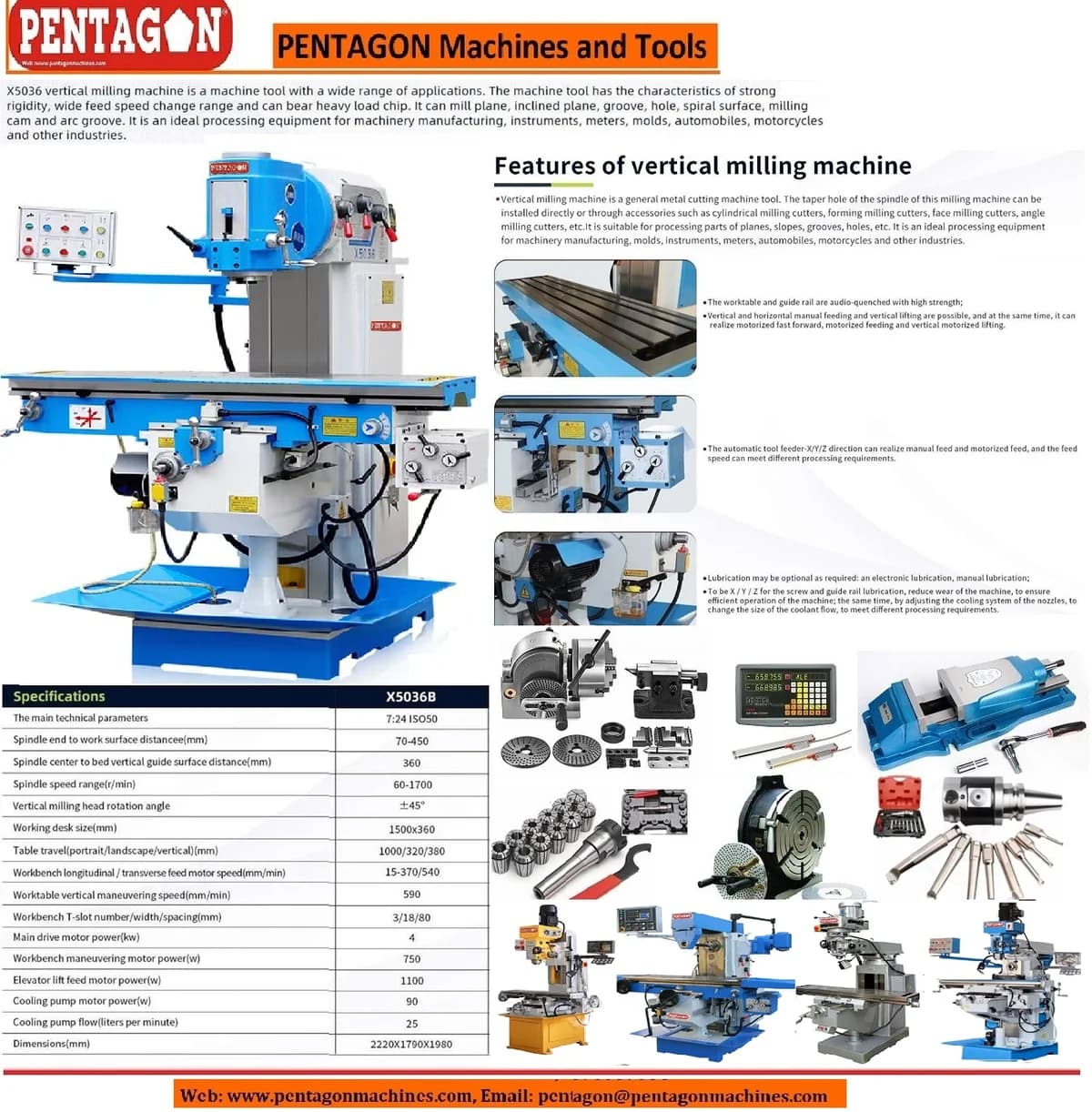

Specifications
For: X5036- Machine Model
- X5036
- Type
- Vertical Knee Type Milling Machine
- Table Size
- 1500 × 360 mm
- Table Travel X,Y,Z
- 950 / 320 / 450 mm
- T-Slots (No. × Width × Pitch)
- 3 × 18 × 80 mm
- Max Table Load
- 350 – 370 kg
- Spindle Taper
- ISO 50 (7:24)
- Spindle Speed Range
- 60 – 1700 RPM
- Speed Steps
- 12 Steps
- Spindle Nose to Table
- 60 – 540 mm
- Spindle Axis to Column Distance
- 360 – 380 mm
- Spindle Quill Travel
- 75 mm
- Vertical Head Swivel
- ±45°
- Table Feed Speed (X,Y)
- 15 – 750 mm/min
- Rapid Feed (X,Y)
- 2250 mm/min
- Rapid Feed (Z)
- 844 mm/min
- Feed Steps
- 18 Steps
- Main Motor Power
- 4 kW
- Feed Motor
- 0.75 kW
- Z axis Rapid Motor
- 0.75 kW
- Coolant Pump Motor
- 0.09 – 0.125 kW
- Machine Weight
- 2450 Kgs
- Overall Size (L × W × H)
- 2500 kg
Configurations
Click a row to switch| Variant | Table Size | Spindle Taper | Main Motor Power | Table Travel X,Y,Z | Price |
|---|---|---|---|---|---|
| X5036 | 1500 × 360 mm | ISO 50 (7:24) | 4 kW | 950 / 320 / 450 mm | ₹7,15,000 |
| X5036F | 1500 × 360 mm | ISO 50 (7:24) | 4 kW | 950 / 320 / 450 mm | ₹6,95,000 |
| X5032F | 1500 × 360 mm | ISO 50 (7:24) | 4 kW | 900 / 300 / 410 mm | ₹6,55,000 |
Common Buyer Questions
Q: Are both automatic and manual feed options available? A: Yes, the machine family offers configurations with automatic axis feeds and manual quill feed options. Q: What spindle taper does this machine use? A: The equipment utilizes a standard ISO50 spindle taper for tool compatibility. Q: Is this machine suitable for heavy-duty cutting? A: Yes, the rigid gearbox and heavy-duty construction are designed for heavy cutting speeds.
Industrial Applications and Use Cases
- Ideal for job shops requiring versatile milling capabilities
- Suitable for tool and die making and prototype development
- Supports production runs in automotive and aerospace sectors
- Effective for general fabrication in metalworking industries
- Handles both soft and hard metals with appropriate parameters
- Facilitates complex geometries through swivel head versatility
Operational Versatility and Precision
- Swivel milling head offers flexibility for complex cuts
- Supports versatile operations including flat milling and slotting
- – Flat milling, slotting, and drilling operations supported
- Manual or automatic feed selection allows precise control
- Stable column design minimizes vibration during heavy load
- Suitable for moderate to large workpieces in workshops
Spindle Performance and Power
- Main motor delivers consistent torque for demanding metalworking
- Gear head design reduces noise compared to belt-driven alternatives
- Spindle speed range accommodates various materials and tools
- Dedicated feed motors ensure smooth and reliable table movement
- Coolant system integration helps maintain tool life and temperature
- Engineered for longevity in high-volume industrial production
Core Construction and Feed Systems
- Vertical Knee type Milling Machine X5036A and X6036B Series
- Heavy Duty design ensures stability during rigorous machining
- Rigid gear box for heavy cutting speed and feed rates
- Feed – All axis auto and rapid table feed available
- Quill feed – Without or with Manual quill feed options
- ISO50 Spindle taper accommodates standard industrial tooling
Optional Accessories
- Two/Three Axis DRO with suitable linear scales and fittings
- Semi universal dividing head with chuck and tail stock
- H-V rotary table
- Mounting pads 4 Nos suitable for the machine
- Hydraulic vice 320 mm max jaw opening
- M14 Clamping Kit Set
Standard Accessories
- Milling vice
- Collet set with adapter and spanner
- Coolant Pump and fitting
- Vertical Draw bar
- Centralized Lubrication Unit
- Electrical Control Panel
- Auto and rapid table feeder for X/Y/Z axis
- Tool Box
- Operation manual
- Test Certificate
- Machine lamp
More questions buyers ask
What is the primary application of the PENTAGON X5036 milling machine?
The PENTAGON X5036 is a heavy-duty vertical knee type milling machine designed for precision metal cutting, slotting, drilling, and milling operations in industrial workshops and manufacturing settings.
What is the spindle taper on the X5036 model?
The machine is equipped with a standard ISO 50 (7:24) spindle taper, allowing it to accommodate a wide range of standard milling cutters and tools.
What is the main motor power of the PENTAGON X5036?
The main motor has a power of 4 kW, providing sufficient torque for demanding metalworking tasks on various materials.
Does the PENTAGON X5036 come with a warranty?
Yes, all PENTAGON machines purchased through authorized dealers in India come with a standard manufacturer warranty. We provide a GST invoice for your purchase.
What are the table dimensions of the X5036 model?
The X5036 and X5036F models feature a large table size of 1500 x 360 mm, suitable for handling medium to large workpieces.
Are automatic feeds included on this milling machine?
Yes, the machine includes powered, variable feeds for the X, Y, and Z axes, along with rapid traverse functionality to improve productivity.
Can the milling head be angled?
Yes, the vertical head can be swiveled by ±45°, providing flexibility for angled drilling and milling operations.
What is the maximum load the machine's table can support?
The table on the X5036 and X5036F models can support a maximum load of 350-370 kg, while the X5032F supports up to 300-350 kg.
How do I get the best price for the PENTAGON X5036 in India?
For the latest pricing and offers on the PENTAGON X5036 series, please contact our sales team. We offer competitive prices and pan-India delivery.
What is the difference between the X5036 and the X5036F models?
The primary difference is that the standard X5036 model features 75mm of manual spindle quill travel, which is useful for drilling operations. The 'F' models (X5036F and X5032F) have a fixed quill, offering slightly more rigidity for pure milling tasks.
Who should choose the PENTAGON X5036 model?
The X5036 model is ideal for workshops that require maximum versatility. Its 75mm spindle quill travel makes it perfect for users who perform both milling and precision drilling operations and need the flexibility to switch between them quickly.
Who should choose the PENTAGON X5036F model?
The X5036F is the best choice for facilities focused on heavy-duty milling operations. The fixed quill design provides enhanced rigidity and stability, making it suitable for demanding production environments where precision milling is the primary task.
Who should choose the PENTAGON X5032F model?
The X5032F is perfect for workshops with space or budget constraints that still need a robust and precise milling machine. It offers slightly smaller table travel than the X5036 models but the same power and fixed-quill rigidity, making it a great value for general-purpose milling.
Which model is best for general job shop work?
For a general job shop that handles a wide variety of tasks, the standard X5036 model with its added quill feed for drilling is often the most versatile and recommended choice.
Are the 'F' models more accurate for milling?
The 'F' models (X5036F, X5032F) feature a fixed quill, which can offer a slight increase in rigidity during heavy side-milling operations compared to a model with a movable quill. However, all models are built to high precision standards.
