Umiya - Universal Combined Planner Machine MODEL - U-300 (3 Blade Cutter Head)
The Umiya Universal Combined Planner Machine integrates planing, sawing, and milling functions for efficient woodworking production. This model features a robust 3 HP motor and standard 3-blade cutter head for reliable performance. • Surface Table: 300 x 1500 mm • Thickness Range: 4-220 mm • Spindle Shaft: 30/35/40 mm

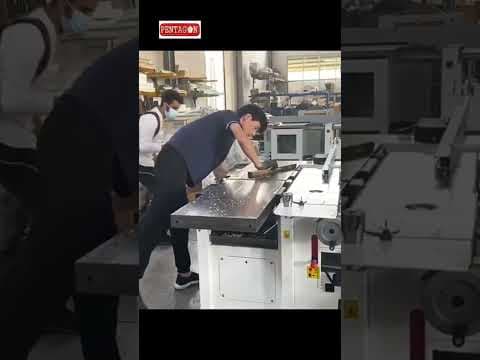

See it in action
Specifications
For: MODEL - U-300 (3 Blade Cutter Head)- Surface Working Table
- 300 x 1500 mm
- Thickness Working Table
- 300 x 660 mm
- Thickness Working Height
- 4-220 mm
- Drilling Working Table
- 220 x 500 mm
- Panel Saw Working Table
- 220 x 1000 mm
- Main Saw Table
- 250 x 30 mm
- Scoring Saw Blade
- 90 x 22 mm
- Spindle Moulder Working Table
- 220 x 1000 mm
- Spindle Moulder Shaft Diameter
- 30/35/40 mm
- Spindle table
- 1250 x 315 mm
- Motor Power
- 3 HP
- Cutter Head
- 3 Blade Cutter Head
Configurations
Click a row to switch| Variant | Cutter Head | Motor Power | Scoring Saw Blade | Spindle Moulder Working Table | Price |
|---|---|---|---|---|---|
| MODEL - U-300 (3 Blade Cutter Head) | 3 Blade Cutter Head | 3 HP | 90 x 22 mm | 220 x 1000 mm | ₹8,81,237 |
| MODEL - U-300 (Spiral Cutter Head) | Spiral Cutter Head | 3 HP | 90 x 22 mm | 220 x 1000 mm | ₹9,24,374 |
| MODEL -U-400 (3 Blade Cutter Head) | 3 Blade Cutter Head | 4 HP | 90 x 22 mm | 290 x 1112 mm | ₹11,21,575 |
| MODEL - U-400 (Spiral Cutter Head) | Spiral Cutter Head | 4 HP | 90 x 22 mm | 290 x 1112 mm | ₹11,83,200 |
Precision Adjustment and Operational Flexibility
- Thickness working height adjustable from 4-220 mm
- Spindle moulder shaft diameter options: 30/35/40 mm
- Scoring saw blade size is 90 x 22 mm for clean cuts
- Easy adjustment mechanisms for quick setup changes
- Precise alignment ensures consistent product quality
- Flexible settings accommodate various material thicknesses
Optimized Workspace and Table Dimensions
- Surface working table measures 300 x 1500 mm
- Thickness working table sized at 300 x 660 mm
- Drilling table provides ample 220 x 500 mm area
- Panel saw table offers generous 220 x 1000 mm space
- Spindle moulder table is 1250 x 315 mm for stability
- Main saw table width is 250 x 30 mm for accuracy
Robust Construction and Power Specifications
- Equipped with a powerful 3 HP main motor unit
- Features a sturdy 3 Blade or Spiral cutter head assembly
- Designed for continuous industrial duty cycles
- High-quality components ensure long operational life
- Stable frame minimizes vibration during heavy use
- Built to withstand demanding workshop environments
Versatile Multi-Function Woodworking Capabilities
- Combines planning, sawing, drilling, and moulder functions
- Universal design reduces need for multiple separate machines
- Ideal for small to medium-sized woodworking workshops
- Supports complex joinery and profile creation tasks
- Streamlines workflow by centralizing key operations
- Suitable for both solid wood and panel processing
Model Variants and Cutter Options
- Available in U-300 and U-400 model configurations
- Choose between 3 Blade or Spiral cutter heads
- 3 Blade option offers traditional precision cutting
- Spiral head provides smoother finish and less noise
- Select variant based on specific production needs
- All models share the same universal combined design
More questions buyers ask
What is a Universal Combined Planner Machine?
It is a multi-functional woodworking machine that integrates planning, sawing, drilling, and spindle moulding into one unit, ideal for space-saving workshops.
What are the key benefits of Umiya combined machines?
They offer high precision, space efficiency, and versatility, allowing woodworkers to perform multiple tasks on a single, robust machine.
What motor power options are available?
Umiya models are available with 3 HP and 4 HP motor configurations to suit different industrial production needs.
What is the difference between 3-blade and spiral cutter heads?
3-blade heads provide traditional precision, while spiral cutter heads offer a smoother finish, reduced noise, and longer blade life.
What is the thickness working height capacity?
The machine supports a thickness working height ranging from 4 mm to 220 mm.
Is this machine suitable for heavy-duty industrial use?
Yes, Umiya combined planner machines are designed for continuous industrial duty cycles in furniture factories and woodworking shops.
What materials can this machine process?
It is designed for both solid wood and panel processing applications.
Does the machine come with a warranty?
Yes, all Umiya machines come with standard manufacturer warranty coverage. Please contact us for specific terms.
Do you provide pan-India delivery?
Yes, we provide secure pan-India delivery and support for all our woodworking machinery.
Is GST invoice provided?
Yes, all purchases include a valid GST invoice for business accounting.
Who should choose the U-300 model?
The U-300 is ideal for small to medium-sized workshops requiring a compact yet powerful multi-functional solution.
Who should choose the U-400 model?
The U-400 is designed for larger workshops needing higher capacity, wider tables, and more powerful 4 HP motor performance.
Who should choose the Spiral Cutter Head variant?
Woodworkers prioritizing a superior surface finish, quieter operation, and lower maintenance frequency should choose the spiral cutter head.
U-300 vs U-400: Which is better?
U-400 offers larger table dimensions and higher motor power (4 HP) compared to the U-300 (3 HP), making it better for heavy-duty, high-volume production.
3-Blade vs Spiral: Which is more cost-effective?
3-blade systems are generally more affordable upfront, while spiral heads offer better long-term value through reduced maintenance and superior finish quality.
More like this
Full description
The Umiya Universal Combined Planner Machine integrates planing, sawing, and milling functions for efficient woodworking production. This model features a robust 3 HP motor and standard 3-blade cutter head for reliable performance. • Surface Table: 300 x 1500 mm • Thickness Range: 4-220 mm • Spindle Shaft: 30/35/40 mm
