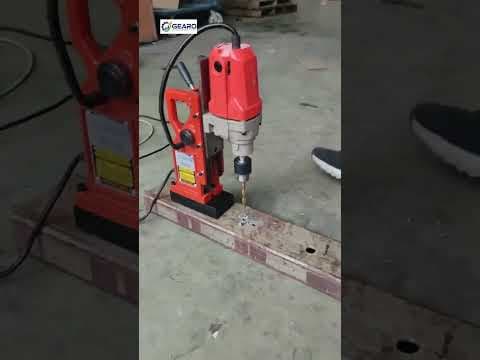

Toolvisor MAGNETIC DRILLING MACHINE TV.120
This magnetic drilling machine delivers precise hole-making directly onto steel structures without auxiliary fixtures. It runs on standard 220–240V AC power and uses a 2000W motor for reliable cutting in heavy fabrication. • Annular cutters: 12 to 120 mm • Thread tapping: up to M42 • Four speed ranges: 35 to 500 RPM • 22000 N magnetic base for stable vertical mounting
Specifications
For: TV.120- THREADING
- M 42
- ANNULAR CUTTERS
- 12 – 120 mm
- TWIST DRILLS
- 6-49 mm
- COUNTERSINKING
- 10 – 50 mm
- LENGTH
- 450 mm
- WIDTH
- 160 mm
- HEIGHT
- 520 – 780 mm
- STROKE
- 260 mm
- MAGNETIC FORCE
- 22000 N
- MOTOR POWER
- 2200 W
- TOTAL POWER
- 2000 W
- SPEED – 1
- 35 – 90 RPM
- SPEED – 2
- 90 – 160 RPM
- SPEED – 3
- 160 – 270 RPM
- SPEED – 4
- 270 – 500 RPM
- SPINDLE
- MT - 4
- POWER SOURCE
- 220 – 240V AC 50 ~ 60 HZ
- WEIGHT
- 34 kg
Maintenance & Safe Handling Practices
- Clean magnetic base surfaces before each use to maintain full holding force
- Apply recommended cutting fluid to reduce friction and extend annular cutter life
- Inspect power cords and grounding connections regularly to prevent electrical hazards
- Store tools in dry environments to protect internal windings and control components
- Follow manufacturer torque guidelines when mounting accessories to avoid spindle damage
Ideal Industries & Structural Applications
- Steel fabrication shops requiring rapid beam, plate, and column drilling
- Construction sites needing on-site structural modifications without heavy lifting equipment
- Shipbuilding and offshore platforms for high-strength bolt hole preparation
- Bridge maintenance crews performing in-field repairs and reinforcement installations
- Heavy machinery manufacturing for precise mounting and alignment hole creation
Precision Control & Operational Efficiency
- MT-4 spindle interface ensures quick tool changeovers and precise concentric alignment
- Adjustable feed rates match cutting speed to material thickness for cleaner hole finishes
- Compact footprint reduces floor space requirements while maintaining full stroke capacity
- Integrated cooling channels extend cutter life and prevent workpiece heat distortion
- Ergonomic control layout minimizes operator fatigue during extended production shifts
Secure Mounting & Power Adaptability
- Equipped with a 22000 N magnetic base for secure attachment to ferrous surfaces
- Ensures stable vertical mounting during overhead or inverted drilling operations
- Operates on standard 220–240V AC power for seamless integration into workshop grids
- Eliminates the need for clamps or welding fixtures to maintain structural integrity
- Provides consistent vibration damping to protect both tool and workpiece during use
Core Cutting Capabilities
- Delivers precise hole-making directly onto steel structures without auxiliary fixtures
- Supports annular cutters ranging from 12 to 120 mm for versatile material removal
- Enables heavy-duty thread tapping up to M42 for robust structural fastening
- Covers four speed ranges – 35 to 500 RPM – to match material thickness and cutter size
- Powered by a 2000W motor designed for reliable cutting in heavy fabrication environments
More questions buyers ask
What is a magnetic drilling machine used for?
A magnetic drilling machine, or mag drill, uses a powerful electromagnetic base to adhere to a steel or iron surface. This allows for precise, stable drilling of holes, typically in structural steel, fabrication workshops, and on-site construction.
What are the key features of ToolVisor magnetic drills?
ToolVisor magnetic drills are known for their powerful motors, strong magnetic adhesion, lightweight and compact designs, and use of high-quality materials for durability. They are designed for professional and industrial use in India.
Are ToolVisor machines suitable for heavy industrial use?
Yes, models like the TV.60T are specifically designed for heavy-duty applications, offering higher torque and features like tapping. All models are built to withstand demanding workshop environments.
What is the power consumption of these machines?
Power consumption varies by model. For example, the TV.35 has a total power rating of 900W, offering a balance of performance and energy efficiency.
What is the magnetic force of these drills?
The magnetic adhesion is substantial to ensure safety and stability. The TV.35, for instance, has a magnetic force of 1,000 kg (2,205 lbs).
What is the standard warranty on ToolVisor products?
All ToolVisor products sold on Gearo come with a standard manufacturer's warranty against manufacturing defects. Please refer to the product documentation for specific warranty periods.
Do you provide after-sales service and spares?
Yes, as an authorized dealer, we facilitate after-sales service and the availability of genuine ToolVisor spare parts to ensure the longevity of your machine.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice for every purchase, allowing you to claim input tax credit for your business.
Do you deliver to all locations in India?
Yes, we offer reliable, pan-India delivery to ensure your machine reaches your workshop or job site, no matter the location.
What is the spindle type on these machines?
ToolVisor magnetic drills typically use a Weldon shank spindle (e.g., 19.05 mm or 3/4\"), which is the industry standard for securely holding annular cutters.
Who should choose the ToolVisor TV.35 35mm magnetic drill?
The TV.35 is ideal for fabricators, contractors, and workshops that require a reliable and compact machine for drilling holes up to 35mm in diameter. It's a great all-rounder for most standard steel drilling tasks.
Who should buy the ToolVisor TV.40 40mm magnetic drill?
The TV.40 is the perfect choice for users who prioritize portability and work in confined spaces. As the lightest machine in its class, it's suited for on-site repairs, overhead work, and any job requiring frequent repositioning.
When is the ToolVisor TV.60T with tapping the right choice?
The TV.60T is designed for heavy-duty applications where both drilling large holes (up to 60mm) and creating internal threads (tapping) are required. It's the best choice for structural engineering and production environments to save time and equipment.
What is the main difference between the ToolVisor TV.35 and TV.40?
The primary differences are drilling capacity and weight. The TV.40 offers a slightly larger drilling capacity (40mm vs 35mm) and is significantly lighter (9.5 kg), making it more portable and suitable for tight spaces than the TV.35.
How does the TV.60T's tapping function add value over other models?
The tapping function allows the TV.60T to not only drill a hole but also cut threads into it using a tap. This eliminates the need for a separate tapping machine or manual tapping, saving significant time and improving thread accuracy in production workflows.
Which ToolVisor magnetic drill is best for working in tight spaces?
The ToolVisor TV.40 is explicitly designed for this purpose. Measuring just 27.5 cm in length and weighing only 9.5 kg, it is the ideal choice for drilling in areas with limited access.
