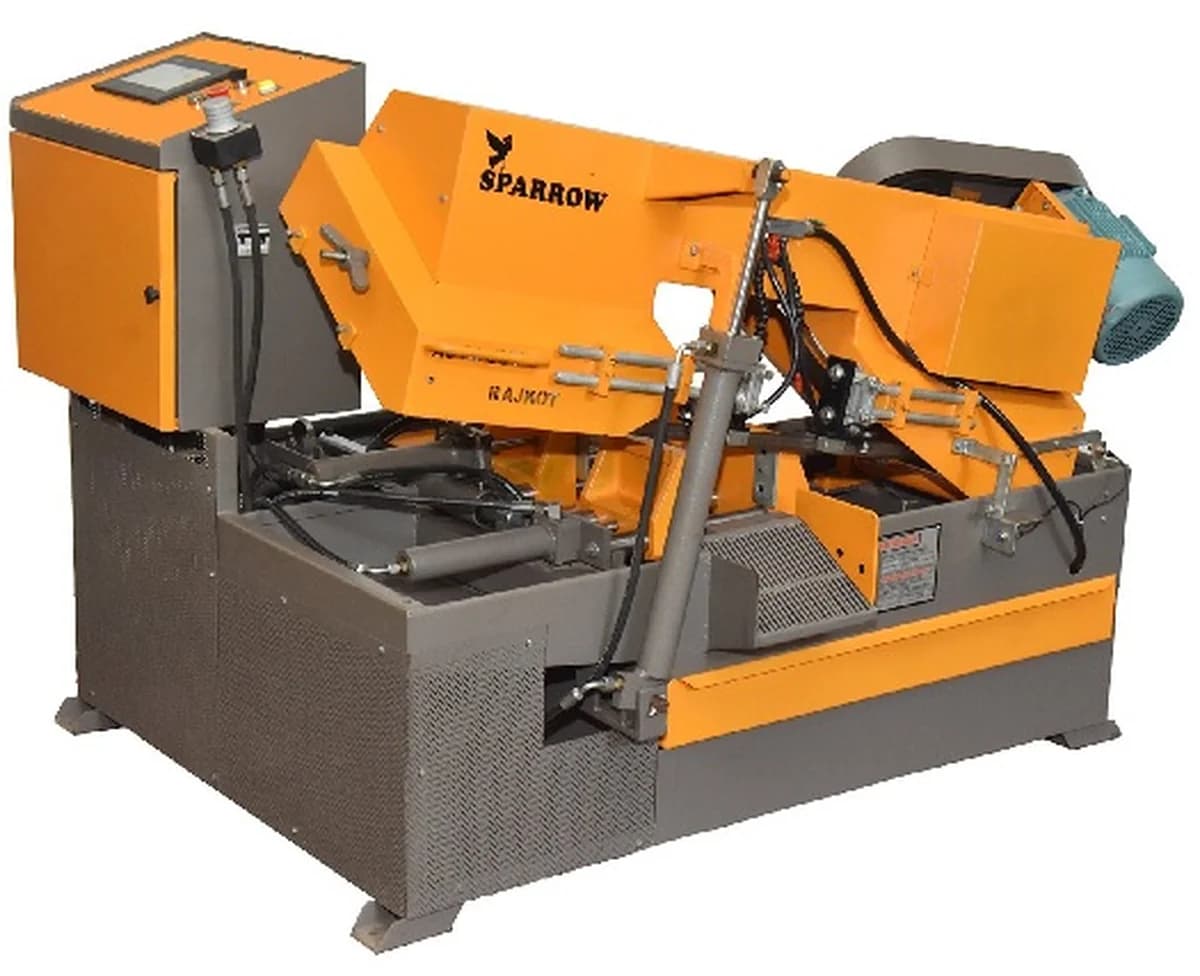

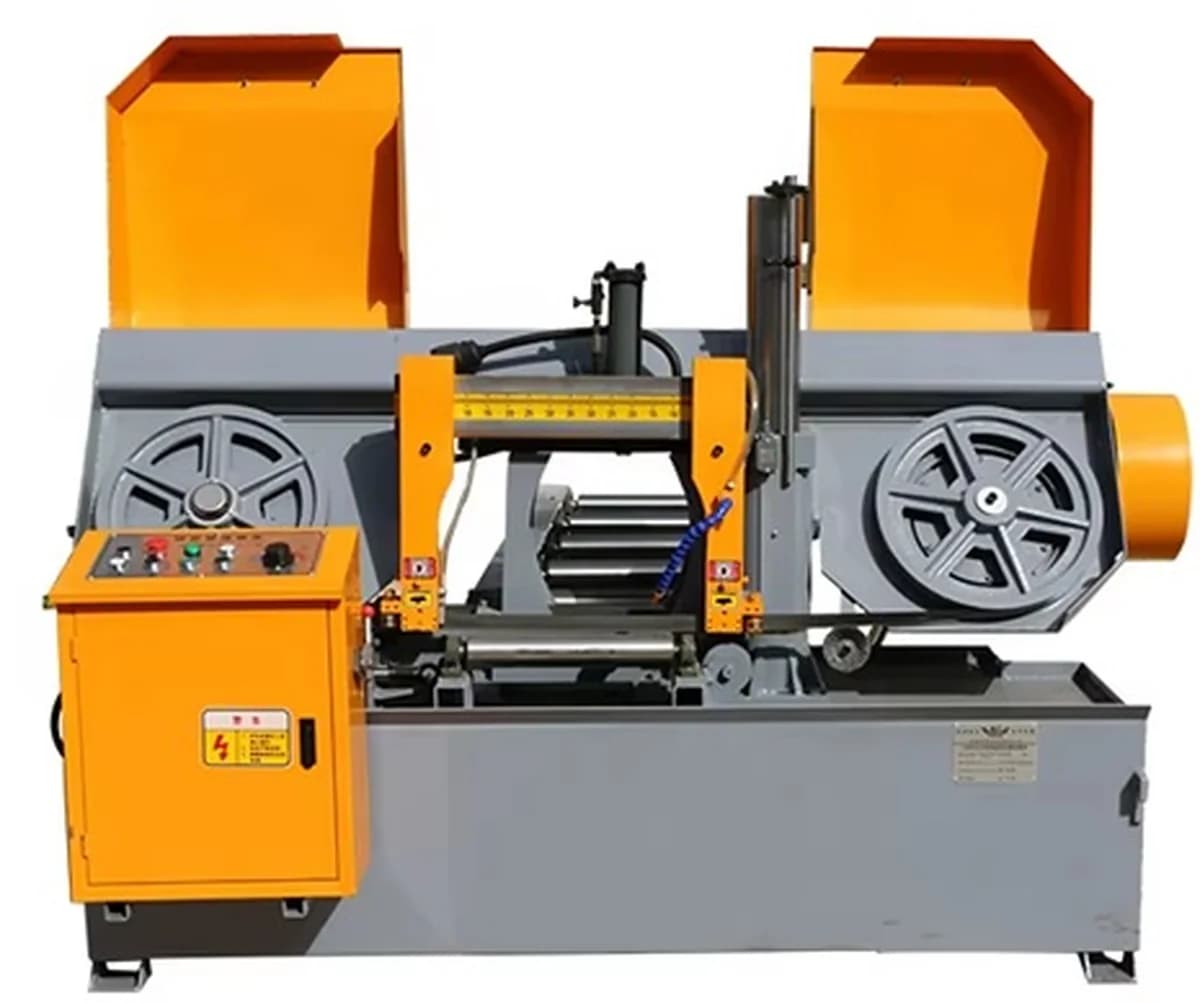

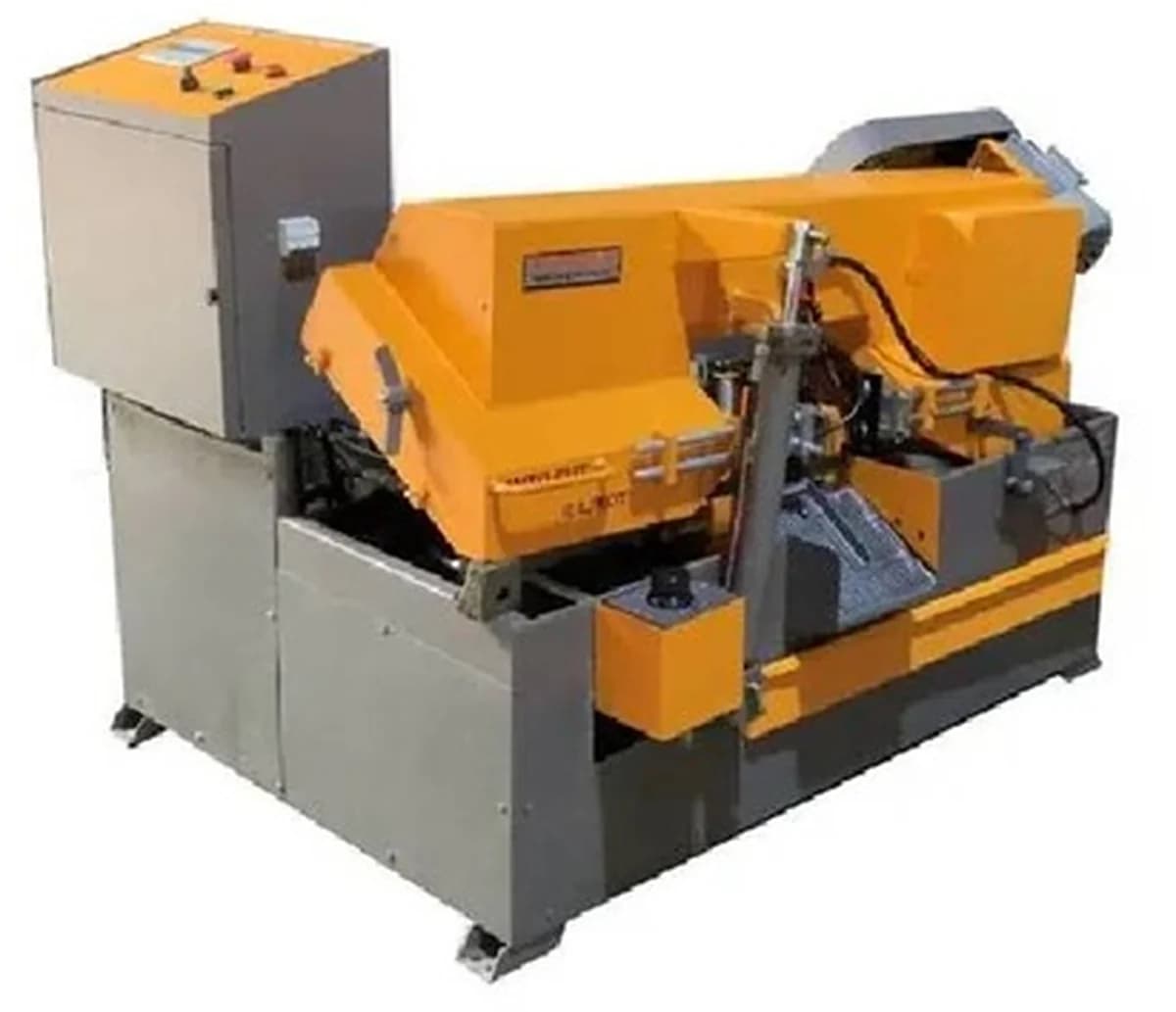

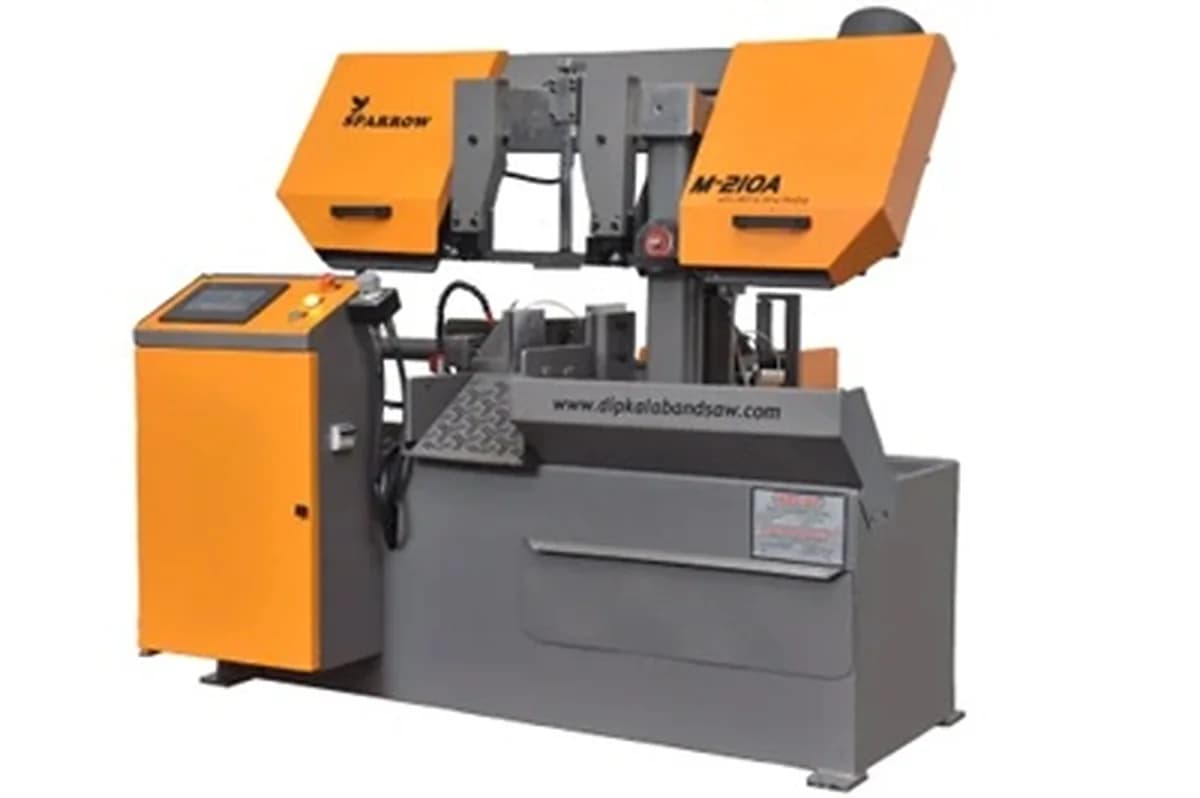

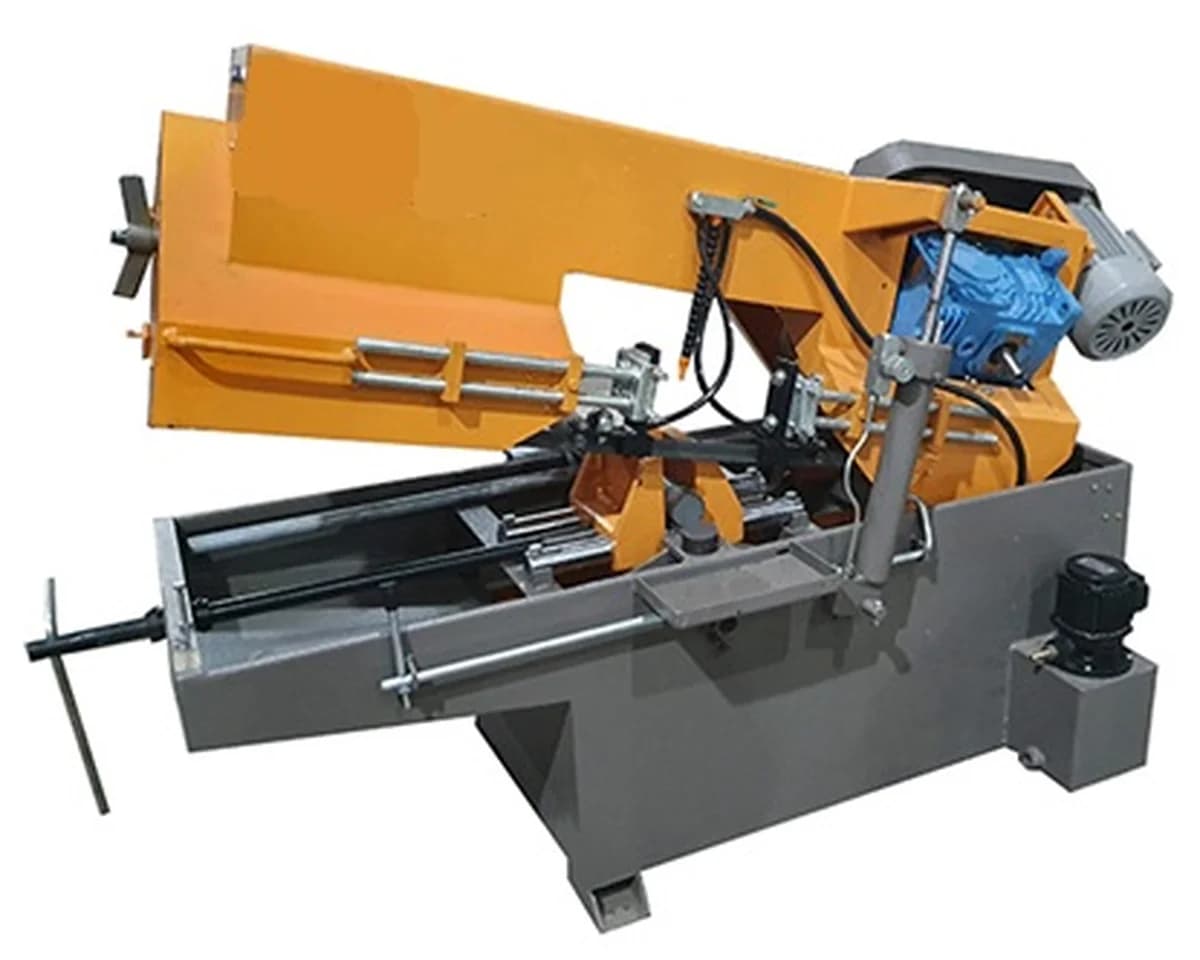

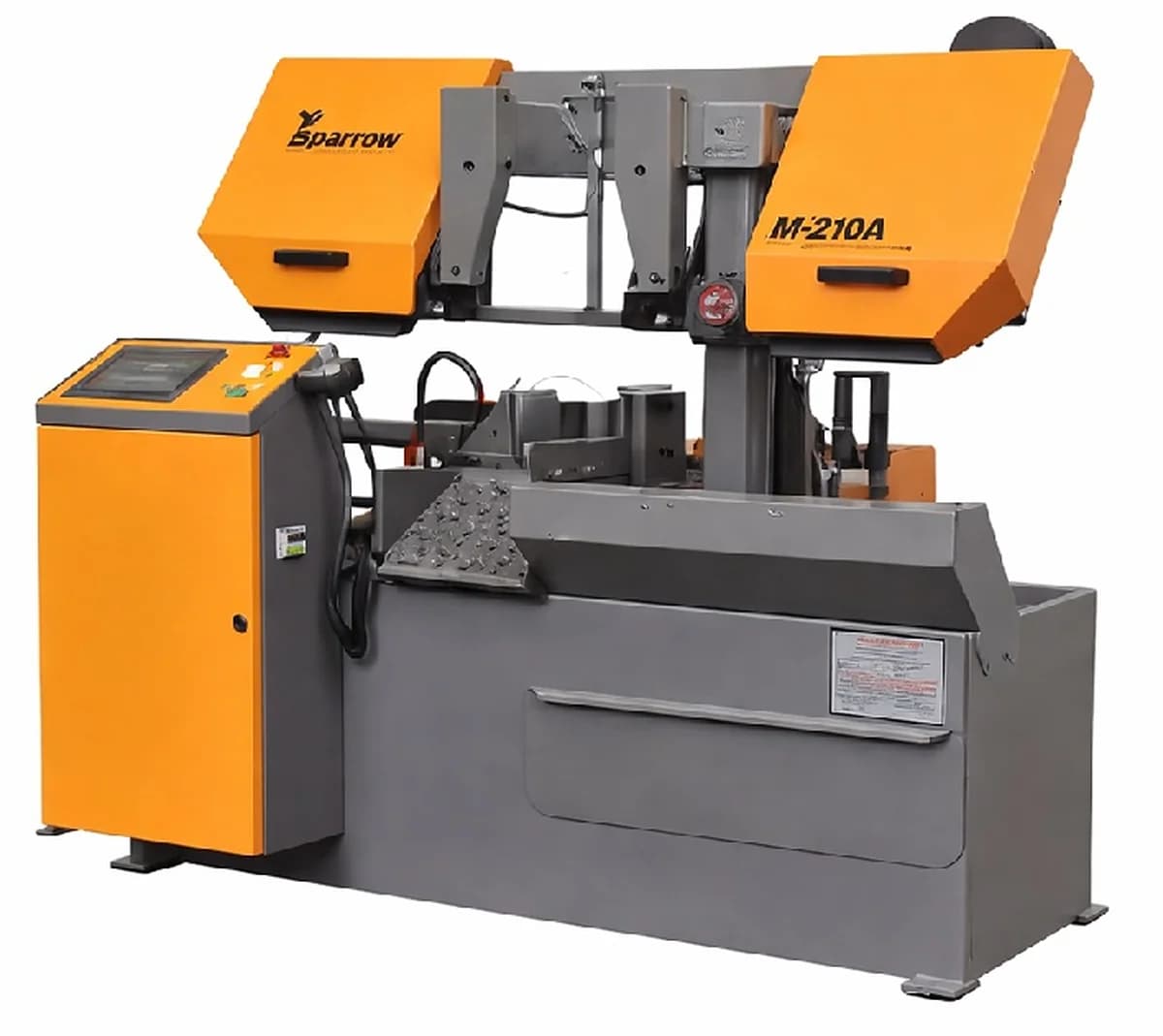

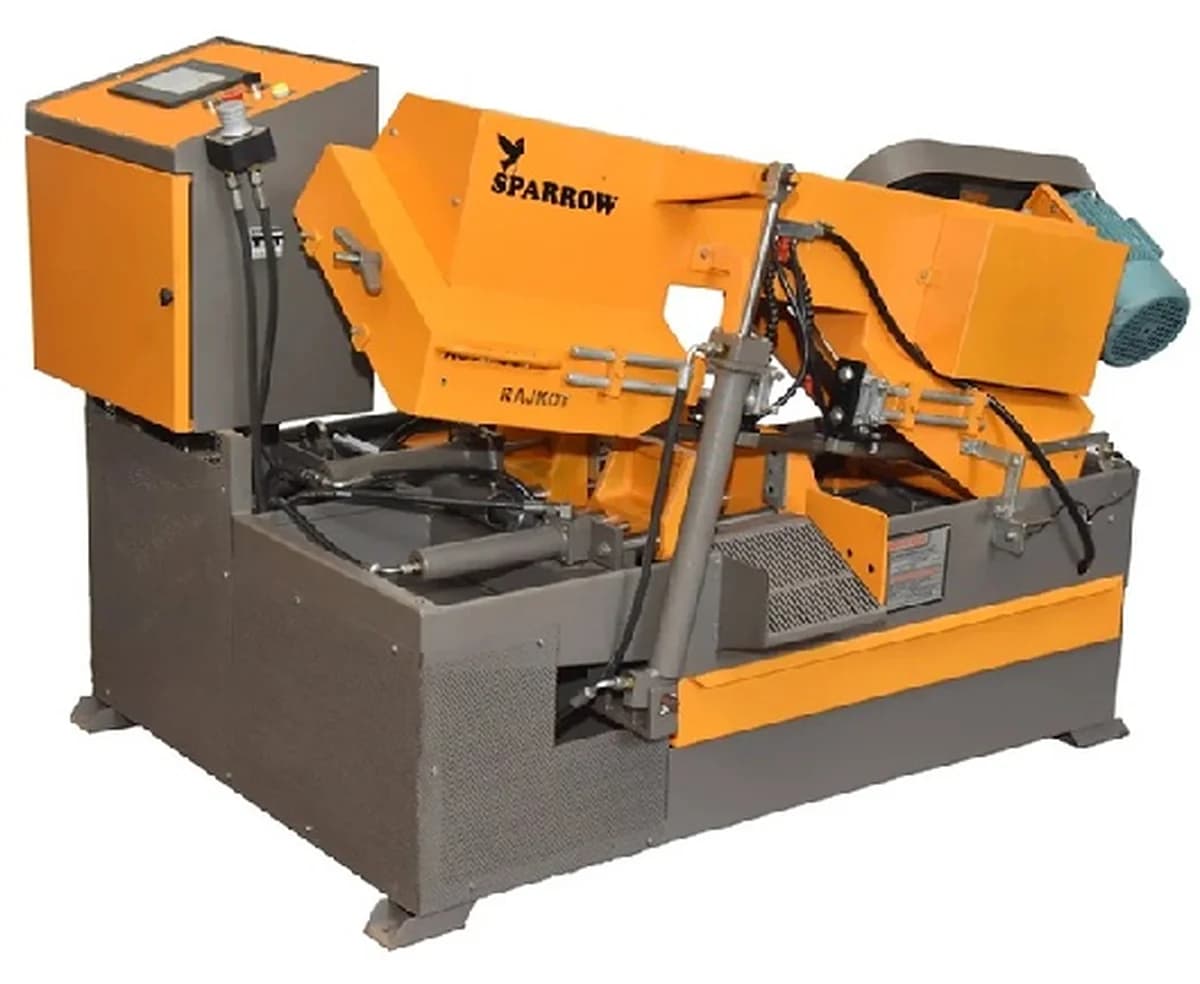

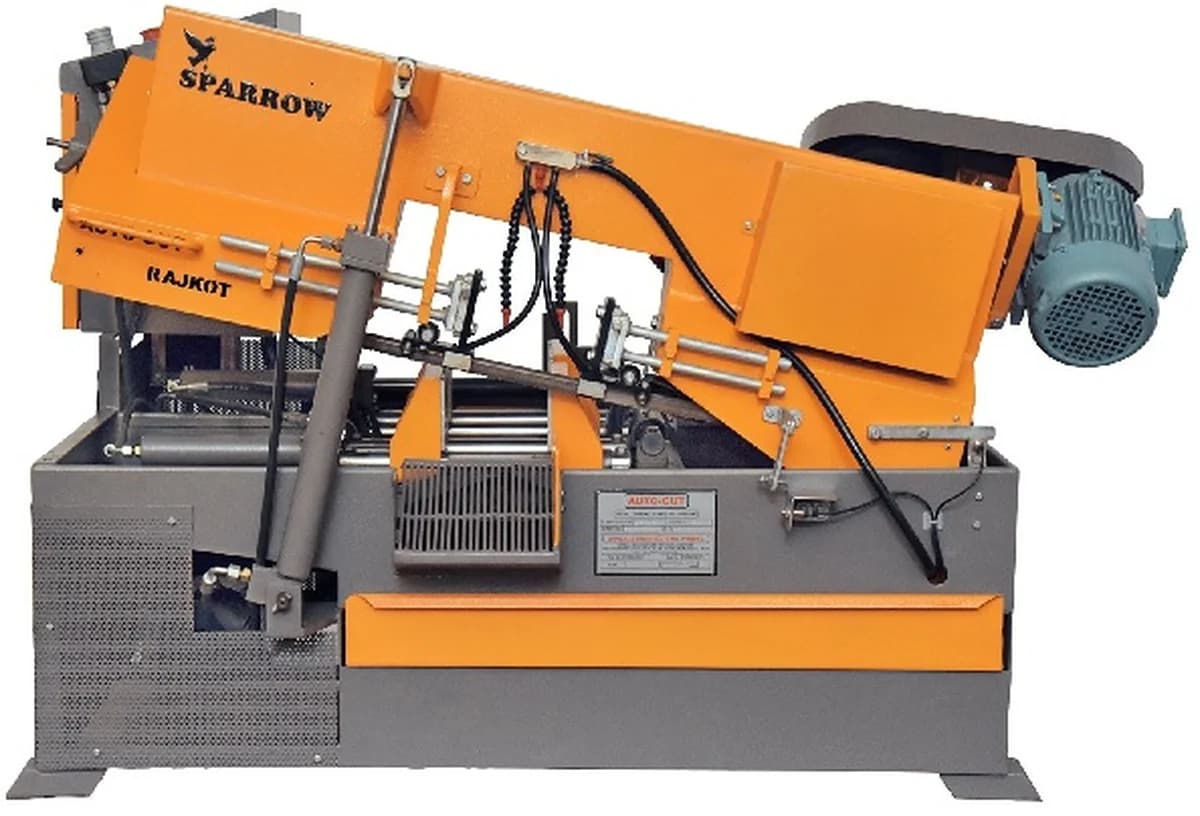

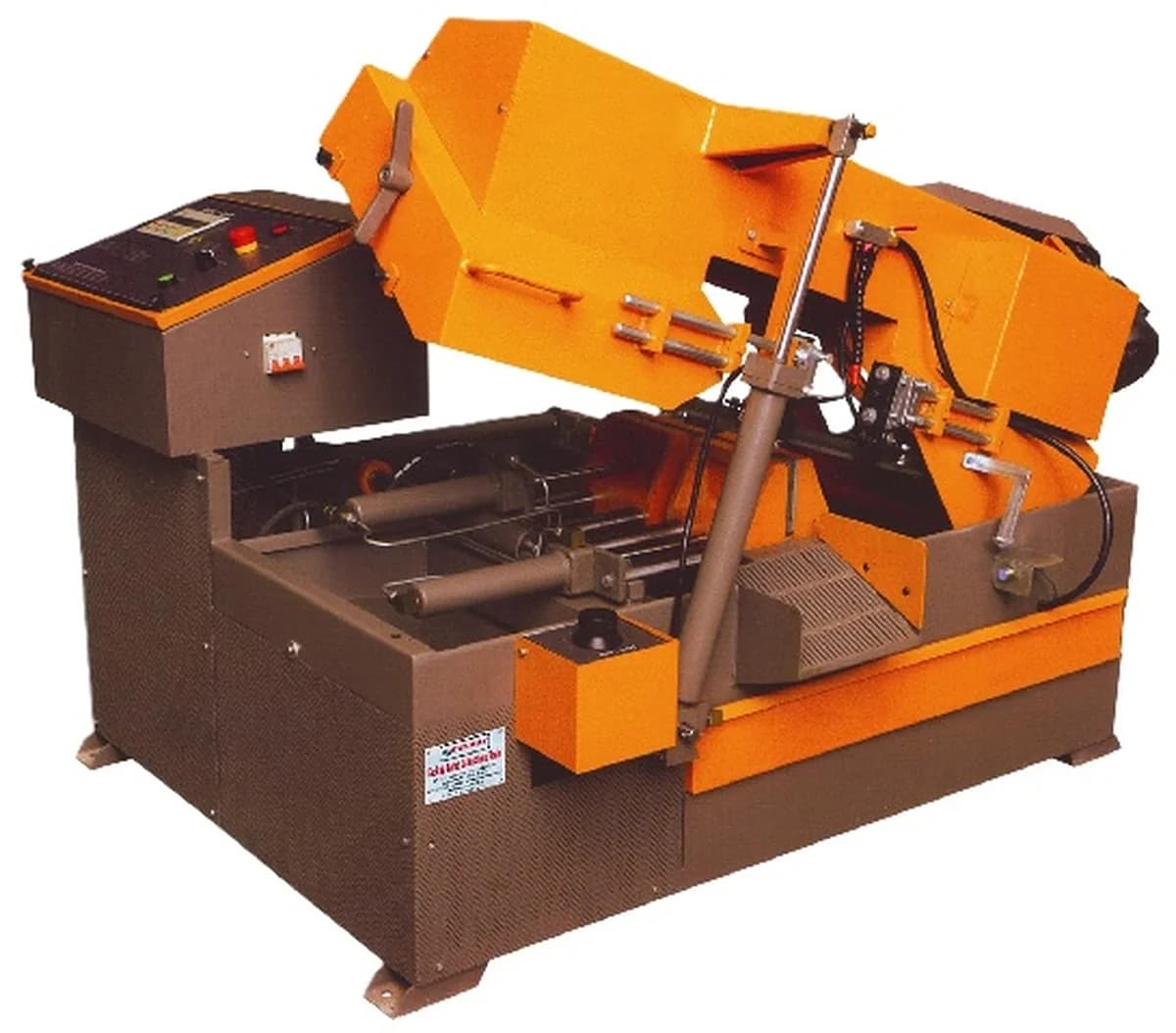

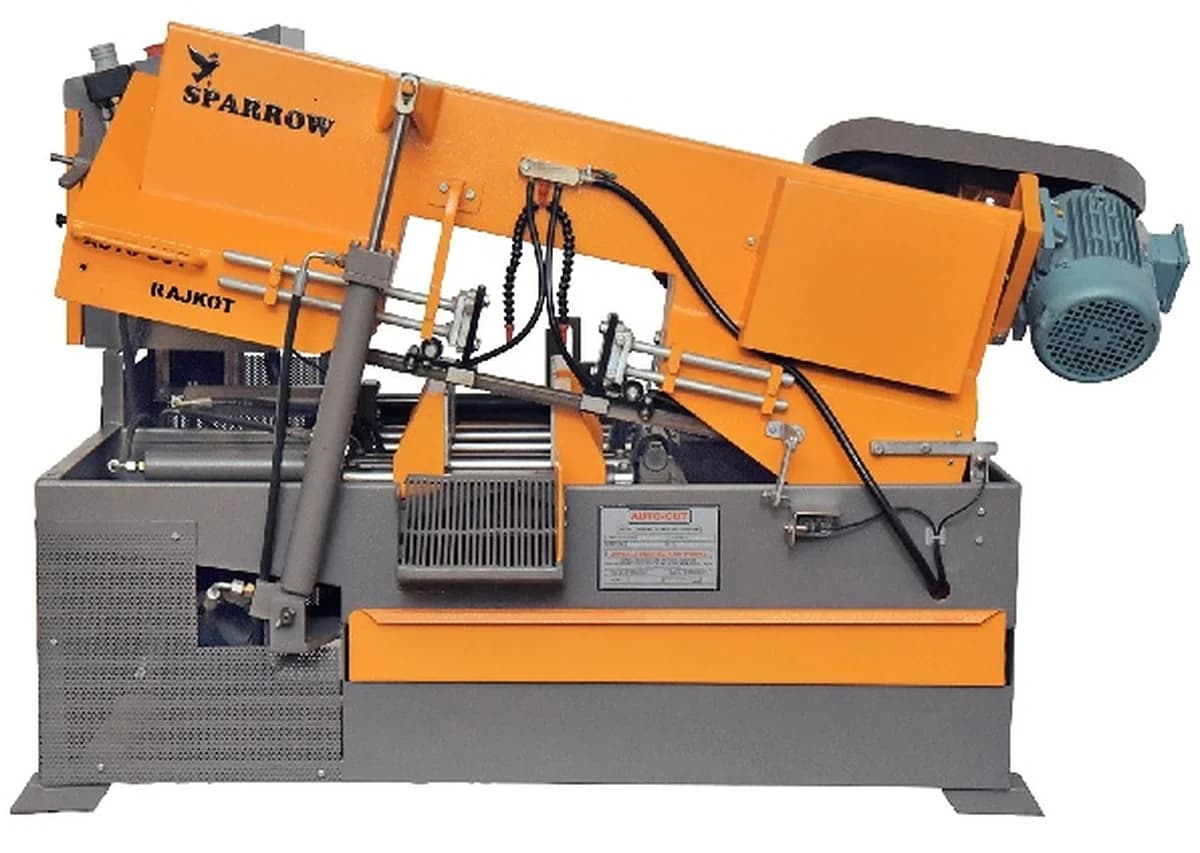

SPARROW Fully Automatic Double Column Bandsaw Machine Model AC-260 Fully Auto
This fully automatic bandsaw provides efficient cutting solutions for standard industrial bar stock and tubing. Its compact design fits well in workshops requiring frequent material changes. • Cutting capacity: 260 mm round and 260x260 mm square • Main motor power: 2 Hp 3 phase 1440 rpm for energy efficiency • Blade size: 3760x27x0.9 mm compatible with standard blades • Machine weight: 1100 Kgs allows for easier floor placement
Specifications
For: AC-260 Fully Auto- Model
- AC-260
- Cutting Capacity Round
- 260 mm
- Cutting Capacity Square
- 260x260 mm
- Blade Speed
- 20-40-60 Mtr/Min
- Blade Size
- 3760x27x0.9 mm
- Main Motor Power
- 2 Hp 3 phase 1440 rpm
- Coolant Motor
- 0.15 Hp 3 Phase 1440 rpm
- Hydraulic Drive Motor
- 1 HP 3 phase 1440 rpm
- Hydraulic tank Capcaity
- 40 Litters
- Coolant Tank capacity
- 60 Litters

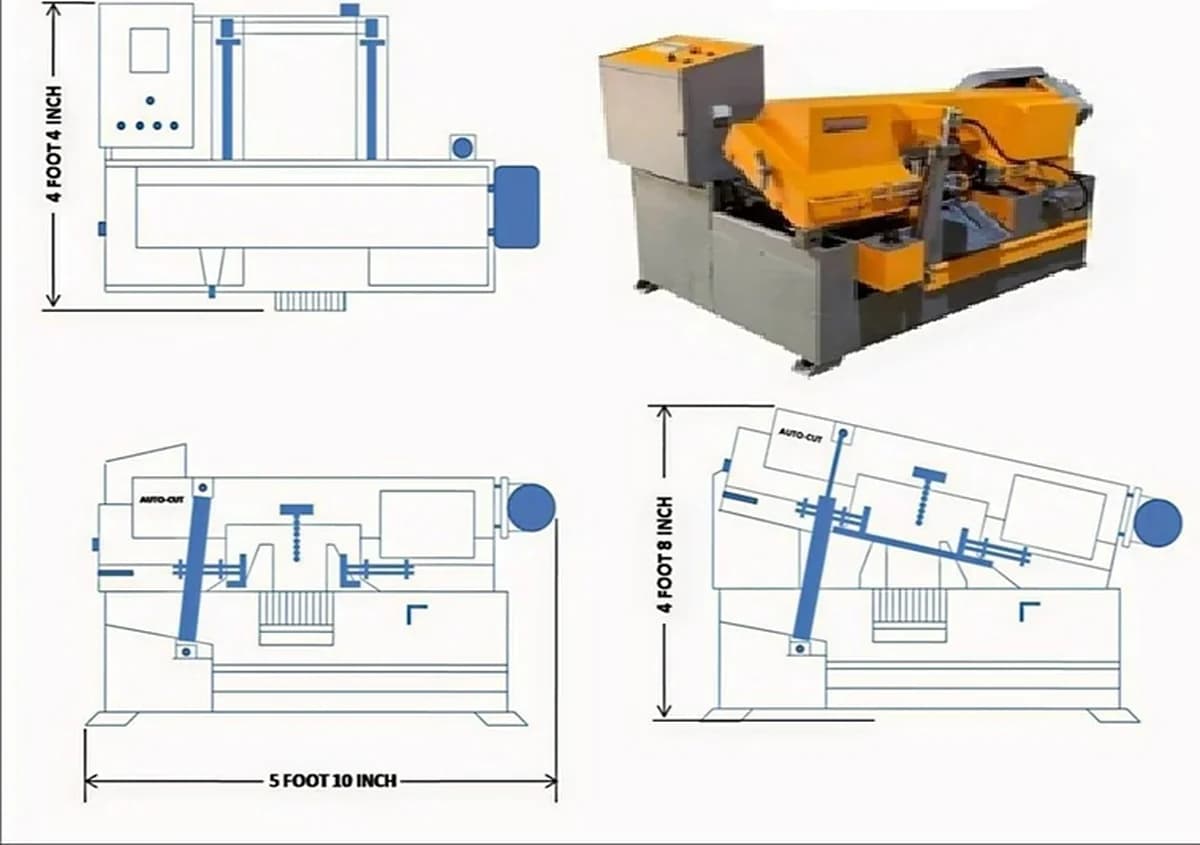

- Machine Dimension (LxWxH)
- 1800x800x1100 mm
- Machine Weight
- 1100 Kgs
Configurations
Click a row to switch| Variant | Cutting Capacity Round | Cutting Capacity Square | Blade Size | Price |
|---|---|---|---|---|
| AC-300 Fully Auto | 300 mm | 300x300 mm | 4100x34x1.1 mm | ₹8,35,000 |
| AC-350 Fully Auto | 350 mm | 350x350 mm | 4420x34x1.1 mm | ₹9,65,000 |
| AC-260 Fully Auto | 260 mm | 260x260 mm | 3760x27x0.9 mm | ₹5,75,000 |
Construction & Durability
- SPARROW Brand heavy duty double column bandsaw machines designed for precision
- Hydraulic drive motor ensures consistent pressure application
- Robust frame supports heavy loads during operation
- Coolant system keeps blade temperature controlled during cuts
- Built for long service life in demanding industrial settings
Material Versatility & Applications
- Suitable for cutting steel bars, tubes, and structural profiles
- Heavy duty construction handles demanding industrial applications
- Ideal for metal cutting sawing tasks in manufacturing plants
- Handles various cross-sections with consistent accuracy
- Designed for high volume production environments
Operational Efficiency & Cost Savings
- Endless circular 0.9 mm blade creates less material wastage
- Bandsaw blade is cheaper compared to alternative cutting tools
- Lower power consumption due to continuous cutting action
- Reduced cycle time improves overall production throughput
- Hydraulic system ensures reliable performance over long shifts
Precision Cutting Performance
- Blade moves in circular movement in one direction only
- Continuous cutting in one cycle time eliminates idle stroke
- Lower cutting time due to continuous one direction movement
- Swing type arm action allows smoother cutting of larger sections
- Double column design maintains rigidity for precise cuts
Advanced Automation & Control
- PLC-based automation reduces operator error and cycle time
- Fully automatic operation ensures consistent production output
- Linear motion guideways provide stable operation during cutting
- Hydraulic feed and clamping system ensures consistent cut quality
- Multiple models available to match specific cutting capacities
Optional Accessories
- Chip conveyor
- A.C. drive for infinitely variable speed control
- Job roller stand
- Bundle cutting attachment
- Bi-Metal Bandsaw blade
- Variable vice pressure for thin walled jobs
- Wire brush
- Bar stand
Standard Accessories
- Hydraulic blade tension
- Auto saw frame height adjustment
- Heavy duty reduction gear box (Elecon)
- Step less cutting feed regulation
- Complete electric system
- Complete coolant system
- Driven chip brush
- Complete hydraulic system
- PLC control for all electric & hydraulic functions
- Hydraulic full stroke clamping vice (With pressure regulator)
- Carbide & roller blade guide for long life accurate cutting
- Blade breakage detector
More questions buyers ask
What is a fully automatic double column bandsaw machine?
It is a heavy-duty industrial machine used for cutting metal. 'Double column' provides rigidity for precision cuts, while 'fully automatic' means it has a PLC controller and hydraulic system for automated feeding, clamping, and cutting cycles, reducing manual labor and increasing efficiency.
What are the main applications of the SPARROW bandsaw machine?
These machines are designed for high-volume, precision cutting of various metals in industrial settings, including manufacturing plants, fabrication shops, and steel service centers. They are ideal for cutting solid bars, structural profiles, pipes, and bundles of material.
What materials can this machine cut?
The SPARROW automatic bandsaw is capable of cutting a wide range of ferrous and non-ferrous metals, including mild steel, alloy steel, stainless steel, aluminum, and copper.
What is the benefit of PLC control in this machine?
The Programmable Logic Controller (PLC) automates the entire cutting process. It allows the operator to program job parameters like cutting length and number of pieces, ensuring high accuracy, repeatability, and reduced operator error.
What is the advantage of a hydraulic system in a bandsaw?
The hydraulic system controls the blade feed rate and the clamping of the material. This ensures consistent pressure, smooth cutting, and secure holding of the workpiece, which is crucial for cut quality and blade life.
What is the lead time for delivery in India?
We offer pan-India delivery. Lead times vary based on your location and stock availability. Please contact our sales team for a precise delivery estimate for your specific order.
Is there a warranty included with the machine?
Yes, all SPARROW bandsaw machines come with a manufacturer's warranty. The specific terms and duration of the warranty are detailed on the product page and in the purchase agreement.
Do you provide installation and training?
Yes, we can arrange for professional installation and operator training services across India. Please inquire about our support packages at the time of purchase.
What is the power requirement for this machine?
The machine requires a 3-phase industrial power supply. The specific motor horsepower varies by model (2 Hp, 3 Hp, or 5 Hp). Please check the specifications for the model you are interested in.
Can I get a GST invoice for my purchase?
Absolutely. We provide a formal GST invoice for all purchases, allowing you to claim Input Tax Credit (ITC) as per Indian tax regulations.
Who should choose the SPARROW AC-260 model?
The SPARROW AC-260 is the perfect entry-point for workshops needing a reliable and efficient automatic bandsaw. It offers a 260mm cutting capacity and a 2 Hp motor, ideal for small to medium-sized jobs with precision and ease.
Who should choose the SPARROW AC-300 model?
You should step up to the SPARROW AC-300 for greater versatility. With a 300mm cutting capacity and a more powerful 3 Hp motor, this model is suited for general fabrication shops and medium-scale industrial applications requiring larger cuts.
Who should choose the SPARROW AC-350 model?
For maximum performance and heavy-duty applications, choose the SPARROW AC-350. It boasts a large 350mm cutting capacity and a robust 5 Hp motor, making it the ideal choice for large-scale industrial cutting and demanding production environments.
What are the main differences between the AC-260, AC-300, and AC-350 models?
The primary differences are the cutting capacity, main motor power, and overall machine size and weight. As the model number increases (AC-260 to AC-350), the cutting capacity (260mm to 350mm) and motor power (2 Hp to 5 Hp) increase to handle larger and more demanding jobs.
How does the cutting capacity and motor power change across the models?
The AC-260 has a 260mm capacity with a 2 Hp motor. The AC-300 increases this to 300mm with a 3 Hp motor. The top-of-the-line AC-350 provides a 350mm cutting capacity powered by a 5 Hp motor.
Which SPARROW model is the most cost-effective for a new workshop?
The AC-260 model is generally the most cost-effective starting point. It provides full automation and precision in a smaller footprint, making it an excellent investment for new workshops or those upgrading from manual or semi-automatic machines.
