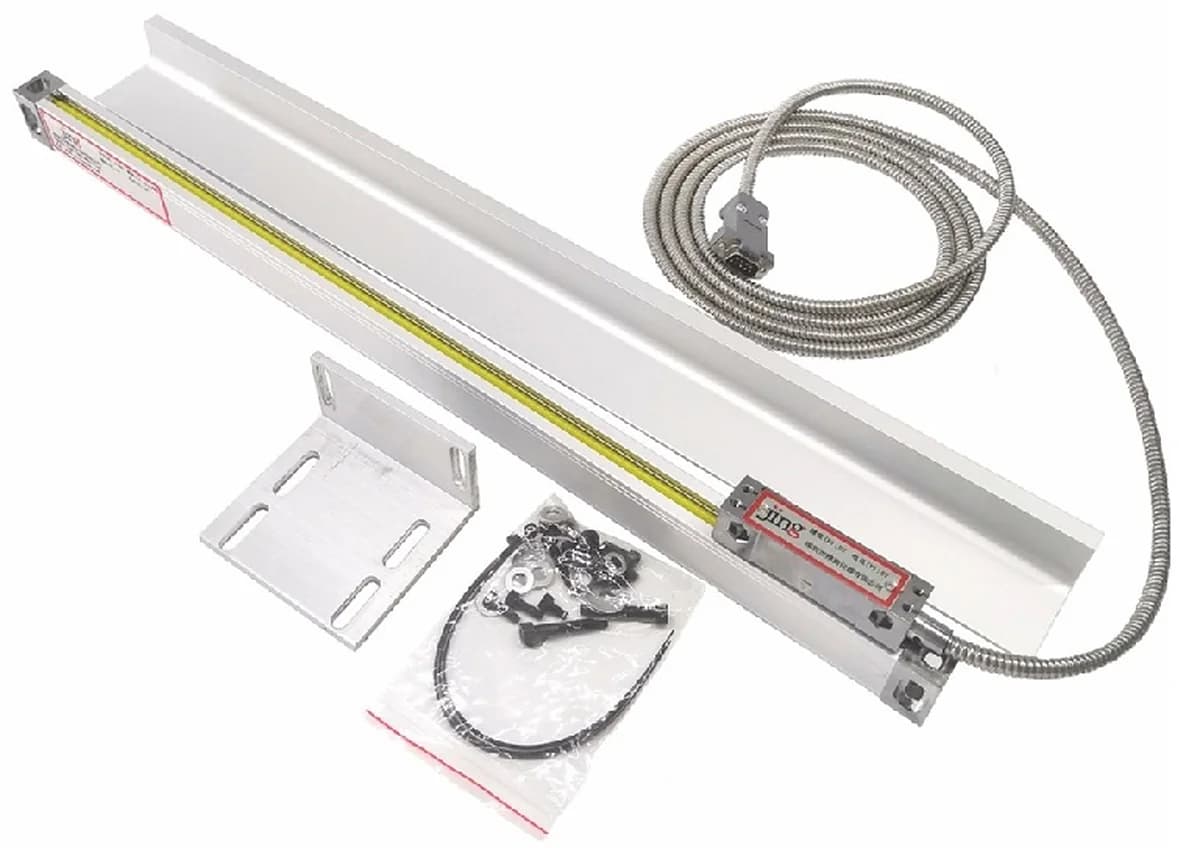

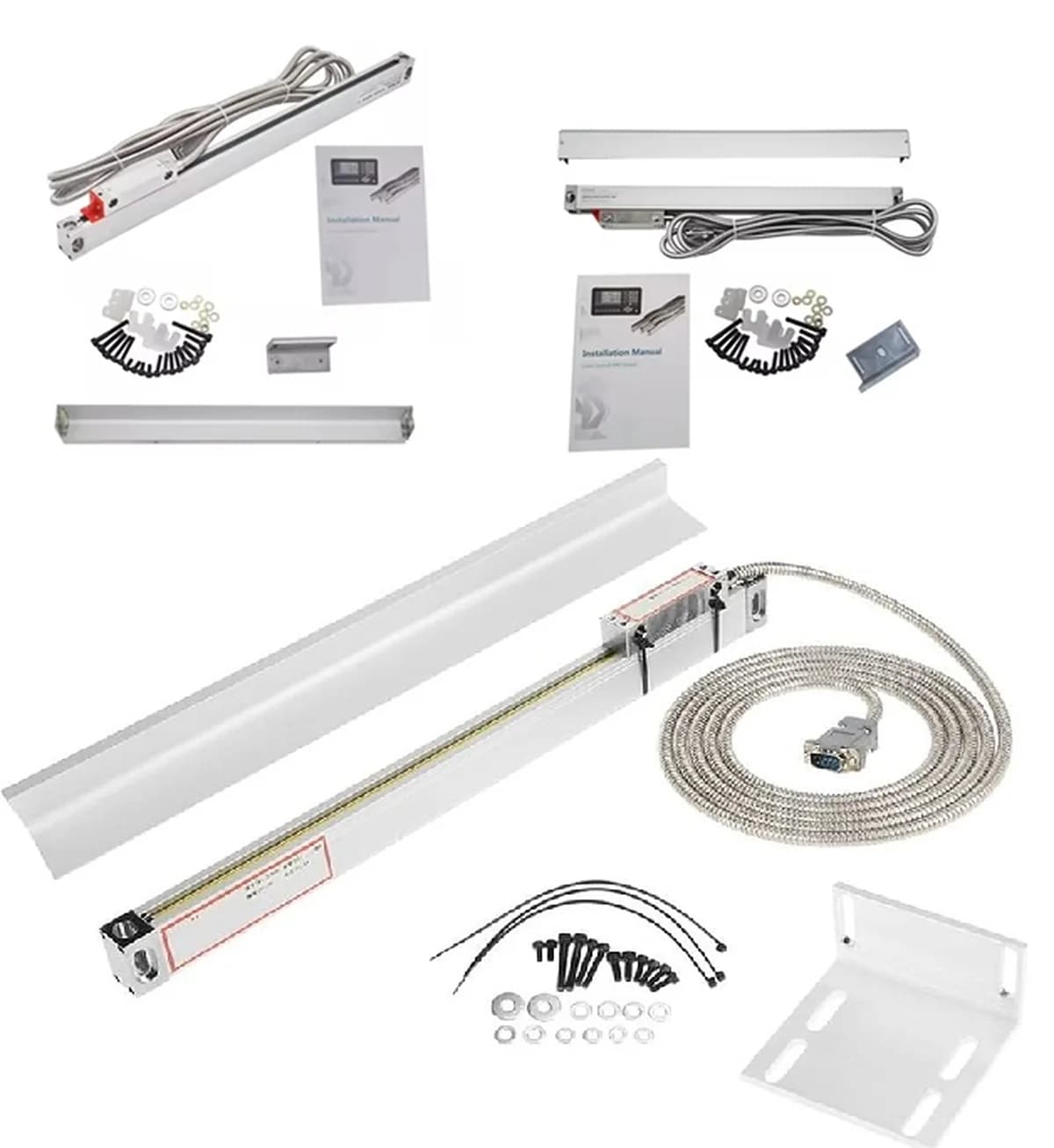

SINO Brand KA-600 Series Optical Linear Glass Scale Model KA600-1200/0.005 mm
High-precision optical linear glass scales provide reliable position measurement for machine tools and digital readout systems. This model features 1200 mm measuring length and 5µm resolution. • IP53 protection against dust and coolant • TTL Square Wave and RS-422A output signals • 60 m/min max running speed • Compatible with standard DRO controllers
See it in action

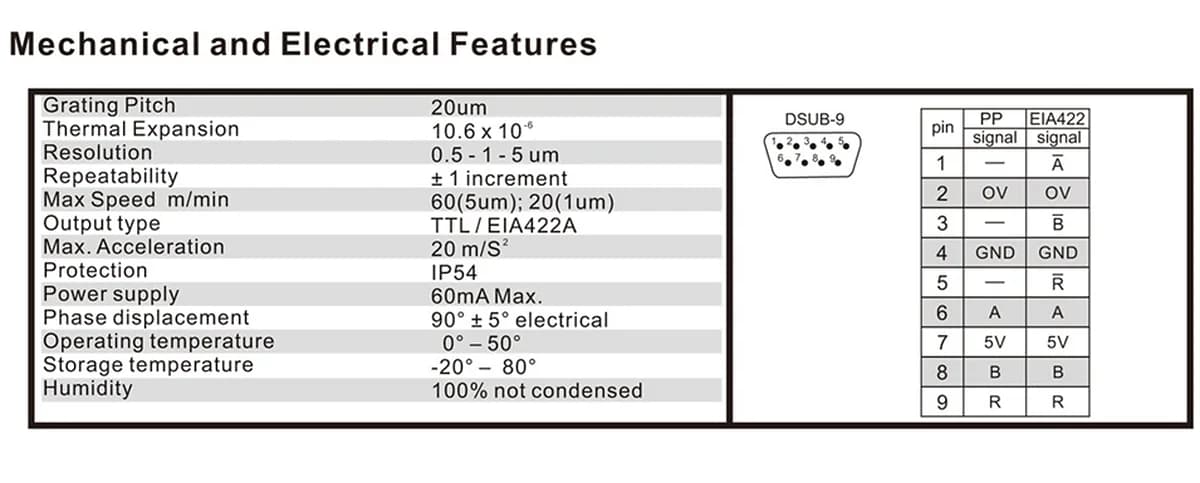

Specifications
For: KA600-1200/0.005 mm- Measuring Length
- 1200 mm
- Resolution
- 5µm (0.005 mm)
- Connector
- DB9 (9-pin D-Sub)
- Repeatability
- ±1 count

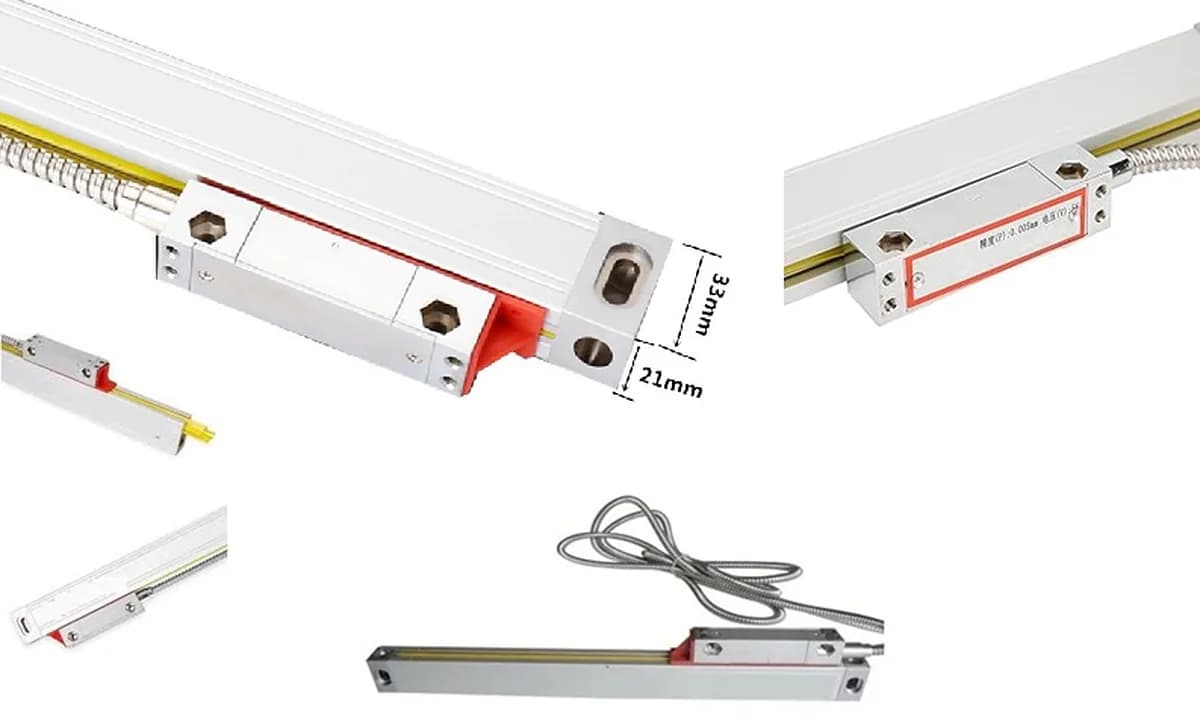

- Cross Section Size
- 30 × 66 mm
- Protection Rating
- IP55
- Output Signals
- TTL / EIA-422A (RS-422)
- Max. Running Speed
- 60 m/min
- Max. Acceleration
- 20 m/s²
- Power Supply
- 5V DC
Configurations
Click a row to switch| Variant | Measuring Length | Resolution | Output Signals | Price |
|---|---|---|---|---|
| KA600-1200/0.005 mm | 1200 mm | 5µm (0.005 mm) | TTL / EIA-422A (RS-422) | ₹15,500 |
| KA600-1200/0.001 mm | 1200 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹16,700 |
| KA600-1400/0.005 mm | 1400 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹18,900 |
| KA600-1400/0.001 mm | 1400 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹20,900 |
| KA600-1600/0.005 mm | 1600 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹24,900 |
| KA600-1600/0.001 mm | 1600 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹26,900 |
| KA600-1800/0.005 mm | 1800 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹31,900 |
| KA600-2000/0.005 mm | 2000 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹33,700 |
| KA600-2200/0.005 mm | 2200 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹38,900 |
| KA600-2400/0.005 mm | 2400 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹45,000 |
| KA600-2600/0.005 mm | 2600 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹52,900 |
| KA600-2800/0.005 mm | 2800 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹59,900 |
| KA600-3000/0.005 mm | 3000 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹66,700 |
Ideal Use Cases and Industries
- Precision measurement for CNC machine tools

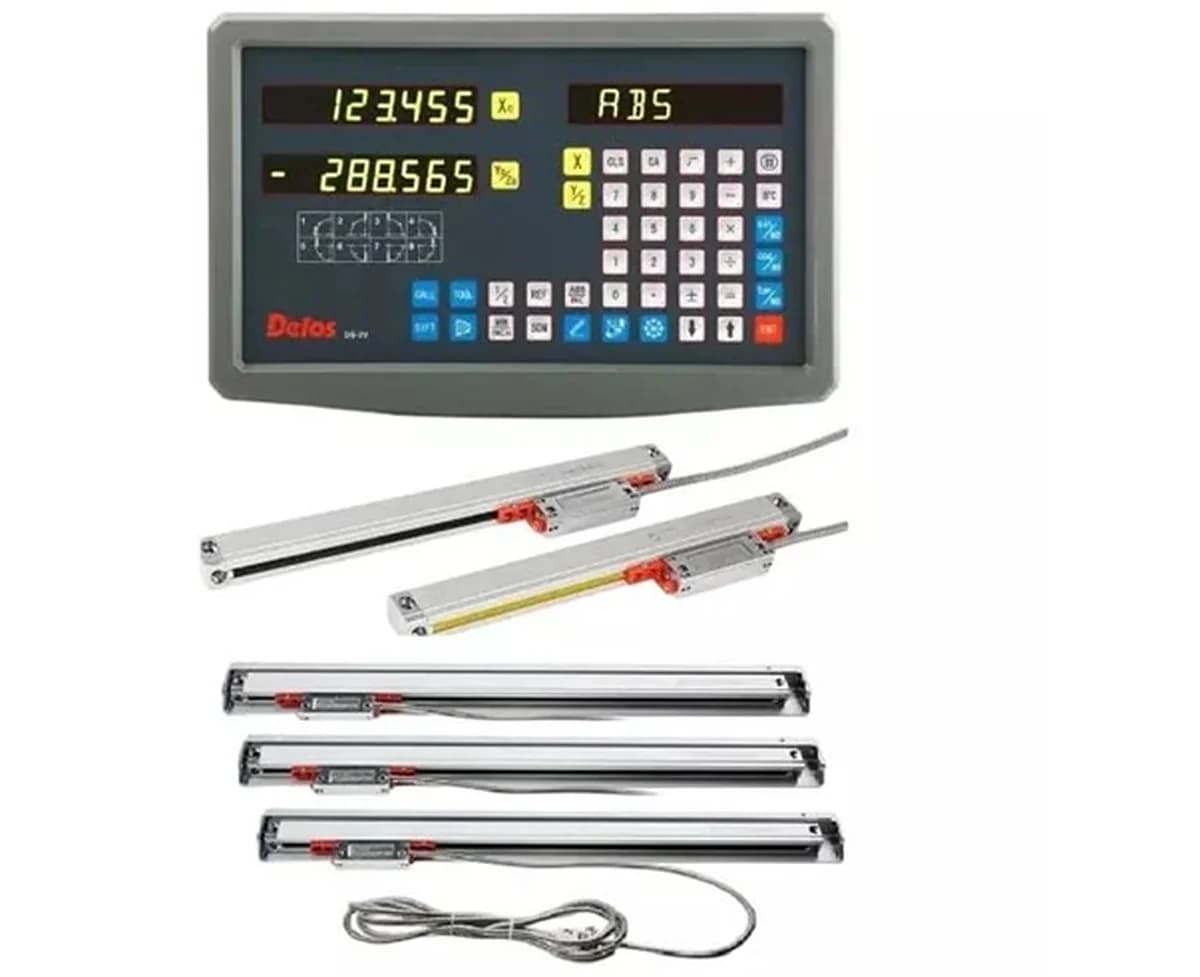

- Digital readout systems for retrofitting
- Metrology equipment requiring high linearity
- Automation machinery with high cycle speeds
- Industrial environments with coolant exposure

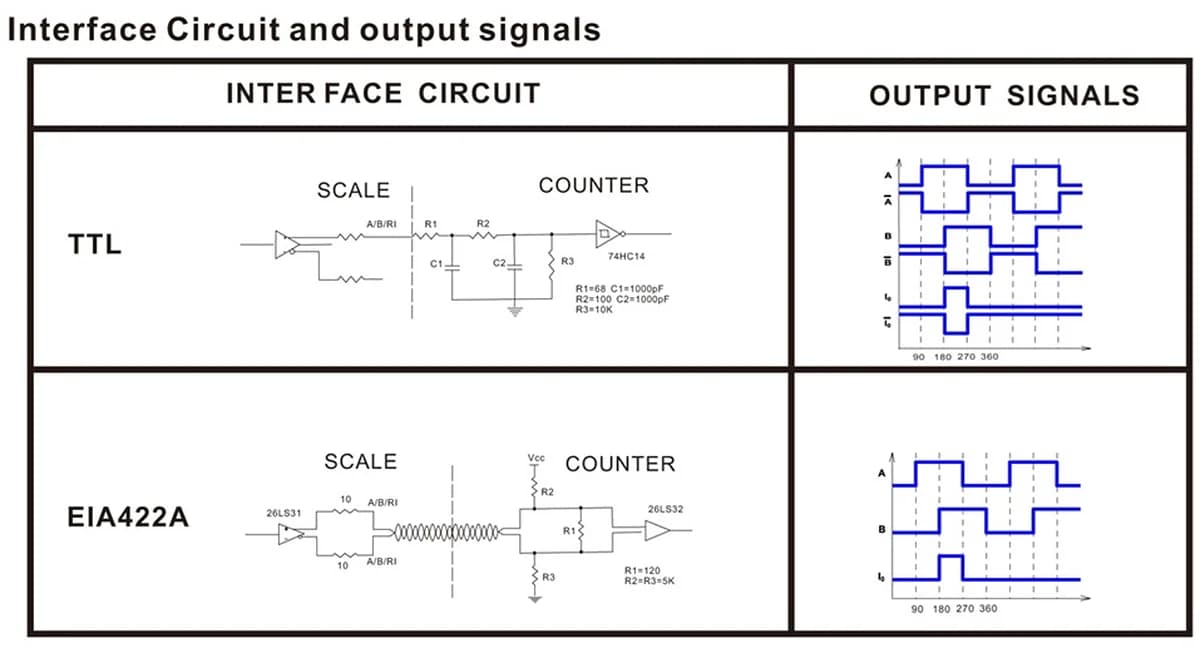

Signal Output and Connectivity
- TTL Square Wave and RS-422A output signals available
- Connector type is DB9 (9-pin D-Sub)
- Compatible with most digital readout systems
- RS-422A offers improved noise immunity
- Easy integration with existing control systems
Environmental Protection and Construction
- IP53 protection against dust and coolant ingress
- Robust encoders operate in demanding industrial environments
- Slim scales design minimizes space requirements
- Cross section size of 30 × 66 mm for standard mounting
- Reliable position measurement for machine tools
- Consistent accuracy during continuous operation
KA-600 Series Performance Highlights
- SINO Brand KA-600 Series optical linear glass scales
- Available in lengths from 1200 mm – 3000 mm
- 5µm or 1µm resolution options for varied applications
- High repeatability with ±1 count accuracy
- Max running speed of 60 m/min for dynamic use
- Max acceleration capability of 20 m/s²
- Power supply requirement of DC 5V ±5%
Frequently asked
What resolutions are available?
5µm or 1µm resolution options for varied applications
What is the protection rating?
IP53 protection against dust and coolant
What is the max speed?
Max. running speed is 60 m/min
More questions buyers ask
What is the SINO KA-600 series?
The SINO KA-600 is a high-precision optical linear glass scale designed for machine tool position feedback and DRO systems.
What resolutions are available for the KA-600?
The KA-600 series is available in 5µm (0.005 mm) and 1µm (0.001 mm) resolution options.
What is the protection rating of these scales?
These scales feature an IP53 protection rating, providing resistance against dust and coolant ingress in industrial environments.
What is the maximum running speed?
The KA-600 series supports a maximum running speed of 60 m/min.
What output signals does the KA-600 use?
It provides TTL Square Wave and RS-422A output signals for compatibility with most DRO systems.
What is the cross-section size?
The standard cross-section size for the KA-600 series is 30 × 66 mm.
What is the power supply requirement?
The scales operate on a DC 5V ±5% power supply.
Are these scales suitable for CNC retrofitting?
Yes, they are widely used for retrofitting CNC machines and digital readout systems for improved accuracy.
What is the repeatability of the KA-600?
The repeatability is ±1 count.
What is the maximum acceleration?
The maximum acceleration capability is 20 m/s².
Who should choose the 5µm resolution model?
The 5µm model is ideal for general-purpose machining and standard milling/lathe retrofits where high speed and reliability are prioritized.
Who should choose the 1µm resolution model?
The 1µm model is best for precision-critical applications where tight tolerances and superior accuracy are required.
How does the 1µm scale compare to the 5µm scale?
The 1µm scale offers five times the resolution of the 5µm model, providing higher precision for complex parts at the cost of higher sensitivity.
Is the KA-600 suitable for long-travel machines?
Yes, with lengths available up to 3000 mm, the KA-600 is well-suited for large-format industrial machine tools.
