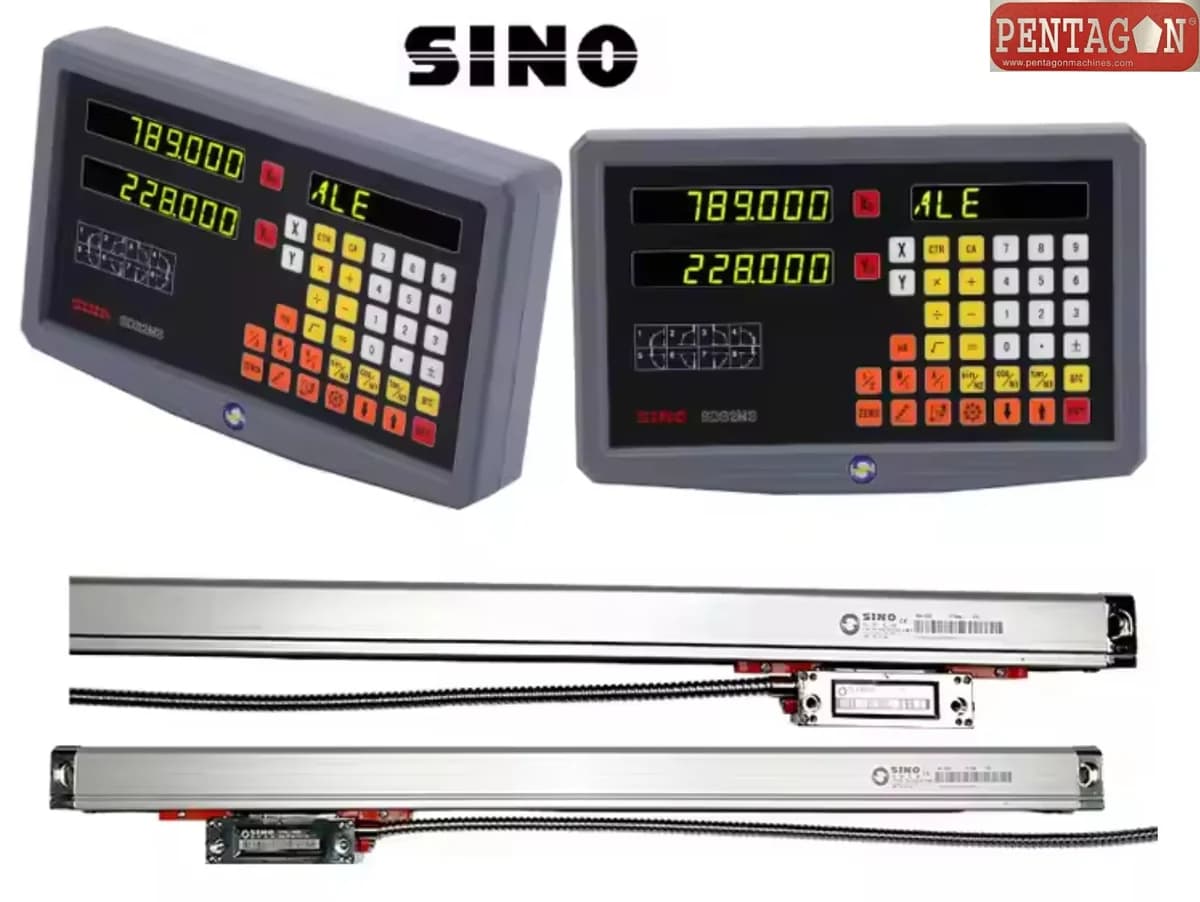

SINO Brand 2 axis DRO Set with suitable scales, fitting items and all accessories package scale range (130-970 mm) 2 Axis SINO-0.005
Enhance positioning accuracy on standard machine tools with this 2 Axis DRO Set. Includes two scales up to 970mm and full mounting kit. • 0.005 mm resolution suitable for general milling and grinding • IP54 protection resists coolant and dust in industrial environments • DB9 connectors ensure simple integration with existing controllers

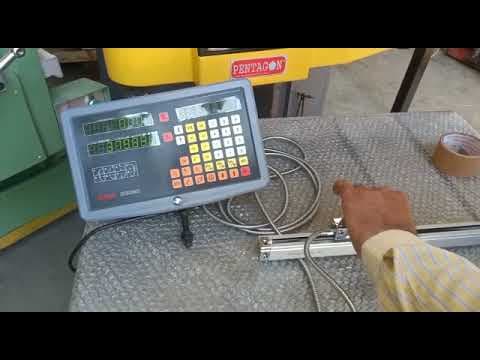

See it in action
Specifications
For: 2 Axis SINO-0.005- Brand
- SINO
- Type of DRO Set
- 2 Axis
- No of Scales in package
- 2 Scales (Any size upto 970 mm)

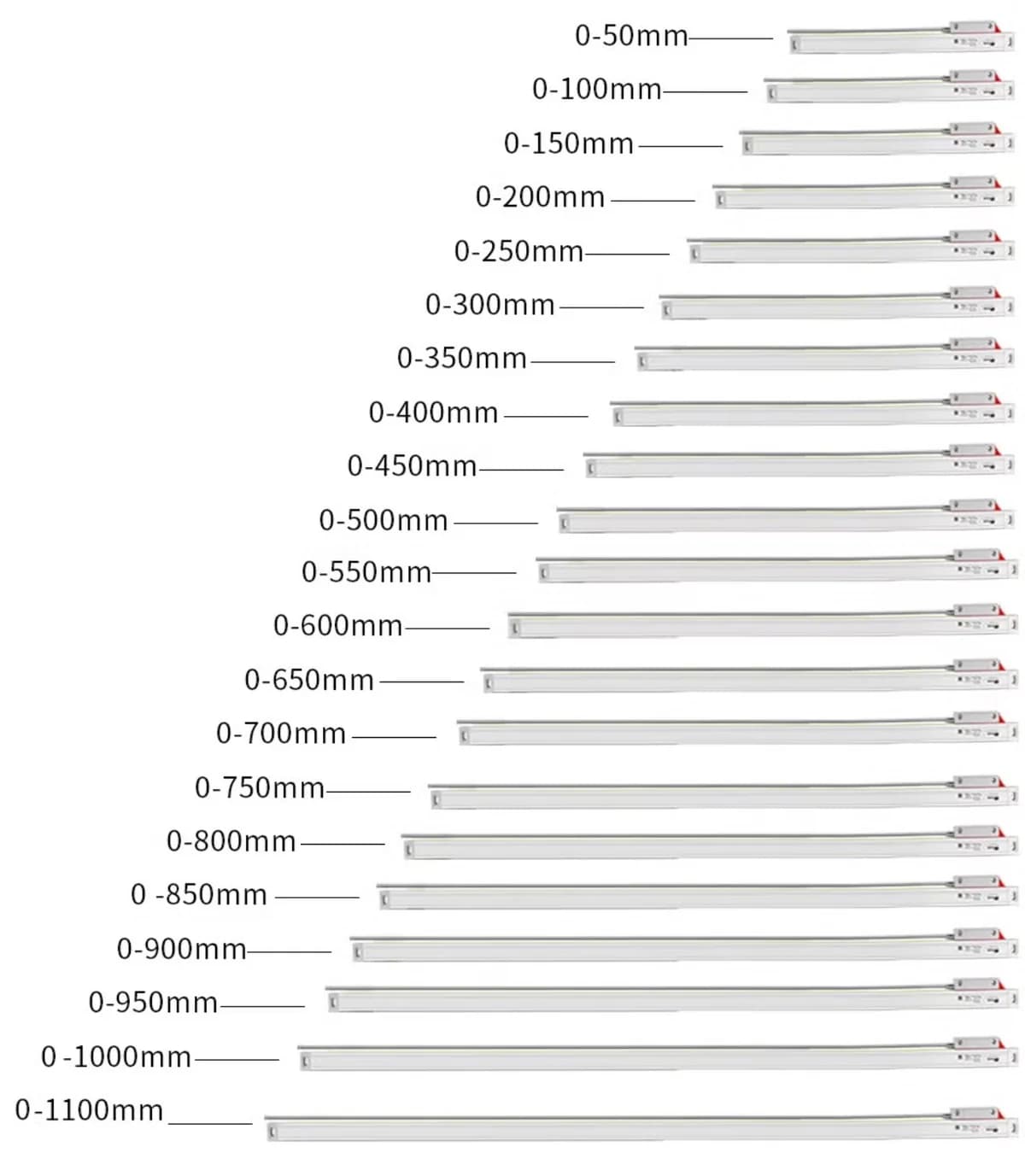

- Measures Length (mm)
- between 130-970 mm any
- Set Contains

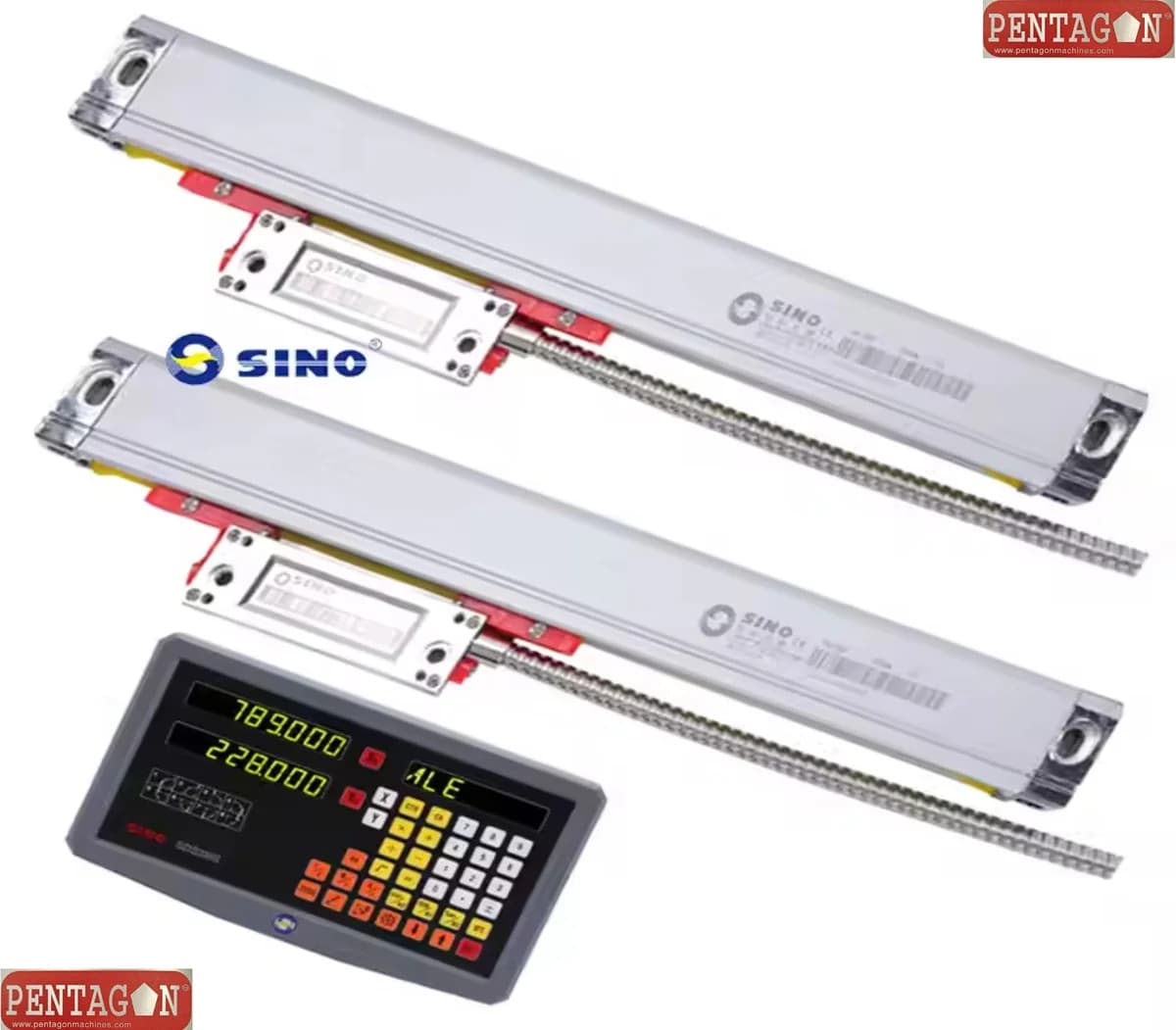

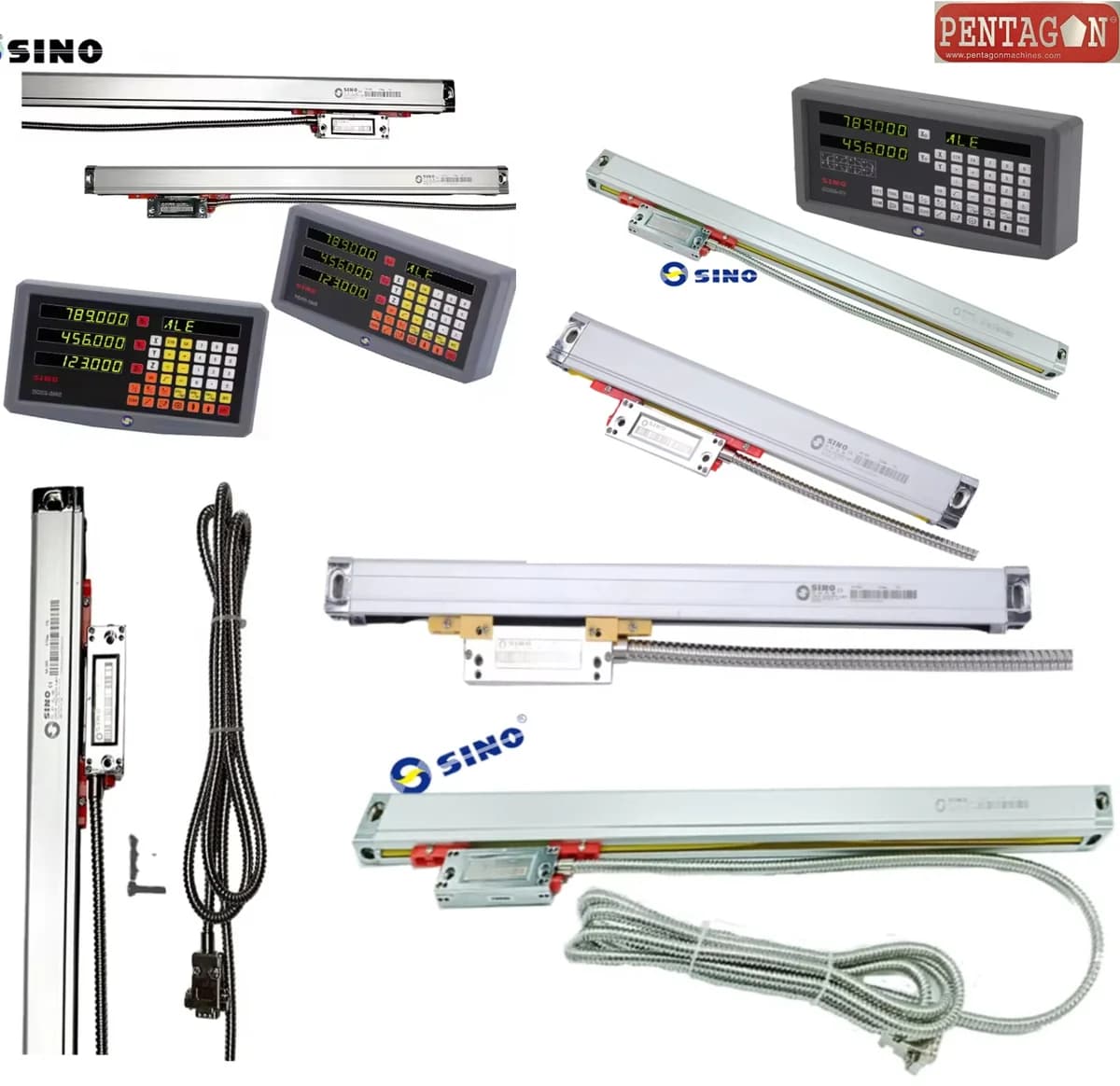

- Complete 2 Axis DRO display with Linear Scales (Up to 970 mm), Mounting Hardware, Cables & Installation Accessories
- Max of Measuring Speed
- 60m/min
- Output
- TTL

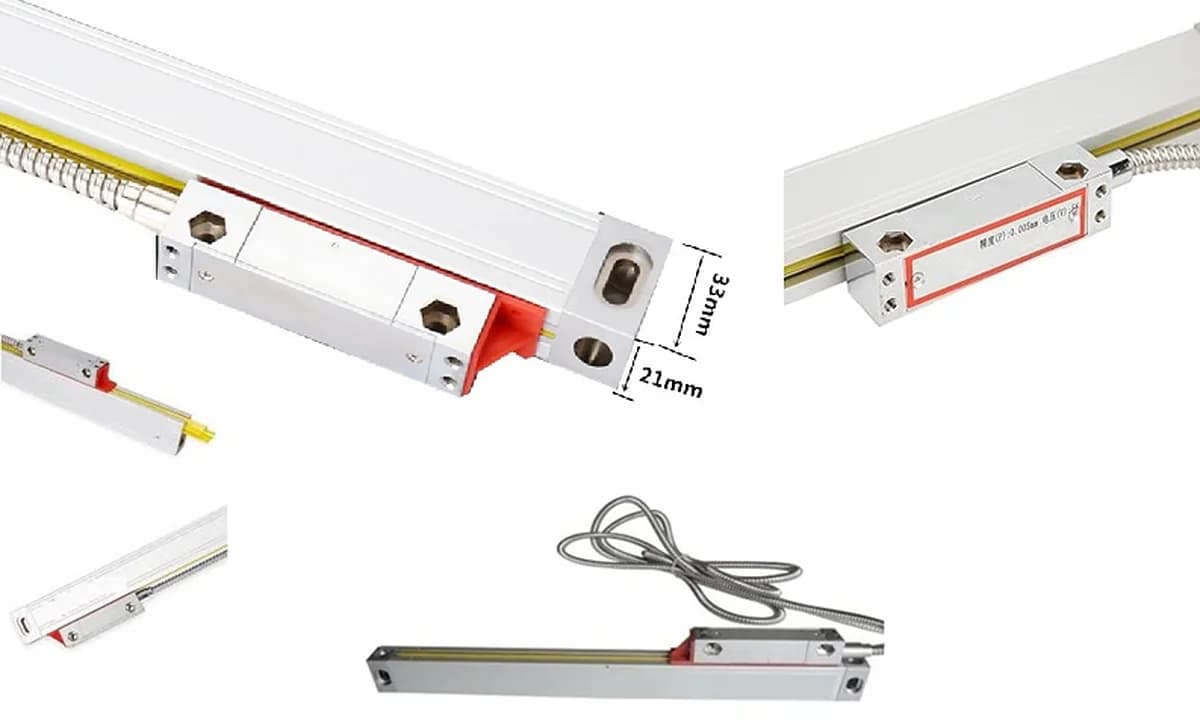

- Cross Section (mm)
- 22x34 mm
- Reference Point
- Each/50mm
- Accuracy
- ±3,±5,±10(20ºC,680F 1000mm)
- Protection
- IP54
- DRO Scale Model
- DLS- W5R
- Resolution
- 0.005 mm
- Power Supply
- 110V-240V AC
- Connectors
- DB9 (9-pin D-Sub)
- Weight of the package
- Appx 6.3Kgs
Configurations
Click a row to switch| Variant | No of Scales in package | Measures Length (mm) | Resolution | Set Contains | Price |
|---|---|---|---|---|---|
| 2 Axis SINO-0.005 | 2 Scales (Any size upto 970 mm) | between 130-970 mm any | 0.005 mm | Complete 2 Axis DRO display with Linear Scales (Up to 970 mm), Mounting Hardware, Cables & Installation Accessories | ₹19,800 |
| 2 Axis SINO-0.001 | 2 Scales (Any size upto 970 mm) | between 130-970 mm any | 0.001 mm | Complete 2 Axis DRO display with Linear Scales (Up to 970 mm), Mounting Hardware, Cables & Installation Accessories | ₹23,200 |
Machine Tool Applications
- Enhances accuracy and efficiency of machine tools
- Advanced measurement tools for precision work
- Renowned for robust construction and interfaces
- Enhances productivity in various industrial applications
- Simplifies manual measurement processes
Power and Connectivity
- Compatible with Power Supply 110V-240V AC
- Connects via DB9 (9-pin D-Sub) interface
- DRO Scale Model DLS-W5R ensures compatibility
- Cross Section dimensions 22x34 mm for mounting
- Weight of package Appx 6.5 Kgs for logistics planning
Industrial Durability and Protection
- Built with robust construction for industrial settings
- Protection rating of IP54 against dust and water
- DELOS DRO Scales designed for durability
- Suitable for milling machines, lathes, grinders, and EDM
- User-friendly interfaces widely adopted worldwide
Precision Measurement Performance
- Offers Resolution options of 0.005 mm and 0.001 mm
- Ensures Accuracy of ±3, ±5, ±10 at 20ºC
- Measures Length – between 130-970 mm on X axis
- Supports Max Measuring Speed of 60m/min
- Utilizes TTL Output for reliable signal transmission
- Features Reference Point options Each or 50mm

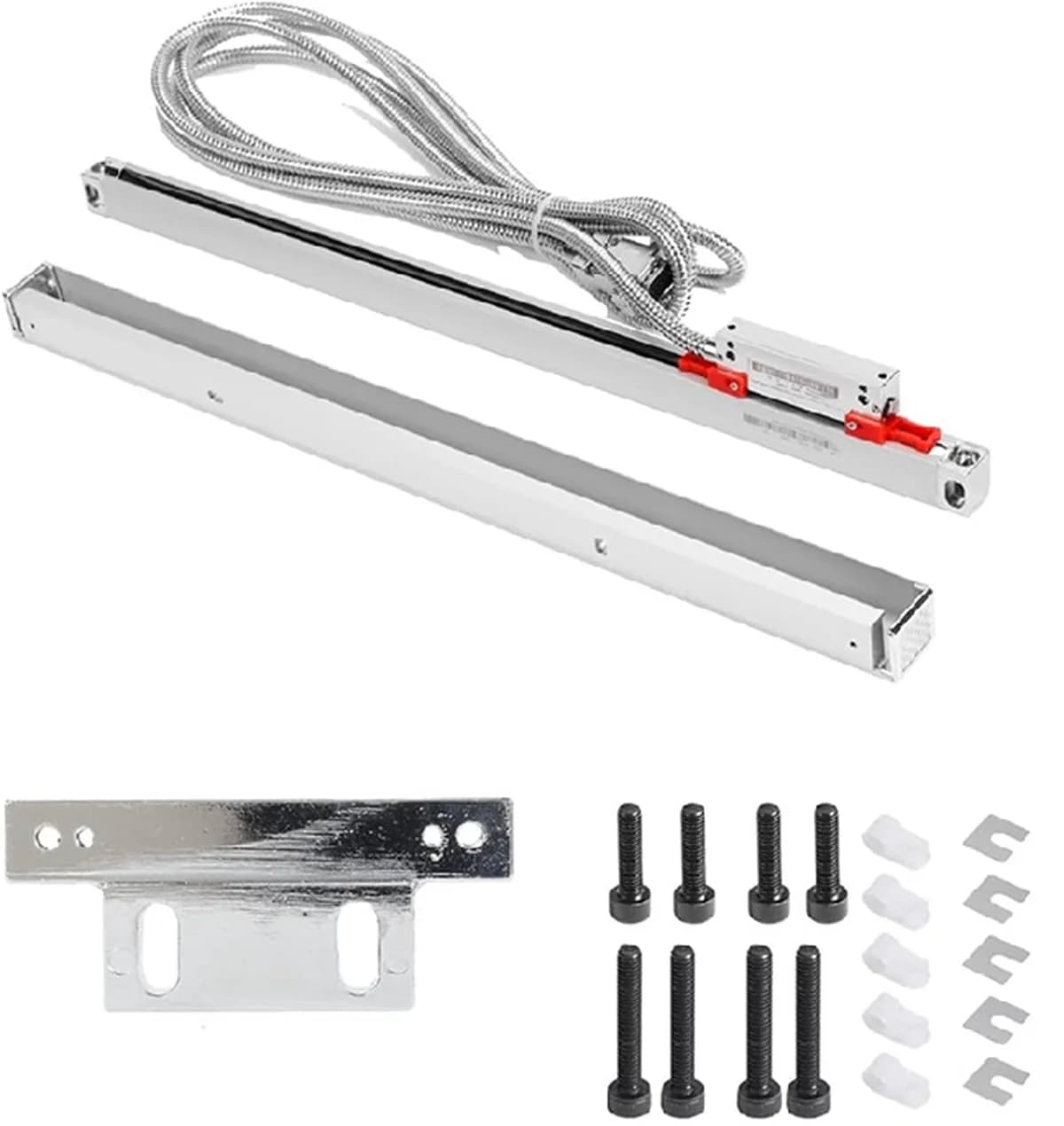

Complete Installation Kit
- Includes complete 2 Axis DRO Kit with Linear Scales
- Features 2 Sets Mounting Brackets for Scales
- Provides 2 Nos. Reader Head Mounting Brackets
- Contains Complete Clamps, L-Brackets & Support Plates
- Includes Full Installation Hardware Kit (Bolts, Nuts, Washers, Screws)
- Supplies 2 Nos. Scale Signal Cables (Armored)
- Provides 1 No. Power Cord (220V AC) and 1 No. Earthing Wire
- Includes 2 Nos. Scale Protection Covers and Guards
- Comes with Cable clips and routing accessories

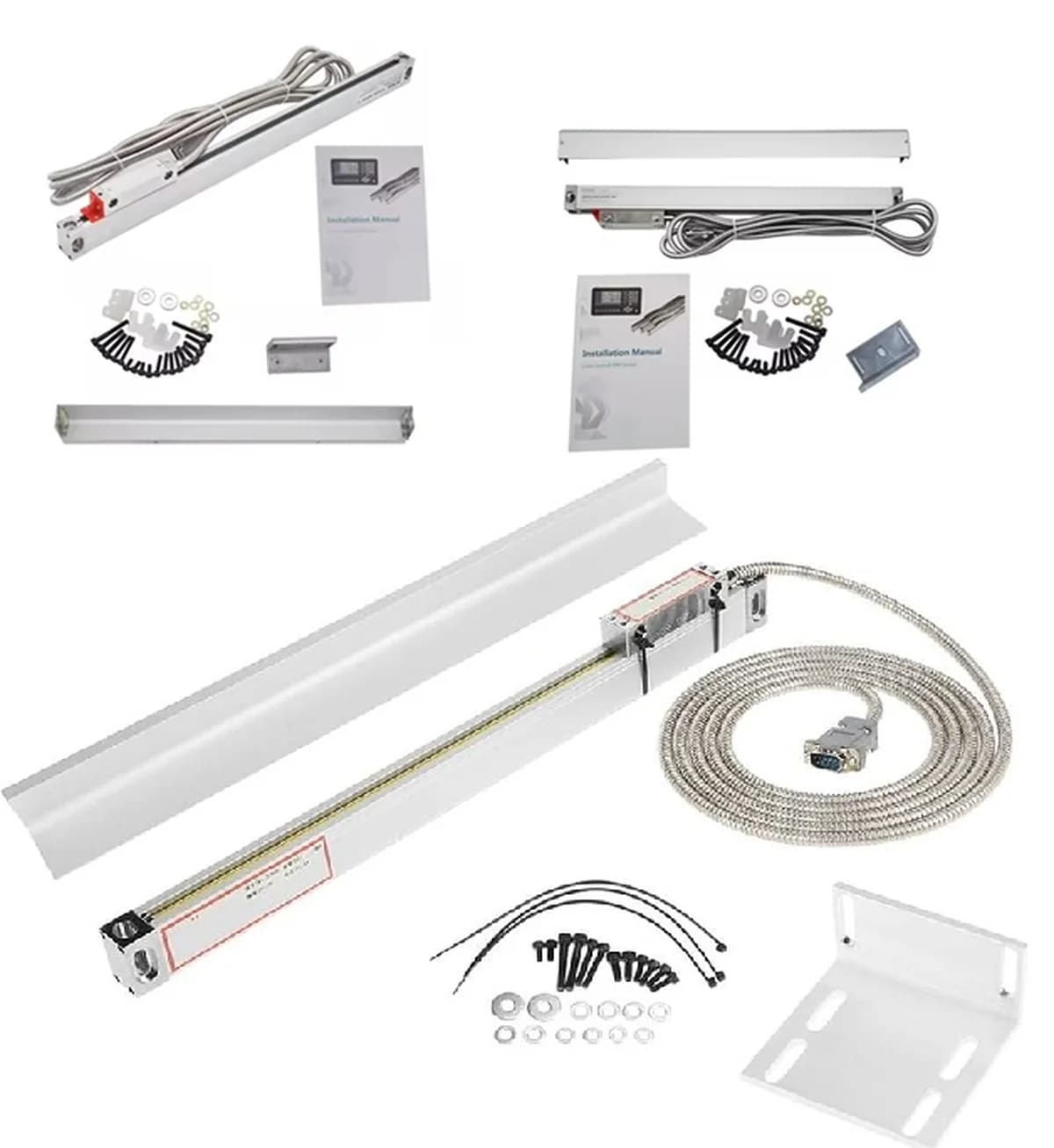

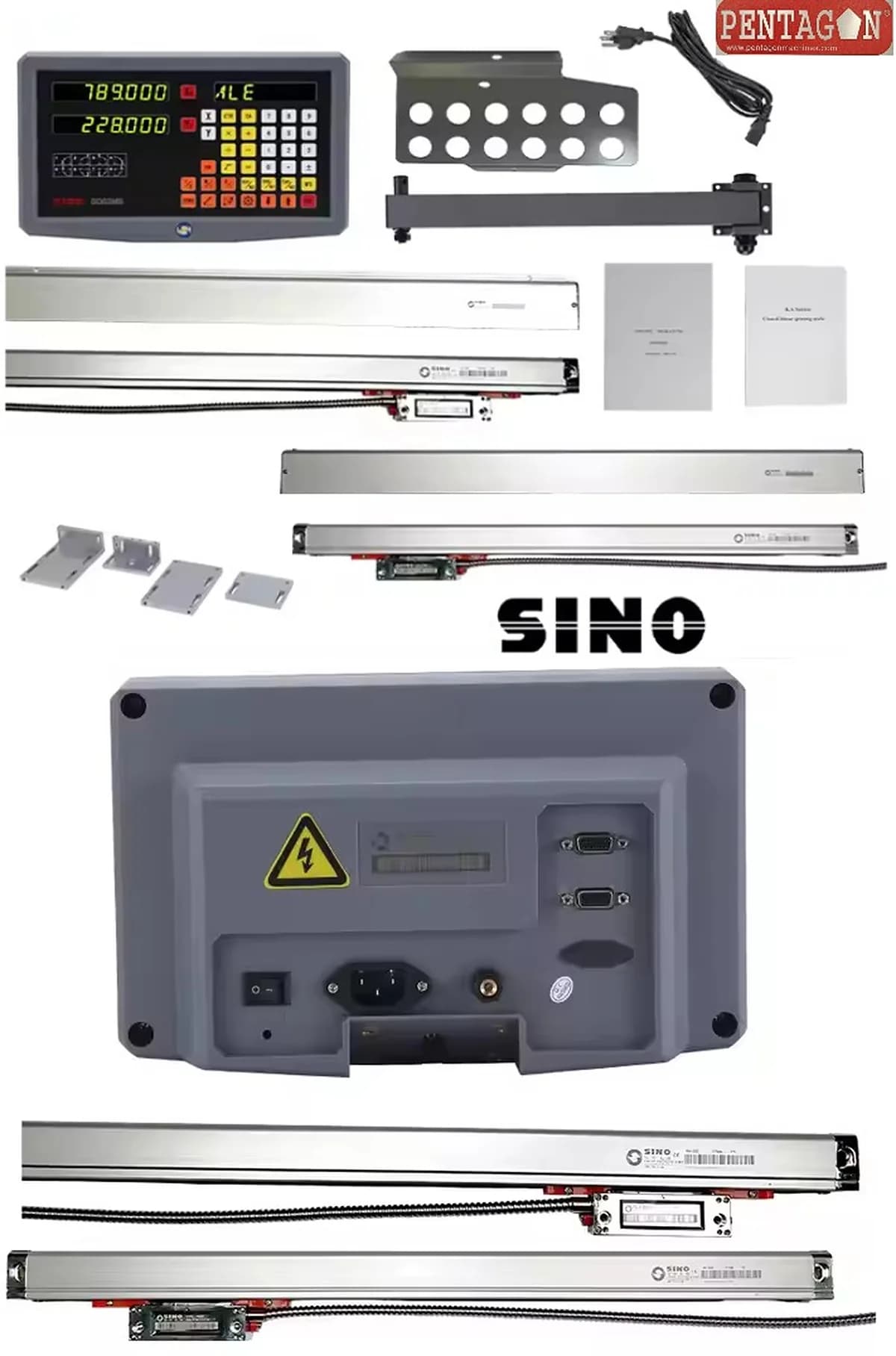

Standard Accessories

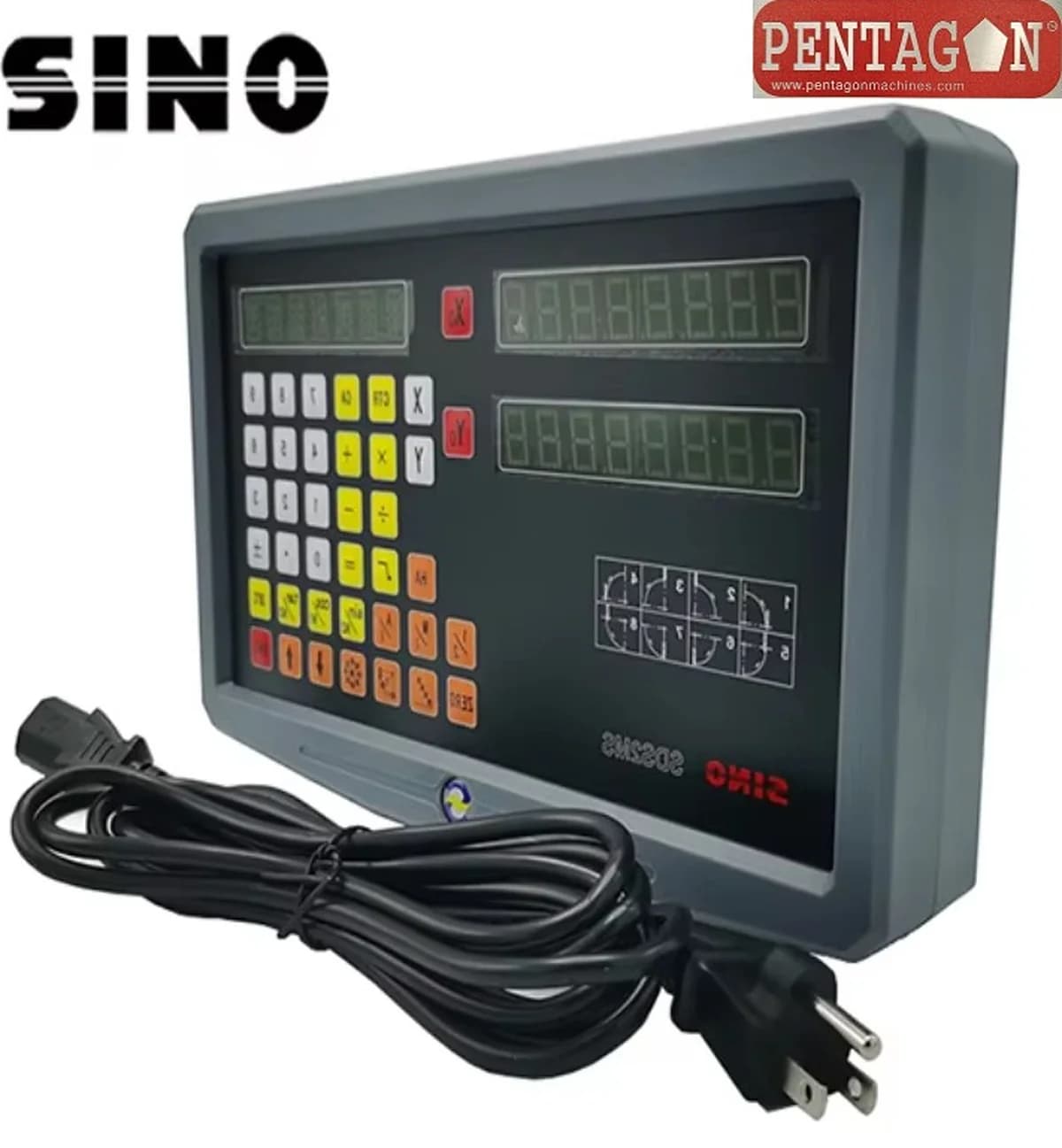

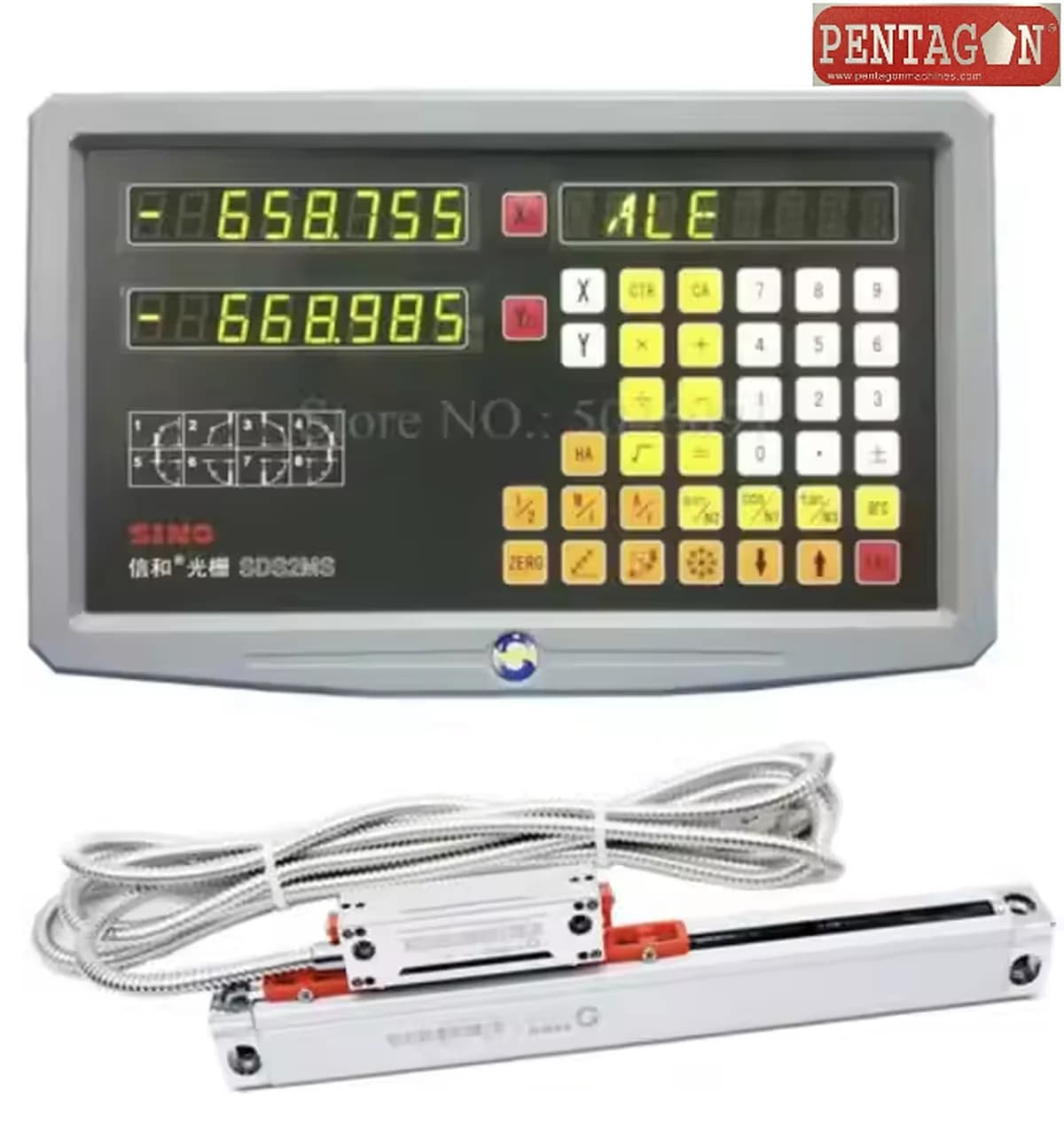

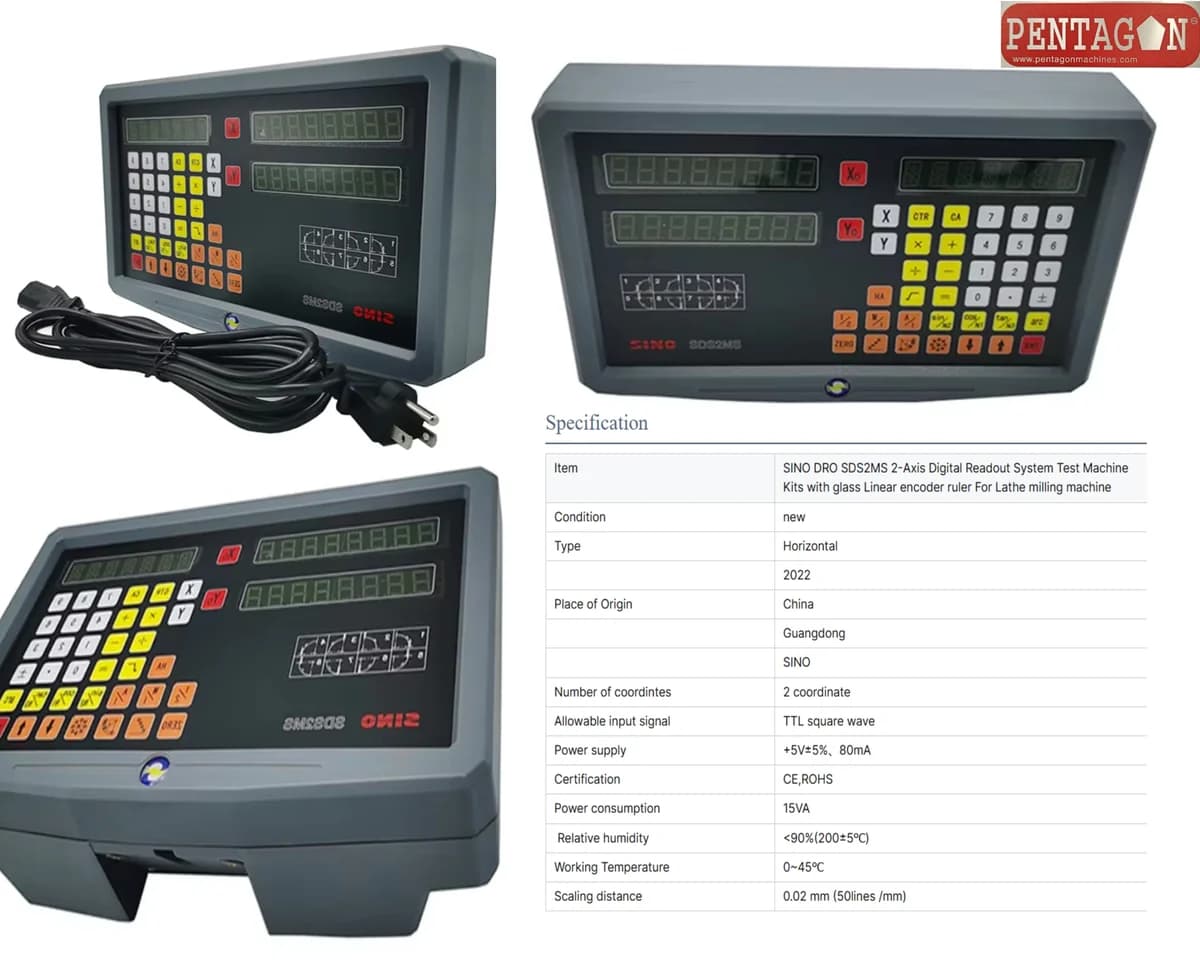

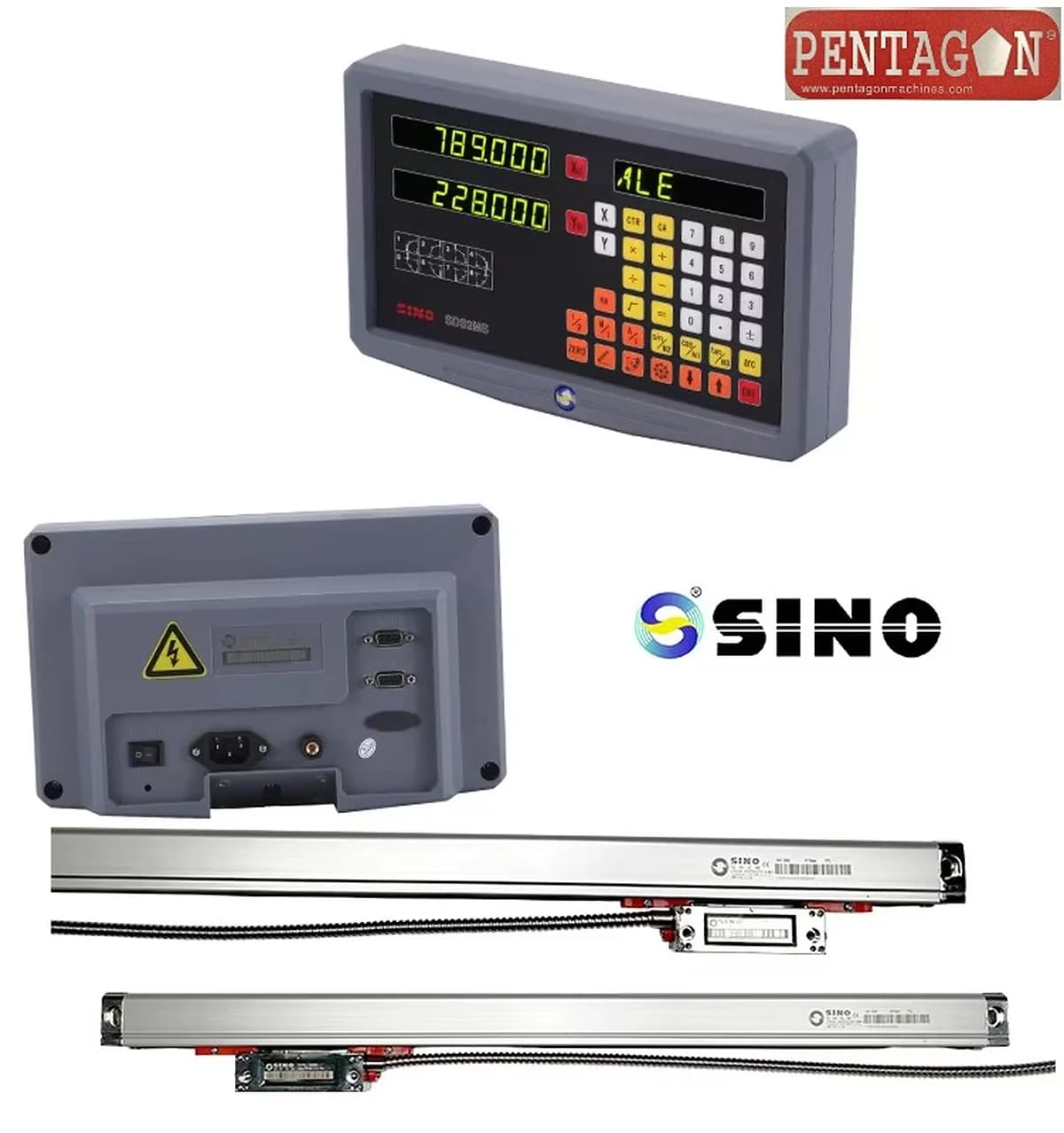

1 No. Digital Readout Display Unit (2 Axis)

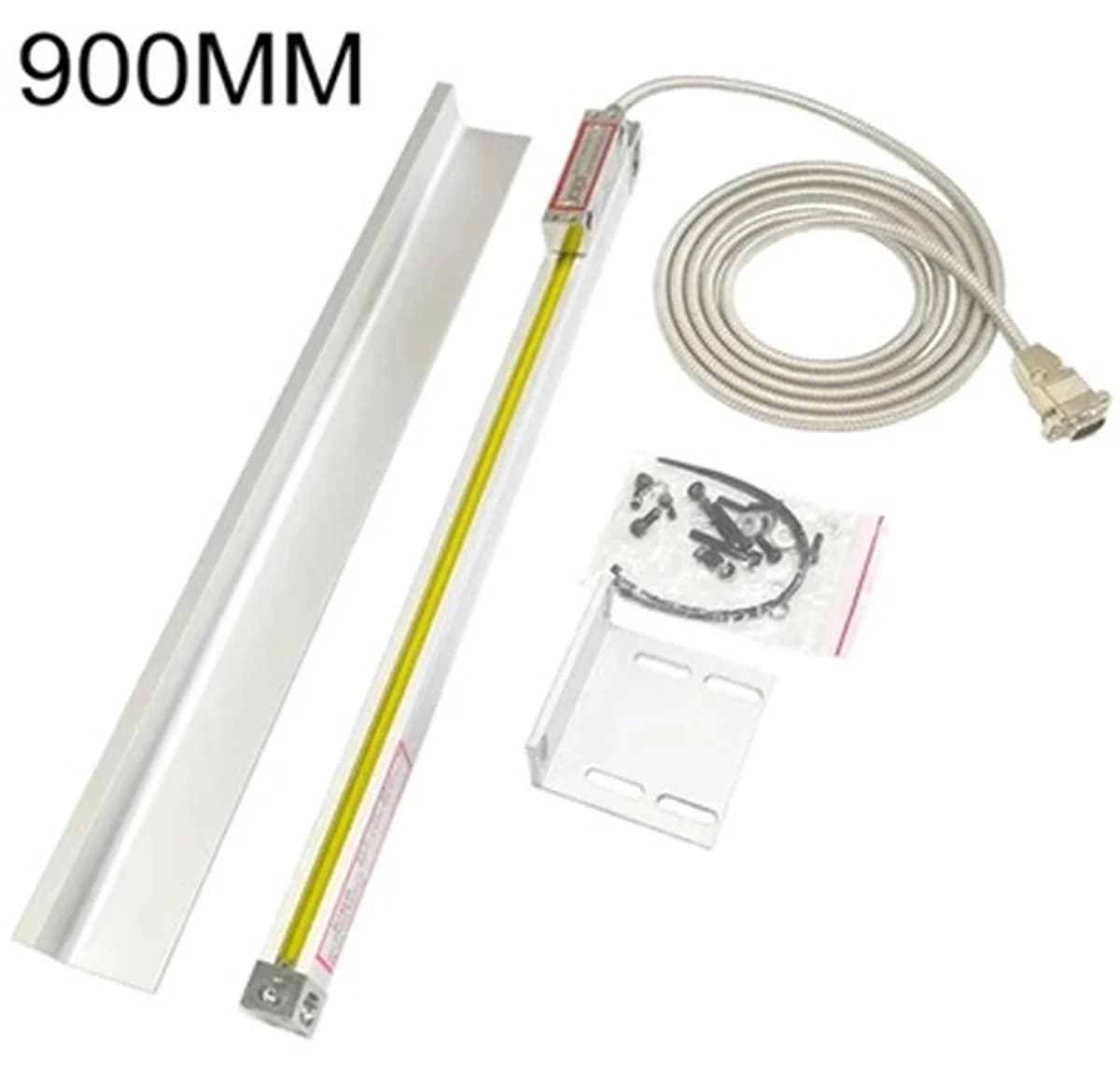

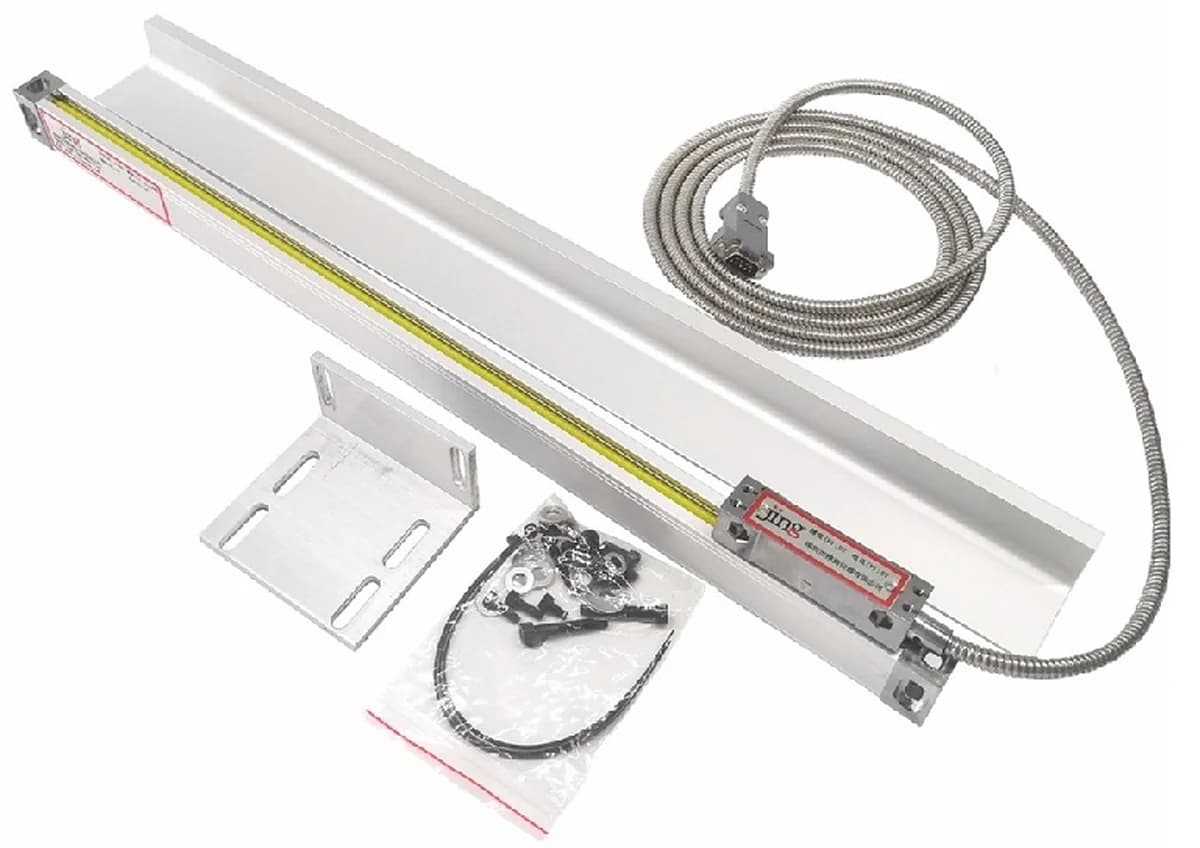

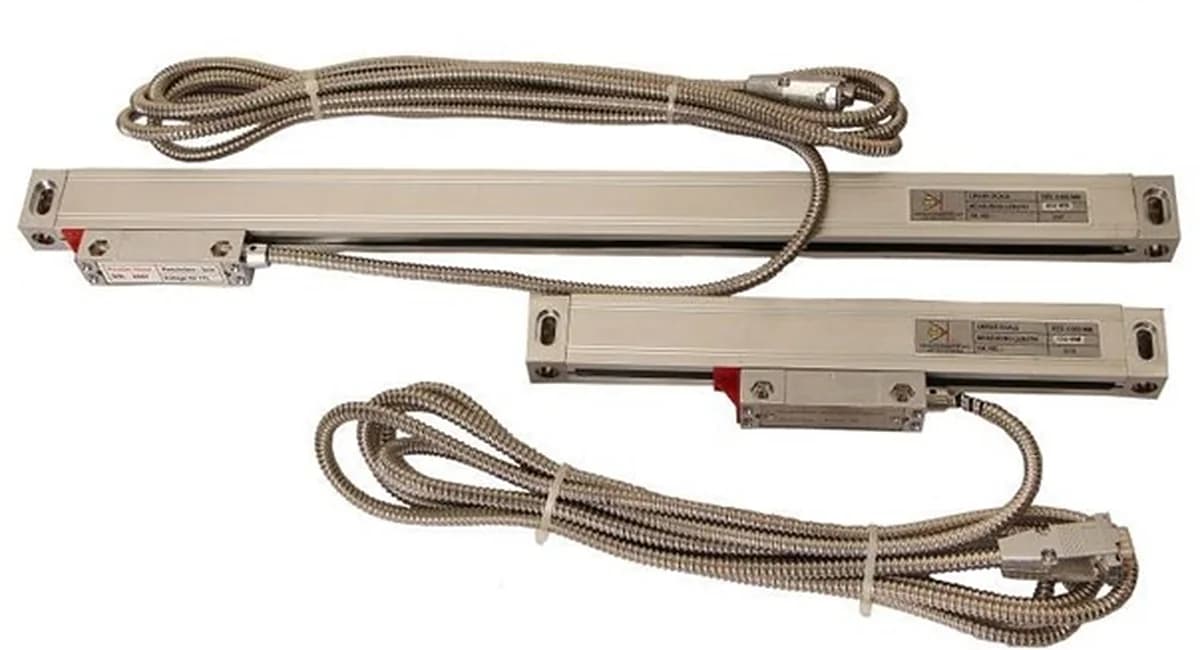

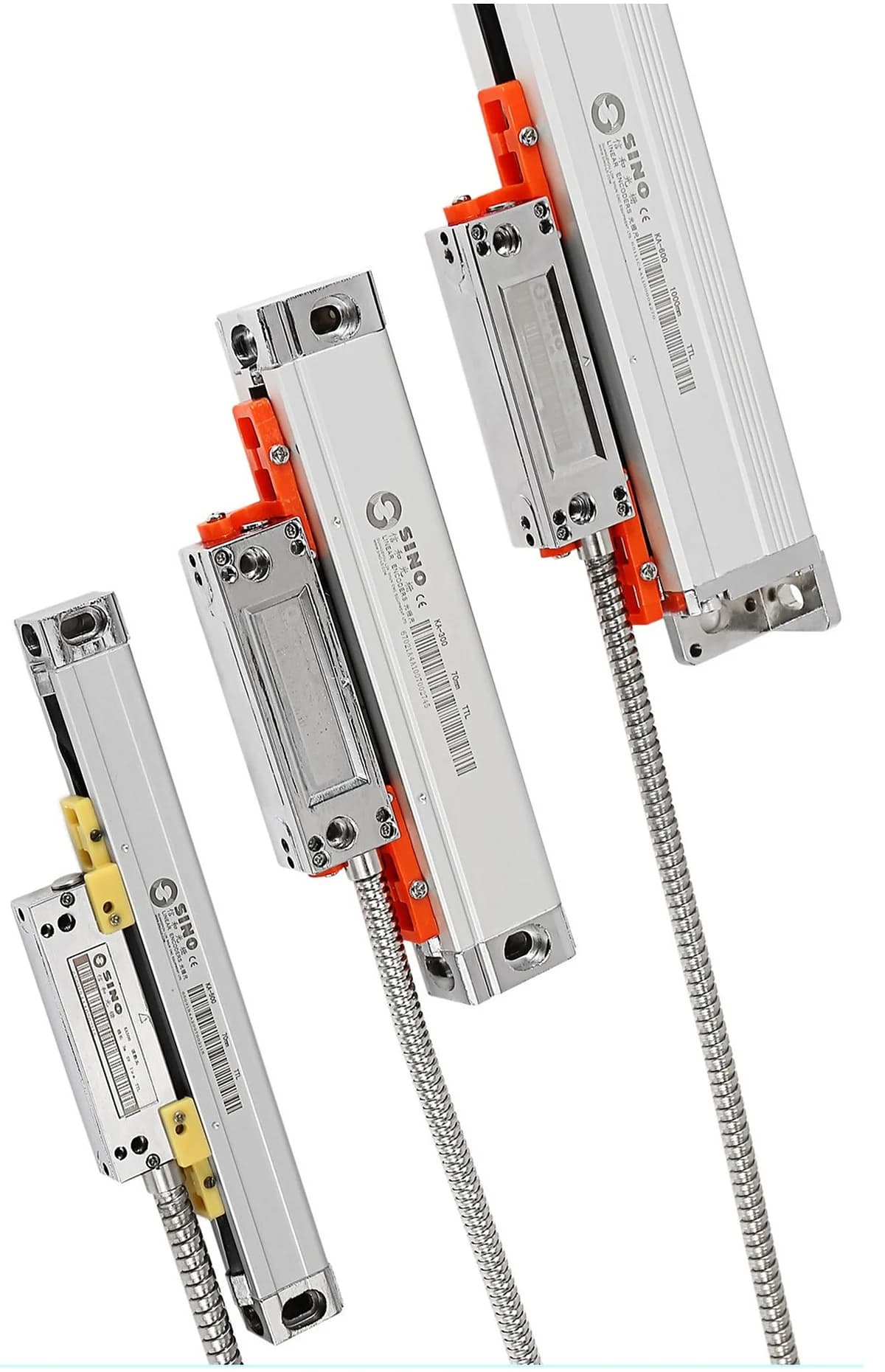

2 Nos. Linear Glass Scales (Encoder Type)Measuring Length: Up to 970 mm (Max) Resolution: 5µ / 1µ (as per model)
2 Sets Mounting Brackets for Scales
2 Nos. Reader Head Mounting Brackets
Complete Clamps, L-Brackets & Support Plates
Full Installation Hardware Kit (Bolts, Nuts, Washers, Screws)
2 Nos. Scale Signal Cables (Armored)
1 No. Power Cord (220V AC)
2 Nos. Scale Protection Covers / Guards
1 No. User Manual / Installation Guide
DRO Stand / Mounting Arm
Frequently asked
What resolution is available?
Available in 0.005 mm and 0.001 mm resolutions.
Is the system waterproof?
It has an IP54 protection rating for industrial environments.
What power supply is required?
It operates on 110V-240V AC power supply.
What machines is this compatible with?
Suitable for milling machines, lathes, grinders, and EDM machines.
More questions buyers ask
What is a 2-axis DRO system?
A 2-axis Digital Readout (DRO) system displays the precise position of machine tool axes (like X and Y on a mill or X and Z on a lathe) using linear scales, significantly improving machining accuracy.
What machines are compatible with SINO 2-axis DRO?
SINO 2-axis DRO sets are compatible with most manual milling machines, lathes, surface grinders, and EDM machines.
What is the difference between 0.005mm and 0.001mm resolution?
The 0.005mm resolution is standard for general machining, while 0.001mm (1 micron) provides ultra-fine precision required for high-tolerance toolroom and aerospace components.
Does the kit include everything needed for installation?
Yes, the SINO DRO set includes the display unit, two linear scales, mounting brackets, signal cables, and all necessary hardware for a complete installation.
What is the IP rating of these scales?
The scales are rated IP54, providing protection against dust and water splashes common in industrial workshop environments.
What power supply do these DRO systems require?
They operate on a standard 110V-240V AC power supply.
Can I use this on a lathe?
Yes, this 2-axis system is widely used for lathe applications to monitor X and Z axis movement.
What is the maximum measuring speed?
The system supports a maximum measuring speed of 60m/min.
Are the cables included?
Yes, the kit includes armored signal cables for reliable data transmission.
Is a warranty provided?
Yes, all SINO DRO sets sold through Gearo come with standard manufacturer warranty support.
Who should choose the 0.005mm resolution SINO DRO?
The 0.005mm resolution model is ideal for general machine shops, maintenance departments, and standard milling/lathe operations where high accuracy is needed without the cost of ultra-fine resolution.
Who should choose the 0.001mm resolution SINO DRO?
The 0.001mm resolution model is best suited for precision toolrooms, mold makers, and high-tolerance manufacturing where every micron of accuracy counts.
How does the 0.005mm model compare to the 0.001mm model?
Both offer the same robust build and installation kit, but the 0.001mm model provides 5x higher measurement resolution for more demanding precision tasks.
Is the installation process the same for both models?
Yes, both models share the same mounting dimensions and installation hardware, making them interchangeable in terms of setup.
