SPLINE SHAFT

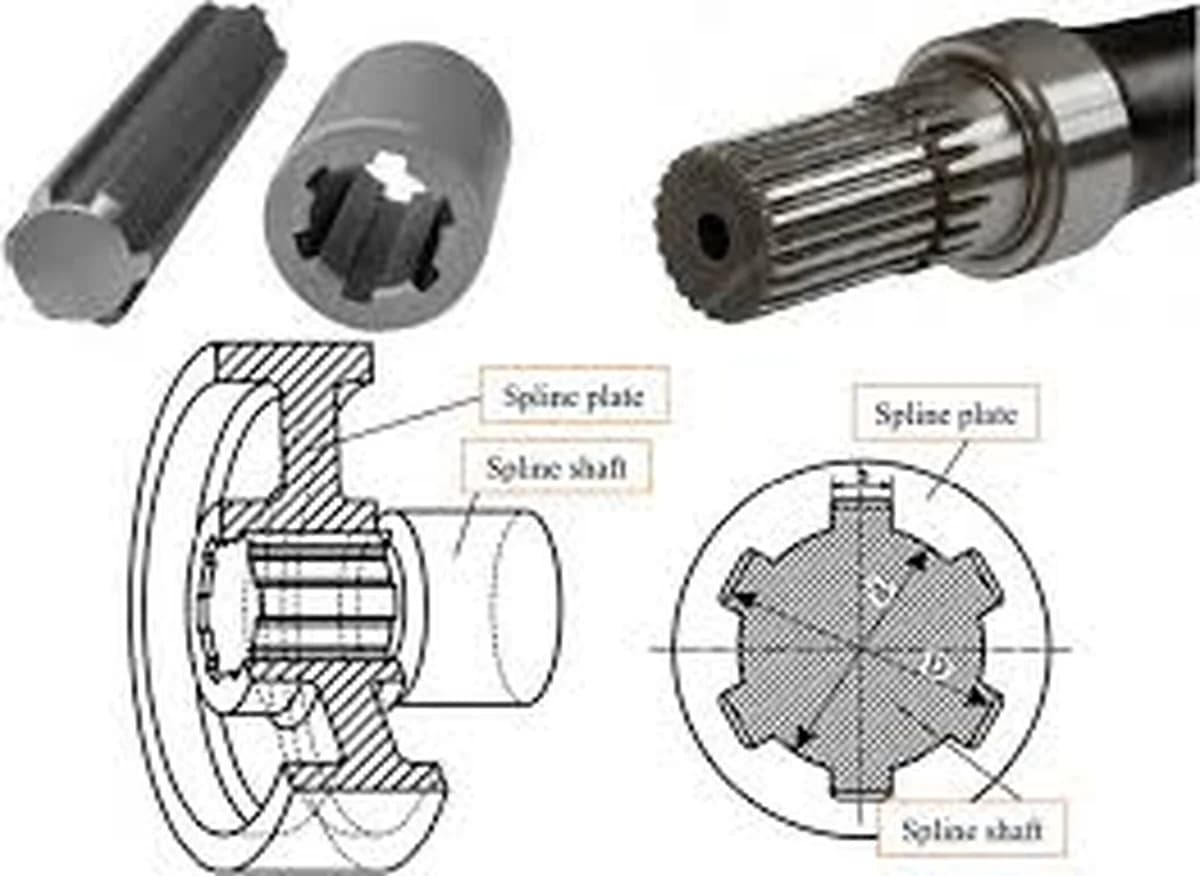

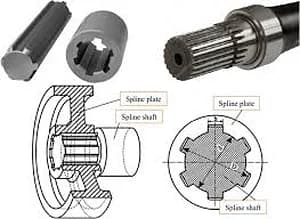

A Spline Shaft is a mechanical component featuring a series of parallel grooves (teeth) cut along its length. These teeth mesh with a corresponding internal "female" spline in a mating part, such as a gear or coupling.
Specifications
For: SWC 35 H MOTOR- Material
- Stainless Steel (SS304/SS316 Grade)
- Product Name
- Spline Shaft
- Hardness
- 45–60 HRC (if heat-treated)
- Type
- External Spline Shaft
Maintenance and Handling
- Store in dry environments to prevent surface oxidation
- Apply appropriate lubrication before installation to reduce friction
- Regularly inspect splines for signs of wear or damage
- Handle with care to avoid denting or deforming the teeth
- Ensure mating parts are clean before assembly for optimal fit
Industrial Applications
- Ideal for automotive transmission systems and drivelines
- Widely used in heavy machinery and industrial conveyors
- Essential for marine equipment due to stainless steel corrosion resistance
- Fits well in robotics and automation machinery assemblies
- Supports various manufacturing processes including CNC machining
Performance and Durability
- Delivers high torque capacity with minimal backlash
- Precision machining ensures smooth rotational movement
- Resistant to wear and deformation during continuous operation
- Suitable for demanding applications requiring reliable power transfer
- Optimized geometry reduces friction and energy loss
Material and Construction Quality
- Constructed from Stainless Steel (SS304/SS316 Grade)
- Offers superior corrosion resistance for harsh industrial environments
- Hardness is 45–60 HRC if heat-treated for enhanced durability
- Manufactured as an External Spline Shaft for robust engagement
- Maintains structural integrity under significant mechanical stress
Product Design and Function
- Mechanical component featuring parallel grooves cut along its length
- Teeth mesh with corresponding internal female spline in mating parts
- Compatible with gears, couplings, and other transmission components
- Designed for efficient torque transmission between rotating shafts
- Ensures precise alignment during high-load operations
Frequently asked
What material grades are available for this shaft?
Standard options include Stainless Steel SS304 and SS316 grades.
Is heat treatment applied to all spline shafts?
Hardness of 45–60 HRC is achieved if the shaft is heat-treated.
Can this shaft be used with internal female splines?
Yes, the external teeth are designed to mesh with internal splines.
More questions buyers ask
What is a spline shaft?
A spline shaft is a mechanical component that transfers torque between two rotating elements. It has teeth or splines that mesh with a corresponding female spline.
What are the common applications of a spline shaft?
Spline shafts are widely used in automotive transmissions, industrial machinery, robotics, and any application requiring high torque transfer and precise rotational control.
What materials are used to make Schifler spline shafts?
This Schifler spline shaft is made from high-quality Stainless Steel (SS304/SS316 Grade) for excellent durability and corrosion resistance.
What is the hardness of the spline shaft?
The shaft can be heat-treated to achieve a hardness of 45–60 HRC, making it resistant to wear and deformation under heavy loads.
Is the Schifler spline shaft corrosion-resistant?
Yes, being made from SS304/SS316 grade stainless steel, it offers excellent resistance to corrosion, making it suitable for use in various environments.
What is the benefit of a spline shaft?
Spline shafts provide a secure, high-torque connection with minimal backlash, ensuring smooth and reliable power transmission.
How do I choose the right spline shaft?
The right spline shaft depends on your application's torque requirements, operating environment, and the dimensions of the mating components. Please check the product specifications for detailed information.
What is the warranty on Schifler spline shafts?
We offer a 6-month warranty against manufacturing defects on our Schifler spline shafts.
Do you provide a GST invoice?
Yes, we provide a GST invoice for all purchases.
Do you deliver all over India?
Yes, we offer pan-India delivery for all our products.
Who should choose the Schifler SWC 35 H Motor Spline Shaft?
The Schifler SWC 35 H is ideal for engineers and technicians looking for a durable and reliable spline shaft for use with motors in industrial machinery, automation, and other high-torque applications.
