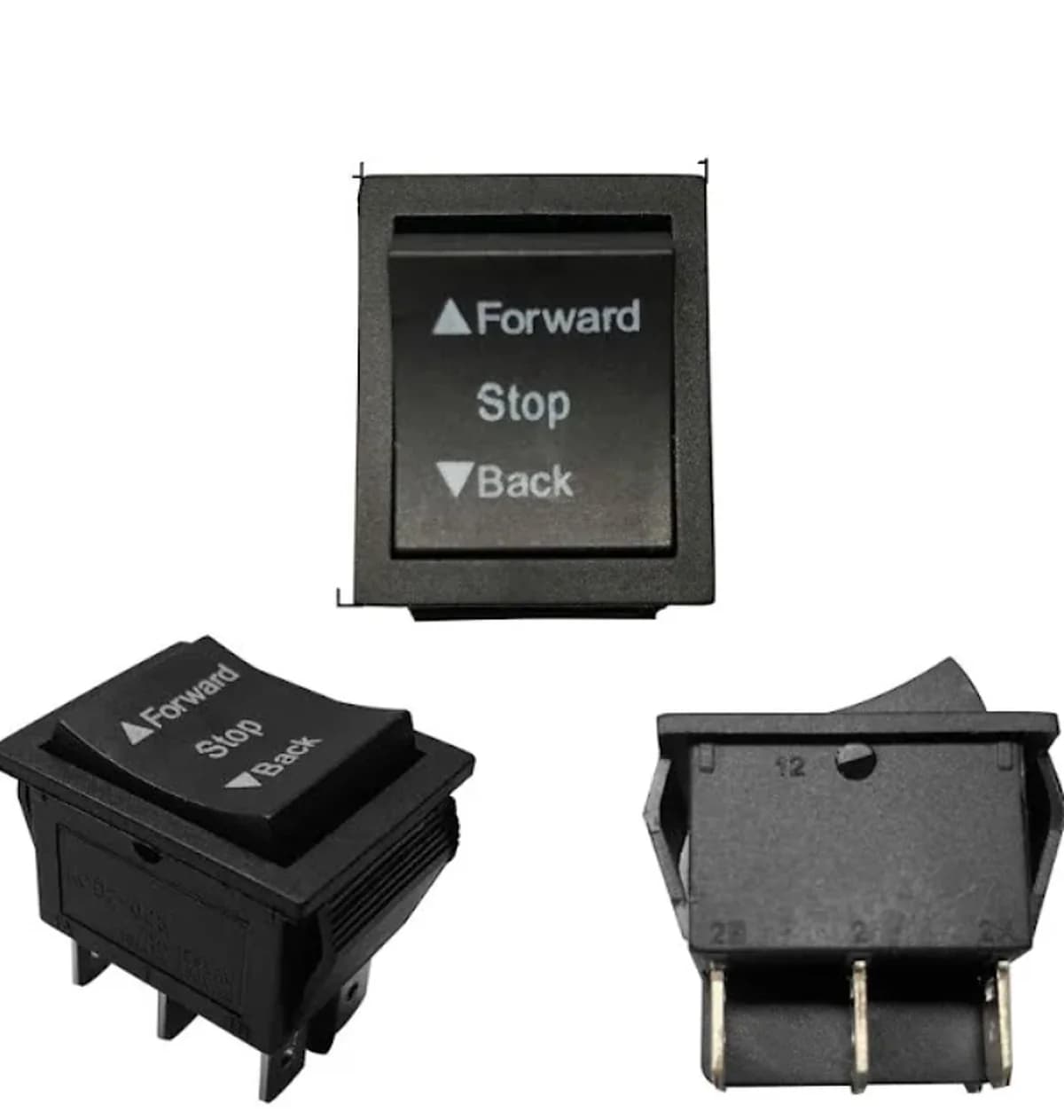

L & R SWITCH — SWC 50 MAX-T MAGNETIC FRAME
L & R (Left & Right) switch is an electrical control switch used to change the direction of motor rotation. It allows the machine to operate in forward and reverse modes, enabling flexibility during drilling, tapping, or material handling operations. Built for reliable switching, it ensures smooth direction control and safe operation in industrial machines.
Specifications
For: SWC 50 MAX-T MAGNETIC FRAME- Application
- Magnetic drilling machine (Schifler SWC)
- Function
- Forward and reverse motor control
- Voltage Rating
- 250V AC
- Current Rating
- 16A
- Switch Type
- Rocker (DPDT)
- Positions
- ON–OFF–ON
- Terminals:
- 6 pin connection
- Mounting
- Panel mount
- Material
- Heat-resistant plastic body
- Contact Material
- Metal / alloy
- Installation
- Easy panel fit
- Usage:
- Electrical spare part
- Artical No.
- 00716841489965
Configurations
Click a row to switch| Variant | Artical No. | Current Rating | Voltage Rating | Price |
|---|---|---|---|---|
| SWC 50 MAX-T MAGNETIC FRAME | 00716841489965 | 16A | 250V AC | ₹1,481 |
| SWC 65 WT MAGNETIC FRAME | 00716841492217 | 16A | 250V AC | ₹1,244 |
| SWC 80 WT MAGNETIC FRAME | 00716841494143 | 16A | 250V AC | ₹1,243 |
| SWC 100 WT MAGNETIC FRAME | 00716841496079 | 16A | 250V AC | ₹1,244 |
| 50 PDT MAGNETIC FRAME / MAGNETBOHRSTÄNDER SWC 50 | 00716841500424 | 16A | 250V AC | ₹1,244 |
Installation & Maintenance
- Designed for standard panel mount installation in control boxes
- Compatible with standard electrical wiring practices
- Regular inspection ensures continued safe operation in the field
- Replace worn units promptly to maintain machine safety standards
- Simple design allows for quick replacement during servicing
Industrial Applications
- Ideal for magnetic drilling machines and similar industrial equipment
- Supports forward and reverse modes in drilling and tapping operations
- Suitable for material handling machinery requiring direction changes
- Functions as a critical electrical spare part for maintenance
- Enhances flexibility during complex machining tasks
Durable Construction
- Constructed with heat-resistant plastic body for longevity
- Internal contacts made from durable metal alloy for conductivity
- Built to withstand industrial environments and frequent switching
- Ensures smooth direction control during heavy-duty operations
- Reliable switching mechanism minimizes downtime risks
Operational Capabilities
- Enables forward and reverse motor control for operational flexibility
- Rated for 250V AC voltage and 16A current capacity
- Features a robust Rocker (DPDT) switch mechanism
- Provides clear ON–OFF–ON positioning for precise control
- Utilizes 6 pin connection terminals for secure wiring
- Designed for easy panel fit and straightforward installation
Frequently asked
Is this switch compatible with standard industrial control panels?
Yes, it is designed for easy panel fit in most industrial machines.
What is the primary function of this L & R switch?
It changes the direction of motor rotation for forward and reverse modes.
Can this be used as a replacement spare part?
Yes, it is categorized as an electrical spare part for maintenance.
More questions buyers ask
What is the function of a Schifler L&R switch?
The Schifler L&R (Left & Right) switch is an electrical control that reverses the motor's direction, allowing for both forward and reverse operation in equipment like magnetic drilling machines.
What are the electrical specifications of this switch?
This is a DPDT (Double Pole, Double Throw) rocker switch rated for 16A at 250V AC.
Is this switch compatible with my drilling machine?
This switch is designed as a direct replacement for various Schifler magnetic drilling machines, including the SWC series. Please check your machine's manual or existing part to confirm compatibility.
What does DPDT mean?
DPDT stands for Double Pole, Double Throw. It's a type of switch with two inputs and four outputs; in this case, it's used to reverse the polarity of the power going to the motor, which changes its direction of rotation.
What material is the switch made of?
The switch features a durable, heat-resistant plastic body with robust internal metal alloy contacts for reliable conductivity and a long service life in industrial environments.
How do I install the L&R switch?
The switch is designed for easy panel mounting in a control box. It has a 6-pin connection for standard electrical wiring. We recommend installation by a qualified technician.
Do you offer a warranty on this switch?
Yes, we offer a 6-month warranty against manufacturing defects. We also provide a GST invoice and pan-India delivery.
Who should choose the L&R Switch for SWC 50 MAX-T?
This switch is the specific replacement for the Schifler SWC 50 MAX-T Magnetic Frame drilling machine. Choose this if you need to restore forward and reverse functionality to this particular model.
Who should choose the L&R Switch for SWC 65 WT?
This is the designated replacement switch for the Schifler SWC 65 WT Magnetic Frame drill. It ensures perfect fit and original performance for motor direction control.
Who should choose the L&R Switch for SWC 80 WT?
If you own a Schifler SWC 80 WT Magnetic Frame drill, this is the correct L&R switch to replace a faulty or worn-out original part, ensuring safe and reliable operation.
Who should choose the L&R Switch for SWC 100 WT?
This switch is manufactured specifically for the Schifler SWC 100 WT Magnetic Frame drilling machine. It is the ideal choice for maintaining the machine's forward and reverse capabilities.
Who should choose the L&R Switch for SWC 50 PDT?
This switch is the correct spare part for the Schifler 50 PDT Magnetic Frame / Magnetbohrständer. Select this to ensure compatibility and restore directional control.
What is the difference between the switches for the SWC models?
While all switches share the same core electrical specifications (16A, 250V, DPDT), they are designed to be specific replacements for different Schifler machine models (SWC 50, 65, 80, 100). The primary difference is the guaranteed compatibility with the respective machine's wiring and housing.
Are these switches interchangeable between different Schifler models?
We strongly recommend ordering the switch that corresponds to your specific machine model number (e.g., SWC 50, SWC 65). While they may appear similar, using the wrong model could lead to installation issues or electrical incompatibility. Always match the part to the machine.
How do I know which switch to order for my machine?
Check the variant name which lists the compatible Schifler model (e.g., 'for SWC 50 MAX-T'). Match this to the model number on your magnetic drilling machine to ensure you are purchasing the correct spare part.
