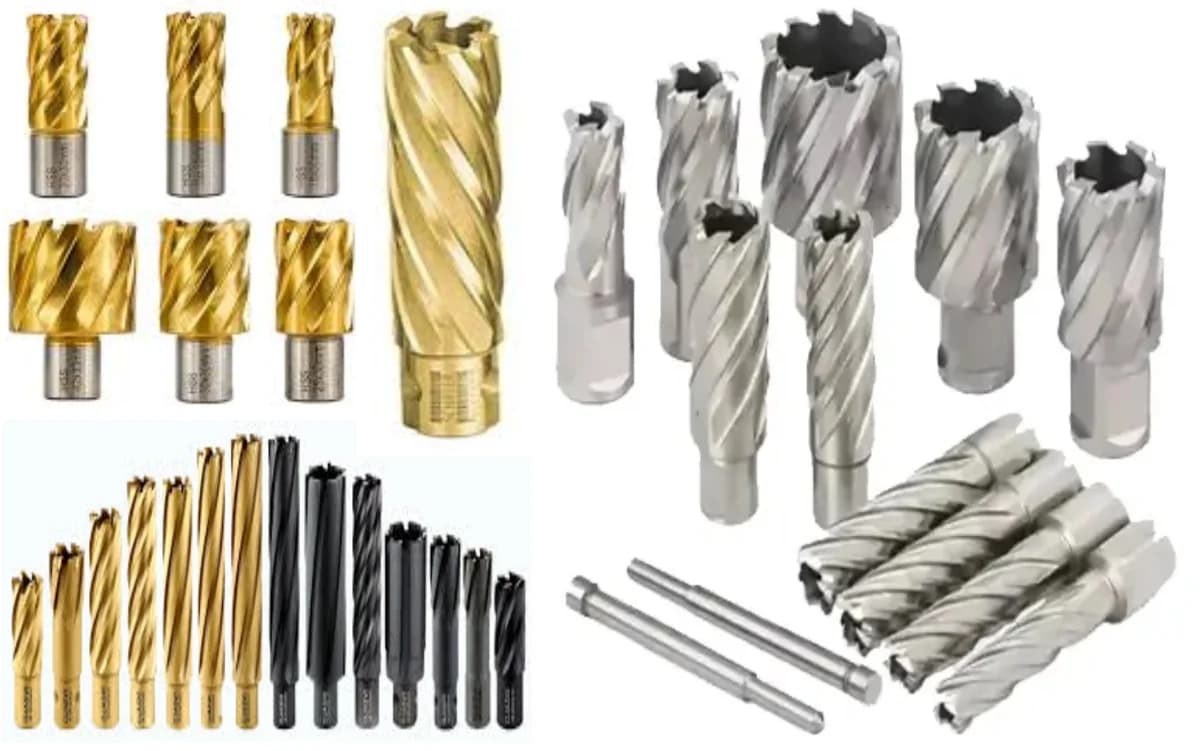

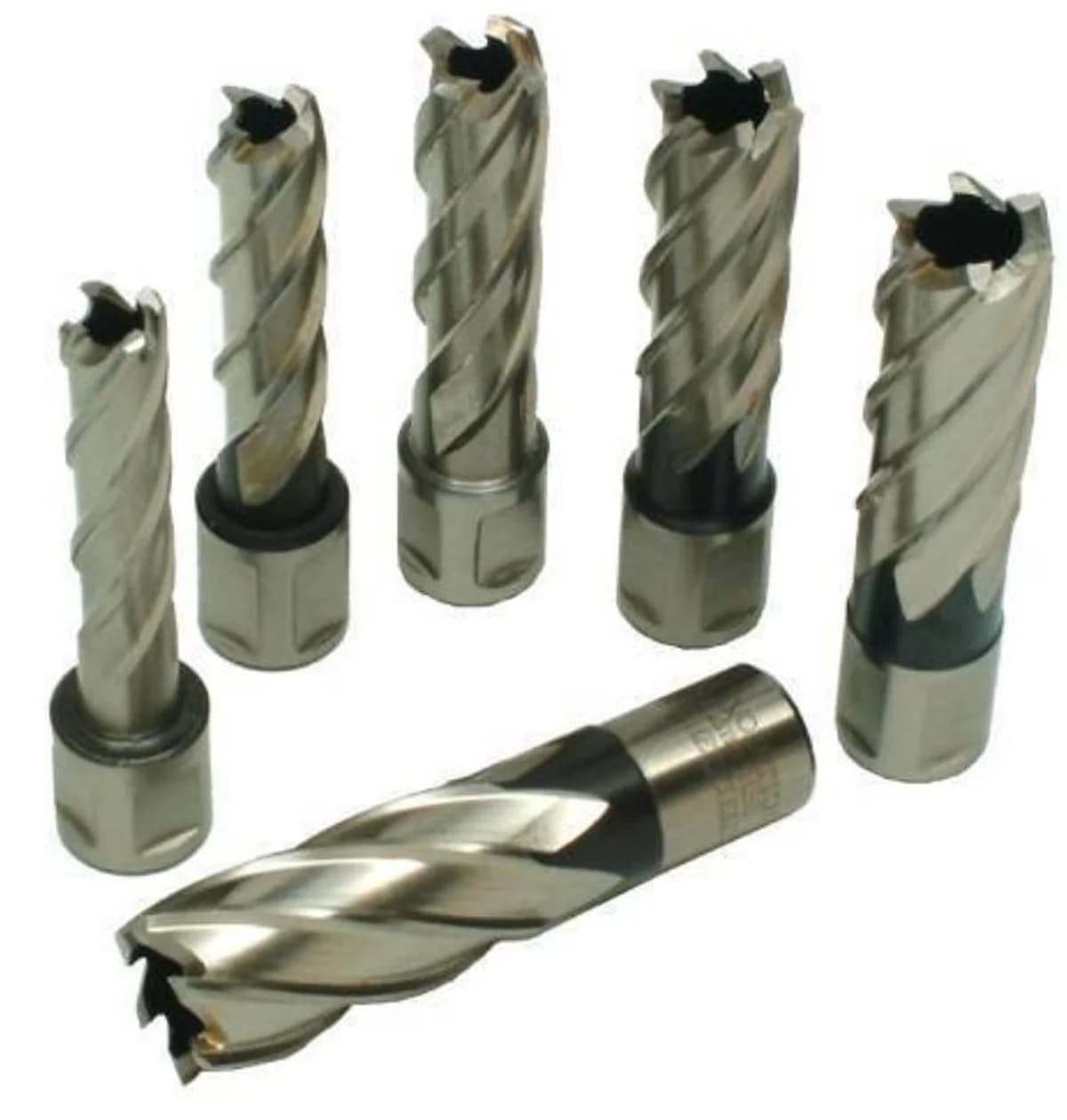

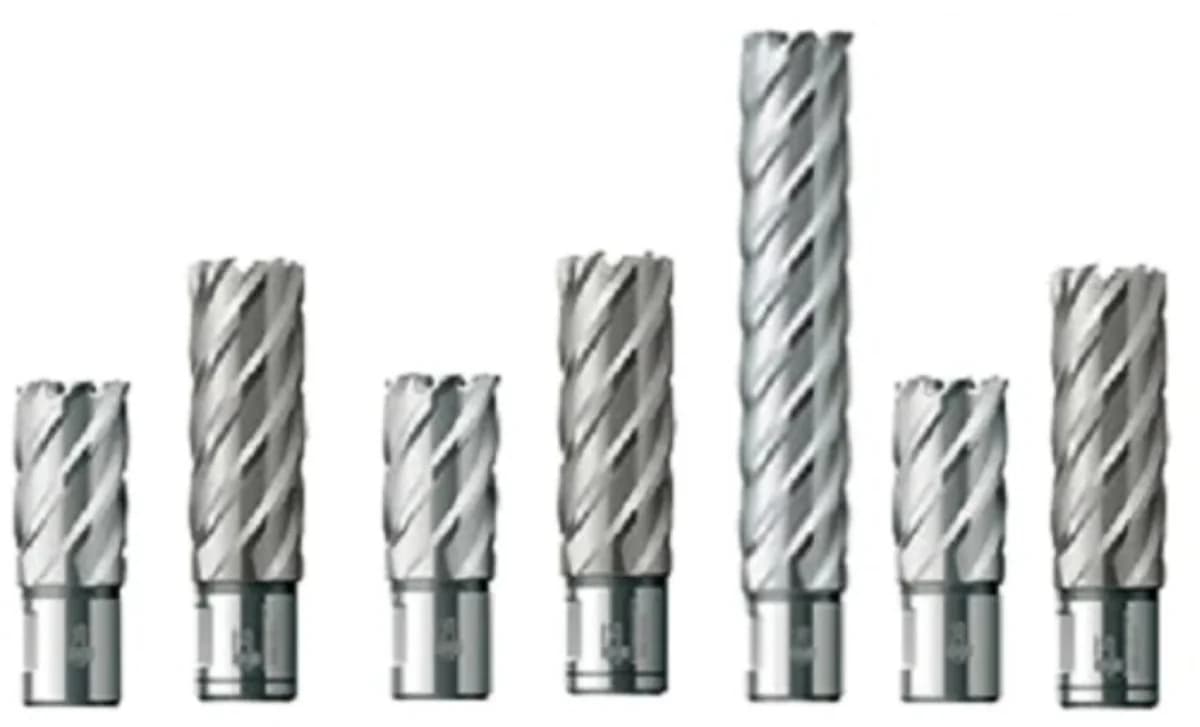

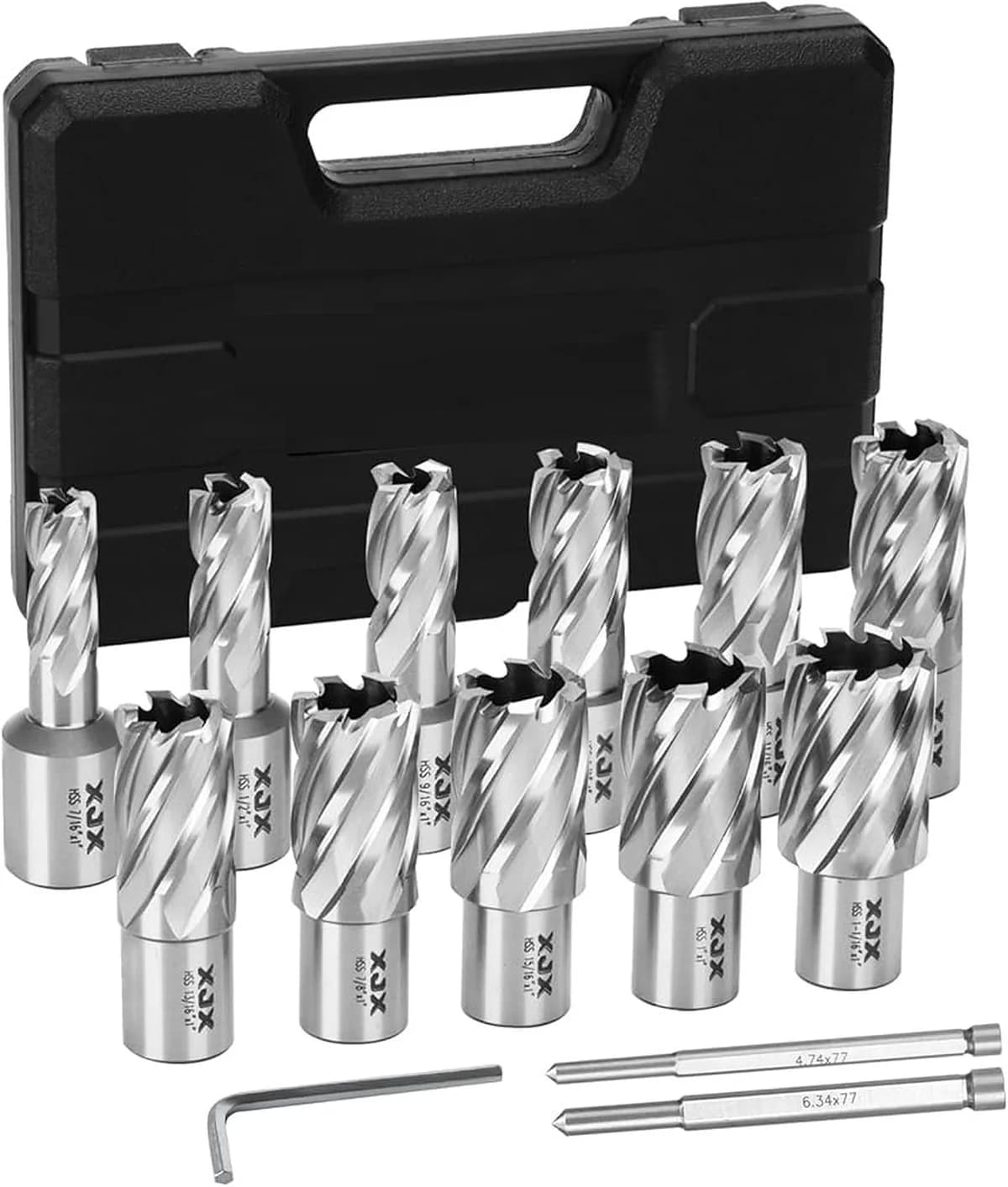

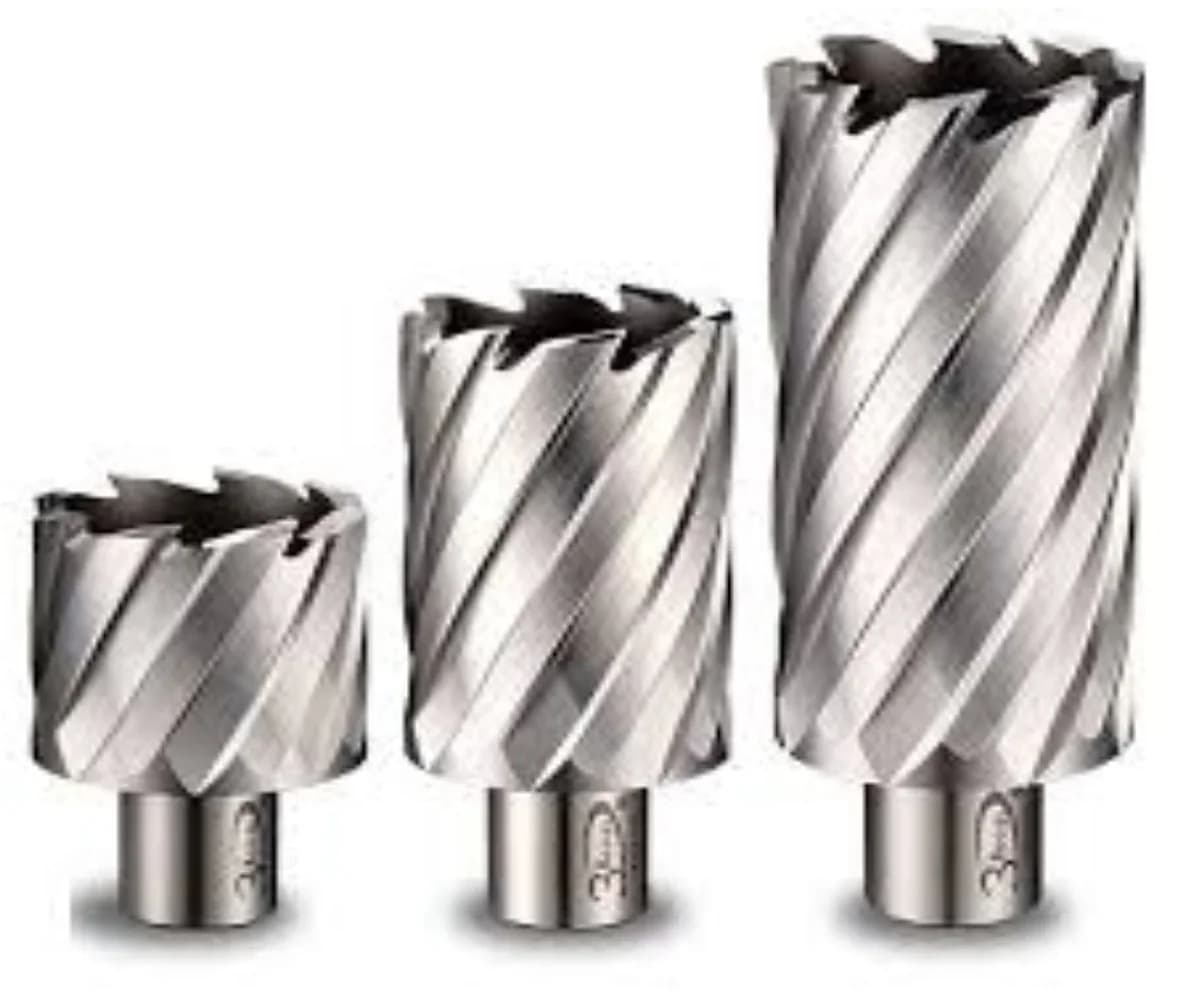

Schifler Core Drill HSS Cutter 35.5x35 mm
High-speed steel annular cutter engineered for magnetic drill machines to deliver precise core drilling in structural and alloy steels. This 35.5 mm diameter tool features a 35 mm cutting depth and a secure Weldon shank. • Shank Size: 19.05 mm (3/4") • Shank Type: Weldon Shank • Materials: Mild Steel, Stainless Steel, Alloy Steel, Aluminium • Ideal for fabrication and machinery maintenance
Specifications
For: 35.5x35 mm- SIze
- 35.5 mm
- Cutting depth
- 35 mm
- Product Name
- HSS Annular Cutter
- Shank Type
- Weldon Shank
- Shank Size
- 19.05 mm (3/4")
- Application Material
- Mild Steel, Stainless Steel, Alloy Steel, Aluminium
- Suitable Machine
- Magnetic Drill Machine
Configurations
Click a row to switch| Variant | Cutting depth | SIze | Shank Size | Shank Type | Price |
|---|---|---|---|---|---|
| 35.5x35 mm | 35 mm | 35.5 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,405 |
| 36x35 mm | 35 mm | 36 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,405 |
| 37x35 mm | 35 mm | 37 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,405 |
| 38x35 mm | 35 mm | 38 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,572 |
| 39x35 mm | 35 mm | 39 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,572 |
| 40x35 mm | 35 mm | 40 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,828 |
| 40.5x35 mm | 35 mm | 40.5 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,828 |
| 41x35 mm | 35 mm | 41 mm | 19.05 mm (3/4") | Weldon Shank | ₹2,828 |
| 42x35 mm | 35 mm | 42 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,056 |
| 43x35 mm | 35 mm | 43 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,056 |
| 44x35 mm | 35 mm | 44 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,350 |
| 45x35 mm | 35 mm | 45 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,350 |
| 46x35 mm | 35 mm | 46 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,600 |
| 47x35 mm | 35 mm | 47 mm | 19.05 mm (3/4") | Weldon Shank | ₹3,600 |
Durability and Construction Quality
- High-Speed Steel (HSS) construction ensures extended tool life
- Precision-ground teeth maintain sharpness under high torque loads
- Resistant to wear during continuous industrial use cycles
- Built to withstand the mechanical stresses of magnetic drilling
- Delivers consistent hole quality over repeated operations
Operational Range and Depth Specifications
- Supports a cutting depth range of 35.5 mm to 47 mm for deep holes
- Standard operational depth capability reaches up to 35 mm
- Ideal for thick plate drilling where conventional drills struggle
- Provides reliable penetration through heavy structural components
- Maintains accuracy throughout the full specified depth range
Versatile Material Processing Capabilities
- Optimized for cutting mild steel with consistent chip removal
- Effective on stainless steel applications requiring high heat resistance
- Suitable for alloy steel jobs demanding precision and durability
- Performs well on aluminium materials without excessive friction
- Handles diverse industrial metals across various hardness levels
Core Design and Shank Compatibility
- Engineered with HSS material for robust performance in industrial drilling
- Features a Weldon Shank type for secure, vibration-free mounting
- Compatible with standard shank sizes of 19 mm and 25 mm
- Designed specifically for integration with magnetic drill machines
- Ensures precise alignment and stable operation during heavy-duty cutting
Frequently asked
What shank types are supported?
The cutter uses a Weldon Shank compatible with 19 mm or 25 mm sizes.
Which machines is this suitable for?
It is designed specifically for use with magnetic drill machines.
Can it cut stainless steel?
Yes, it is optimized for mild steel, stainless steel, alloy steel, and aluminium.
More questions buyers ask
What is an HSS annular cutter?
An HSS annular cutter is a specialized drill bit made of High-Speed Steel, designed to cut holes in metal by removing only the outer edge, which is faster and more efficient than traditional twist drills.
What is the cutting depth of this Schifler cutter?
This specific range of Schifler HSS annular cutters features a standard cutting depth of 35 mm.
What shank type does this cutter use?
This cutter uses a standard Weldon Shank (19.05 mm), ensuring a secure and vibration-free fit in most magnetic drilling machines.
Can this cutter be used on stainless steel?
Yes, Schifler HSS annular cutters are optimized for use on mild steel, stainless steel, alloy steel, and aluminium.
Are these cutters compatible with all magnetic drills?
They are compatible with most standard magnetic drilling machines that accept a 19.05 mm (3/4 inch) Weldon shank.
What are the benefits of using an annular cutter over a twist drill?
Annular cutters require less power, drill faster, produce less waste, and provide a more accurate, burr-free hole finish compared to twist drills.
Does the cutter come with a pilot pin?
Typically, annular cutters require a pilot pin for centering and chip ejection. Please check your specific order or machine requirements.
How do I maintain the sharpness of the cutter?
Use proper cutting oil or coolant during operation to reduce heat and friction, which significantly extends the life of the HSS teeth.
Is this product suitable for heavy-duty industrial use?
Yes, Schifler cutters are engineered for robust performance in demanding industrial environments, including structural fabrication.
What is the advantage of HSS material?
High-Speed Steel (HSS) offers excellent hardness, wear resistance, and heat tolerance, making it ideal for cutting various metals without losing sharpness.
Who should choose the 35.5 mm variant?
Choose the 35.5 mm variant if your project requires a precise 35.5 mm diameter hole in medium-thickness steel plates.
Who should choose the 47 mm variant?
Choose the 47 mm variant for larger diameter hole requirements in heavy-duty structural steel applications.
How does the 35.5 mm cutter compare to the 47 mm cutter?
Both offer the same 35 mm cutting depth and HSS quality; the primary difference is the hole diameter, with the 47 mm being suitable for larger bore requirements.
Are all these variants compatible with the same magnetic drill?
Yes, all variants in this series share the same 19.05 mm Weldon shank, making them interchangeable on the same magnetic drilling machine.
Which variant is best for general structural steel work?
The choice depends on your specific hole size requirement; however, the mid-range sizes (38-42 mm) are commonly used in general structural fabrication.
