COOLANT BOTTLE ASSEMBLY — SWC 32 PRO MAGNETIC FRAME

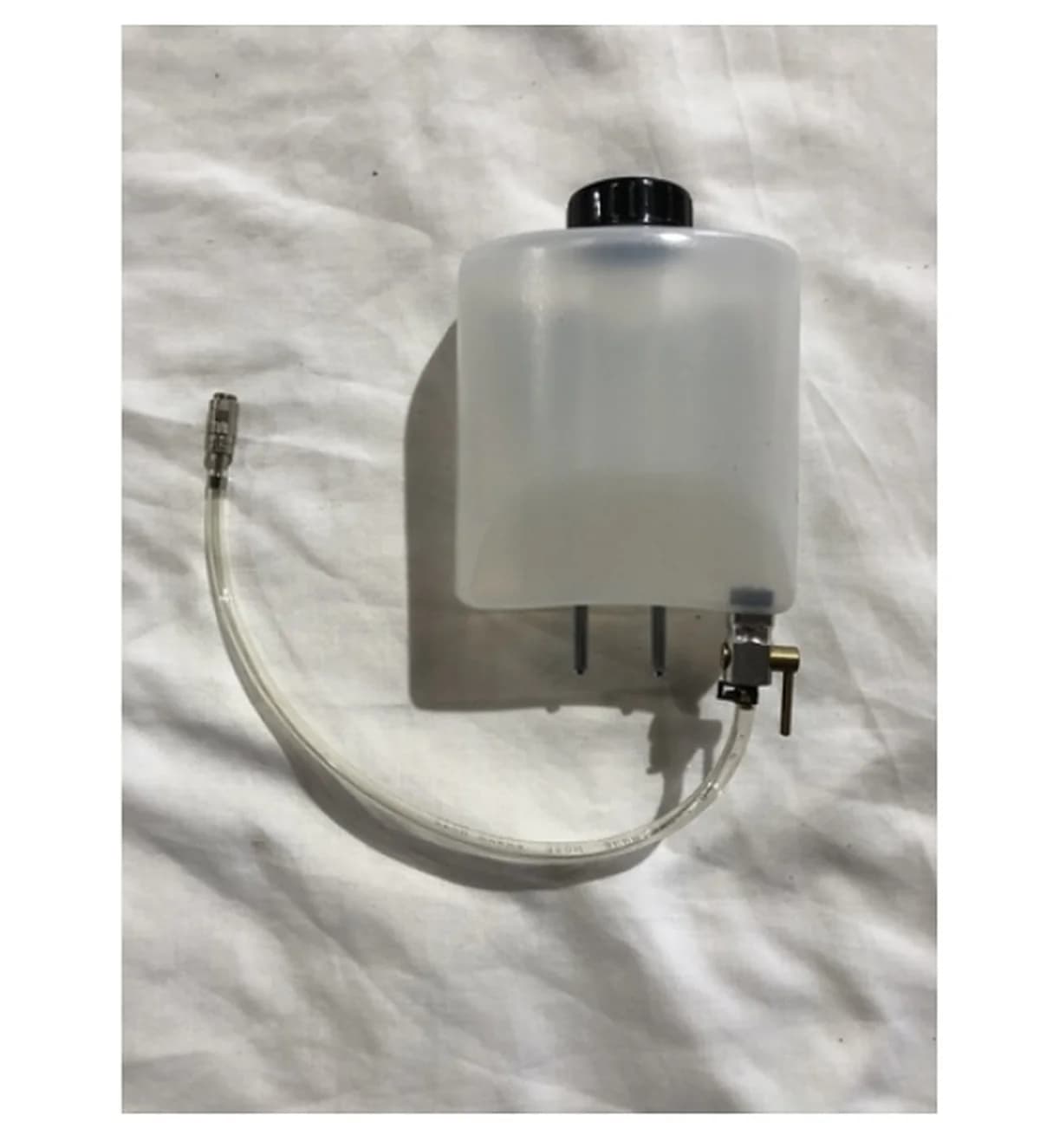

A coolant bottle assembly is a fluid storage and delivery unit used in drilling and machining equipment to supply cutting fluid directly to the tool-work interface. It typically consists of a plastic reservoir bottle, mounting bracket, feed tube, and flow control mechanism (valve or inducer). The assembly works on a gravity or controlled flow system, ensuring continuous lubrication and cooling of the cutting tool during operation. Designed for easy mounting on magnetic drills and similar machines, it helps reduce heat generation, improve cutting efficiency, and extend tool life. The coolant i
Specifications
For: SWC 32 PRO MAGNETIC FRAME- Artile no.
- 00716841486810
- Capacity
- 600ml
- Material
- HDPE Plastic
- Mounting Type
- Bracket Mounted
- Coolant Compatibility
- Water-Based & Cutting Fluids
- Leak Proof Design
- Yes
- Color
- White/Natural
Configurations
Click a row to switch| Variant | Artile no. | Capacity | Leak Proof Design | Color | Price |
|---|---|---|---|---|---|
| SWC 32 PRO MAGNETIC FRAME | 00716841486810 | 600ml | Yes | White/Natural | ₹814 |
| SWC 40 PRO MAGNETIC FRAME | 00716841488296 | 600ml | Yes | White/Natural | ₹814 |
| SWC 50 MAX-PRO MAGNETIC | 00716841489132 | 600ml | Yes | White/Natural | ₹815 |
| SWC 50 MAX-T MAGNETIC FRAME | 00716841490046 | 600ml | Yes | White/Natural | ₹817 |
| SWC 120 WT MAGNETIC FRAME | 00716841497496 | 600ml | Yes | White/Natural | ₹815 |
| SWC 35 AT MAGNETIC FRAME | 00716841501360 | 600ml | Yes | White/Natural | ₹817 |
| SWC 35 PD MAGNETIC FRAME | 00716841498257 | 600ml | Yes | White/Natural | ₹819 |
Common Questions
Q: What fluids can this assembly handle? A: Compatible with Water-Based & Cutting Fluids for general machining. Q: How is the bottle secured to the machine? A: It uses a Bracket Mounted design for stable installation. Q: Is the design leak-proof? A: Yes, it features a Leak Proof Design to contain fluids. Q: What is the standard storage volume? A: Typical capacity is 600ml for continuous operation support.
Compatibility & Mounting
- Designed for easy mounting on magnetic drills and similar machines
- Compatible with Water-Based & Cutting Fluids
- Bracket Mounted type ensures secure attachment stability
- Adaptable to various machine setups requiring coolant
- Simple feed tube design allows precise fluid direction
- Easy to refill and maintain during production shifts
Operational Benefits & Efficiency
- Helps reduce heat generation during cutting operations
- Improve cutting efficiency by maintaining optimal temperatures
- Extend tool life through consistent lubrication
- Minimizes thermal damage to workpiece surfaces
- Enhances surface finish quality on machined parts
- Supports high-performance drilling and milling tasks
Construction & Material Quality
- Constructed from durable HDPE Plastic for longevity
- Features a leak proof design to prevent fluid spills
- Available in White/Natural color options
- Standard capacity configuration includes 600ml volume
- Resistant to common industrial chemicals and fluids
- Robust build quality for heavy-duty workshop environments
Product Functionality & Design
- Fluid storage and delivery unit for drilling and machining equipment
- Supplies cutting fluid directly to the tool-work interface
- Consists of reservoir bottle, mounting bracket, and feed tube
- Includes flow control mechanism like valve or inducer
- Works on gravity or controlled flow system
- Ensures continuous lubrication and cooling during operation
More questions buyers ask
What is the capacity of the Schifler Coolant Bottle Assembly?
The Schifler Coolant Bottle Assembly has a capacity of 600ml.
What material is the coolant bottle made of?
The bottle is made of durable HDPE (High-Density Polyethylene) plastic.
Is the Schifler Coolant Bottle Assembly leak-proof?
Yes, it features a leak-proof design to prevent fluid spills and ensure a clean work environment.
What type of coolants are compatible with this assembly?
The assembly is compatible with both water-based coolants and standard cutting fluids.
How is the coolant bottle mounted on a machine?
It uses a secure bracket mounting system, making it easy to attach to various magnetic drills and other machinery.
What are the benefits of using this coolant assembly?
It provides continuous lubrication and cooling to the cutting tool, which helps to reduce heat, improve cutting efficiency, extend tool life, and enhance the surface finish of the workpiece.
What is the color of the coolant bottle?
The bottle is available in a White/Natural color.
Is there a warranty on the Schifler Coolant Bottle Assembly?
Yes, we offer a 1-year warranty against manufacturing defects.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice for all purchases.
Do you offer pan-India delivery?
Yes, we deliver the Schifler Coolant Bottle Assembly across India.
Who should choose the SWC 32 PRO MAGNETIC FRAME variant?
The SWC 32 PRO is ideal for users who need a reliable and efficient coolant system for general-purpose drilling with smaller magnetic drills. It's a cost-effective choice for standard applications.
Who should choose the SWC 40 PRO MAGNETIC FRAME variant?
The SWC 40 PRO is suited for more demanding applications than the SWC 32, offering a robust solution for medium-duty drilling tasks where consistent cooling is critical.
Who should choose the SWC 50 MAX-PRO MAGNETIC variant?
The SWC 50 MAX-PRO is designed for high-performance, heavy-duty drilling. It's the right choice for professionals working with larger workpieces and requiring maximum cooling efficiency.
Who should choose the SWC 50 MAX-T MAGNETIC FRAME variant?
The SWC 50 MAX-T is a top-tier option for the most intensive drilling operations. It provides superior cooling performance for prolonged, heavy-duty use on tough materials.
Who should choose the SWC 120 WT MAGNETIC FRAME variant?
The SWC 120 WT is built for the largest and most powerful magnetic drills. It's the ultimate choice for industrial-scale projects and deep-hole drilling where heat dissipation is paramount.
Who should choose the SWC 35 AT MAGNETIC FRAME variant?
The SWC 35 AT is a versatile, all-terrain option suitable for a wide range of drilling applications, balancing performance and value for mobile and workshop use.
Who should choose the SWC 35 PD MAGNETIC FRAME variant?
The SWC 35 PD is a precision drilling frame, perfect for tasks requiring high accuracy and controlled coolant flow. It's ideal for intricate work and delicate materials.
What is the main difference between the SWC 32, 40, and 50 series frames?
The primary difference is the size and drilling capacity they are designed to support. The SWC 32 is for smaller drills, the SWC 40 for medium-duty, and the SWC 50 series for heavy-duty applications. As the number increases, the frame's robustness and suitability for larger, more powerful drills also increase.
How do the MAX-PRO and MAX-T variants of the SWC 50 differ?
Both are for heavy-duty use, but the MAX-T (Max-Torque or Max-Toughness) is typically engineered for even more demanding, high-torque drilling scenarios compared to the MAX-PRO, offering enhanced durability and performance under extreme load.
Which frame is best for heavy-duty industrial applications?
For the most demanding, heavy-duty industrial applications, the SWC 120 WT MAGNETIC FRAME is the best choice. It is designed to support the largest magnetic drills and provide maximum cooling for prolonged, intensive operations.
