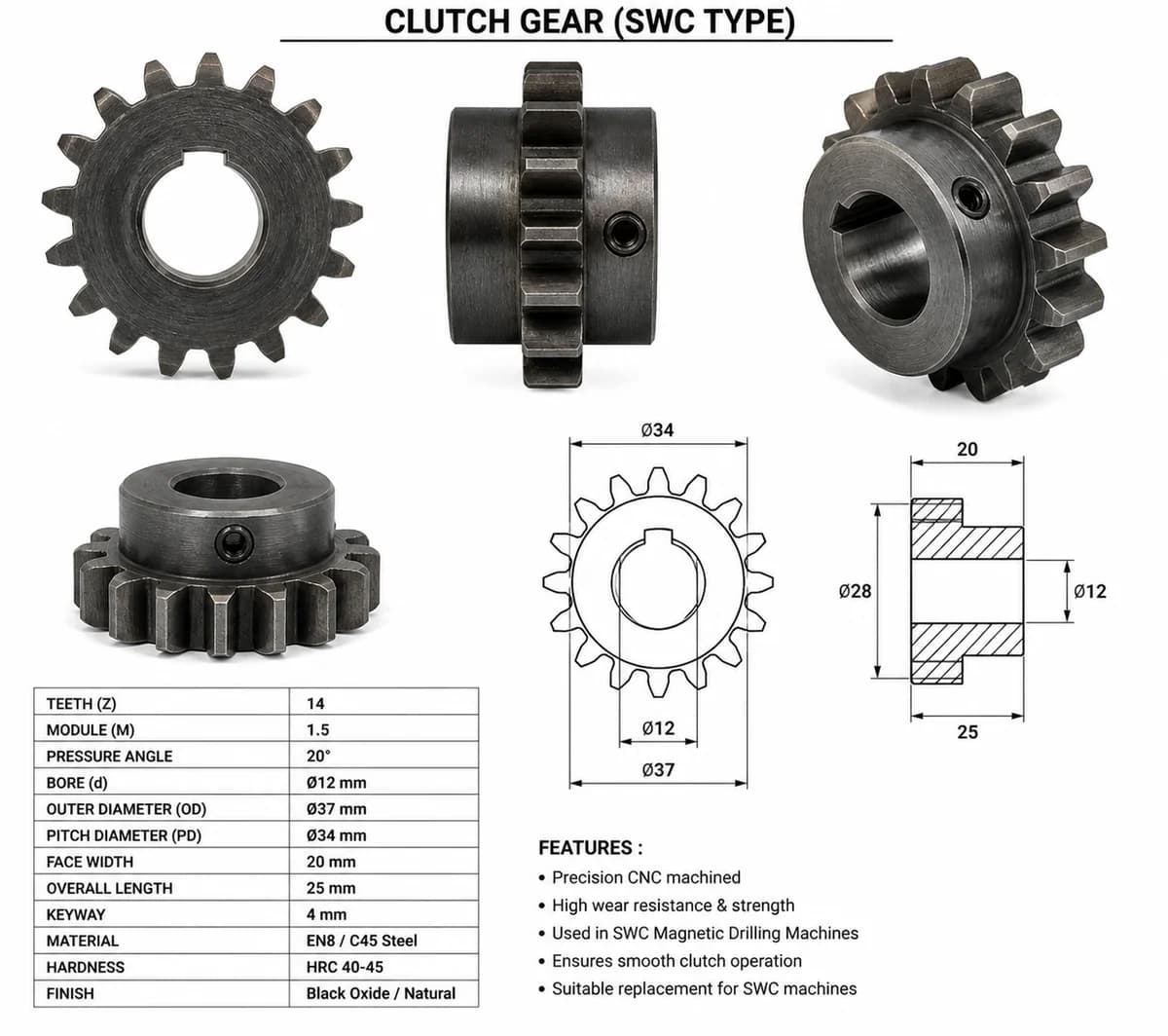

CLUTCH GEAR
A clutch gear for WC 35 AT magnetic frame is a precision-machined transmission component designed to engage and disengage power within the feed or drive mechanism of the magnetic drilling machine. It enables smooth torque transfer while protecting internal components from overload during operation. Manufactured from high-strength alloy steel and heat-treated for durability, the clutch gear ensures reliable performance, minimal wear, and accurate synchronization of moving parts. It is specifically designed for compatibility with WC 35 AT magnetic frame machines, supporting efficient drilling an
Specifications
For: SWC 35 AT MAGNETIC FRAME- Material
- Alloy Steel / Case Hardened Steel
- Gear Type
- Spur / Helical Clutch Gear
- Surface Hardness
- 55–62 HRC
- Tolerance
- Precision Machined
- Torque Capacity
- Medium to High
- Article no.
- 00716841501155
Maintenance & Longevity
- Designed for compatibility with standard magnetic frame drilling units
- Fits seamlessly into existing transmission and drive assemblies
- Simplifies replacement and maintenance procedures for technicians
- Supports efficient synchronization of moving mechanical parts
- Meets industry standards for industrial machinery accessories
Durability & Heat Treatment
- Heat-treated manufacturing process enhances overall durability
- Ensures reliable performance under varying load conditions
- Reduces downtime through consistent mechanical engagement
- Optimized design supports efficient drilling and feed control
- Maintains accuracy over extended periods of industrial operation
Operational Performance & Torque
- Engages and disengages power within feed or drive mechanisms
- Enables smooth torque transfer during heavy-duty drilling operations
- Medium to high torque capacity supports demanding industrial tasks
- Critical transmission component for magnetic frame drilling machines
- Minimizes wear on moving parts during continuous use
Material & Construction Quality
- Manufactured from high-strength alloy steel for robust performance
- Case hardened steel construction ensures long-term structural integrity
- Surface hardness rated between 55–62 HRC for wear resistance
- Precision machined tolerances guarantee accurate synchronization
- Designed to protect internal components from operational overload
Frequently asked
What is the primary function of this clutch gear?
It engages and disengages power to protect components from overload.
How is the gear constructed for durability?
Made from case hardened alloy steel with 55–62 HRC surface hardness.
What torque capacity does this gear support?
It handles medium to high torque loads typical in drilling operations.
More questions buyers ask
What is the function of the Schifler Clutch Gear?
The Schifler Clutch Gear is a crucial transmission component for the SWC 35 AT Magnetic Frame drilling machine. It engages and disengages power to ensure smooth torque transfer and protect the machine's internal components from overload during operation.
What is the material and hardness of this clutch gear?
This clutch gear is manufactured from high-strength, case-hardened alloy steel, featuring a surface hardness of 55–62 HRC for maximum durability and wear resistance.
What is the torque capacity of the Schifler Clutch Gear?
It is designed for medium to high torque applications, making it suitable for demanding industrial drilling tasks.
Is this clutch gear compatible with other machines?
This clutch gear is specifically designed for the Schifler SWC 35 AT Magnetic Frame. Compatibility with other models is not guaranteed.
Do you offer a warranty on this product?
Yes, we offer a 6-month warranty against manufacturing defects. We also provide pan-India delivery and GST invoicing.
Who should choose the Schifler Clutch Gear for SWC 35 AT?
This clutch gear is the ideal choice for workshops and industrial users who own a Schifler SWC 35 AT Magnetic Drilling Machine and need a reliable, durable, and genuine replacement part to ensure the longevity and performance of their equipment. It is perfect for those performing heavy-duty drilling operations.
How do I know if my clutch gear needs replacement?
Signs that your clutch gear may need replacement include slipping, unusual noises from the gearbox, or failure to engage/disengage power properly. A visual inspection for worn or broken teeth is also recommended.
Can I install this clutch gear myself?
While installation is possible for experienced technicians, we recommend having the part installed by a qualified professional to ensure proper alignment and function, and to maintain the warranty.
