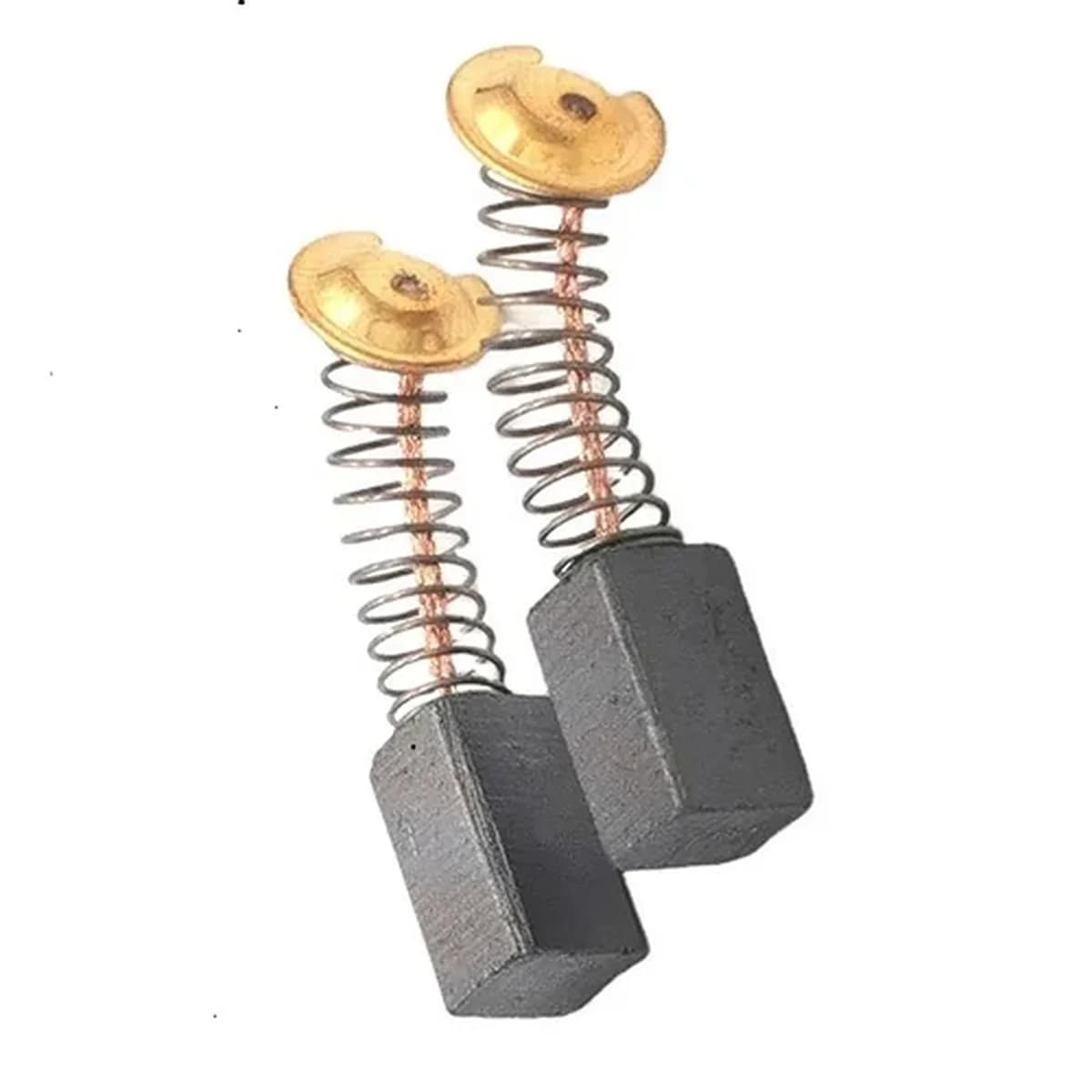

Schifler Carbon Brush SWC-CD-200
Carbon brushes transfer current between stationary and rotating components in electric motors, ensuring reliable conductivity and low friction. This SWC-CD-200 replacement is engineered for precise fit in compatible Schifler magnetic drilling equipment. • Dimensions: 18x6.2x9.9 mm • Rated for 220V operation • Optimized for commutator longevity • Simplifies routine motor maintenance
Specifications
For: SWC-CD-200- Size
- 18X6.2X9.9 220V
Configurations
Click a row to switch| Variant | Size | Price |
|---|---|---|
| SWC-CD-200 | 18X6.2X9.9 220V | ₹267 |
| SWC-CD-250 | 18X6.2X9.9 220V | ₹280 |
| SWC 35 PD MOTOR | 18X6.2X9.9 220V | ₹361 |
| SWC 32 PRO MOTOR | 18X6.2X9.9 220V | ₹361 |
| SWC 50 MAX- T PRO | 18X6.2X9.9 220V | ₹362 |
| SWC 35 H MOTOR | 18X6.2X9.9 220V | ₹366 |
| SWC 35 AT MOTOR | 18X6.2X9.9 220V | ₹366 |
| SWC 40 PRO MOTOR | 18X6.2X9.9 220V | ₹366 |
| SWC 50 MAX-PRO MOTOR | 18X6.2X9.9 220V | ₹408 |
| SWC 100 WT MOTOR | 18X6.2X9.9 220V | ₹446 |
| SWC 120 WT MOTOR | 18X6.2X9.9 220V | ₹446 |
| SWC 50 PD MOTOR | 18X6.2X9.9 220V | ₹446 |
| SWC 65 MOTOR | 18X6.2X9.9 220V | ₹446 |
| SWC 80 WT MOTOR | 18X6.2X9.9 220V | ₹447 |
| SWC 100 MOTOR | 18X6.2X9.9 220V | ₹447 |
| SWC 100 WT | 18X6.2X9.9 220V | ₹447 |
| SWC 50 PDT MOTOR | 18X6.2X9.9 220V | ₹447 |
| SWC 80 MOTOR | 18X6.2X9.9 220V | ₹447 |
| SWC 65WT MOTOR | 18X6.2X9.9 220V | ₹448 |
Material Engineering & Thermal Stability
- High-purity carbon-graphite composite for consistent electrical properties
- Resists thermal degradation during prolonged motor operation
- Dampens operational vibrations to protect internal motor bearings
- Maintains structural integrity under high-frequency switching loads
- Resists oxidation and chemical exposure in industrial environments
Maintenance Efficiency & Installation
- Simplifies routine motor maintenance and scheduled servicing
- Provides exact dimensional accuracy for quick replacement
- Available in standard 18x6.2x9.9 mm configurations for precise fit
- Reduces downtime during brush replacement procedures
- Ensures consistent contact pressure for stable current flow
- Minimizes manual adjustment requirements during installation
Compatible Magnetic Drilling Equipment
- Designed for precise fit in Schifler magnetic drilling systems
- Supports SWC-CD-200 and SWC-CD-250 replacement units
- Compatible with SWC 35 PD MOTOR, 32 PRO MOTOR, and 50 MAX-T PRO
- Fits SWC 35 H MOTOR, 35 AT MOTOR, 40 PRO MOTOR, and 50 MAX-PRO MOTOR
- Works with SWC 100 WT MOTOR, 120 WT MOTOR, 50 PD MOTOR, and 65 MOTOR
- Matches SWC 80 WT MOTOR, 100 MOTOR, 100 WT, 50 PDT MOTOR, and 80 MOTOR
- Covers SWC 65WT MOTOR configurations for seamless integration
Core Electrical Transfer & Performance
- Transfers current between stationary and rotating motor components
- Maintains reliable conductivity under continuous industrial loads
- Engineered for low friction to reduce mechanical wear
- Optimized for extended commutator longevity and stable operation
- Rated for standard 220V operation across compatible units
Frequently asked
How often should these carbon brushes be replaced?
Replace when wear marks reach the minimum thickness indicator or during scheduled maintenance cycles.
Are these brushes compatible with all Schifler magnetic drill models?
They are engineered for the specific SWC series listed in the compatibility range.
Do these brushes require special storage conditions?
Store in a dry, climate-controlled environment to prevent moisture absorption before installation.
More questions buyers ask
What is the function of a carbon brush in a Schifler magnetic drill?
Carbon brushes transfer electrical current between the stationary and rotating parts of the motor, ensuring continuous operation.
How do I know when to replace my Schifler carbon brushes?
Replace them when they reach the minimum wear indicator mark or if you notice sparking, loss of power, or irregular motor performance.
Are these carbon brushes compatible with all magnetic drills?
No, these are specifically engineered for Schifler SWC series magnetic drilling machines. Always check your specific motor model.
What material are these Schifler carbon brushes made of?
They are manufactured from a high-purity carbon-graphite composite designed for thermal stability and low friction.
Can I install these carbon brushes myself?
Yes, they are designed for easy replacement, but ensure the machine is disconnected from the power source before starting.
Do these brushes come with a warranty?
Yes, Schifler products are backed by standard manufacturer warranty against defects in material and workmanship.
How does the brush holder design protect the carbon brush?
The Schifler brush holder unit protects the brush from foreign dust and debris, extending its service life significantly.
What is the standard size of these carbon brushes?
These brushes feature a standard 18x6.2x9.9 mm configuration for precise fit in compatible Schifler motors.
Why is it important to use genuine Schifler carbon brushes?
Genuine brushes ensure exact dimensional accuracy, consistent contact pressure, and optimal electrical conductivity, preventing motor damage.
Do you provide GST invoices for these spares?
Yes, all purchases include a valid GST invoice for your accounting and tax credit requirements.
Who should choose the SWC-CD-200 variant?
Users operating the Schifler SWC-CD-200 magnetic drilling machine who require a direct-fit replacement for routine maintenance.
Who should choose the SWC 100 WT variant?
Operators of the heavy-duty Schifler SWC 100 WT magnetic drill requiring high-durability brushes for continuous industrial loads.
Who should choose the SWC 35 H variant?
Technicians maintaining the Schifler SWC 35 H motor who need precise, reliable electrical contact for consistent drilling performance.
How do the SWC-CD series brushes compare to the SWC-WT series brushes?
While both use high-purity graphite, the WT series brushes are optimized for the higher power demands of the WT motor range compared to the CD series.
Is there a performance difference between the 35 PD and 50 PD motor brushes?
Yes, they are sized and rated specifically for the power output and commutator requirements of their respective motor models.
Are these brushes suitable for high-frequency switching loads?
Yes, the carbon-graphite composite is engineered to maintain structural integrity under high-frequency switching and industrial loads.
