Specifications
| Variant | Price | Cutting Capacity Round | Coolant Motor | Cutting Capacity Square | Cutting Capacity Flat | V-Belt Size | Blade Size | Saw Motor |
|---|---|---|---|---|---|---|---|---|

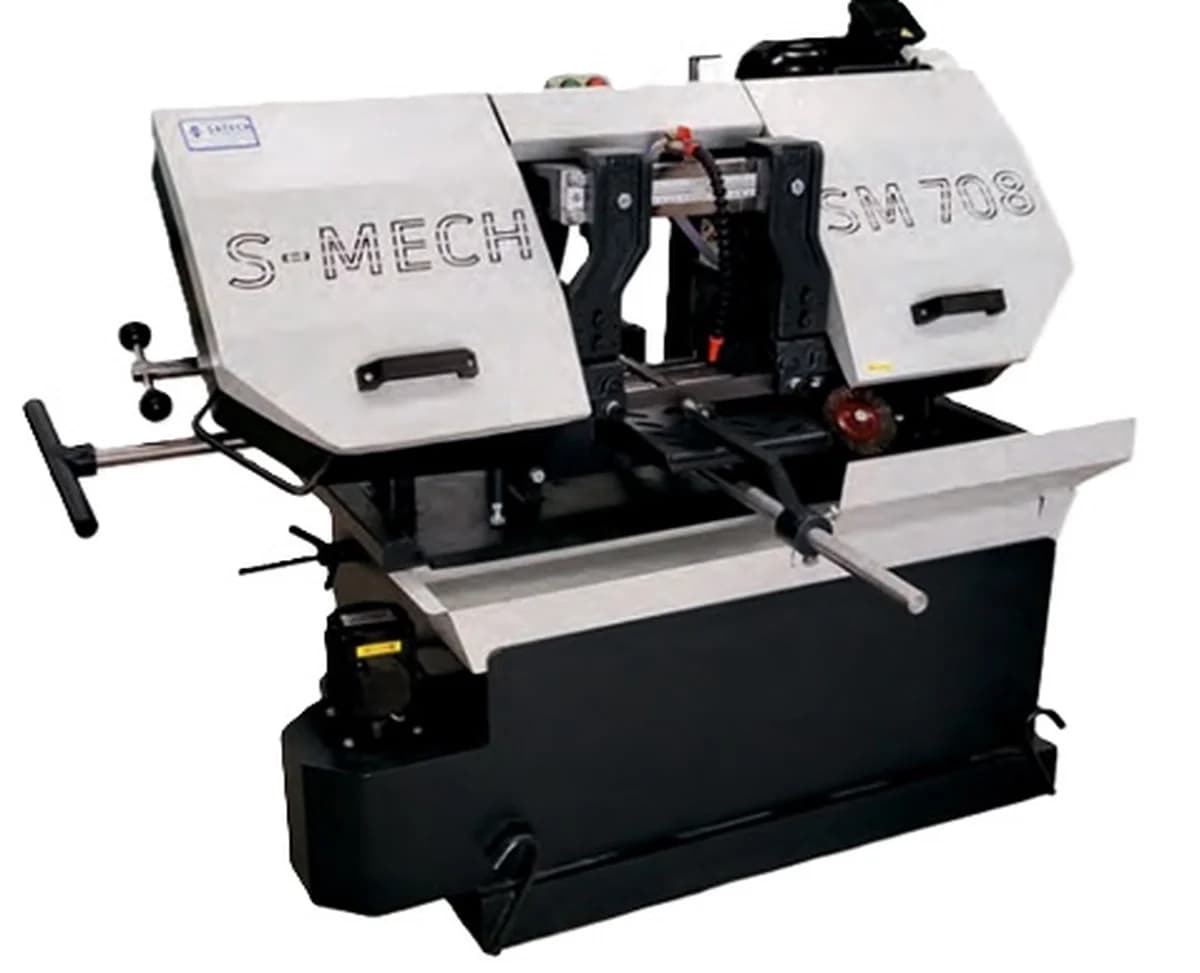

| SM-708 | ₹95,000.00 | 175 mm | 0.15HP, 3Phase, 2800 rpm | 150x150 mm | 200x100 mm | B-30 | 2540x27x0.9 mm | 1HP, 3 Phase, 1440 rpm |
| The SM-708 model features a 175 mm round cutting capacity and a 1HP motor. It is the perfect choice for small to medium workshops looking for an efficient and cost-effective metal cutting solution. | ||||||||

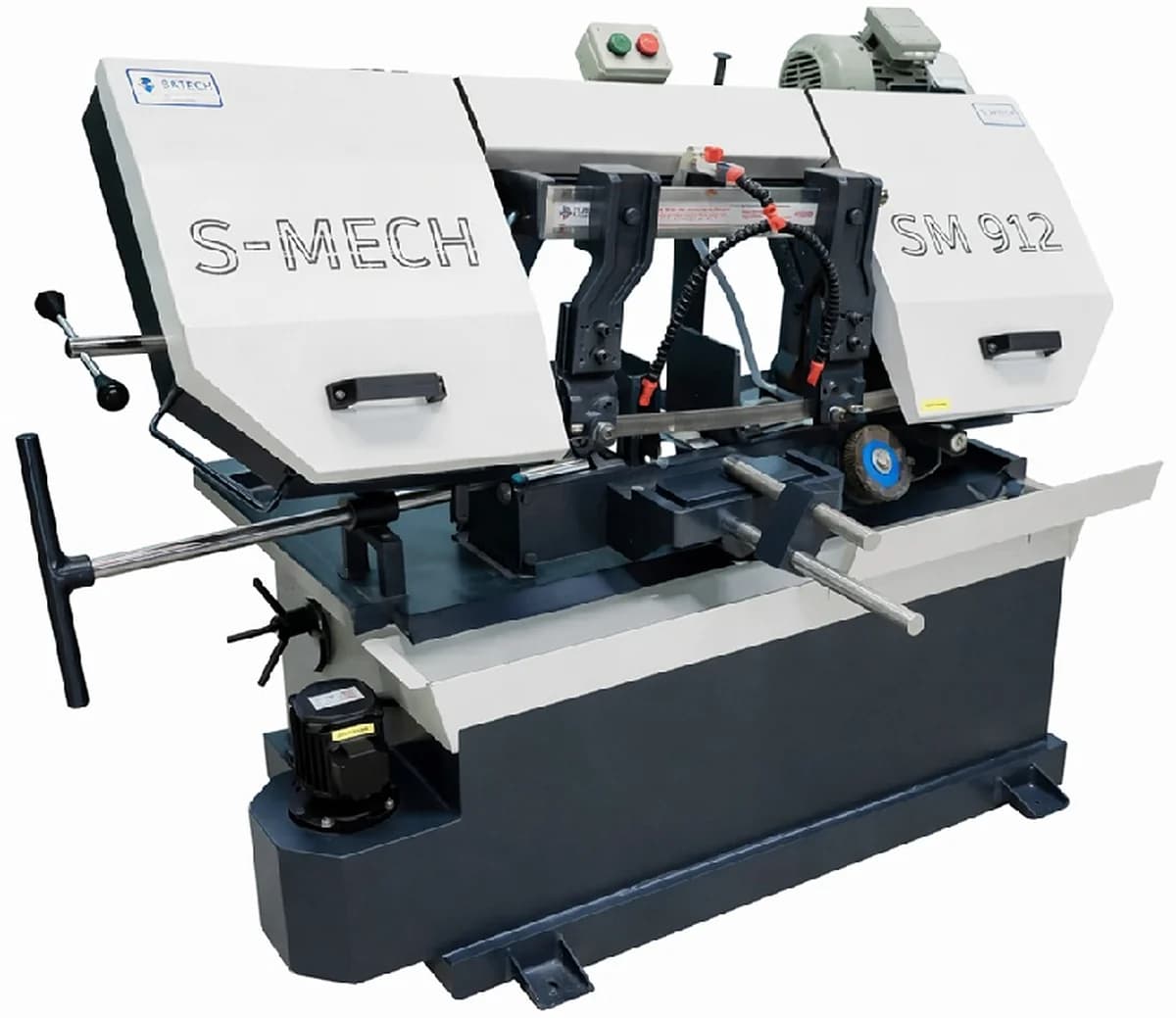

| SM-912 | ₹1,02,000.00 | 225 mm | 0.15HP, 3 Phase, 2800 RPM | 200x200 mm | 300x150 mm | B-33 | 3000x27x0.9 mm | 1HP, 3 phase, 1440 RPM |
| The SM-912 model offers an upgraded 225 mm round cutting capacity and a 3000 mm blade. It is well-suited for medium-duty industrial applications requiring versatile material handling. | ||||||||
| SM-1316 | ₹1,88,000.00 | 325 mm | 0.15HP, 3 Phase, 2800 RPM | 250x250 mm | 400x200 mm | B-40 | 3760x27x0.9 mm | 2HP, 3 phase, 960 RPM |
| The SM-1316 model is a heavy-duty powerhouse with a 325 mm round cutting capacity and a 2HP motor. It is designed for large-scale fabrication units handling thick metal sections. | ||||||||
Description

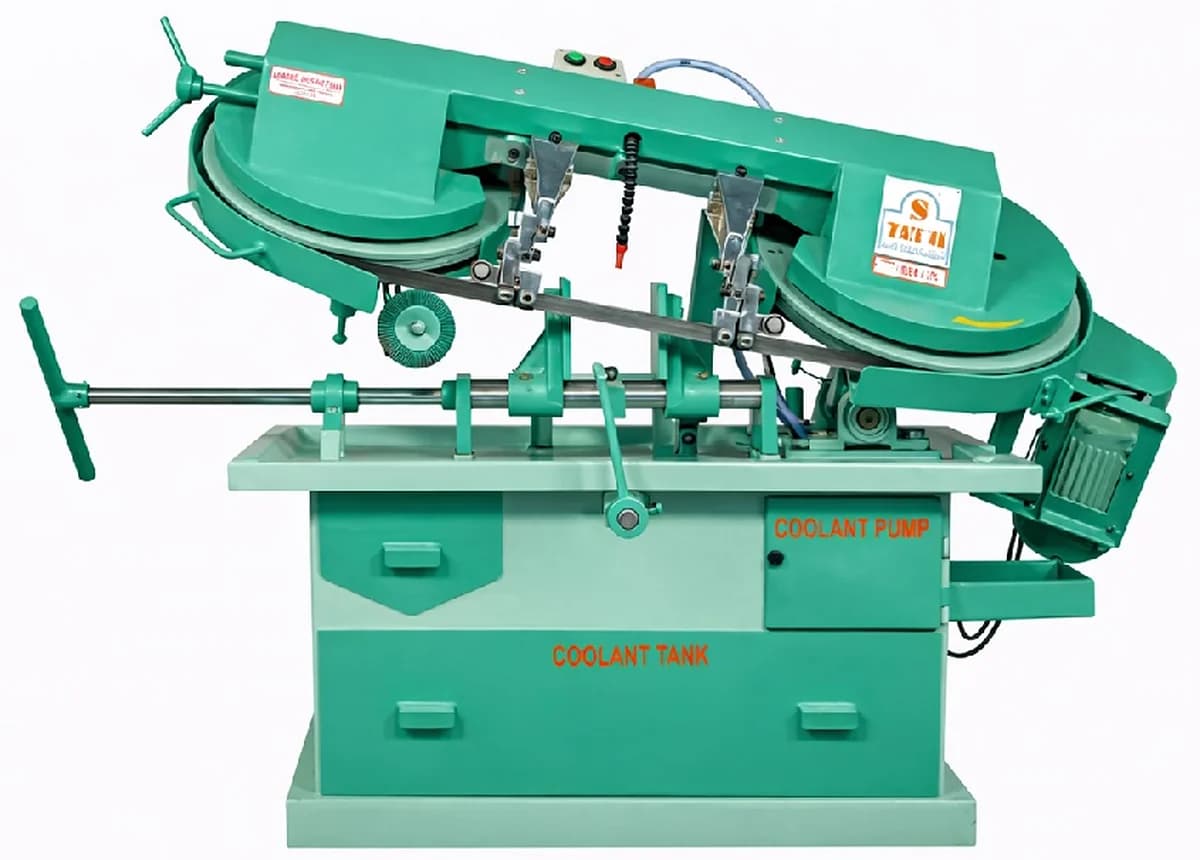

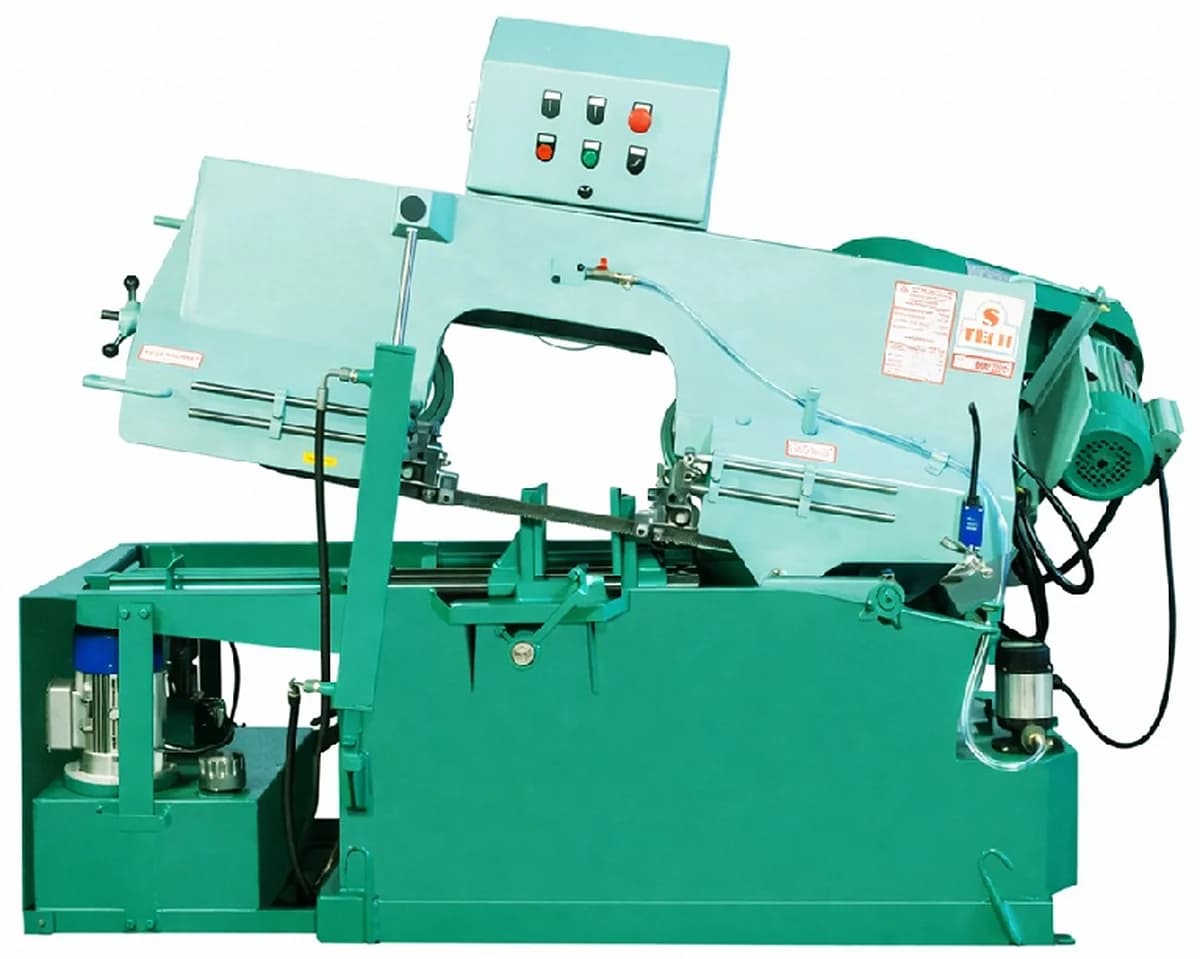

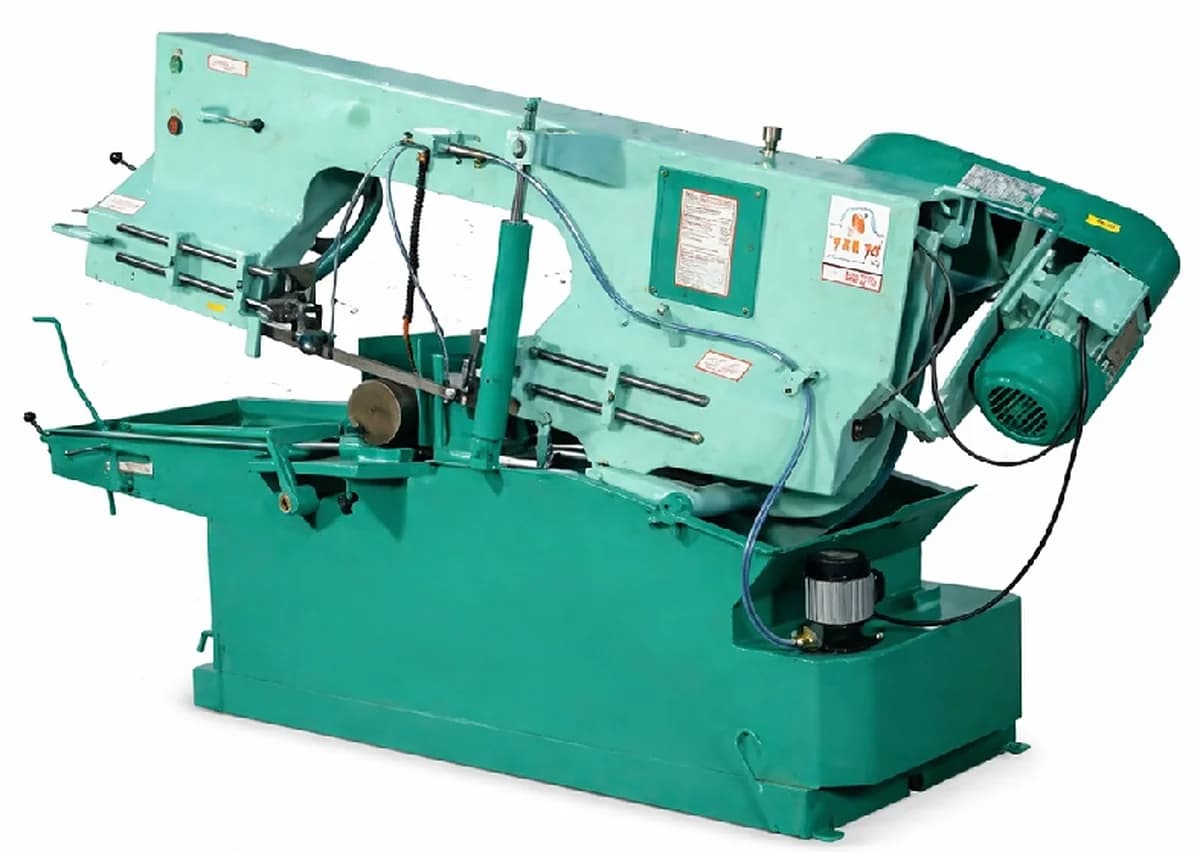

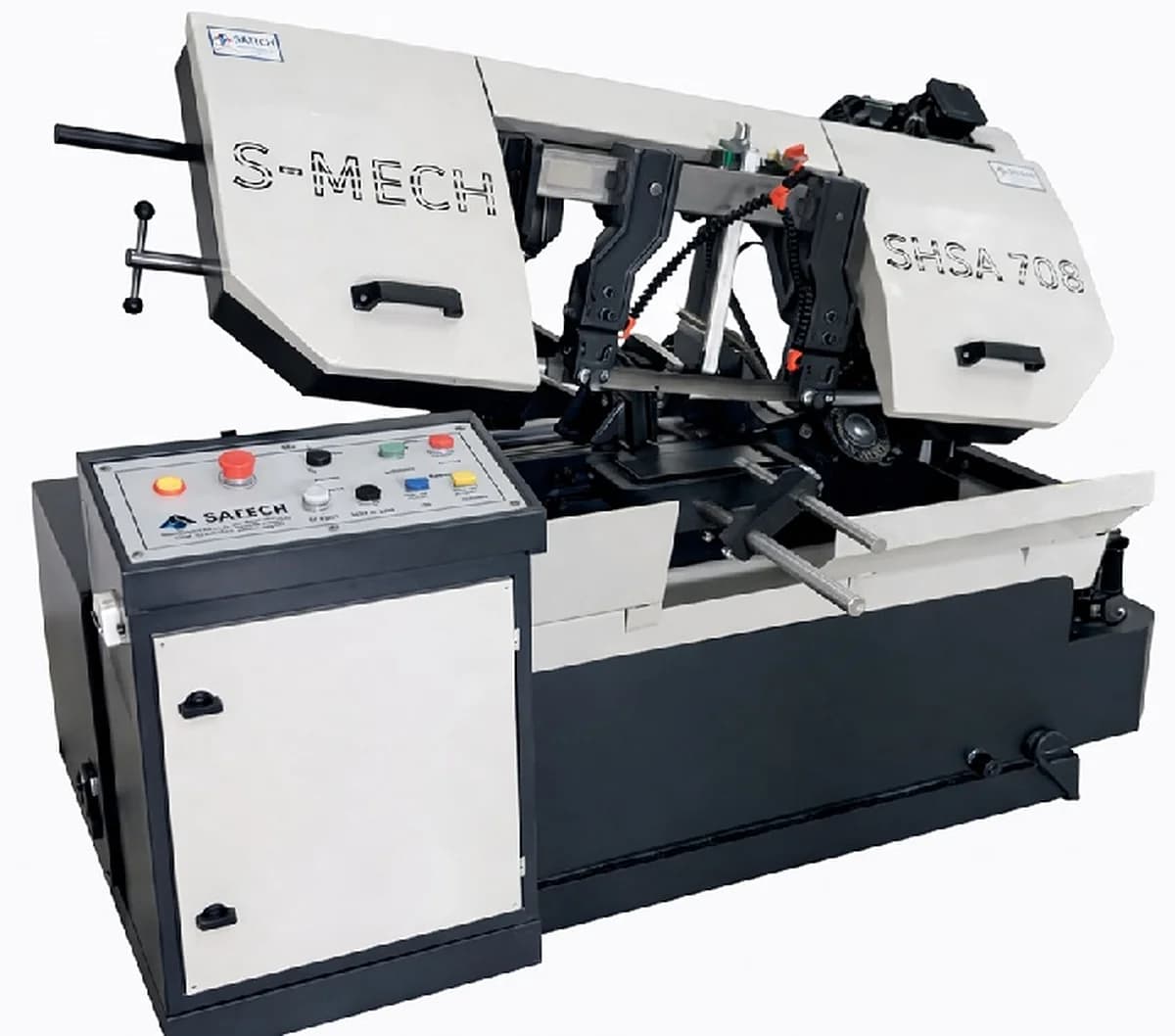

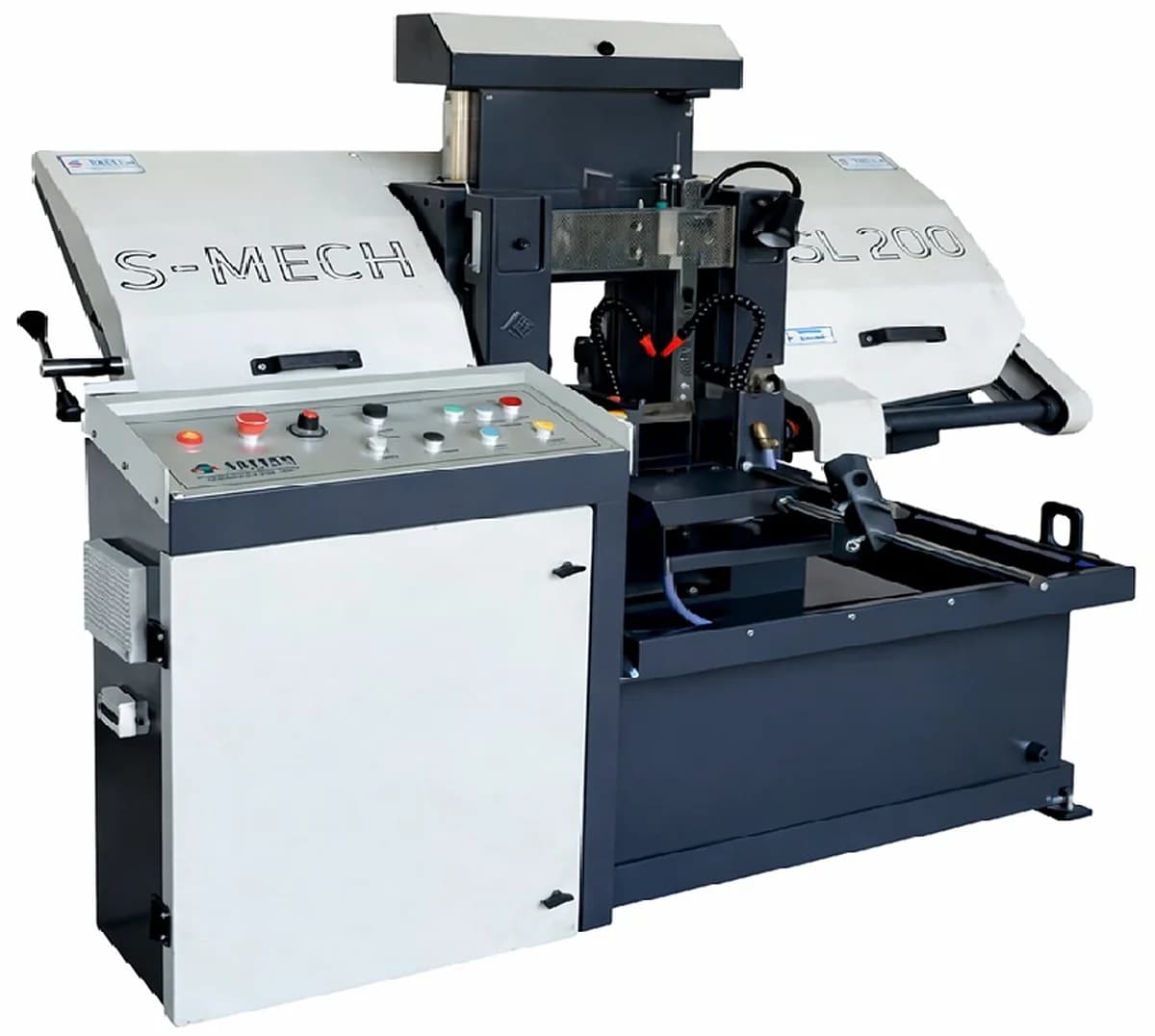

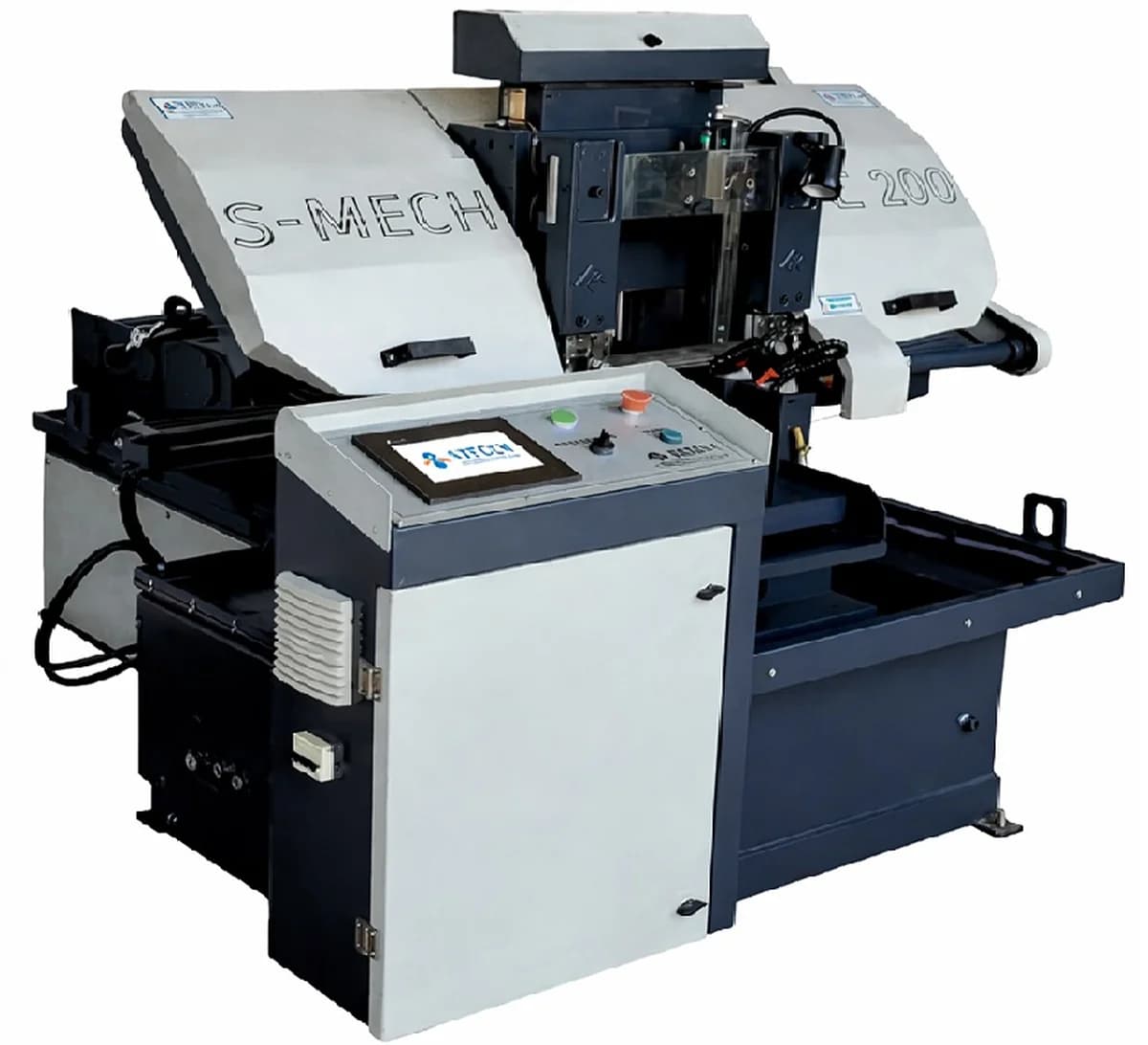

The Pivot Type High-Speed Horizontal Metal Cutting Bandsaw Machine is a precision industrial metal cutting solution engineered for accuracy, durability, and high productivity.
Built with a rugged welded frame and pivot-type horizontal saw head, this bandsaw delivers smooth, straight cuts on a wide range of metal materials including round bars, square sections,
flats, pipes, and structural profiles.
Advantages
High Cutting Efficiency:
- Designed for fast, straight metal cuts with minimal manual intervention.
Accurate & Clean Cuts:
- Stable pivot-type design with precise blade guidance ensures smooth, consistent cuts.
Versatile Material Handling:
- Capable of cutting various metal shapes — round bars, flats, squares, pipes, and structural sections.
Durable Construction:
- Heavy-duty welded frame and quality components offer long service life and improved machine stability.
Hydraulic Feed Control:
- Smooth, controlled feed reduces blade stress and enhances cutting performance.
Coolant System:
- Keeps the blade cool during cutting, reduces heat, increases blade life, and improves surface finish.
User-Friendly Operation:
- Easy to operate with simple controls, suitable for both skilled and semi-skilled operators.
Reduced Operator Fatigue:
- Semi-automatic features allow more efficient work with less physical effort.
Low Maintenance:
- Robust design and quality build lower maintenance frequency and operating costs.
Cost-Effective Productivity:
- Enhances workshop throughput with faster cutting cycles and consistent output.
Features
- Completely powder coated machine body and parts
- Gearbox with PB2 bronze worm gear & hardened alloy steel worm shaft
- Variable blade speed control
- Front coolant tank with chip collection tray
- Swarf cleaning brush with adjustable plate
- Chrome plated job-stopper and vice components
- Cast iron heavy duty blade guide unit with carbide pads and ball bearings
- Taper roller bearings for driven wheel
- Cast iron blade tightening base with thrust bearing for easy & smooth tightening of blade
- Easy top blade fitting with safety covers all around the blade
- Can cut all types of metals including non-ferrous, alloy steel, stainless steel, tool steel, die steel etc.
- Can cut any sections such as round, square, hex, pipes, I-beam, angle, channel etc.
- Easy and precise hydraulic feed control
- Heavy and rigid design facilitates vibration and noise free cutting
- Auto on-off coolant pump with saw motor and auto saw off at the end of cut
- Double spring tension to adjust the weight of saw arm.
Applications
- Cutting round bars, square bars, and flat bars to precise lengths in metal fabrication shops.
- Trimming and sizing steel, stainless steel, and non-ferrous metal sections in engineering workshops.
- Cutting pipes and tubes for plumbing, structural, and mechanical fabrication work.
- Preparing angles, channels, and beams for construction or assembly.
- Pre-cutting raw materials for machining, welding, and assembly operations.
- Batch cutting of stock materials in production environments for automotive, machinery, and tool manufacturing.
- General maintenance and repair shops requiring reliable metal cutting capability.
- Cutting materials for metal art, ornamental work, and custom fabrication projects.
Optional Accessories
- Material Roller Stand
- Bi-Metal HSS Bandsaw Blade
- Foot-Pedal Lifting Attachment
- Degree Cutting Fixture
- Manual Bar Feeding Mechanism
Frequently Asked Questions
Q.What is the S-MECH Pivot Type Horizontal Bandsaw Machine used for?
It is a robust industrial bandsaw designed for efficient straight cuts in metal, ideal for workshops and fabrication units.
Q.What materials can this bandsaw cut?
It is capable of cutting various metal shapes including round bars, square bars, flat bars, pipes, and tubes made of steel, stainless steel, and non-ferrous metals.
Q.Does it come with a coolant system?
Yes, it features a front coolant tank with a chip collection tray and a dedicated coolant motor to ensure smooth cutting and prolong blade life.
Q.What type of drive system does it use?
The machine utilizes a highly efficient worm gearbox drive with a PB2 bronze worm gear and hardened alloy steel worm shaft.
Q.Is the blade speed adjustable?
Yes, it offers variable blade speed control (e.g., 33-52-77 m/min on select models) to suit different materials and cutting requirements.
Q.What is the power requirement for this machine?
The machine operates on a 3-phase power supply, with saw motor capacities ranging from 1HP to 2HP depending on the model.
Q.Does the machine have a swarf cleaning brush?
Yes, it includes a swarf cleaning brush with an adjustable plate to keep the blade clean during operation.
Q.What is the warranty on the S-MECH bandsaw?
Standard manufacturer warranty applies. Please check the specific warranty terms at the time of purchase.
Q.Can I get a GST invoice for this purchase?
Yes, a GST invoice is provided for all purchases, allowing businesses to claim input tax credit.
Q.Is pan-India delivery available?
Yes, we offer secure pan-India delivery for all industrial machinery, ensuring it reaches your facility safely.
Q.Who should choose the SM-708 model?
The SM-708 is ideal for small to medium workshops needing a reliable machine for cutting up to 175 mm round and 200x100 mm flat sections.
Q.Who should choose the SM-912 model?
The SM-912 is perfect for medium-duty industrial applications, offering an increased cutting capacity of 225 mm round and 300x150 mm flat sections.
Q.Who should choose the SM-1316 model?
The SM-1316 is designed for heavy-duty fabrication units requiring large-scale cutting, with a capacity of 325 mm round and a powerful 2HP motor.
Q.What is the difference in cutting capacity between SM-708 and SM-912?
The SM-708 cuts up to 175 mm round and 200x100 mm flat, while the SM-912 handles larger materials up to 225 mm round and 300x150 mm flat.
Q.How does the saw motor power compare across the variants?
The SM-708 uses a 1HP motor, whereas the heavy-duty SM-1316 is equipped with a more powerful 2HP motor for tougher cutting tasks.
Q.Which model offers the largest blade size?
The SM-1316 features the largest blade size at 3760x27x0.9 mm, allowing it to handle the most demanding cutting operations.
