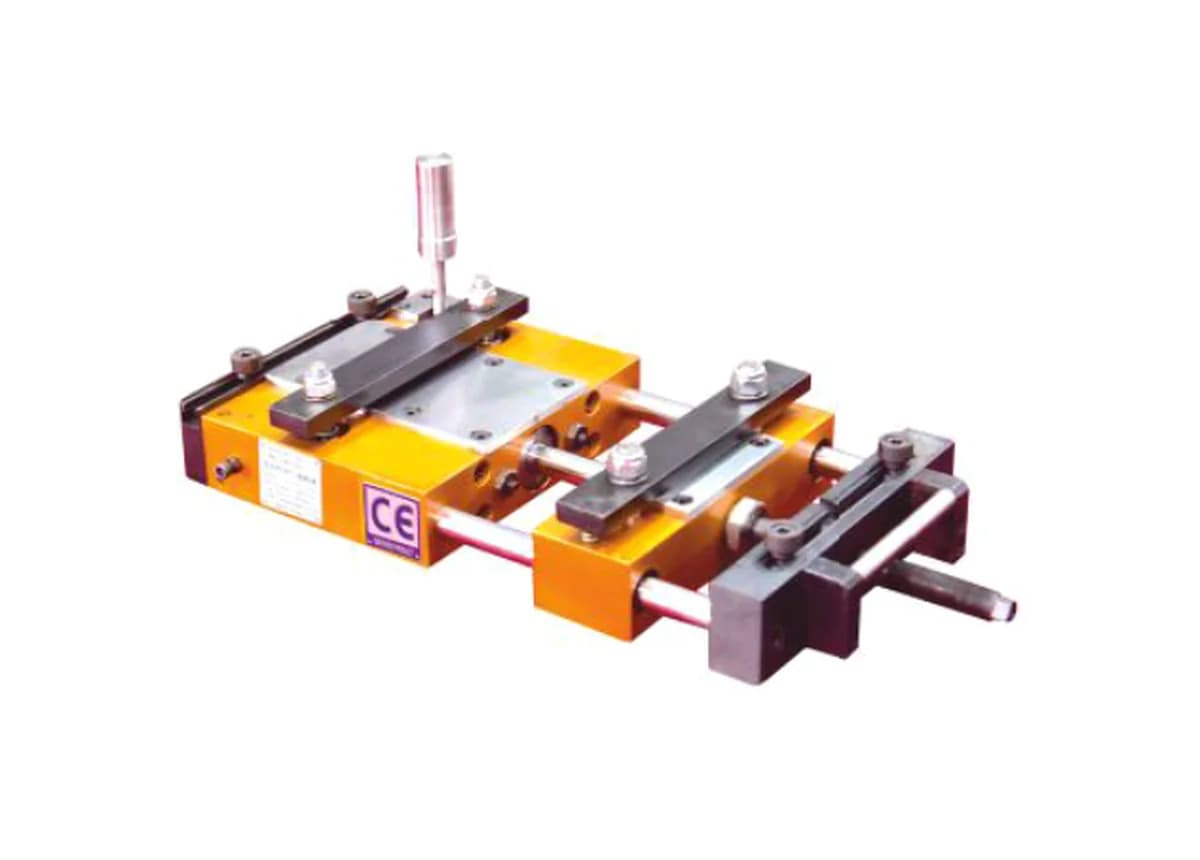

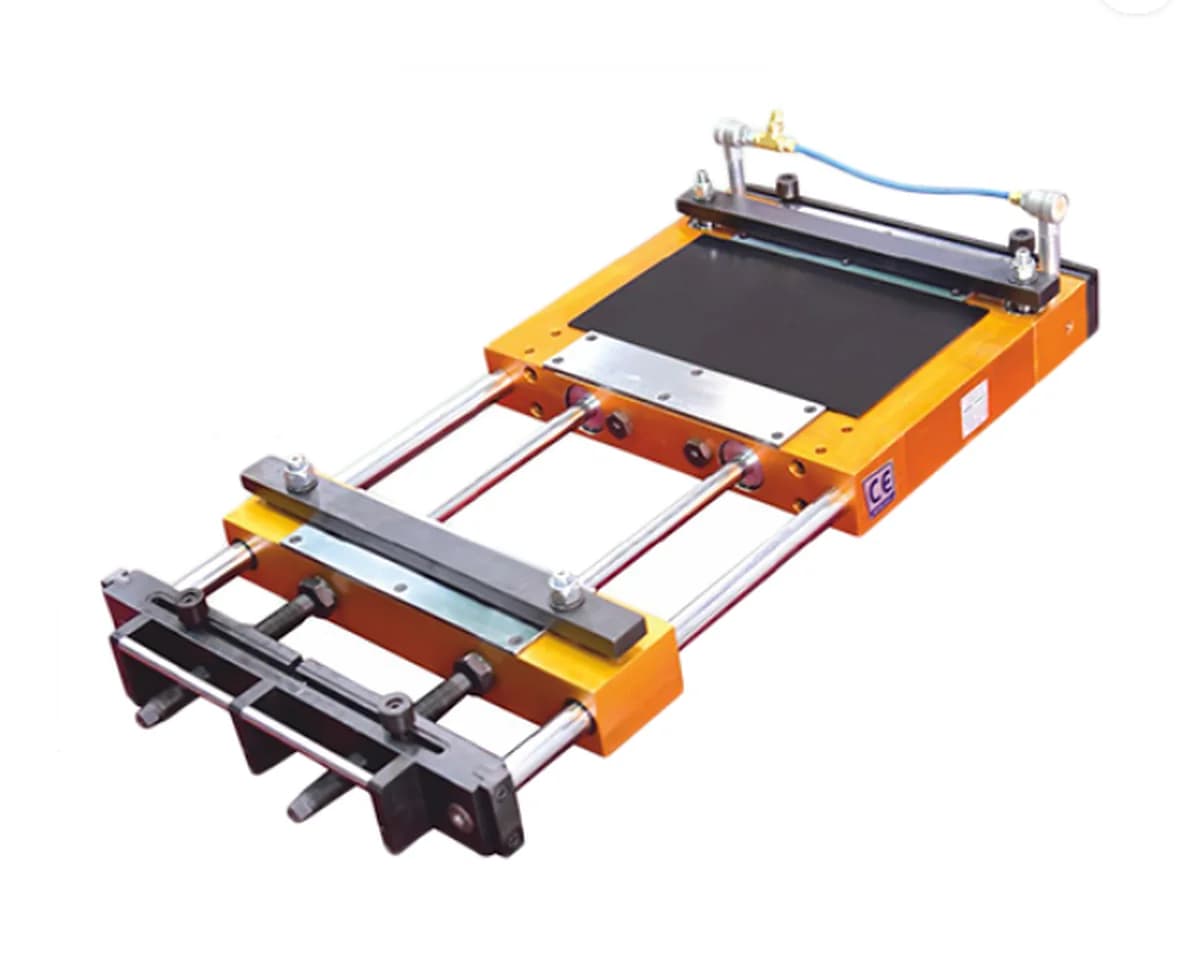

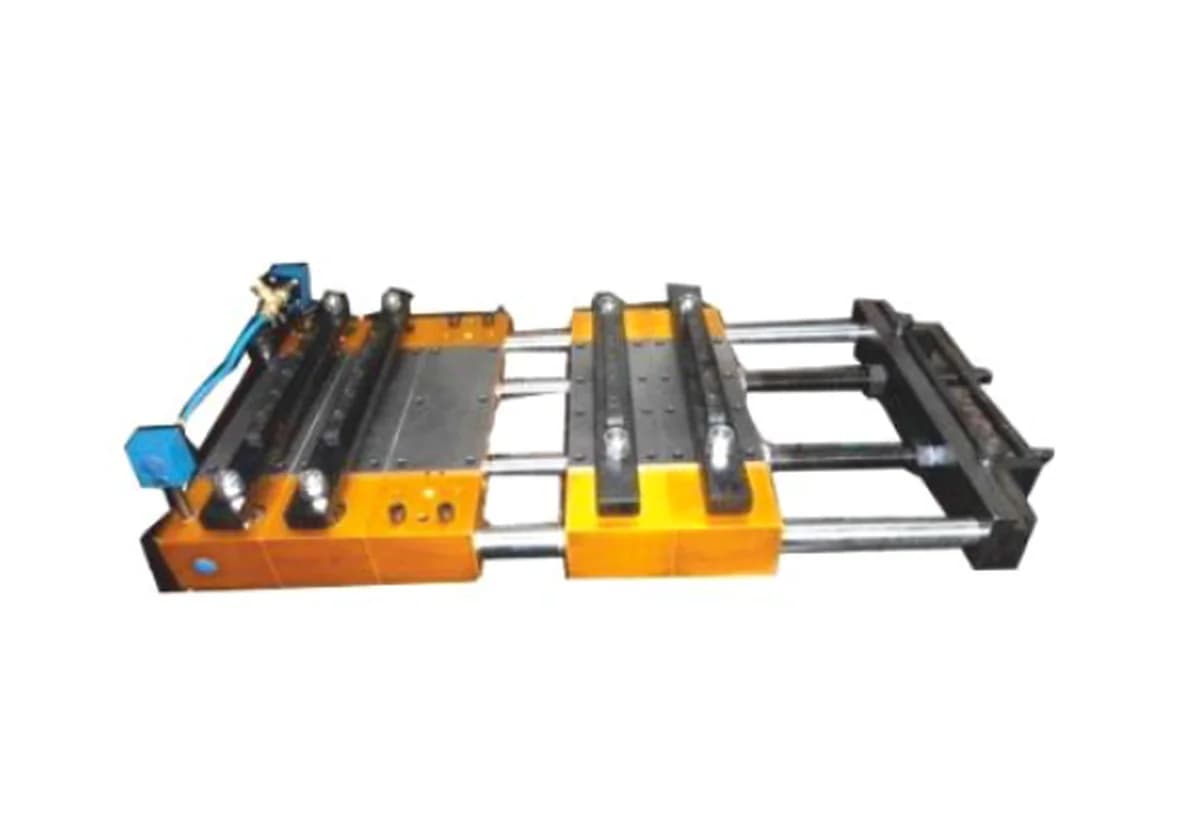

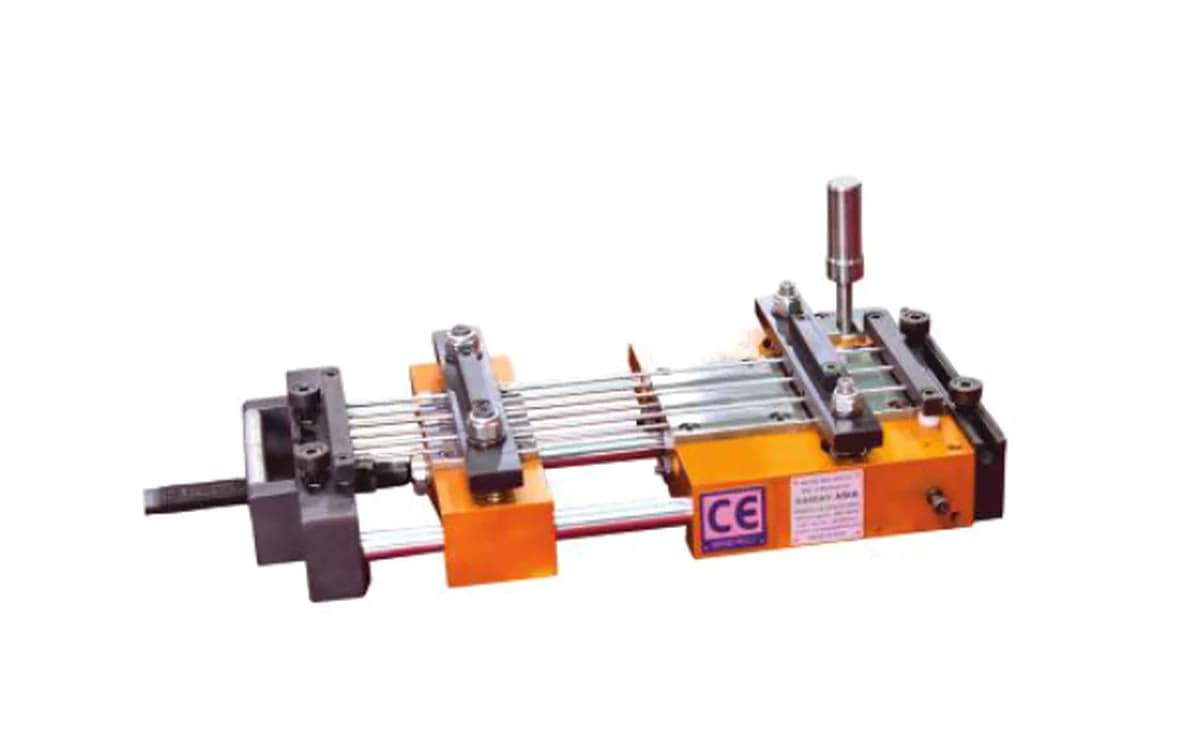

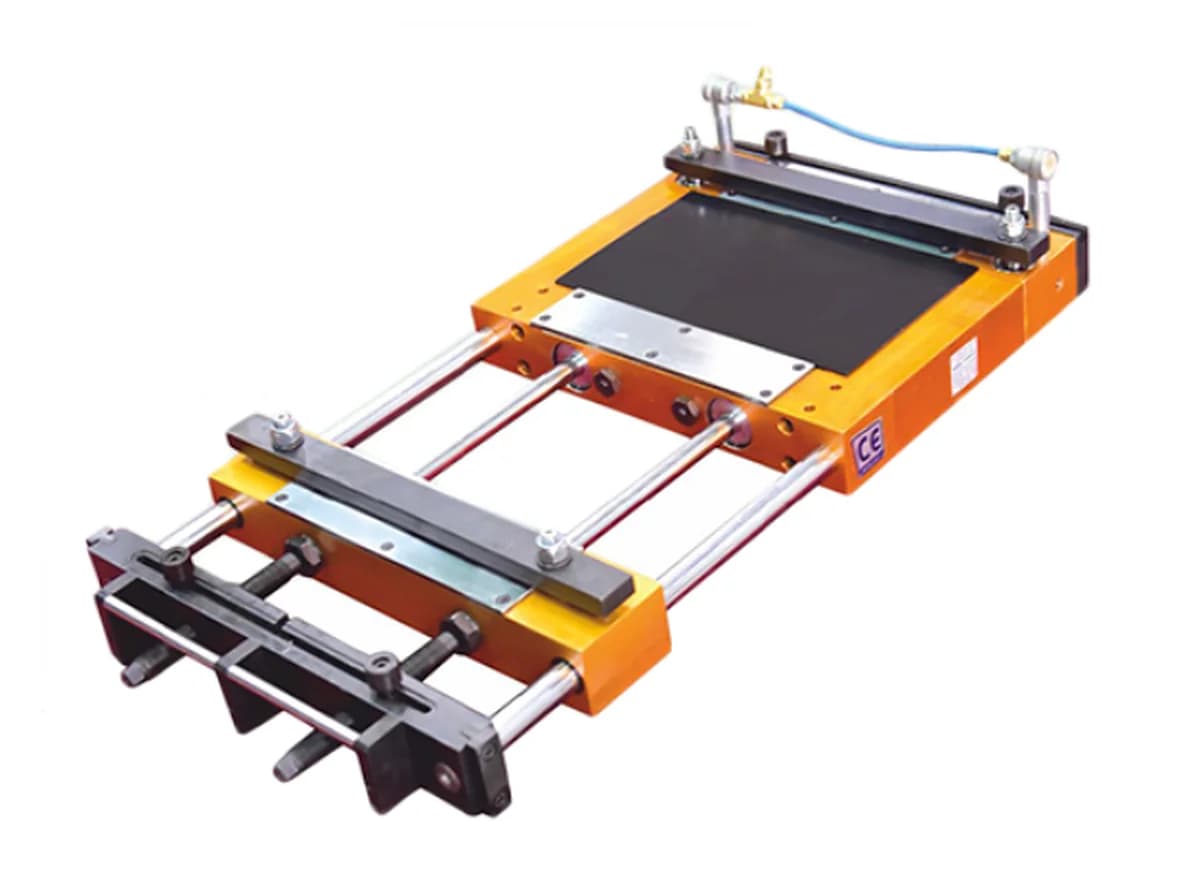

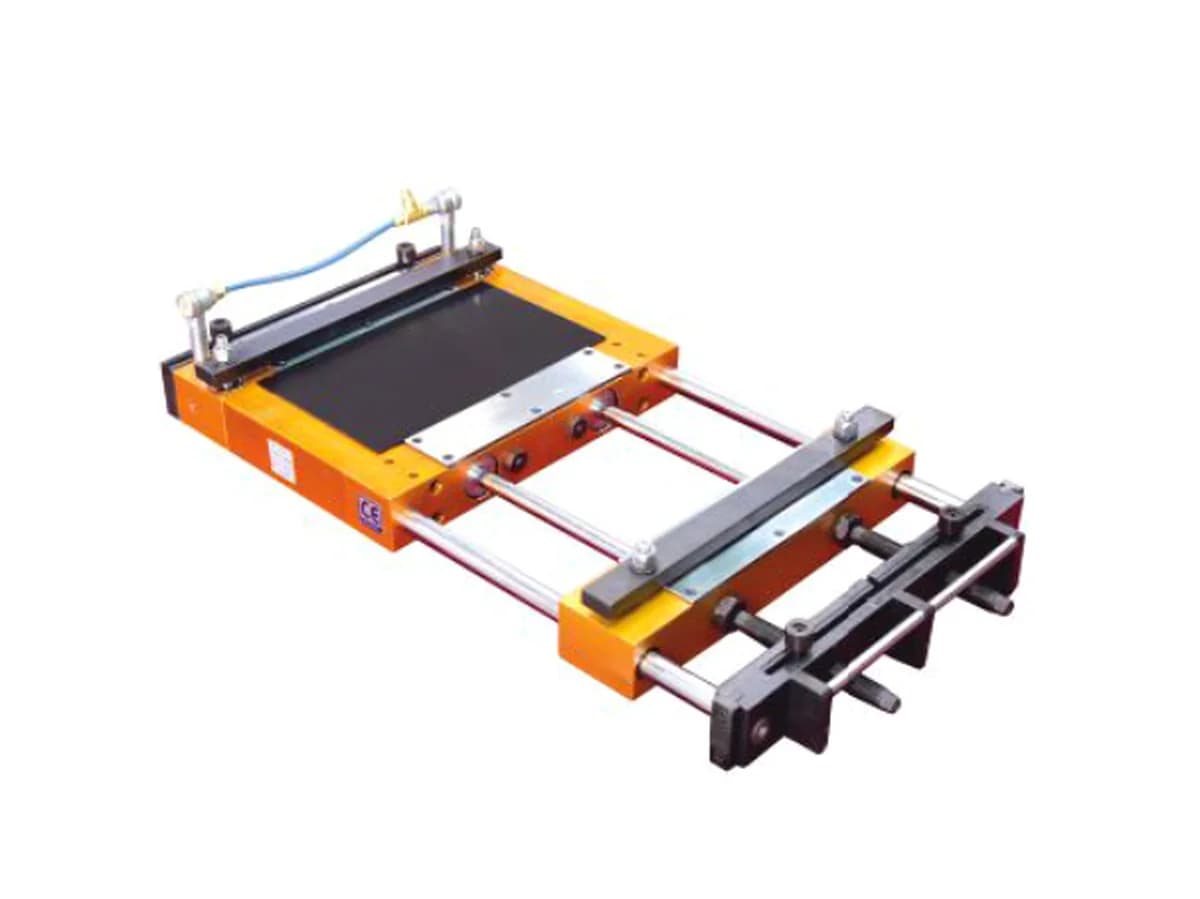

Samay-Asia High Precision Pneumatic Feeder – MEED ACU Series S-A/08
This pneumatic feeder advances sheet metal with consistent accuracy for stamping and forming operations. It integrates special alloy aluminum construction to maintain stable tension during continuous runs. Key operational parameters include: • 52 mm maximum feeding length and material width • Accommodates material up to 2.0 mm thickness • Operates at speeds reaching 120 cycles per minute
See it in action
Specifications
For: S-A/08- Accuracy
- 10 micron
- Material Width Max (MM)
- 52
- Feeding Length Max (MM)
- 52
- Material Thickness Max (MM)
- 2
- Speed-Per Min (Max)
- 120
Configurations
Click a row to switch| Variant | Feeding Length Max (MM) | Material Thickness Max (MM) | Material Width Max (MM) | Speed-Per Min (Max) | Price |
|---|---|---|---|---|---|
| S-A/08 | 52 | 2 | 52 | 120 | ₹52,853 |
| S-A/09 | 102 | 1.5 | 102 | 110 | ₹59,414 |
| S-A/11 | 202 | 1.2 | 102 | 80 | ₹84,200 |
| S-A/12 | 302 | 1.1 | 102 | 60 | ₹1,11,416 |
| S-A/13 | 52 | 1.6 | 152 | 110 | ₹63,059 |
| S-A/15 | 152 | 1.3 | 152 | 70 | ₹86,873 |
Common Questions Regarding MEED ACU Series
Q: What is the maximum material thickness supported? A: The series handles thickness up to 1.20 millimeters. Q: How fast can the feeder operate? A: Maximum speed reaches 140 pieces per minute. Q: Is this suitable for automated lines? A: Yes, it is designed for integration with press machines.
Ideal for Sheet Metal Stamping and Forming
- Perfect for small component feeding in automated presses
- Supports high-volume production runs efficiently
- Compatible with various metal types and alloys
- Integrates seamlessly with existing manufacturing lines
- Enhances throughput for precision stamping applications
Robust Construction for Industrial Demands
- Built with heavy-duty components for continuous operation
- Precision-machined parts ensure long-term accuracy
- Designed to withstand vibration and high-frequency cycles
- Easy access points facilitate routine maintenance checks
- Corrosion-resistant surfaces protect against shop floor conditions
Precision Feeding and Speed Efficiency
- Pneumatic mechanism ensures consistent part positioning
- High-speed cycles reduce overall production downtime
- Accurate material handling minimizes waste and errors
- Suitable for automated press lines and stamping processes
- Reduces manual labor requirements significantly
MEED ACU Series Performance Capabilities
- Maximum feeding length reaches 52 millimeters for precision control
- Handles material widths up to 52 millimeters consistently
- Supports sheet thickness up to 1.20 millimeters reliably
- Operates at speeds up to 140 pieces per minute
- Designed for high-precision pneumatic feeding operations
More questions buyers ask
What is a pneumatic feeder used for?
A pneumatic feeder is used in sheet metal stamping and press lines to automatically feed metal strips into the press with high precision.
What is the maximum material thickness for Samay-Asia MEED ACU feeders?
The MEED ACU series supports material thicknesses ranging from 1.1mm to 2.0mm depending on the specific model.
Are these feeders suitable for high-speed stamping?
Yes, they are designed for high-speed automated press lines, with some models capable of up to 120-140 pieces per minute.
Does Samay-Asia provide warranty on these machines?
Yes, Samay-Asia offers standard industrial warranty coverage for their automation equipment.
Can these feeders be integrated with existing press machines?
Yes, they are designed for seamless integration with various types of power presses and stamping lines.
What is the accuracy of the MEED ACU series?
The series offers high precision with an accuracy of approximately 10 microns.
Is pan-India delivery available?
Yes, we provide pan-India delivery for all Samay-Asia automation equipment.
Do you provide GST invoices?
Yes, all purchases include a valid GST invoice for tax compliance.
What material widths are supported?
The series supports material widths from 52mm up to 152mm depending on the variant.
Why choose Samay-Asia for sheet metal automation?
Samay-Asia is a trusted Indian manufacturer known for reliable, high-precision, and durable coil handling solutions.
