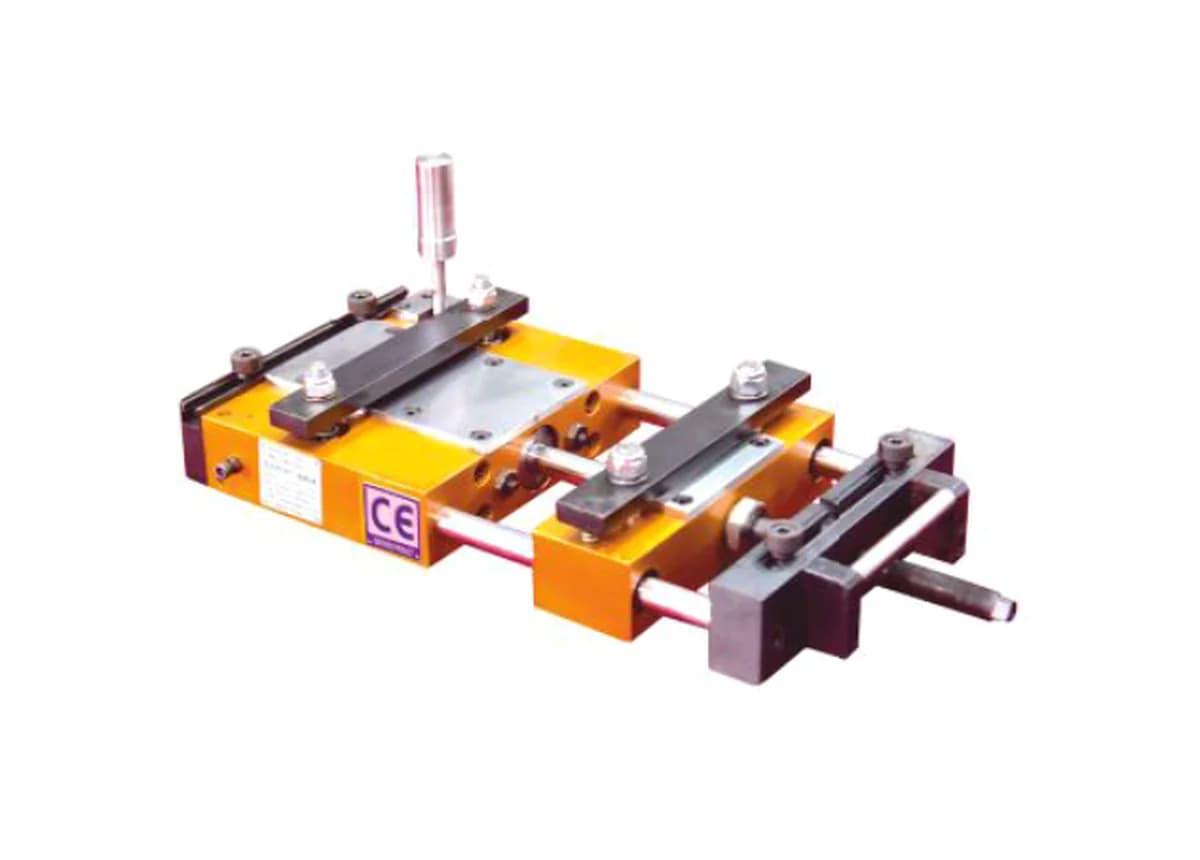

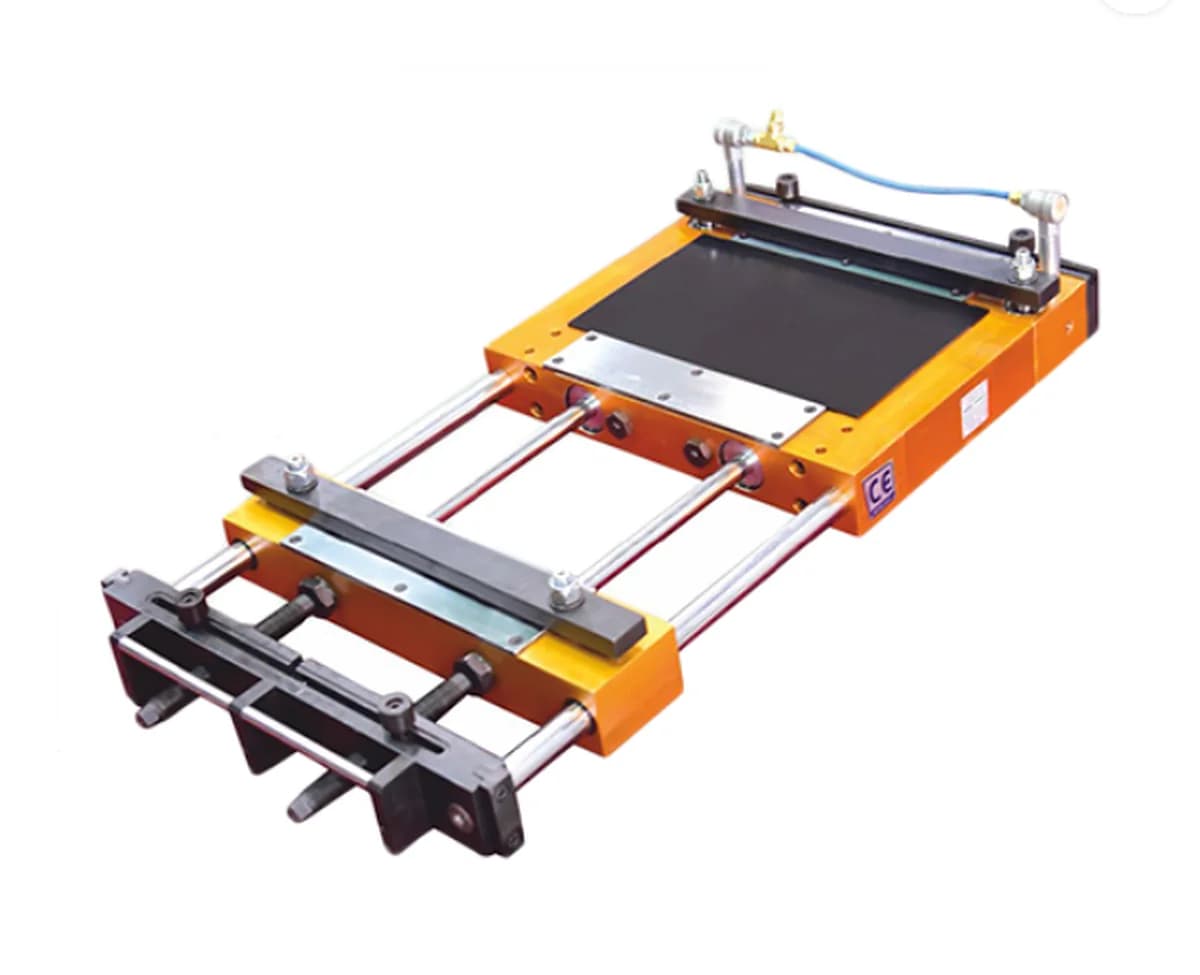

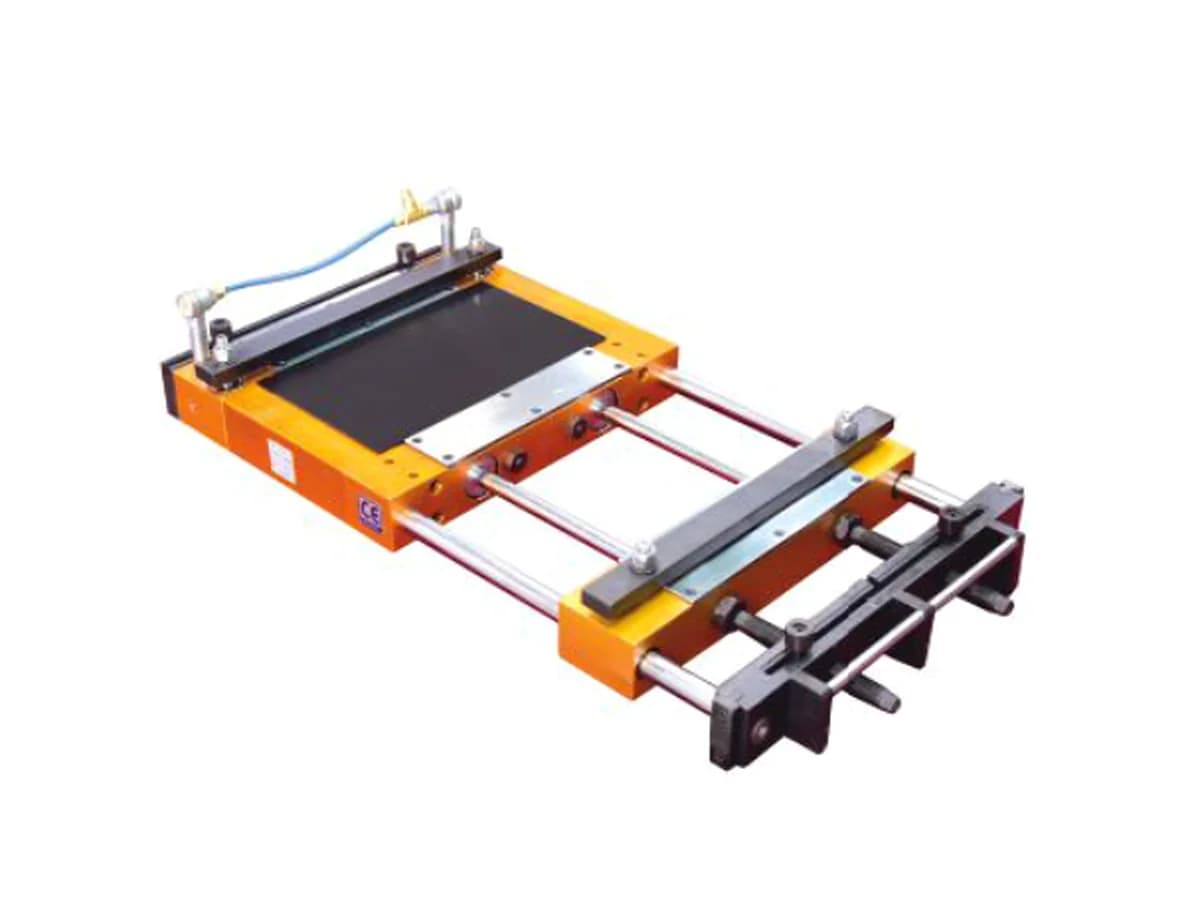

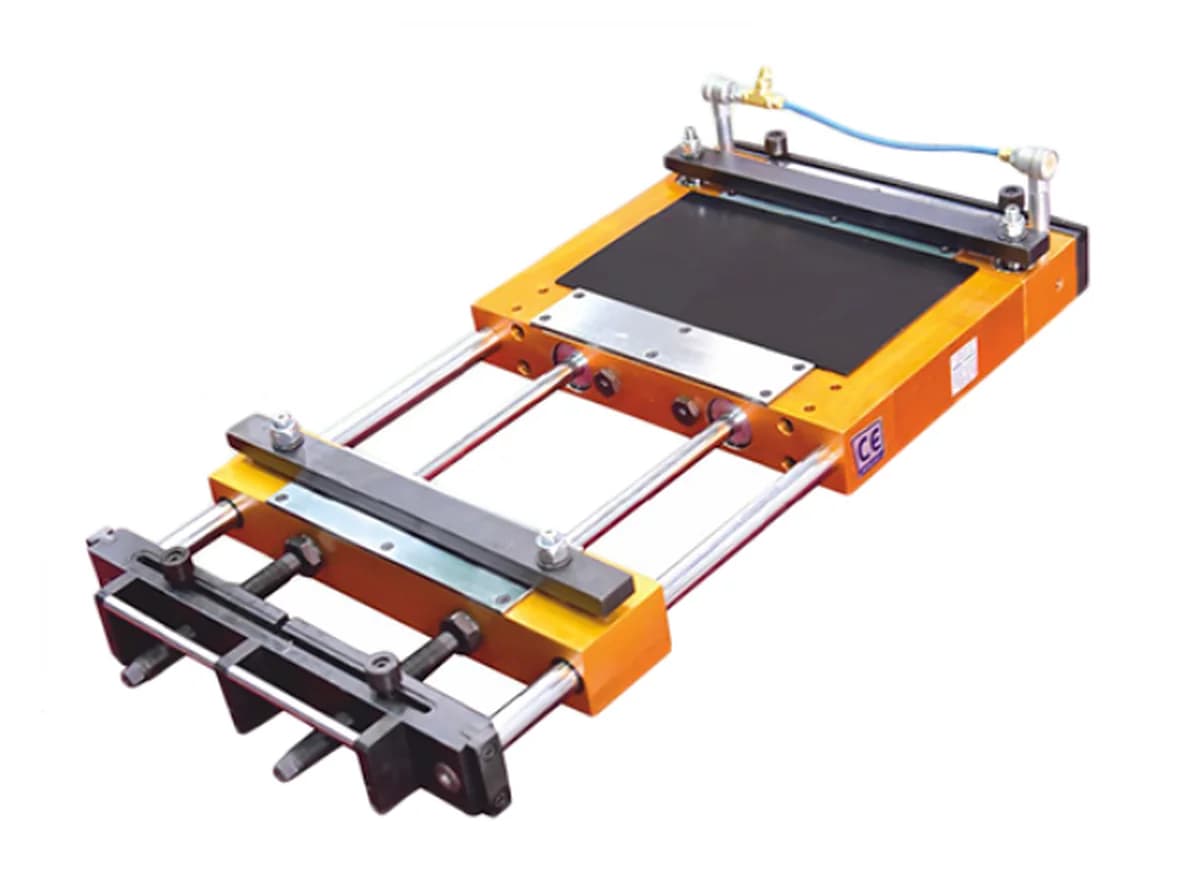

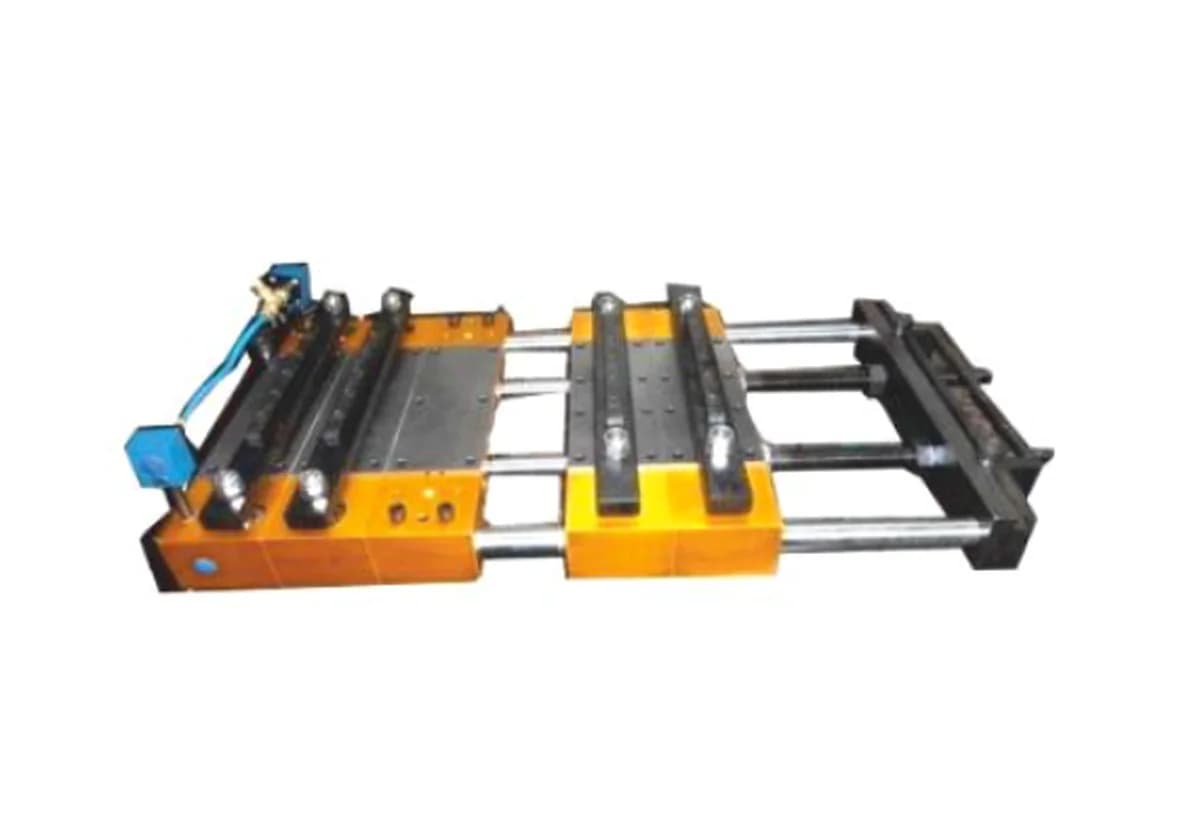

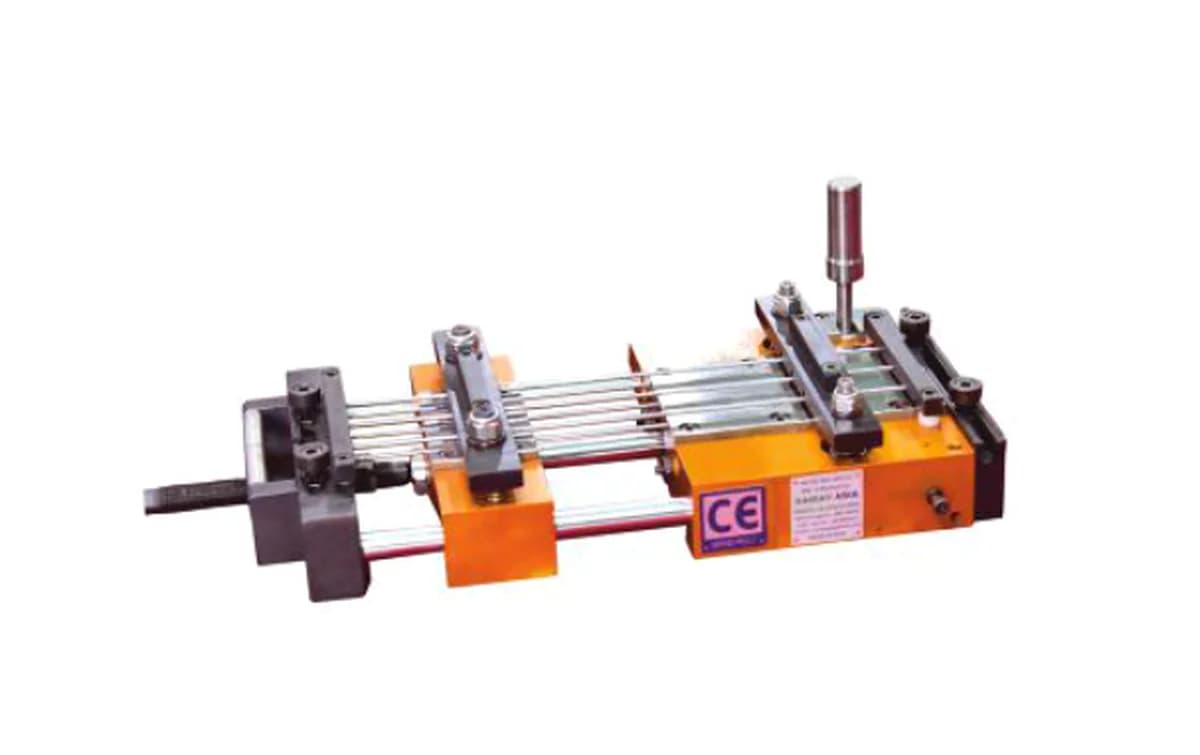

Name: High Precision Pneumatic Feeder – FAST PIC Series
Brand: Samay-Asia
SKU: RAND-41B-24DB

High Precision Pneumatic Feeder – FAST PIC Series S-A / 01

₹43344 + 18% GST (₹51145.92 incl.)

MRP ₹50310 13.85% OFF

Minimum Order Quantity: 1

Description

Precision pneumatic feeders streamline sheet metal processing lines by ensuring consistent strip positioning. This compact model supports thicker gauges with rapid cycling for high-volume runs.
Feeding length up to 52 mm
Handles material thickness up to 1.20 mm
Maximum speed of 140 strokes per minute

Available in 7 configurations₹43,344.00 – ₹1,21,296.00

• S-A / 01: 52mm length, 52mm width, 140 SPM • S-A / 02: 102mm length, 52mm width, 110 SPM • S-A / 03: 152mm length, 52mm width, 90 SPM • S-A / 04 & 05: 202-252mm length, 52mm width, 65-75 SPM • S-A / 06 & 07: Up to 352mm length or 102mm width, 55-120 SPM

Specifications

Material Width Max (MM)

Feeding Length Max (MM)

Material Thickness Max (MM)

1.2

Speed-Per Min (Max)

140

Configurations

7 variants

Need More Info? Contact Us

Variant	Price	Feeding Length Max (MM)	Material Thickness Max (MM)	Material Width Max (MM)	Speed-Per Min (Max)
S-A / 01	₹43,344.00	52	1.2	52	140
Ideal for high-speed operations, offering up to 140 SPM with a 52x52mm feeding capacity. Perfect for rapid, small-scale sheet metal feeding.
S-A / 07	₹48,720.00	52	1.2	102	120
Features a wider 102mm material width capacity with a 52mm length, operating at a fast 120 SPM. Perfect for wider sheet materials.
S-A / 02	₹55,216.00	102	1.1	52	110
Offers a balance of speed and length with 110 SPM and 102mm feeding length. Suitable for medium-length feeding requirements.
S-A / 03	₹70,112.00	152	1	52	90
Provides a 152mm feeding length at 90 SPM, designed for applications requiring longer feed strokes with moderate speed.
S-A / 04	₹82,768.00	202	0.9	52	75
Features a 202mm feeding length and 75 SPM, making it a great choice for longer sheet metal feeding tasks.
S-A / 05	₹95,760.00	252	0.7	52	65
Delivers a 252mm feeding length at 65 SPM, ideal for extended feeding operations in industrial setups.
S-A / 06	₹1,21,296.00	352	0.6	52	55
The longest feeding length variant at 352mm, operating at 55 SPM. Best suited for large-scale sheet metal processing.

Common Questions

Q: Is this feeder compatible with standard press brakes? A: Yes, the FAST PIC Series is designed to integrate with most standard sheet metal machinery. Q: What maintenance is required for the pneumatic system? A: Regular lubrication and air filter checks ensure optimal performance and longevity.

Safety and Compliance

• Meets general industrial safety standards for machinery operation • Includes protective features to prevent operator injury during use • Designed to integrate seamlessly with existing safety protocols • Reduces risk of material jamming through controlled feeding speed

Durability and Construction

• Robust frame design withstands continuous industrial cycles • Easy access points simplify routine maintenance and cleaning • High-grade components reduce wear on critical moving parts • Reliable performance reduces unplanned downtime on the shop floor

Precision and Control

• Pneumatic actuation ensures smooth and repeatable feeding motion • Reduces material waste through accurate positioning and alignment • Minimizes vibration during high-speed operation for better finish • Compatible with various press brake and stamping machine setups

Core Performance Metrics

• Feeding length capability reaches up to 52mm for precise control • Supports material widths up to 52mm for diverse strip applications • Handles material thicknesses up to 1.20mm with stable pressure • Maximum operating speed reaches 140 cycles per minute • High Precision Pneumatic Feeder – FAST PIC Series design standard

Frequently Asked Questions

Q.What is the Samay-Asia FAST PIC Series Pneumatic Feeder?

It is a high-precision pneumatic feeder designed for sheet metal machinery, offering accurate positioning and alignment.

Q.What are the key features of the FAST PIC Series?

Key features include a robust frame design, smooth pneumatic actuation, high-grade components, and compatibility with various press brake setups.

Q.Is this pneumatic feeder compatible with standard press brakes?

Yes, the FAST PIC Series is designed to integrate seamlessly with most standard sheet metal machinery and press brakes.

Q.What maintenance is required for the pneumatic system?

Regular lubrication and air filter checks are recommended to ensure optimal performance and longevity of the pneumatic system.

Q.Does the FAST PIC Series meet industrial safety standards?

Yes, it meets general industrial safety standards and includes protective features to prevent operator injury during use.

Q.How does the pneumatic feeder improve precision?

Pneumatic actuation ensures smooth and repeatable feeding motion, reducing material waste through accurate positioning and minimizing vibration.

Q.What is the maximum feeding speed of the FAST PIC Series?

The maximum feeding speed varies by variant, reaching up to 140 strokes per minute (SPM) on the S-A / 01 model.

Q.Can it handle different material thicknesses?

Yes, depending on the variant, it can handle material thicknesses ranging from 0.6mm up to 1.2mm.

Q.Is the frame design robust enough for continuous use?

Absolutely, the robust frame design is built to withstand continuous industrial cycles, reducing unplanned downtime.

Q.Does it come with a warranty?

Yes, purchasing through Gearo ensures you receive standard manufacturer warranty and support.

Q.Who should choose the S-A / 01 variant?

The S-A / 01 is ideal for users needing maximum speed (140 SPM) for smaller 52x52mm feeding tasks.

Q.Who should choose the S-A / 02 variant?

Choose the S-A / 02 if you need a longer 102mm feeding length while maintaining a high speed of 110 SPM.

Q.Who should choose the S-A / 03 variant?

The S-A / 03 is perfect for applications requiring a 152mm feeding length and moderate speeds of 90 SPM.

Q.Who should choose the S-A / 04 variant?

Opt for the S-A / 04 when your operations demand a 202mm feeding length at 75 SPM.

Q.Who should choose the S-A / 05 variant?

The S-A / 05 is best for extended feeding operations, offering a 252mm length at 65 SPM.

Q.Who should choose the S-A / 06 variant?

Select the S-A / 06 for large-scale processing requiring the maximum 352mm feeding length at 55 SPM.

Q.Who should choose the S-A / 07 variant?

The S-A / 07 is ideal for wider materials, offering a 102mm width capacity with a 52mm length at 120 SPM.

Q.What is the difference between S-A / 01 and S-A / 07?

While both have a 52mm feeding length, the S-A / 07 can handle wider materials (102mm vs 52mm) but operates at a slightly lower speed (120 SPM vs 140 SPM).

Q.How does feeding length affect the speed across variants?

Generally, as the feeding length increases (from 52mm up to 352mm), the maximum speed decreases (from 140 SPM down to 55 SPM) to maintain precision and stability.

Q.Which variant offers the highest feeding speed?

The S-A / 01 variant offers the highest feeding speed at 140 strokes per minute (SPM).
