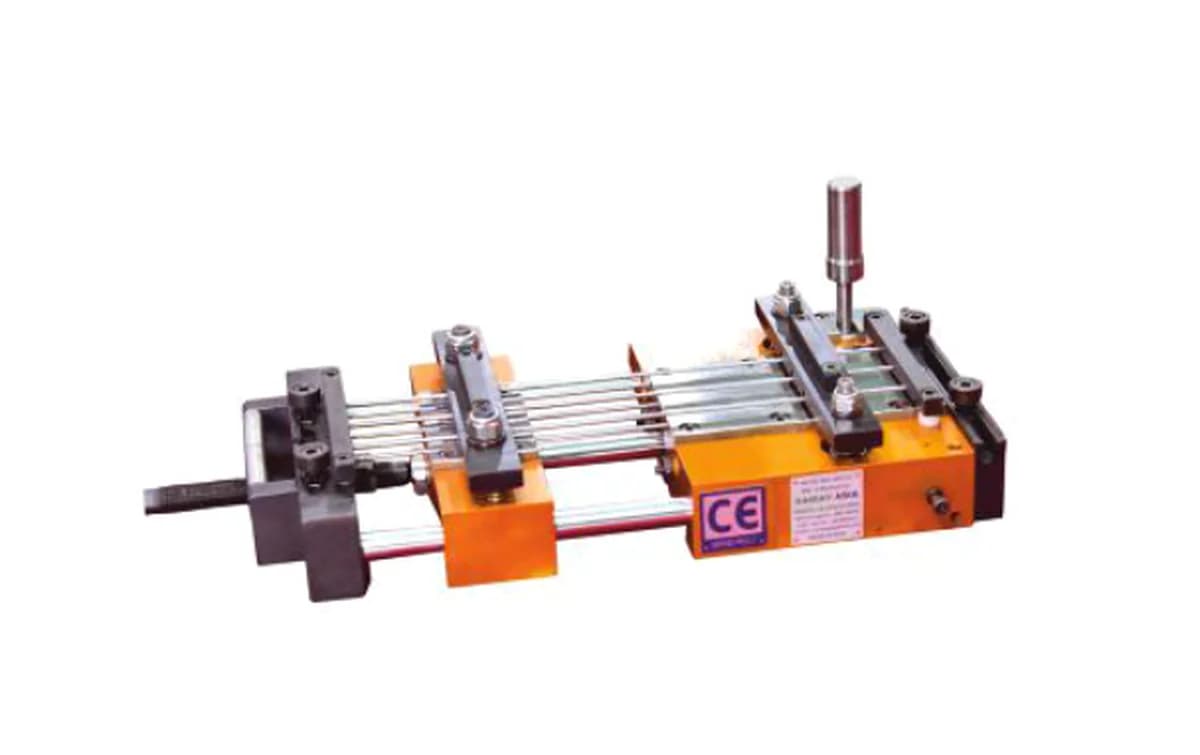

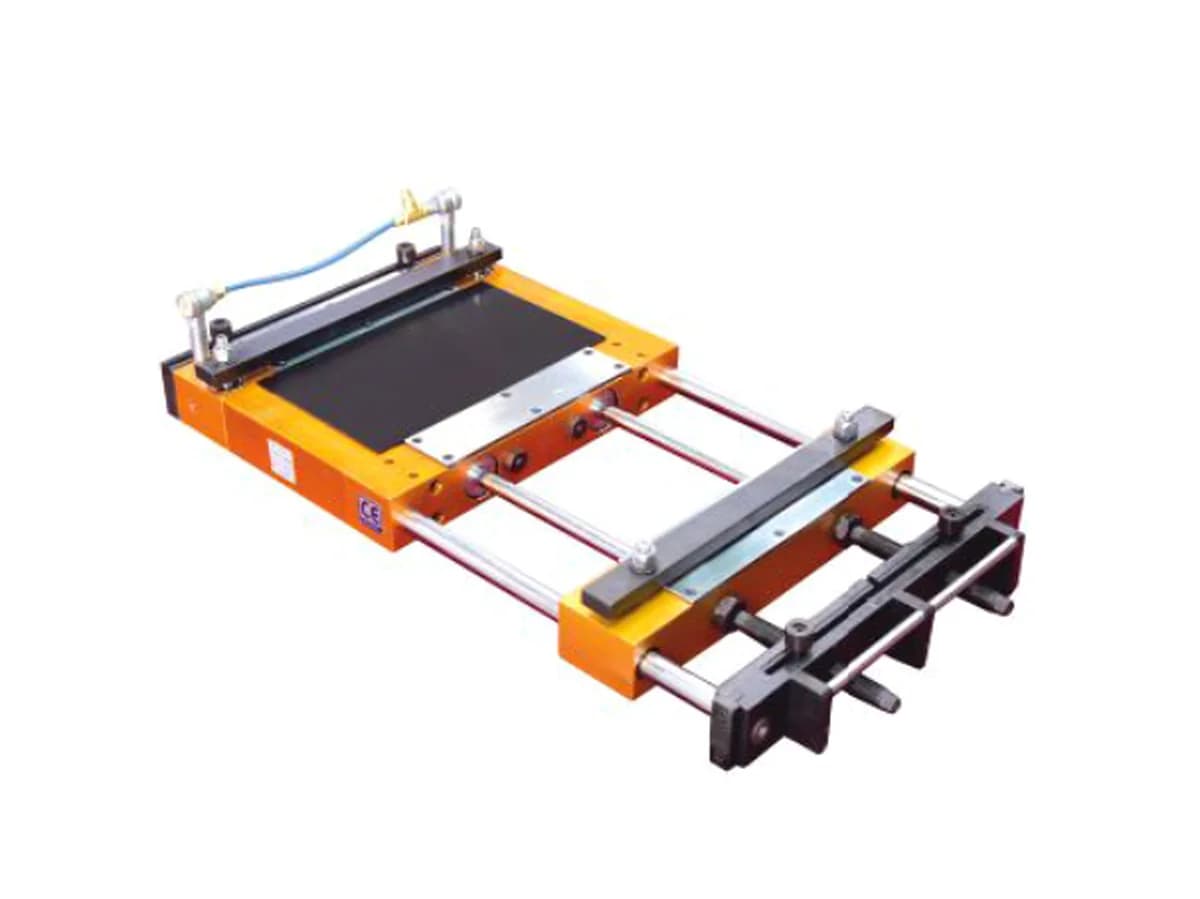

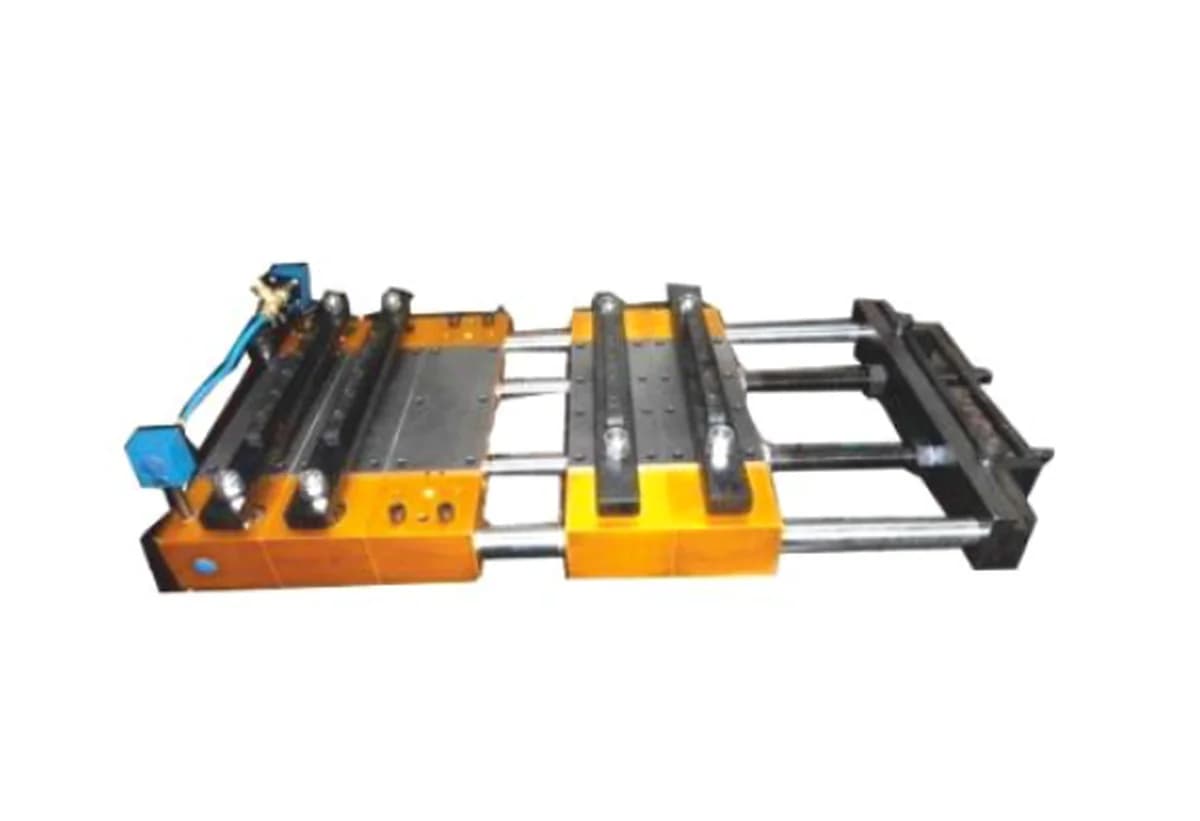

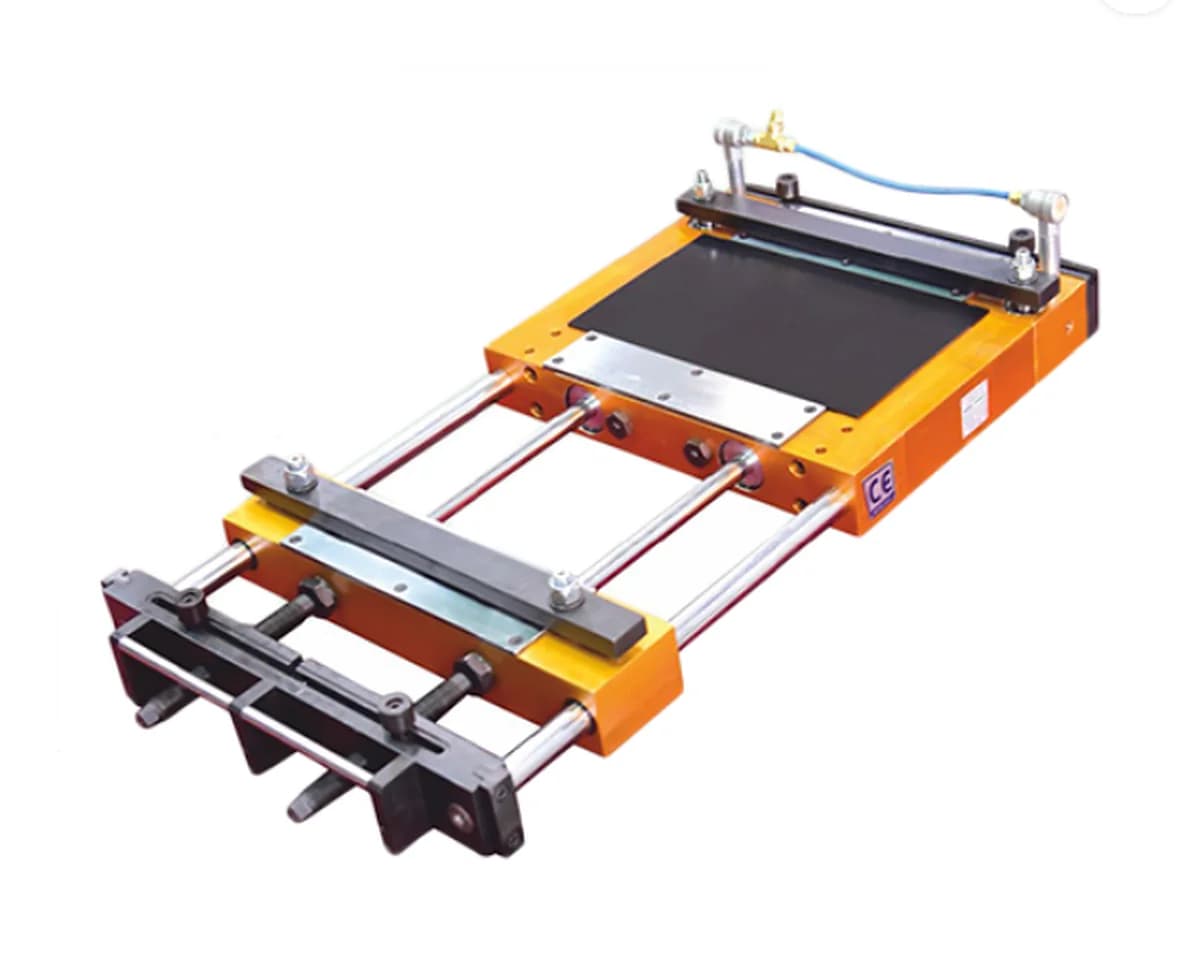

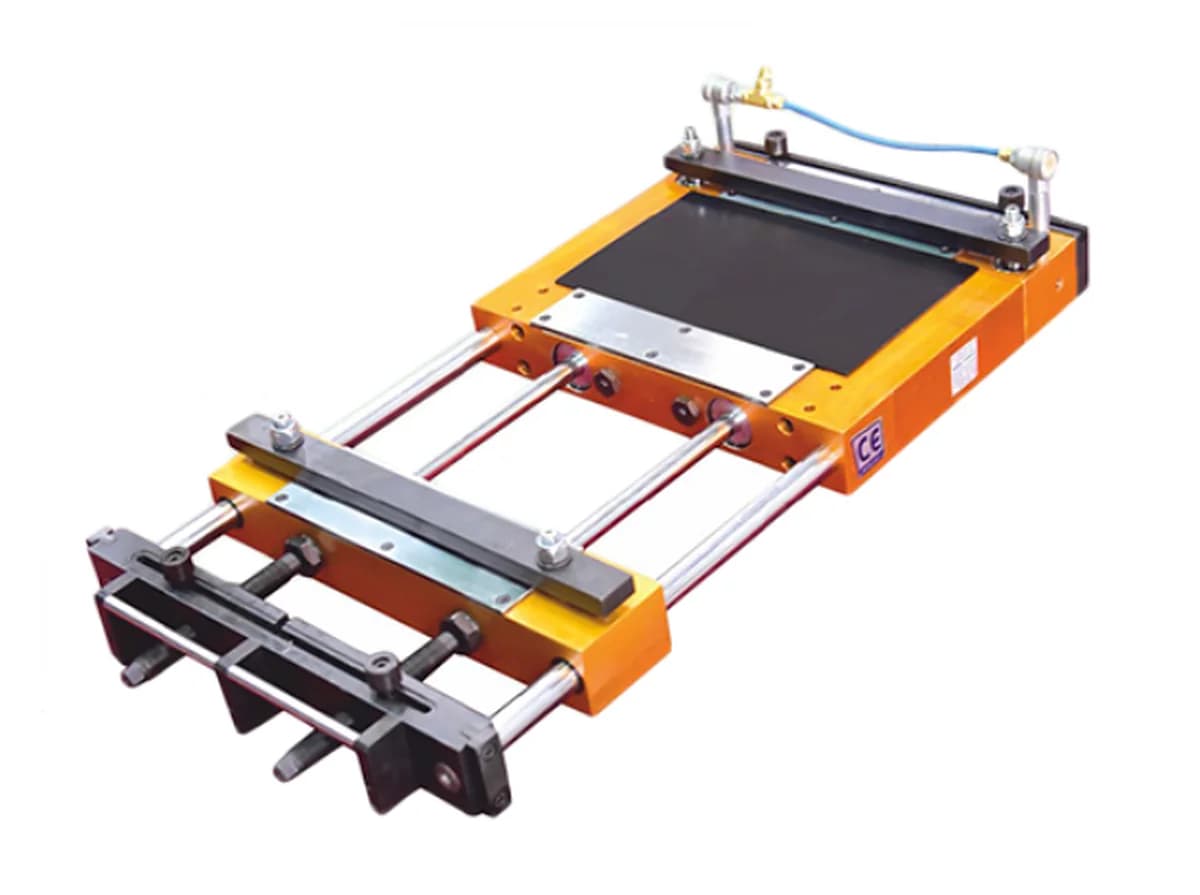

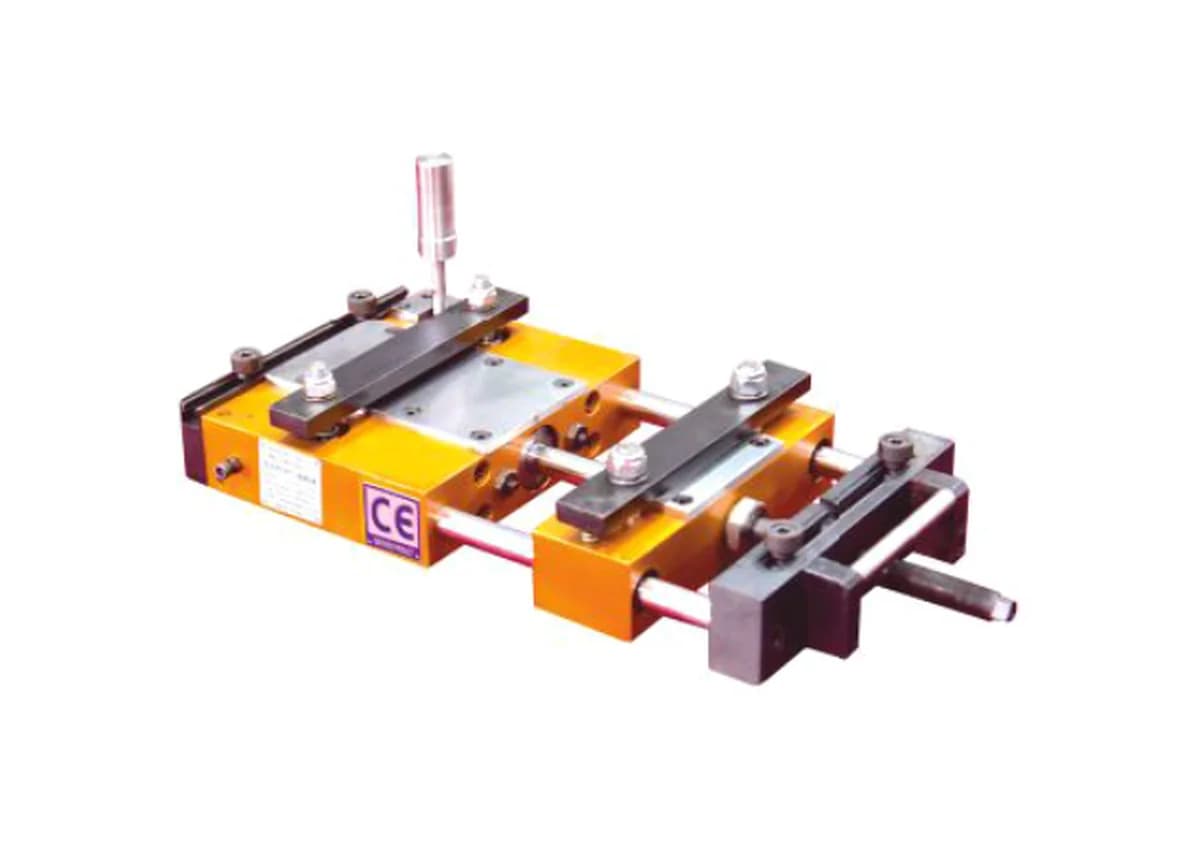

Samay-Asia High Precision Pneumatic Feeder – MEED-II PRC Series S-A/17
The Samay-Asia MEED-II PRC Series provides reliable material advancement for automated sheet metal stamping and forming operations. This configuration supports a 102 mm feeding length with a 202 mm strip width capacity. • Handles material thicknesses up to 1 mm • Operates at 90 feeds per minute • Suitable for mid-width coil processing and precision stamping lines.
See it in action
Specifications
For: S-A/17- Material
- Special Alloy Aluminum.
- Accuracy
- 10 micron
- Material Width Max (MM)
- 202
- Feeding Length Max (MM)
- 102
- Material Thickness Max (MM)
- 1
- Speed-Per Min (Max)
- 90
Configurations
Click a row to switch| Variant | Feeding Length Max (MM) | Material Thickness Max (MM) | Material Width Max (MM) | Speed-Per Min (Max) | Price |
|---|---|---|---|---|---|
| S-A/17 | 102 | 1 | 202 | 90 | ₹89,181 |
| S-A/18 | 202 | 0.9 | 202 | 75 | ₹1,02,668 |
| S-A/20 | 102 | 1 | 302 | 70 | ₹1,06,799 |
| S-A/22 | 302 | 0.9 | 302 | 50 | ₹1,44,221 |
| SAMAY-PNEUMATIC-FEEDER-V8755 | 102 | 1.0 | 202 | 90 | Quote |
| SAMAY-PNEUMATIC-FEEDER-V8756 | 102 | 1.0 | 202 | 90 | Quote |
| SAMAY-PNEUMATIC-FEEDER-V8757 | 102 | 1.0 | 202 | 90 | Quote |
| SAMAY-PNEUMATIC-FEEDER-V8758 | 102 | 1.0 | 202 | 90 | Quote |
| SAMAY-PNEUMATIC-FEEDER-V8759 | 102 | 1.0 | 202 | 90 | Quote |
Application Scope
- Ideal for stamping, punching, and shearing sheet metal operations
- Suitable for automotive component manufacturing and fabrication shops
- Supports various metal types commonly used in industrial fabrication
- Enhances productivity in automated coil processing systems
- Meets the demands of modern precision manufacturing requirements
Durability & Construction
- Built for industrial environments requiring long-term reliability
- Pneumatic components selected for durability and consistent performance
- Robust design minimizes wear during continuous heavy-duty use
- Engineered to withstand the rigors of daily sheet metal processing
- Requires minimal intervention to maintain peak operational standards
Automation Integration
- Interfaces easily with existing factory automation and control systems
- Simplifies workflow integration for automated press lines
- Reduces downtime associated with manual feeding processes
- Supports continuous operation for high-volume production environments
- Enhances overall line efficiency through synchronized movement
Operational Performance
- Pneumatic mechanism delivers high precision for critical manufacturing tasks
- Reduces material waste through consistent and reliable feeding cycles
- Handles varying coil dimensions without frequent manual adjustments
- Maintains stability during high-speed operations for improved output
- Optimizes throughput on sheet metal processing lines effectively
Key Features
- MEED-II PRC Series delivers accurate material handling for sheet metal processing lines
- Adjustable feeding length accommodates up to 302mm requirements
- Supports material thickness up to 2.0mm for diverse sheet metal needs
- Variable speed options allow operation from 60–140 per minute
- Ensures consistent feed rates across varying coil dimensions
- Compatible with standard automation setups for seamless integration
More questions buyers ask
What is a pneumatic feeder used for?
A pneumatic feeder is used in sheet metal stamping and press lines to automatically advance metal strips or coils into the press with high precision.
What are the key benefits of Samay-Asia pneumatic feeders?
They offer high precision, durability, variable speed control, and seamless integration with automated press lines, increasing productivity and reducing manual handling.
What material thickness can these feeders handle?
The Extra Heavy TLC series supports material thicknesses up to 3.5mm to 4.1mm depending on the specific model.
Are these feeders suitable for high-speed stamping?
Yes, they are engineered for continuous industrial operation and high-speed cycles with robust vibration-dampening frames.
Does Samay-Asia provide warranty on pneumatic feeders?
Samay-Asia is a trusted Indian manufacturer known for reliable industrial equipment and standard manufacturer warranties.
Can I integrate this with my existing press brake?
Yes, these units are designed for standard automation integration with most press brake and coil processing systems.
What is the accuracy of these feeders?
These high-precision units offer accuracy up to 10 microns for consistent production quality.
Is pan-India delivery available?
Yes, Gearo facilitates pan-India delivery for all industrial equipment, including Samay-Asia feeders.
Do I get a GST invoice with my purchase?
Yes, all purchases through Gearo include a valid GST invoice for your business accounting.
How do I choose the right feeder model?
Choose based on your maximum material width, required feeding length, and material thickness requirements.
Who should choose the S-A/33 model?
Ideal for users needing a 102mm feed length and 3.5mm thickness capacity for standard stamping tasks.
Who should choose the S-A/39 model?
Best for heavy-duty applications requiring a 402mm feed length and 3.5mm thickness capacity.
How does S-A/33 compare to S-A/39?
S-A/33 is more compact with a 102mm feed length, while S-A/39 is designed for larger 402mm feed lengths and wider material handling.
Which model is best for thicker materials?
The S-A/38 model is recommended for thicker materials up to 4.1mm.
Are these feeders compatible with coil lines?
Yes, they are specifically designed to integrate with coil processing lines for continuous, automated feeding.
More like this
Full description
The Samay-Asia MEED-II PRC Series provides reliable material advancement for automated sheet metal stamping and forming operations. This configuration supports a 102 mm feeding length with a 202 mm strip width capacity. • Handles material thicknesses up to 1 mm • Operates at 90 feeds per minute • Suitable for mid-width coil processing and precision stamping lines.
