Pentagon Hand Operated Geared Type Shearing Machine Model G/3/5 R
The Pentagon Hand Operated Geared Type Shearing Machine delivers precise straight cuts for mild steel sheets and bars. This model features an 8-inch blade length suitable for small-scale fabrication tasks. • Blade Length: 200 mm (8") • Max Cut in One Stroke: 150 mm • MS Plate Capacity: 2 mm • Weight: 15 kg

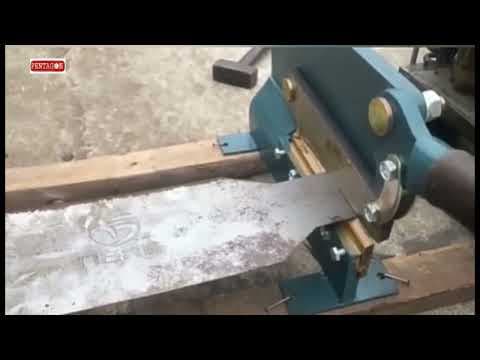

See it in action
Specifications
For: G/3/5 R- Blade Length
- 200 mm (8")
- Max Cut in One Stroke
- 150 mm
- Plate , Sheet – M.S.
- 2 mm
- Flat
- 50 x 3 mm
- Round
- 8 mm
- Body Thickness (Approx.)
- 20 mm
- Machine Model
- G/3/5 R
- Weight
- 15 kg
- Plate , Sheet M.S.
- 2 mm
Configurations
Click a row to switch| Variant | Blade Length | Body Thickness (Approx.) | Max Cut in One Stroke | Flat | Price |
|---|---|---|---|---|---|
| G/3/5 R | 200 mm (8") | 20 mm | 150 mm | 50 x 3 mm | ₹4,900 |
| GT/3L | 300 mm (12") | 20 mm | 250 mm | 50 x 3 mm | ₹6,100 |
| G5/300 | 300 mm (12") | 25 mm | 250 mm | 50 x 5 mm | ₹10,800 |
| GT/6L | 400 mm (16") | 25 mm | 350 mm | 50 x 5 mm | ₹13,500 |
| GT/8L | 500 mm (20") | 25 mm | 450 mm | 50x 3 mm | ₹16,300 |
Common Buyer Questions
Q: What is the maximum plate thickness this machine can handle? A: It is designed for mild steel plates up to 2 mm thickness.
Q: Can this machine cut round bars? A: Yes, it supports cutting round bars up to 8 mm in diameter.
Q: How much does the machine weigh? A: The unit weighs approximately 15 kg for portability and stability.
Precision Cutting Performance
- Engineered blade geometry delivers clean and accurate cut edges
- Max cut capacity of 150 mm per stroke facilitates efficient workflow
- Blade length of 200 mm (8 inches) supports standard sheet sizes
- Minimal material deformation ensures ready-to-use finished parts
- Consistent performance reduces secondary finishing requirements
Robust Industrial Construction
- Heavy-duty body construction ensures stability during high-force cuts
- Approximate body thickness of 20 mm provides structural rigidity
- Durable materials resist wear from continuous mechanical stress
- Compact footprint allows placement in tight workshop environments
- Designed to withstand daily operational demands in industrial settings
Versatile Material Compatibility
- Capable of shearing mild steel plates up to specified thickness limits
- Handles flat bar stock with ease for custom fabrication needs
- Suitable for cutting round bars within designated diameter ranges
- Supports various sheet metal types for general industrial use
- Adaptable to different material grades common in workshops
Geared Mechanical Advantage
- Hand-operated geared mechanism multiplies user force for efficient cutting
- Reduces operator fatigue during repetitive shearing tasks
- Ensures consistent pressure application across the entire blade length
- Ideal for manual operations where power sources are unavailable
- Provides smooth and controlled stroke movement for precision cuts
Standard Accessories
More questions buyers ask
What is a geared hand shearing machine?
A geared hand shearing machine is a manual metal-cutting tool that uses a gear mechanism to multiply the operator's force, allowing for easier and more efficient cutting of metal sheets and bars.
What materials can this machine cut?
It is primarily designed for cutting mild steel plates, flat bars, and round bars within the specified capacity limits of each model.
Is this machine suitable for industrial use?
Yes, these machines are robustly constructed for daily use in workshops, fabrication units, and industrial settings.
Does it require electricity?
No, this is a fully hand-operated machine, making it ideal for workshops without power access or for portable use.
How do I maintain the blades?
Keep the blades clean and free of debris. Regularly check for sharpness and replace them if they become dull to ensure clean cuts.
What is the advantage of the geared mechanism?
The geared mechanism significantly reduces operator fatigue by multiplying the force applied to the handle, making it easier to cut thicker materials.
Are spare parts available?
Yes, spare parts like extra blade sets are typically available for these machines.
Can I cut stainless steel?
These machines are generally rated for mild steel. Cutting harder materials like stainless steel may reduce blade life or exceed machine capacity.
Is the machine portable?
Yes, these machines are designed to be compact and relatively lightweight, allowing for easy placement in various workshop locations.
What is the warranty period?
Warranty terms vary by model and supplier; please check the specific product documentation or contact the seller.
Who should choose the G/3/5 R model?
Ideal for small workshops or hobbyists needing a compact, entry-level solution for light-duty cutting tasks.
Who should choose the GT/3L model?
Best for users requiring a slightly larger blade length and increased cutting capacity compared to the base model.
Who should choose the G5/300 model?
Suitable for professional fabricators needing higher structural rigidity and the ability to cut thicker bars.
Who should choose the GT/6L model?
Recommended for heavy-duty workshop tasks requiring a 400mm blade and higher cutting capacity.
Who should choose the GT/8L model?
Designed for high-volume or large-scale fabrication work requiring the maximum blade length and cutting capacity in this series.
How do the models compare in weight?
Weights range from 15kg for the G/3/5 R up to 70kg for the GT/8L, reflecting the increased structural capacity of larger models.
Which model offers the best cutting capacity?
The GT/8L model offers the largest blade length (500mm) and max cut per stroke (450mm), making it the most capable in the series.
Are all models hand-operated?
Yes, the entire series features geared manual operation for consistent, controlled cutting without electricity.
More like this
Full description
The Pentagon Hand Operated Geared Type Shearing Machine delivers precise straight cuts for mild steel sheets and bars. This model features an 8-inch blade length suitable for small-scale fabrication tasks.
Read more ↓
• Blade Length: 200 mm (8") • Max Cut in One Stroke: 150 mm • MS Plate Capacity: 2 mm • Weight: 15 kg
