Specifications
| Variant | Price | Diameter of Table | Center Height | Center bore Taper | Overall Height Horizontal |
|---|---|---|---|---|---|
| Size 6 inch | ₹10,300.00 | 150 mm | 125 mm | MT2 | 95 mm |
| The 6-inch Pentagon APEX-715E rotary table offers a compact 150 mm diameter, MT2 taper, and 16 Kgs weight, perfect for light toolroom applications. | |||||
| Size 8 inch | ₹14,785.00 | 200 mm | 160 mm | MT3 | 105 mm |
| The 8-inch Pentagon APEX-715E rotary table features a 200 mm diameter, MT3 taper, and 27 Kgs weight, suitable for medium-sized workpieces. | |||||
| Size 10 inch | ₹20,115.00 | 250 mm | 180 mm | MT3 | 110 mm |
| The 10-inch Pentagon APEX-715E rotary table provides a 250 mm diameter, MT3 taper, and 42 Kgs weight, offering versatile performance for standard milling. | |||||
| Size 12 inch | ₹31,425.00 | 300 mm | 220 mm | MT3 | 130 mm |
| The 12-inch Pentagon APEX-715E rotary table features a 300 mm diameter, 1:120 gear ratio, and 65 Kgs weight for high-precision heavier machining. | |||||
| Size 15 inch | ₹48,050.00 | 375 mm | 265 mm | MT3 | 135 mm |
| The 15-inch Pentagon APEX-715E rotary table offers a 375 mm diameter, 1:120 gear ratio, and 100 Kgs weight, ideal for large-scale industrial tasks. | |||||
| Size 18 inch | ₹84,445.00 | 450 mm | 315 mm | MT4 | 160 mm |
| The 18-inch Pentagon APEX-715E rotary table features a 450 mm diameter, MT4 taper, and 175 Kgs weight, ideal for heavy-duty industrial milling. | |||||
| Size 20 inch | ₹91,530.00 | 500 mm | 315 mm | MT4 | 160 mm |
| The 20-inch Pentagon APEX-715E rotary table is the largest model with a 500 mm diameter, MT4 taper, and 187 Kgs weight for maximum stability. | |||||
Description

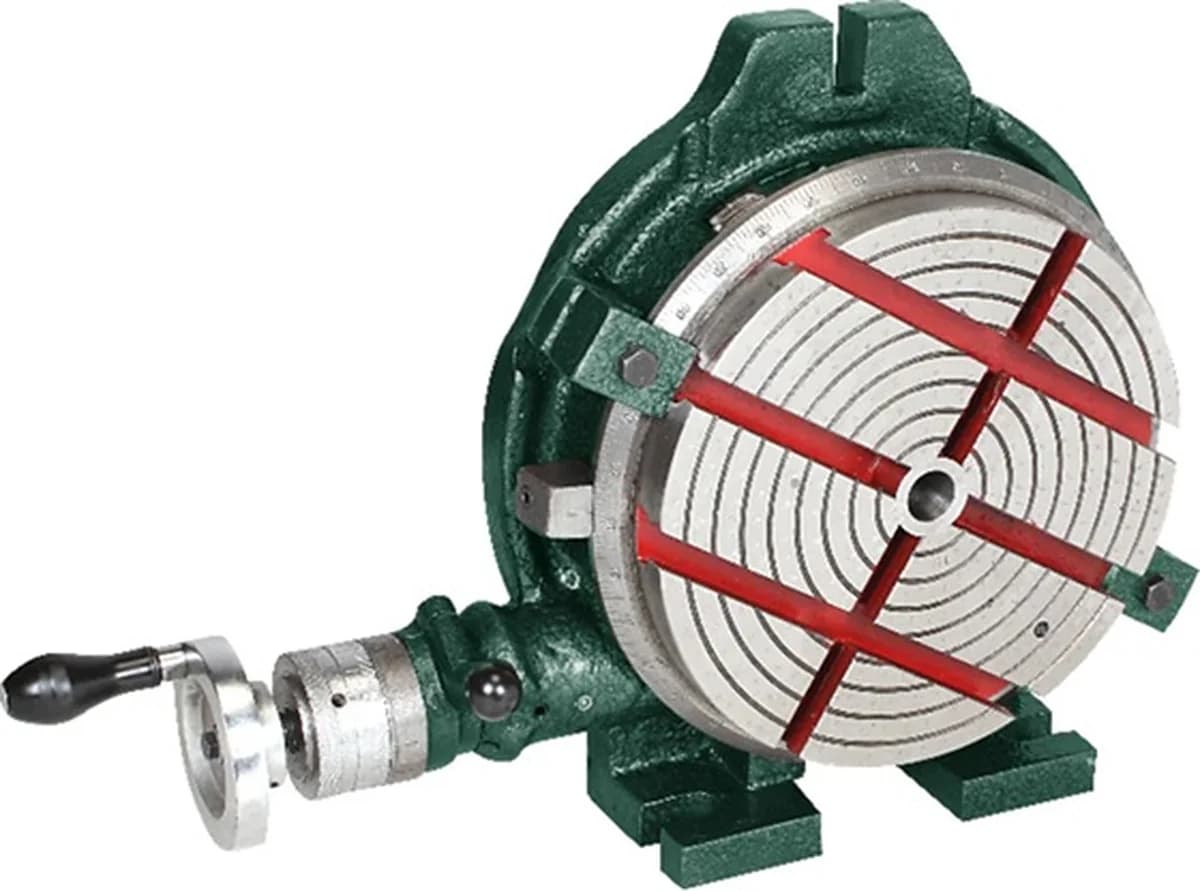

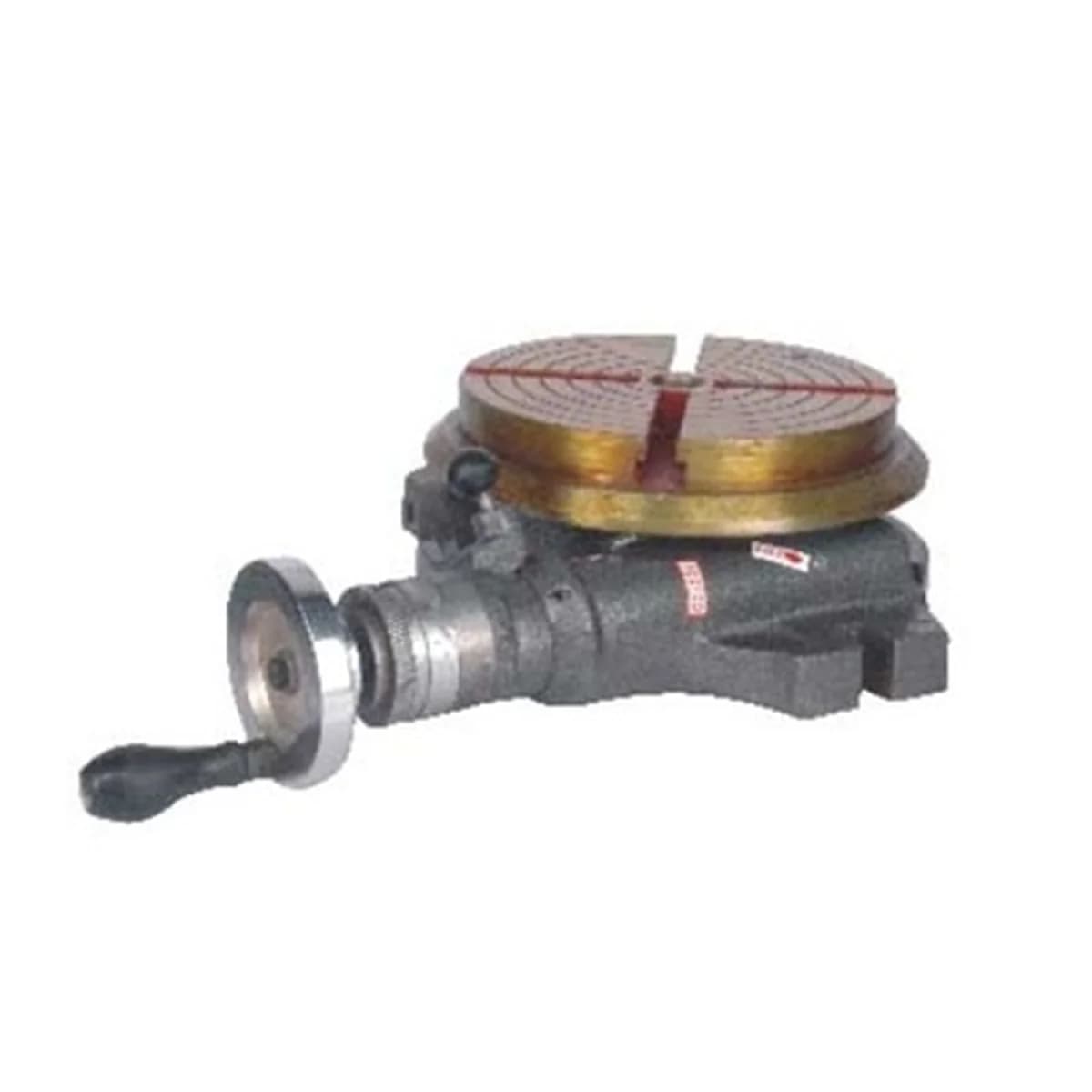

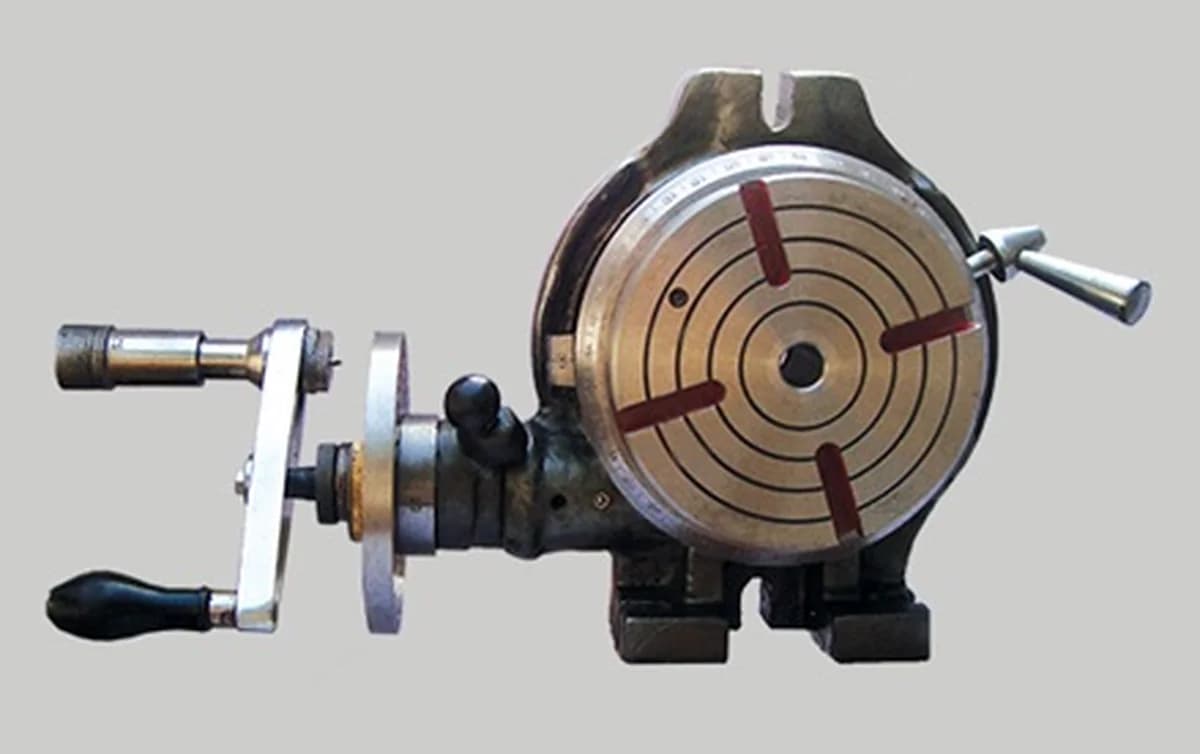

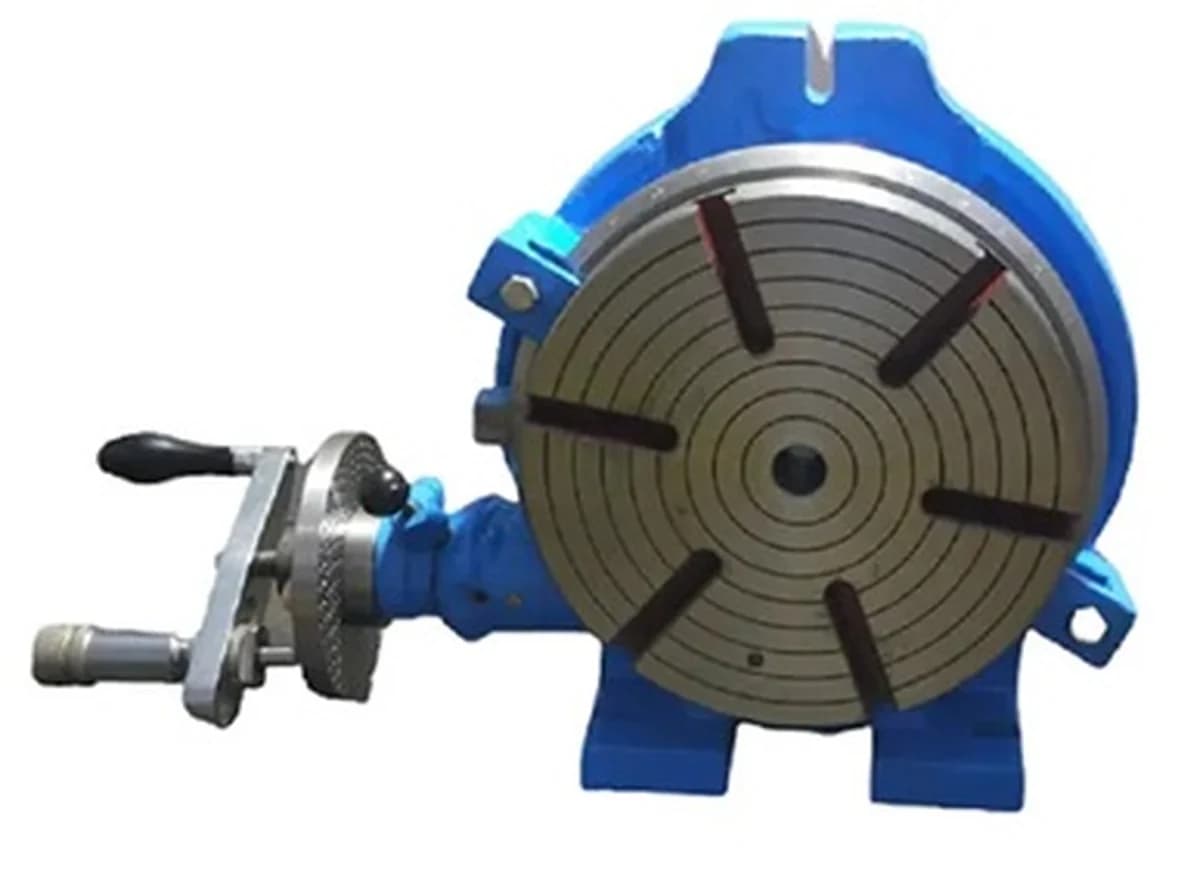

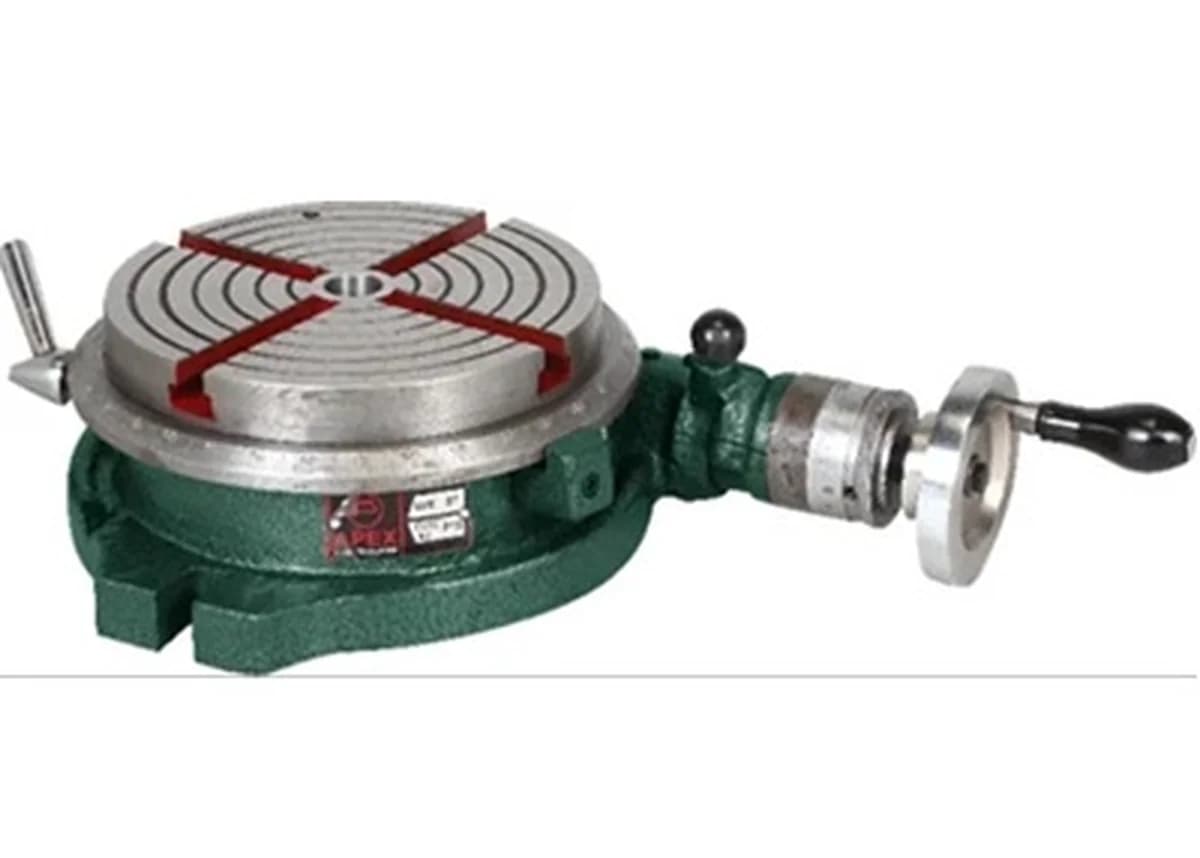

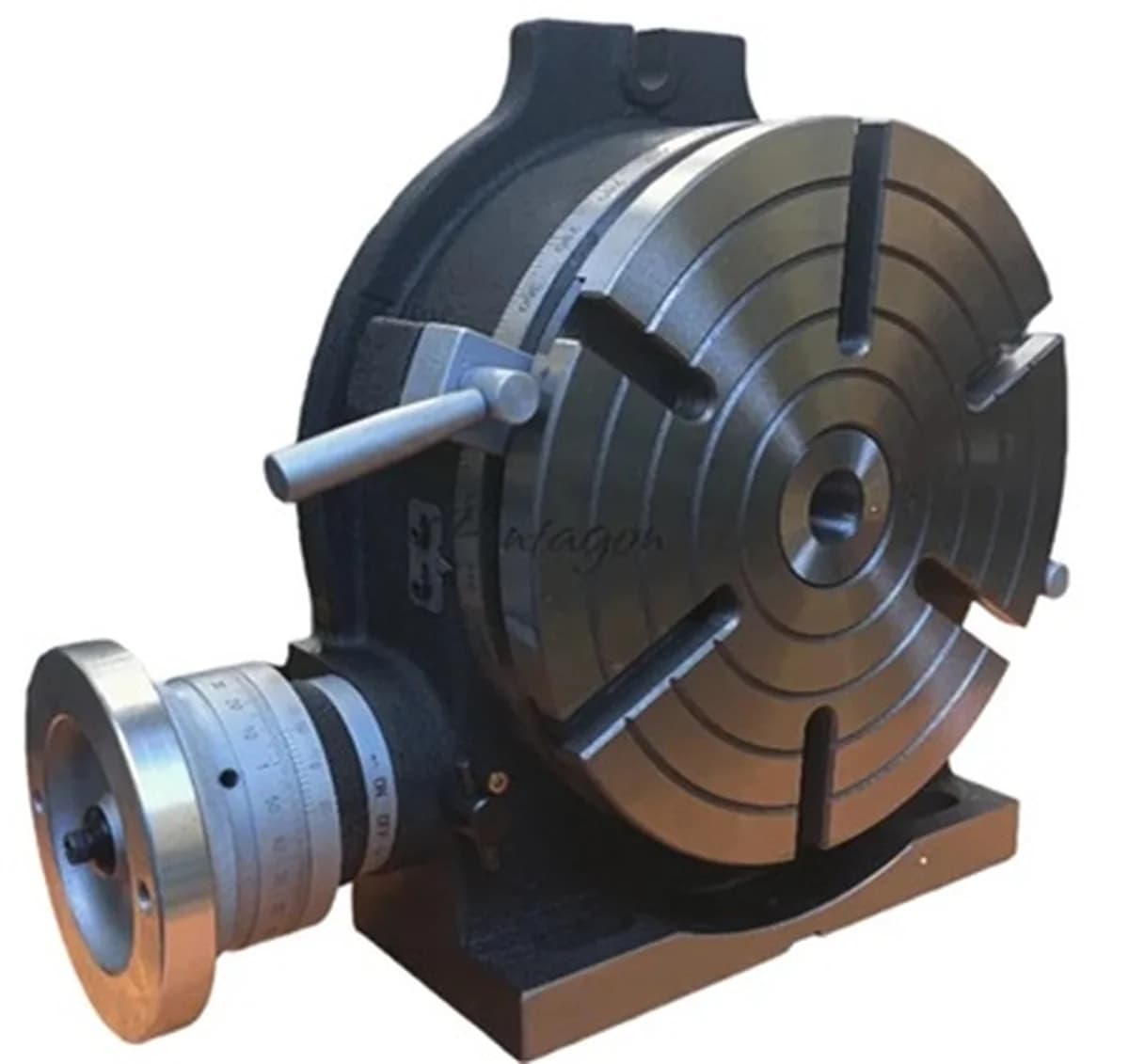

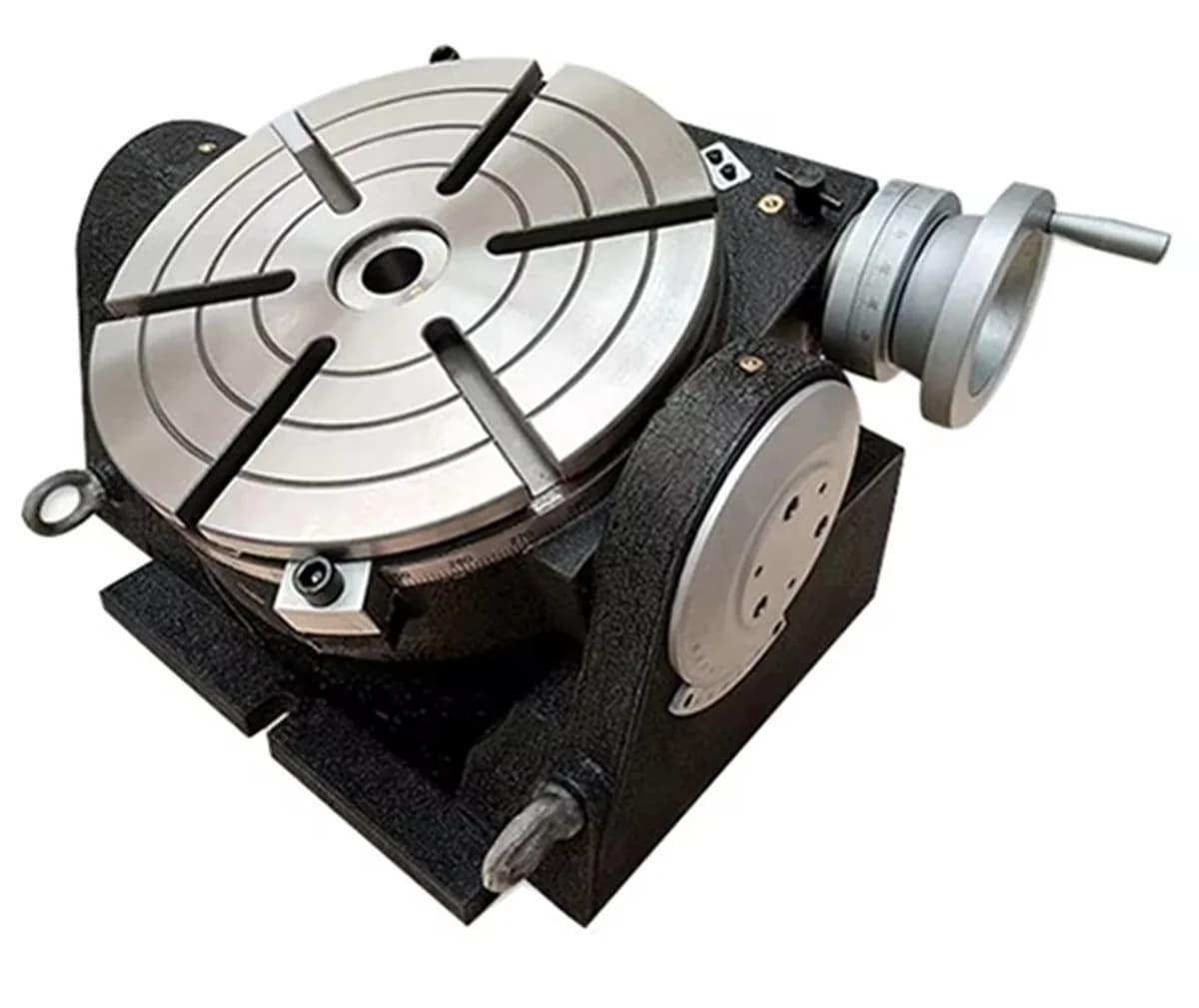

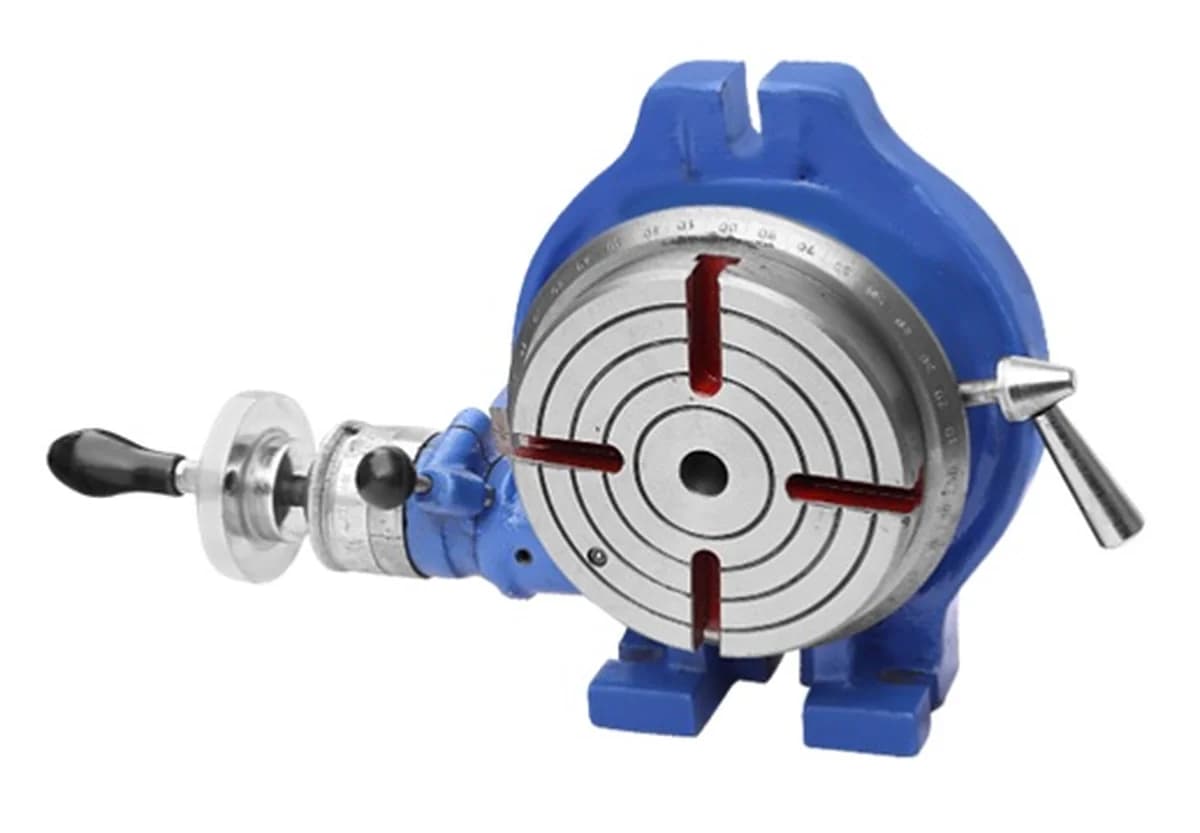

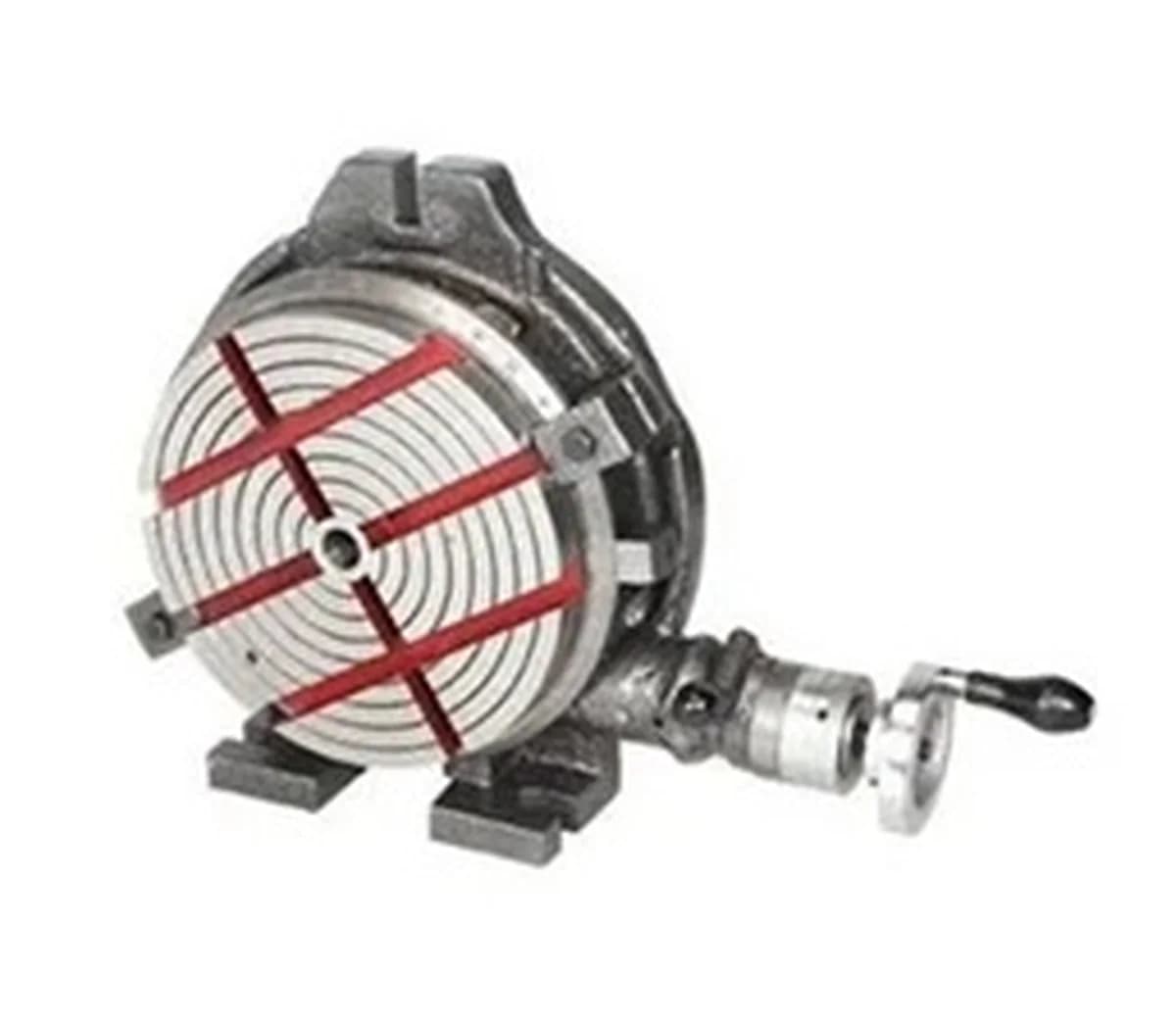

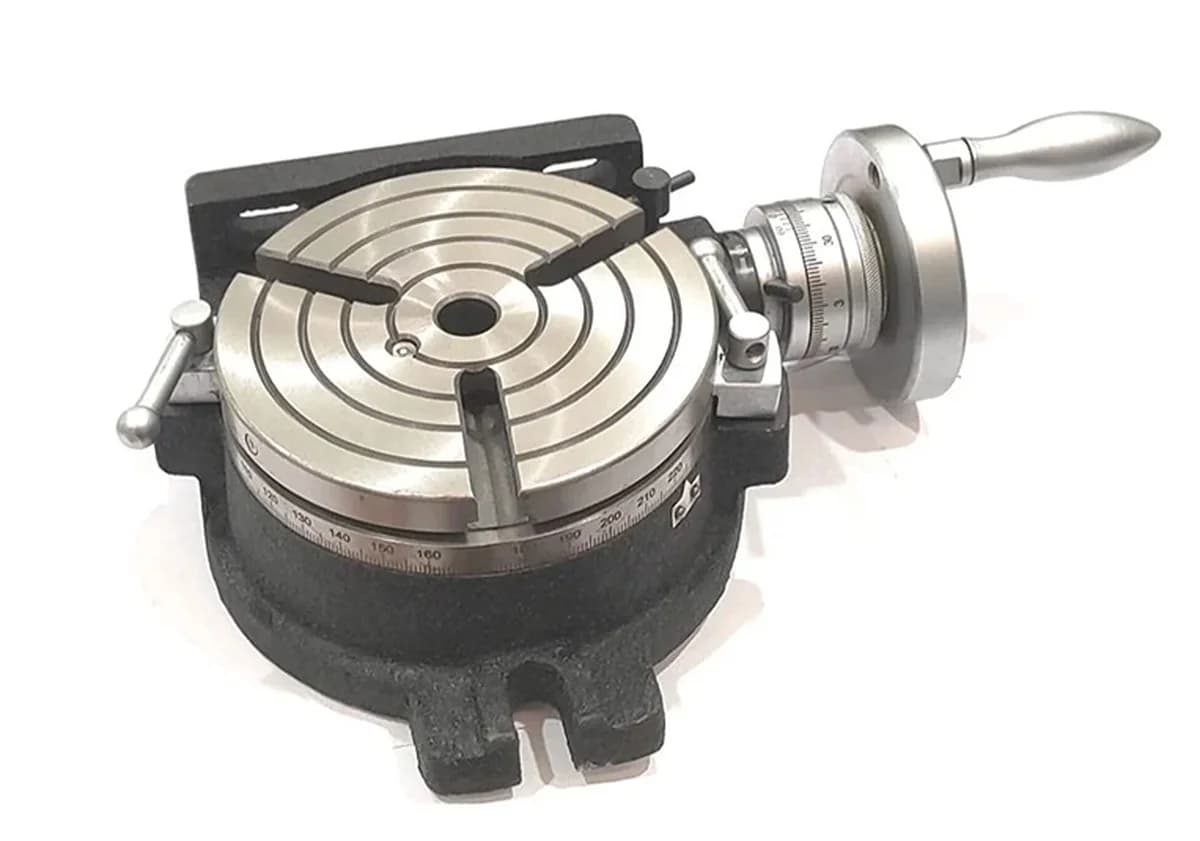

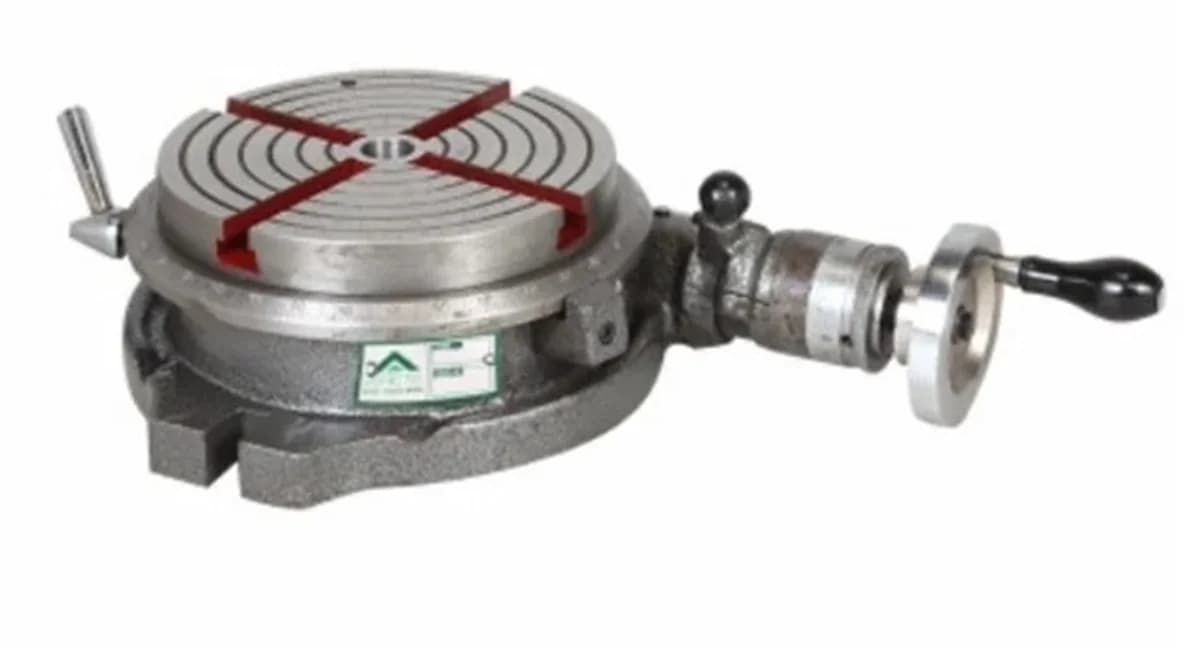

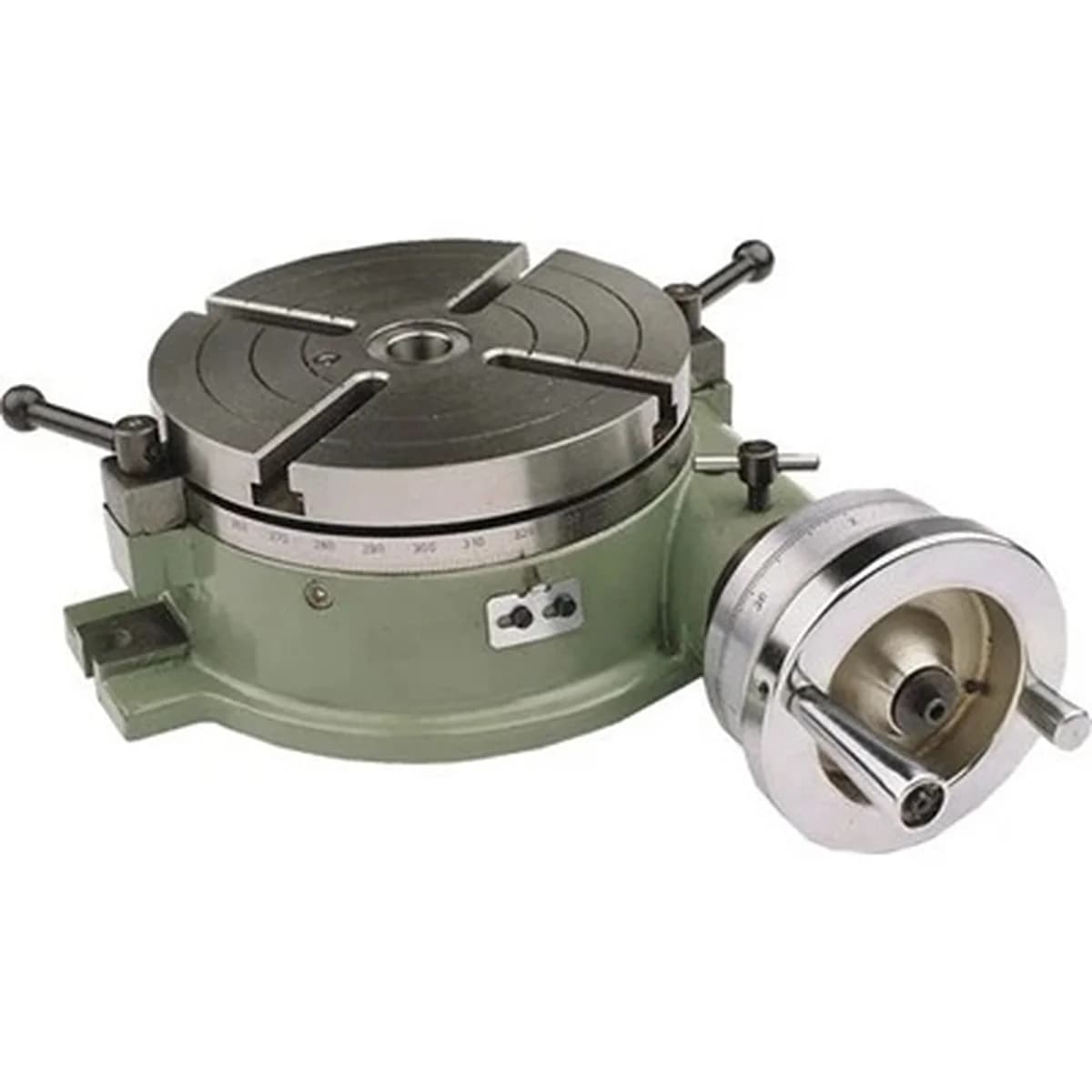

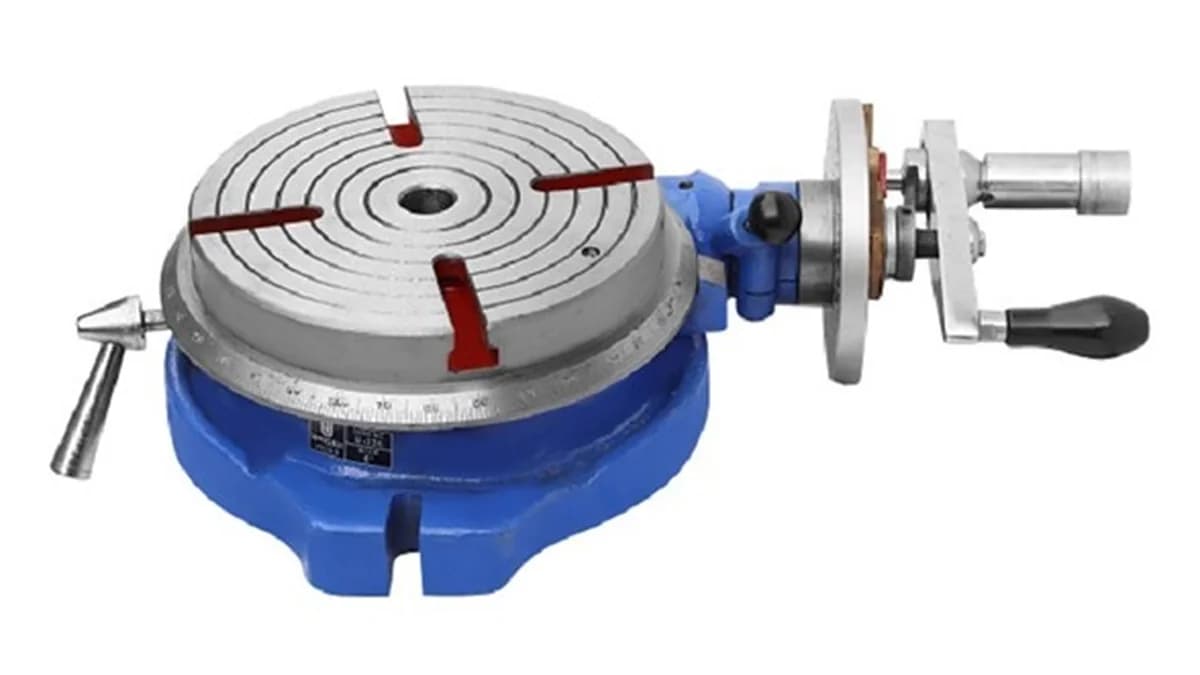

The APEX-715E (6") Rotary Milling Table is a precision-engineered horizontal and vertical type rotary table designed for accurate indexing, circular machining, milling, drilling, and angular cutting operations.

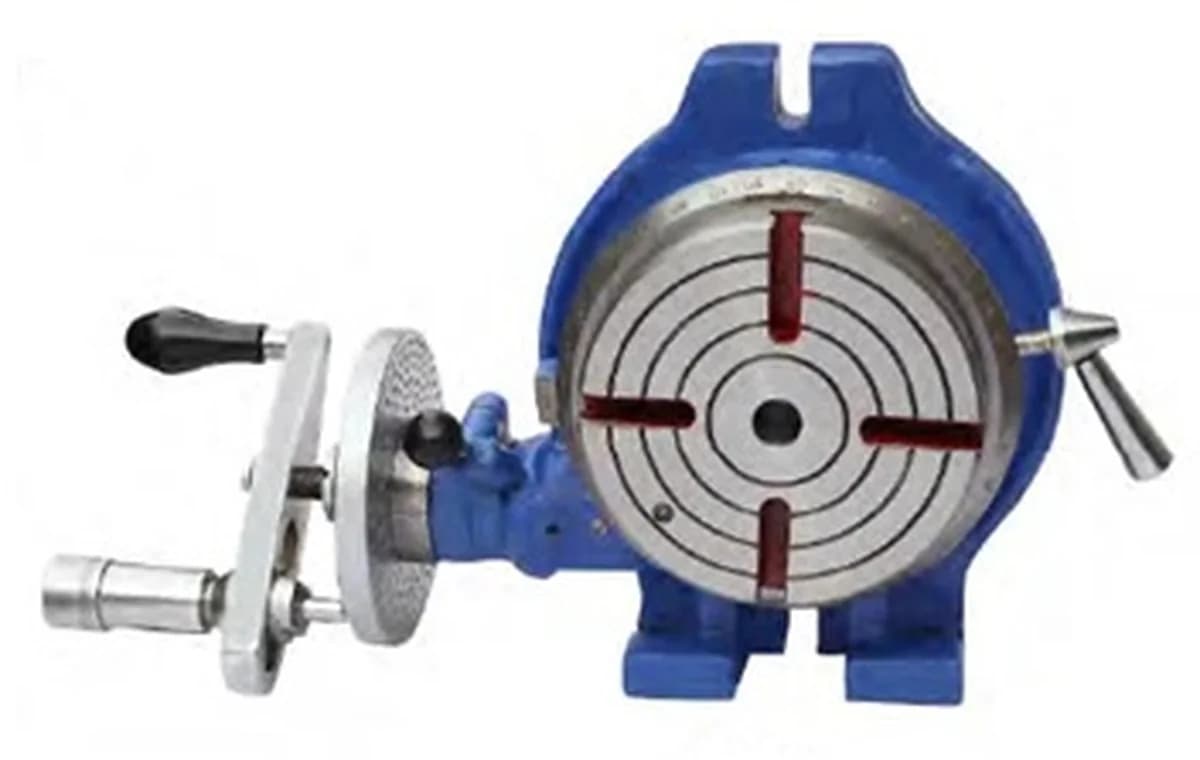

Its dual-position design allows it to be mounted flat (horizontal) for standard milling tasks or upright (vertical) for machining on the face or circumference of components.
Built from high-grade cast iron and precision-ground on all critical faces, this 6-inch rotary table offers smooth rotation, excellent accuracy, and rigidity for tool-room, engineering, and production-grade milling applications.
Benefits:
1. Dual-Use Flexibility (H&V Operation)
- One rotary table works both Horizontally and Vertically, eliminating the need to buy separate units.
- Saves cost and workspace.
2. High Accuracy Machining
- Precision-ground surface and hardened worm gear ensure excellent accuracy (±0.02 mm).
- Provides smooth indexing and consistent machining quality.
3. Enhanced Productivity
- Quickly rotate and position the workpiece during milling or drilling.
- Reduces time needed for setup and alignment.
4. Perfect for Complex Machining
- Ideal for multi-angle drilling, circular slots, PCD patterns, and gear teeth cutting.
- Greatly expands the capability of any milling machine.
5. Rigid & Durable Construction
- Heavy cast iron body absorbs vibration and maintains accuracy over long-term use.
- Long service life with minimal maintenance.
6. Compact but Powerful
- 6" size provides stability without adding excessive load on small or medium milling machines.
- Easy to mount, remove, and store.
7. Versatile Toolroom Use
- Suitable for workshops, tool rooms, model engineering, and small production units.
- Handles a wide variety of machining tasks.
Features:
1. Dual-Mode Operation (Horizontal & Vertical)
- Can be mounted both flat and upright, eliminating the need for separate tables.
- Ideal for circular machining, drilling patterns & angular indexing.
2. Precision-Ground Table Surface
- 6" (150 mm) table fully ground for accuracy.
- T-slots compatible with standard clamping kits.
3. 360° Graduated Table
- Clear degree graduation around the periphery.
- Vernier scale for fine angular adjustment.
4. Strong & Rigid Body Construction
- Made from high-tensile FG-260/270 grade cast iron for maximum rigidity.
- Suitable for continuous machining loads.
5. Smooth & Easy Hand Operation
- Balanced rotary handle for comfortable and controlled motion.
- Oil ports allow easy lubrication for long life.
6. Suitable for Multiple Operations
- Circular slotting
- Milling arcs & radii
- Dividing operations
- Drilling hole patterns
- Model engineering & light production work
7. Compact & Lightweight 6" Size
- Ideal for small to medium milling machines.
- Offers excellent stability without adding excessive load on the machine table.
Applications:
1. Circular Machining
- Machining arcs, radii, and circular profiles on milling machines.
2. Angular Milling & Drilling
- Precise drilling at set angles using the graduated table and vernier scale.
3. Indexing Operations
- Useful for dividing workpieces into equal segments for operations such as:
- Hexagonal or square machining
- Hole circle patterns
- Slot indexing
4. Gear Cutting (with indexing attachment)
- Can be used for cutting spur gears, ratchets, splines, and other toothed components.
5. Hole Pattern Machining
- Drilling multiple holes at exact angular intervals (PCD drilling).
6. Slotting & Keyway Machining
- Machining keyways, arcs, and precision slots in circular components.
7. Model Engineering & Toolroom Work
- Ideal for prototype making and precision part development.
8. Accurate Positioning & Repetition Work
- Ensures consistent positioning in repetitive machining tasks.
9. Light Production & Training Institutes
- Suitable for vocational training centers, tool rooms, job shops & small batch production.
Frequently Asked Questions
Q.What is the Pentagon APEX-715E Rotary Milling Table used for?
The APEX-715E is designed for accurate indexing, circular machining, milling, drilling, and angular cutting operations on milling machines.
Q.Can this rotary table be used both horizontally and vertically?
Yes, its dual-position design allows it to be mounted flat (horizontal) or upright (vertical), eliminating the need for separate tables.
Q.What is the material used for the APEX-715E rotary table?
It is built from high-grade cast iron with a precision-ground table surface for durability and accuracy.
Q.What is the accuracy of the Pentagon APEX-715E rotary table?
The precision-ground surface and hardened worm gear ensure excellent accuracy, typically within ±0.02 mm.
Q.Does the APEX-715E come with a warranty?
Yes, it comes with a standard manufacturer warranty. Please check the specific warranty terms at the time of purchase.
Q.Can I get a GST invoice for the Pentagon APEX-715E?
Yes, a valid GST invoice is provided for all B2B purchases, allowing you to claim input tax credit.
Q.Is pan-India delivery available for this rotary table?
Yes, we offer secure and reliable pan-India delivery for the Pentagon APEX-715E rotary table.
Q.What types of operations can be performed with this rotary table?
It is ideal for circular machining, angular milling, precise drilling patterns, and indexing operations.
Q.How do I mount the APEX-715E on my milling machine?
The table features T-slots that are compatible with standard clamping kits for secure mounting on your milling machine bed.
Q.What is the worm and gear ratio of the APEX-715E?
The worm and gear ratio varies by size, typically 1:72 for smaller sizes (6" to 10") and 1:120 for larger sizes (12" to 20").
Q.Is the table surface precision-ground?
Yes, the table surface is fully precision-ground to ensure high accuracy during machining operations.
Q.What is the wheel calibration of the APEX-715E?
The wheel calibration is 2 minutes for sizes 6" to 10", and 1 minute for sizes 12" to 20".
Q.Who should choose the Size 6 inch variant?
The 6-inch variant is ideal for small-scale toolroom applications and light milling tasks requiring a compact and lightweight (16 Kgs) rotary table.
Q.Who should choose the Size 8 inch variant?
The 8-inch variant is suitable for medium-sized workpieces, offering a larger 200 mm table diameter and a heavier build (27 Kgs) for increased stability.
Q.Who should choose the Size 10 inch variant?
The 10-inch variant is perfect for workshops needing a versatile table with a 250 mm diameter and a robust 42 Kgs weight for standard milling operations.
Q.Who should choose the Size 12 inch variant?
The 12-inch variant is designed for heavier workpieces, featuring a 300 mm table, a finer 1:120 gear ratio, and a 1-minute wheel calibration for higher precision.
Q.Who should choose the Size 15 inch variant?
The 15-inch variant is ideal for large-scale industrial applications, offering a 375 mm table diameter and a heavy-duty 100 Kgs construction.
Q.Who should choose the Size 18 inch variant?
The 18-inch variant is suited for heavy machining, featuring a 450 mm table, MT4 center bore taper, and a substantial 175 Kgs weight for maximum stability.
Q.Who should choose the Size 20 inch variant?
The 20-inch variant is the largest option, designed for the most demanding industrial tasks with a 500 mm table diameter and a massive 187 Kgs weight.
Q.What is the difference between the 6-inch and 8-inch rotary tables?
The 6-inch table has a 150 mm diameter, MT2 taper, and weighs 16 Kgs, while the 8-inch table has a 200 mm diameter, MT3 taper, and weighs 27 Kgs.
Q.How does the 12-inch variant compare to the 15-inch variant?
Both feature a 1:120 gear ratio and 1-minute calibration, but the 15-inch variant has a larger 375 mm table and weighs 100 Kgs compared to the 12-inch's 300 mm table and 65 Kgs weight.
Q.Which variants have the highest worm and gear ratio?
The 12-inch, 15-inch, 18-inch, and 20-inch variants feature a higher 1:120 worm and gear ratio, providing finer control compared to the 1:72 ratio of the smaller sizes.
Q.What is the difference in center bore taper across the variants?
The 6-inch variant uses an MT2 taper, sizes 8" to 15" use an MT3 taper, and the largest 18" and 20" variants use an MT4 taper to accommodate larger tooling.
