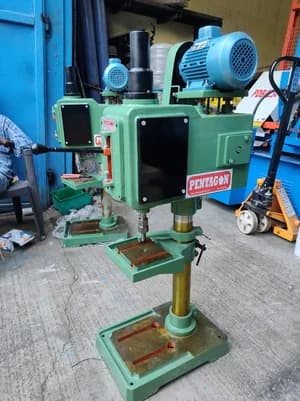

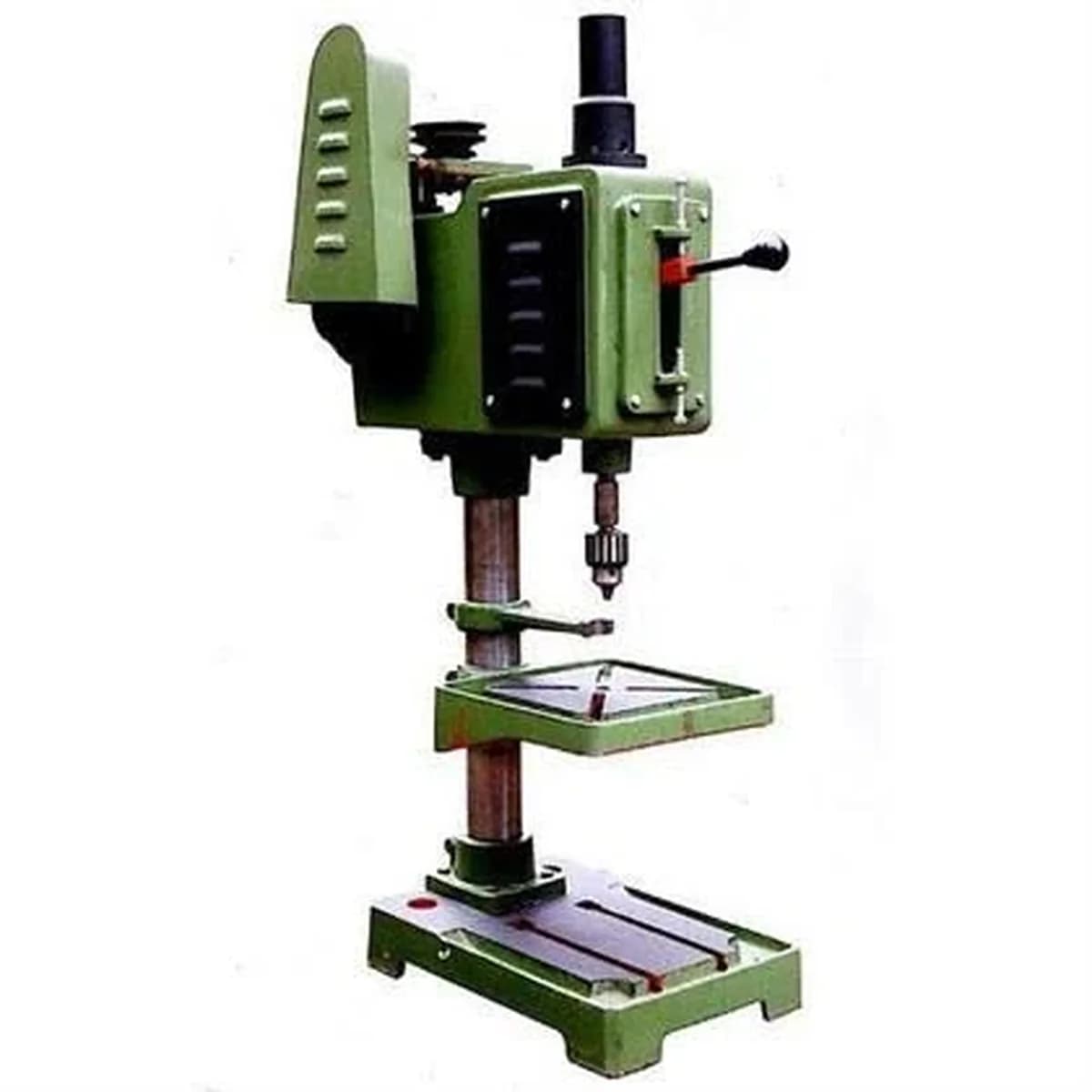

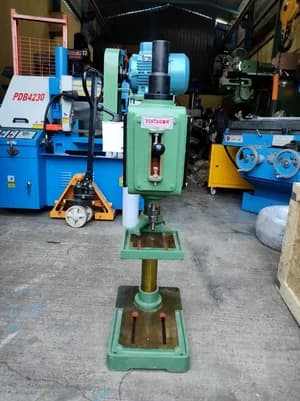

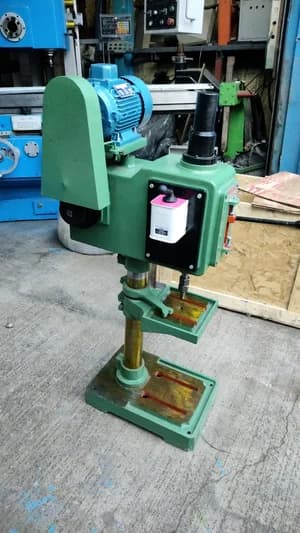

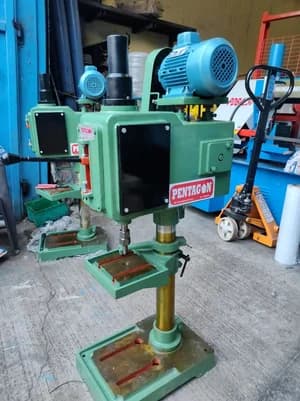

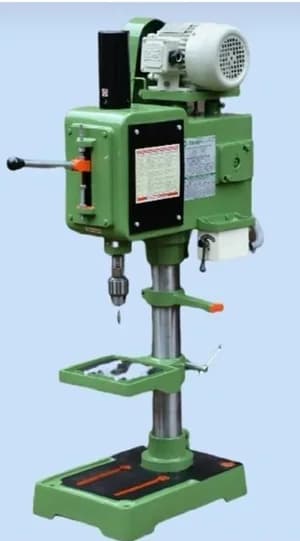

Pillar Type Manual Tapping Machine Cone Clutch Type — PTM 6
Engineered for precision internal thread cutting, this manual tapping machine series features a robust cone clutch system for reliable torque transmission and spindle reversal. Suitable for metalworking shops requiring accurate tapping, drilling, and reaming operations on steel or aluminum components. • Cone clutch provides overload protection and smooth engagement • Vertical pillar design ensures stable spindle alignment • Manual feed control allows operator precision during operation • Compact base supports lightweight to heavy-duty workpieces

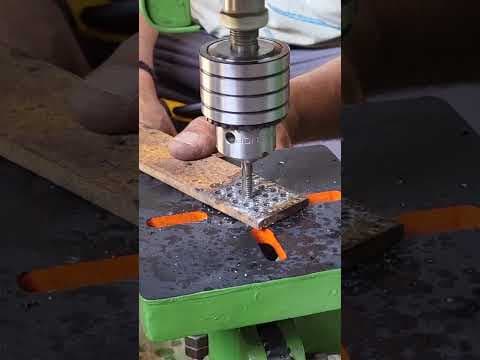

See it in action
Specifications
For: PTM 6- Machine Model
- PTM 6
- Clutch Type
- Cone Clutch Type
- Tapping Capacity
- M6/ 6 mm
- Spindle Travel
- 40 – 60 mm
- Column Diameter
- 50 – 60 mm
- Spindle Speed
- 300 – 700 RPM
- Motor Power
- 0.25 – 0.5 HP
- Table Size
- 150 × 150 mm
- Base Size
- 250 × 300 mm
- Machine Height
- 700 – 850 mm
- Operation Type
- Manual
- Application
- Precision Thread Tapping
- Suitable Materials
- MS, Aluminium, Brass, Plastic
- Weight
- 45 Kgs
Configurations
Click a row to switch| Variant | Price |
|---|---|
| PTM 6 | ₹22,800 |
| PTM 12 | ₹37,800 |
Common Questions
Q: Can this machine handle both soft and hard metals? A: Yes, it is suitable for MS, Aluminium, Brass, and Plastic materials. Q: Is the operation fully automated? A: No, this series features manual feed control for operator precision. Q: What protection does the clutch offer? A: The cone clutch provides overload protection and smooth engagement.
Design & Build Quality
- Heavy-duty construction protects against shop floor wear and tear
- Table size of 150 × 150 mm provides ample workspace for fixtures
- Base size of 250 × 300 mm ensures stability on workshop floors
- Machine height of 700 – 850 mm optimizes ergonomics for operators
- Standard weight of 45 Kgs ensures easy mobility and floor stability
Operational Features
- Manual feed control allows operator precision during critical operations
- Cone clutch provides overload protection and smooth engagement
- Suitable for processing MS, Aluminium, Brass, and Plastic materials
- Supports multiple operations including drilling and reaming tasks
- Column diameter of 50 – 60 mm ensures rigidity during high-torque work
Performance & Capabilities
- Spindle speed ranges from 300 – 700 RPM for versatile machining
- Motor power options between 0.25 – 0.5 HP for varied load needs
- Tapping capacity includes M6/ 6 mm for standard thread applications
- Spindle travel of 40 – 60 mm accommodates different thread depths
- Spindle reversal capability facilitates efficient thread removal and clearing
Product Range & Overview
- Available in PTM6 and PTM12 models to suit different shop requirements
- Engineered for precision internal thread cutting on various components
- Manual cone clutch type design ensures reliable torque transmission
- Vertical pillar structure maintains stable spindle alignment for accuracy
- Compact base supports lightweight to heavy-duty workpiece handling
More like this
Full description
Engineered for precision internal thread cutting, this manual tapping machine series features a robust cone clutch system for reliable torque transmission and spindle reversal. Suitable for metalworking shops requiring accurate tapping, drilling, and reaming operations on steel or aluminum components.
Read more ↓
• Cone clutch provides overload protection and smooth engagement • Vertical pillar design ensures stable spindle alignment • Manual feed control allows operator precision during operation • Compact base supports lightweight to heavy-duty workpieces
