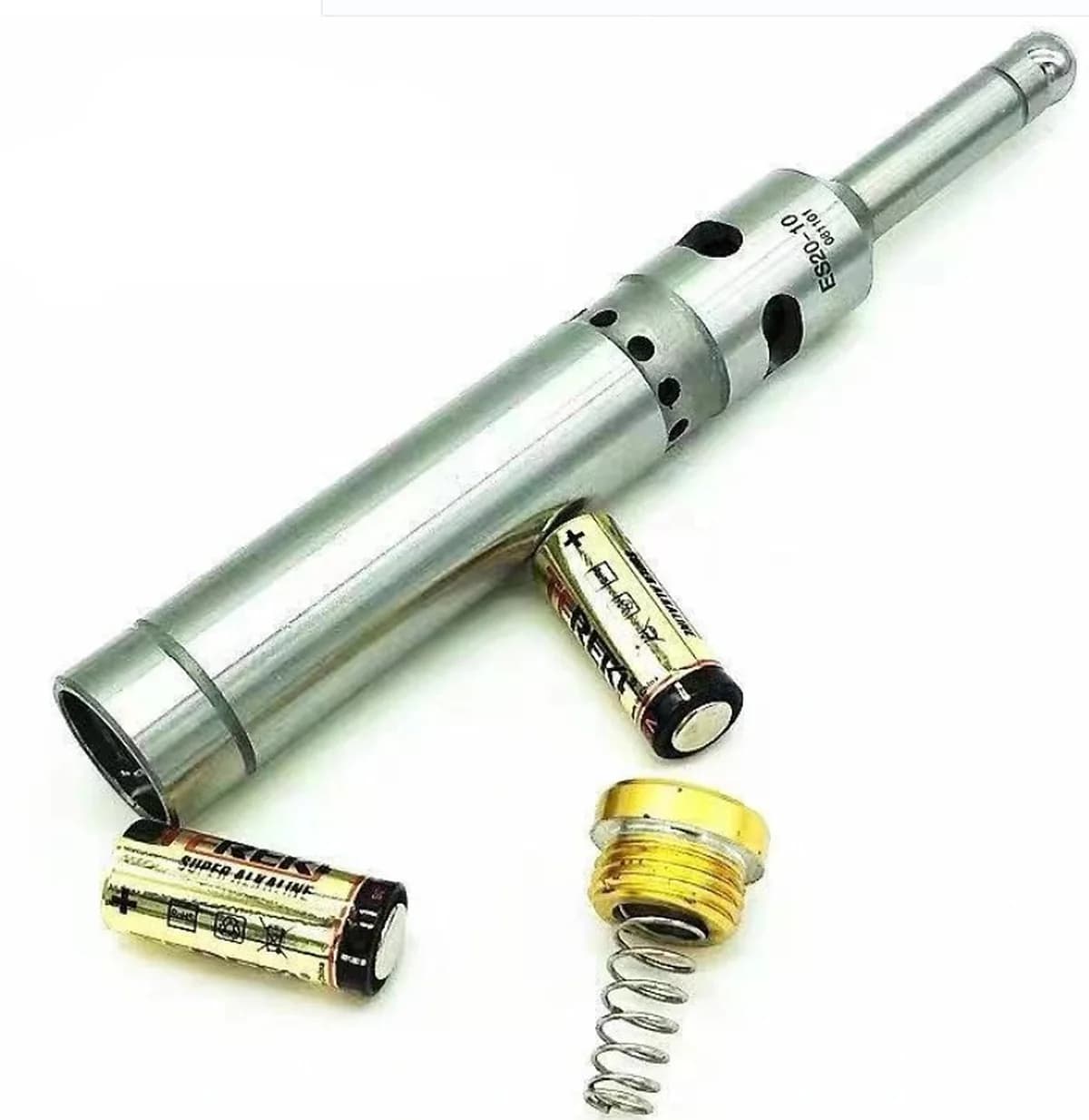

Electronic Light and Beep type Edge Finder Edge Sensor
Precision alignment tool for CNC and milling operations. Electronic edge finder features LED light and beep signals for instant edge detection. • ±0.005 mm accuracy ensures precise setup • Compatible with ER collet and drill chuck systems • Durable stainless steel body for industrial use • Suitable for VMC and drilling machine applications

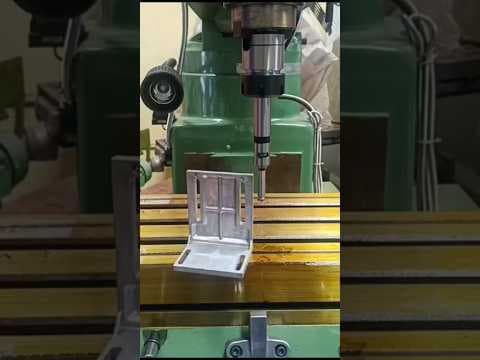

See it in action

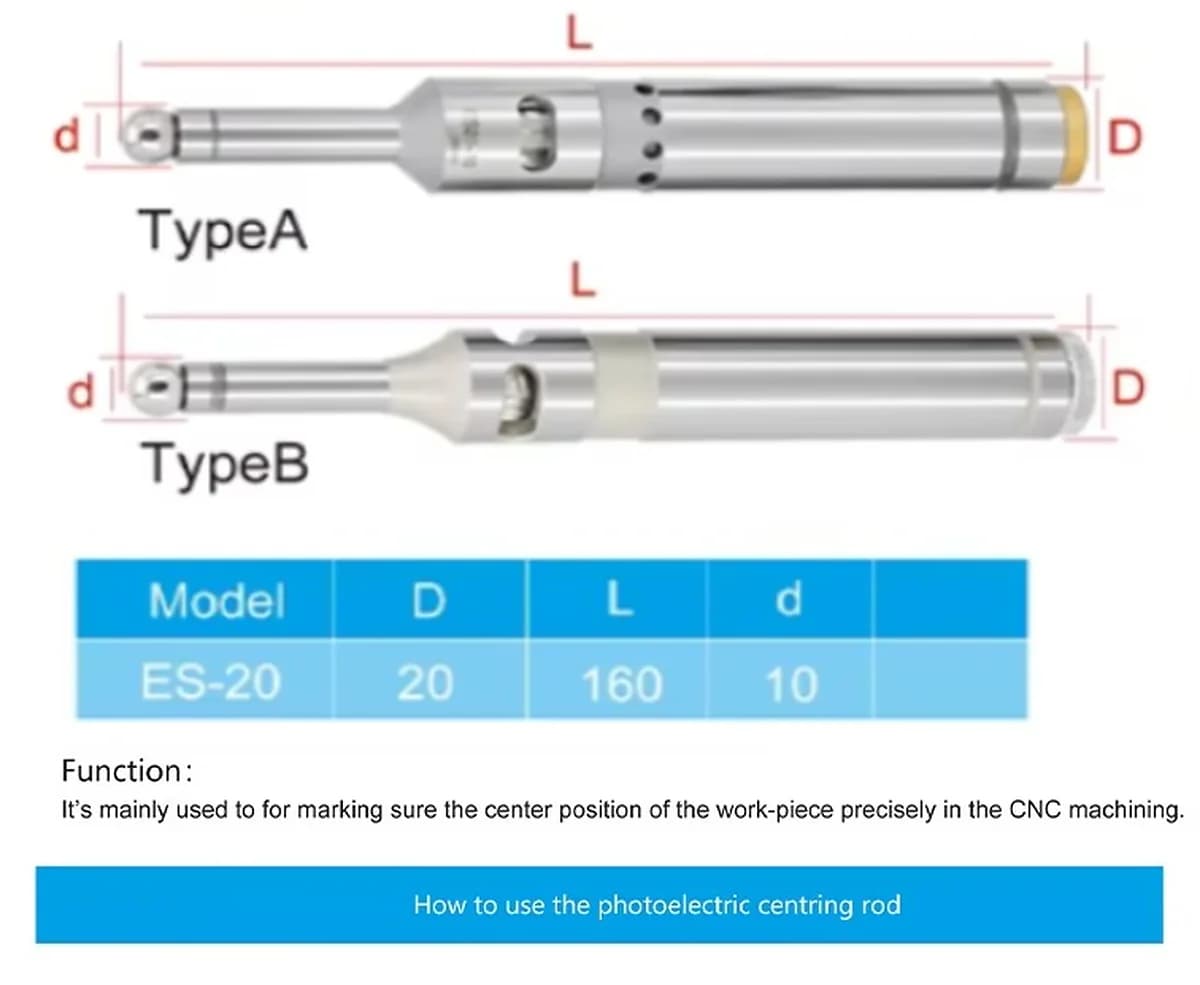

Specifications
For: ES20- Model
- ES20
- Product Type
- Electronic Edge Finder
- Detection Type
- Beep & LED Light Indication
- Shank Diameter
- 20 mm
- Tip Diameter
- 10 mm
- Body Material
- Stainless Steel / Alloy Steel
- Accuracy
- ±0.005 mm
- Battery Type
- 1.5V / LR1 / AAAA Battery
- Recommended Spindle Speed
- 0 – 500 RPM
- Mounting Type
- Collet / Chuck Mounted
- Compatible Holder
- ER Collet / Drill Chuck
- Suitable Machines
- Milling, CNC, VMC, Drilling Machines
- Approx. Net Weight
- 0.15 – 0.25 Kg
- Approx. Packing Size
- 140 × 60 × 50 mm
Construction and Durability
- Durable stainless steel body withstands harsh industrial conditions
- Alloy steel construction ensures longevity in heavy-duty use
- Resistant to coolant and oil exposure common in machine shops
- Robust design maintains calibration under repeated usage
- Built to meet the demands of professional manufacturing floors
Power and Operational Limits
- Recommended spindle speed range is 0 to 500 RPM for safety
- Powered by standard 1.5V / LR1 / AAAA battery for portability
- Low power consumption ensures long battery life during shifts
- Easy battery replacement allows for continuous production use
- Operates efficiently within standard industrial voltage ranges
Mounting and Machine Compatibility
- Compatible with ER collet and drill chuck mounting systems
- Suitable for VMC, CNC, and drilling machine applications
- Designed for seamless integration with standard spindle setups
- Works effectively across various industrial milling environments
- Supports standard tool holder configurations for quick changeovers
Precision Edge Detection Features

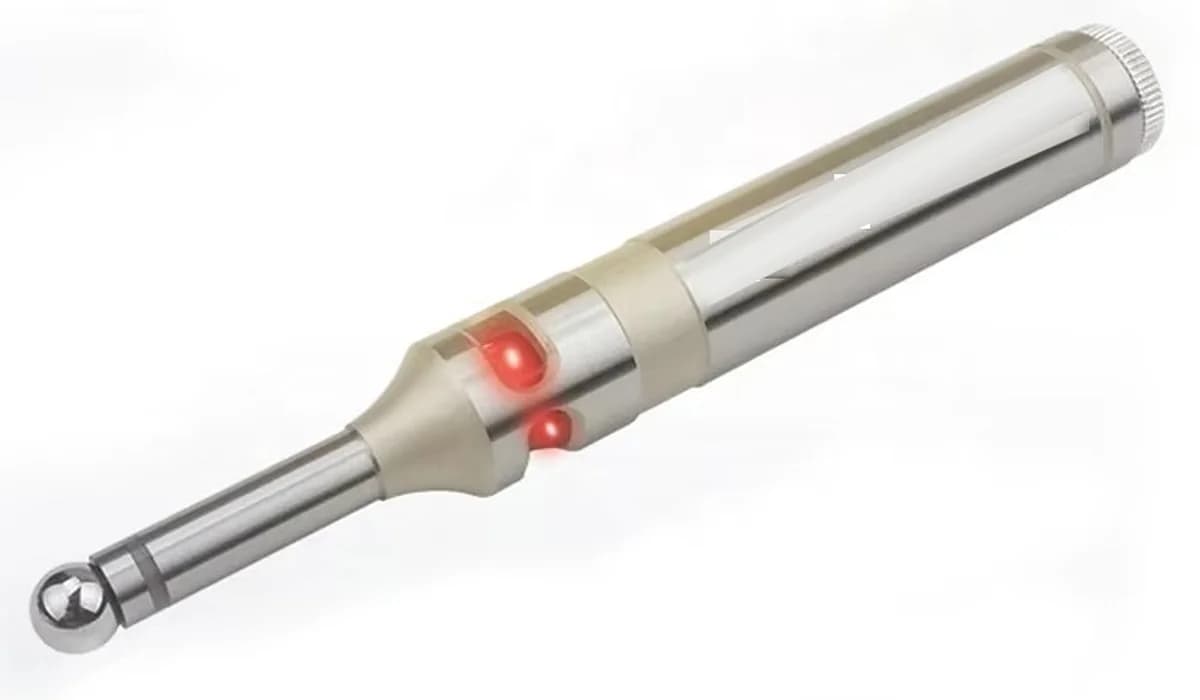

- Features LED light and beep signals for instant edge detection
- ±0.005 mm accuracy ensures precise setup for machining operations
- Electronic sensor technology reduces human error during alignment
- Ideal for high-precision CNC and milling operations
- Provides clear visual and audio feedback to the operator
Frequently asked
How do I know when the edge is detected?
The device triggers an LED light and audible beep signal
What is the maximum safe operating speed?
Do not exceed 500 RPM to prevent damage to the sensor
How often should the battery be replaced?
Replace when the LED brightness dims or beep weakens
Is this suitable for manual milling machines?
Yes, it is compatible with VMC, CNC, and drilling machines
More like this
Full description
Precision alignment tool for CNC and milling operations. Electronic edge finder features LED light and beep signals for instant edge detection. • ±0.005 mm accuracy ensures precise setup • Compatible with ER collet and drill chuck systems • Durable stainless steel body for industrial use • Suitable for VMC and drilling machine applications
