Mechanical Edge Finder Edge Sensor — PE10S
PENTAGONSold by Gearo
Precision tools for workpiece alignment in milling and CNC operations. These spring-loaded sensors ensure accurate setup through contact detection. • Mechanical contact method for reliable edge detection • High hardness HRC 58–62 for long service life • Compatible with ER collet and drill chuck systems • ±0.005 mm accuracy for precision machining tasks.
₹980₹1,760Save 44%
+ 18% GST · Excl. delivery
In stock
Dispatched same day
Tell us the quantity — we'll send a final quote with delivery
GST invoice on every order
Warranty — Gearo handles claims
100% original equipment
Installation available pan-India
See it in action
Specifications
For: PE10S- Model
- PE10S
- Shank Diameter
- 10 mm
- Body Type
- Spring Loaded Mechanical Type
- Hardness
- HRC 58–62
- Accuracy
- ±0.005 mm
- Measuring Method
- Mechanical Contact Type
- Rotation Speed
- 400 – 600 RPM Recommended
- Overall Length
- Approx. 90–100 mm
- Contact Point Type
- Cylindrical
- Application
- Edge Finding & Center Alignment
- Mounting Type
- Collet / Drill Chuck
- Compatible Collet
- ER Collet / Drill Chuck
- Packing Type
- Plastic Storage Box
- Approx. Packing Size
- 120 × 40 × 40 mm
- Approx. Net Weight
- 0.10 – 0.15 Kg
Configurations
Click a row to switch| Variant | Body Type | Shank Diameter | Overall Length | Price |
|---|---|---|---|---|
| PE10S | Spring Loaded Mechanical Type | 10 mm | Approx. 90–100 mm | ₹980 |
| PE10G | Spring Loaded Mechanical Type | 10 mm | Approx. 90–100 mm | ₹1,260 |
Common Applications
- Ideal for CNC milling machines and machining centers
- Used for setting workpiece zero points on the machine table
- Suitable for die and mold making alignment tasks
- Effective for locating edges of raw material stock
- Supports setup procedures in general manufacturing workshops
Packaging & Handling

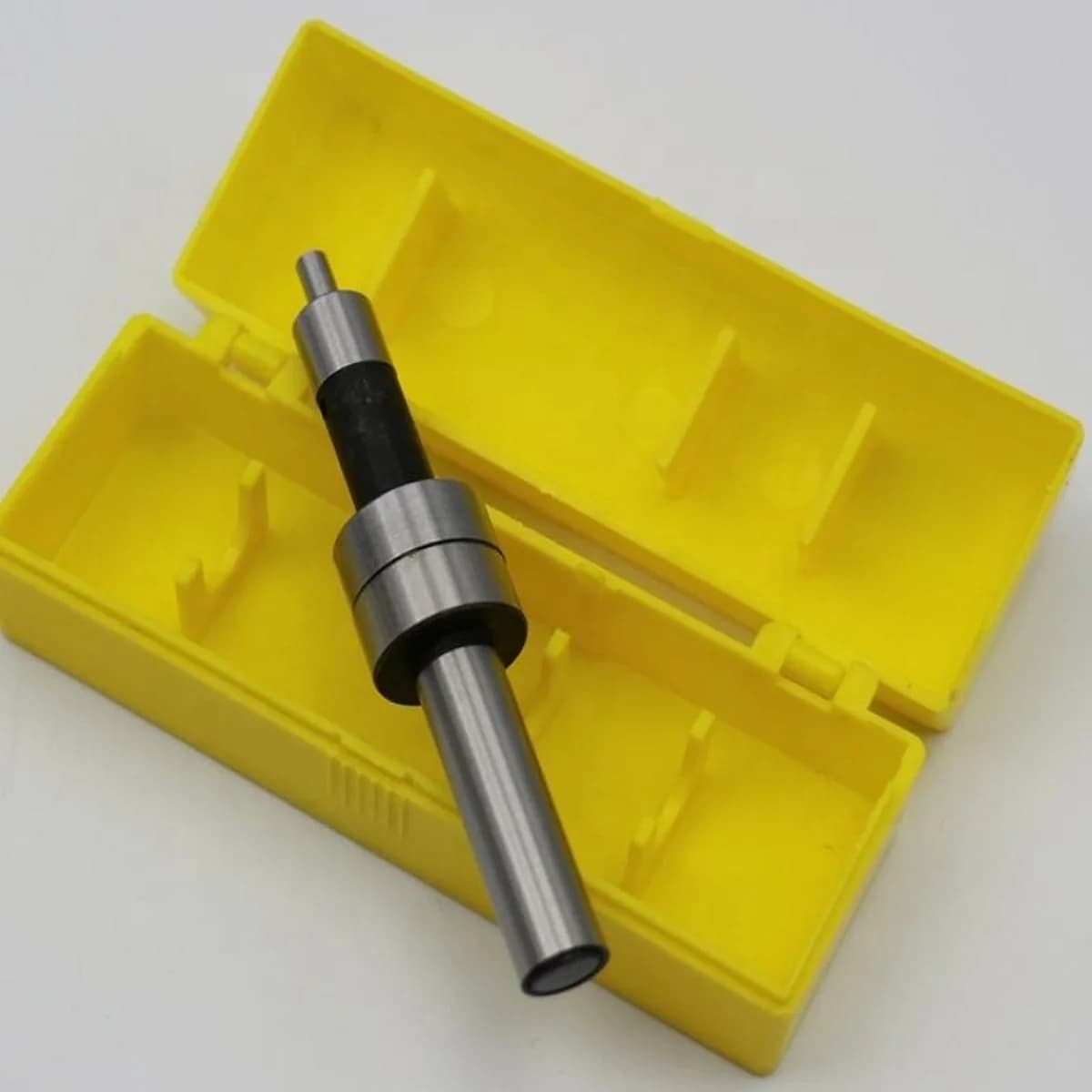

- Supplied in a protective plastic storage box for safe transport
- Lightweight design with net weight approx 0.10 – 0.15 Kg
- Packing size approx 120 × 40 × 40 mm for easy inventory management
- Handle with care to maintain calibration and contact point integrity
- Store in dry environment to prevent rust or corrosion on metal parts
Construction & Durability
- Built with robust materials to withstand repeated contact and wear
- Spring loaded mechanism protects the contact point from damage
- High hardness rating ensures long service life in demanding environments
- Compact design allows access to tight workspaces and fixtures
- Reliable mechanical action requires no external power sources
Operational Guidelines
- Compatible with ER collet and drill chuck mounting types
- Recommended rotation speed ranges from 400 – 600 RPM for optimal performance
- Spring loaded mechanical body type ensures sensitive touch detection
- Standard shank diameter options include 10 mm for versatile tooling
- Overall length typically approximates 90–100 mm for machine clearance
Precision Performance
- Achieves high accuracy with tolerance of ±0.005 mm for critical alignment
- Utilizes mechanical contact type measuring method for reliable feedback
- Features hardened construction with hardness rating of HRC 58–62
- Designed for edge finding and center alignment in machining operations
- Includes cylindrical contact point for consistent surface contact
