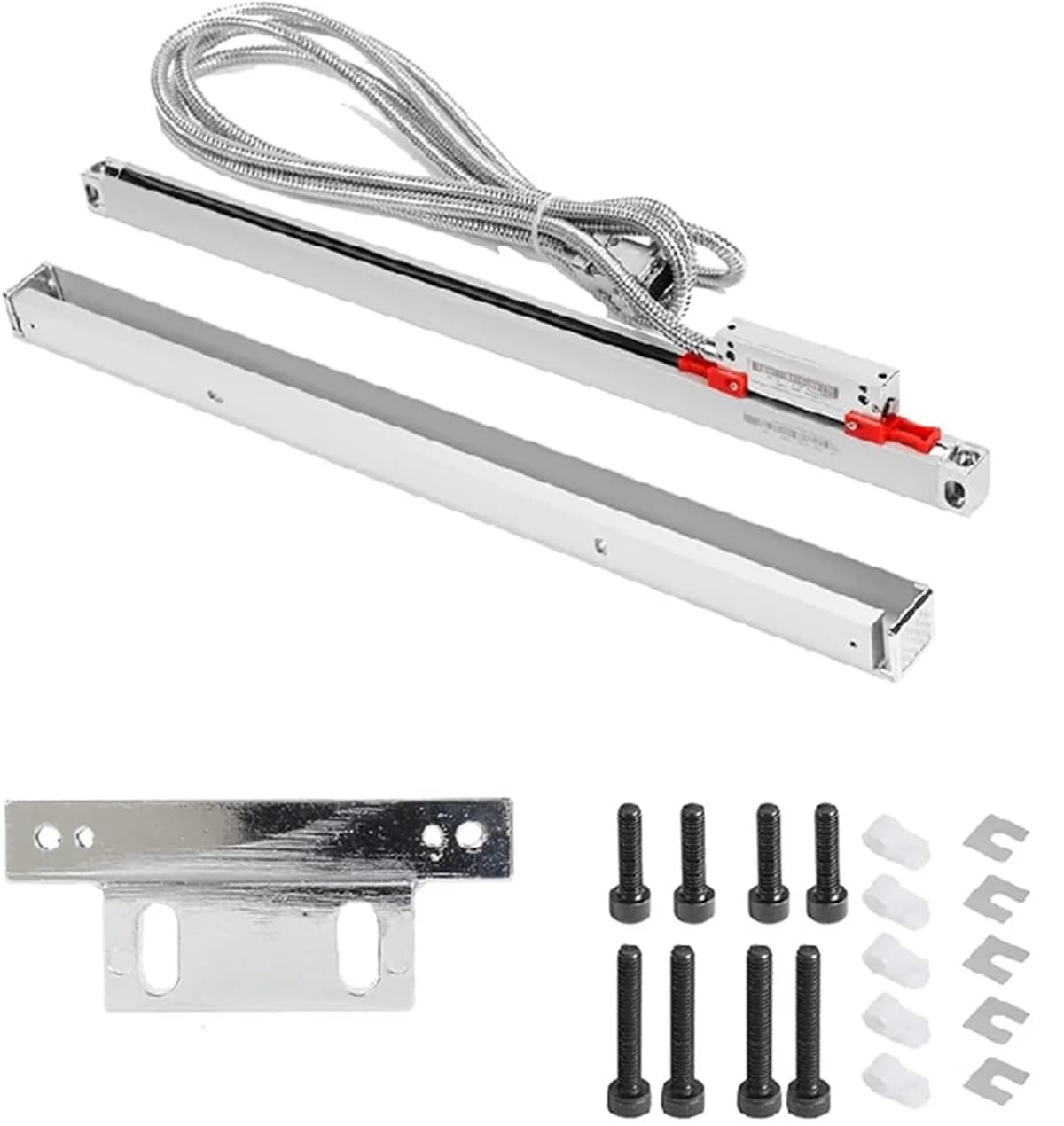

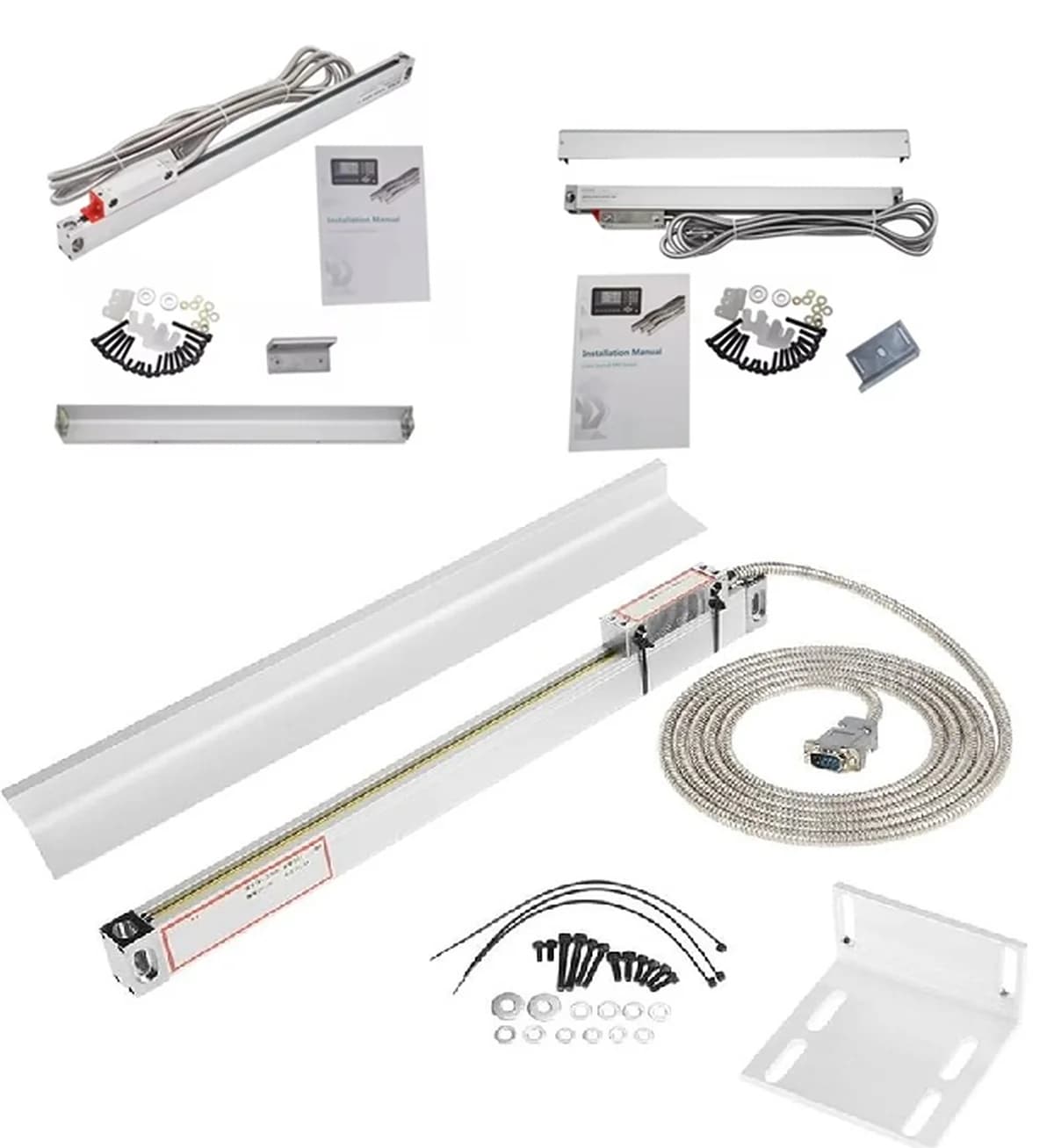

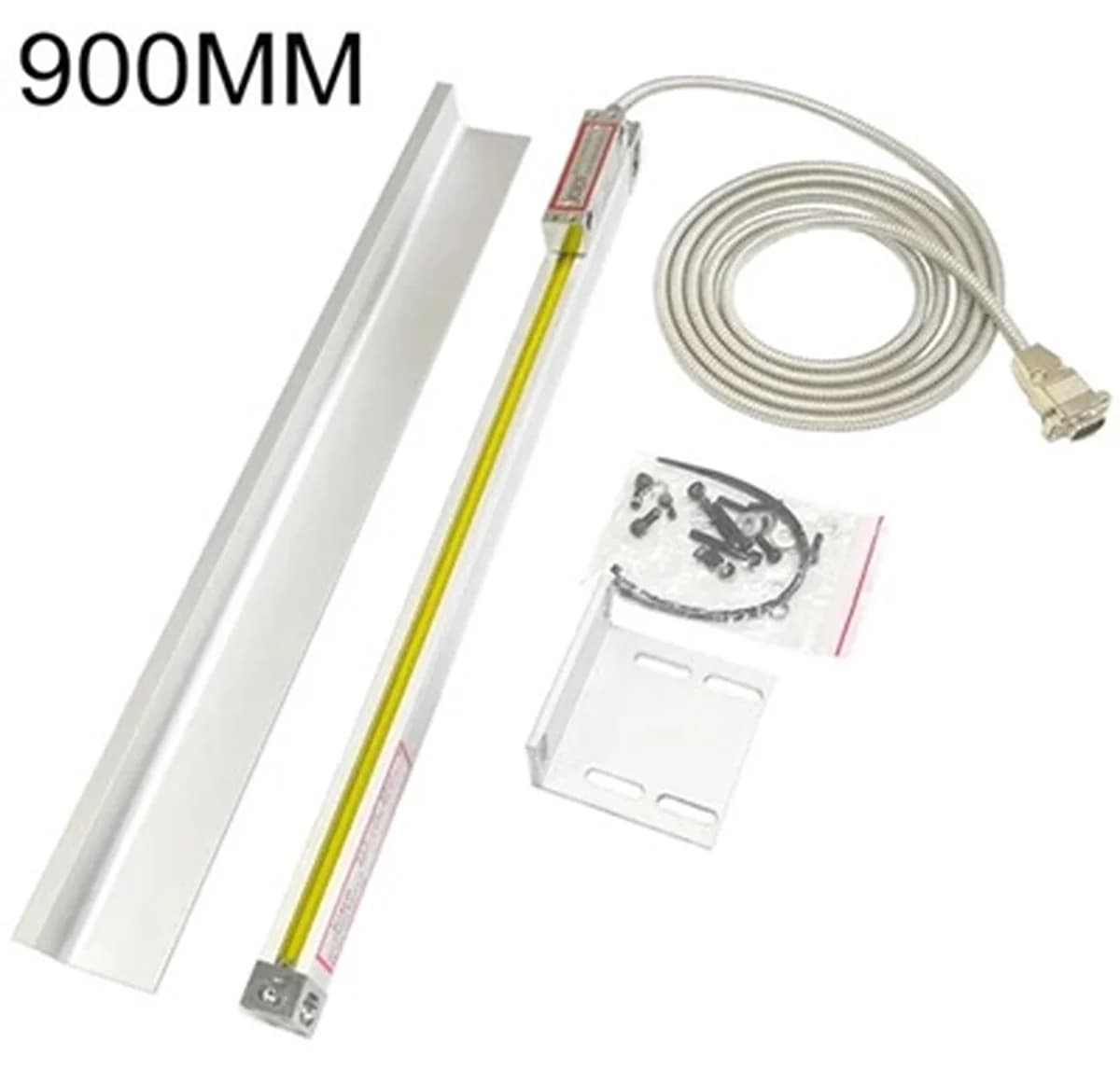

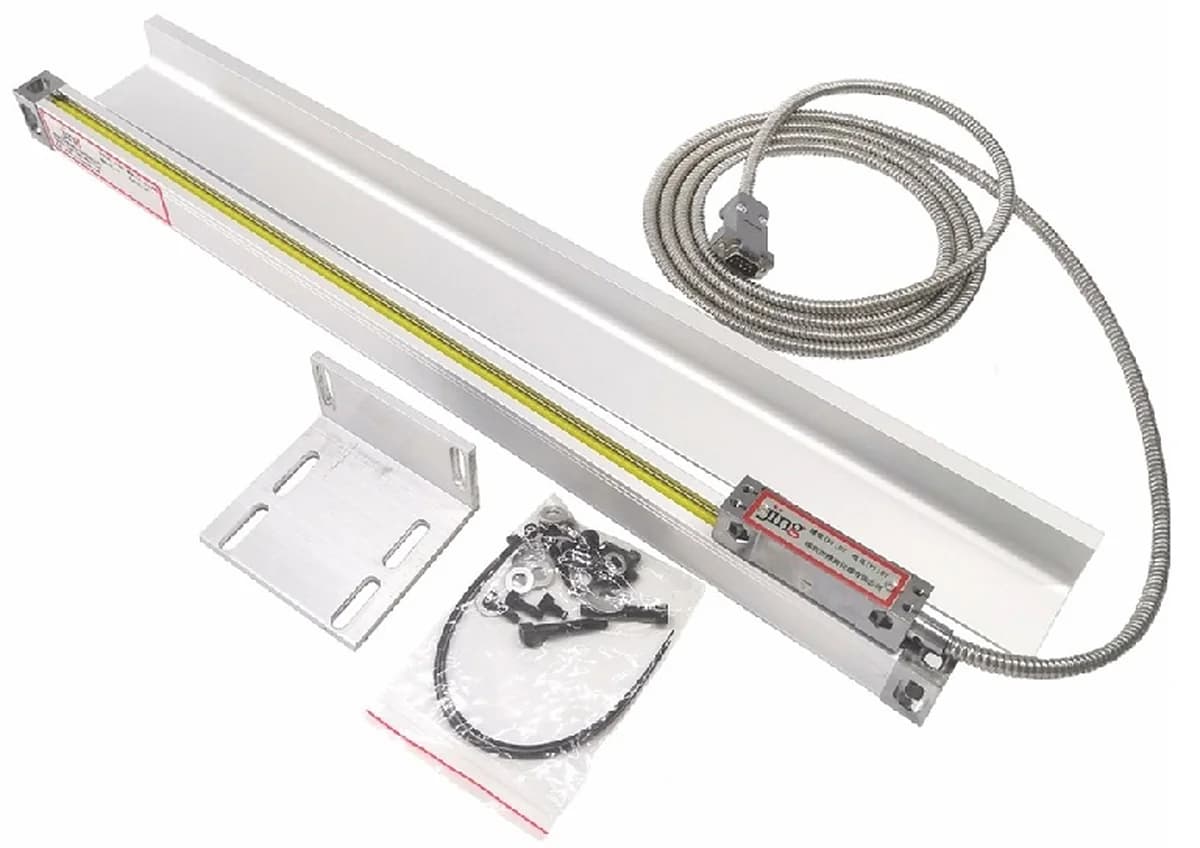

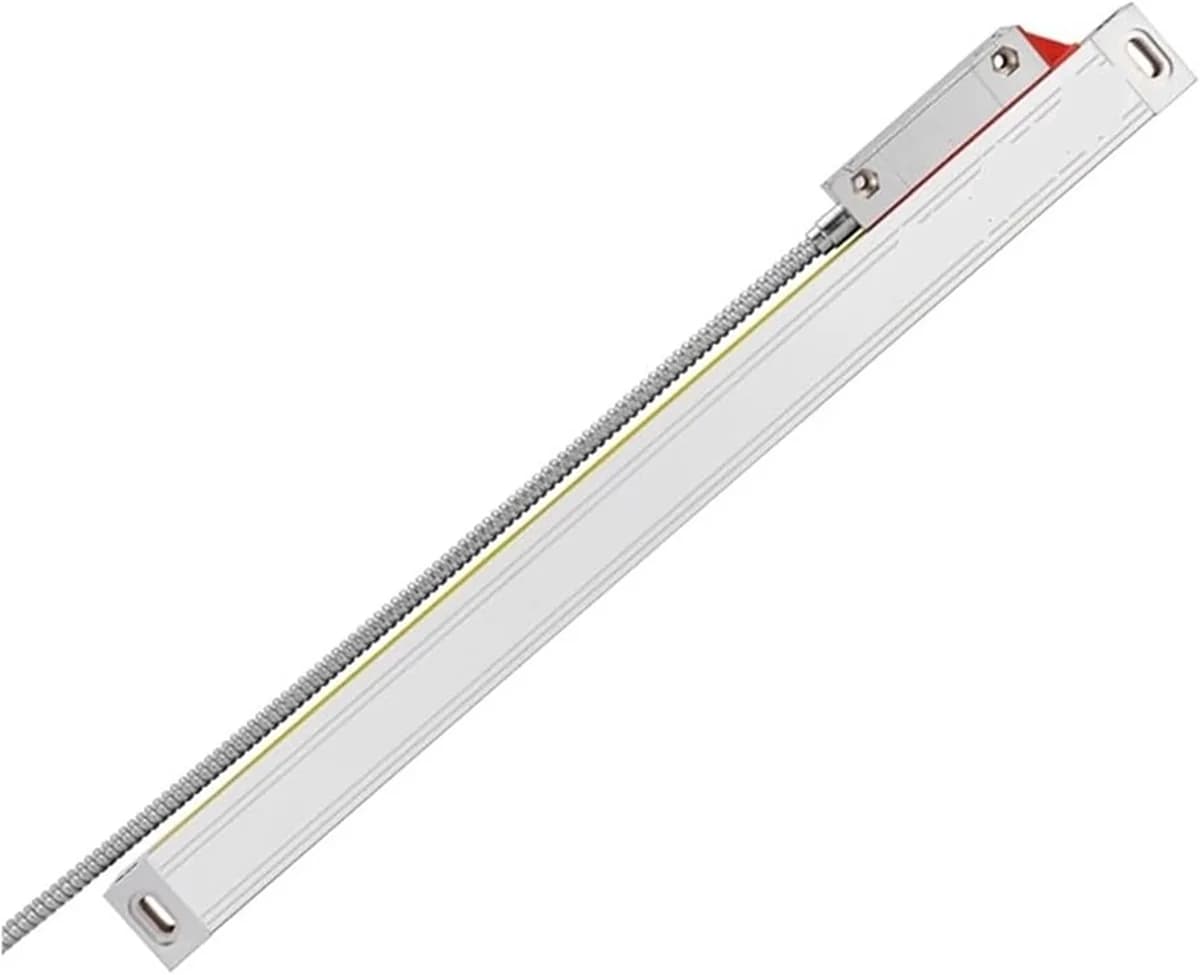

SINO Brand KA-600 Series Optical Linear Glass Scale — KA600-1200/0.005 mm
High-precision optical linear glass scales provide reliable position measurement for machine tools and digital readout systems. These robust encoders operate in demanding industrial environments with consistent accuracy. • IP53 protection against dust and coolant • TTL Square Wave and RS-422A output signals • Available in lengths from 1200 mm to 3000 mm • 5µm or 1µm resolution options for varied applications
See it in action
Specifications
For: KA600-1200/0.005 mm- Model
- KA600-1200/0.005 mm
- Measuring Length
- 1200 mm
- Resolution
- 5µm (0.005 mm)

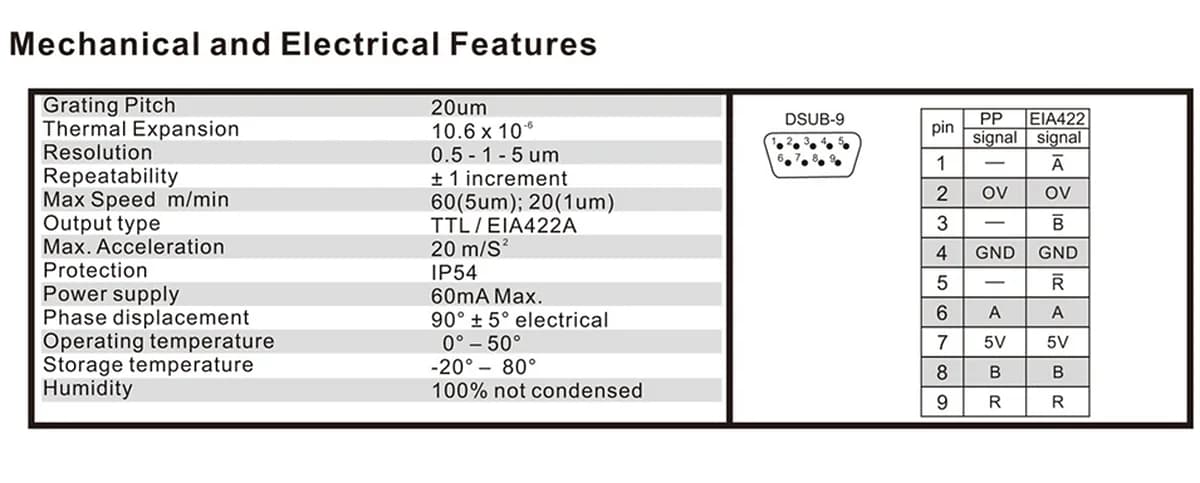

- Connector
- DB9 (9-pin D-Sub)
- Repeatability
- ±1 count
- Cross Section Size
- 30 × 66 mm
- Protection Rating
- IP55
- Output Signals
- TTL / EIA-422A (RS-422)
- Max. Running Speed
- 60 m/min
- Max. Acceleration
- 20 m/s²
- Power Supply
- 5V DC
Configurations
Click a row to switch| Variant | Measuring Length | Resolution | Output Signals | Price |
|---|---|---|---|---|
| KA600-1200/0.005 mm | 1200 mm | 5µm (0.005 mm) | TTL / EIA-422A (RS-422) | ₹15,500 |
| KA600-1200/0.001 mm | 1200 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹16,700 |
| KA600-1400/0.005 mm | 1400 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹18,900 |
| KA600-1400/0.001 mm | 1400 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹20,900 |
| KA600-1600/0.005 mm | 1600 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹24,900 |
| KA600-1600/0.001 mm | 1600 mm | 1µm (0.001 mm) | TTL Square Wave / RS-422A | ₹26,900 |
| KA600-1800/0.005 mm | 1800 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹31,900 |
| KA600-2000/0.005 mm | 2000 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹33,700 |
| KA600-2200/0.005 mm | 2200 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹38,900 |
| KA600-2400/0.005 mm | 2400 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹45,000 |
| KA600-2600/0.005 mm | 2600 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹52,900 |
| KA600-2800/0.005 mm | 2800 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹59,900 |
| KA600-3000/0.005 mm | 3000 mm | 5µm (0.005 mm) | TTL Square Wave / RS-422A | ₹66,700 |
Ideal Use Cases and Industries
- Precision measurement for CNC machine tools

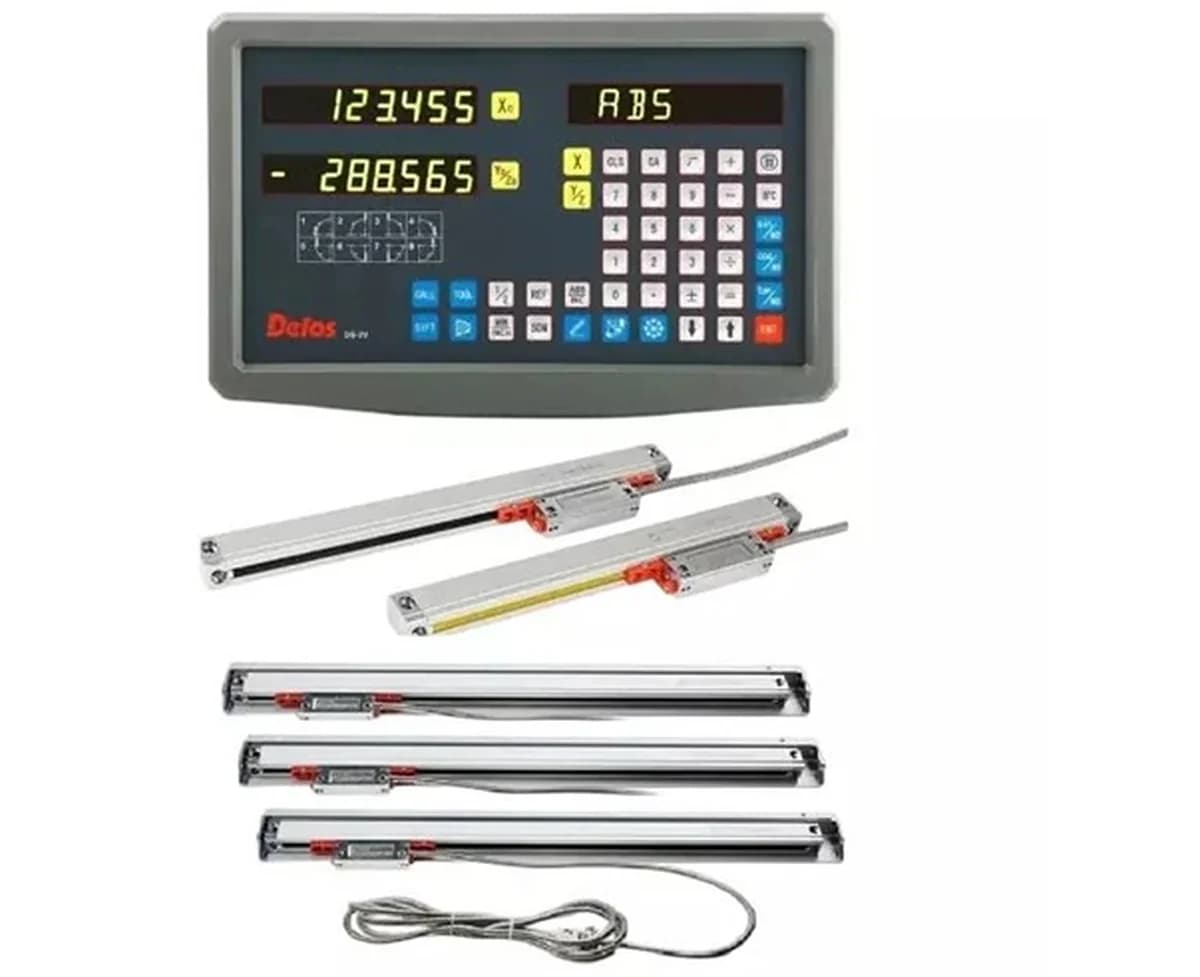

- Digital readout systems for retrofitting
- Metrology equipment requiring high linearity
- Automation machinery with high cycle speeds
- Industrial environments with coolant exposure

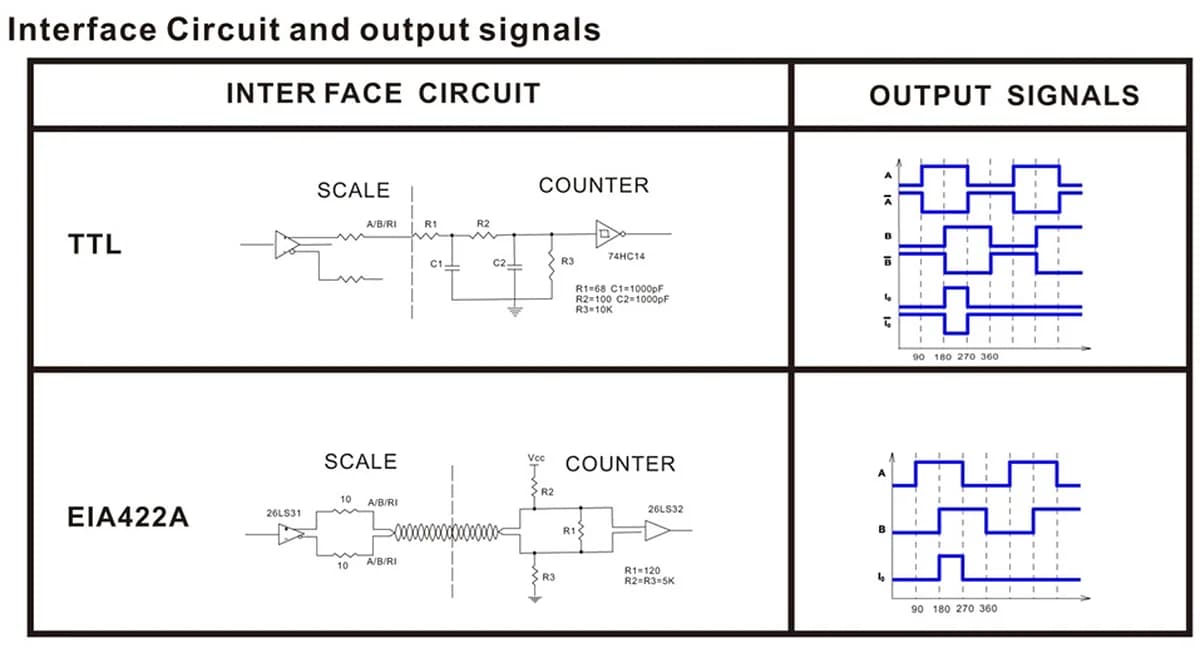

Signal Output and Connectivity
- TTL Square Wave and RS-422A output signals available
- Connector type is DB9 (9-pin D-Sub)
- Compatible with most digital readout systems
- RS-422A offers improved noise immunity
- Easy integration with existing control systems
Environmental Protection and Construction
- IP53 protection against dust and coolant ingress
- Robust encoders operate in demanding industrial environments
- Slim scales design minimizes space requirements

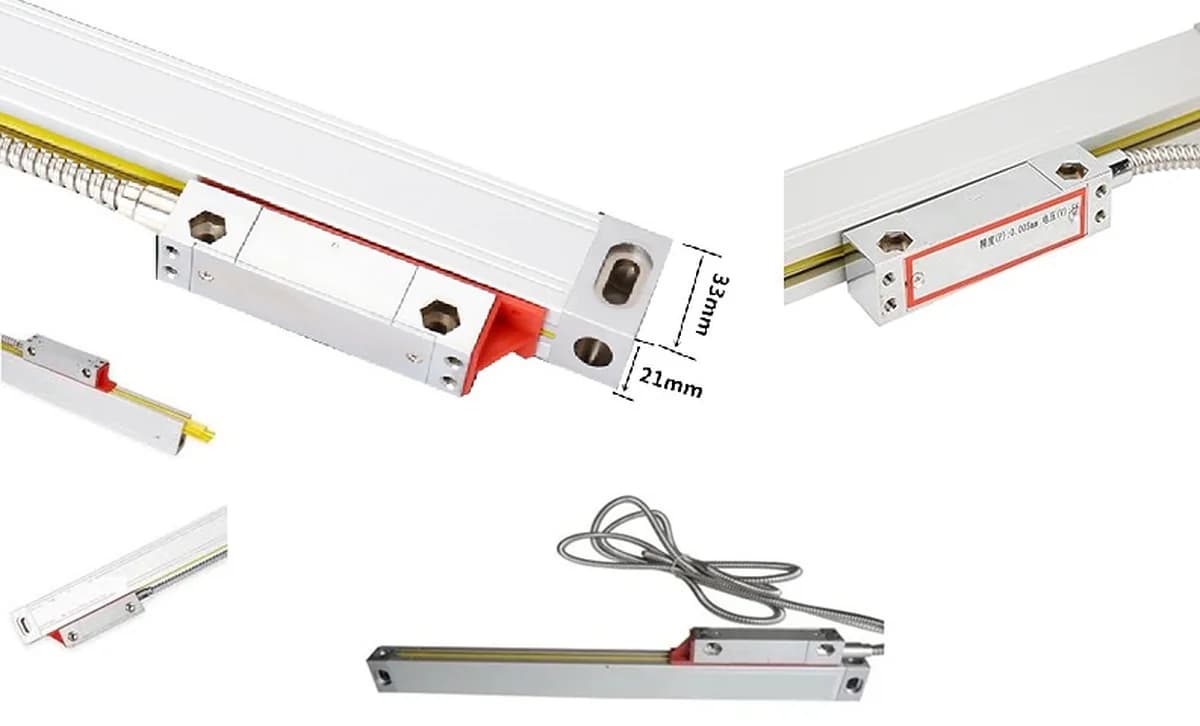

- Cross section size of 30 × 66 mm for standard mounting
- Reliable position measurement for machine tools
- Consistent accuracy during continuous operation
KA-600 Series Performance Highlights
- SINO Brand KA-600 Series optical linear glass scales
- Available in lengths from 1200 mm – 3000 mm
- 5µm or 1µm resolution options for varied applications
- High repeatability with ±1 count accuracy
- Max running speed of 60 m/min for dynamic use
- Max acceleration capability of 20 m/s²
- Power supply requirement of DC 5V ±5%
Frequently asked
What resolutions are available?
5µm or 1µm resolution options for varied applications
What is the protection rating?
IP53 protection against dust and coolant
What is the max speed?
Max. running speed is 60 m/min
