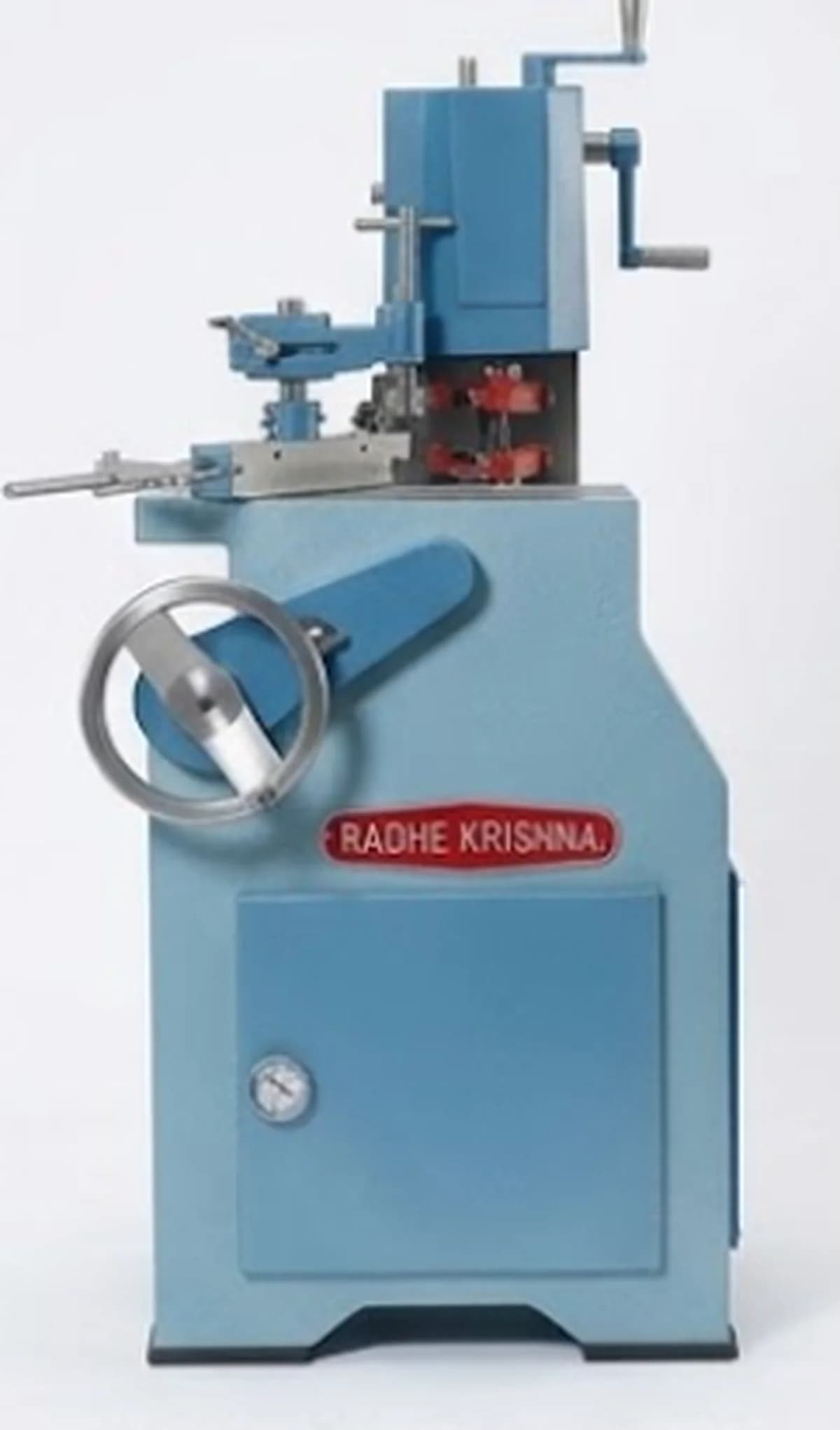

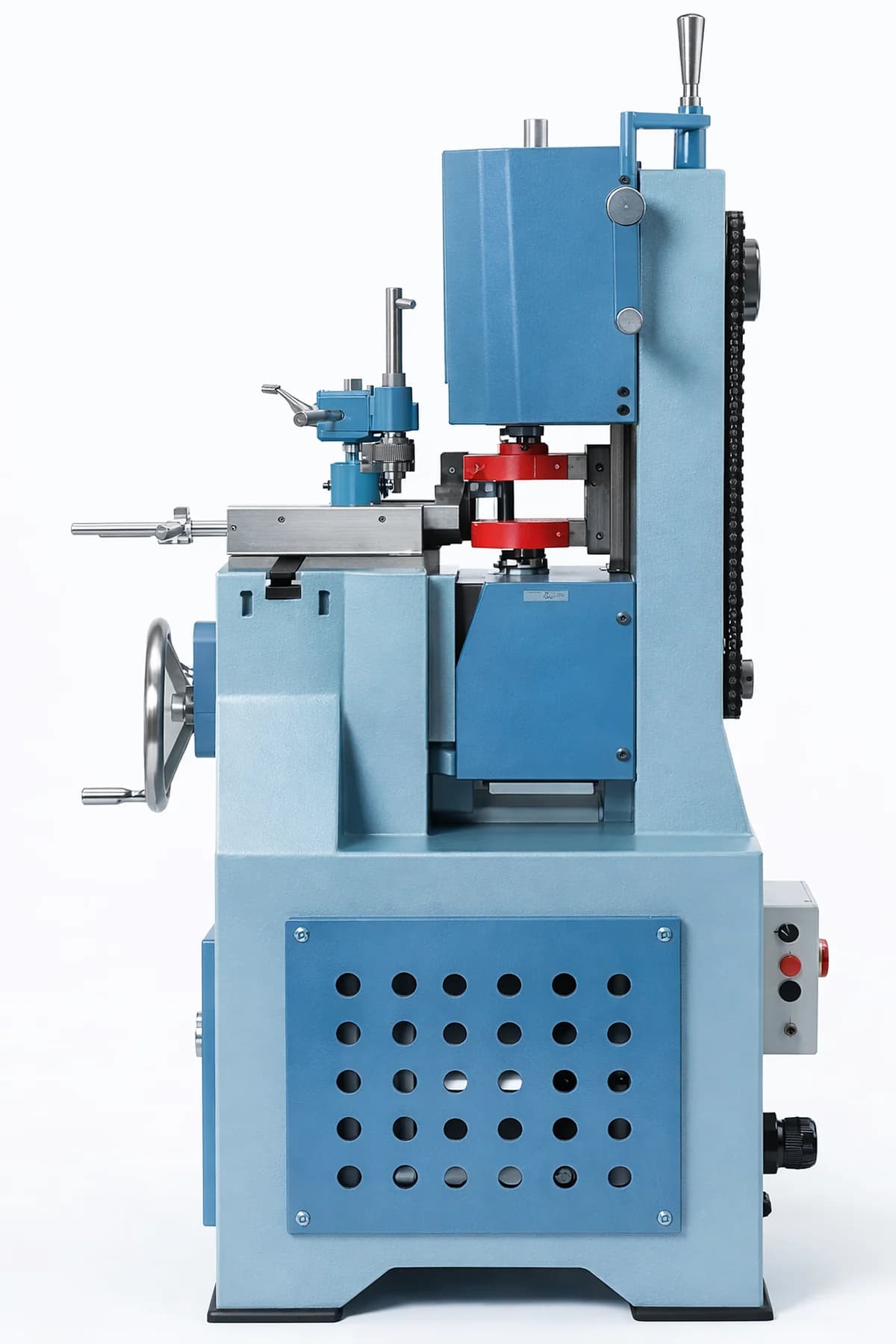

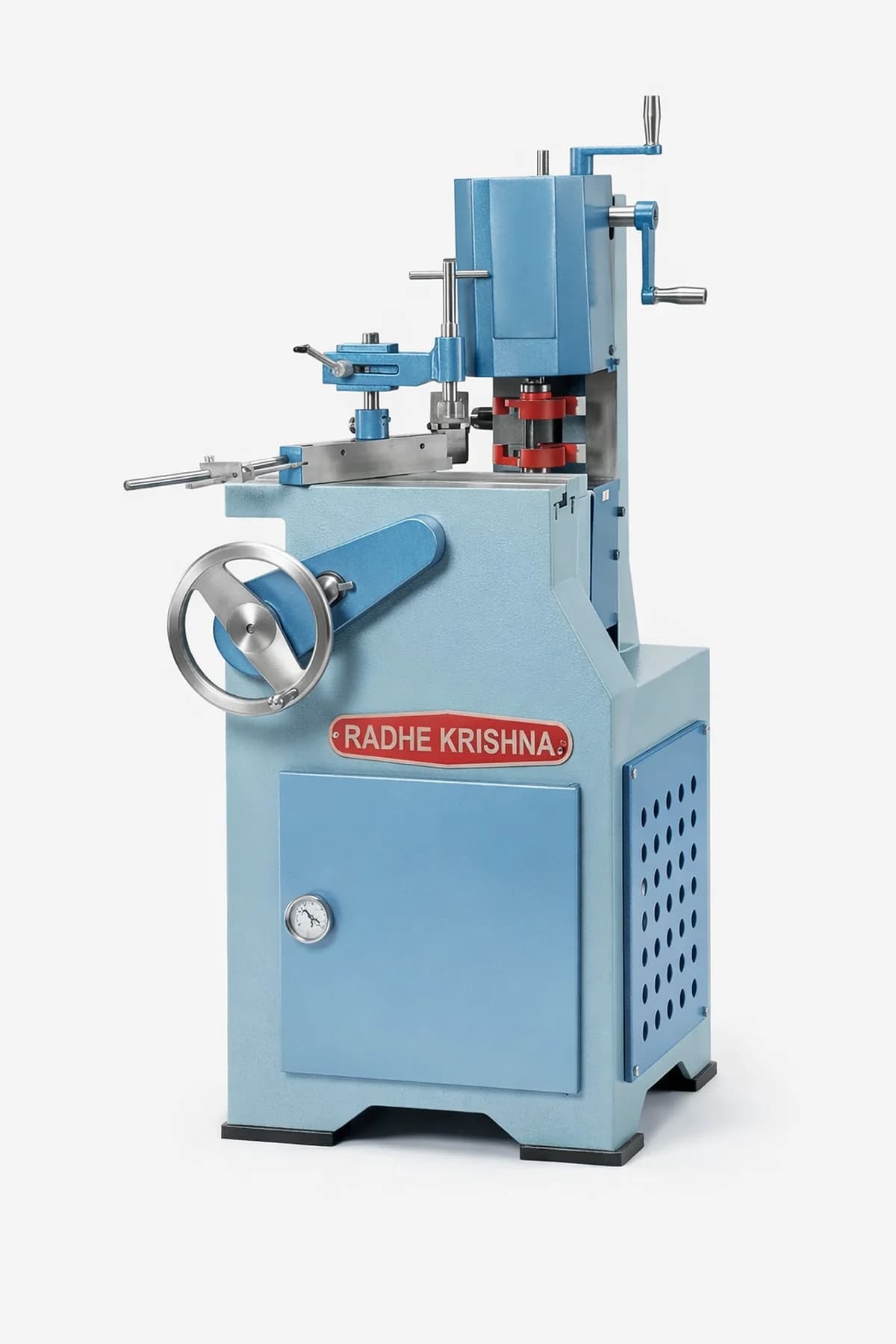

Radhekrishna Heavy Duty Automatic Tenon Machine with Electric Motor RKI-134
This tenoning machine delivers precise joinery for industrial woodworking. It handles workpieces up to 100 mm wide with a 6 inch max tenon length. • 21”x8” table with 8” movement for secure positioning • 6” Dia x 1” cutter block for consistent profiling • Dual 2 HP three-phase motors at 2800 RPM • 250 KG frame ensures stable machining
Specifications
For: RKI-134- Model
- RKI-134
- Automatic Grade
- Manual
- Table Size
- 21”x8”
- Table Movement
- 8”
- Max Workpiece Width
- 100 mm
- Motor Configuration
- 2 Motors
- Motor Power
- 2 HP Each (3 Phase)
- Motor Speed
- 2800 RPM
- Tenoner Type
- Single End
- Max. Length of Tenon
- 6”
- Number of Heads
- 2 Head
- Carbide cutter
- 2 Nos.
- Cutter Block Size
- 6" Dia x 1"
- Weight
- 250 KG
Heavy-Duty Construction & Operational Efficiency
- Cast iron and steel frame construction maintains alignment under load
- 3-phase motor configuration delivers balanced torque for continuous duty
- Interchangeable cutter blocks allow quick adaptation to different tenon profiles
- Open table design facilitates easy chip evacuation and debris removal
- Simplified mechanical linkages reduce downtime during routine adjustments
- Optimized weight distribution prevents machine shifting during high-feed operations
Ideal Industries & Material Compatibility
- Engineered specifically for sal wood processing and hardwood joinery
- Supports furniture manufacturing requiring durable mortise and tenon joints
- Suitable for cabinet making and custom woodworking workshops
- Handles dense timber species without excessive tool wear or stalling
- Provides consistent output for batch production and custom orders
- Compatible with standard workshop power infrastructure and safety protocols
Operational Workflow & Precision Control
- Manual grade operation provides operators with direct feed control
- Table movement mechanism allows precise positioning for repeat cuts – 8 inch stroke
- Carbide cutter blocks rotate at 2800 RPM for clean wood fiber separation
- Single-end design streamlines workflow for focused tenon production
- Adjustable table height and fence settings accommodate varying stock sizes
- Direct drive motor configuration minimizes power transmission loss
- Heavy base construction dampens operational noise and chatter
Core Capabilities & Configuration
- Dual motor setup delivers 2 HP each for consistent cutting performance
- Combined motor output delivers 5 HP total for sustained heavy-duty cutting
- Powered by a reliable 3-phase electrical supply for industrial stability
- Dual-head arrangement supports single-end tenoning operations
- Equipped with two carbide cutters mounted on 6-inch diameter by 1-inch blocks
- Accommodates workpieces up to 100 mm in maximum width
- Supports tenon lengths reaching up to 6 inches for versatile joinery
- Features a 21 by 8 inch work table with 8 inches of linear movement
- Machine weight of approximately 280 kg ensures stable vibration control
Frequently asked
What power supply is required for operation?
The machine requires a standard 3-phase electrical connection to run both motors.
Can the cutter blocks be replaced for different tenon sizes?
Yes, the 6-inch diameter cutter blocks are designed for straightforward replacement.
How does the manual grade affect production speed?
Manual feed allows operators to control cut depth and rate for higher precision.
Is the machine suitable for softwoods or only hardwoods?
While optimized for dense materials like sal wood, it processes standard hardwoods effectively.
More questions buyers ask
What is a tenon machine used for?
A tenon machine is a specialized woodworking tool used to cut a tenon, which is a projecting piece of wood made for insertion into a mortise in another piece to form a joint.
What are the key features of the Radhekrishna Automatic Tenon Machine?
This model is a heavy-duty, automatic machine featuring two motors, each with 2 HP, ensuring powerful and precise operation for industrial woodworking applications.
What is the total power rating of this tenon machine?
The machine has a total power of 5 HP, driven by two separate 2 HP motors for the main cutting operations.
Is this machine suitable for heavy-duty industrial use?
Yes, the Radhekrishna Tenon Machine is designed for heavy-duty use in professional workshops and industrial manufacturing environments.
What is the RPM of the motors?
The motors on this machine operate at a speed of 2800 RPM, providing clean and efficient cuts.
Do you provide a warranty for the Radhekrishna Tenon Machine?
Yes, all our industrial machines, including this one, come with a standard manufacturer's warranty. Please contact our sales team for specific warranty details.
Can I get a GST invoice for my purchase?
Absolutely. We provide a proper GST invoice for all B2B purchases, allowing you to claim input tax credit.
Do you offer delivery across India?
Yes, we offer pan-India delivery to all major cities and industrial areas. Shipping charges may vary based on your location.
What materials can this tenon machine work with?
This machine is designed to work with various types of wood, including hardwoods and softwoods, for creating strong furniture and structural joints.
Is professional installation required for this machine?
While the machine comes with a user manual, we recommend professional installation and setup to ensure optimal performance and safety. We can assist in connecting you with installation experts.
