Pillar Drilling and Tapping Machine PDT-20

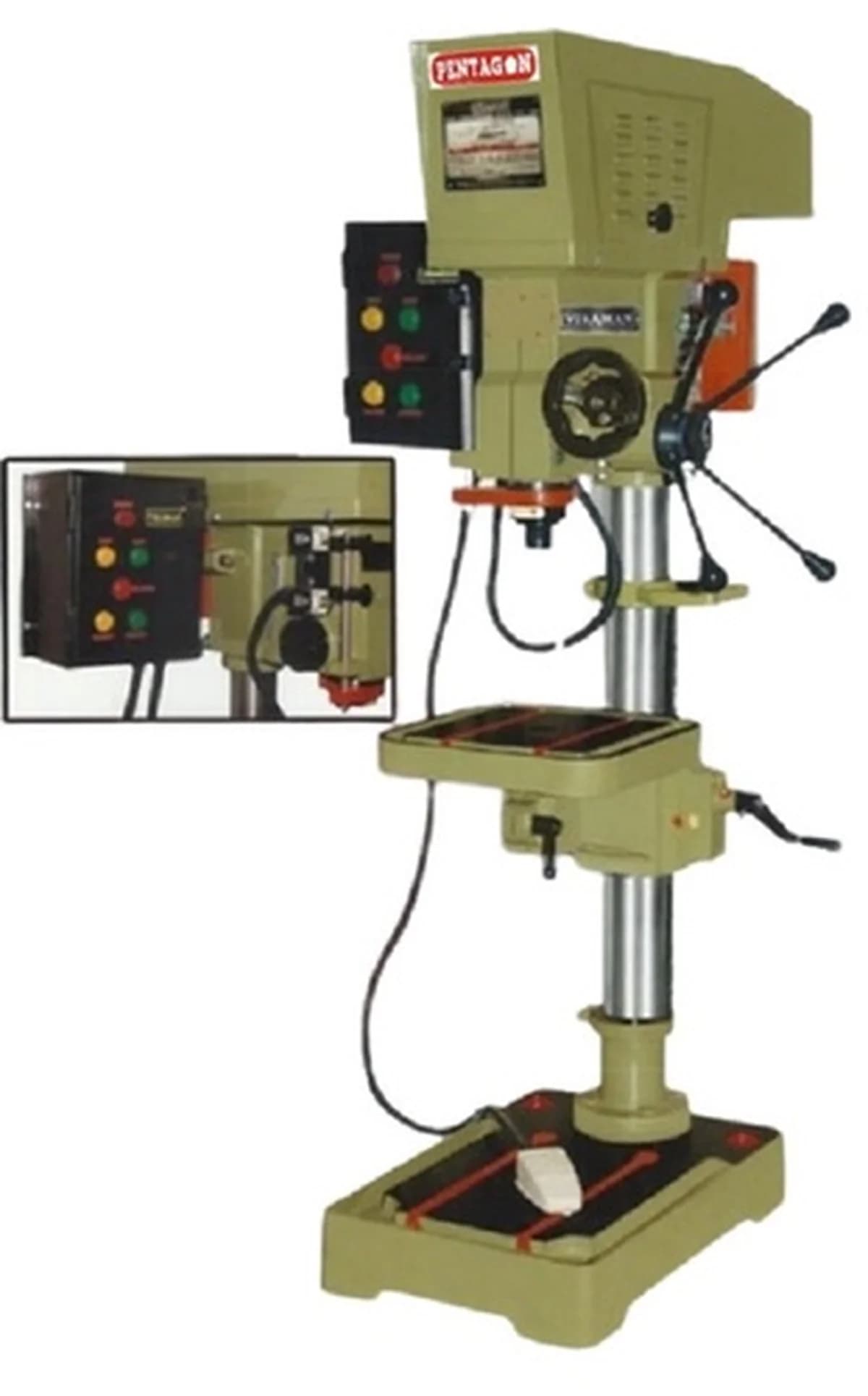

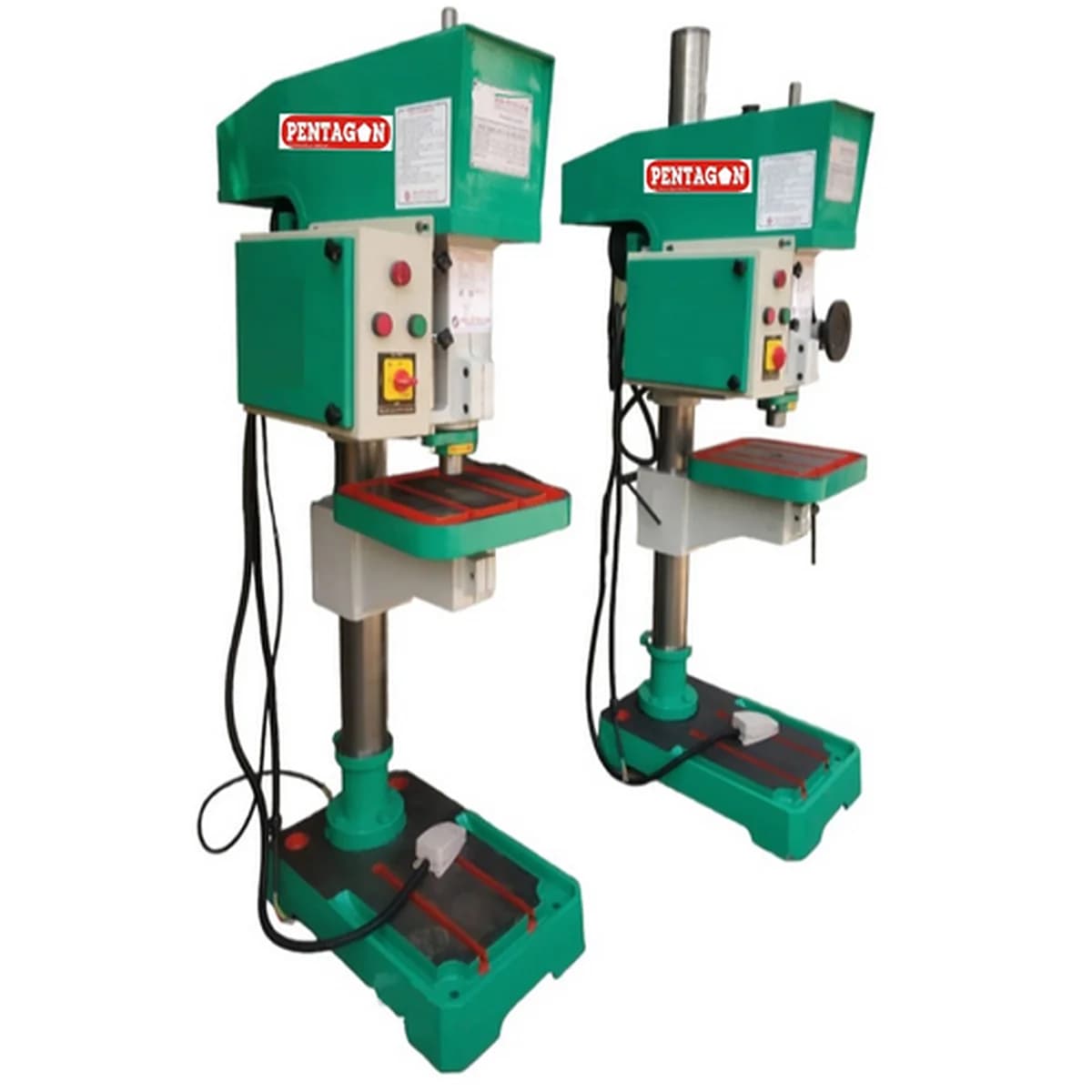

PENTAGON Brand Drilling cum tapping machine model PDT20 with electrical motor Switch and electrical panel

The Drilling Cum Tapping Machine Model PDT20 is a versatile and robust machine designed for efficient drilling and tapping operations in various industries. Manufactured by Pentagon Machines and Tools, this machine is suitable for workshops requiring precision and reliability.

1. Drilling Operation: The machine rotates a drill bit at a selected speed and feed rate to create precise holes in the workpiece.

2. Tapping Operation: After drilling, a tapping tool is used to cut internal threads in the same hole, allowing bolts or screws to be inserted.

3. Manual or Semi-Automated Control: The operator can control the spindle speed and feed using a control panel, ensuring accurate hole and thread formation.

1. Dual Functionality (Drilling + Tapping): Eliminates the need for separate machines, saving space, cost, and setup time.

2. Compact & Space-Saving Design: Ideal for workshops with limited space while still offering high performance.

3. High Accuracy & Efficiency: Ensures precise thread formation and hole alignment, reducing rework.

4. Robust Construction: Heavy-duty cast iron body ensures long life, durability, and vibration-free operation.

5. Easy to Operate: Simple controls and ergonomic design make it user-friendly even for semi-skilled operators.

6. Versatile Material Handling: Capable of working on steel, cast iron, aluminum, and other non-ferrous materials.

7. Low Maintenance Requirements: Fewer moving parts and quality components reduce downtime and maintenance costs.

8. Cost-Effective Production: Reduces manual labor and cycle time, improving productivity and ROI.

9. Adaptable for Various Industries: Suitable for automotive, fabrication, electrical, general engineering, and more.

10. Supports Tool Room & Batch Production Work: Performs well in both short-run custom work and repetitive manufacturing setups.

1. Metal Fabrication Workshops: For precise drilling and tapping of mild steel, stainless steel, and aluminum components.

2. Automotive Component Manufacturing: Used to prepare threaded holes in engine parts, brackets, and custom fixtures.

3. Electrical and Control Panel Assembly: Taps threaded holes in enclosures, brackets, and panel boards.

4. Machinery & Equipment Manufacturing: Ideal for base plates, frames, and assemblies requiring threaded fasteners.

5. Tool Rooms & Maintenance Shops: Efficient for repair jobs and custom part manufacturing involving thread tapping.

6. Aerospace and Defense Workshops: Suitable for light-to-medium-duty operations on non-ferrous metals and alloys.

7. Furniture & Fixture Fabrication (Metal-Based): Drilling and tapping operations for assembling modular frames and joints.

8. Educational and Technical Institutions: Used as a training tool for students learning basic drilling and tapping operations.

1. Drilling cum Tapping machines are Highly versatile for Tapping, Drilling, Reaming and Screwing at preset depth.

2. Simple to install, simple to operate, no extra skill required.

3. Dual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versa.

4. Emergency reversing foot switch to avoid tap breakage.

5. Being an electrical switch gear unit no wear and tear and hence no maintenance is required.

6. Note: Precision drilling machine having bearing in back gear as well Spindle runout below 10 micron.

1. Motor Pulley

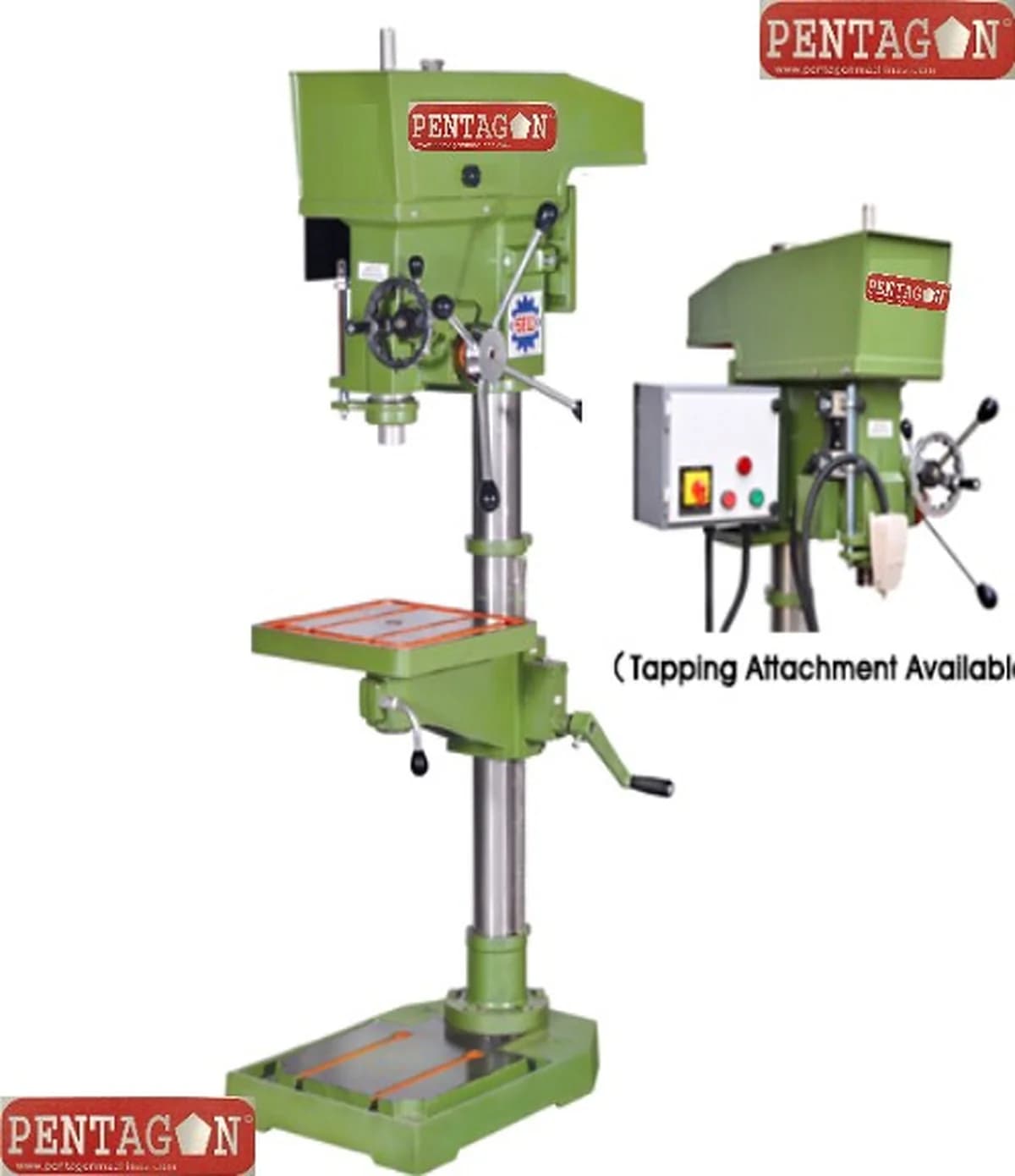

2. Tapping attachment with panel board operated by hand and foot both

3. Electric Motor

4. V Belt

5. R-F Switch

1. Drill chuck size 1/2"

2. Drill chuck Arbor

3. Coolant Pump

4. Machine lamp

5. Drill vice 100 mm size
