Geared Head Vertical Drilling cum Milling machine Model ZX50C
This light-duty vertical drilling cum milling unit features a 1.5 Kw motor and an 8-step speed range optimized for steel and aluminum workpieces. It supports small to medium component processing in tooling and repair workshops with precision. • MT4 spindle taper supports standard tooling • 900x240 mm table size accommodates medium parts securely • 50 mm max drilling capacity suits industrial hole-making tasks • 115-1750 rpm range provides flexibility for cutting speeds

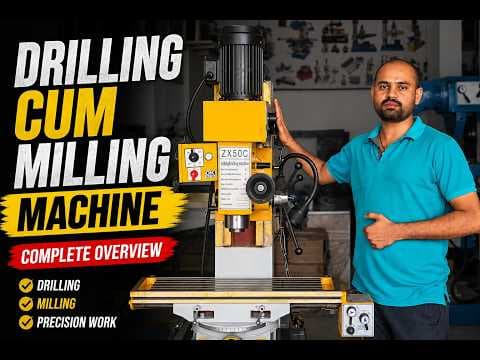

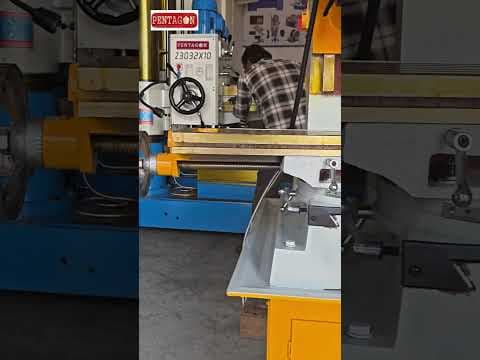

See it in action
Specifications
For: ZX50C- Machine Model
- ZX50C
- Table Size
- 900x240 mm
- Table Travel
- 400x210 mm
- Max Drilling Capacity
- 50 mm
- Max Tapping Capacity
- 16 mm
- End Mill Capacity
- 25 mm
- Maximum Milling Capacity
- 100 mm
- Spindle Travel
- 120 mm
- Spindle Taper
- MT4
- Spindle Speed Range
- 115 – 1750 rpm (8-step)
- Motor Power
- 1.5 Kw
- Worktable Feed Motor
- 0.75 KW
- Type Of Machine
- Vertical Drilling and Milling Machine
- Machine Dimensions
- 1400×900×1500 mm
- Machine Weight
- 500-600 Kgs
Description
Vertical Drilling and Milling Machine is a versatile machine tool designed to perform both drilling and milling operations with high precision. It is widely used in tool rooms, workshops, maintenance departments, and small to medium manufacturing industries for machining metal components.
The machine features a vertical spindle arrangement, allowing accurate drilling, tapping, boring, and milling operations on various materials such as steel, aluminum, brass, and cast iron. Its rigid construction and precision spindle ensure stability, smooth operation, and improved machining accuracy.
Applications
1. The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.
2.If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove .
3. And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, The length of X of the machine can be further expanded.
4. Large machine tool use range, according to user needs can be configured to display device.
5. The spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
6.The configuration of special accessories: vertical milling head, which realize the milling function
About the Machine
This machine is a combined drilling and milling machine (often called a drill-mill) designed for small to medium parts. It integrates functions such as drilling, milling (face or end), boring, tapping etc.
“The drilling and milling machine ZX50C is a machine tool that integrates drilling, milling, boring and grinding, and is applied to the processing of small and medium-sized parts.”
So you get the convenience of multiple machining tasks in one machine — rather than separate drill press and mill.
Standard Accessories
- 1. Collet set with adapter and spanner
- 2. Machine Vice 5"
- 3. Drill chuck 1-13 mm size
- 4. MT4 drill chuck arbor JT6 type
- 5. Vertical draw bar
- 6. Hexagon nut
- 7. Reduction Sleeve
- 8. Operational manual
- 9. Machine lamp with fitting
- 10.Splash guard cum tray Tray
Optional Accessories
- 1. Two/Three Axis DRO with suitable linear scales and fittings
- 2. Coolant Pump with fittings
- 3. Semi universal dividing head with chuck and tail stock
- 4. H-V rotary table
- 5. Mounting pads 4 Nos suitable for the machine
Features
- 1. X, Y, Z three direction guide super audio quenching, precision grinding
- 2. Hardened and ground table surface
- 3. Table X axis for automatic feeding
- 4. Swivel angle and vertical milling head +45 degree or -45 degree
More questions buyers ask
What is a Geared Head Drilling cum Milling Machine?
It is a versatile industrial machine tool that combines drilling, milling, boring, and tapping operations into one unit, ideal for small to medium-sized metal parts.
What are the key features of the Pentagon ZX50C?
The ZX50C features a 1.5 Kw motor, 8-step spindle speed (115-1750 rpm), hardened and ground table, and automatic X-axis feeding for precision machining.
What materials can be processed on the ZX50C?
It is suitable for machining steel, aluminum, brass, and cast iron components in tool rooms and workshops.
What is the maximum drilling capacity of this machine?
The Pentagon ZX50C has a maximum drilling capacity of 50 mm.
Does it come with automatic feeding?
Yes, the machine includes automatic feeding for the X-axis to improve efficiency and surface finish.
What is the spindle taper size?
The machine is equipped with an MT4 spindle taper.
Are accessories included with the machine?
Yes, standard accessories include a collet set, 5-inch machine vice, drill chuck, draw bar, and machine lamp.
Can I add a DRO to this machine?
Yes, a two or three-axis Digital Readout (DRO) system is available as an optional accessory for higher precision.
What is the power requirement?
The main motor power is 1.5 Kw, suitable for standard industrial workshop power setups.
Is this machine suitable for small workshops?
Absolutely, its compact design and multi-functional capabilities make it perfect for tool rooms, maintenance departments, and small manufacturing units.
Who should choose the Pentagon ZX50C?
Ideal for professional machinists, tool room operators, and small-scale manufacturers requiring a reliable, multi-purpose machine for drilling and milling tasks.
How does the ZX50C compare to a standard drill press?
Unlike a standard drill press, the ZX50C is a rigid milling-grade machine capable of lateral milling forces, face milling, and boring, offering significantly higher versatility.
Is the machine easy to maintain?
Yes, with hardened and ground guideways and a robust geared head design, it is built for durability and ease of maintenance in industrial environments.
