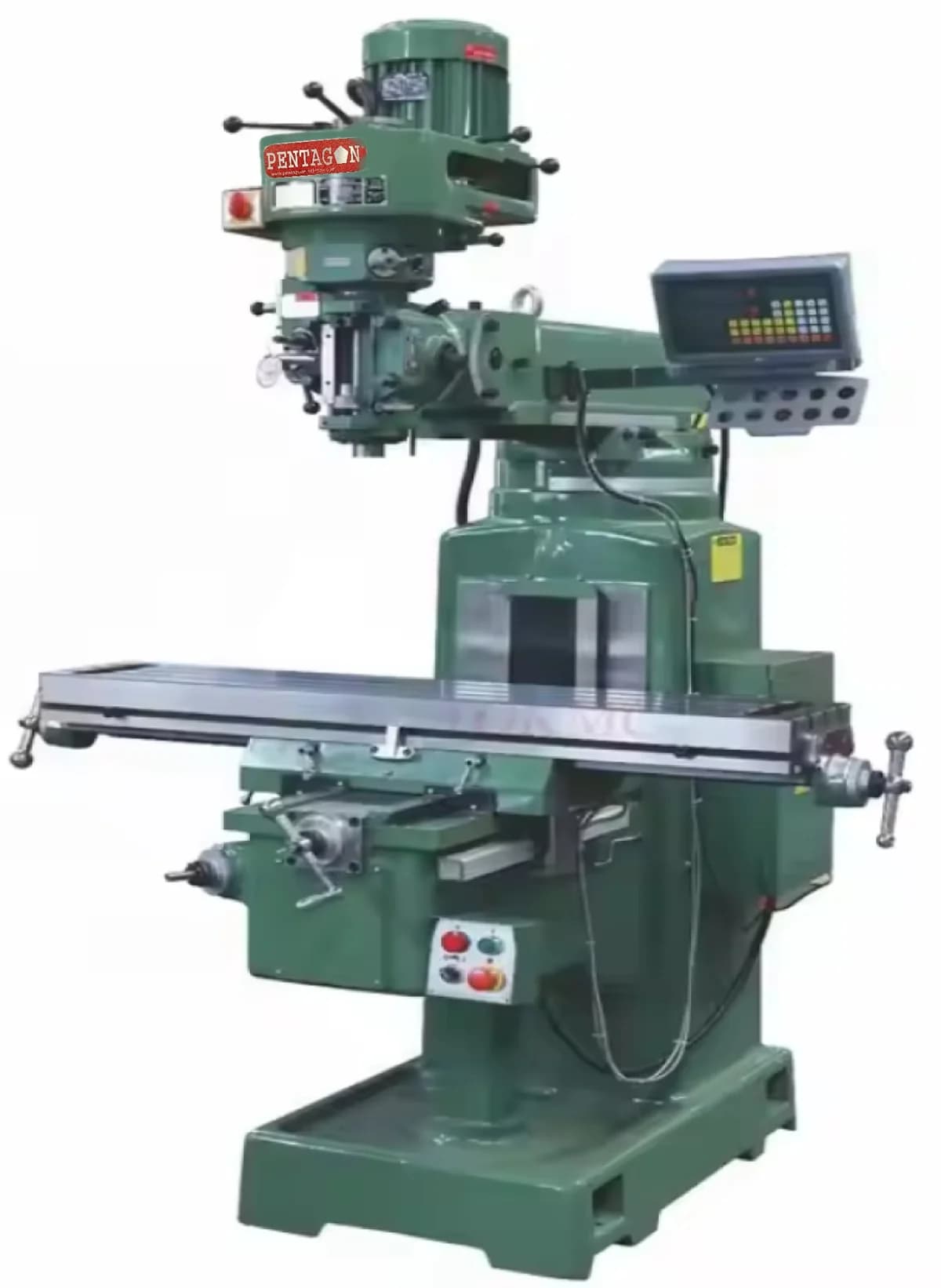

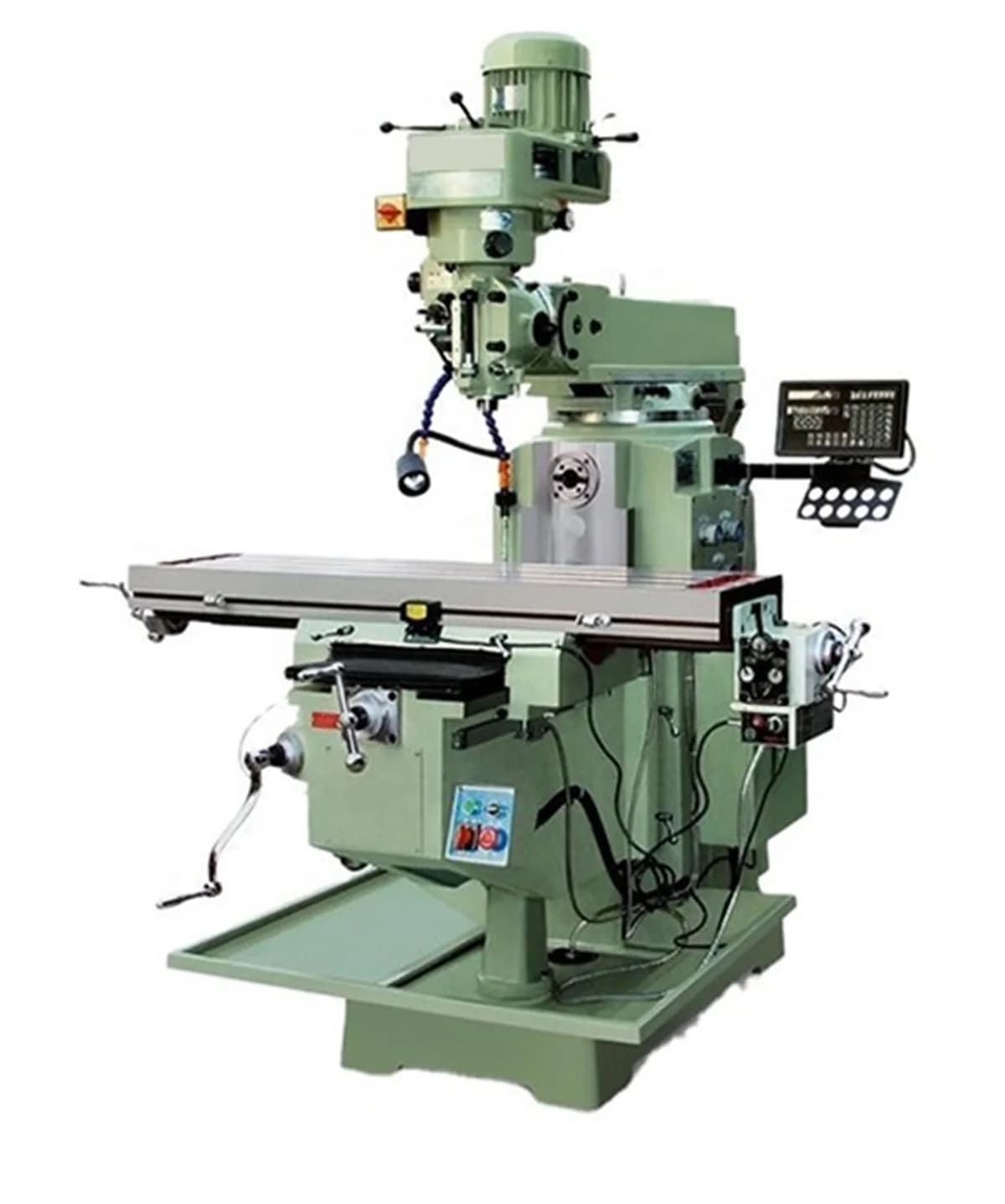

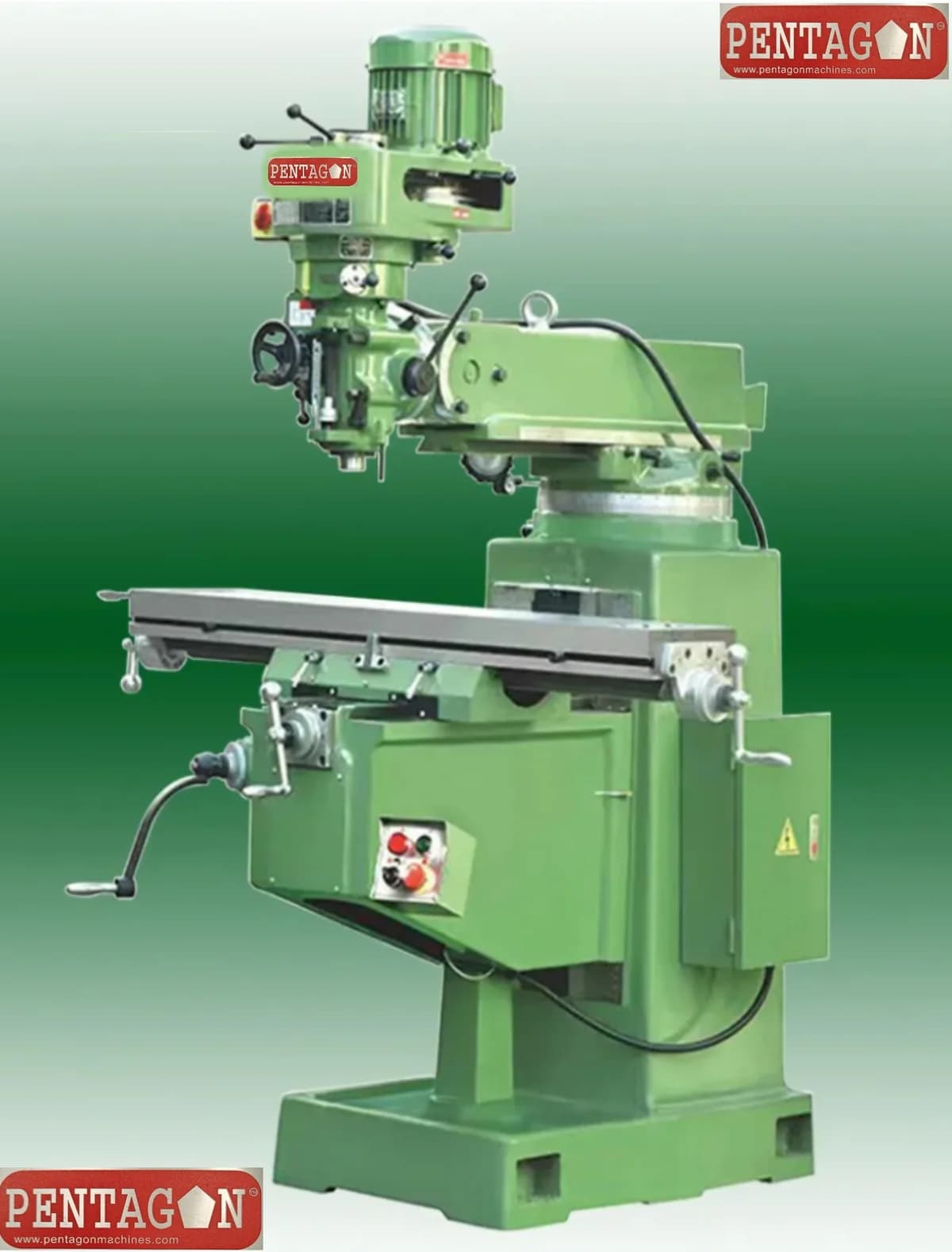

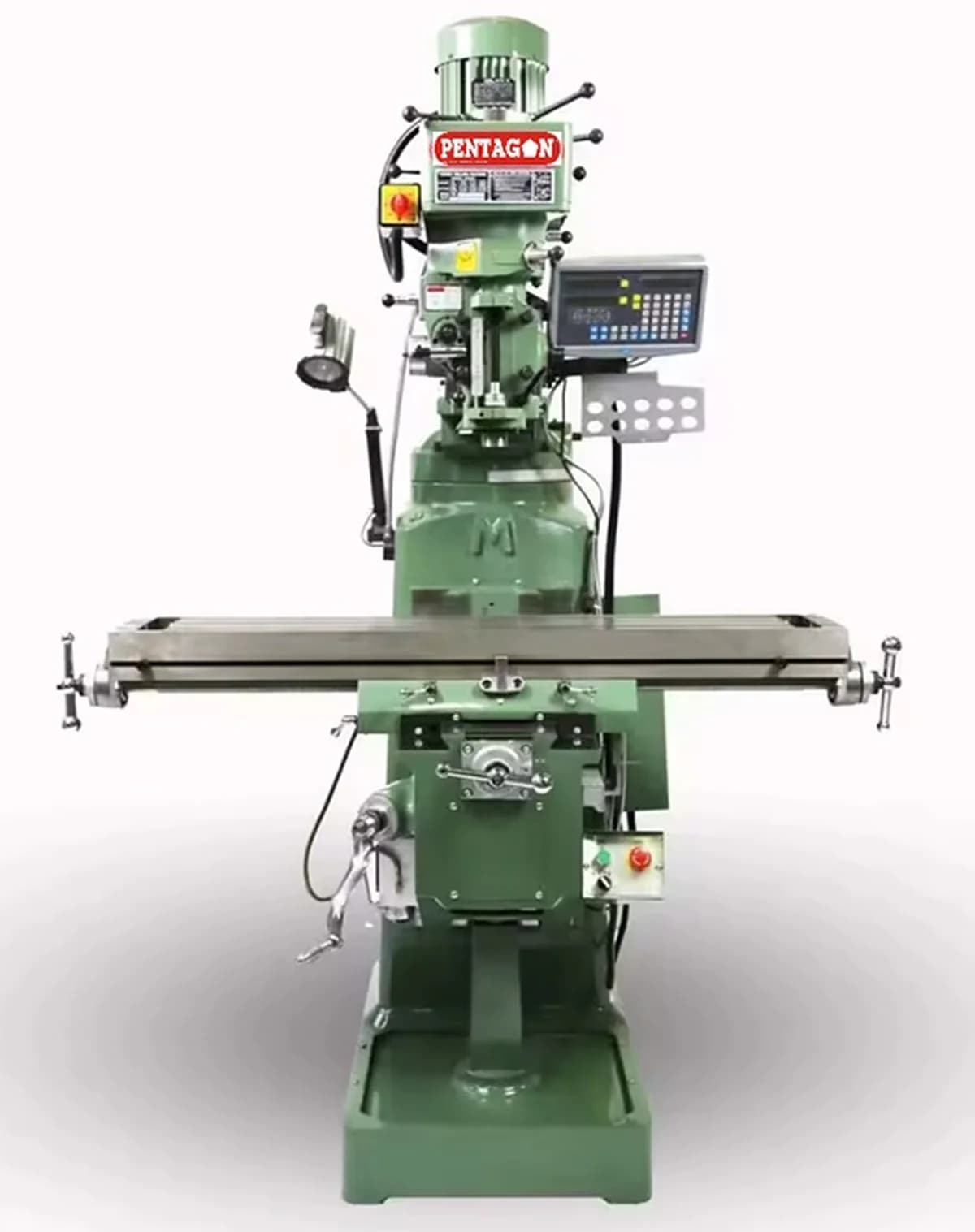

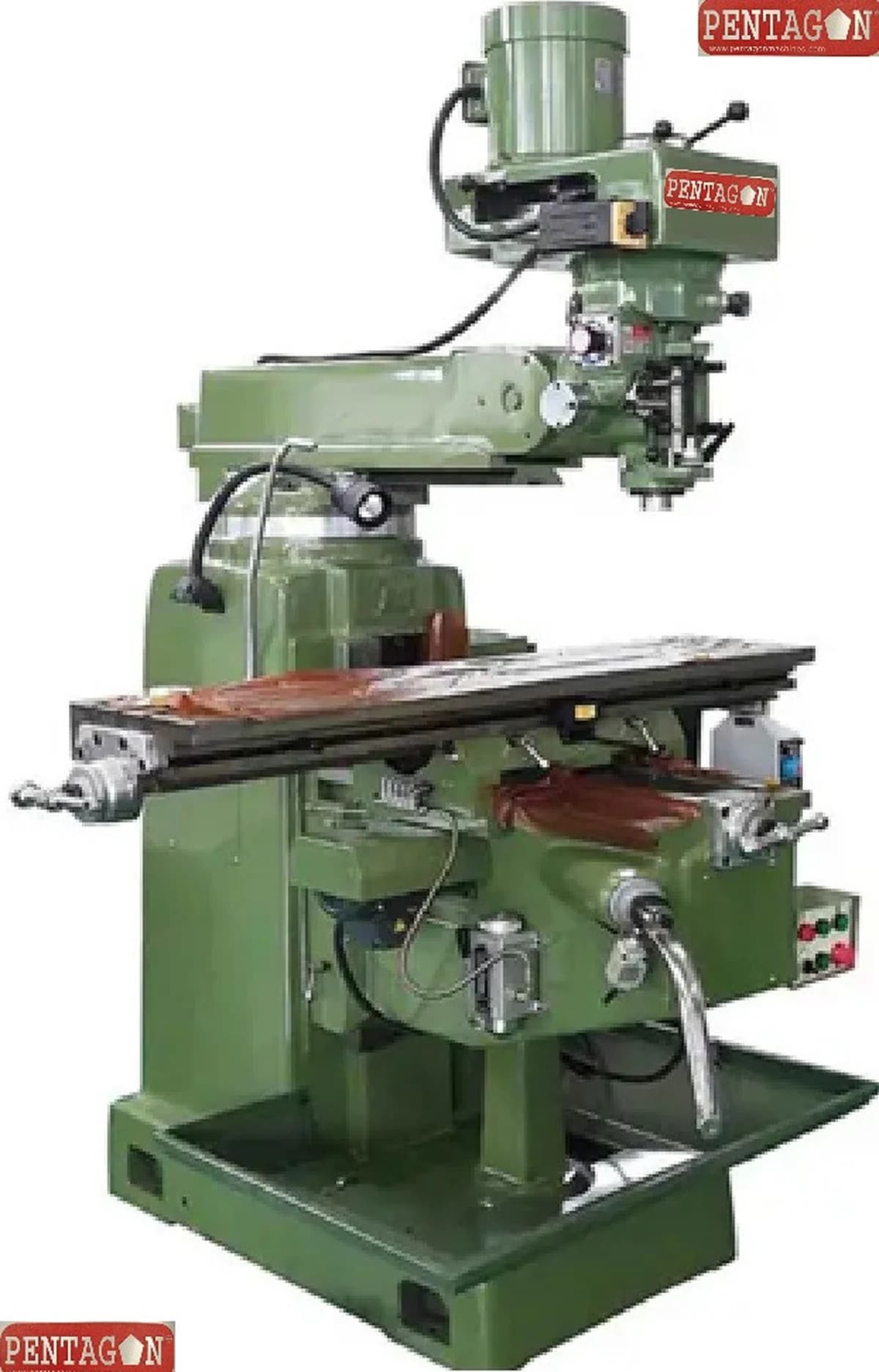

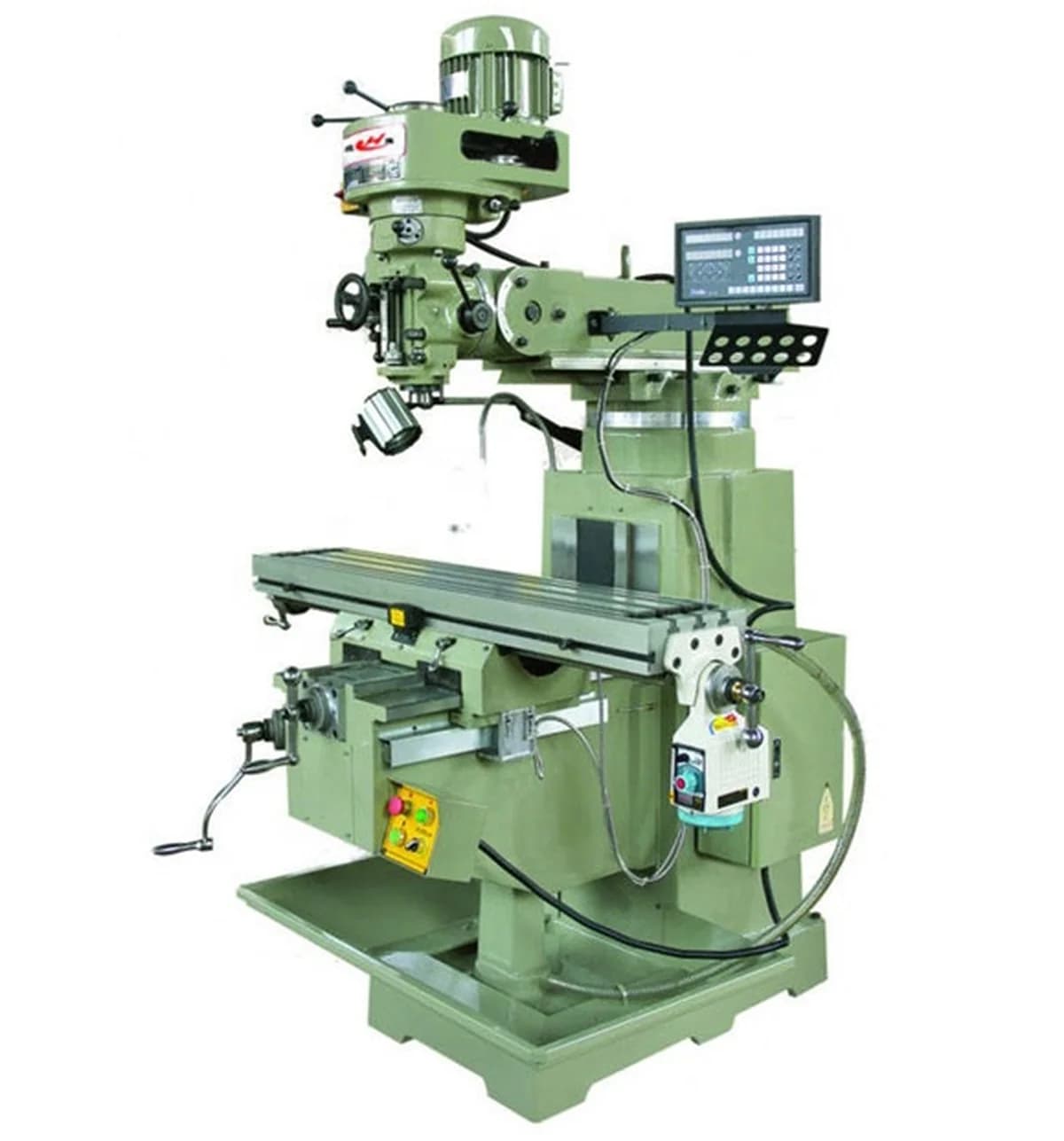

PENTAGON Vertical RAM Turret Milling Machine Model M3-R8/ISO30-3
Robust vertical ram turret milling machine featuring a 1270×254 mm table and R8 spindle taper. Built for accurate milling and drilling in professional toolrooms. • V-type cross guideways provide smooth horizontal movement • 850 mm longitudinal travel allows versatile positioning • 3 HP double speed motor delivers consistent power • Top brake mounting ensures quick spindle stopping

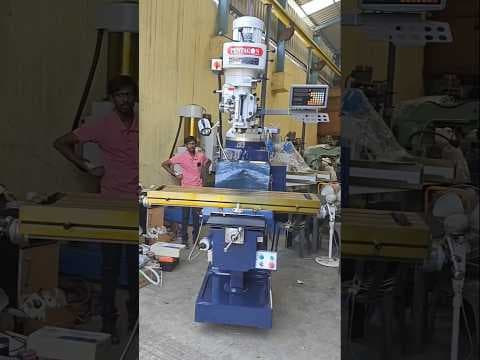

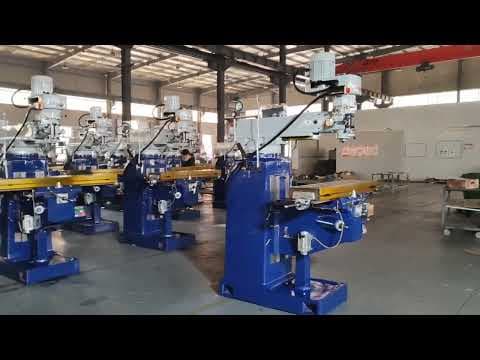

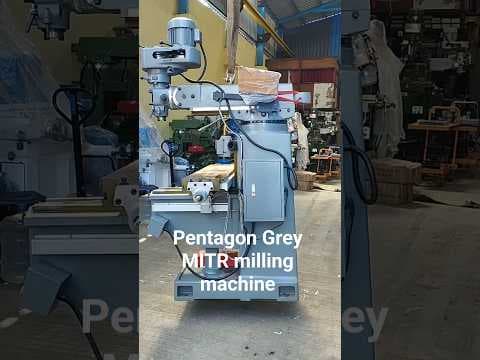

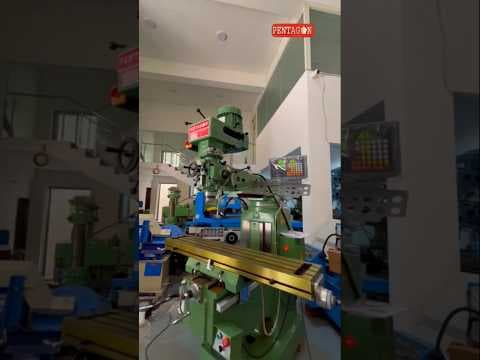

See it in action
Specifications
For: M3-R8/ISO30-3- Machine Model
- M3-R8/ISO30-3
- Table size
- 1270x254 mm
- Longitudinal Travel of Table
- 850 mm
- Cross Travel of table
- 400 mm
- Vertical Travel of Table
- 400 mm
- Quill Travel
- 127 mm
- Ram Travel
- 580 mm
- Spindle Nose taper
- R8/ISO30
- Spindle Nose to Table
- 500 mm
- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Spindle Speed
- 45-5440 rpm(60Hz)
- Steps of Speeds
- 16 Steps
- Brake Mounting Type
- Top
- Z-Axis Guideways
- V Type
- Head Swivel (F x B)
- 45°
- Head Swivel (L x R)
- 90°
- Milling Head Type
- Round/Square
- Cross Guideways
- V Type
- Max Load on Table
- 250 Kgs
- Weight of the Machine (Approx.)
- 1250 Kgs

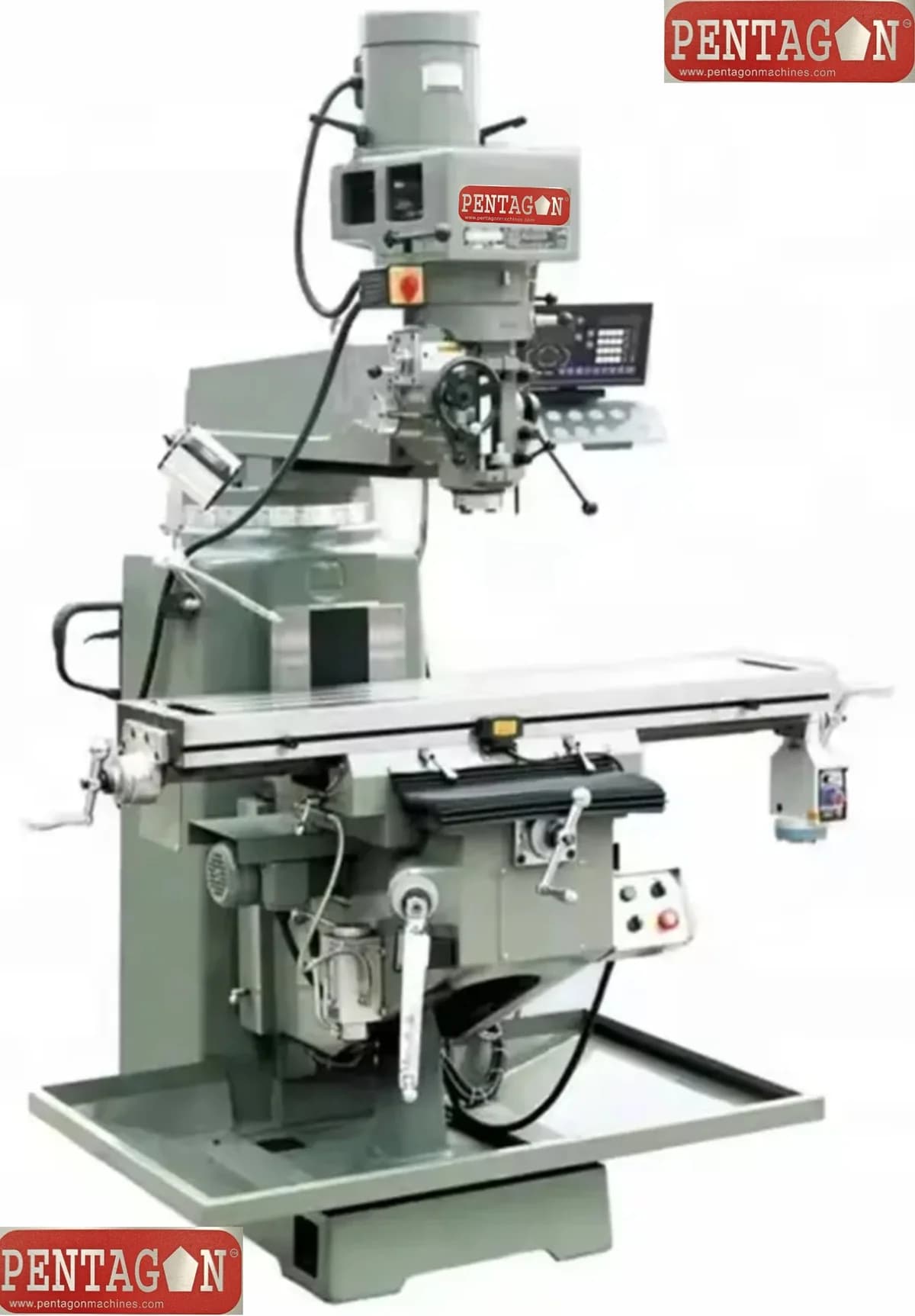

Configurations
Click a row to switch| Variant | Table size | Brake Mounting Type | Spindle Nose taper | Cross Guideways | Price |
|---|---|---|---|---|---|
| M3S-ISO30-3 | 1270x254 mm | Top | R8/ISO30 | Square Type | ₹3,55,000 |
| M3-R8/ISO30-3 | 1270x254 mm | Top | R8/ISO30 | V Type | ₹3,25,000 |
| M4SS-ISO40-3 | 1320x254 mm | Side Brake | ISO40 | Square Type | ₹4,25,000 |
| M4S-R8/ISO30-3 | 1370x254 mm | Top | R8/ISO30 | Square Type | ₹3,75,000 |
| M4-ISO40-3 | 1370x254 mm | Top | ISO40 | Square type | ₹3,58,000 |
| M3-ISO40-3 | 1270x254 mm | Top | ISO40 | V Type | ₹3,47,000 |
| M4-R8/ISO30-3 | 1370x254 mm | Top | R8/ISO30 | V Type | ₹3,35,000 |
| M5-R8/ISO30-3 | 1370x280 mm | Side Brake | R8/ISO30 | Square Type | ₹4,84,999 |
Operational Flexibility
- Flexible ram and turret head positioning for complex tasks
- Head swivel capability up to 90° left and right
- Multiple table size options available to fit workshop needs
- Top brake mounting type ensures quick stopping power
Versatile Industrial Applications
- Ideal for toolrooms requiring versatile metal cutting
- Suitable for production workshops needing stable performance
- Supports drilling, shaping, and complex milling operations
- Handles diverse materials with consistent surface finish
Precision & Performance
- High precision machining capabilities for tight tolerances
- V or Square type guideways maintain alignment under load
- 16 speed steps provide optimal cutting speed selection
- Spindle speeds range from 45–5440 rpm for efficiency
- Auto quill feeds support various cutting speeds
Spindle & Drive System

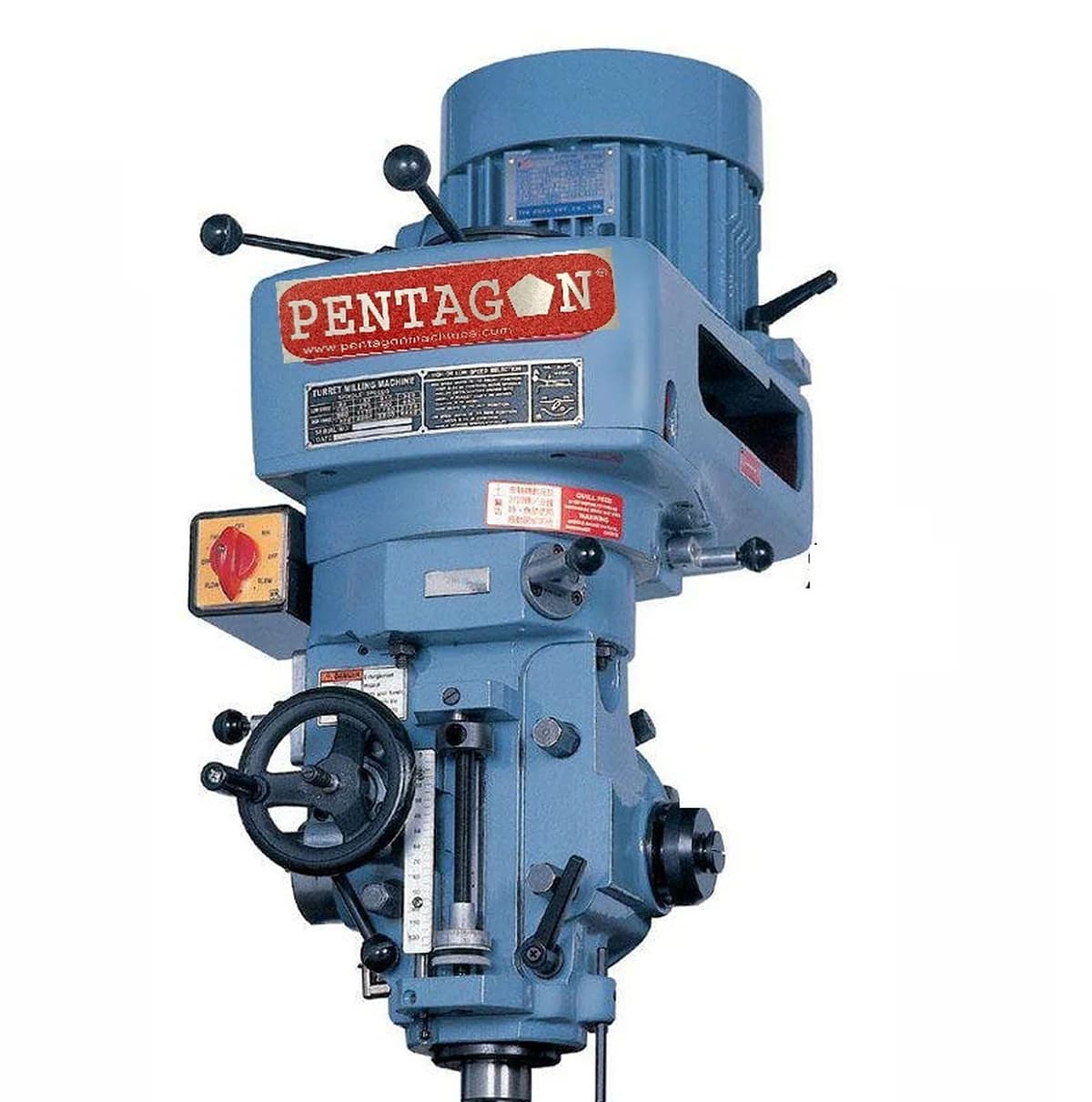

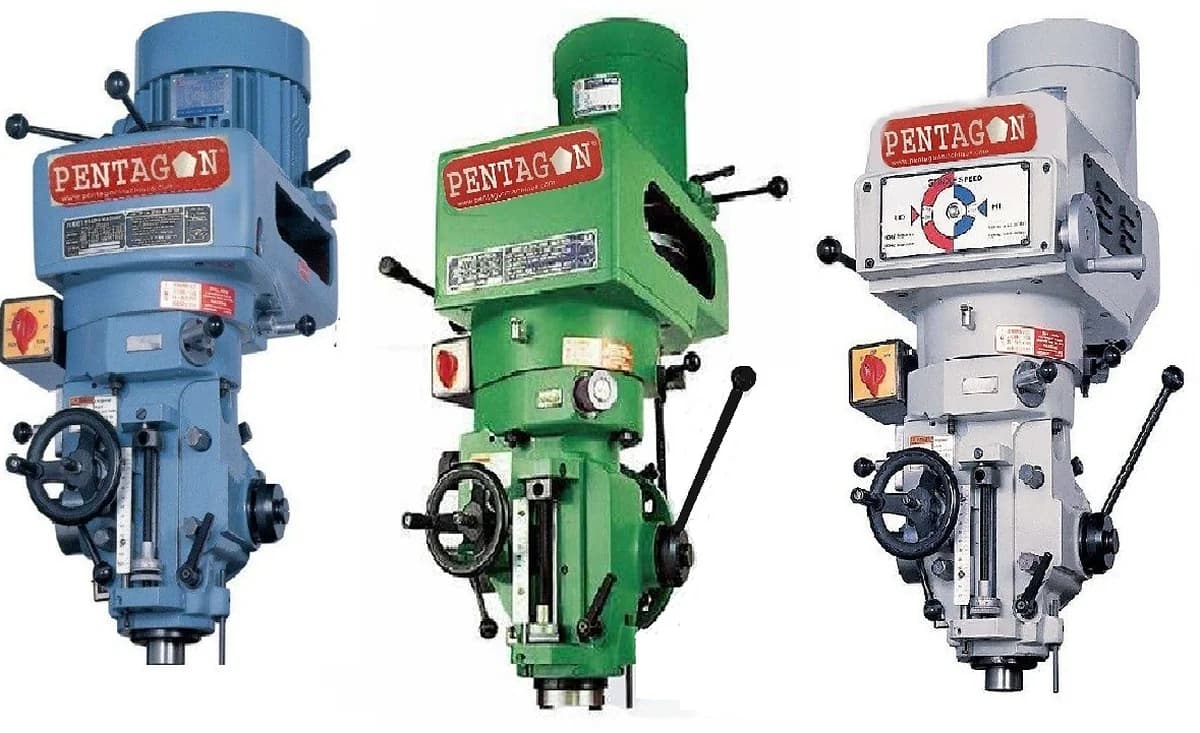

- Spindles available in R8, ISO30, or ISO40 taper configurations
- Equipped with double speed spindle motor for versatility
- Features Taiwan Imported Head for superior reliability
- Precision Taiwan Imported lead screws and nuts included
- 3 HP double speed motor supports various cutting speeds
Robust Construction & Durability
- Heavy duty design built for continuous industrial operations
- Constructed with high-quality Mehnite casting for stability
- Hardened table and guideways ensure long-term accuracy
- Rugged build supports heavy loads in demanding environments
Optional Accessories
- 3 axis DRO set with suitable size of linear scale
- Reduction sleeve MT3
- Reduction sleeve MT2
- X axis table auto power feeder 110V type
- Y axis table auto power feeder 110V type
- H-V Rotary table
- Semi Universal dividing head with tail stock soft jaws Indexing plates
- Splash Tray/Chip Tray
- Integrated type keyless drill chuck with intact suitable arbor
- Micro boring head F-12 or F-18 with suitable Shank
- Mechanical Edge Finder/Edge Sensor
- Boring bar dia 18 mm set of 12 pcs
- keyless drill chuck with intact suitable arbor
- Mechanical Gear box Power feeder 380V
Standard Accessories
- DRO 2 Axis with suitable linear scales fitted in machine
- Coolant Pump with fitting
- Machine Lamp
- Rear and front bellow cover set
- Suitable draw bar set
- Central Lubrication unit
- Electrical cabinet with 110/220 V output
- Tool Box with essential tools
- Operation manual with machine test certificate
- Swivel base Acculock type machine vice 150 mm jaw opening
- Clamping kit M12 Type 58 Pcs set
- Collet set ER32 type 10/11 pcs set
More questions buyers ask
What is a Vertical RAM Turret Milling Machine?
It is a versatile manual machine tool used for milling, drilling, and boring operations, featuring a swiveling head and adjustable ram for complex machining tasks.
Why choose a Pentagon turret milling machine?
Pentagon machines are known for robust Mehnite casting, high precision, and reliable performance, making them ideal for Indian tool rooms and production workshops.
Do I need CNC programming skills to operate this machine?
No, this is a conventional manual milling machine designed for ease of use without requiring CNC programming knowledge.
What are the standard accessories included?
Standard accessories typically include a 2-axis DRO, coolant pump, machine lamp, central lubrication unit, and a comprehensive tool kit.
What spindle tapers are available?
Pentagon offers various configurations including R8, ISO30, and ISO40 spindle tapers to suit different tooling requirements.
What is the benefit of the 2-axis DRO system?
The Digital Readout (DRO) system significantly improves machining accuracy and efficiency by providing real-time position feedback.
Can this machine handle heavy-duty operations?
Yes, the heavy-duty design with hardened guideways and a 3HP motor is built for continuous industrial operations and demanding workloads.
What is the table size range for these models?
Pentagon offers various table sizes, typically ranging from 1270x254 mm to 1370x280 mm depending on the specific model.
Is the machine head adjustable?
Yes, the turret head can be swiveled and tilted, allowing for complex angle machining and increased operational flexibility.
Does it come with a warranty?
Yes, all Pentagon machines come with standard manufacturer warranty and after-sales support.
Who should choose the M3-R8/ISO30-3 model?
This is the standard, versatile choice for general tool room applications requiring reliable precision and a 1270x254 mm table.
Who should choose the M4SS-ISO40-3 model?
Ideal for workshops needing higher load capacity (350kg) and the robust ISO40 spindle taper for heavier milling tasks.
Who should choose the M5-R8/ISO30-3 model?
Best for heavy-duty production environments requiring a larger 1370x280 mm table and increased cross travel.
How does the M3 series compare to the M4 series?
The M3 series is generally more compact with a 1270mm table, while the M4 series offers extended longitudinal travel (up to 930mm) and larger table sizes.
Is ISO40 better than R8/ISO30?
ISO40 provides greater rigidity and torque transmission for heavy-duty milling, whereas R8/ISO30 is often sufficient for lighter, high-precision tool room work.
