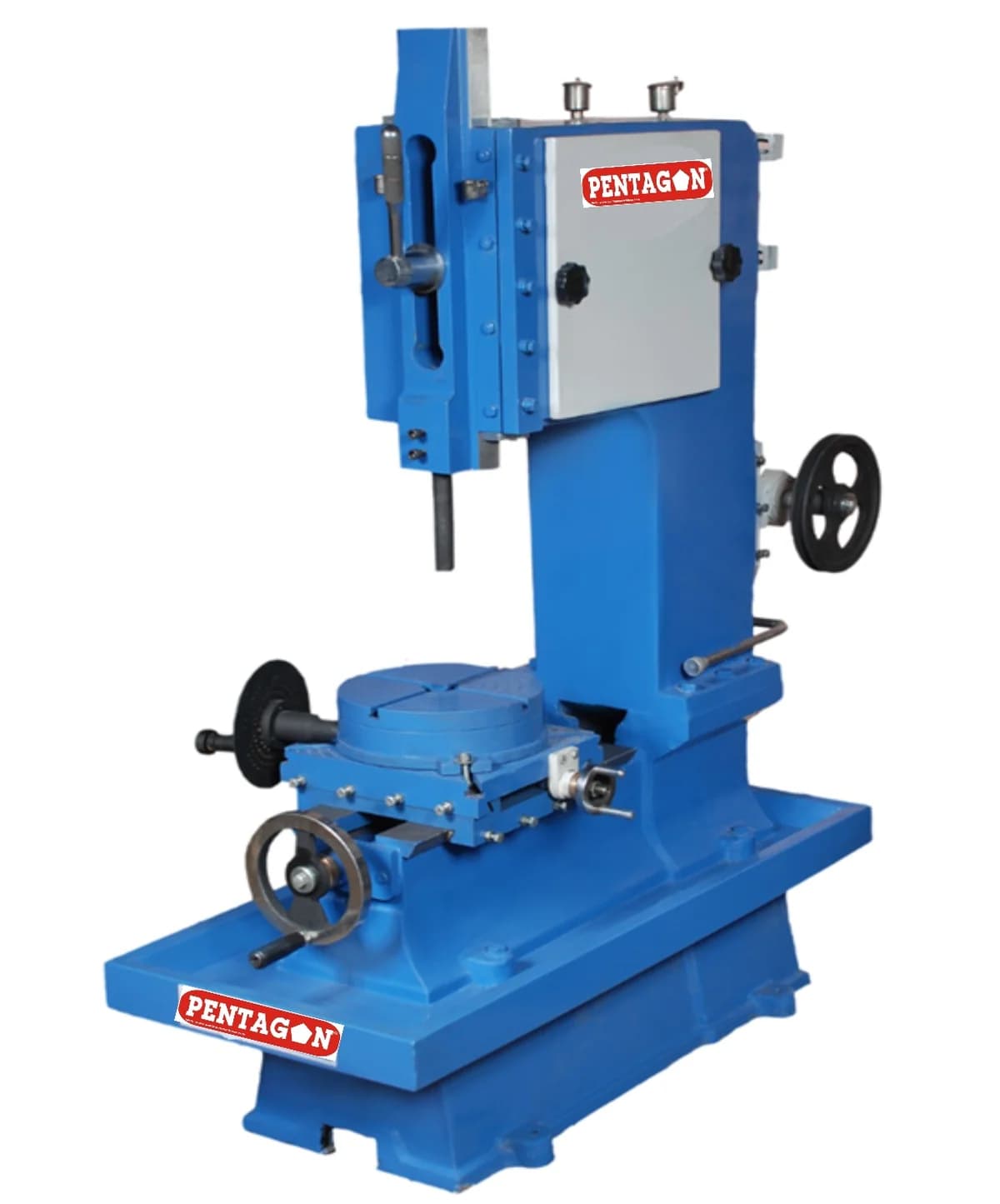

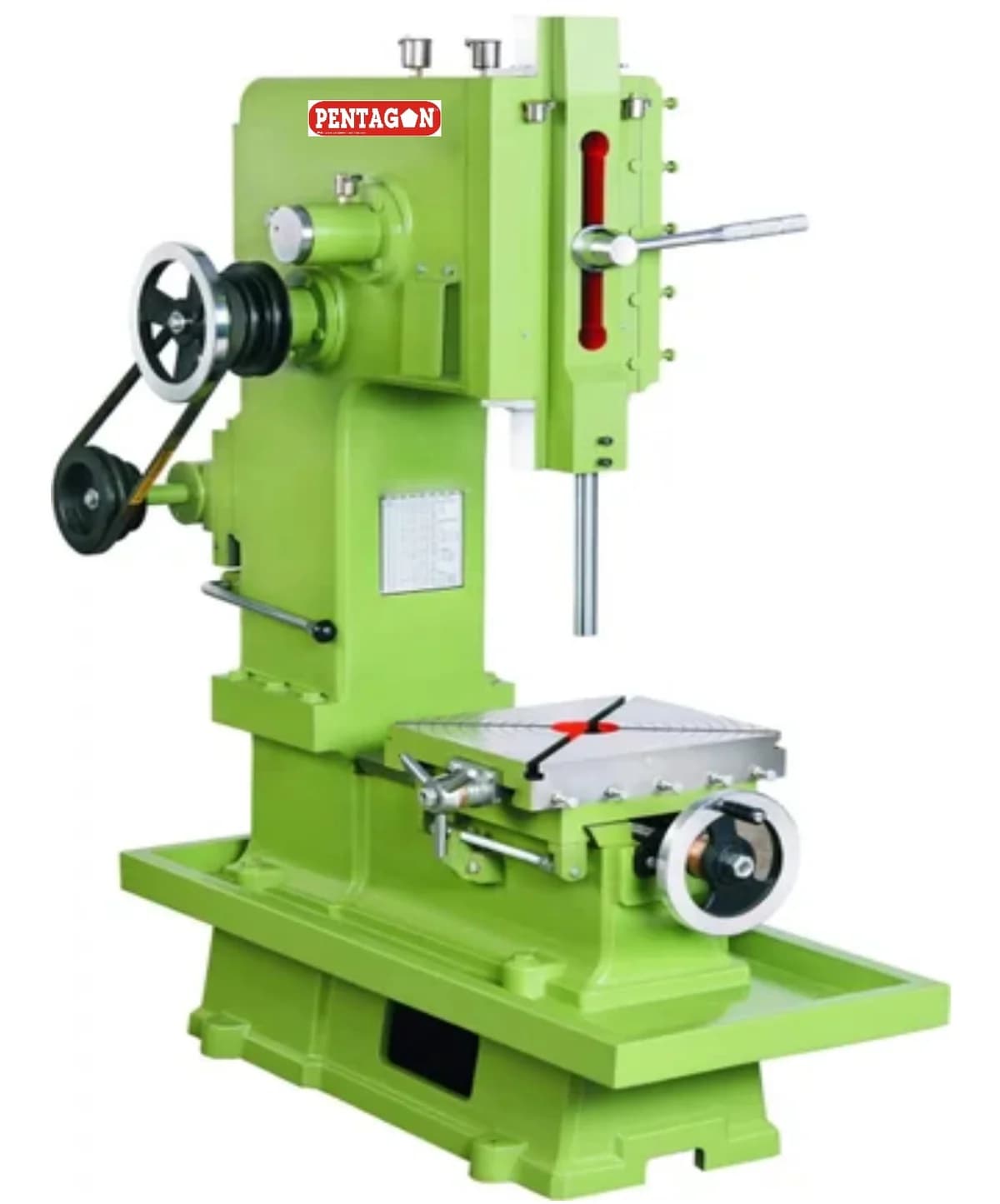

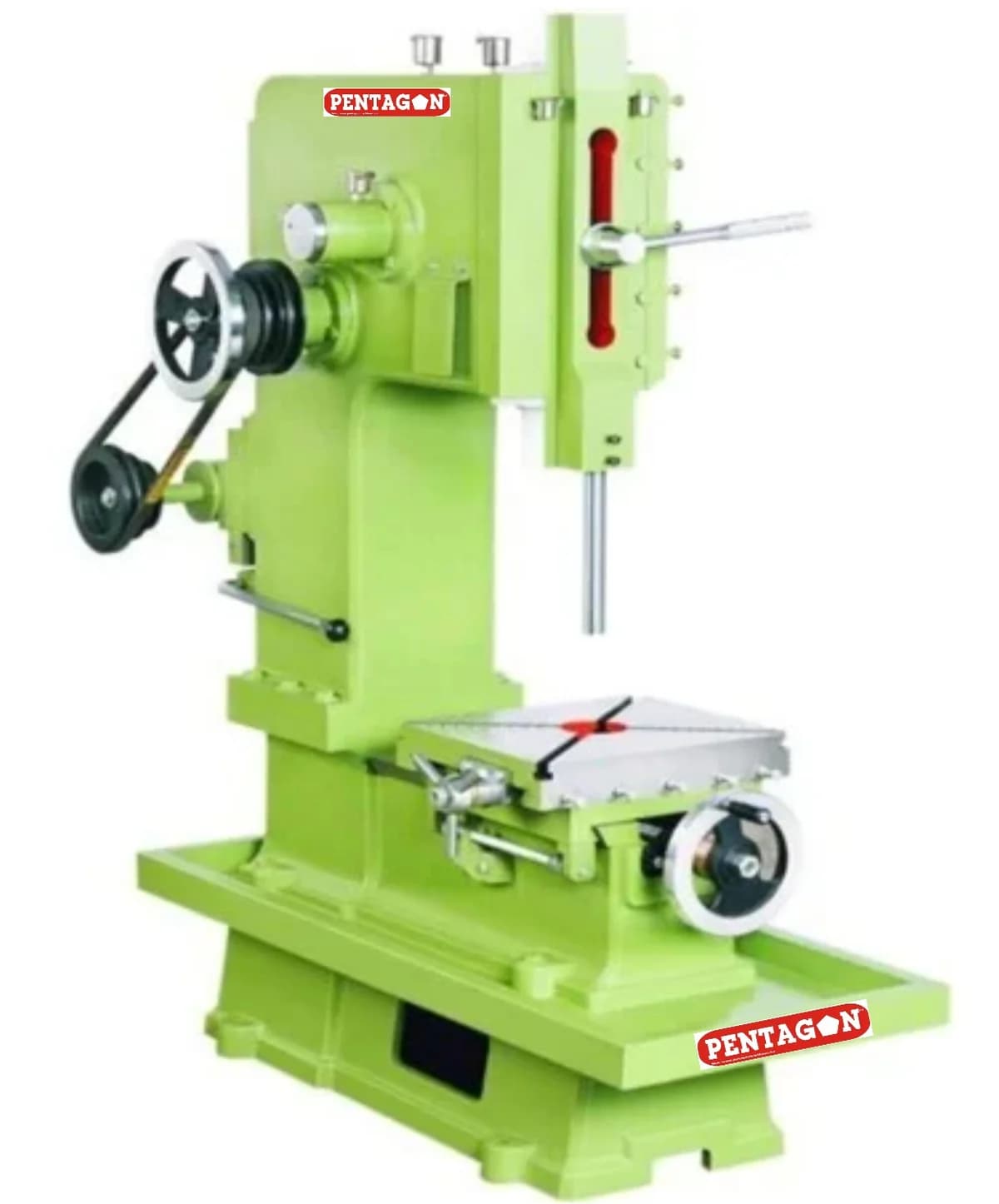

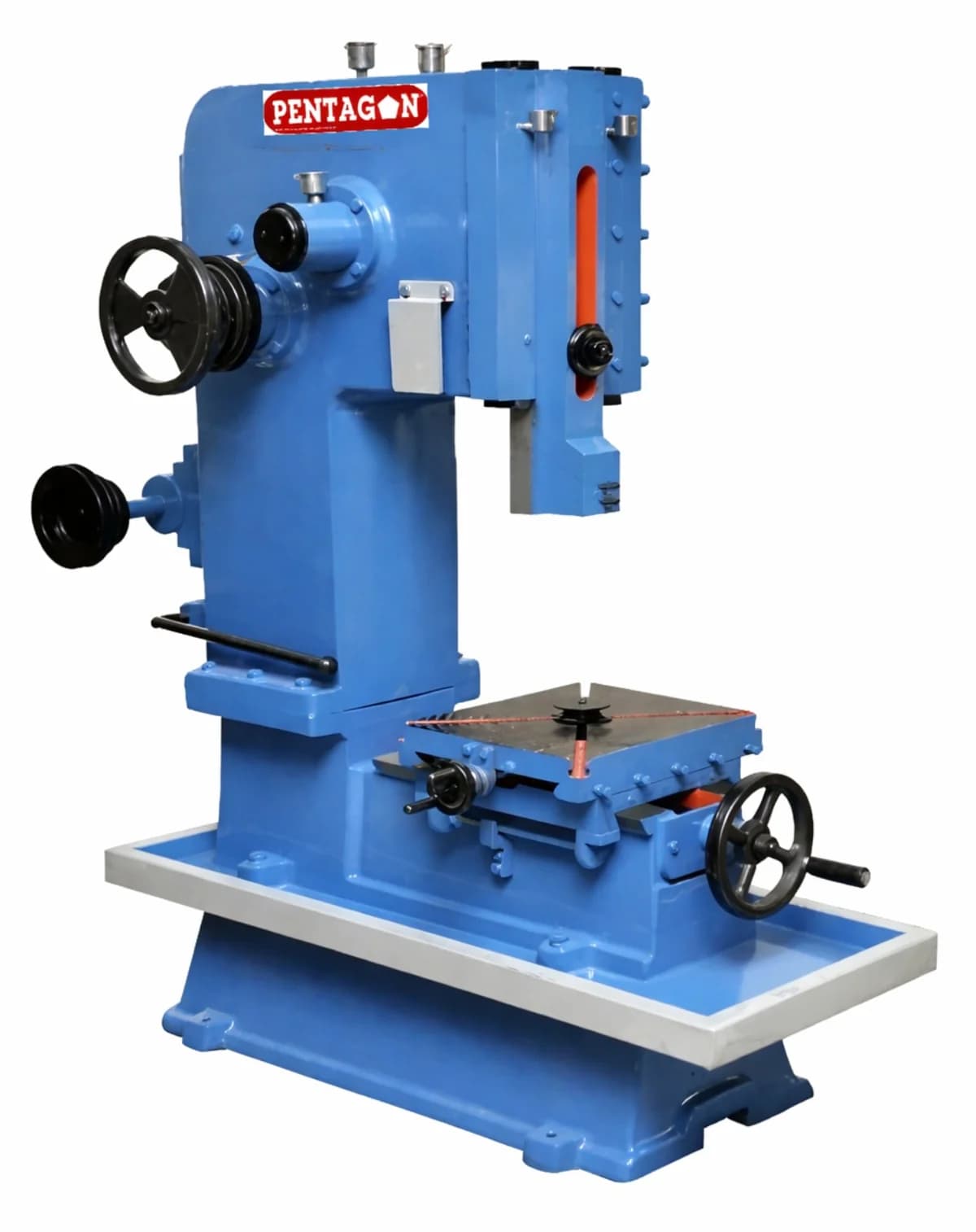

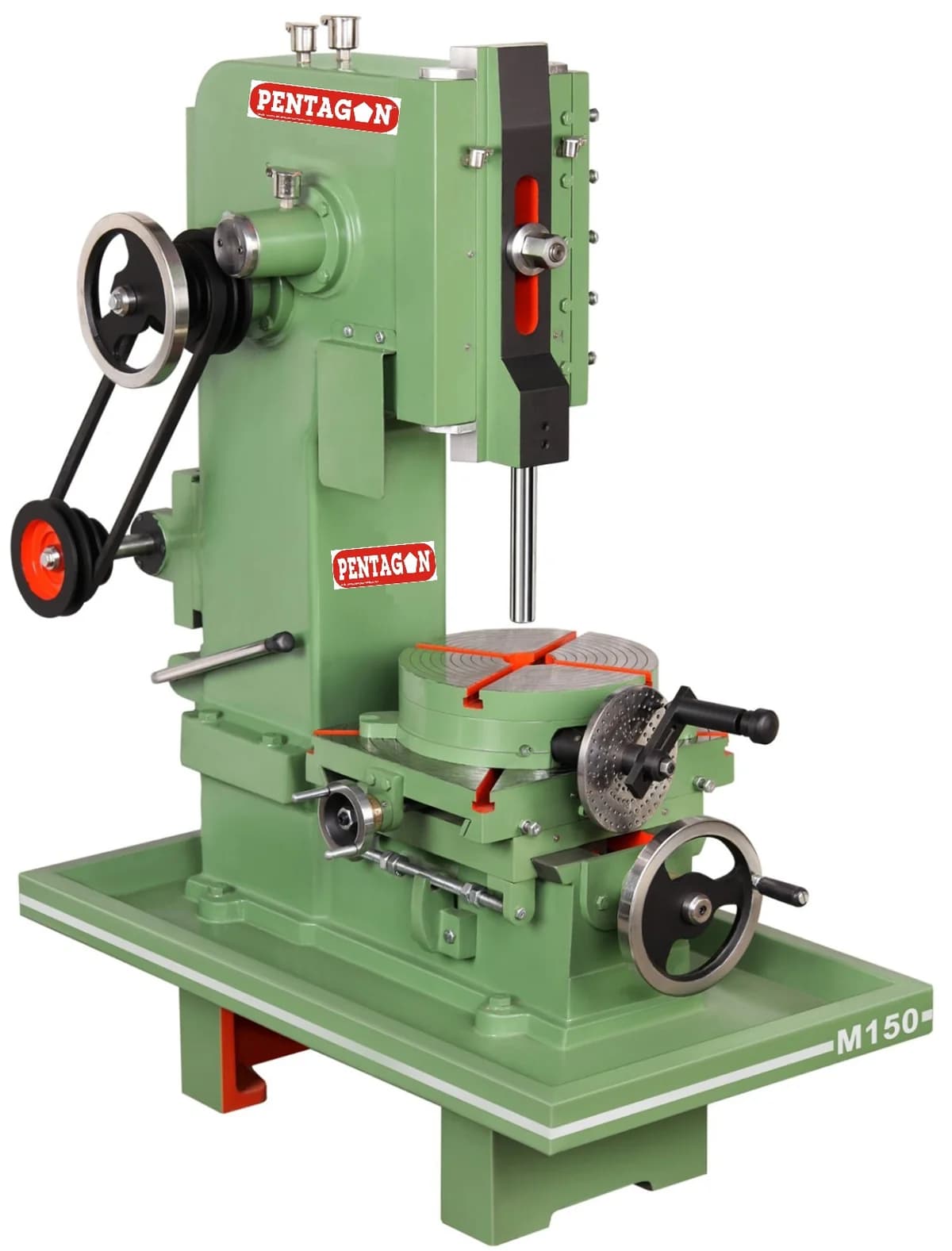

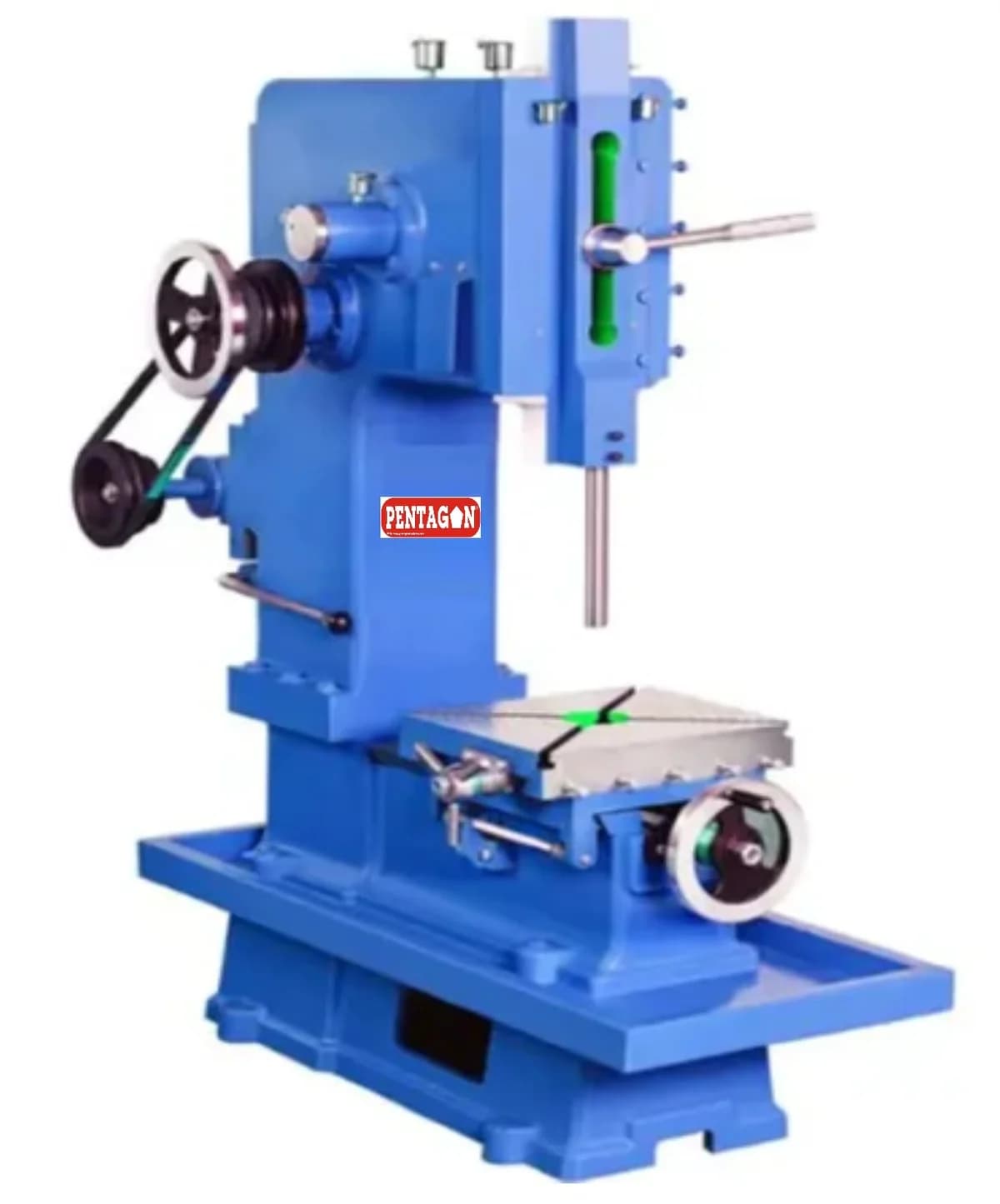

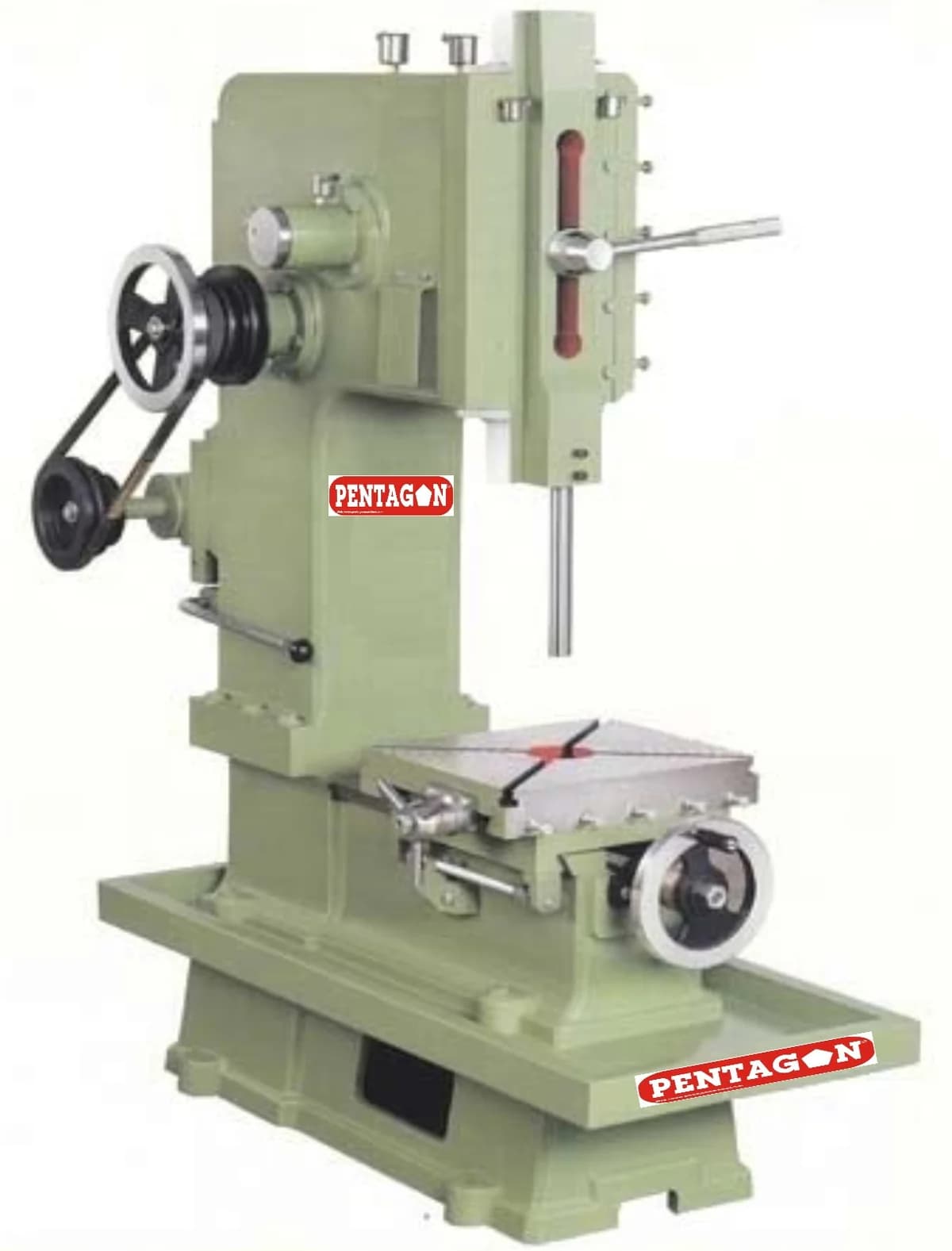

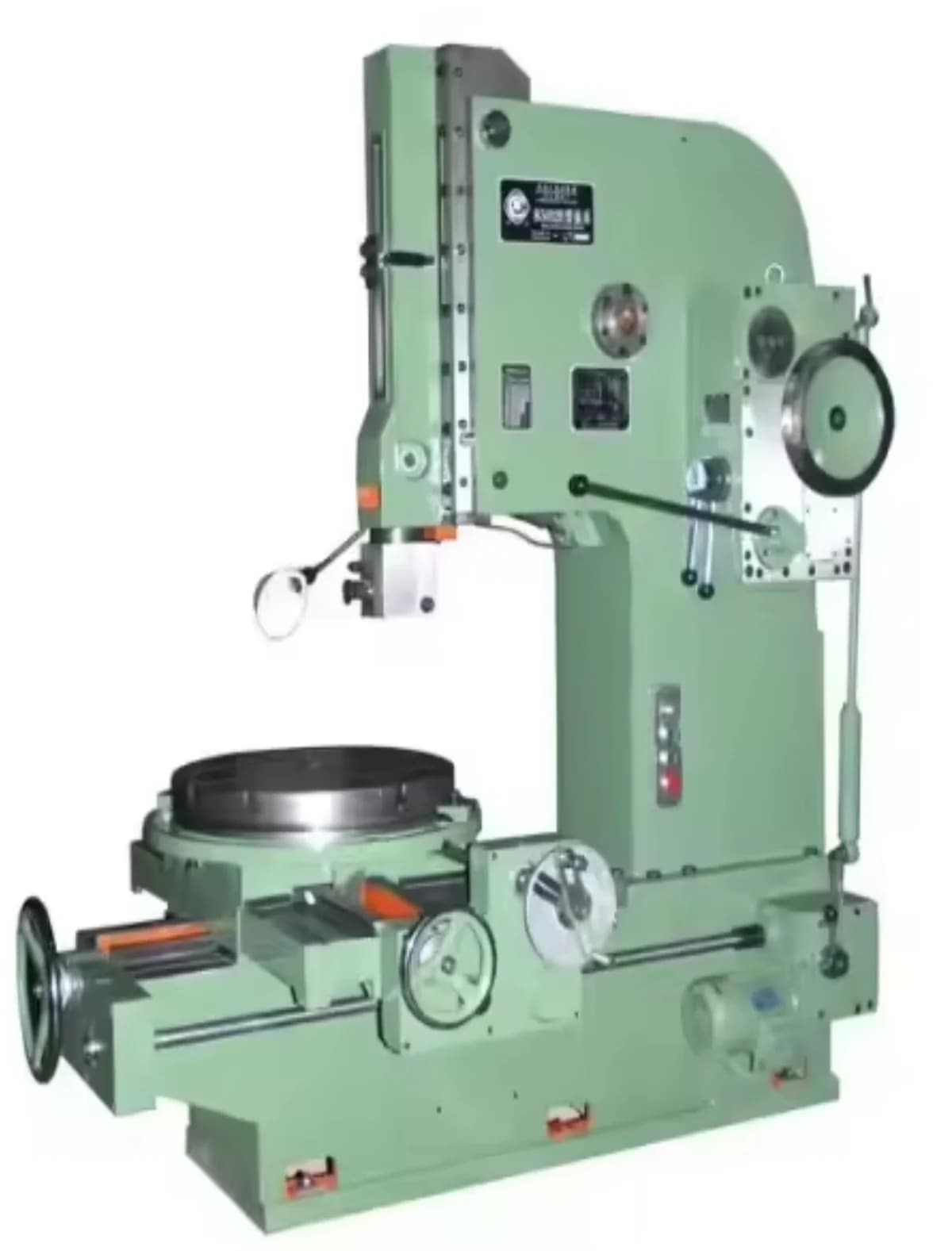

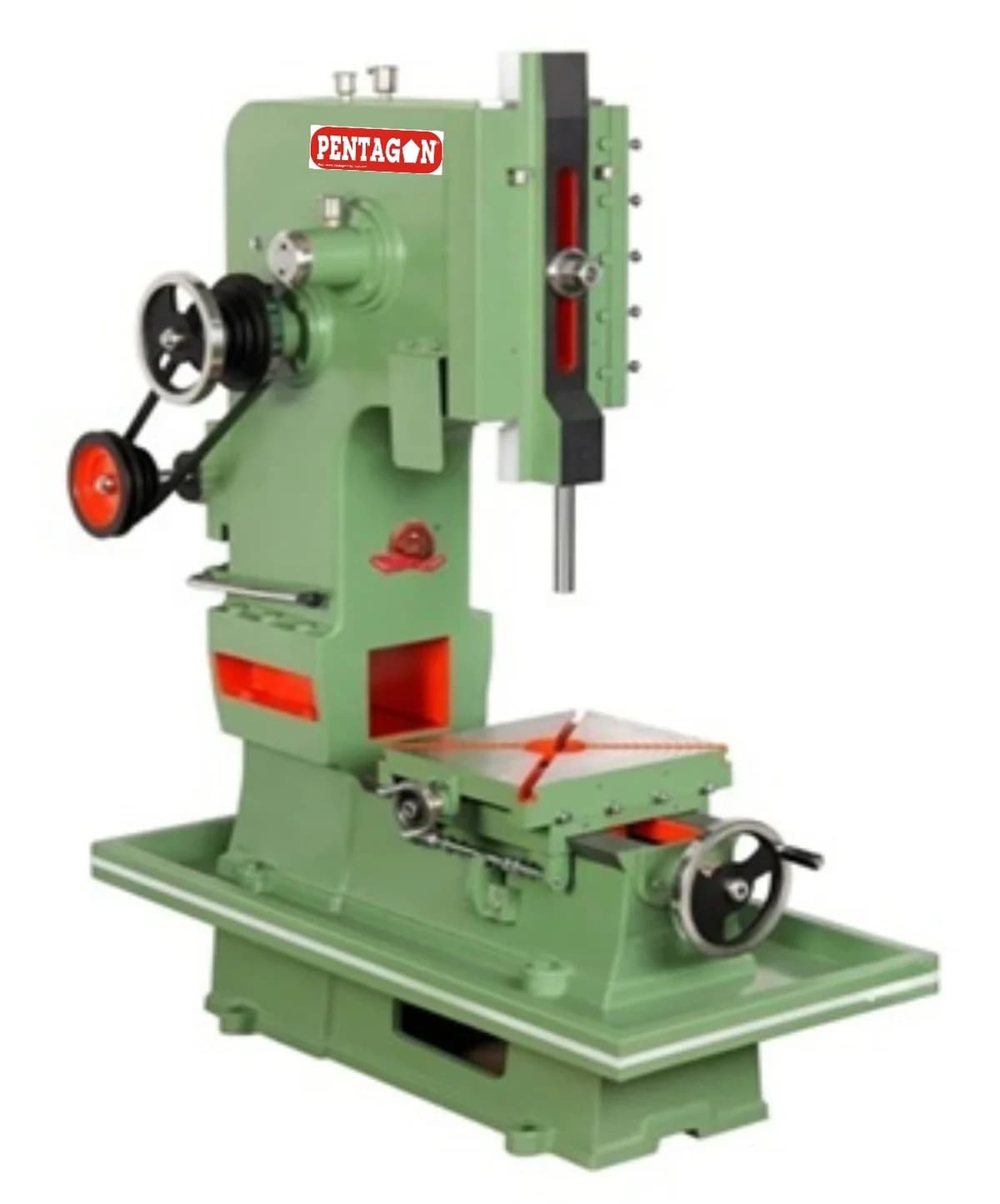

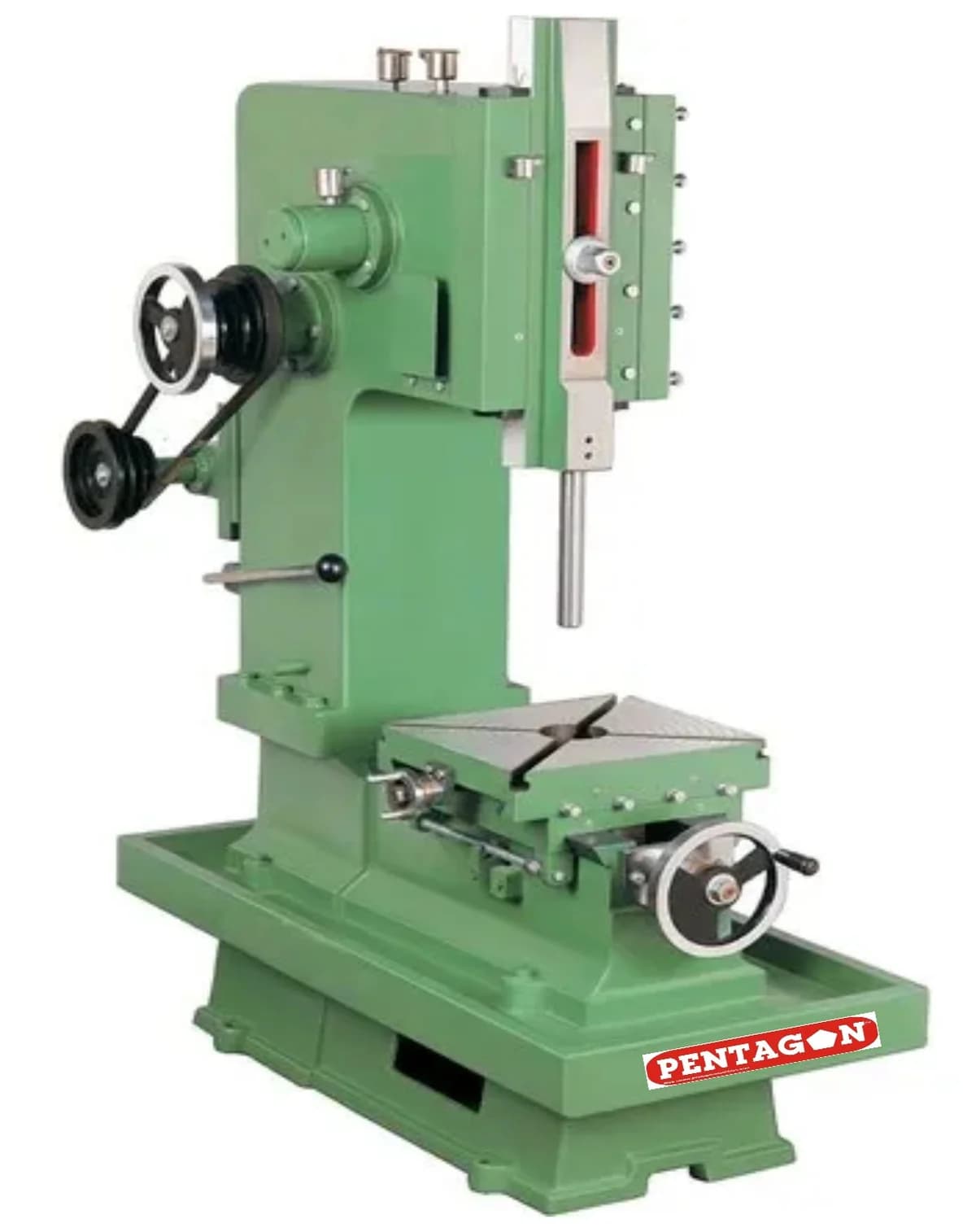

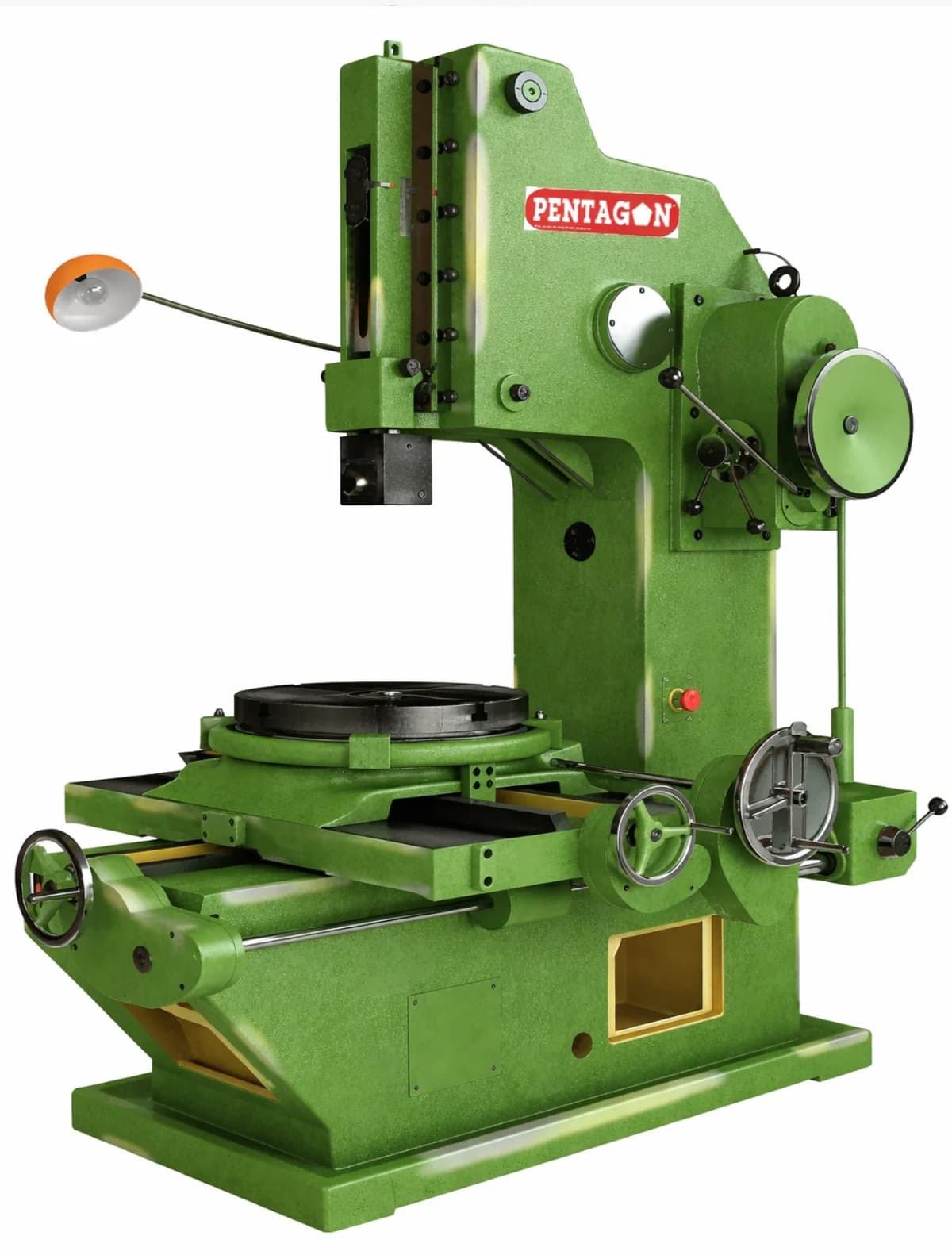

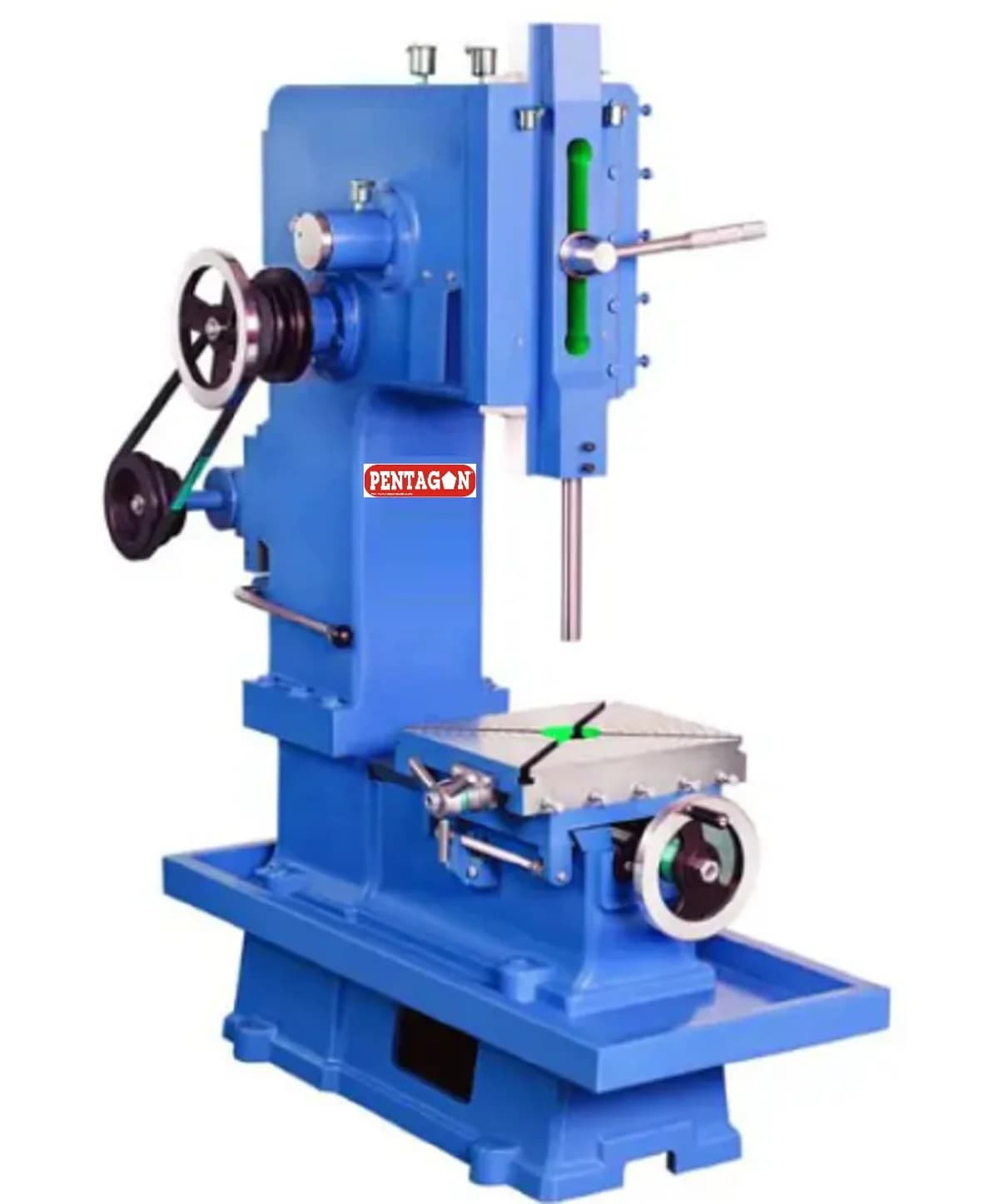

Pentagon Vertical Slotting Machine 250 mm Stroke
Pentagon PSM-250 Vertical Slotting Machine is designed for precision machining of internal keyways, slots, splines, and polygonal profiles. Featuring a 250 mm vertical stroke, rigid column structure, and precision rotary table, it delivers accurate tool-room performance for workshops, maintenance units, and small-batch production with smooth feeds and stable cutting.
Specifications
For: 250 mm Stroke- Machine Model
- PSM-250
- Ram Adjustment
- 250 mm
- Adjustment Stroke
- 10-250 mm
- Longitudinal Movement
- 230 mm
- Cross Movement
- 230 mm
- No. of Speed
- 3 speed
- Motor Power
- 1.5 HP 3 Phase
- Distance Spindle center to Column (A)
- 330 mm
- Gap Between Head to Table (B)
- 410 mm
- Table Size (C)
- 280x340 mm
- Machine Size
- 1150x600x1350 mm
- Machine Weight Approx
- 410 Kgs
Configurations
Click a row to switch| Variant | Ram Adjustment | Adjustment Stroke | Distance Spindle center to Column (A) | Gap Between Head to Table (B) | Price |
|---|---|---|---|---|---|
| 250 mm Stroke | 250 mm | 10-250 mm | 330 mm | 410 mm | ₹1,32,000 |
| 305 mm Stroke | 305 mm | 10-305 mm | 450 mm | 530 mm | ₹1,67,999 |
| 150 mm Stroke | 150 mm | 10-150 mm | 210 mm | 310 mm | ₹96,000 |
Description
The Pentagon PSM-150 vertical slotting machine is built for accurate internal machining operations such as internal slots, keyways, splines, and polygonal bores. Its 150 mm vertical stroke capacity combined with a precision rotary table allows machining at variable angles and depths. Constructed with a heavy-duty base, stable column, and mechanical feed system, the machine ensures rigidity, vibration-free operation, and consistent cutting accuracy. Ideal for small to medium workpieces in tool rooms, workshops, manufacturing units, and maintenance operations.
Advantages
- High machining accuracy for internal keyways and slots
- Rigid structure ensures stable and vibration-free performance
- Versatile machining capability with rotary indexing table
- Suitable for custom, prototype, and small-batch production
- Compact footprint ideal for tool rooms and workshops
- Low operational and maintenance costs
- Long service life due to hardened and ground guideways
- Reliable mechanical feed system for consistent cutting
- Improved productivity for repair and maintenance jobs
Features
- 150 mm vertical slotting stroke capacity
- Precision rotary indexing table for angular machining
- Rigid column and base for vibration-free operation
- Hardened and ground guideways for long-term accuracy
- Smooth mechanical feed and ram adjustment
- Manual cross and longitudinal feed controls
- Suitable for keyways, slots, splines and polygon machining
- Heavy-duty cast iron construction
- Compact tool-room friendly design
- Low maintenance mechanical system
Applications
- Internal keyway cutting for gears, pulleys, and couplings
- Slot and spline machining for precision components
- Internal square, hexagonal, and polygon profile machining
- Angular slot machining using rotary indexing capability
- Tool and die workshop operations
- Small-batch and prototype manufacturing
- Repair and maintenance workshop machining
- Automotive and machinery spare parts production
Optional Accessories
- Rotary table
- Suitable True Chuck
- Electric Motor
- Starter Switch
- V Belt
More questions buyers ask
What is a vertical slotting machine used for?
A vertical slotting machine is primarily used for machining internal keyways, splines, slots, and polygonal profiles in gears, pulleys, and other mechanical components.
What are the key features of the Pentagon PSM series?
The Pentagon PSM series features a rigid cast iron construction, precision rotary indexing table, hardened guideways, and smooth mechanical feed for high-accuracy machining.
What is the stroke capacity of the Pentagon PSM-150?
The Pentagon PSM-150 model offers a vertical slotting stroke capacity of 150 mm, suitable for small to medium-sized workpieces.
Can I use this machine for angular machining?
Yes, the machine comes with a precision rotary indexing table that allows for angular machining and complex profile cutting.
What power supply is required for these machines?
The Pentagon slotting machines typically operate on a 3-phase electric motor power supply, ranging from 1 HP to 2 HP depending on the model.
Is this machine suitable for tool rooms?
Yes, its compact footprint and high precision make it an ideal choice for tool rooms, maintenance workshops, and small-batch production units.
What materials can be machined on this slotter?
It is designed for machining various metals, including steel, cast iron, and non-ferrous alloys, commonly used in industrial components.
Does the machine come with a warranty?
Yes, Pentagon machines are backed by manufacturer warranty and after-sales support. Please check specific terms at the time of purchase.
Are spare parts easily available for Pentagon machines?
Pentagon provides reliable after-sales support and spare parts availability to ensure long-term operational efficiency.
How is the machine delivered?
We offer pan-India delivery for all industrial machinery, ensuring safe transport and handling to your workshop location.
Who should choose the 150 mm Stroke model?
The 150 mm stroke model is perfect for workshops focusing on small-scale components, prototypes, and light-duty internal slotting tasks.
Who should choose the 250 mm Stroke model?
The 250 mm stroke model is ideal for medium-sized workshops requiring higher versatility and capacity for slightly larger components.
Who should choose the 305 mm Stroke model?
The 305 mm stroke model is best suited for heavy-duty industrial applications requiring larger stroke capacity and robust machining power.
How does the 150 mm model compare to the 305 mm model?
The 150 mm model is compact and energy-efficient for small parts, whereas the 305 mm model offers significantly higher stroke, motor power, and table size for larger, more demanding jobs.
Which model is best for general maintenance workshops?
The 250 mm stroke model provides the best balance of capacity and footprint for most general maintenance and repair workshops.
