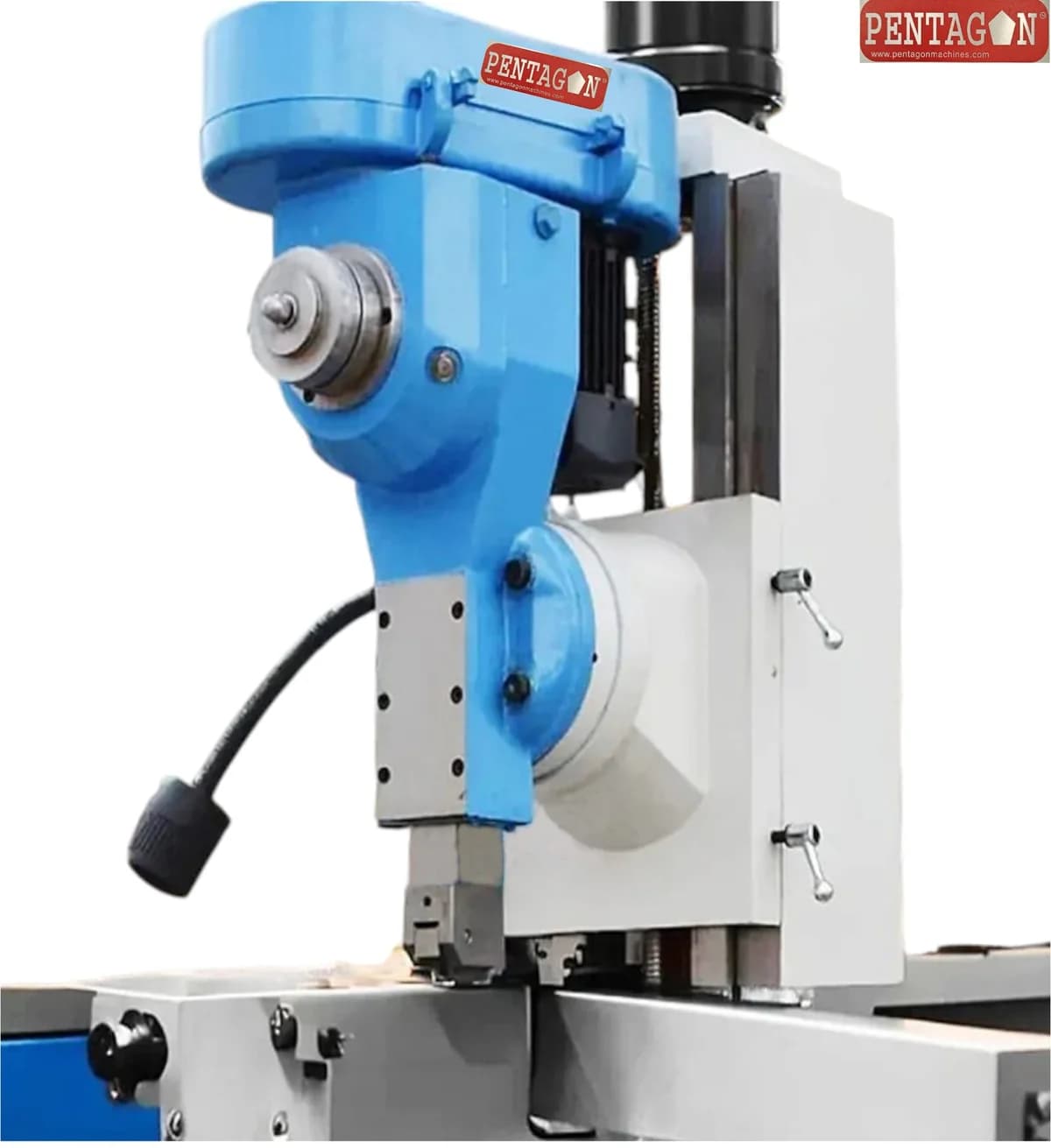

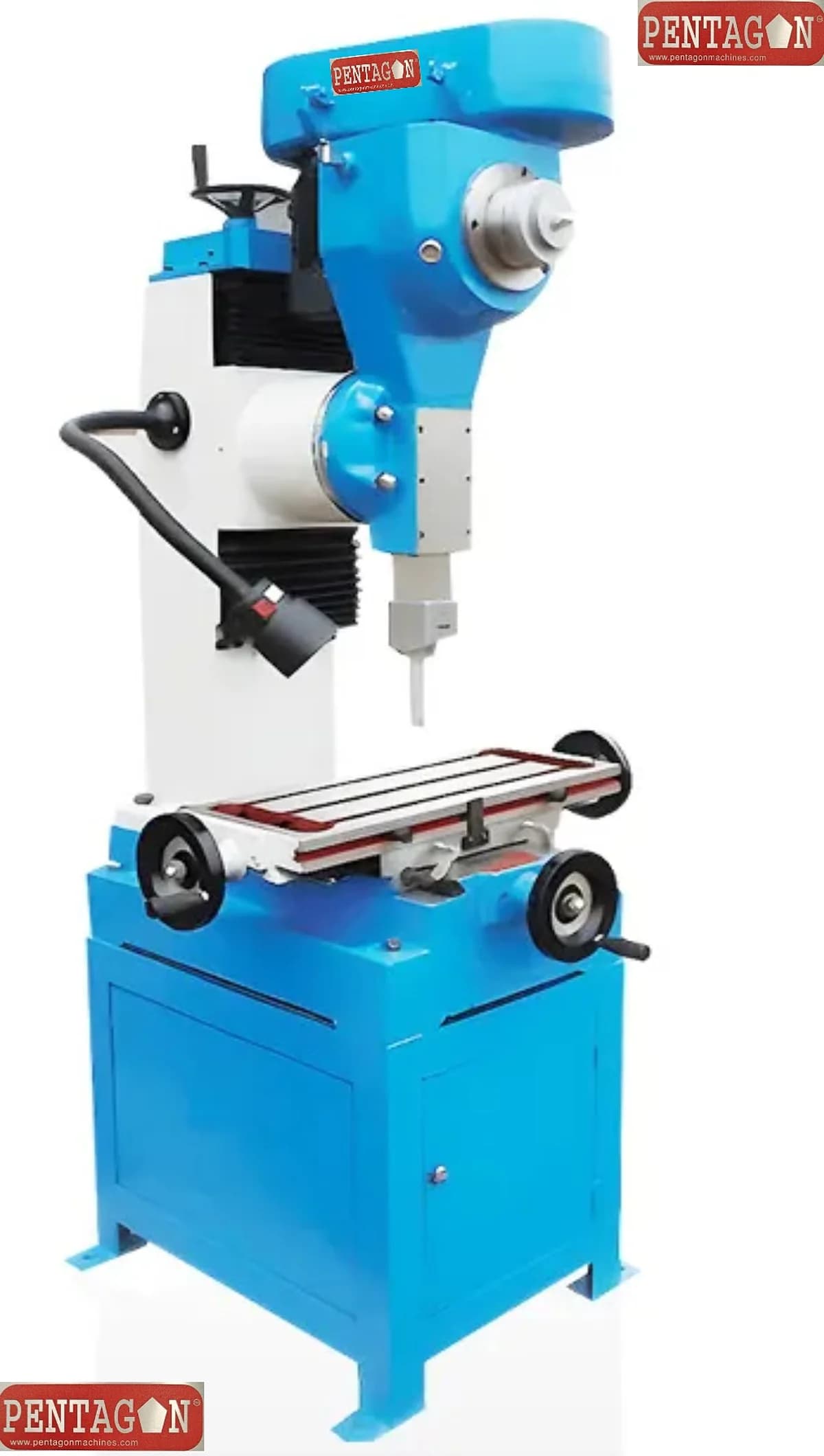

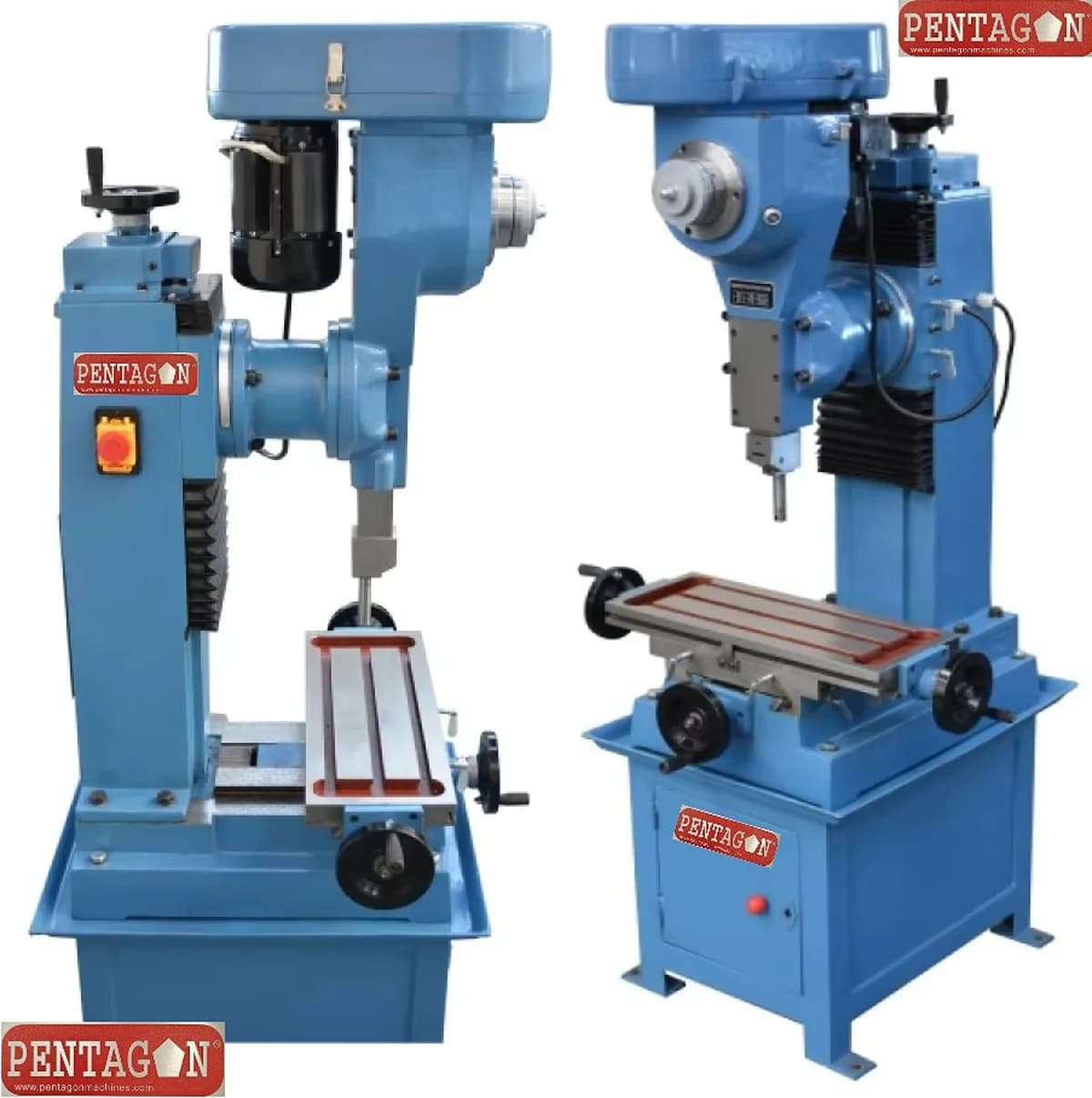

High Precision Vertical Slotting attachment for Milling Machine TX- Series TX-100

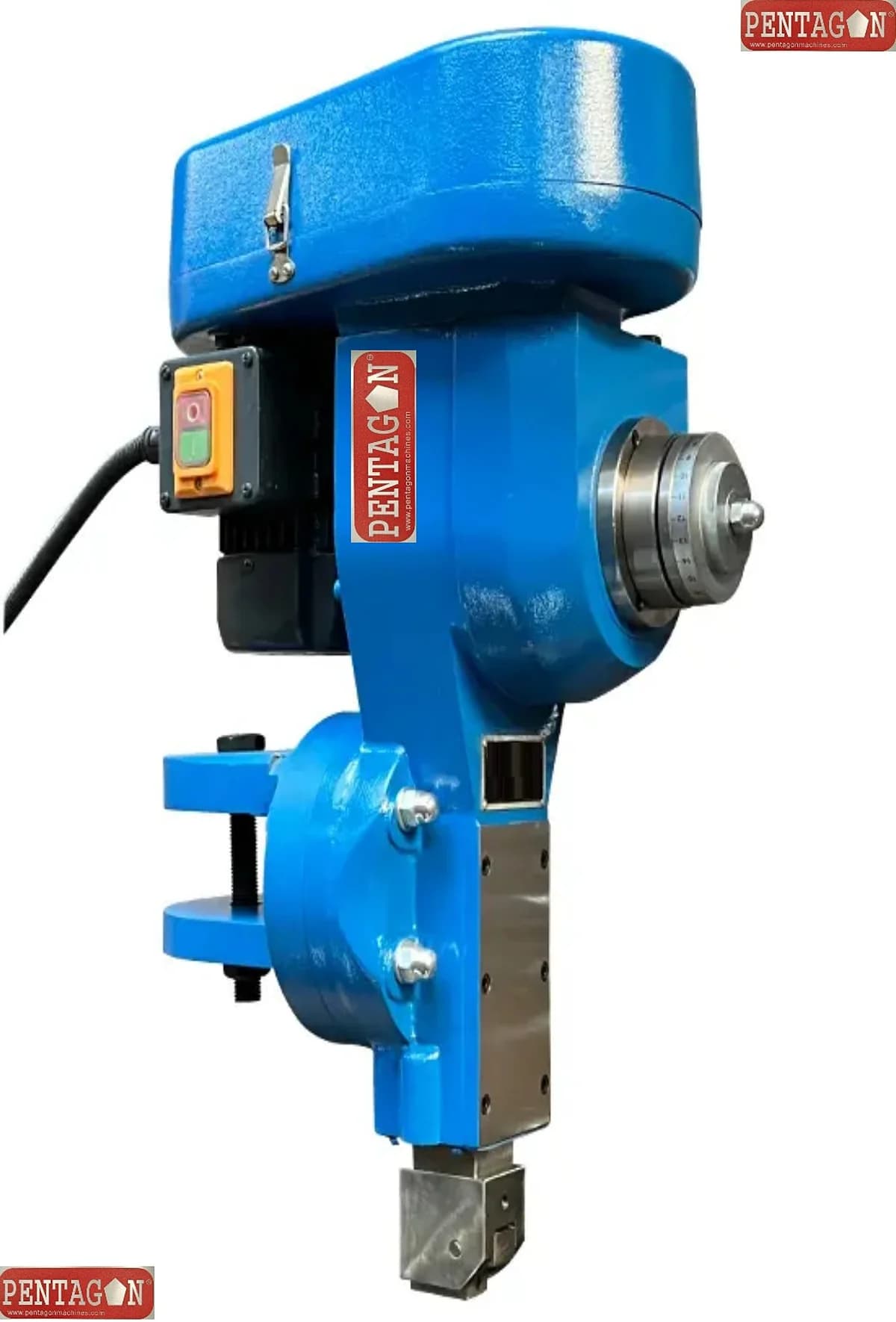

This vertical slotting attachment converts rotary motion to reciprocating tool movement for accurate keyway cutting. The TX-100 model features a 100 mm max work travel suitable for smaller components. • 3/4 HP motor provides reliable power for light to medium duty • Five stroke speeds ranging from 35 to 160 spm offer flexibility • Compact design weighs 75-80 kg for easy installation • 360° swing angle tool post enables multi-angle operations
See it in action

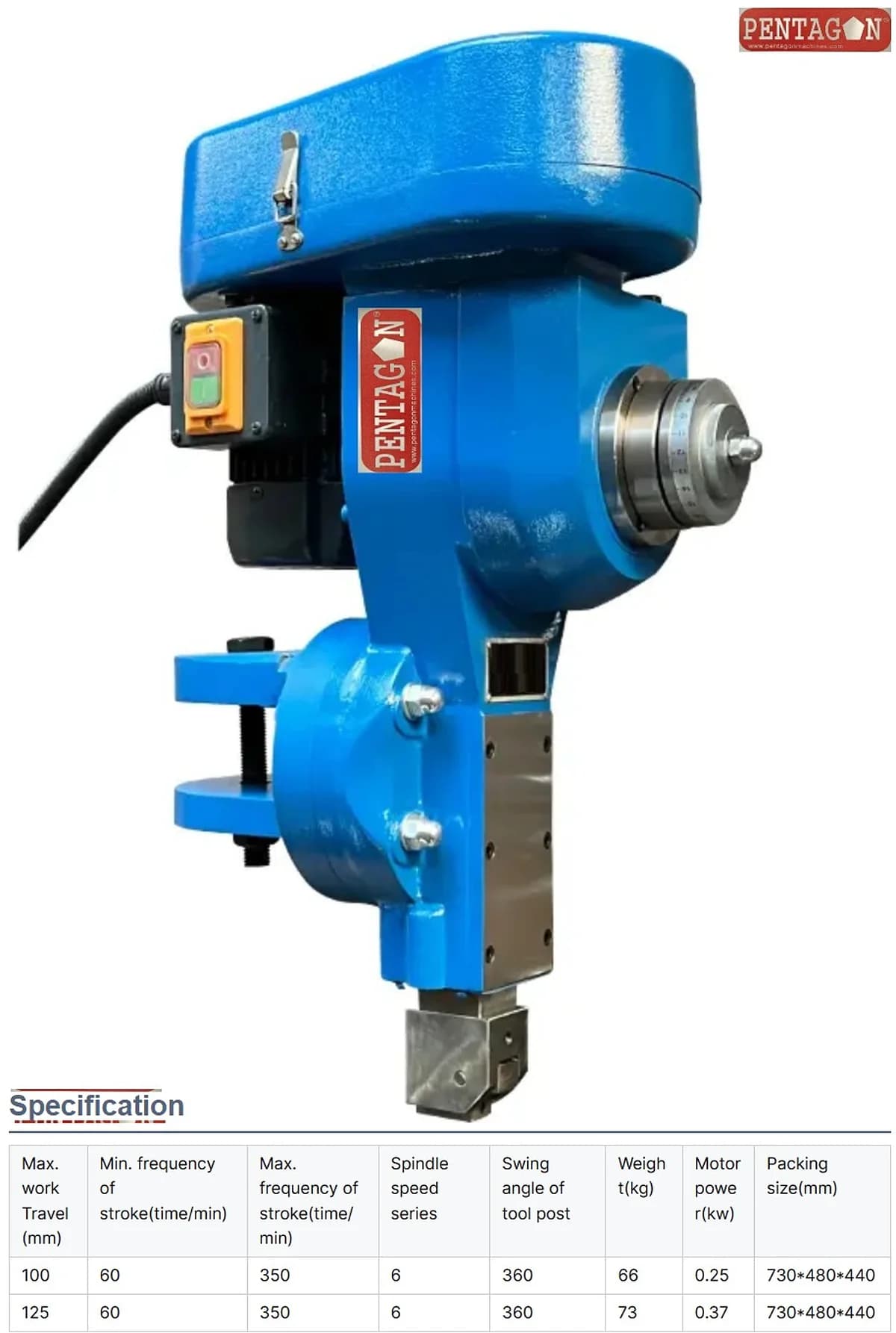

Specifications
For: TX-100- Model
- TX-100
- Max. work travel(mm)
- 100 mm
- Motor Power
- ¾ HP /≈0.56 Kw
- Number of stroke speeds
- 35 / 54 / 79 / 112 / 160 spm (at 60 Hz)
- Swing angle of tool post
- 360°
- Approximate dimensions
- 450 × 300 × 800 mm
- Packing size (mm)
- 450x300x800 mm
- Weight
- 75-80 Kgs
Configurations
Click a row to switch| Variant | Number of stroke speeds | Max. work travel(mm) | Swing angle of tool post | Motor Power | Price |
|---|---|---|---|---|---|
| TX-100 | 35 / 54 / 79 / 112 / 160 spm (at 60 Hz) | 100 mm | 360° | ¾ HP /≈0.56 Kw | ₹1,09,000 |
| TX-125 | 35 / 54 / 79 / 112 / 160 spm (at 60 Hz) | 125 mm | 360° | ¾ HP /≈0.56 Kw | ₹1,17,000 |
Buyer Questions
Q: Can this attachment work with existing turret mills? A: Yes, it is designed to convert standard spindle motion. Q: What types of materials can be machined? A: Suitable for steel, aluminum, and other common industrial metals. Q: Is installation complex? A: Designed for straightforward integration with standard milling setups.
Construction and Durability
- Engineered to withstand high vibration during reciprocating cycles
- Compact footprint minimizes floor space requirements on the shop floor
- Precision alignment ensures minimal runout during cutting operations
- Durable materials maintain accuracy over extended operational periods
- Secure mounting interface integrates seamlessly with milling spindles
Ideal Applications
- Perfect for creating keyways in shafts and hubs for mechanical assemblies
- Suitable for precision slot cutting in gears and splines manufacturing
- Supports maintenance tasks requiring custom slot modifications
- Used in aerospace and automotive component production lines
- Essential for job shops needing versatile milling capabilities
Operational Features
- Features multiple stroke speed options for varied material removal
- Includes a 360-degree swing angle of the tool post
- Supports various work travel requirements across the TX Series
- Optimized for efficient machining cycles with controlled reciprocation
- Robust motor power ensures consistent performance under load
Functional Conversion
- Converts spindle rotary motion into reciprocating up-and-down movement
- Enables precise slotting and keyway cutting operations
- Utilizes a single-point cutting tool for vertical slotting
- Available in TX-100 and TX-125 model configurations
- Designed for high precision vertical slotting tasks
More questions buyers ask
What is a vertical slotting attachment for a milling machine?
It is a specialized tool that converts the rotary motion of a milling machine spindle into reciprocating vertical motion, allowing for keyway cutting, grooving, and slotting operations.
Can this attachment be used on any milling machine?
It is designed for standard turret milling machines (TX-Series). Please verify your spindle mounting interface before purchase.
What materials can be machined with this attachment?
It is suitable for machining steel, aluminum, brass, and other common industrial metals used in mechanical assemblies.
Is the installation of the slotting head complex?
No, it is designed for straightforward integration with standard milling spindles, allowing for quick setup and conversion.
What is the maximum stroke length available?
We offer models with 100mm (TX-100) and 125mm (TX-125) maximum work travel to suit different project requirements.
Does it support angular slotting?
Yes, the tool post features a 360-degree swing angle, allowing for versatile cutting angles and complex profile machining.
What maintenance is required for the slotting attachment?
Regular lubrication of moving parts and ensuring the tool is securely mounted is essential for maintaining precision and longevity.
Is this attachment suitable for job shops?
Yes, it is an essential tool for job shops needing versatile milling capabilities for custom slotting and keyway manufacturing.
What is the motor power of the attachment?
The unit is powered by a 3/4 HP (approx. 0.56 kW) motor, providing consistent performance under load.
Does the price include GST?
Yes, all our industrial equipment prices include GST invoices for your accounting and tax credit purposes.
Who should choose the TX-100 model?
The TX-100 is ideal for workshops requiring a 100mm stroke for standard keyway and slotting tasks on smaller to medium components.
Who should choose the TX-125 model?
The TX-125 is best for users needing a longer 125mm stroke capacity for larger components or deeper slotting applications.
How does the TX-100 compare to the TX-125?
The primary difference is the maximum work travel (100mm vs 125mm) and slight variations in weight, with the TX-125 offering more capacity for larger workpieces.
Which model is better for heavy-duty slotting?
The TX-125 is better suited for heavier-duty applications due to its increased stroke length and robust build, though both share the same motor power.
