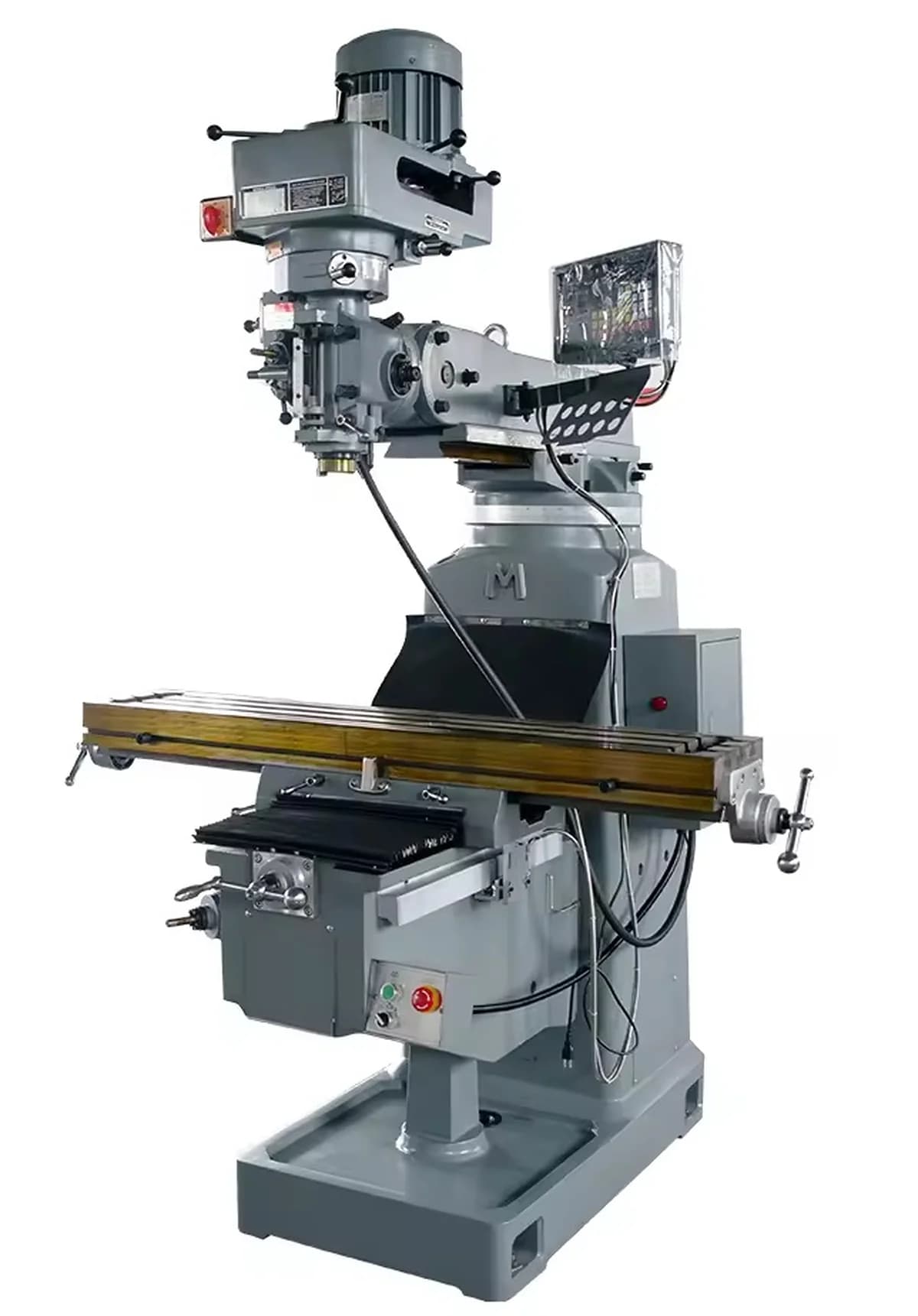

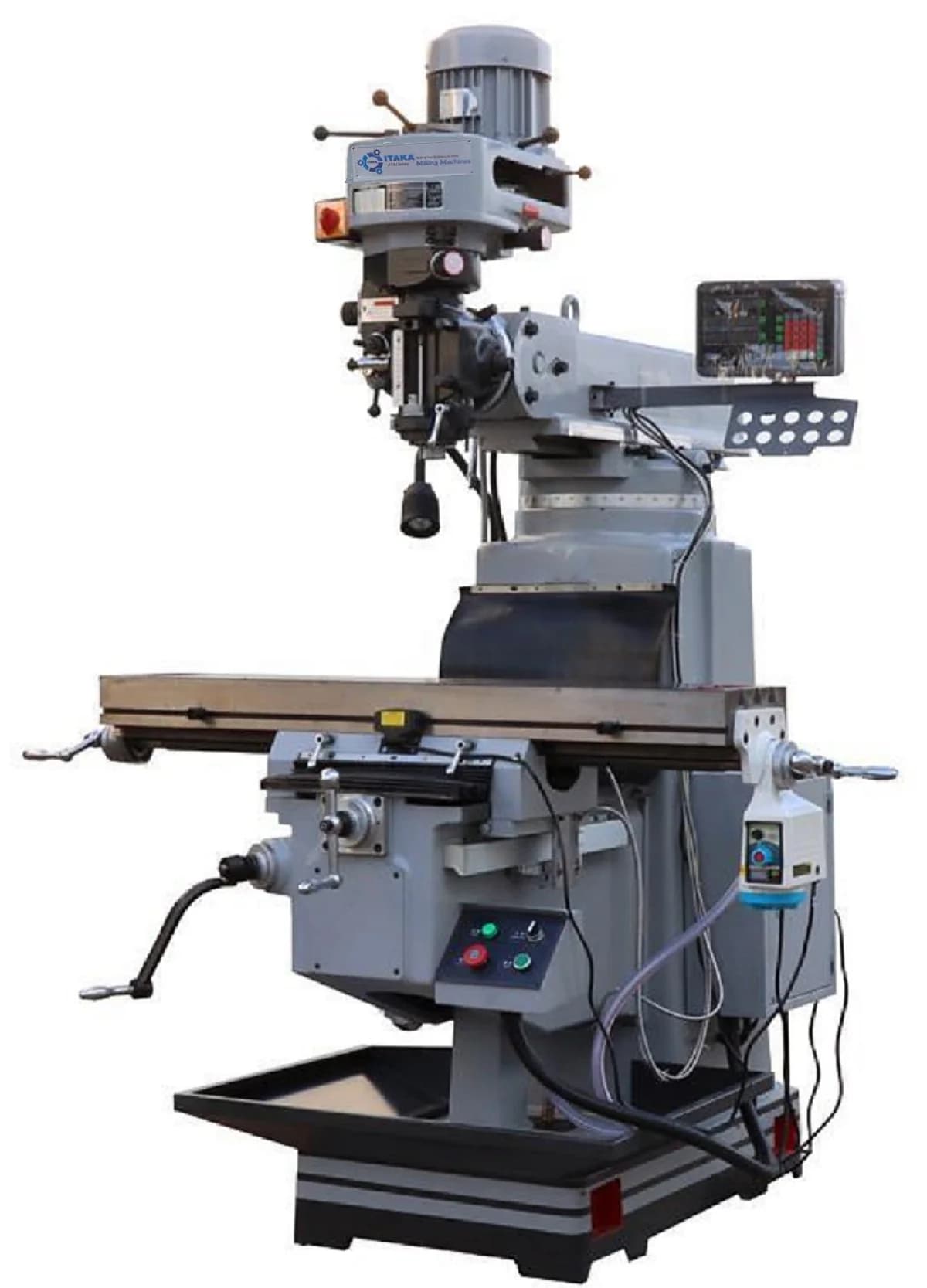

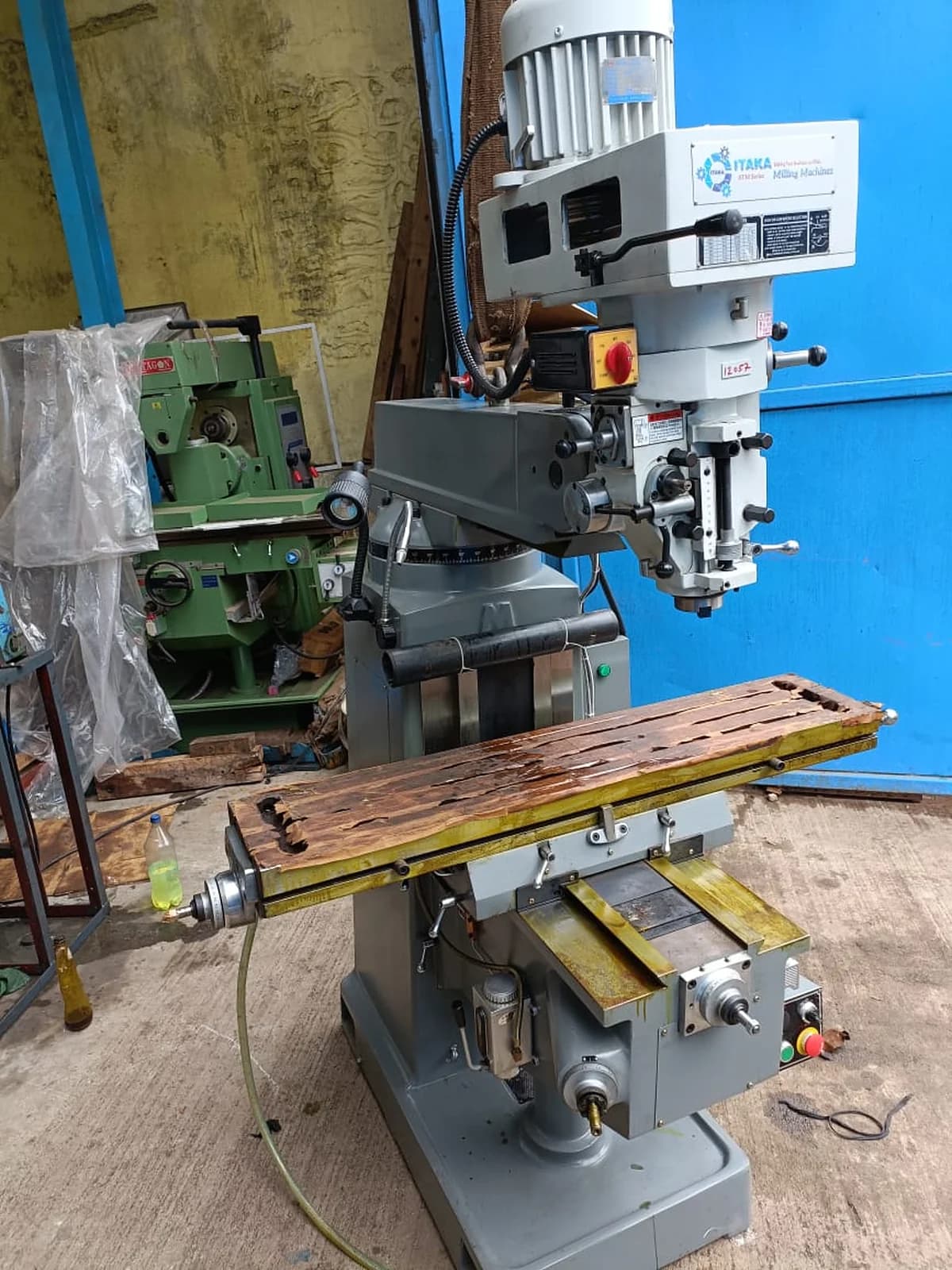

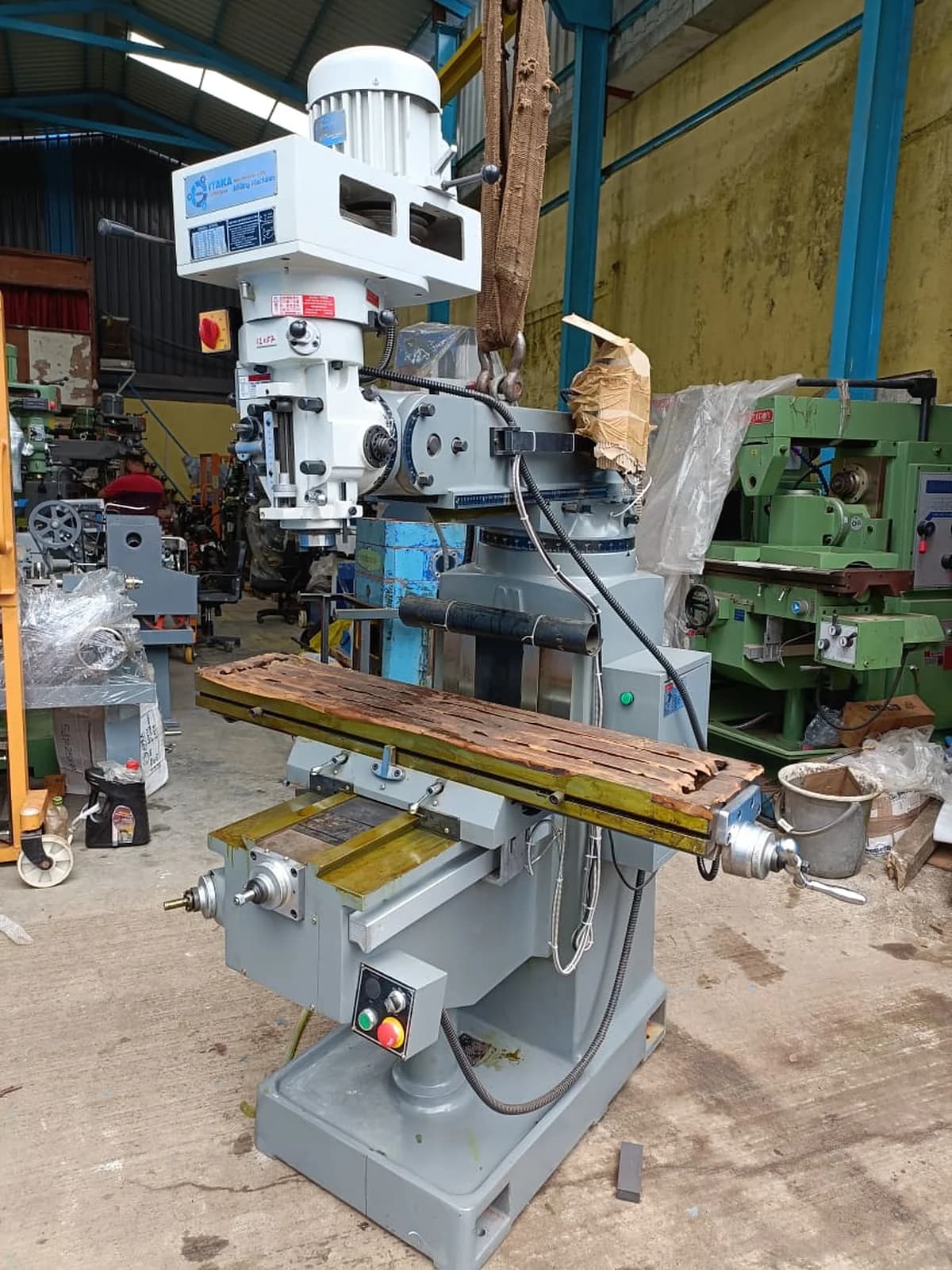

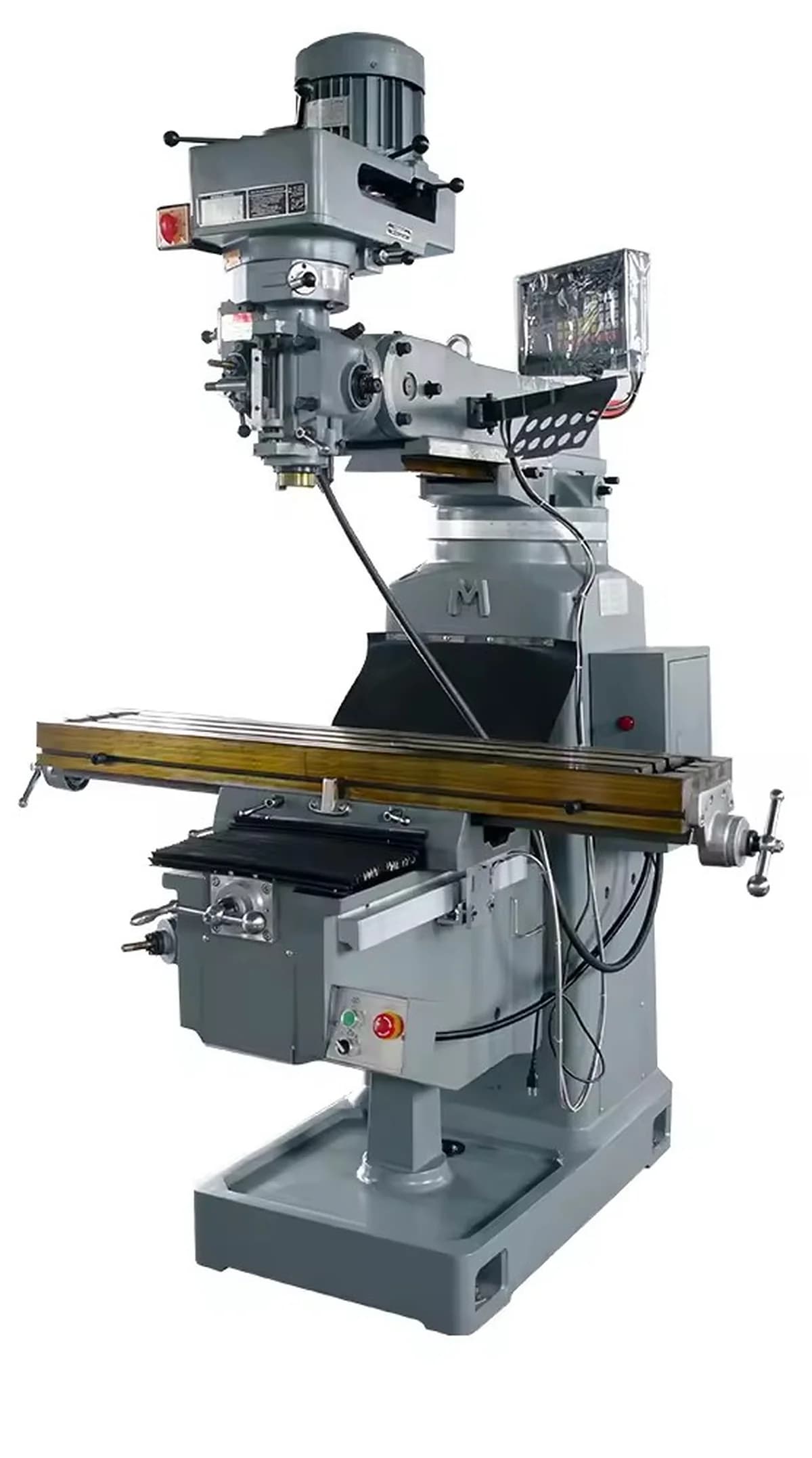

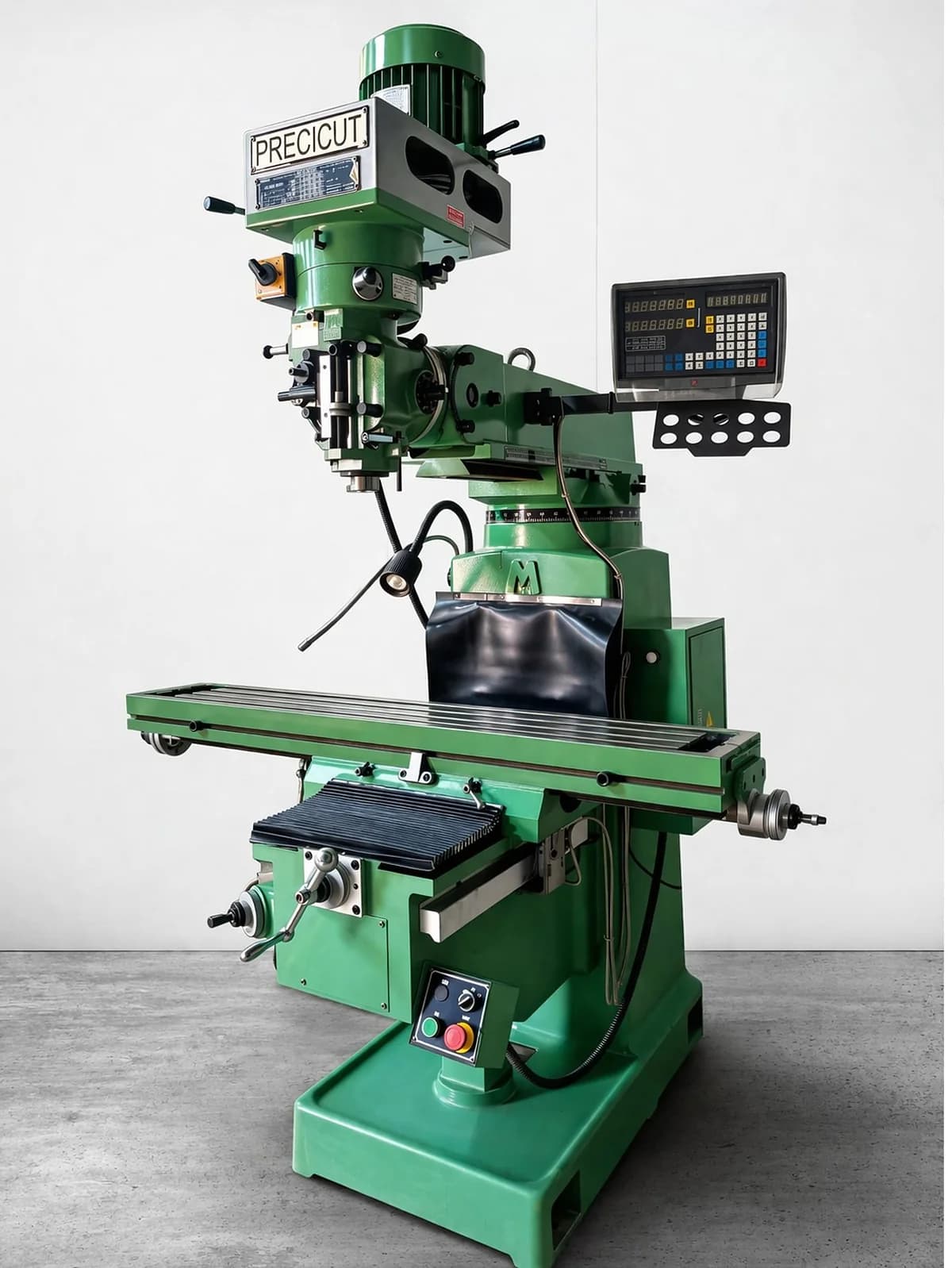

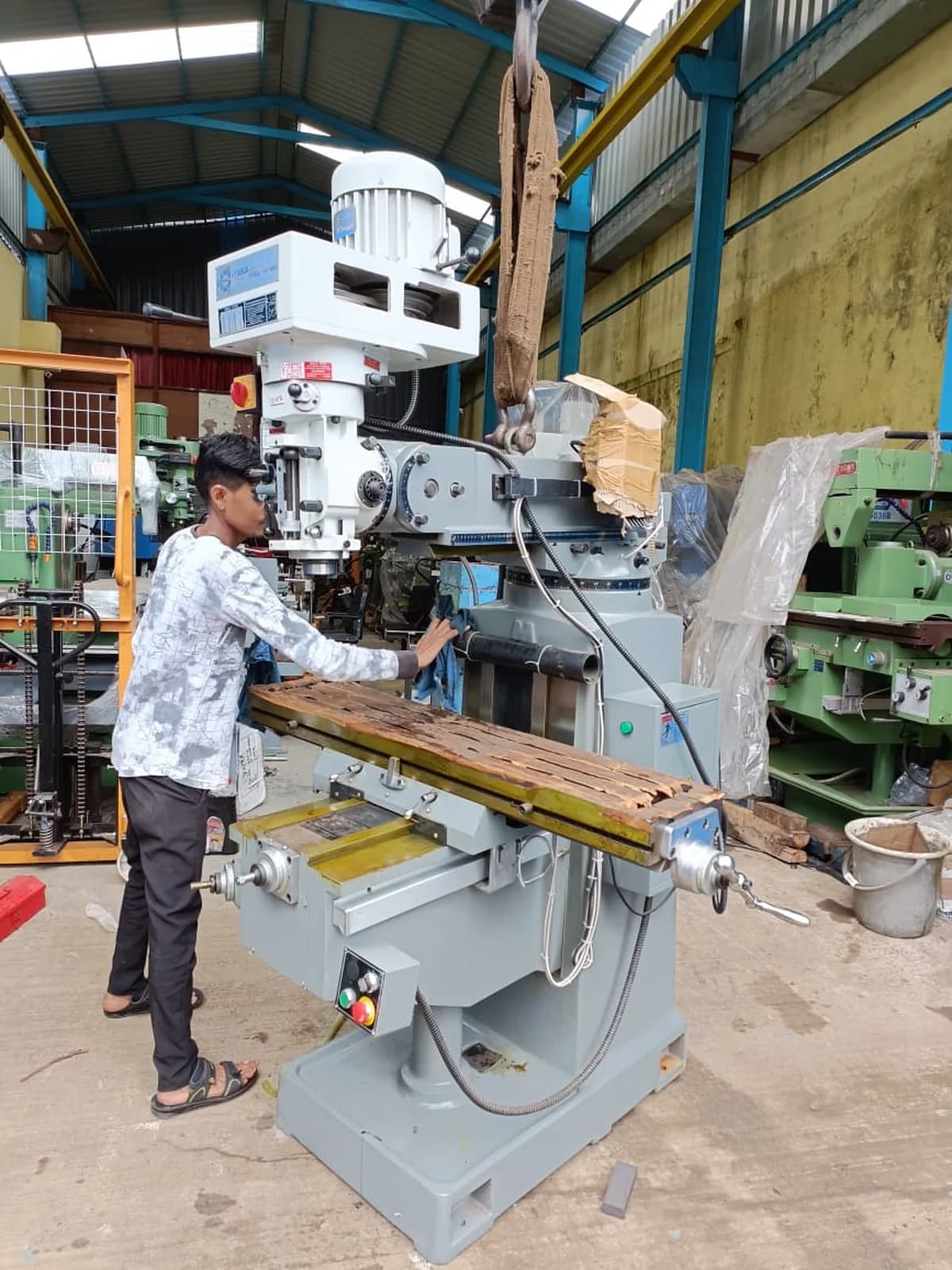

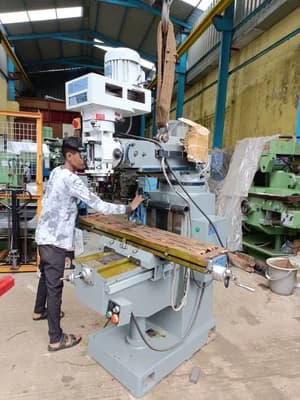

Taiwan ITAKA Vertical RAM Turret Milling Machine — TM3-R8/ISO30-3
Robust Vertical RAM Turret Milling Machines deliver versatile metal cutting capabilities for industrial toolrooms. Curved body design ensures stability during heavy cuts. • 3 HP double speed motors support various cutting speeds • V-type guideways maintain precision under load • Available in R8, ISO30, or ISO40 spindle taper configurations • 16 speed steps allow optimal feed rates for different materials.

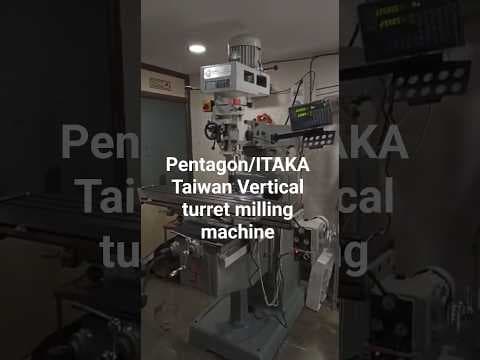

See it in action
Specifications
For: TM3-R8/ISO30-3- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Head Swivel (F x B)
- 45°
- Spindle Speed
- 45-5440 rpm(60Hz)
- Ram Travel
- 580 mm
- Quill Travel
- 127 mm
- Spindle Nose to Table
- 500 mm
- Brake Mounting Type
- Top
- Steps of Speeds
- 16 Steps
- Z-Axis Guideways
- V Type
- Head Swivel (L x R)
- 90°
- Weight of the Machine (Approx.)
- 1250 Kgs
- Vertical Travel of Table
- 400 mm
- Max Load on Table
- 250 Kgs
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Milling Head Type
- Round
- Cross Guideways
- V Type
- Cross Travel of table
- 400 mm
- Machine Model
- TM3-R8/ISO30-3
- Longitudinal Travel of Table
- 850 mm
- Spindle Nose taper
- R8/ISO30
- Table size
- 1270x254 mm
Configurations
Click a row to switch| Variant | Table size | Spindle Nose taper | milling-head-type | brake-mounting-type | Price |
|---|---|---|---|---|---|
| TM3-R8/ISO30-3 | 1270x254 mm | R8/ISO30 | — | — | ₹5,25,000 |
| TM3-ISO40-3 | 1270x254 mm | ISO40 | — | — | ₹5,42,000 |
| TM4-R8/ISO30-3 | 1370x254 mm | R8/ISO30 | — | — | ₹5,35,000 |
| TM4-ISO40-3 | 1370x254 mm | ISO40 | — | — | ₹5,51,000 |
| TM3S-R8/ISO30-3 | 1270x254 mm | R8/ISO30 | — | — | ₹5,53,000 |
| TM3S-ISO40-3 | 1270x254 mm | ISO40 | — | — | ₹5,68,000 |
| TM4S-R8/ISO30-3 | 1370x254 mm | R8/ISO30 | — | — | ₹5,64,000 |
| TM4S-ISO40-3 | 1370x254 mm | ISO40 | — | — | ₹5,75,000 |
Description
The Vertical Ram Turret Milling Machine is designed for precision machining operations such as milling, drilling, boring, and slotting. Its robust construction and flexible ram-type design allow the operator to position the spindle head at multiple angles and directions, enhancing versatility for toolroom and production environments.
PENTAGON Vertical RAM Turret Milling table 1270x254 mm and 1370x254 mm V and Square Guideways in Y axis with two axis DRO and standard accessories listed in offer and mentioned optional accessories package: 1. Machine vice swivel base type 150 mm opening, 2. Clamping kit M12 Type 58 Pcs set, 3. Collet set 11/10 pcs set box
Features
1. The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
2. The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360 Degree on the machine bed, for the processing range can be greater than the table size
3. The speed of milling head is rather high and it makes the machine especially good working with small cutters
4. This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing
5. Robust construction and heavy duty design
6. The machine body is made of Meehanite cast iron
7. The milling head is made of SCM-21.Imported from Taiwan
8. The milling head can swing 90 Degree right and left side, 45 Degree front and back side
9. The ram can swing 180 Degree horizontally
10. High-precision spindle: R8 or ISO 30/40 taper with smooth speed control.
11. Adjustable ram movement: Extends and retracts to position the spindle optimally.
12. Tilting & swiveling head: Allows angular machining for complex components.
13. Heavy-duty table (1270×254 mm and 1370x254 mm): Provides stability and supports larger workpieces.
14. Auto feed on X/Y (optional): Improves machining efficiency.
15. Central lubrication system: Ensures smooth, reliable machine operation.
16. Measuring devices (DRO optional): Enhances accuracy and repeatability.
Advantages
1. Enhanced Precision: The machine's design ensures high accuracy, reducing the need for rework.
2. Increased Productivity: The versatility and efficiency of the machine contribute to higher output.
3. Durability: Constructed with high-quality materials, ensuring long service life.
4. Ease of Operation: User-friendly controls and DRO systems simplify complex machining tasks.
5. High flexibility for different machining operations.
6. Ideal for toolrooms, maintenance workshops, and small to medium industries.
7. Easy to set up and operate, even for angular machining.
8. Strong, vibration-free construction ensures consistent accuracy.
9. Suitable for precision jobs and batch production.
Standard Accessories
- 1. DRO 2 Axis with suitable linear scales fitted in machine
- 2. Coolant Pump with fitting
- 3. Machine Lamp
- 4. Rear and front bellow cover set
- 5. Suitable draw bar set
- 6. Central Lubrication unit
- 7. Electrical cabinet with 110/220 V output
- 8. Tool Box with essential tools
- 9. Operation manual with machine test certificate
- 10. Swivel base Acculock type machine vice 150 mm jaw opening
- 11. Clamping kit M12 Type 58 Pcs set
- 12. Collet set ER32 type 10/11 pcs set
Optional Accessories
- 1. 3 axis DRO set with suitable size of linear scale
- 2. Reduction sleeve MT3
- 3. Reduction sleeve MT2
- 4. X axis table auto power feeder 110V type
- 5. Y axis table auto power feeder 110V type
- 6. H-V Rotary table
- 7. Semi Universal dividing head with tail stock soft jaws Indexing plates
- 8. Splash Tray/Chip Tray
- 9. Integrated type keyless drill chuck with intact suitable arbor
- 10. Micro boring head F-12 or F-18 with suitable Shank
- 11. Mechanical Edge Finder/Edge Sensor
- 12. Boring bar dia 18 mm set of 12 pcs
- 13. keyless drill chuck with intact suitable arbor
- 14. Mechanical Gear box Power feeder 380V
Applications
- The Vertical RAM Turret Milling Machine is ideal for a wide range of applications, including:
- 1. Drilling and Tapping: Precise hole-making and threading operations.
- 2. Slotting and Keyway Milling: Creating slots and keyways with high accuracy.
- 3. Face Milling and End Milling: Surface finishing and contouring tasks.
- 4. Jig Boring: High-precision boring operations for tool and die making.
More questions buyers ask
What is the Pentagon Taiwan ITAKA Vertical RAM Turret Milling Machine used for?
It is designed for precision machining operations such as milling, drilling, boring, and slotting in industrial toolrooms.
What is the spindle motor power of this milling machine?
It features a powerful 3 HP double speed motor (415V/50 or 60Hz) supporting various cutting speeds.
What are the available spindle nose tapers?
The machine is available in R8/ISO30 or ISO40 spindle taper configurations depending on the variant.
What is the spindle speed range?
The spindle speed ranges from 45 to 5440 rpm (at 60Hz) with 16 speed steps for optimal feed rates.
What type of guideways does this machine use?
It uses robust V-type guideways on the cross and Z-axis to maintain precision under heavy loads.
What is the maximum load capacity on the table?
The table can support a maximum load of 250 Kgs.
Does the machine come with an auto quill feed?
Yes, it features auto quill feeds per revolution of 0.40, 0.08, and 0.15 mm/rev.
What is the ram travel distance?
The ram travel distance is 580 mm.
What is the quill travel distance?
The quill travel distance is 127 mm.
Is the milling head rotatable?
Yes, the milling head can swivel 45° front-to-back and 90° left-to-right.
What is the warranty on the Pentagon Vertical RAM Turret Milling Machine?
It comes with a standard manufacturer warranty. Please check the specific terms at the time of purchase.
Do you provide a GST invoice for this machine?
Yes, we provide a valid GST invoice for all purchases, allowing you to claim input tax credit.
Who should choose the TM3-R8/ISO30-3 variant?
This variant is ideal for standard toolroom applications, featuring a 1270x254 mm table, R8/ISO30 taper, and top brake mounting.
Who should choose the TM3-ISO40-3 variant?
Perfect for operations requiring higher rigidity, equipped with an ISO40 taper, 1270x254 mm table, and top brake.
Who should choose the TM4-R8/ISO30-3 variant?
Best for machining larger workpieces, offering an extended 1370x254 mm table with an R8/ISO30 taper.
Who should choose the TM4-ISO40-3 variant?
Suited for heavy-duty milling on larger parts, featuring a 1370x254 mm table and a robust ISO40 taper.
Who should choose the TM3S-R8/ISO30-3 variant?
Designed with a side brake and square milling head, offering a 1270x254 mm table and R8/ISO30 taper for enhanced control.
Who should choose the TM3S-ISO40-3 variant?
Combines the rigidity of an ISO40 taper with a side brake and square head on a 1270x254 mm table.
Who should choose the TM4S-R8/ISO30-3 variant?
Features an extended 1370x254 mm table, side brake, and square head with an R8/ISO30 taper for versatile machining.
Who should choose the TM4S-ISO40-3 variant?
The ultimate choice for large, heavy-duty tasks, offering a 1370x254 mm table, ISO40 taper, side brake, and square head.
What is the difference between the TM3 and TM4 series?
The TM3 series features a 1270x254 mm table with 850 mm longitudinal travel, while the TM4 series has a larger 1370x254 mm table with 930 mm longitudinal travel.
What is the difference between the standard and 'S' (Side Brake) models?
Standard models have a top brake and round milling head, whereas 'S' models feature a side brake and a square milling head for different operational preferences.
How does the R8/ISO30 taper compare to the ISO40 taper?
The ISO40 taper is larger and more rigid, making it better suited for heavier cutting operations compared to the R8/ISO30 taper.
Which variant is best for heavy-duty milling operations?
The TM4S-ISO40-3 is the most robust option, combining the largest table size, rigid ISO40 taper, and a square milling head.
