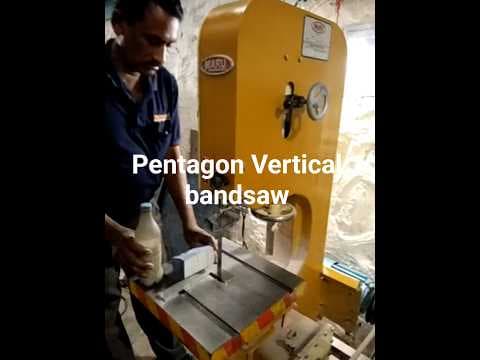

Pentagon Vertical Band Saw Machine VBS 700
Engineered for consistent metal cutting, this vertical band saw delivers reliable performance across diverse fabrication workflows. The unit accommodates a 5200 x 27 x 0.9mm blade and features variable speed control from 200 to 1500 m/min for optimized material removal rates. • Handles maximum cutting heights up to 400 mm • Maintains cutting accuracy within ±0.50 mm • Integrates with standard 415V three-phase power
Specifications
For: VBS 700- Throat Depth
- 700 mm
- Maximum Cutting Height
- 400 mm
- Table Size
- 700 × 700 mm
- Table Material
- Heavy Duty Cast Iron
- Blade Size
- 5200 x 27 x 0.9mm
- Blade Width
- 6–25 mm
- Blade Speed
- Variable 200–1500 m/min (VFD)
- Main Motor
- 5 HP
- Power Supply
- 415V, 3 Phase, 50Hz
- Blade Guide
- Precision Carbide Guide
- Blade Tensioning
- Manual with Tension Indicator
- Cutting Accuracy
- ±0.50 mm
- Work Light
- LED
- Safety Guard
- Full Blade Guard
- Emergency Stop
- Yes
- Dust Collection Port
- Yes
- Control Panel
- Industrial Grade
- warranty
- 6 months against manufacturing defects
Operational Efficiency & Maintenance
- Manual blade tensioning with a tension indicator ensures optimal tracking
- Dedicated dust collection port helps maintain a cleaner workshop environment
- Simple mechanical design reduces downtime and simplifies routine servicing
- Carbide guides and heavy cast components minimize wear over extended use
- Regular blade inspection and proper tensioning extend overall tool life
Industrial Applications & Material Versatility
- Ideal for cutting structural steel, stainless steel, and aluminum profiles
- Suited for machine shops, fabrication units, and heavy engineering plants
- Handles complex contour cutting and straight cuts on solid bars
- Compatible with various metal grades used in automotive and aerospace
- Supports high-precision job shops requiring tight tolerance outputs
Operator Safety & Control Systems
- Powered by standard 415V, 3 Phase, 50Hz industrial power supply
- Controls housed in an industrial grade panel for reliable operation
- Includes a full blade guard to contain sparks and debris during cuts
- Features an emergency stop button for immediate machine shutdown
- Integrated LED work light ensures clear visibility of the cutting zone
Heavy-Duty Construction & Stability
- Built on a heavy duty cast iron table measuring 700 × 700 mm
- Features a substantial 700 mm throat depth for large workpieces
- Supports maximum cutting heights up to 400 mm for thick stock
- Equipped with precision carbide blade guides for extended life
- Backed by a 6 month warranty against manufacturing defects
Precision Cutting Performance
- The Pentagon Vertical Band Saw Machine delivers variable blade speed from 200–1500 m/min via VFD control
- Maintains cutting accuracy within ±0.50 mm for repeatable results
- Accommodates blade widths from 6–25 mm for versatile operations
- Delivers consistent cuts with a robust 5 HP main motor drive
- Optimized for high-volume production with minimal material waste
Standard Accessories
- Variable Speed Drive (VFD)
- ● Heavy Duty Cast Iron Work Table
- ● Precision Fence Guide
- ● LED Work Lamp
- ● Blade Tension Indicator
- ● Emergency Stop Switch
- ● Operation & Maintenance Manual
- ● Tool Kit
More questions buyers ask
What is a vertical band saw machine used for?
A vertical band saw is used for contour cutting, straight cuts, and intricate shapes in metal, wood, and plastic in workshops and fabrication units.
What materials can the Pentagon Vertical Band Saw cut?
It is designed for structural steel, stainless steel, aluminum profiles, and various other metal grades used in automotive and aerospace industries.
What is the benefit of a VFD in a band saw?
A Variable Frequency Drive (VFD) allows for precise control over blade speed, enabling the operator to match the speed to the material being cut for better finish and blade life.
What is the throat depth of this machine?
This model features a 700 mm throat depth, allowing for the processing of large workpieces.
Does this machine come with a warranty?
Yes, it includes a 6-month warranty against manufacturing defects.
What power supply is required?
The machine operates on a standard 415V, 3 Phase, 50Hz industrial power supply.
What is the cutting accuracy?
It maintains a cutting accuracy within ±0.50 mm for repeatable, high-quality results.
Is the blade tensioning manual or automatic?
It features manual blade tensioning with a convenient tension indicator for optimal tracking.
What safety features are included?
Safety features include a full blade guard, emergency stop button, and an industrial-grade control panel.
What is the maximum cutting height?
The machine supports a maximum cutting height of 400 mm.
Who should choose the Pentagon VBS 700?
The VBS 700 is ideal for professional machine shops, tool and die makers, and heavy fabrication units requiring a versatile, high-precision vertical cutting solution.
How does the VBS 700 compare to standard horizontal saws?
Unlike horizontal saws limited to straight cut-offs, the VBS 700 offers superior versatility for contouring, intricate shapes, and large plate processing.
