Pentagon Universal Tool and Cutter Grinder Machine — MR-600F
MR-600F Universal Tool & Cutter Grinder is a versatile, high-precision machine designed for sharpening, reconditioning, and shaping a wide variety of cutting tools. Ideal for workshops, tool rooms, CNC maintenance units, and industrial manufacturing setups, the MR-600F provides superior accuracy, efficiency, and long-term reliability for tool grinding operations

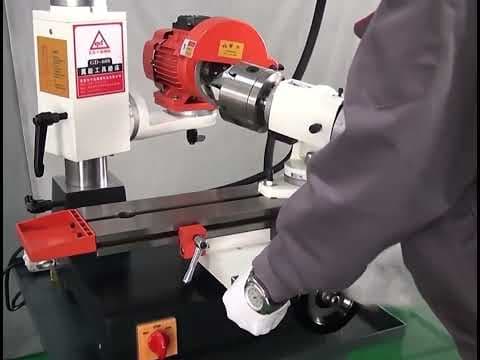

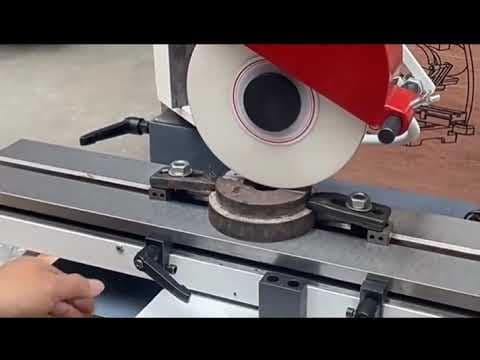

See it in action
Specifications
For: MR-600F- Motor Power
- 01 HP (0.75 kW)
- Work table Travel
- 300x100 mm
- Grinding Wheel
- 125×50×32 mm
- Power Voltage
- 220–240V, 50 Hz (single phase)
- Vertical Travel (Head)
- 200 mm
- Swivel Base Rotation
- 0° – 360°
- Tilt Angle (Vertical)
- ±45°
- Grinding Wheel Type
- Diamond / CBN / Aluminum Oxide
- Spindle Speed
- 2800–3400 rpm
- Motor Type
- Heavy-duty induction motor
- Dimensions
- 800x600x700 mm
- Weight (Approx.)
- 160 Kg
- Rotating angle of wheelhead
- 360 Degrees
- Speed
- 2800 rpm
- Weight Approx
- 160 Kgs
Configurations
Click a row to switch| Variant | Motor Power | Price |
|---|---|---|
| MR-600F | 01 HP (0.75 kW) | ₹1,48,000 |
| R-600D | 3 / 4 HP, 220V/380V | ₹1,35,000 |
Description
The machine is a Universal Tool & Cutter Grinder, designed for precision grinding of small cutting tools such as end mills, drills, taps, reamers, and other tool bits. It can perform a variety of grinding operations including cylindrical, surface, and angular grinding, making it versatile for toolroom and production environments.
The MR-600F Universal Tool and Cutter Grinder is a versatile and compact machine designed for precision sharpening of various cutting tools. It is particularly suitable for small to medium-sized workshops and tool rooms.
Features
1 High Precision Guide Rails: The worktable employs high-precision straight-line rolling guide rails, ensuring smooth movement and high stability during operations.
2. 360° Rotating Grinding Head: The motor can rotate 360° in the horizontal plane, allowing the grinding wheel to rotate clockwise and anticlockwise rapidly. This feature enhances safety and reduces the time spent on wheel replacement and dressing.
3. Versatile Grinding Capabilities: Standard accessories enable grinding of lathe tools, end milling cutters, face and side cutters, hobbing cutters, and reamer bits. Optional attachments expand the range to include spiral milling cutters, ball end mills, R-type lathe tools, and drill bits.
4. Robust Construction: The machine features a steady bed platform made of high-toughness FC30 cast iron, maintaining permanent mechanical precision.
5. Compact Dimensions: With dimensions of 800x600x700mm and a weight of approximately 160kg, the MR-600F is suitable for workshops with limited space
Applications
The MR-600F is ideal for sharpening a wide range of tools, including:
- Grinding drills, taps, and reamers to restore sharpness.
- Creating precision tool profiles such as end mills and form tools.
- Sharpening lathe tools, HSS cutters, and other small cutting tools.
- Can also be used for light surface grinding of small components.
- Lathe tools, End milling cutters, STANDARD Machine Tools, Face and side cutters, Hobbing cutters, Reamer bits, Spiral milling cutters, Ball end mills, R-type lathe tools, Drill bits, Screw taps, Side mills, Round bars, hotonmc.com
- Its versatility makes it a valuable addition to any workshop requiring precise tool sharpening capabilities.
Advantages
- High Precision: Suitable for toolroom-quality grinding.
- Versatile: Can grind different tool geometries and profiles.
- Compact Design: Ideal for workshops with limited space.
- User-Friendly: Simple mechanical feed and positioning systems.
- High precision and repeatability for tool sharpening.
- Compact and robust design for toolroom use.
- Versatile – suitable for a variety of cutting tools.
- User-friendly with manual handwheel feed control.
- Safety features including grinding wheel guard and work lamp.
More questions buyers ask
What is a Universal Tool and Cutter Grinder used for?
It is used for precision sharpening and reconditioning of various cutting tools like end mills, drills, taps, reamers, and lathe bits.
Can the Pentagon MR-600F grind different tool profiles?
Yes, it is highly versatile and can perform cylindrical, surface, and angular grinding for various tool geometries.
What materials can be ground on this machine?
It is suitable for HSS and other common tool steels used in cutting tool manufacturing.
Is this machine suitable for small workshops?
Yes, its compact design (800x600x700mm) makes it ideal for toolrooms and workshops with limited space.
What is the power requirement for the MR-600F?
It operates on a 220-240V, 50Hz single-phase power supply.
Does the grinding head rotate?
Yes, the grinding head can rotate 360° in the horizontal plane for flexible operation.
What accessories come with the machine?
Standard accessories include a grinding wheel guard, work lamp, and various tool holders for different grinding operations.
Is the machine easy to operate?
Yes, it features user-friendly manual handwheel feed and positioning systems.
What is the weight of the Pentagon MR-600F?
The machine weighs approximately 160 kg.
Does it come with a warranty?
Yes, Pentagon provides standard manufacturer warranty and after-sales support.
Who should choose the MR-600F model?
The MR-600F is best for workshops needing a compact, high-precision solution for daily tool sharpening tasks.
Who should choose the R-600D model?
The R-600D is ideal for users requiring a slightly larger work table travel (130x520mm) for longer cutting tools.
How does the MR-600F compare to the R-600D?
The MR-600F is a compact, standard-duty model, while the R-600D offers extended table travel for larger tool capacities.
Which model is better for heavy-duty tool sharpening?
The R-600D is generally preferred for heavier or longer tools due to its larger table dimensions.
