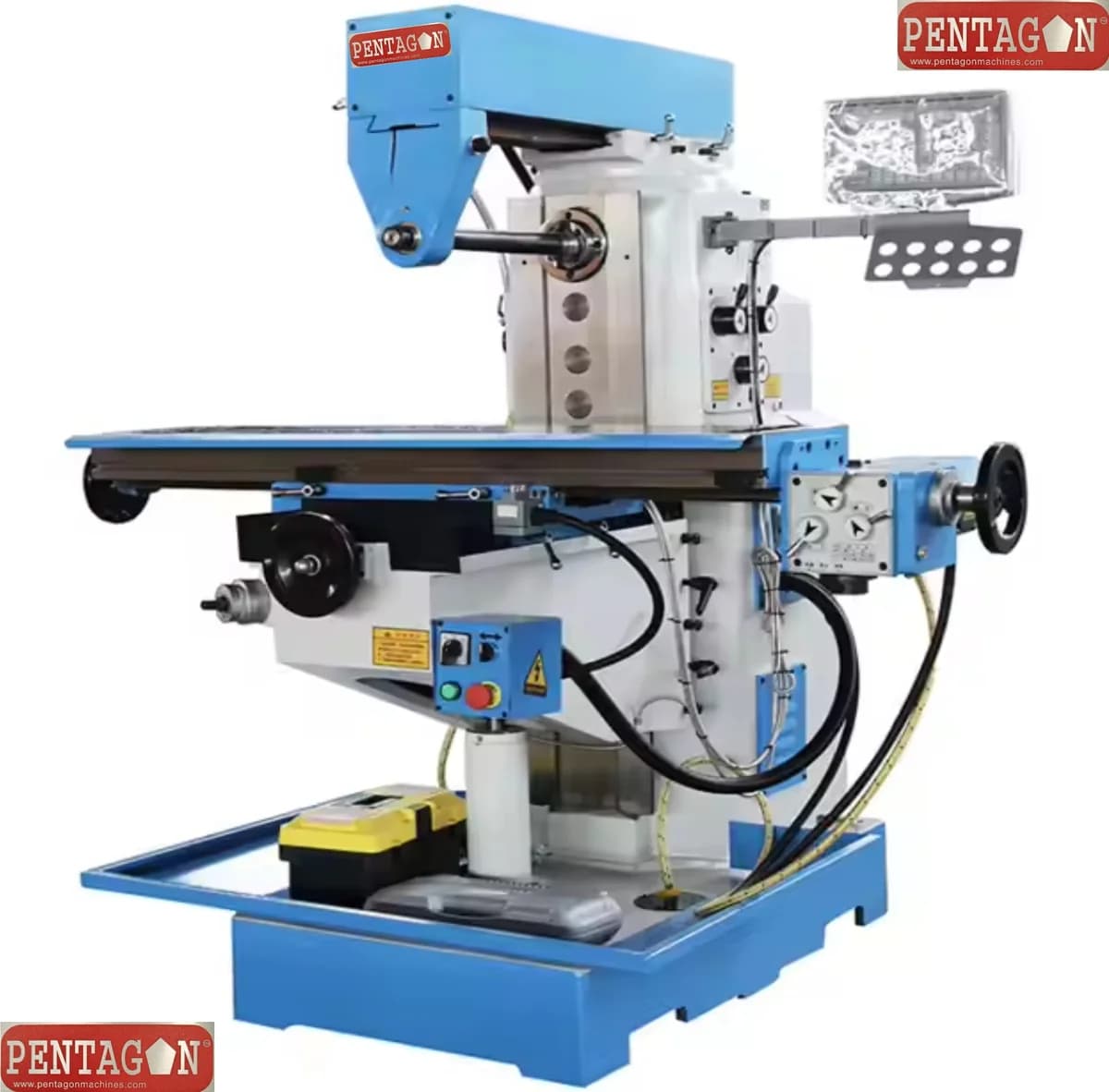

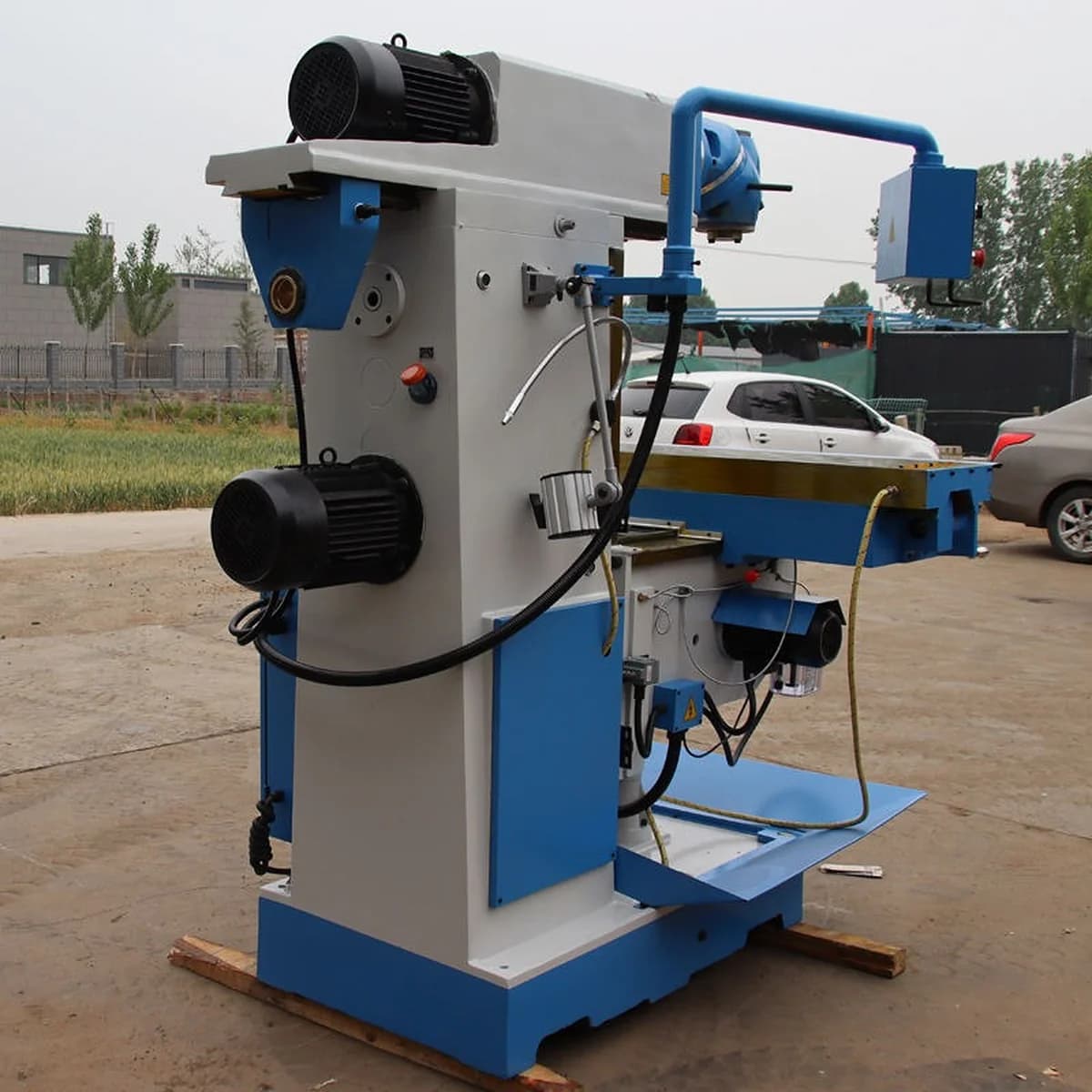

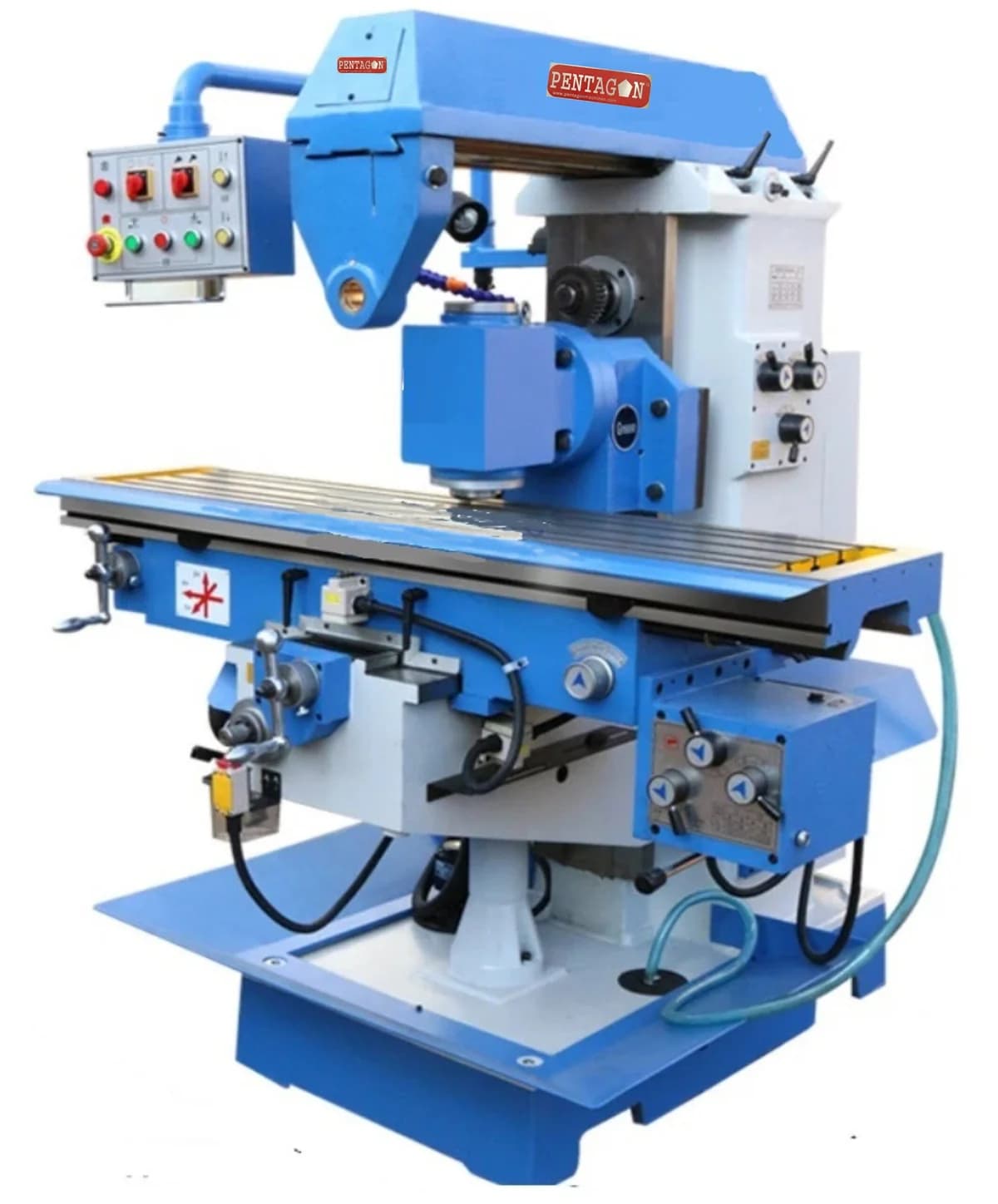

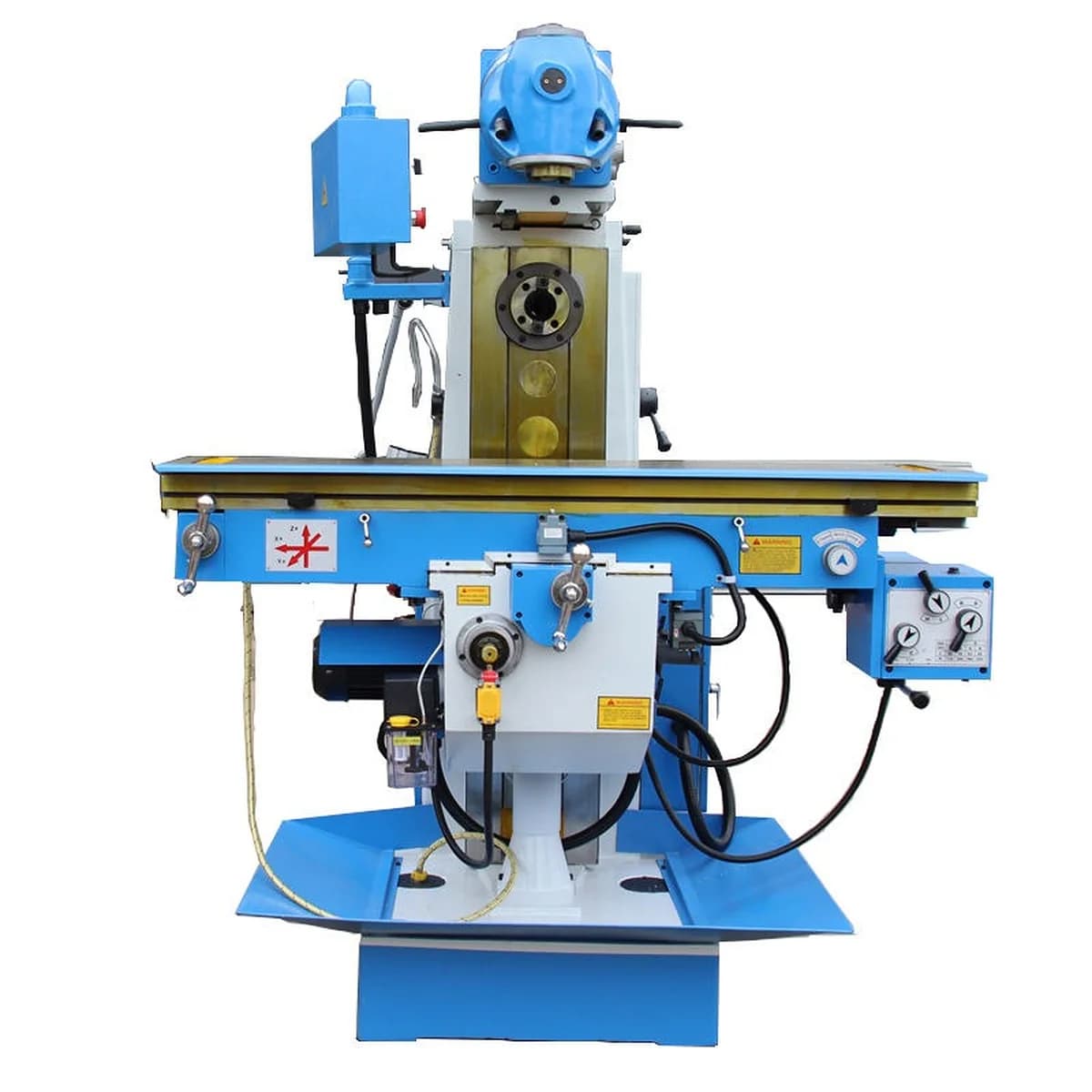

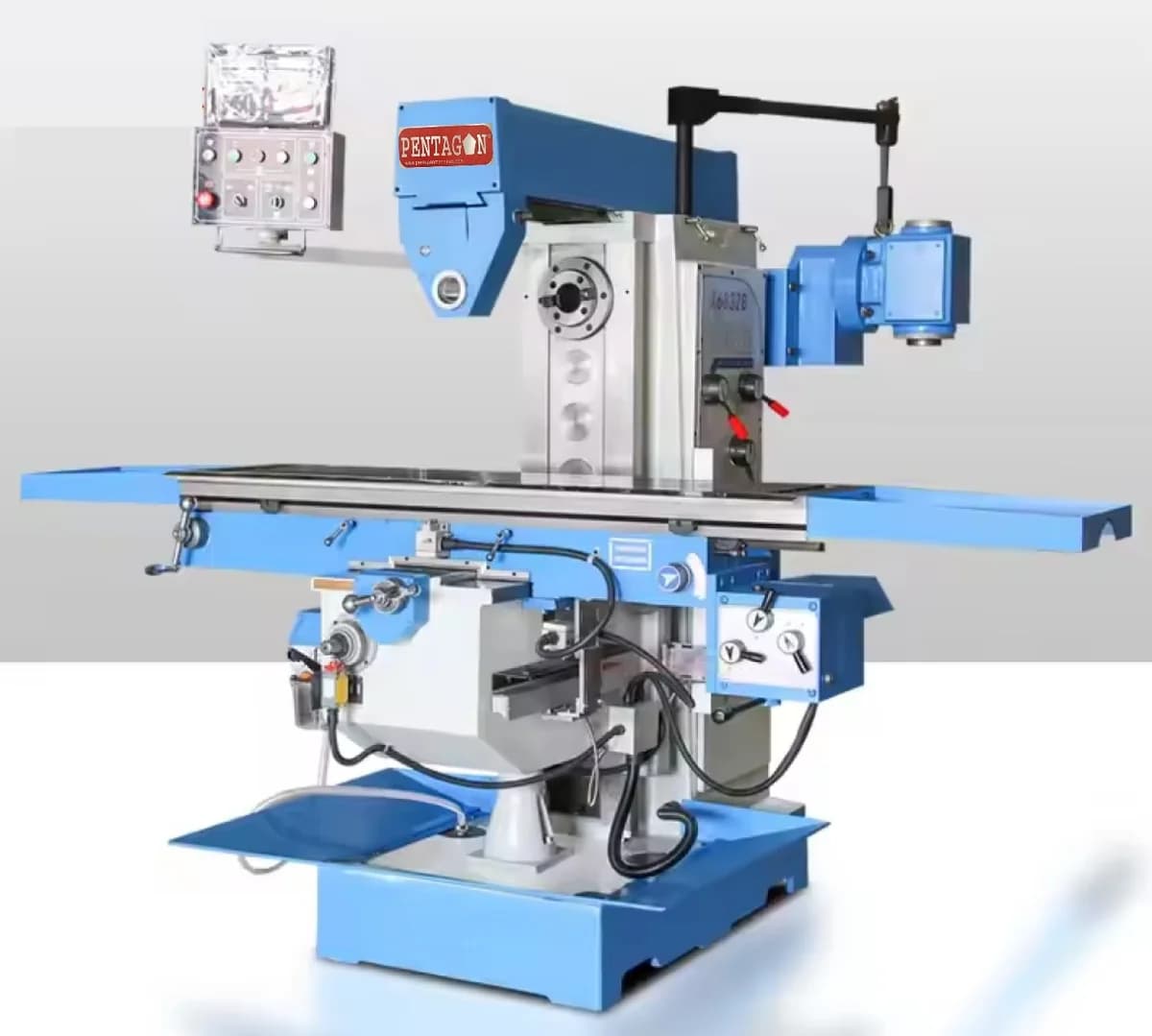

Universal Knee Type Geared Head Milling Machine Model X6036
This heavy-duty, knee-type Universal Milling Machine is designed for precision milling of metal components. It supports both horizontal and vertical milling operations, making it ideal for machining flat surfaces, slots, gears, and complex profiles. • Large worktable of 1500×360 mm supports substantial material loads up to 350 Kgs • 4 Kw motor power delivers higher torque for face cutting up to 150 mm diameter • Rigid cast-iron body provides stability for precision work in demanding environments

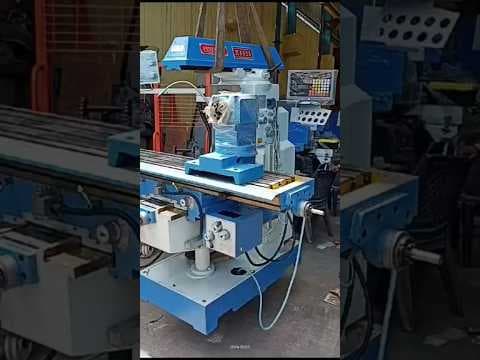

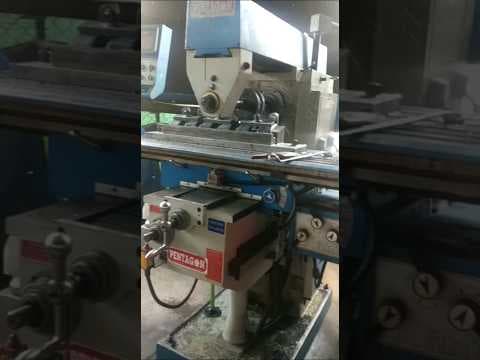

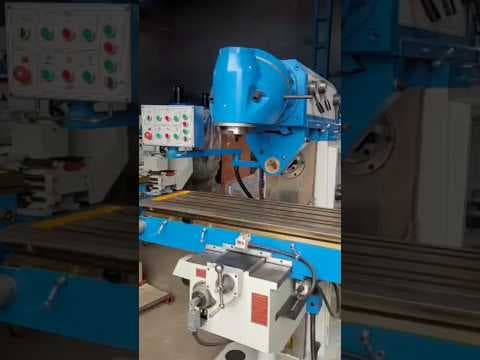

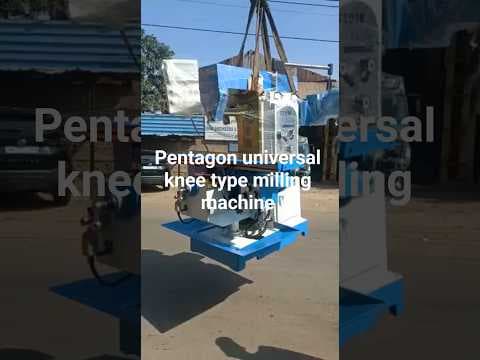

See it in action
Specifications
For: X6036- Machine Model
- X6036
- Type Of Machine
- Universal Knee Type Milling Machine
- Table Size
- 1500 x360 mm
- Vertical Travel
- 400 mm
- Table Travel
- 950x320 mm
- Spindle Taper
- ISO50H/ISO40V
- T-slots
- 3×18× 80
- Maximum Milling Capacity
- 125 mm
- Worktable Feed Motor
- 750W
- End Mill Capacity
- 32 mm
- Motor Power
- 4 Kw
- Spindle Speed Range
- 40-1300 rpm
- Coolant Pump Motor
- 90W
- Power Supply Voltage
- 415V 3-phase 50Hz
- Distance between spindle center to Vertical Guide way
- 175 mm
- Vertical Rapid Motor
- 750W
- Distance from Spindle to Table Surface
- 0-400 mm
- Maximum Load Capacity
- 350 Kgs
- Spindle Travel
- 0
- Table Feed (x, y)
- 22-555 mm/min (8)
- Vertical Head swivel angle
- ±45°
- Rapid speed of table
- 590 mm/min
- Machine Weight
- 2400 Kgs Approx
- Machine Dimensions
- 2200x1800x1900 mm
Configurations
Click a row to switch| Variant | Table Size | Spindle Taper | Spindle Travel | Table Travel | Price |
|---|---|---|---|---|---|
| X6328 | 1500 x280 mm | ISO40/H | 0 | 950x320 mm | ₹5,25,000 |
| X6036 | 1500 x360 mm | ISO50H/ISO40V | 0 | 950x320 mm | ₹7,35,000 |

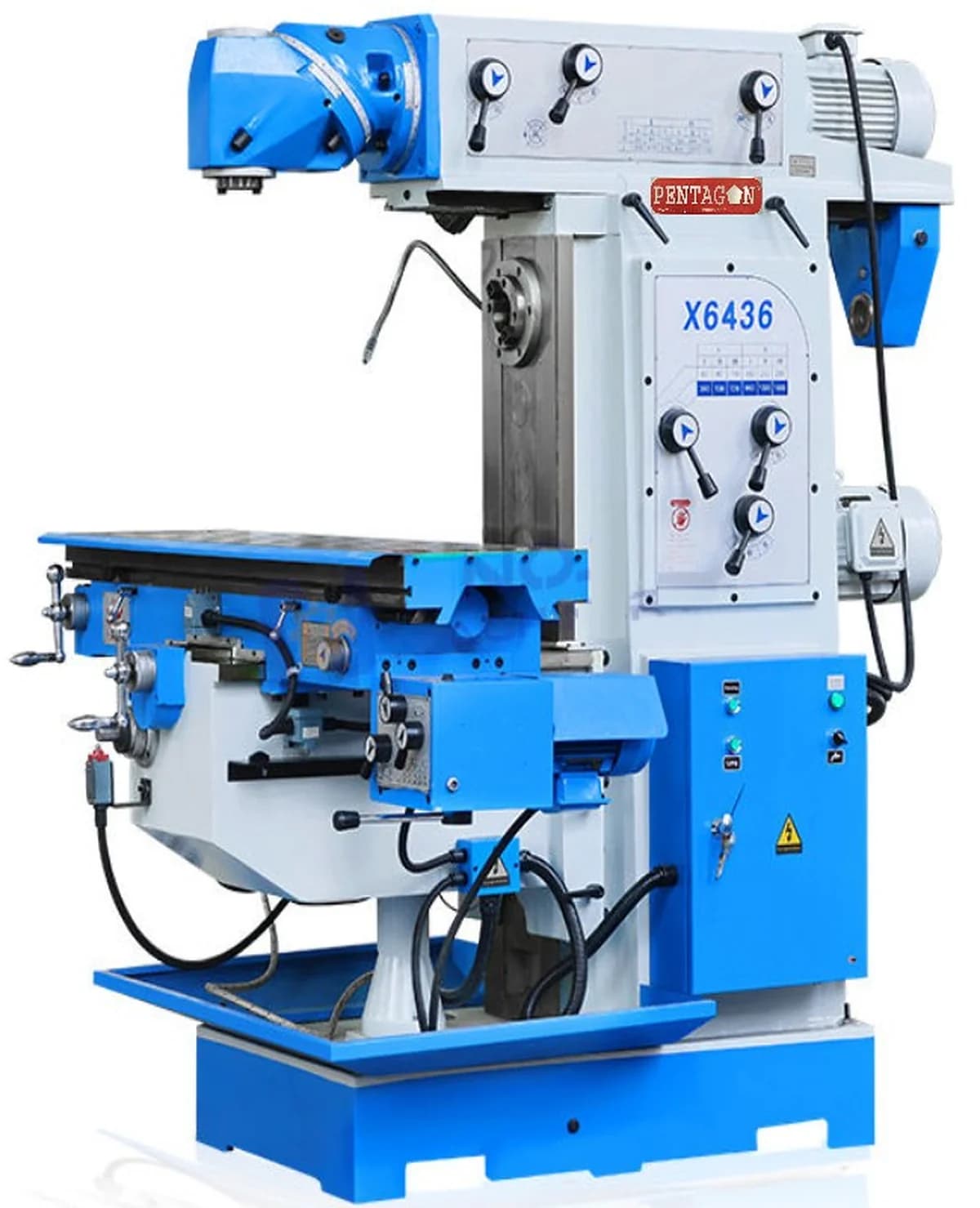

| X6436 | 1500 x360 mm | ISO50H/ISO40V | 0 | 950x320 mm | ₹11,94,999 |
Build Quality & Stability
- Maximum Load Capacity 300 Kgs supports heavy workpieces
- Durable construction ensures long-term operational reliability
- Stable base design minimizes deflection during cutting
- Compact Machine Dimensions 1700x1500x2100 mm fit standard shops
- Designed for precision metalworking applications in manufacturing
Machining Capabilities
- Spindle Speed Range 40-1300 rpm covers various materials
- Capable of milling flat surfaces, grooves, and inclined planes
- Suitable for shops requiring versatile vertical and horizontal machining
- Handles workpieces requiring flexible tooling options
- Supports complex profiles and heavy-duty industrial production
Power & Electrical Specifications
- Power Supply Voltage 415V 3 phase 50Hz for stable operation
- Motor Power 2.2 Kw provides sufficient torque for milling
- Worktable Feed Motor 750W ensures smooth table movement
- Coolant Pump Motor 90W maintains temperature control
- Vertical Rapid Motor 750W aids in quick positioning
Automated Feeding System
- all axis auto table feeder ensures precise movement control
- Z axis Motorized rapid feed reduces non-cutting time
- Automatic feed operations on X, Y, and Z axes maintained
- Ensures consistent surface finishes during machining
- Supports heavy-duty cuts with compatible end mills
Product Family & Configuration
- Universal knee type Geared Head Milling Machine family available
- Models include Model X6328, Model X6036, and Model X6436
- Spindle ISO50 and Vertical head ISO40 configurations offered
- Designed for shops requiring flexible tooling options
- Robust performance across varying workpiece dimensions
Standard Accessories
- 1. Vertical milling head
- 2. Collet set with adapter and spanner
- 3. Wrench S22-24
- 4. Inner-hexagonal spanners
- 5. Machine Vice 6"
- 6. Horizontal milling arbor dia 22/27 mm
- 7. Horizontal draw bar
- 8. Vertical draw bar
- 9. Hexagon nut
- 10.Operational manual
- 11.Coolant Pump with fittings
- 12.Machine lamp with fitting
- 13.Splash guard cum tray Tray
- 14.Manual Central lubrication pump
Optional Accessories
- Two/Three Axis DRO with suitable linear scales and fittings
- Semi universal dividing head with chuck and tail stock
- H-V rotary table
- Mounting pads 4 Nos suitable for the machine
- Hydraulic vice 320 mm max jaw opening
- M14 Clamping Kit Set
Frequently asked
What spindle tapers are supported?
Spindle ISO50 and Vertical head ISO40 configurations are available.
Does the machine have automatic feeding?
Yes, all axis auto table feeder is standard for precision.
What is the power requirement?
Power Supply Voltage 415V 3 phase 50Hz is required.
Can it handle rapid vertical movement?
Z axis Motorized rapid feed ensures quick tool positioning.
More questions buyers ask
What is a universal knee-type milling machine?
A universal knee-type milling machine features a swiveling table that allows for milling at various angles, making it highly versatile for complex machining tasks.
What are the key applications of the Pentagon X6328 series?
These machines are ideal for tool rooms, workshops, and medium-duty industrial manufacturing for milling flat surfaces, grooves, and inclined planes.
Does the machine support automatic feeding?
Yes, all models in this series come equipped with an all-axis auto table feeder for consistent surface finishes and reduced operator fatigue.
What power supply is required?
The machines operate on a standard 415V, 3-phase, 50Hz industrial power supply.
What is the maximum load capacity of the table?
Depending on the model, the table can support workpieces weighing between 300 kg and 350 kg.
Are these machines suitable for heavy-duty work?
Yes, they are designed for medium-to-heavy duty industrial metalworking with robust geared heads and stable base designs.
What accessories are included as standard?
Standard accessories include a vertical milling head, machine vice, coolant pump, machine lamp, and a set of collets and wrenches.
Can I add a Digital Readout (DRO) to these machines?
Yes, a two or three-axis DRO with linear scales is available as an optional accessory for enhanced precision.
What is the spindle speed range?
The spindle speed range is typically 40-1300 rpm, allowing for versatility across different materials and cutting requirements.
How is the vertical head adjusted?
The vertical head features a swivel angle of up to ±45°, providing flexibility for angular milling operations.
Who should choose the X6328 model?
The X6328 is perfect for workshops requiring a reliable, medium-duty universal milling machine with a 1500x280mm table and 2.2 Kw motor.
Who should choose the X6036 model?
The X6036 is ideal for users needing higher power (4 Kw) and a larger table (1500x360mm) for heavier workpieces up to 350 kg.

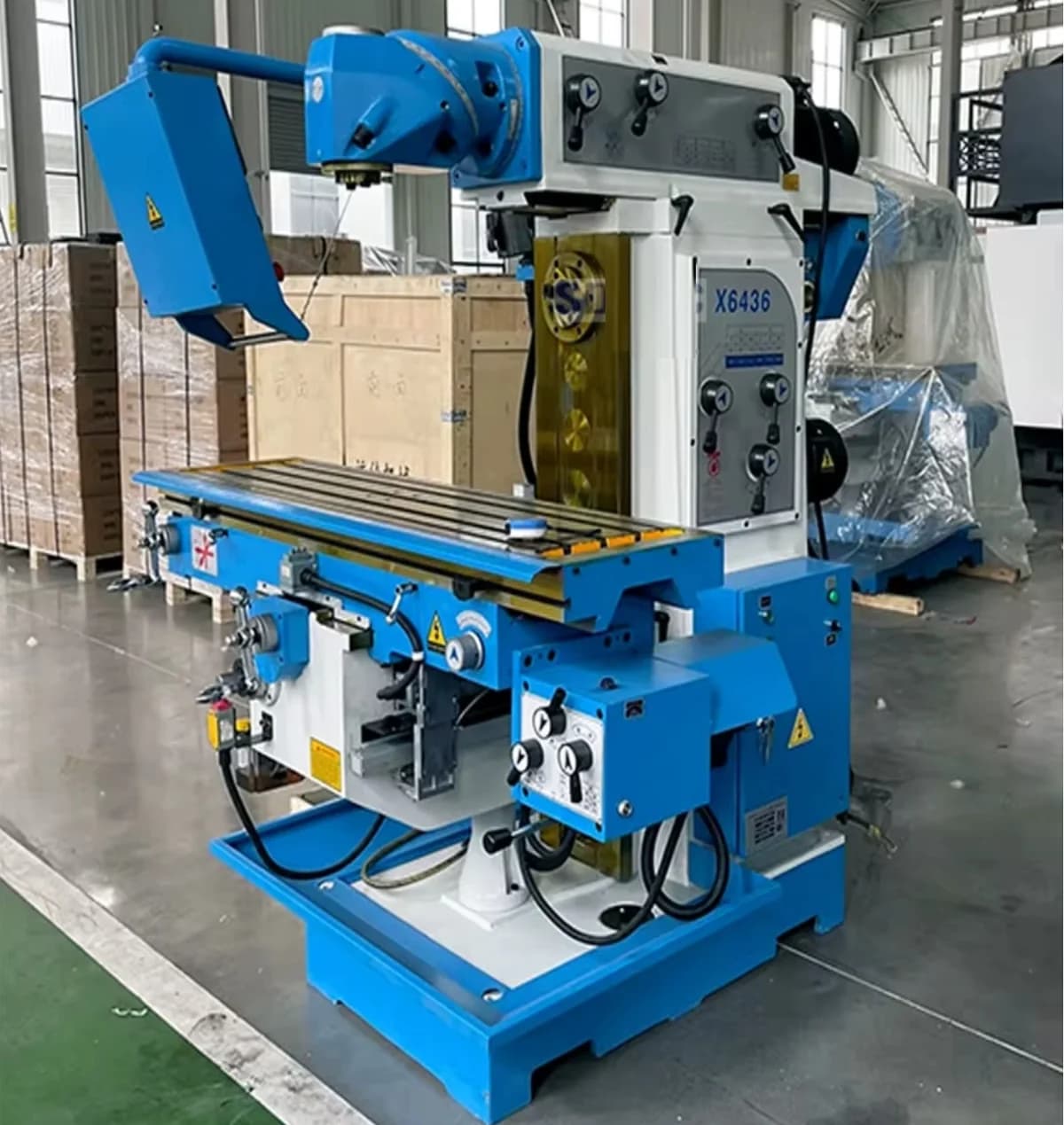

Who should choose the X6436 model?
The X6436 is the premium choice for high-precision, heavy-duty industrial applications requiring a universal swivel head and maximum stability.
How does the X6328 compare to the X6036?
The X6328 is a 2.2 Kw machine for standard medium-duty tasks, while the X6036 offers a more powerful 4 Kw motor and larger table capacity for heavier loads.
What makes the X6436 different from the other models?
The X6436 is designed for advanced industrial production with a specialized universal swivel head and the highest weight capacity in the series.
