Universal Knee type Geared Head Drilling cum Milling machine — ZX6350ZA
This universal knee type drilling and milling machine offers enhanced productivity with automatic X, Y, and Z axis feeds for precision manufacturing. Equipped with a robust 3KW horizontal spindle and ISO40 taper compatibility, it suits heavy-duty maintenance and batch production. • Automatic feed range 22-555 RPM • ISO40 spindle taper for both heads • Weight 1600 kg for stability

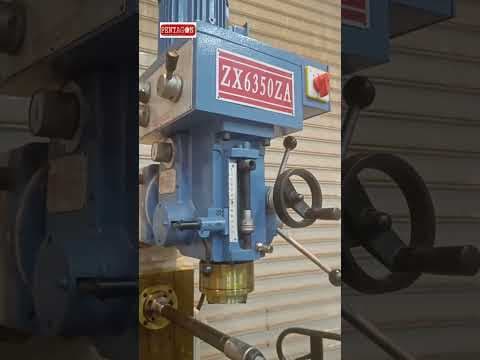

See it in action
Specifications
For: ZX6350ZA- Machine Model
- ZX6350ZA
- table size
- 1500x280mm
- cross travel
- 320mm
- vertical travel
- 400mm
- Longitidunal travel
- 850mm
- Max drilling diameter
- 50mm
- Max diameter for horizontal milling
- 100mm
- max diameter for vertical milling
- 25mm
- T slot size
- M14
- spindle travel
- 120mm
- spindal taper horizontal,verticle
- ISO40
- horizontal spindle speed (steps)
- 40-1300 rpm (12)
- Horizontal Spindle Power
- 3KW/415V/50HZ
- verticle head power
- 2.2KW/415V/50HZ
- Spindle Taper
- ISO40 both Horizontal and Vertical
- Motor Power
- 2.2KW/Vertical
- verticle spindle speed (steps)
- 90-2000rpm(16)
- Spindle Quill Feed
- Auto
- Head rotation
- 90*
- Z axis Table lifting
- Auto/Rapid
- Auto feed range and steps
- 22-555 RPM (8)
- Dimensions
- 1900x1550x2210mm
- Weight GW,NW
- 1600/1450kgs
- Max Drilling Capacity
- 50 mm
Configurations
Click a row to switch| Variant | table size | Spindle Taper | Longitidunal travel | Spindle Quill Feed | Price |
|---|---|---|---|---|---|
| ZX6350ZA | 1500x280mm | ISO40 both Horizontal and Vertical | 850mm | Auto | ₹5,45,000 |
| ZX6350C | 1500x280mm | MT4/Vertical/ISO40 Horizontal | 850mm | Manual | ₹4,55,000 |
Safety and Maintenance
- Designed to meet industrial safety standards for workshop use
- Z axis Table lifting offers Auto/Rapid options for efficiency
- Regular lubrication of guideways maintains machine accuracy
- Ensure proper grounding for 415V/50HZ electrical connections
- Follow manufacturer guidelines for spindle and motor care
- Inspect quill feed mechanisms before starting operations
Operational Versatility
- Ideal for toolroom work and general engineering applications
- Supports manual or automatic feed options for different tasks
- Head rotation 90* enables angled milling and complex cuts
- T slot size M14 compatible with standard tooling and fixtures
- Max diameter for horizontal milling 100mm for larger cuts
- Max diameter for vertical milling 25mm for precision drilling
Precision Construction
- Hardened guideways ensure long-term precision and accuracy
- Machine weight around 1600kg provides vibration dampening
- Dimensions 1900x1550x2210mm optimize floor space usage
- Cross travel 320mm and longitudinal travel 850mm offer reach
- Vertical travel 450mm accommodates various workpiece heights
- Spindle travel 120mm allows for deep drilling operations
Spindle and Feed Performance
- Spindle taper ISO40 for both horizontal and vertical setups
- Horizontal spindle speed ranges from 40–1300 rpm in 12 steps
- Vertical spindle speed reaches 90–2000rpm in 16 steps
- Spindle Quill Feed available in Auto or manual options
- Auto feed range 22–555 RPM for X and Y axis movements
- Motor power 2.2KW ensures consistent performance for milling
ZX6350 Series Overview
- Universal knee type drilling cum milling machine for industrial use
- Available in ZX6350C and ZX6350ZA model configurations
- Features robust construction for medium-sized part machining
- Max drilling capacity up to 50 mm for versatile operations
- Table size 1500x280 mm with hardened guideways for stability
- Supports both horizontal and vertical spindle configurations
Optional Accessories
- 2/3 Axes DRO with along with suitable linear scales
- H-V rotary table size 250 mm
- Semi Universal type dividing head model BS0 with 3 jaw chuck and indexing plate
- Micro boring head with ISO40 Shank
- Keyless drill chuck with ISO40 arbor intact integrated type high precision type
- ER40 Collets Set
Standard Accessories
- Vertical milling head
- Milling head auto feed
- X , Y axis auto feed Motor for Z-axis rapid travel
- Lubrication system
- Coolant Pump
- Machine lamp
- Chip/Splash tray
- Collet adapter with a set of collets and spanner
- Drilling chuck key type size 1-13 mm
- Reducing sleeves
- Rotating vice 160 mm
- Horizontal milling arbor
- Vertical Drawbar
- Maintenance Guide cum operation manual
More questions buyers ask
What is a universal knee type milling machine?
A universal knee type milling machine is a versatile machine tool used for a wide range of milling, drilling, and boring operations. It's characterized by a worktable that rests on a 'knee' which can be moved vertically and horizontally.
What are the main applications of the PENTAGON ZX6350 series?
The ZX6350 series is ideal for tool rooms, repair shops, and small to medium production environments for tasks like slotting, facing, drilling, and creating complex shapes.
What is the maximum drilling capacity?
The maximum drilling capacity for this machine is 50mm.
What is the table size?
The table size is 1500x280 mm, providing ample space for a variety of workpieces.
What are the spindle speeds for horizontal and vertical milling?
The horizontal spindle has 12 steps ranging from 40-1300 rpm, and the vertical spindle has 16 steps from 90-2000 rpm.
Is a DRO (Digital Readout) included?
A DRO is available as an optional accessory. Please contact us for a quote.
What is the warranty on this machine?
We offer a 1-year warranty against manufacturing defects.
Do you provide installation and training?
Yes, we provide installation and operational training across India. Please contact our sales team for details.
Is pan-India delivery available?
Yes, we deliver to all major industrial areas across India.
Can I get a GST invoice for my purchase?
Absolutely. We provide a GST invoice for all purchases, allowing you to claim input tax credit.
Who should choose the ZX6350ZA model?
The ZX6350ZA is perfect for workshops that prioritize automation and precision. Its auto quill feed and consistent ISO40 spindle taper make it suitable for repetitive tasks and high-accuracy jobs.
Who should choose the ZX6350C model?
The ZX6350C is a great entry-level option for businesses looking for a versatile and robust machine at a more affordable price point. Its manual feed is ideal for custom jobs and operators who prefer hands-on control.
What is the main difference between the ZX6350ZA and ZX6350C?
The primary difference is the quill feed mechanism. The ZX6350ZA has an automatic feed, while the ZX6350C has a manual feed. There are also differences in the spindle taper and overall weight.
Which model offers better value for money?
The ZX6350C offers excellent value for its capabilities and is a great starting point. The ZX6350ZA, while more expensive, provides higher productivity through automation, which can offer a better return on investment for the right application.
How do the spindle tapers differ between the models?
The ZX6350ZA features an ISO40 taper for both horizontal and vertical spindles. The ZX6350C has a combination of MT4 for the vertical spindle and ISO40 for the horizontal spindle.
More like this
Full description
This universal knee type drilling and milling machine offers enhanced productivity with automatic X, Y, and Z axis feeds for precision manufacturing. Equipped with a robust 3KW horizontal spindle and ISO40 taper compatibility, it suits heavy-duty maintenance and batch production. • Automatic feed range 22-555 RPM • ISO40 spindle taper for both heads • Weight 1600 kg for stability
