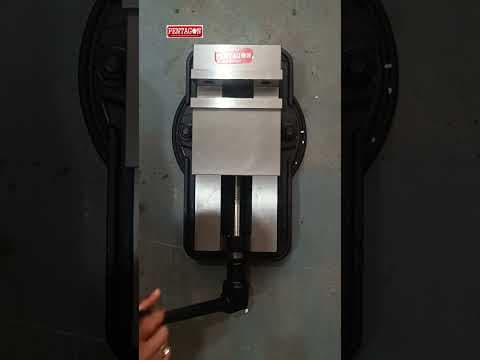

Pentagon Swivel base Machine Vice Max jaw opening 160 mm Model PMV160
The PMV160 swivel base machine vice provides secure workholding for milling and drilling operations with a 160 mm maximum jaw opening. It features high-grade cast iron construction for durability and precision ground surfaces ensuring 0.02–0.05 mm accuracy. • Maximum Jaw Opening: 160 mm • Clamping Force: 20–30 kN • Jaw Dimensions: 150 mm width x 52 mm depth • Weight: 25 Kgs
Specifications
For: Model PMV160- Model
- PMV160
- Width of Jaws
- 150 mm
- Depth of Jaws
- 52 mm
- Clamping Force
- 20–30 kN
- Accuracy
- 0.02–0.05 mm parallelism & squareness
- Maximum Jaw Opening
- 160 mm
- Screw Type
- Acme-thread mechanical screw
- Vice Body Material
- High-grade cast iron / Ductile iron
- Finish
- Precision ground surfaces
- Dimensions
- 430×250×195 mm
- Weight
- 25 Kgs
Ideal for Milling & Machining Operations
- Essential accessory for CNC milling machines and manual mill setups
- Securely holds irregular shapes for precision cutting and drilling
- Swivel feature enables angled cuts without repositioning the entire table
- Suitable for toolroom work, prototyping, and small-batch manufacturing
- Supports accurate alignment for critical tolerance requirements
- Enhances operator safety by firmly locking workpieces in place
- Compatible with standard T-slot mounting systems on most machine tables
Robust Cast Iron Construction
- Vice body manufactured from high-grade cast iron or ductile iron
- Superior material density dampens vibration during high-speed machining
- Precision-ground jaws ensure consistent contact without damaging workpieces
- Durable finish resists wear, corrosion, and industrial shop floor conditions
- Designed for long-term reliability in continuous production environments
- Heavy-duty build supports rigorous use in milling and grinding operations
Precision Clamping & Swivel Capability
- Max jaw opening of 160 mm accommodates diverse workpiece sizes
- Swivel base allows precise angular positioning for complex milling tasks
- Acme-thread mechanical screw ensures smooth, reliable clamping action
- High clamping force of 20–30 kN secures heavy or vibrating parts
- Precision ground surfaces maintain parallelism and squareness within 0.02–0.05 mm
- Jaw width of 150 mm and depth of 52 mm provide stable gripping area
- Compact dimensions (430×250×195 mm) fit standard machine tables efficiently
More questions buyers ask
What is the maximum jaw opening of the Pentagon PMV160 machine vice?
The Pentagon PMV160 machine vice features a maximum jaw opening of 160 mm, making it suitable for a wide range of workpiece sizes.
What material is the Pentagon PMV160 vice body made of?
The vice body is manufactured from high-grade cast iron or ductile iron, ensuring superior durability and vibration dampening during machining.
Does the Pentagon PMV160 include a swivel base?
Yes, it features a precision swivel base that allows for accurate angular positioning, essential for complex milling and drilling tasks.
What is the clamping force of this machine vice?
The Pentagon PMV160 provides a robust clamping force of 20–30 kN, ensuring secure holding of heavy or vibrating workpieces.
Is this vice suitable for CNC milling machines?
Yes, it is an ideal accessory for CNC milling machines, manual mill setups, and general toolroom applications.
What is the jaw width of the PMV160?
The jaw width is 150 mm, providing a stable and reliable gripping area for various industrial components.
What is the accuracy of the Pentagon PMV160?
It maintains parallelism and squareness within 0.02–0.05 mm, ensuring high precision for critical tolerance requirements.
How much does the Pentagon PMV160 weigh?
The unit weighs approximately 25 Kgs, reflecting its heavy-duty, industrial-grade construction.
What type of screw mechanism does it use?
It utilizes an Acme-thread mechanical screw, which ensures smooth and reliable clamping action during operation.
Can I use this vice for angled cuts?
Yes, the integrated swivel base allows you to perform angled cuts without the need to reposition the entire machine table.
Who should choose the Pentagon PMV160 machine vice?
The PMV160 is perfect for industrial workshops, toolrooms, and manufacturing units requiring a reliable, high-precision vice for milling and drilling operations.
How does the PMV160 compare to standard fixed-base vices?
Unlike fixed-base vices, the PMV160 offers 360-degree swivel capability, allowing for versatile angular machining without removing the workpiece.
Is the Pentagon PMV160 compatible with standard machine tables?
Yes, it is designed to be compatible with standard T-slot mounting systems found on most industrial milling and drilling machine tables.
More like this
Full description
The PMV160 swivel base machine vice provides secure workholding for milling and drilling operations with a 160 mm maximum jaw opening. It features high-grade cast iron construction for durability and precision ground surfaces ensuring 0.02–0.05 mm accuracy. • Maximum Jaw Opening: 160 mm • Clamping Force: 20–30 kN • Jaw Dimensions: 150 mm width x 52 mm depth • Weight: 25 Kgs
