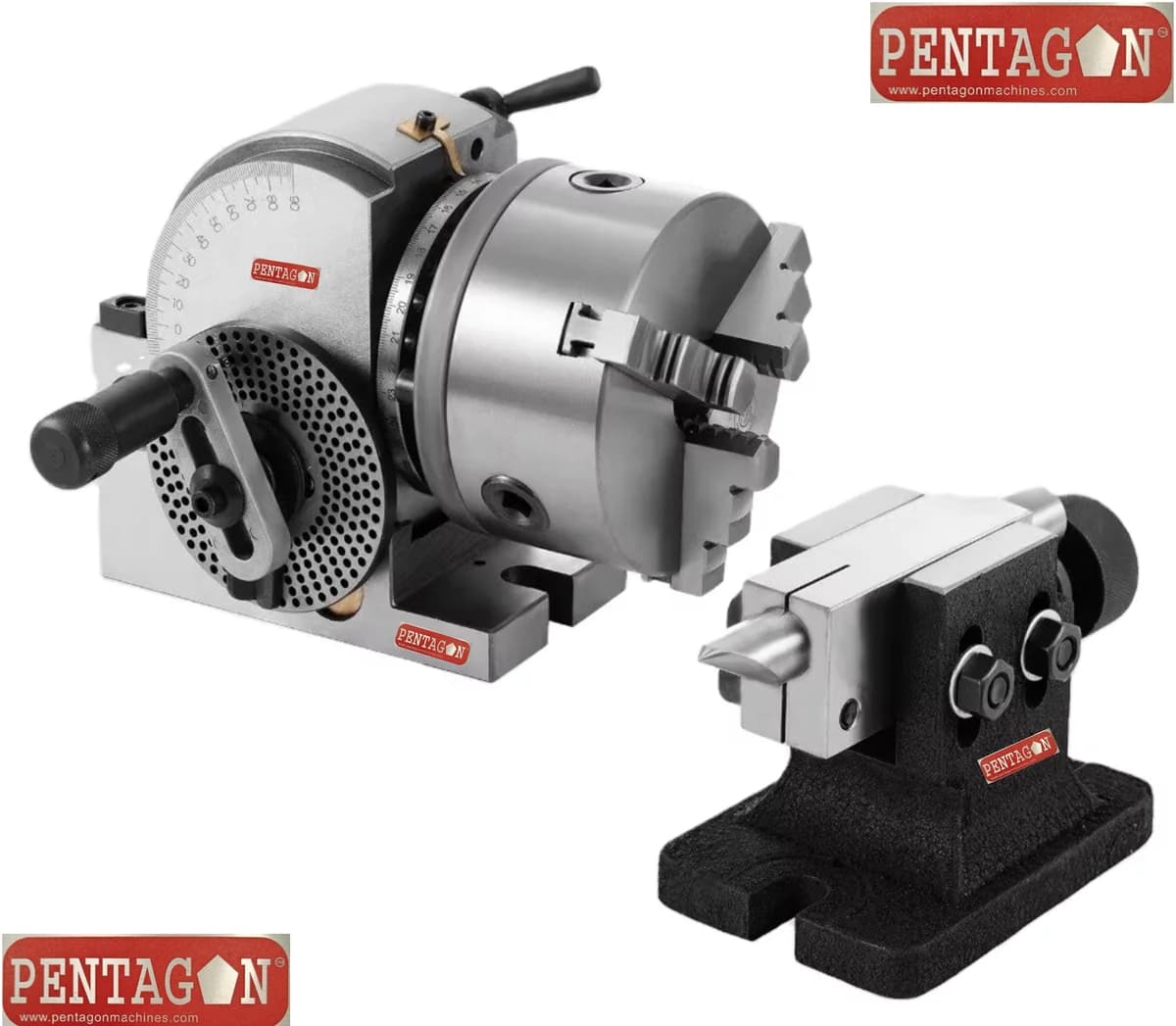

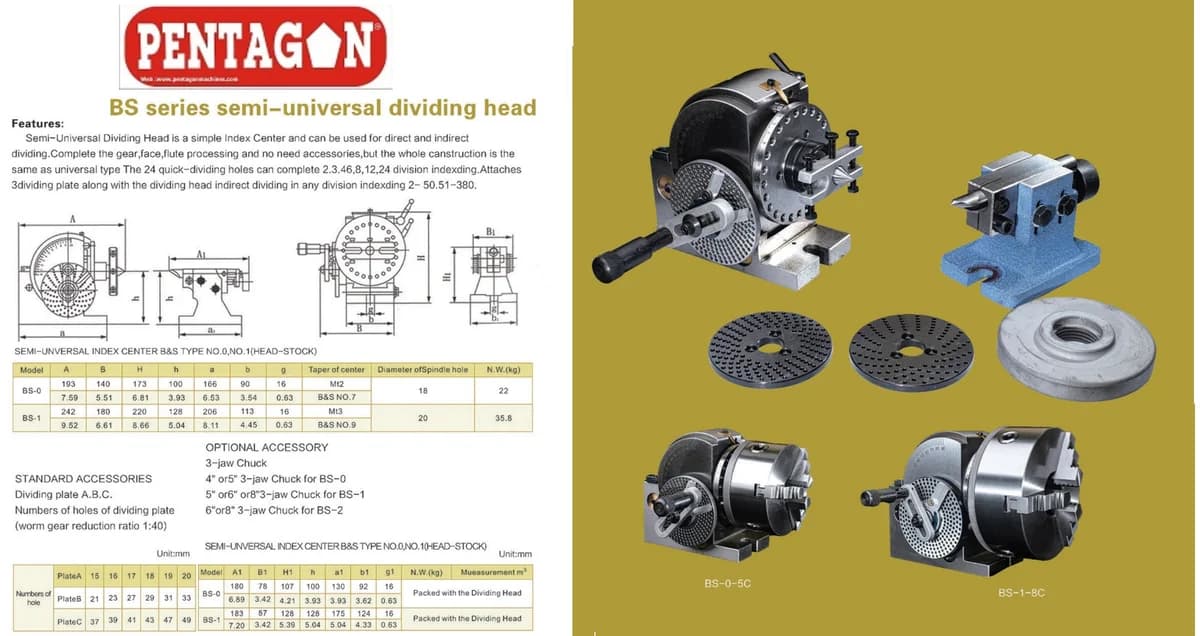

Semi Universal Dividing Head BS Series — BS0-5"

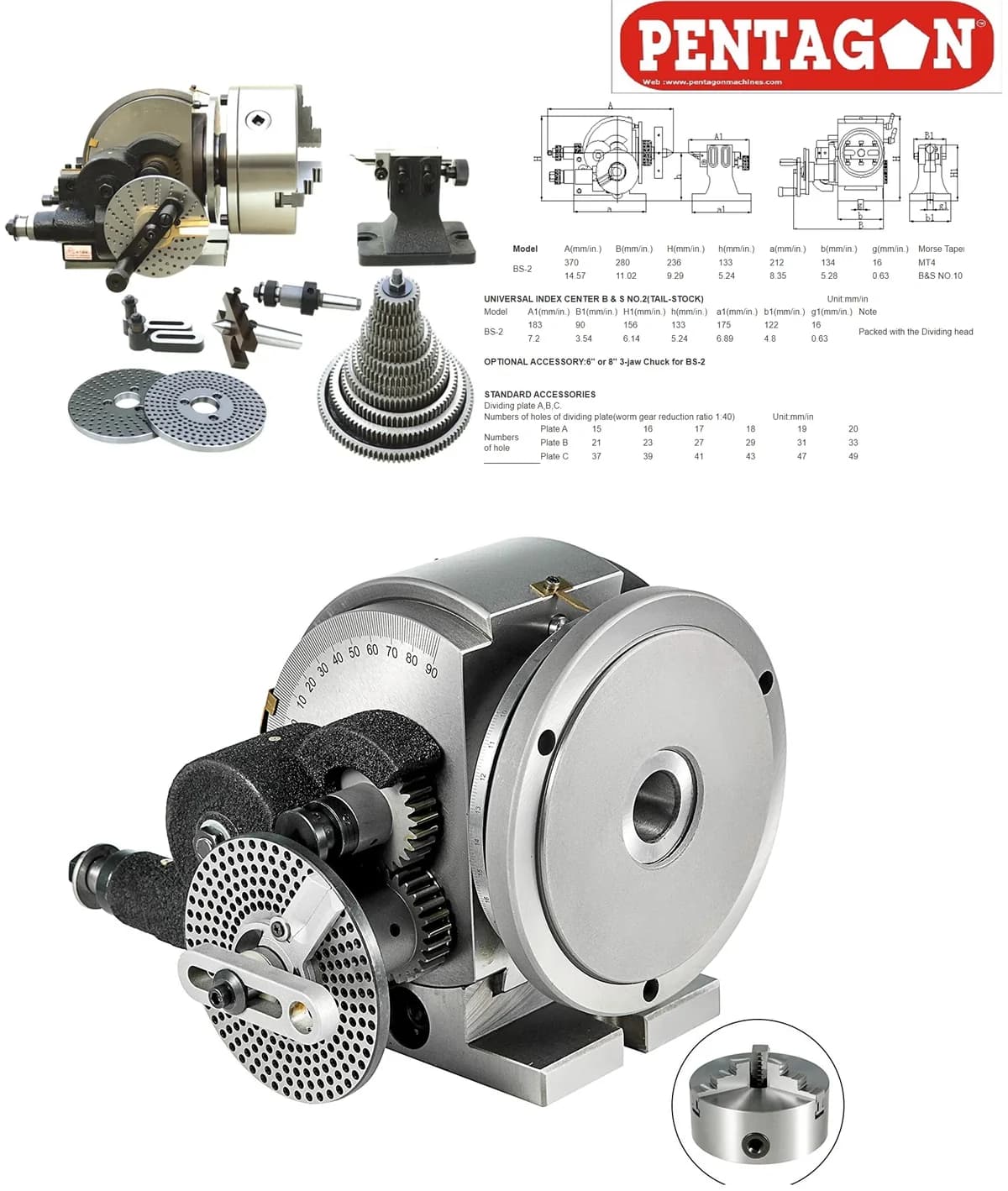

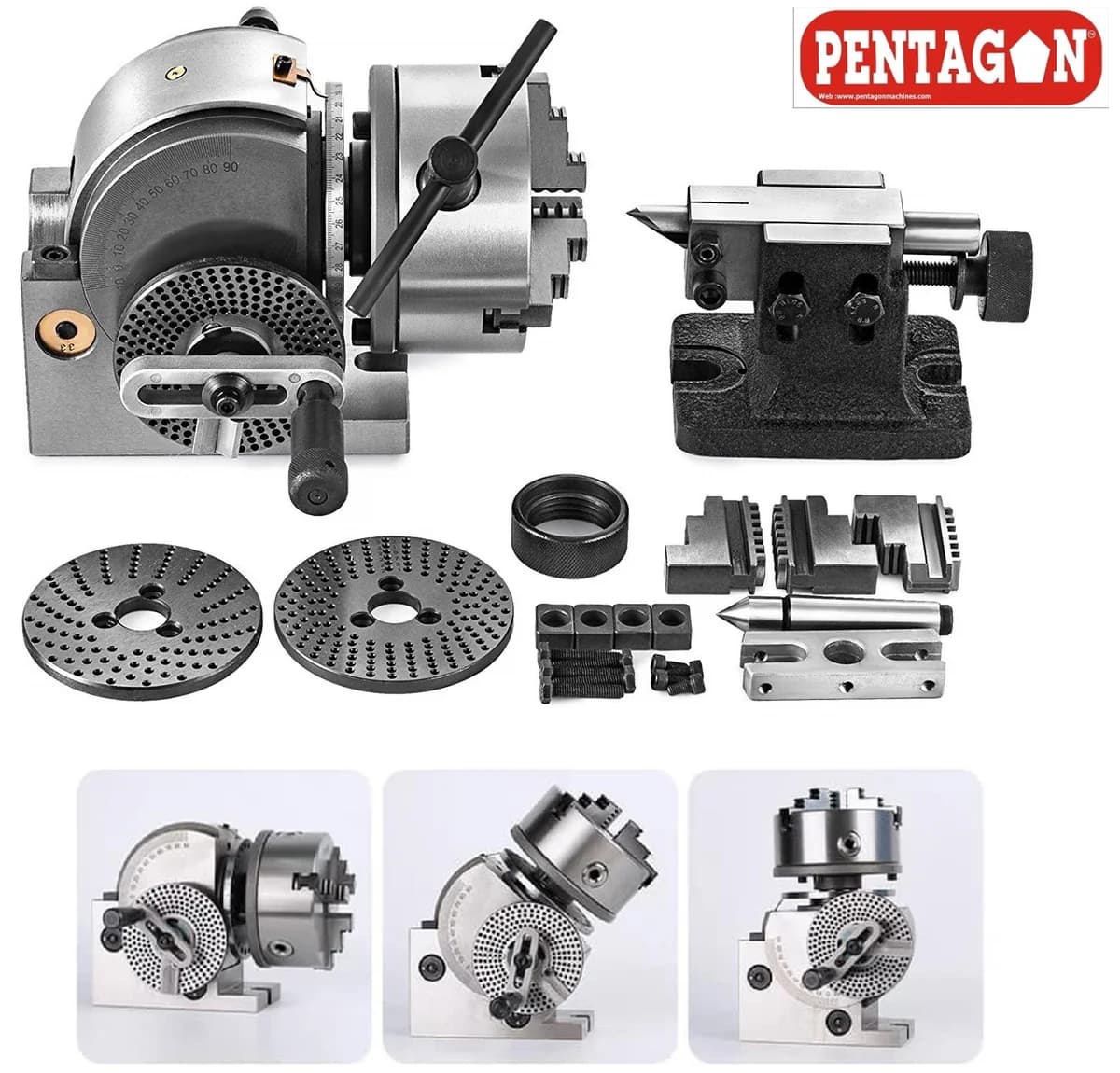

Precision Semi Universal Dividing Heads enable accurate angular and circular machining on milling machines. These indexing devices use hardened steel construction for gear cutting, fluting, and pattern machining. • 40:1 worm-gear ratio for precise indexing • Headstock swivels 0° to 90° for vertical operations • Includes index plates and matching tailstock • Compatible with standard toolroom mills

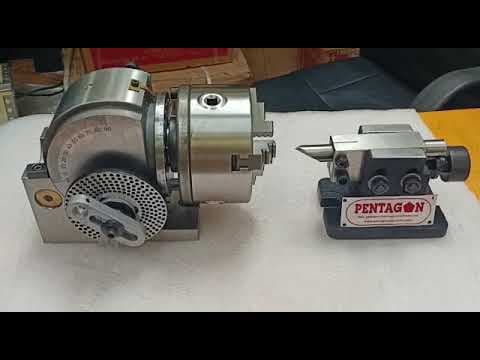

See it in action

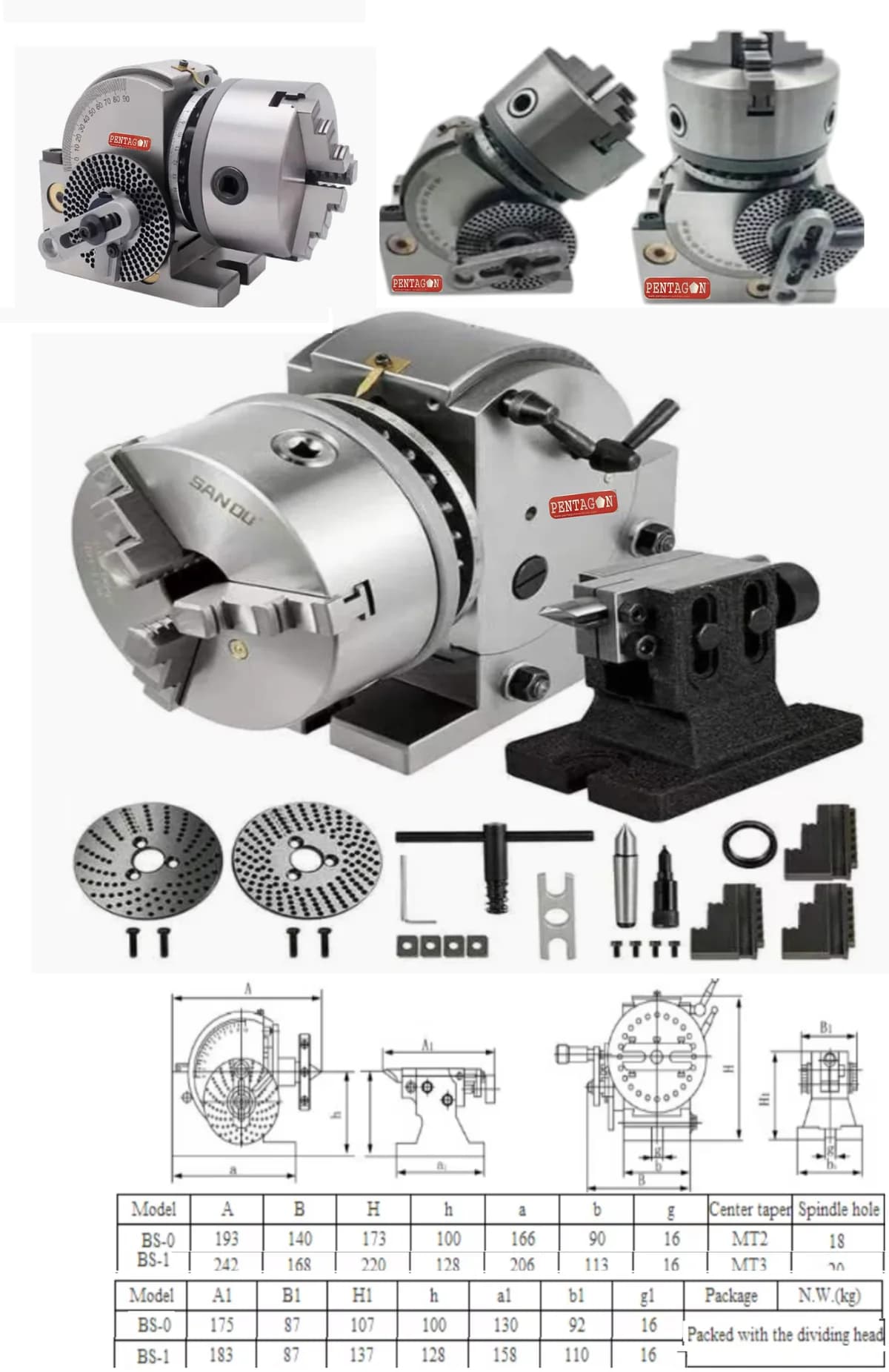

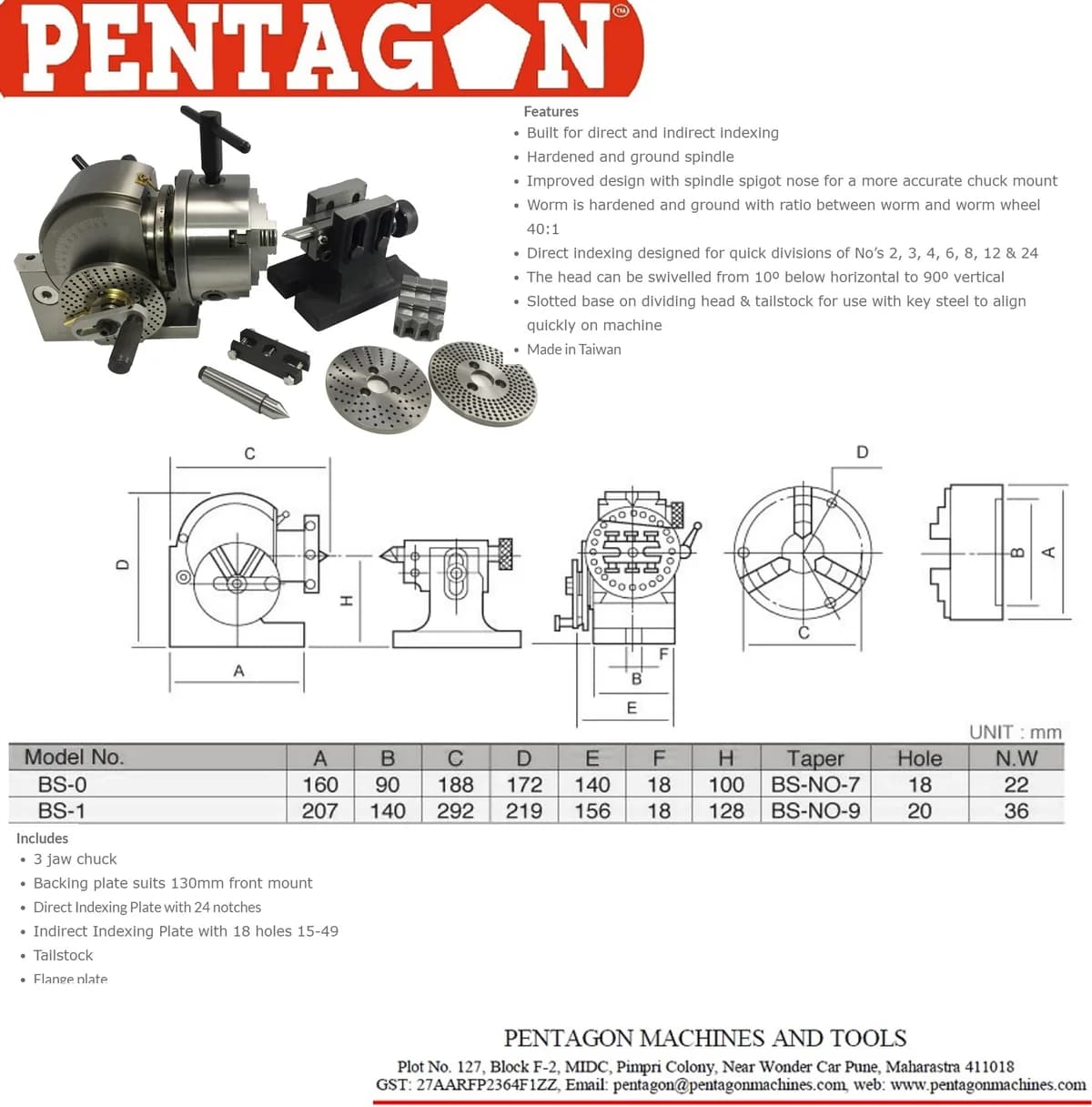

Specifications
For: BS0-5"- Model
- BS1-5"
- Type
- Semi-Universal Dividing Head
- Construction
- Hardened and precision-ground steel
- Applications
- Gear cutting, fluting, milling angles, indexing, machining patterns
- Headstock Swivel Angle

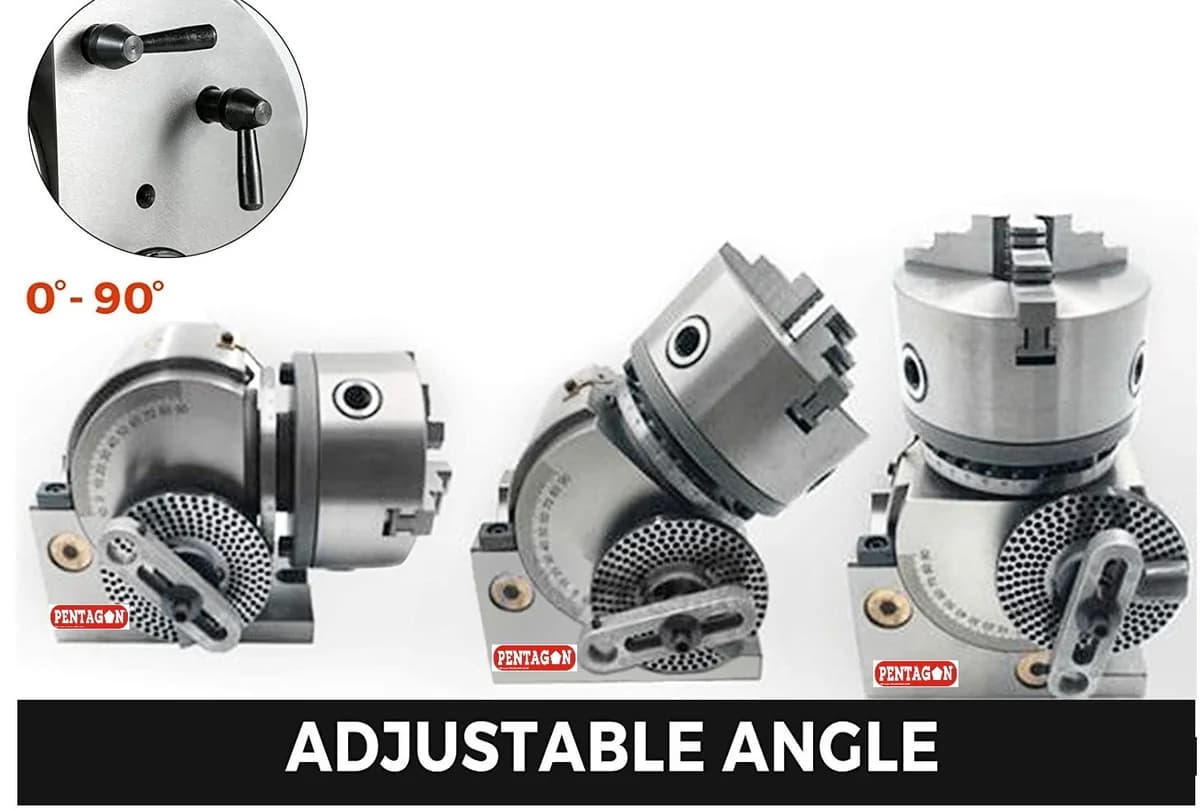

- 0° – 90° (vertical)
- Center Height
- 128 mm
- Spindle Taper
- MT2
- 3 Jaw Chuck Size
- 125 mm
- Dimensions
- 193×131×173 mm
- Tailstock
- Usually included, matching center height
- Gear Ratio
- 40:1
- Direct Indexing
- 2, 3, 4, 6, 8, 12, 24 divisions
- Indirect Indexing
- 2 – 380 divisions
- Compatibility
- Fits standard milling machines and toolroom mills
- Spindle Through Hole
- 18 mm
- Index Plates
- Usually includes 3 Plates with multiple hole circles
- Weight:
- 45 kgs
- Packing Size (L×W×H)
- 450×350×400 mm
Configurations
Click a row to switch| Variant | Center Height | 3 Jaw Chuck Size | Headstock Swivel Angle | Direct Indexing | Price |
|---|---|---|---|---|---|
| BS1-8" | 128 mm | 200 mm | 0° – 90° (vertical) | 2, 3, 4, 6, 8, 12, 24 divisions | ₹55,600 |
| BS0-5" | 128 mm | 125 mm | 0° – 90° (vertical) | 2, 3, 4, 6, 8, 12, 24 divisions | ₹31,800 |
| BS1-6" | 128 mm | 160 mm | 0° – 90° (vertical) | 2, 3, 4, 6, 8, 12, 24 divisions | ₹44,800 |
Operational Setup & Efficiency
- Quick setup process for standard milling machine integration
- Index plates simplify complex division calculations for operators
- Compact design saves valuable floor space in busy workshops
- Reliable performance reduces downtime during production runs
- Designed for seamless integration with existing tooling systems
Construction & Compatibility
- Built with hardened and precision-ground steel components
- Spindle features MT3 taper for standard tool compatibility
- 20 mm spindle through hole accommodates various tooling needs
- Robust design withstands continuous industrial machining loads
- Matching tailstock usually included for added workpiece support
Industrial Applications
- Ideal for gear cutting and complex fluting operations
- Enables accurate angular and circular machining on mills
- Perfect for machining patterns requiring precise indexing
- Supports vertical operations with swivel headstock design
- Suitable for precision toolroom and workshop environments
Precision Indexing Capabilities
- 40:1 worm-gear ratio ensures precise indexing accuracy
- Headstock swivels 0° – 90° for versatile vertical operations
- Includes index plates with multiple hole circles for flexibility
- Compatible with standard toolroom mills and milling machines
- Hardened and precision-ground steel construction for durability

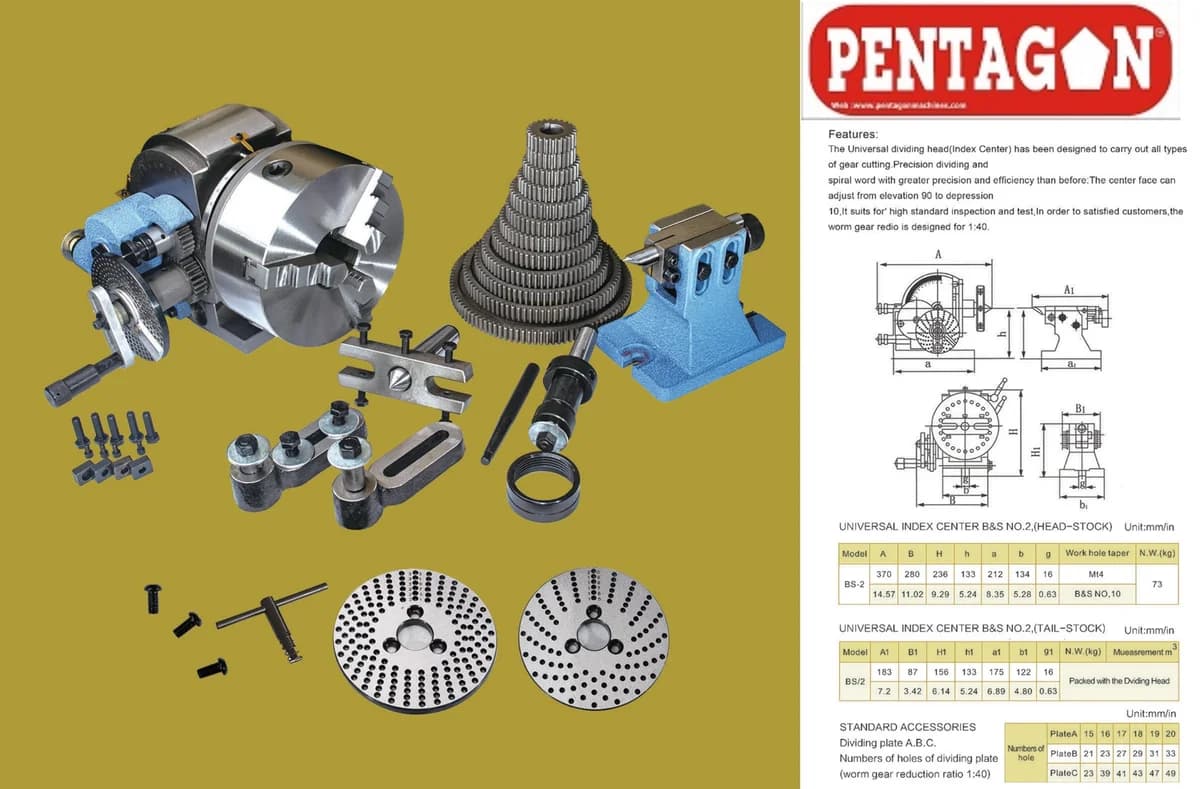

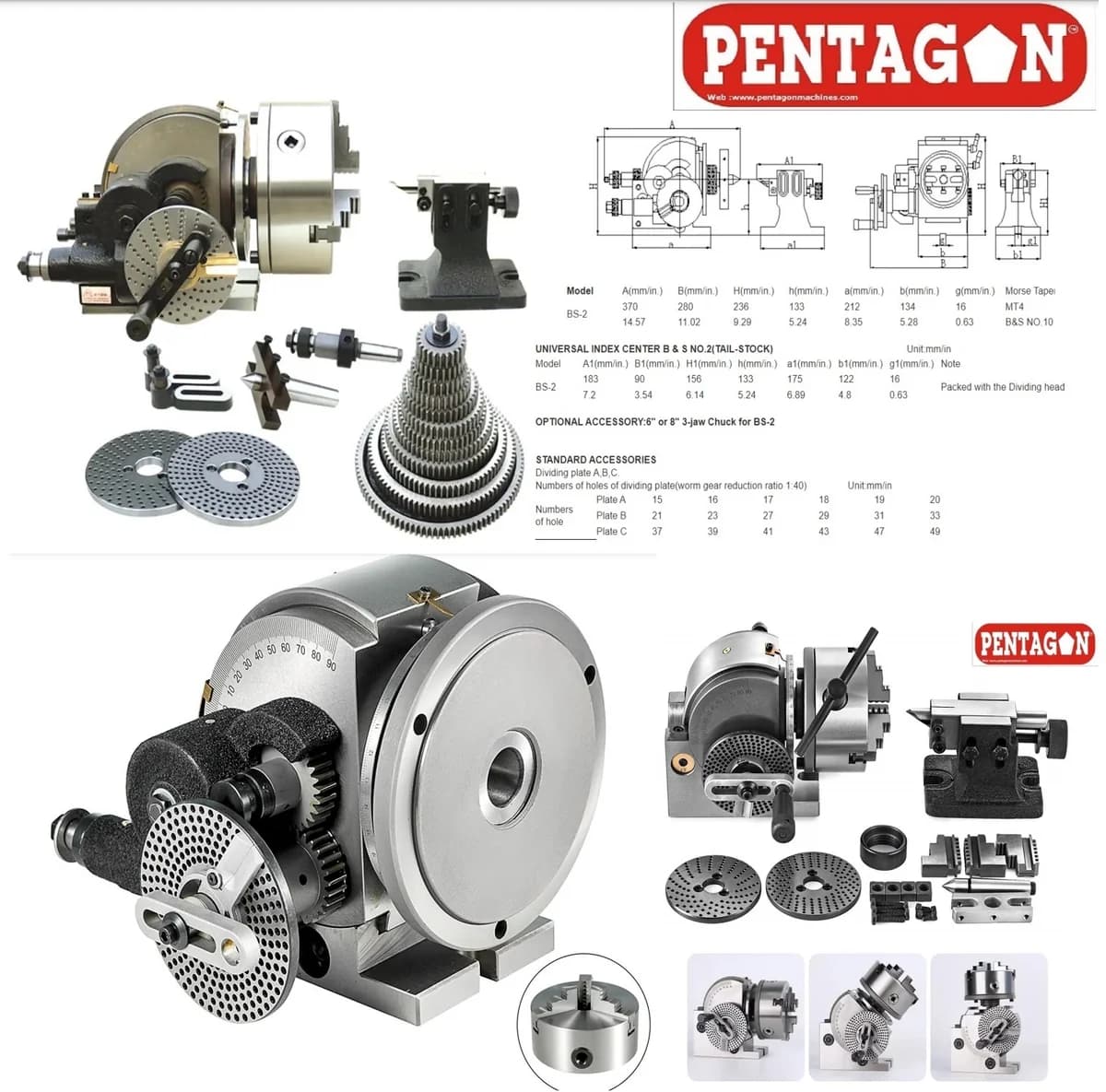

Standard Accessories

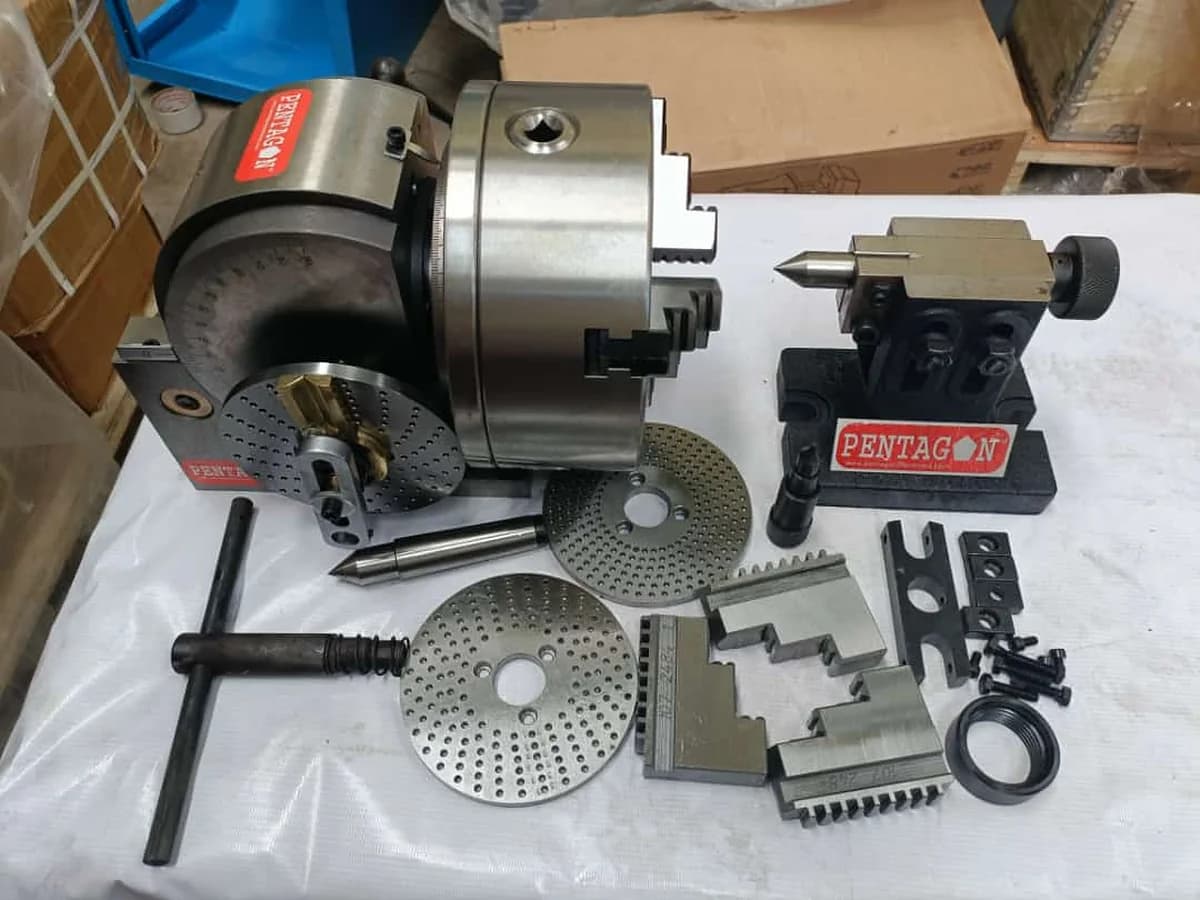

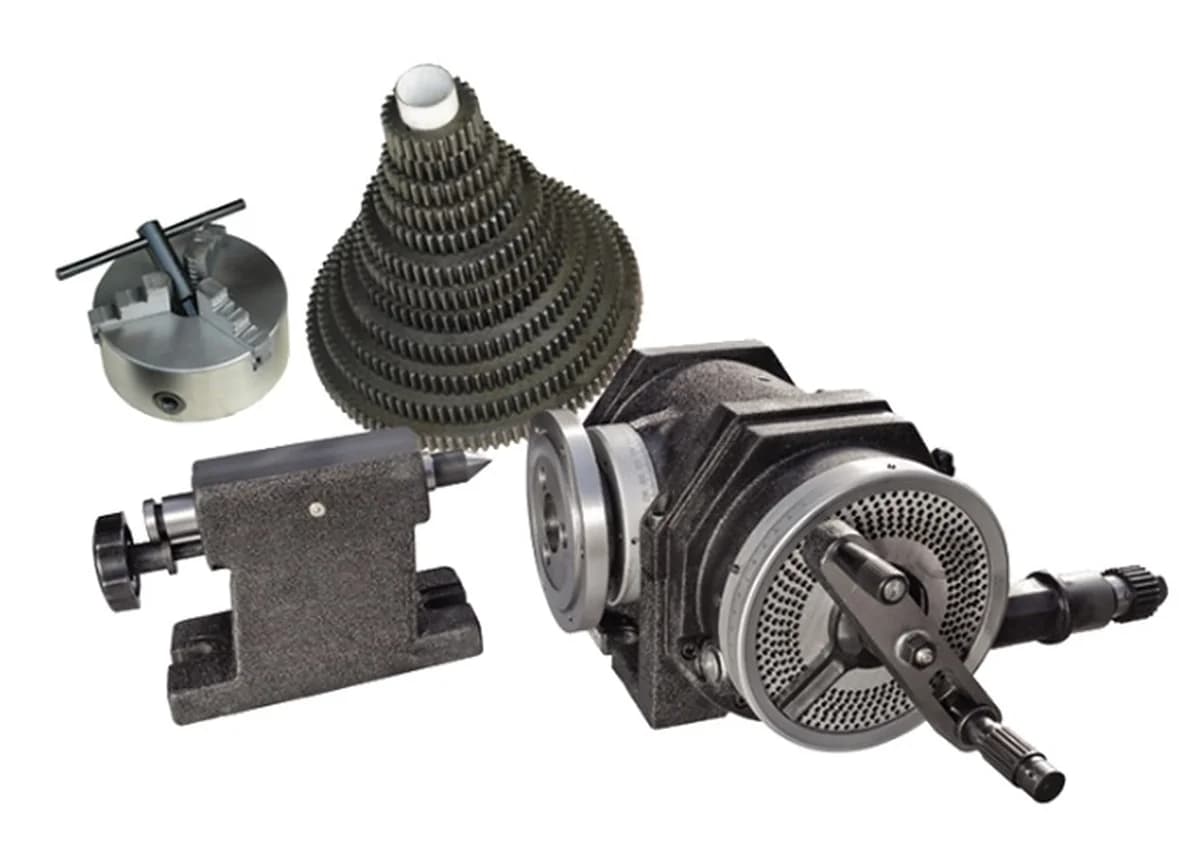

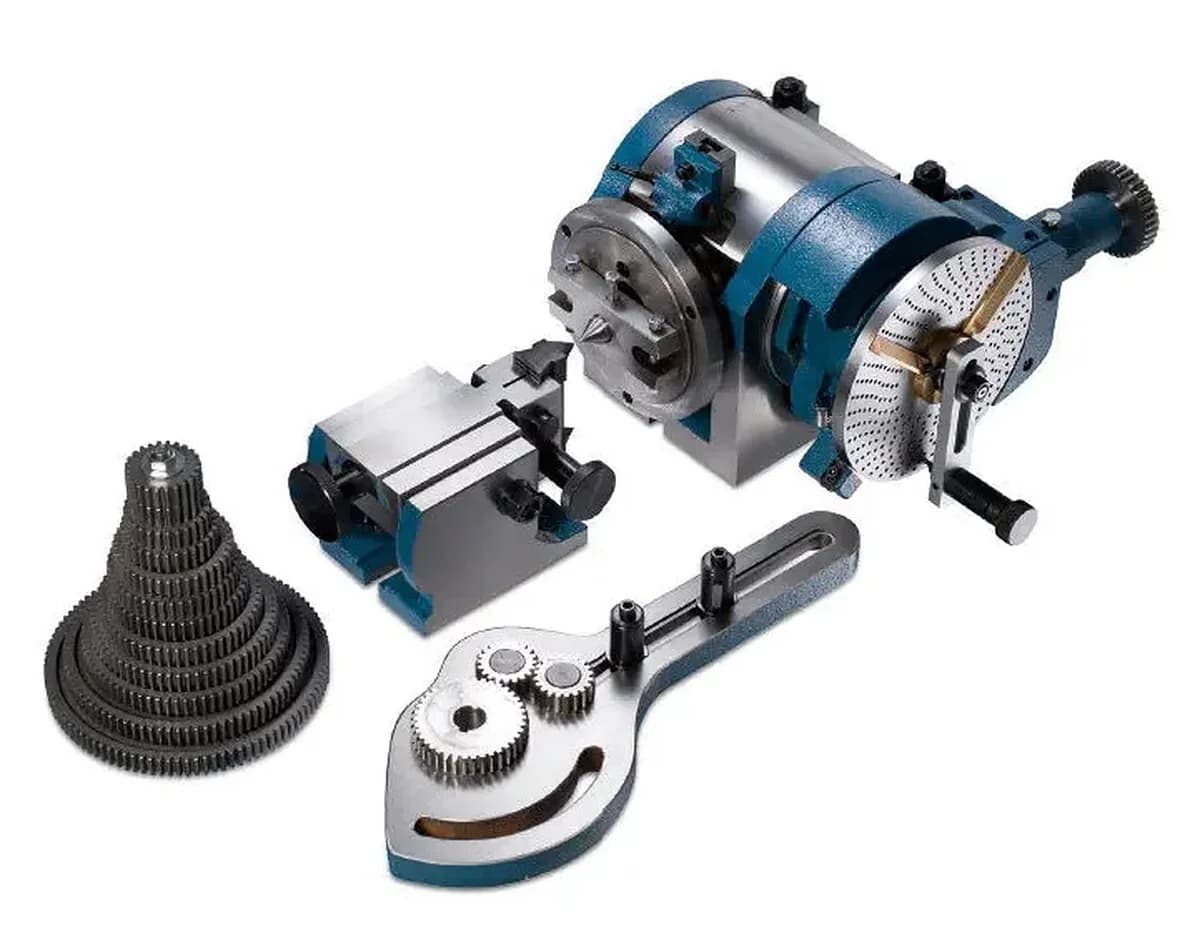

- Tailstock
- Dividing Plates (A, B, C)
- Center for head and tailstock
- Drive dog / carrier
- Flange plate
- 3-Jaw Chuck
- Back plate for chuck mounting
Frequently asked
Is this dividing head compatible with all milling machines?
It is designed to fit standard toolroom mills and milling machines.
What is included with the unit?
Usually includes index plates and a matching tailstock for support.
Can it handle vertical machining tasks?
Yes, the headstock swivels 0° – 90° for vertical operations.
More questions buyers ask
What is a semi-universal dividing head used for?
A semi-universal dividing head is a precision indexing device used on milling machines for accurate angular and circular machining operations, such as gear cutting, splines, flutes, and bolt circles.
What is the gear ratio of the PENTAGON dividing head?
The PENTAGON semi-universal dividing head features a 40:1 worm-gear ratio for precise indexing.
Can the spindle be tilted on this dividing head?
Yes, the headstock spindle can be tilted from 0° to 90° for angular machining operations.
What type of indexing can be performed?
The dividing head supports both direct and indirect indexing for accurate workpiece division.
Are dividing plates included with the set?
Yes, the set typically includes three dividing plates (A, B, C) with multiple hole circles for complex indexing.
What is the difference between direct and indirect indexing?
Direct indexing uses a plate with 24 holes for quick divisions, while indirect indexing uses the worm gear and dividing plates for more complex divisions.
Is a tailstock included with the dividing head?
Yes, a tailstock with a matching center height is usually included in the set.
What machines are compatible with this dividing head?
It fits standard milling machines and toolroom mills.
What material is the dividing head made of?
It is constructed from hardened and precision-ground steel for durability and accuracy.
Does the product come with a warranty?
Yes, it comes with a standard manufacturer warranty. Please check the specific terms at the time of purchase.
Who should choose the BS0-5" model?
The BS0-5" model is ideal for smaller milling machines and toolroom applications, offering a compact 98mm center height and 125mm chuck mounting.
Who should choose the BS1-6" model?
The BS1-6" model is perfect for medium-sized machining tasks, providing a 128mm center height with a 150mm chuck mounting.
Who should choose the BS1-8" model?
The BS1-8" model is best suited for heavy-duty milling and precision indexing on larger workpieces, featuring a 128mm center height and 200mm chuck mounting.
What is the difference between the BS0 and BS1 models?
The BS0 model is more compact with a 98mm center height and MT2 taper, while the BS1 models have a larger 128mm center height and MT3 taper.
How does the chuck mounting size vary across the models?
The chuck mounting size is 125mm for the BS0-5", 150mm for the BS1-6", and 200mm for the BS1-8".
Which model has the highest center height?
Both the BS1-6" and BS1-8" models have the highest center height of 128mm.
