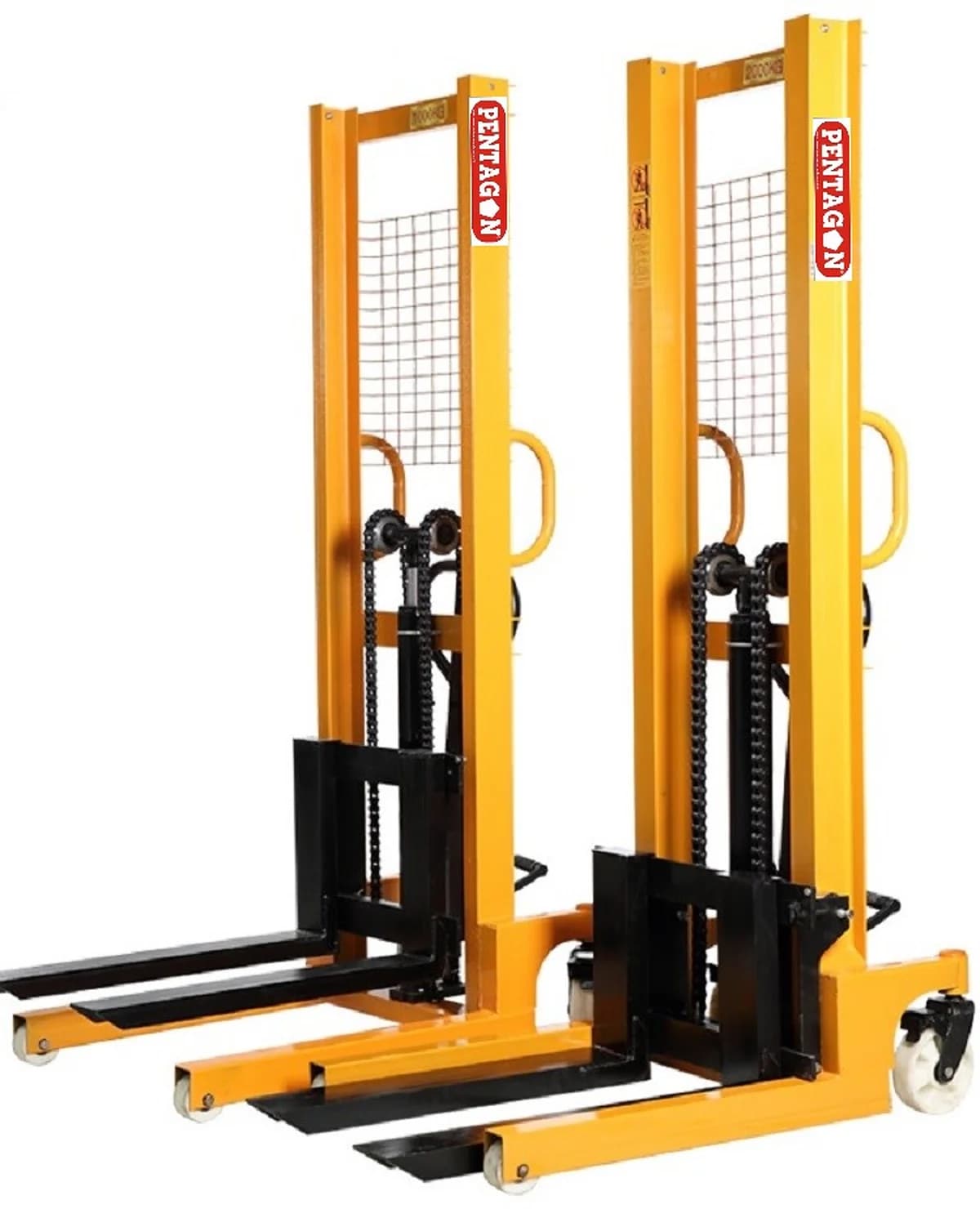

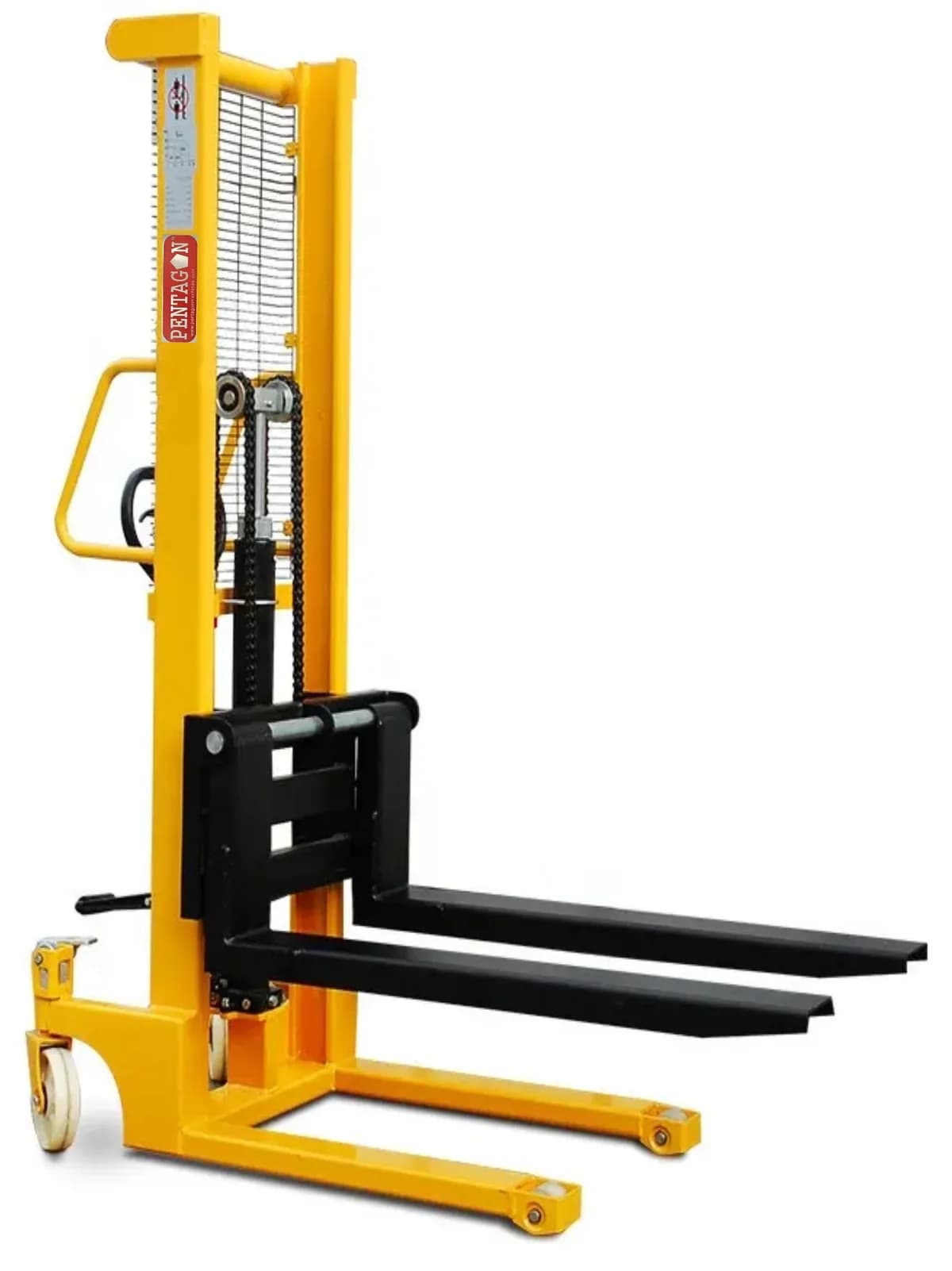

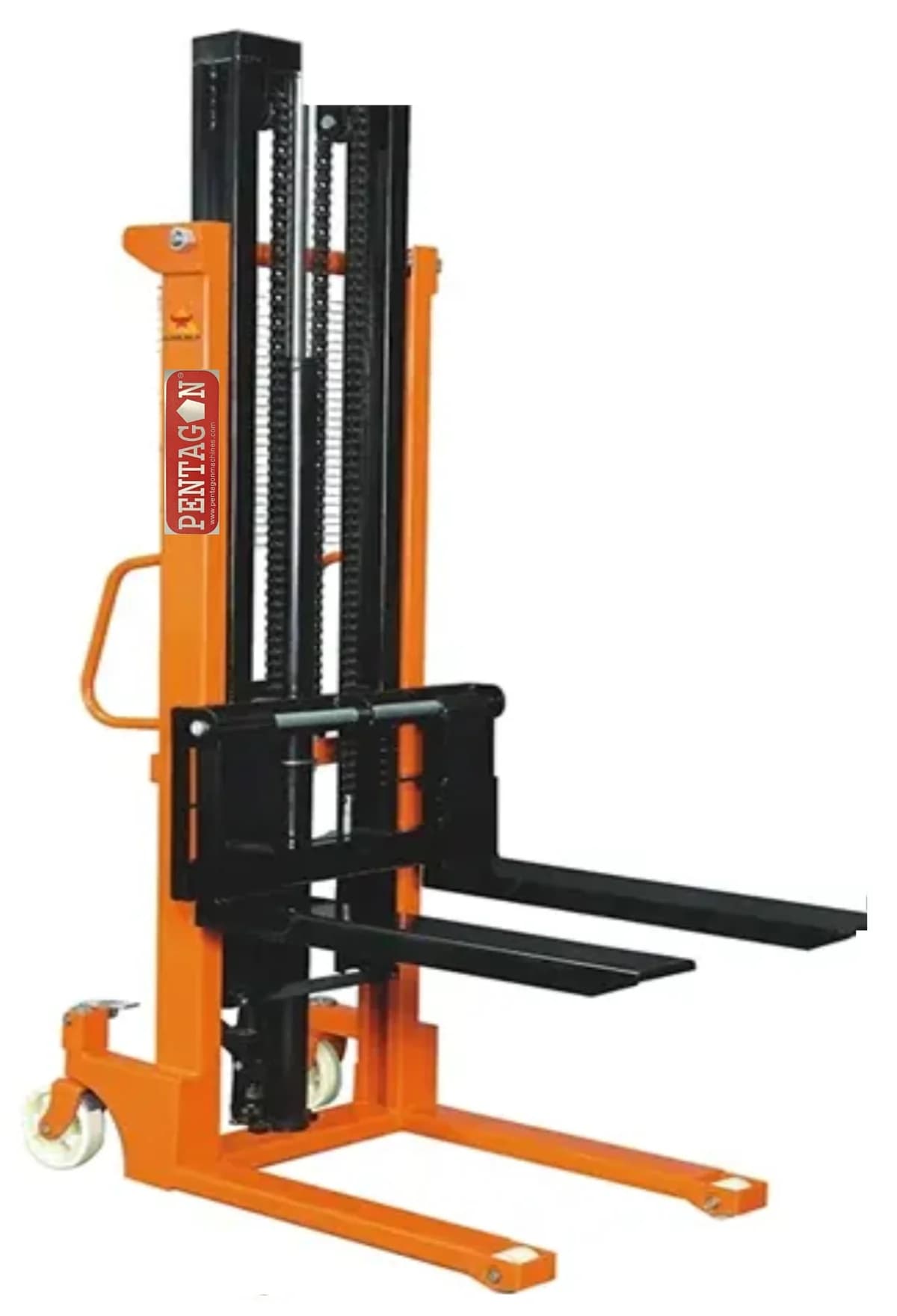

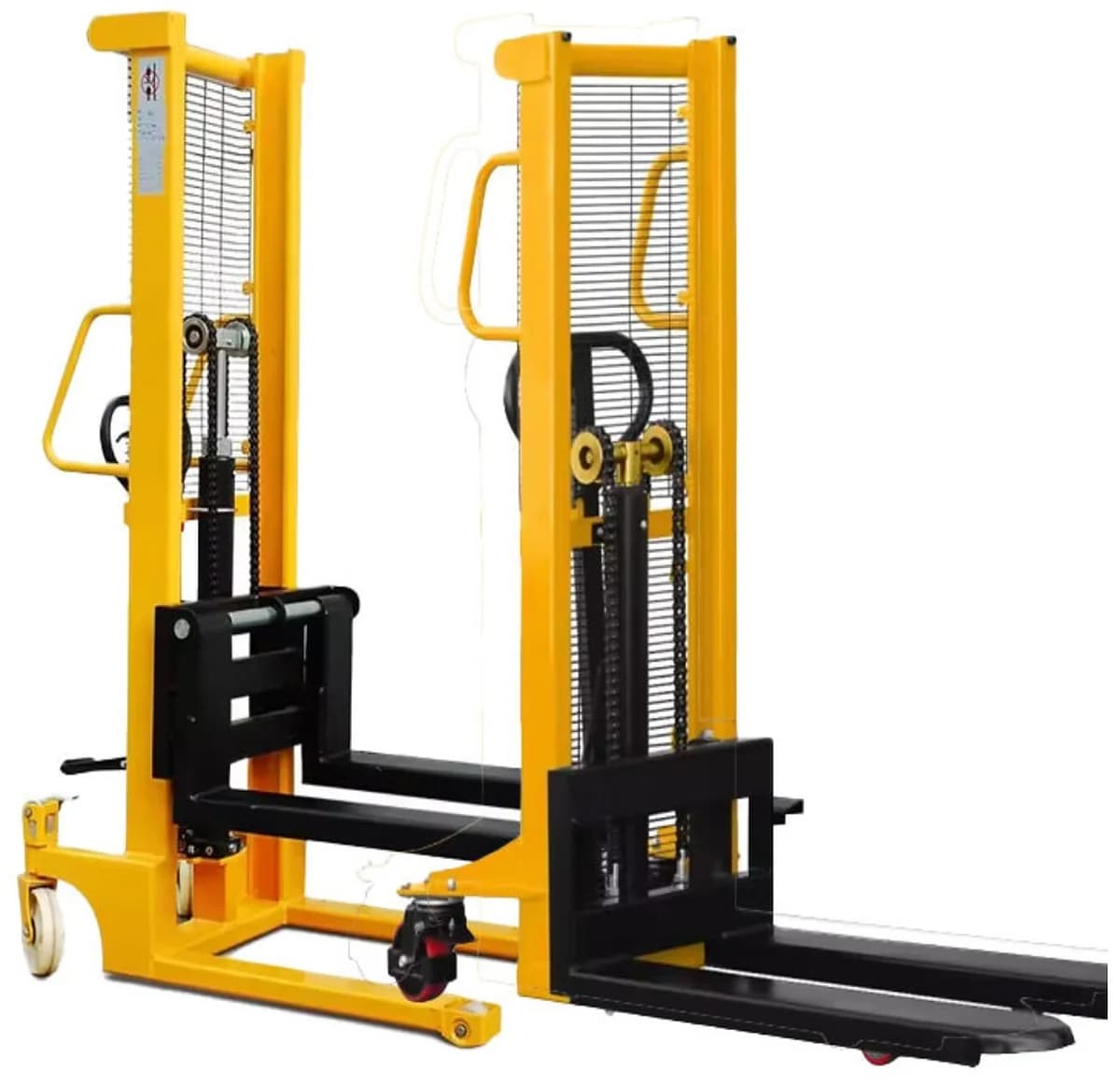

Semi Electric Stacker with Battery and charging chord — 2016 Heavy
Reliable semi electric stackers designed for efficient vertical material movement in industrial settings. These units utilize a 12V DC power supply for consistent performance without manual pumping. • Load capacities from 1000 kg to 1500 kg • Single and double mast configurations available • Controlled lowering speeds ensure safety • Compact footprint suits narrow warehouse aisles

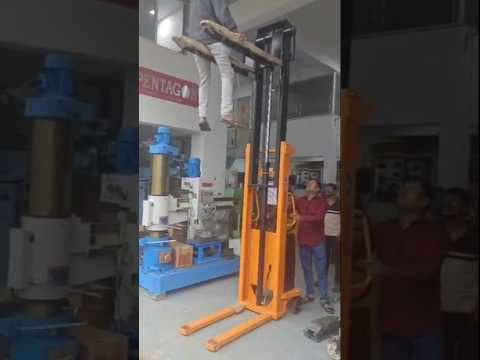

See it in action

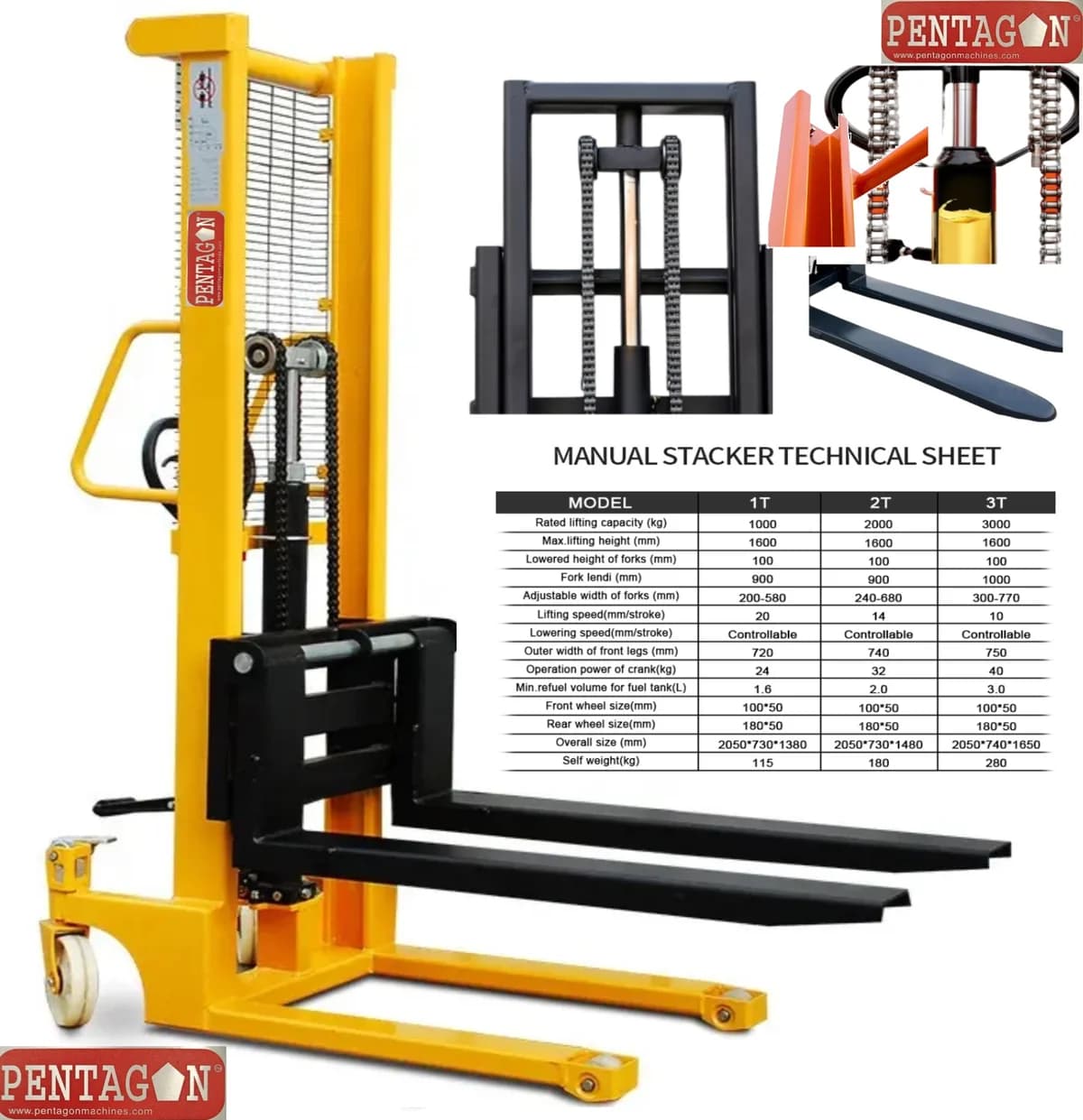

Specifications
For: 2016 Heavy- Net Weight Of Truck
- 147 KG
- Rated Load Capacity
- 1000 kg (1 Ton)
- Model
- PT01
- Fork Width Overall
- 1150 mm
- Load Capacity
- 1000 kg

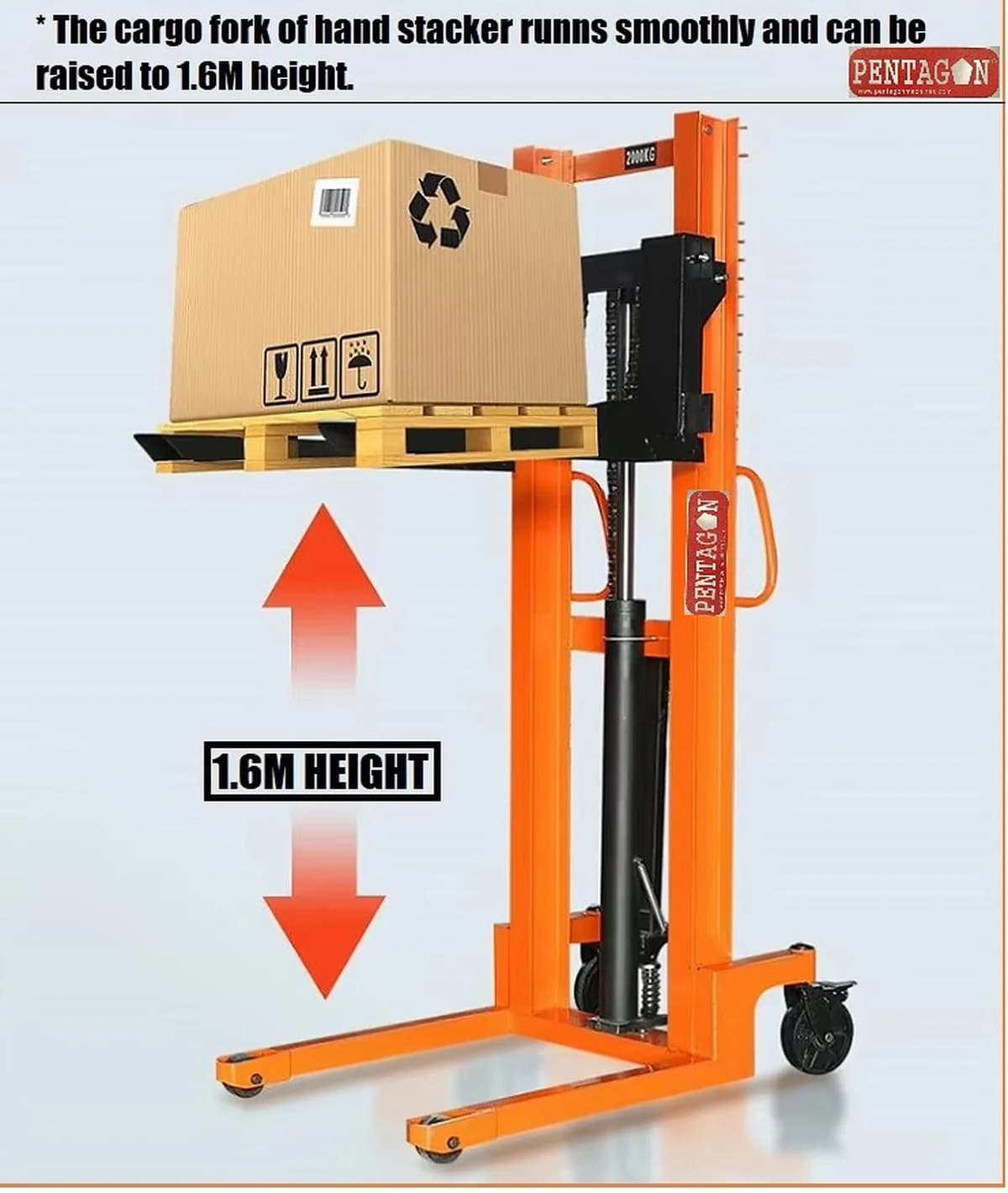

- Max Lifting Height
- 1600 mm
- Load Center
- 500 mm
- Min Fork Height
- 85–90 mm
- Fork Length
- 900–1150 mm
- Fork Width
- 550–680 mm
- Mast Type
- Single Mast
- Lifting Speed
- 70–100 mm/sec
- Lowering Speed
- Controlled
- Power Supply
- 12V DC Battery
- Charger
- 220V AC
- Wheel Type
- PU/Nylon

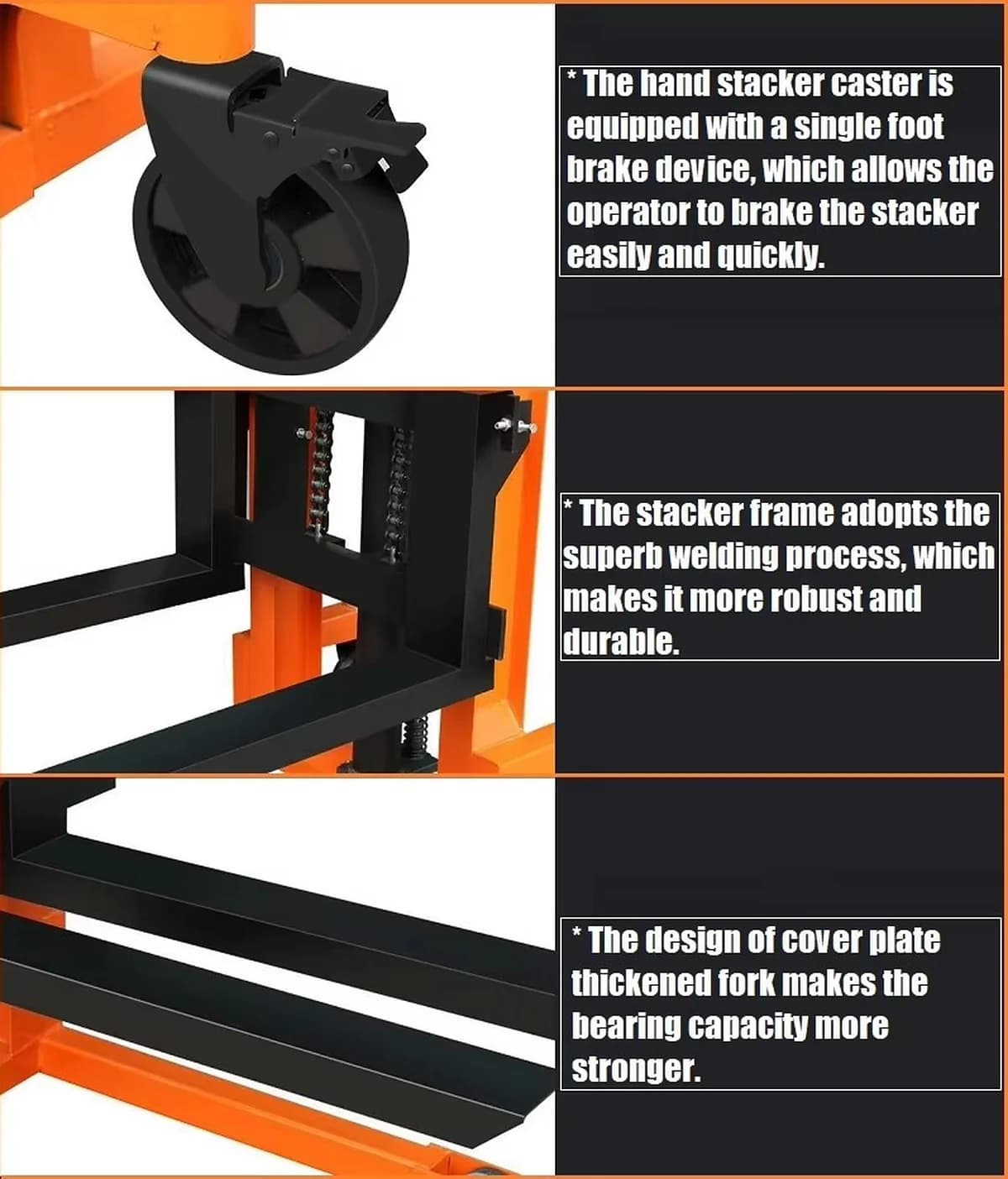

- Brake System
- Manual / Parking Brake
- Overall Length
- 1700 mm
- Overall Width
- 800 mm
- Overall Height
- 2080 mm
- Net Weight
- 300 kg
Configurations
Click a row to switch| Variant | Price |
|---|---|
| 2016 Heavy | ₹1,23,500 |
| 2020 Orange Heavy Double Mast | ₹1,29,000 |
| 2030 Grey Heavy | ₹1,39,998 |
| 2035 Orange | ₹1,28,799 |
Maintenance and Care Guidelines
- Regular battery charging extends unit lifespan and performance
- Inspect PU or Nylon wheels for wear to ensure smooth movement
- Store charger in dry areas to prevent electrical hazards
- Keep forks clean to prevent damage to stored goods
- Conduct routine brake checks before daily operations
Safety and Stability Standards
- Controlled lowering prevents load dropping during descent
- Parking brake systems secure the unit when stationary
- Compact design enhances visibility around the operator
- Stable mast construction ensures load integrity during lift
- Built to meet general industrial safety standards for handlers
Ideal Industrial Applications
- Ideal for loading and unloading trucks in logistics centers
- Suitable for stacking goods in manufacturing warehouses
- Perfect for order picking in distribution facilities
- Supports vertical storage solutions in limited floor space
- Handles palletized loads in retail backrooms and stockrooms
Power and Mobility Specifications
- Efficient vertical material movement in industrial settings
- Lifting speeds optimized for productivity and control
- PU or Nylon wheel types reduce floor damage
- Charger compatible with standard 220V AC power supply
- Fork widths 550–680 mm to match pallet standards
- Designed for easy maneuverability in tight spaces
Key Operational Features
- Reliable semi electric operation eliminates manual pumping
- 12V DC battery power supply for consistent performance
- Load capacities ranging from 1000–1500 kg
- Single and double mast configurations available for flexibility
- Controlled lowering speeds ensure operator safety
- Compact footprint suits narrow warehouse aisles
- Manual or parking brake systems included for security
More questions buyers ask
What is the load capacity of the Pentagon Semi Electric Stacker?
The load capacity ranges from 1000 kg to 1500 kg depending on the variant you choose.
What power supply does this stacker use?
It uses a reliable 12V DC Battery for consistent lifting operations without manual pumping.
What is the lifting speed of the stacker?
The lifting speed is optimized at 70–100 mm/sec for productivity and control.
What type of wheels are used on this stacker?
It features durable PU or Nylon wheels to ensure smooth movement and reduce floor damage.
Is the charger included with the stacker?
Yes, it comes with a charger that is compatible with a standard 220V AC power supply.
What is the fork width range?
The fork width is adjustable between 550–680 mm to match various pallet sizes.
Does the stacker have a braking system?
Yes, it includes a manual/parking brake system to secure the unit when stationary.
What is the minimum fork height?
The minimum fork height is 85–90 mm, allowing easy access under standard pallets.
Can this stacker be used in narrow aisles?
Yes, its compact footprint makes it highly suitable for narrow warehouse aisles.
What are the ideal applications for this stacker?
It is ideal for loading/unloading trucks, stacking goods in manufacturing warehouses, and order picking.
Who should choose the 2016 Heavy variant?
Ideal for users needing a 1000 kg capacity and 1600 mm lifting height for standard stacking tasks.
Who should choose the 2020 Orange Heavy Double Mast variant?
Perfect for those requiring a 1500 kg capacity and a double mast for lifting up to 2000 mm.
Who should choose the 2030 Grey Heavy variant?
Best for heavy-duty applications needing a 1500 kg capacity and a higher 3000 mm lifting height.
Who should choose the 2035 Orange variant?
Recommended for maximum reach, offering a 1500 kg capacity and a 3500 mm lifting height.
What is the difference between the 2016 Heavy and 2020 Orange Heavy Double Mast variants?
The 2016 Heavy lifts 1000 kg up to 1600 mm with a single mast, while the 2020 variant lifts 1500 kg up to 2000 mm using a double mast.
How does the 2030 Grey Heavy compare to the 2035 Orange variant?
Both handle 1500 kg, but the 2030 Grey Heavy lifts up to 3000 mm with a double mast, whereas the 2035 Orange reaches 3500 mm with a single mast.
Which variant offers the highest lifting capacity and height?
The 2035 Orange variant offers the highest lifting height of 3500 mm with a 1500 kg capacity.
