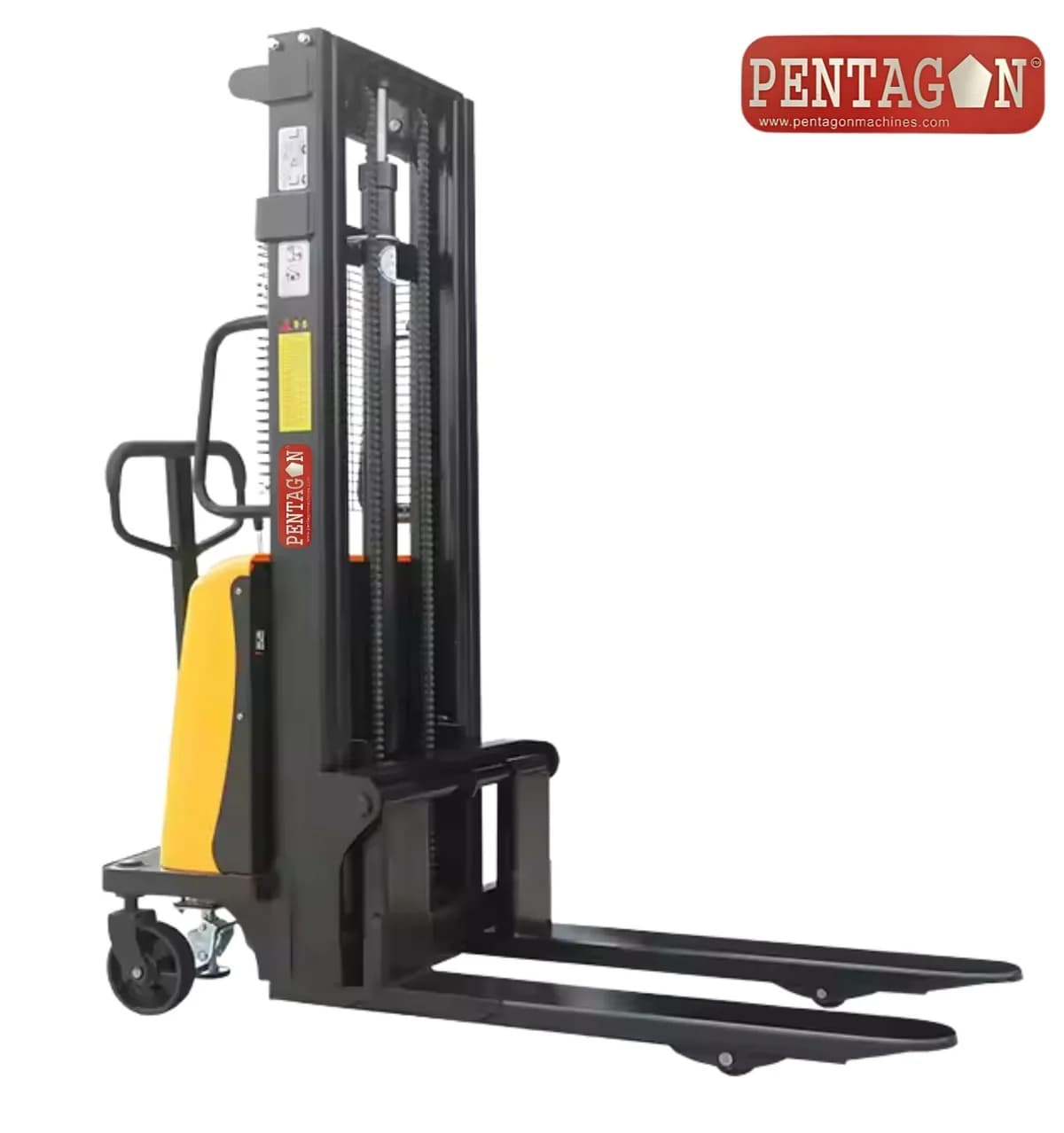

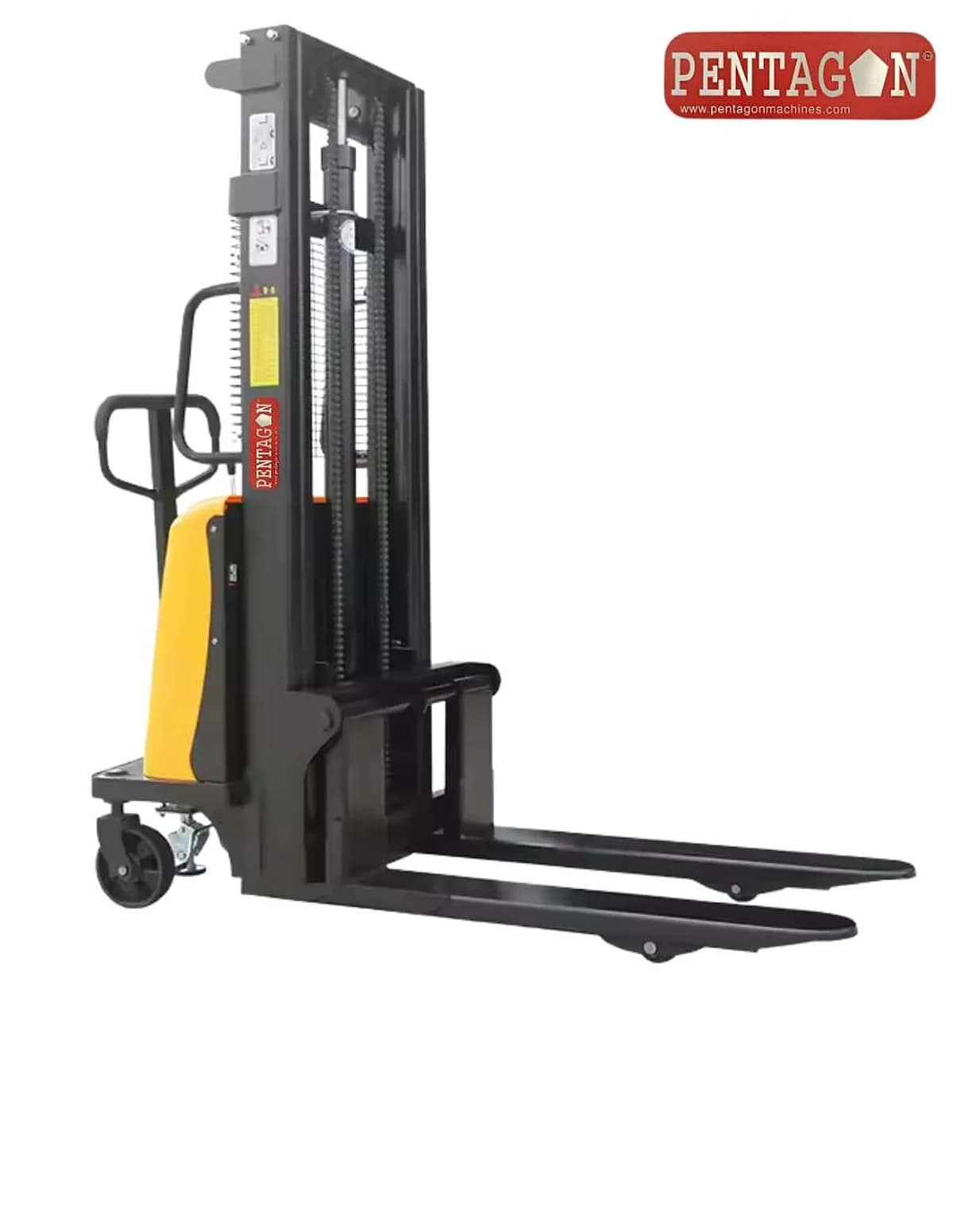

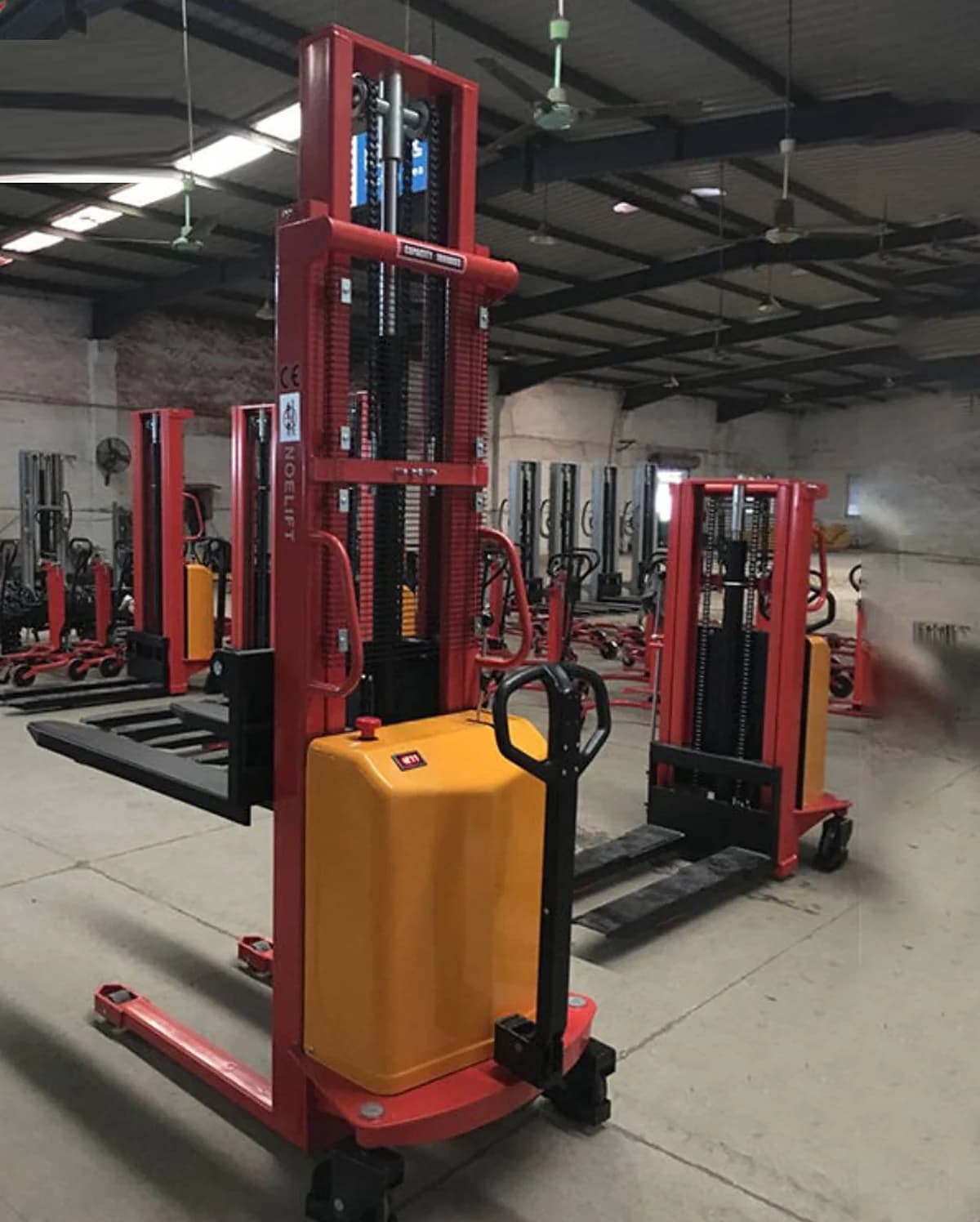

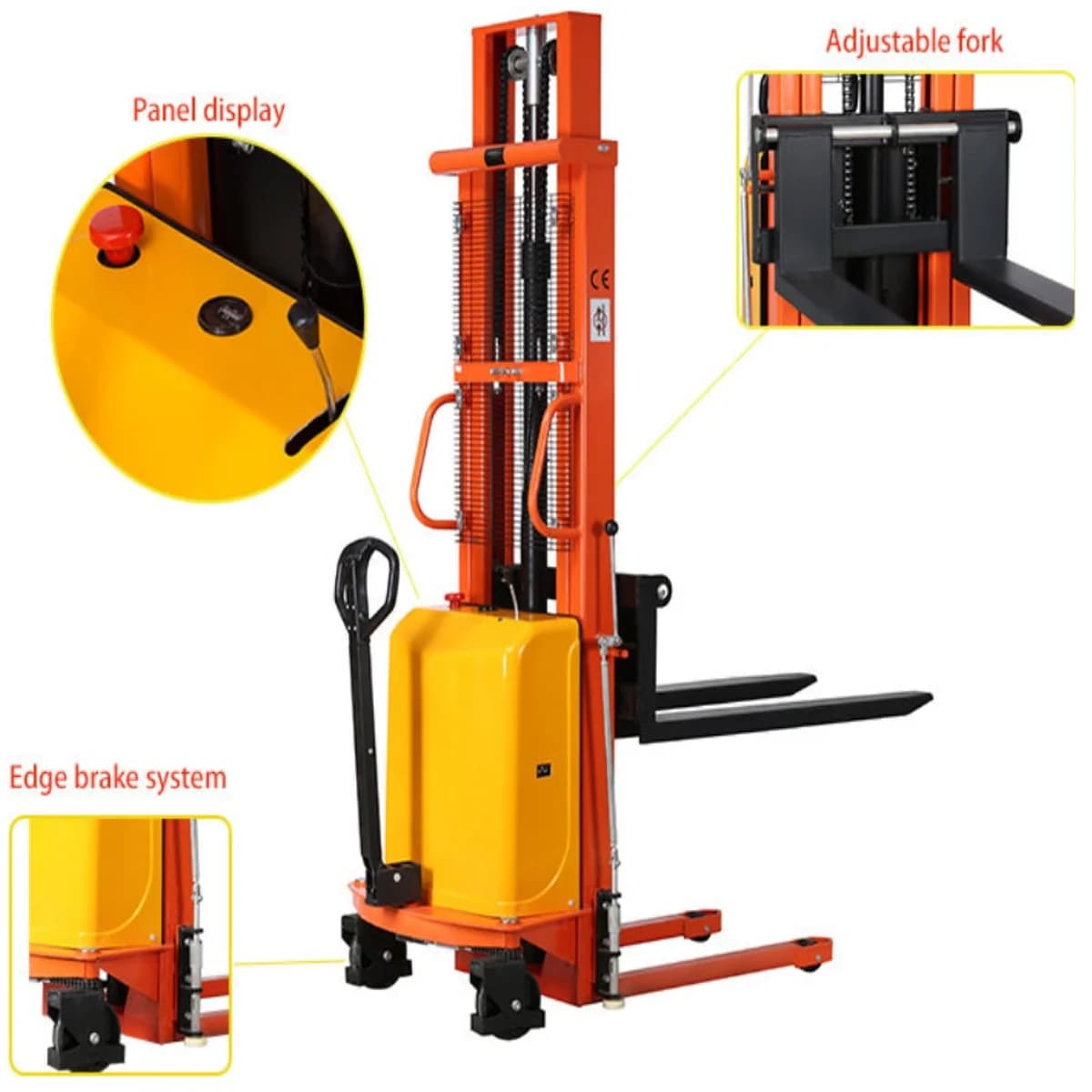

Battery Operated Semi Electric Stacker — SE1600-M-2T
Battery operated semi electric stackers provide efficient manual pushing with electric lifting for 2000 kg loads. Designed for versatile warehouse and industrial material handling applications across multiple lift heights. • 2 Ton load capacity supports heavy pallets • Electric lifting reduces operator fatigue significantly • Compact design ensures maneuverability in narrow aisles

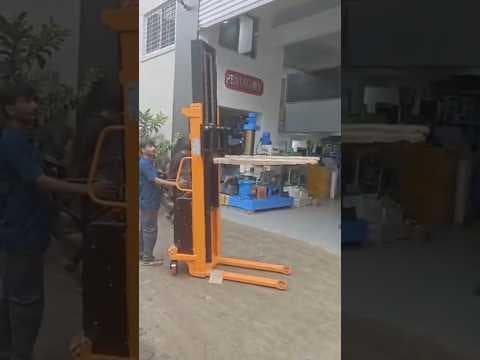

See it in action

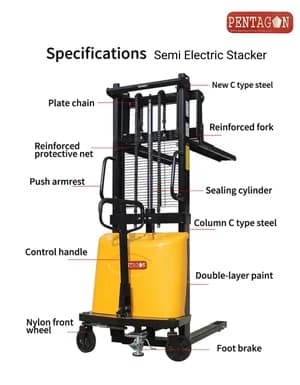

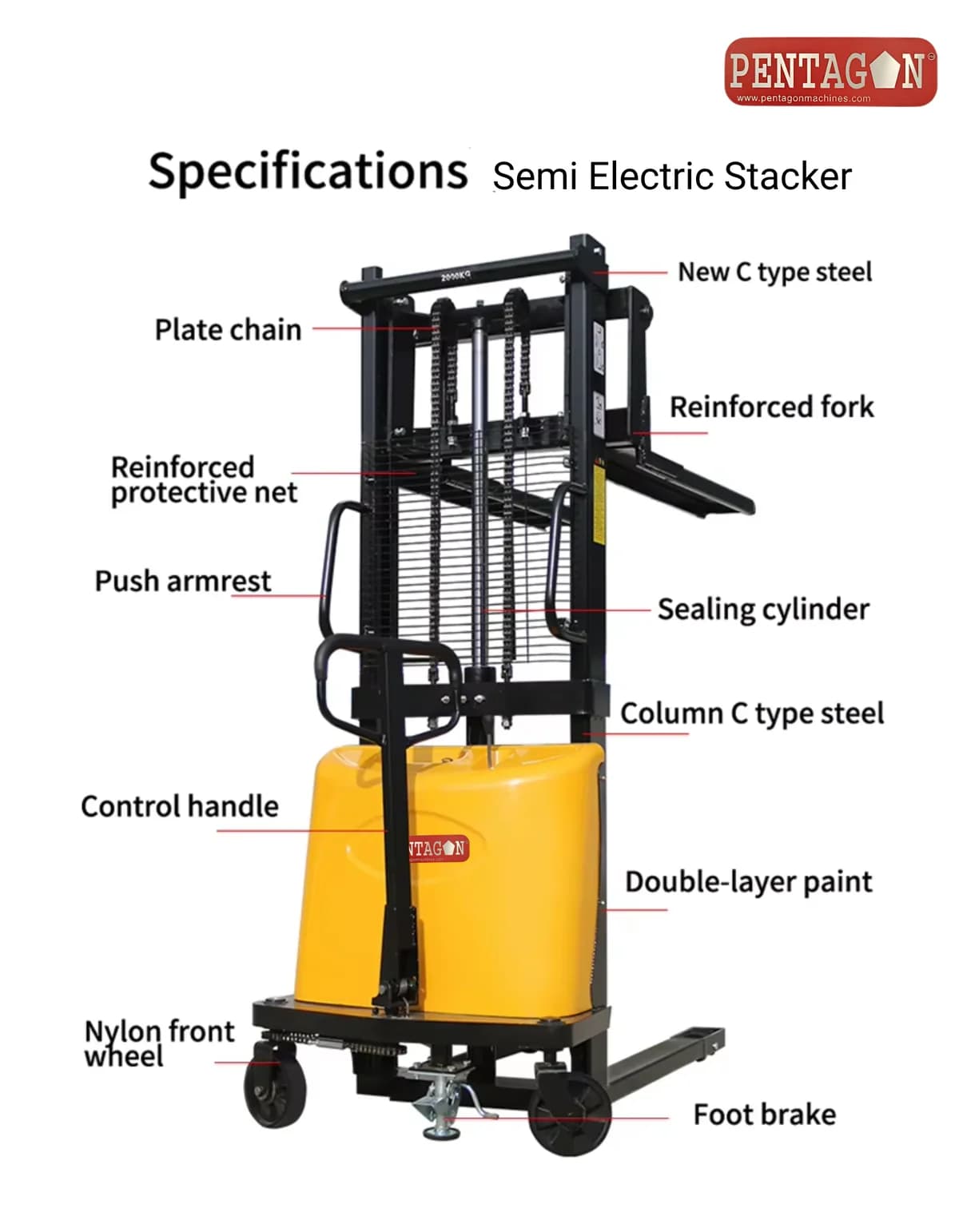

Specifications
For: SE1600-M-2T- Model
- SE1600-M-2T
- Load Capacity
- 2000 kg
- Max Lifting Height
- 1600 mm
- Min Fork Height
- 85 – 90 mm
- Fork Length
- 1150 mm
- Fork Width (Overall)
- 550 / 680 mm
- Load Center
- 500 mm
- Lifting Type
- Electric
- Driving Type
- Manual Push
- Motor Power (Lift)
- 1.6 – 2.2 kW
- Battery
- 12V / 24V
- Charger
- Built-in
- Lifting Speed (Laden)
- 80–100 mm/sec
- Lowering Speed
- Controlled
- Front Wheel
- PU / Nylon
- Rear Wheel
- PU / Nylon
- Turning Radius
- 1350 mm
- Overall Height
- 2080 mm
- Net Weight (Approx)
- 350 – 400 kg
Configurations
Click a row to switch| Variant | Max Lifting Height | Fork Length | Lifting Type | Driving Type | Price |
|---|---|---|---|---|---|
| SE1600-M-2T | 1600 mm | 1150 mm | Electric | Manual Push | ₹1,26,000 |
| SE2000-M-2T | 2000 mm | 1150 mm | Electric | Manual Push | ₹37,000 |
| SE3000-M-2T | 3000 mm | 115 0 mm | Electric | Manual Push | ₹1,55,900 |
Maintenance & Durability
- Durable construction withstands frequent industrial use
- Minimal maintenance requirements for continuous operation
- Sealed components protect against dust and debris
- Easy access points simplify routine inspection tasks
- High-quality materials extend equipment lifespan
Safety & Compliance
- Designed to meet international industrial safety standards
- Stable base design minimizes tipping risks during lifting
- Ergonomic controls reduce strain during extended shifts
- Reliable braking systems ensure secure positioning
- Suitable for versatile warehouse and industrial applications
Design & Maneuverability
- Compact design ensures maneuverability in narrow aisles
- Turning radius optimized for efficient warehouse navigation
- Fork lengths and widths vary to fit different pallets
- PU or Nylon wheels provide smooth traction on floors
- Overall height and weight vary by specific configuration
Load Handling & Capacity
- Supports heavy pallets up to 2000 kg capacity
- Electric lifting ensures smooth vertical movement
- Controlled lowering speeds prevent load damage
- Lifting speeds reach 80 to 100 mm per second
- Load center maintained at 500 mm for stability
Operational Efficiency & Power
- Manual pushing combined with electric lifting for efficiency
- Reduces operator fatigue significantly during shifts
- Motor power ranges from 1.6 to 2.2 kW
- Battery options include 12V or 24V systems
- Built-in charger simplifies daily power management
More questions buyers ask
What is a semi-electric stacker?
A semi-electric stacker combines manual propulsion (push/pull) with a powered lift mechanism, typically battery-operated. This makes it a cost-effective solution for lifting and moving pallets where fully-electric transit is not required.
What is the load capacity of the PENTAGON stacker?
All variants of this PENTAGON semi-electric stacker series have a maximum load capacity of 2000 kg (2 Tons).
What is the maximum lifting height available?

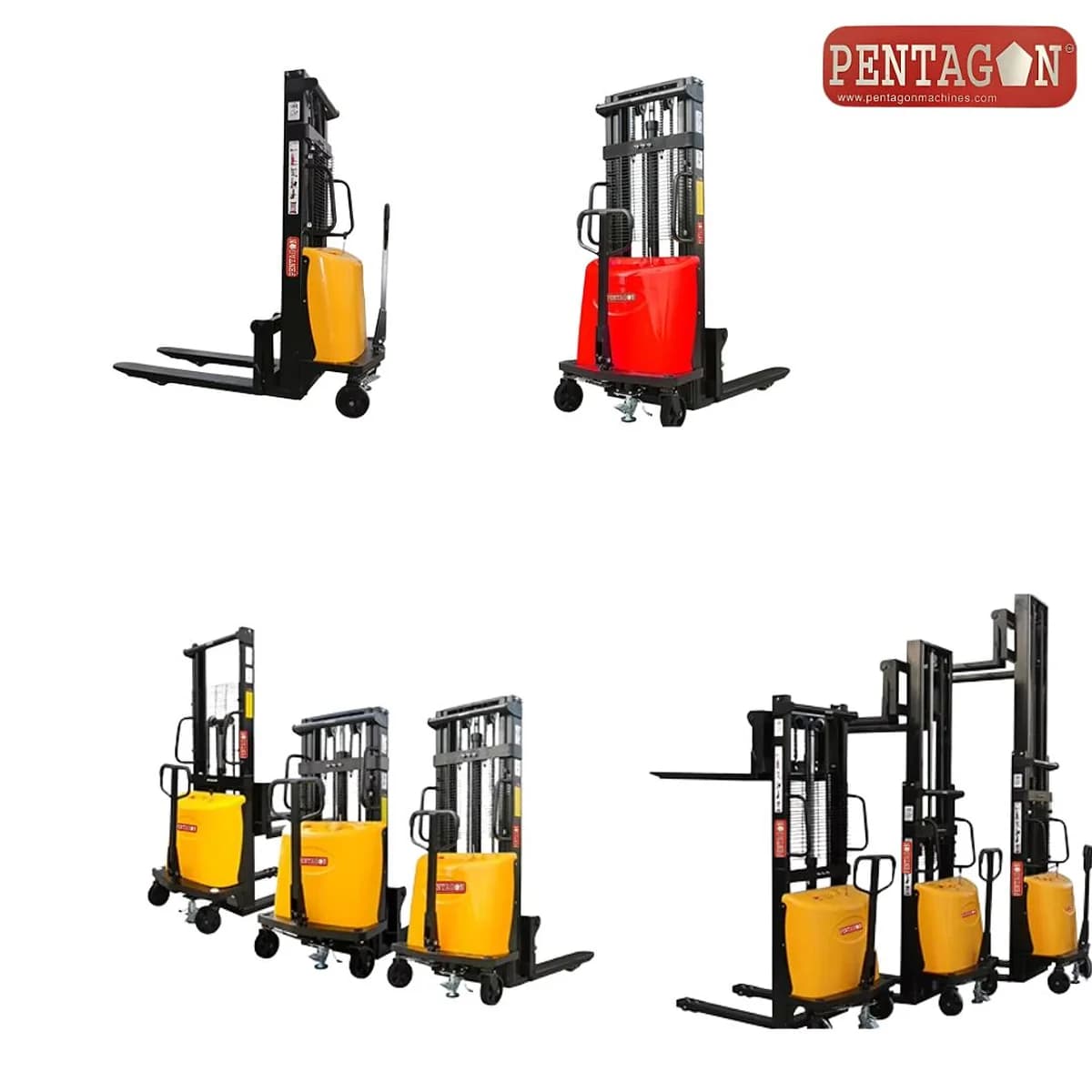

This stacker is available in three models with maximum lifting heights of 1600mm, 2000mm, and 3000mm respectively.
Is the lifting mechanism electric or manual?
The lifting mechanism is fully electric, powered by a 12V/24V battery system to reduce operator effort.
How is the stacker moved?
The stacker is moved manually by pushing or pulling it into position. This design simplifies operation and reduces maintenance costs.
What is the warranty period?
The PENTAGON Semi-Electric Stacker comes with a standard 1-year manufacturer warranty against defects.
Is a battery charger included?
Yes, all models come with a built-in battery charger for convenient and easy recharging.
What type of wheels are used?
The stacker is fitted with durable Polyurethane (PU) or Nylon wheels, suitable for smooth operation on typical warehouse floors.
Is it suitable for narrow aisles?
Yes, with its compact design and optimized turning radius (1350mm to 1550mm depending on the model), it is designed for high maneuverability in confined spaces and narrow aisles.
Where can I buy the PENTAGON semi-electric stacker in India?
You can purchase the PENTAGON semi-electric stacker directly from Gearo.ai. We offer competitive pricing, pan-India delivery, and issue a GST invoice for all purchases.
Who should choose the SE1600-M-2T model with 1600mm lift?
The SE1600-M-2T is ideal for businesses that need to handle heavy (up to 2-ton) loads but only require low-level lifting, such as loading/unloading vehicles or stacking pallets one level high. It is the most economical option in the series.
Who should choose the SE2000-M-2T model with 2000mm lift?
The SE2000-M-2T offers a versatile mid-range lift height, making it suitable for general warehouse operations, including stacking on low-to-medium height racking systems. It provides a balance of capability and cost.
Who should choose the SE3000-M-2T model with 3000mm lift?
This model is designed for facilities that need to maximize their vertical storage space. The 3-meter lift height is perfect for stacking 2-ton pallets on higher racking systems, common in larger warehouses and distribution centers.
What is the main difference between the SE1600-M, SE2000-M, and SE3000-M models?
The primary difference is the maximum lifting height: 1600mm, 2000mm, and 3000mm, respectively. As the lift height increases, the overall height and net weight of the stacker also slightly increase to ensure stability.
How does the lifting height affect the stacker's net weight?
The net weight increases with the lifting height to provide a more stable machine. The approximate weight ranges from 350-400 kg for the 1600mm model to 425-480 kg for the 3000mm model.
Does the lifting speed vary between models?
Yes, there is a slight variation in the laden lifting speed. The 1600mm model lifts at 80-100 mm/sec, while the 2000mm and 3000mm models lift at a range of 70-90 mm/sec and 60-90 mm/sec respectively.
