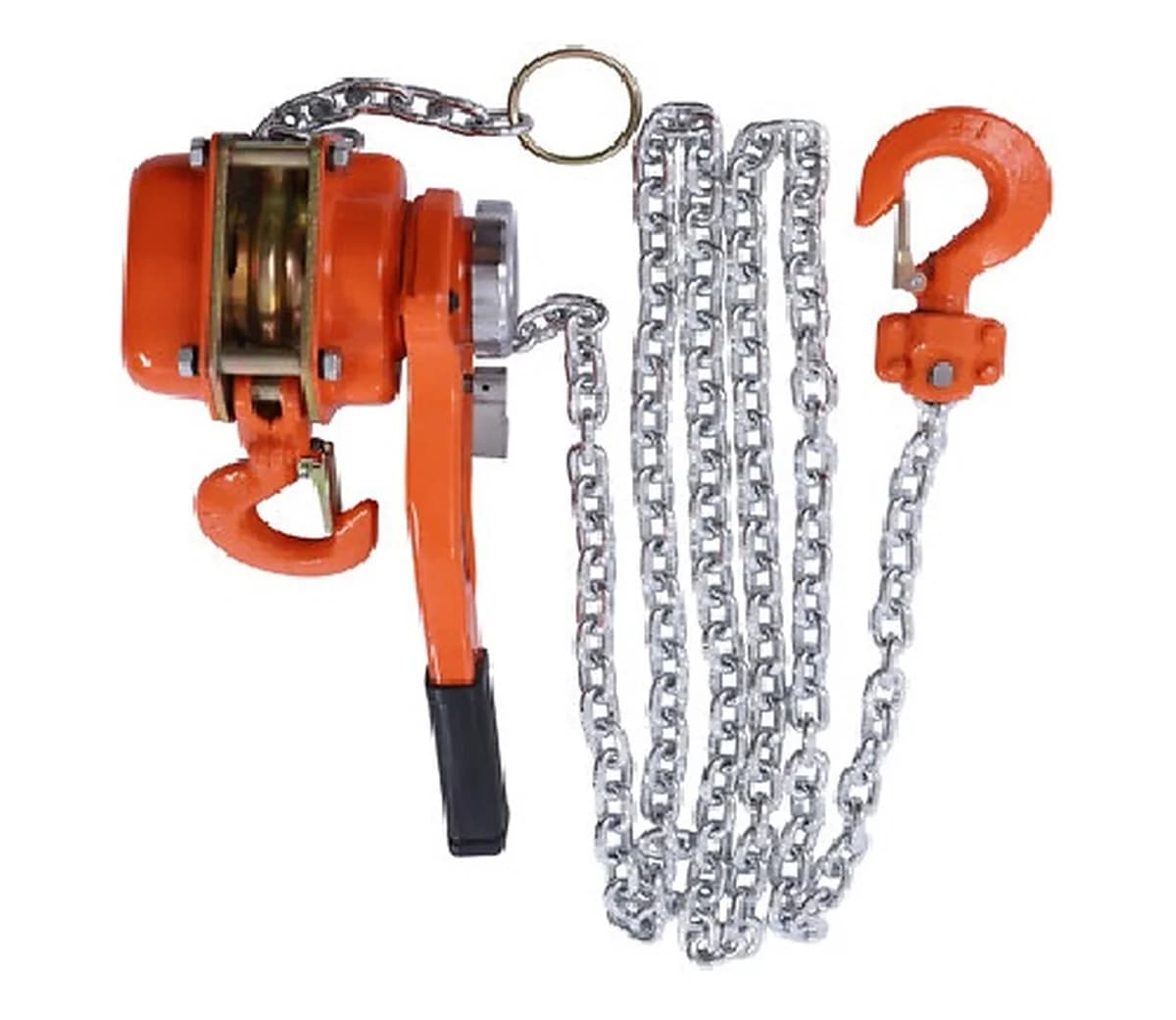

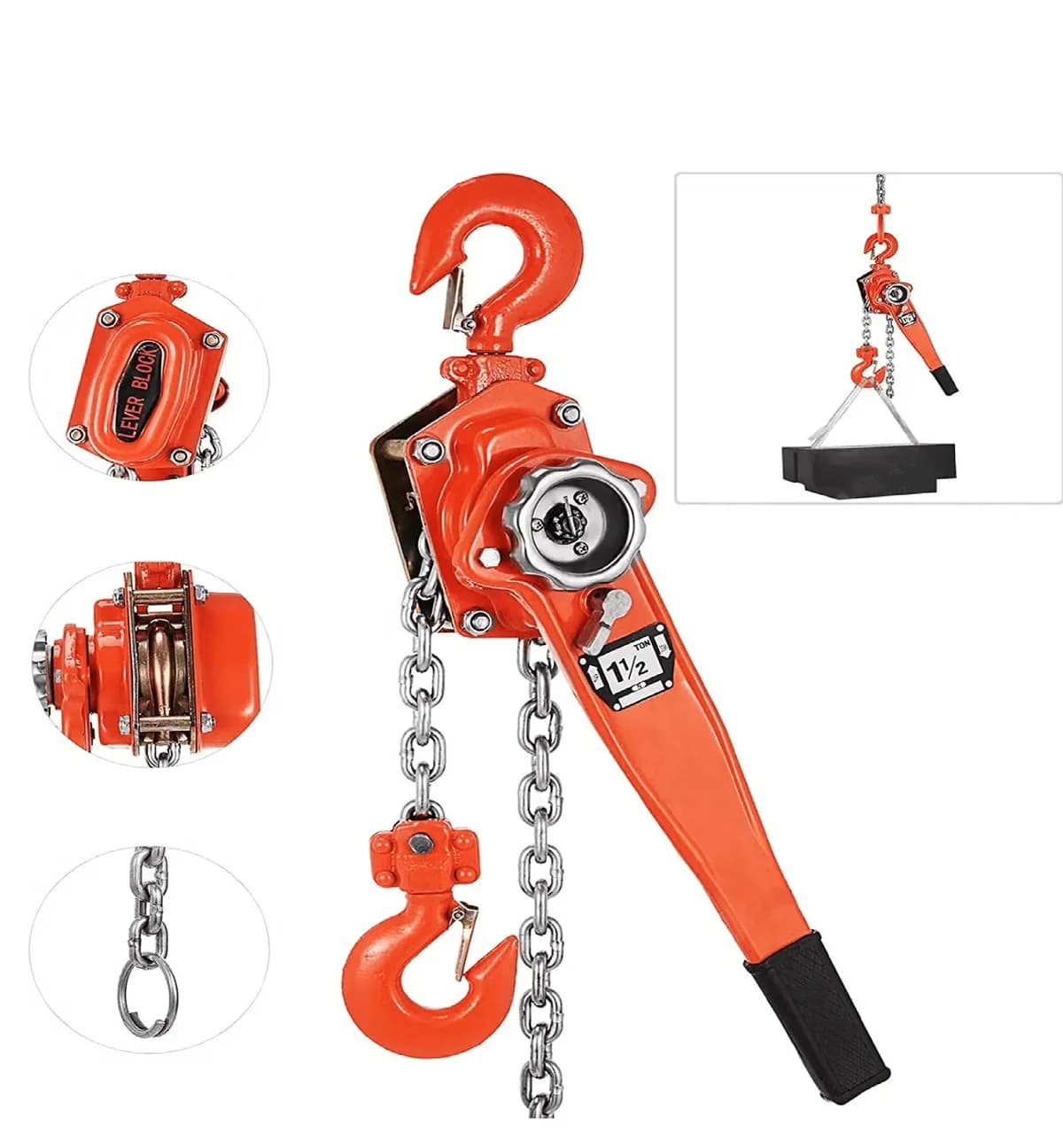

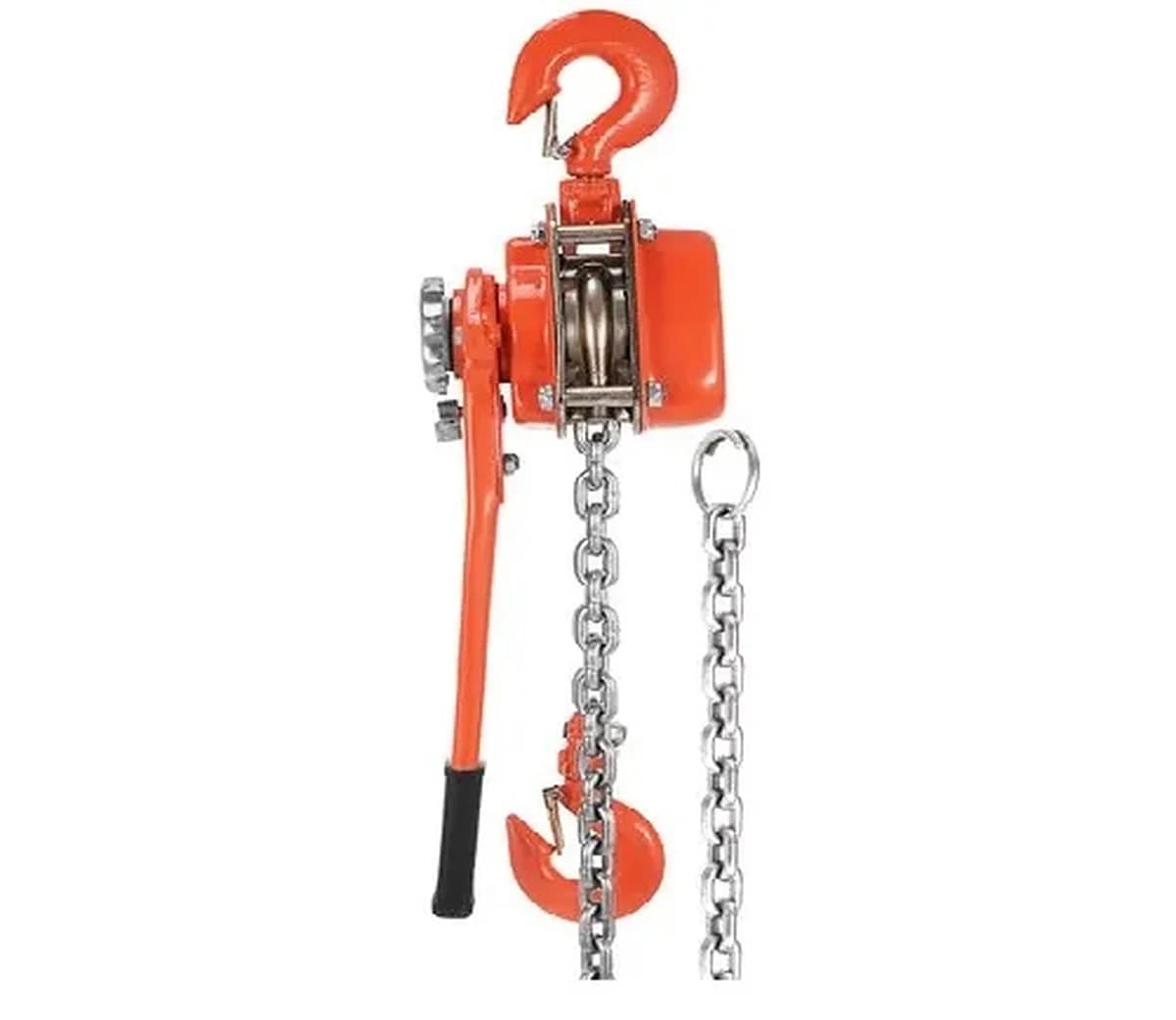

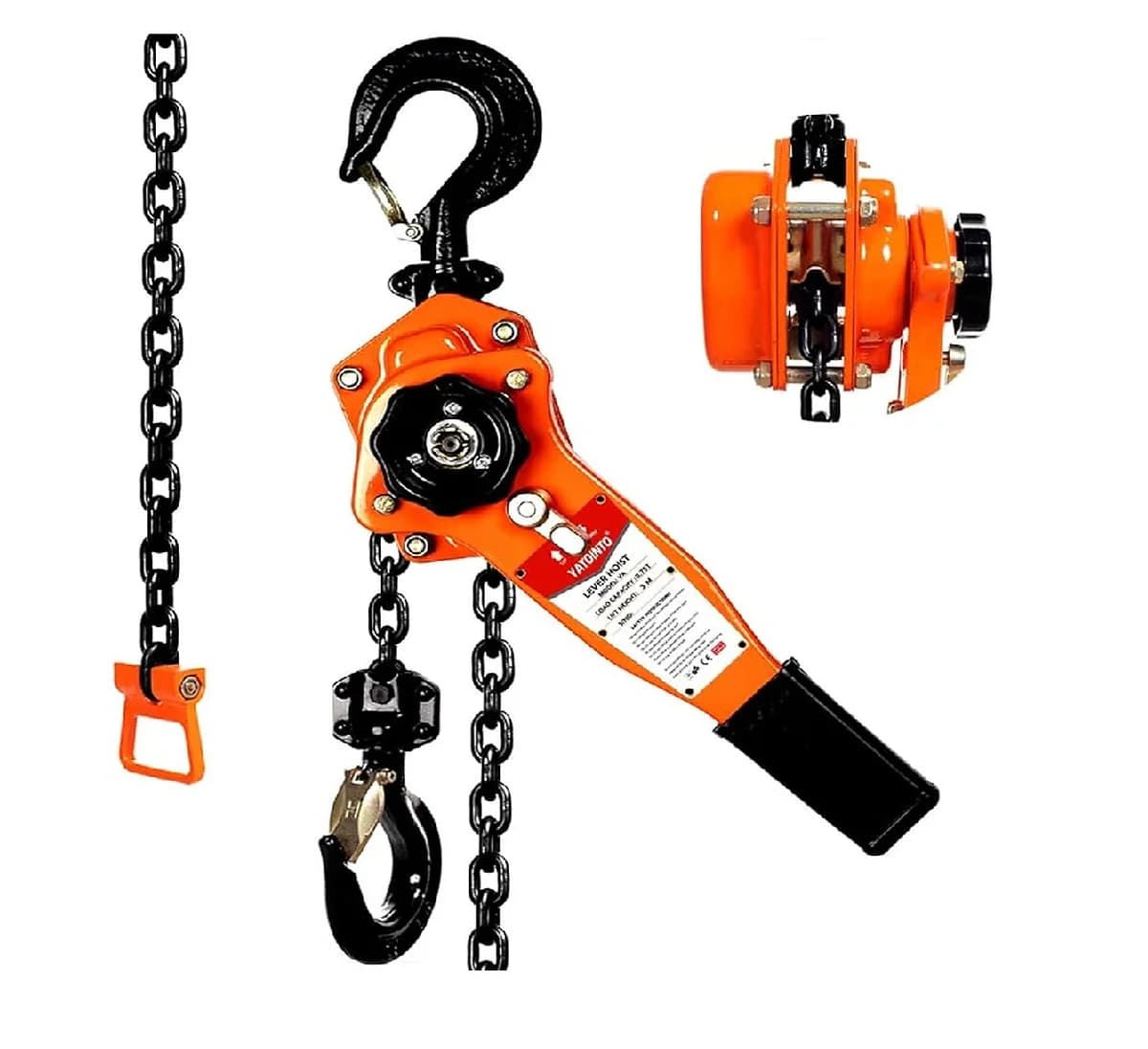

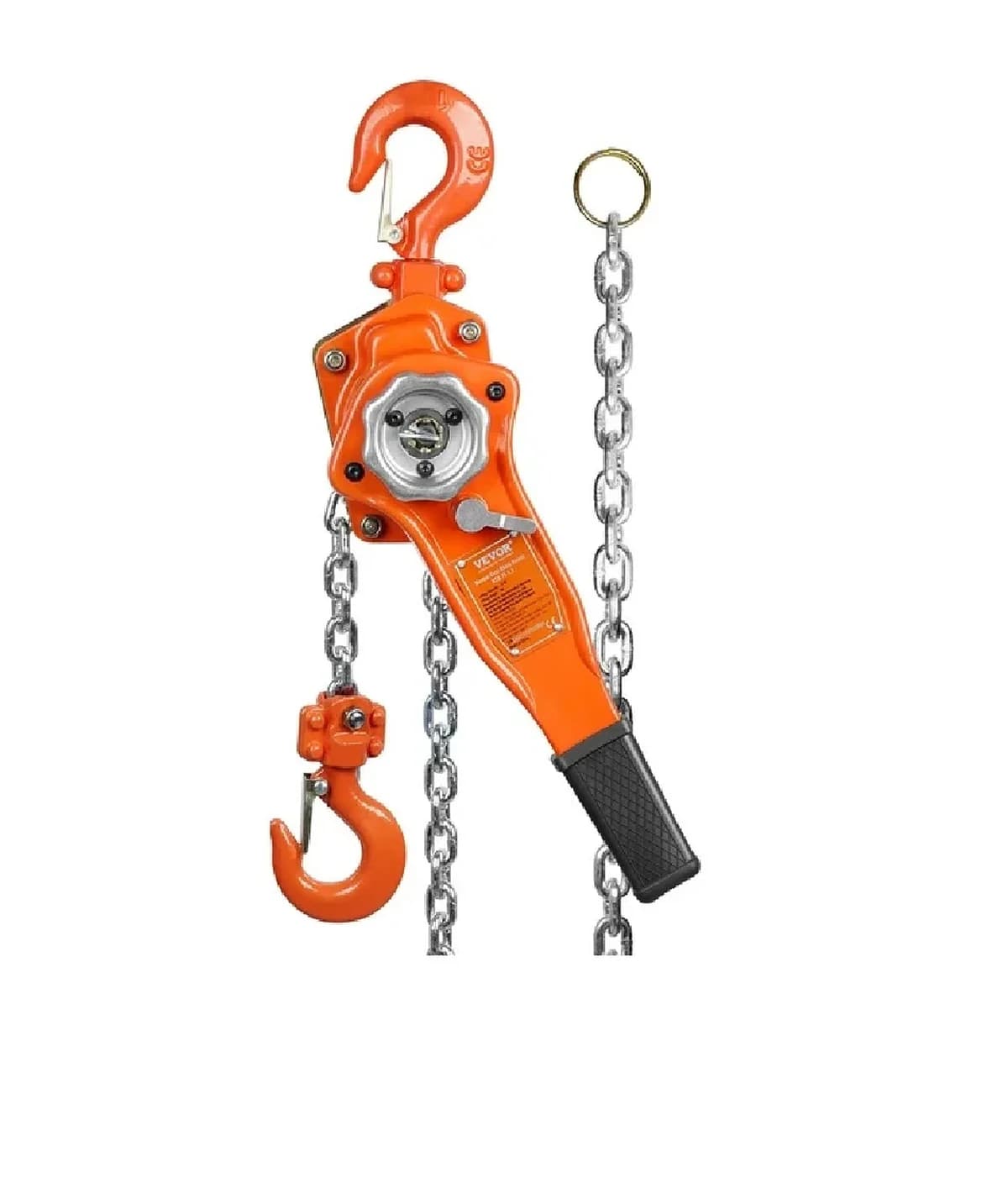

Ratchet Lever Hoist 0.75 Ton 1.5 Meter
The Ratchet Lever Hoist is a compact and durable manual lifting tool used for pulling, lifting, and positioning heavy loads. It is designed for industrial and construction applications and offers smooth operation with a strong ratchet mechanism.
Specifications
For: 0.75 Ton 1.5 Meter- Working
- Manual
- Power Source
- Hand Lever
- Capacity Max
- 750 Kgs
- Chain Length
- 1.5 Meter
- Diameter of Load Chain
- 6 mm
- No of Load Chain
- 1
- Operation
- Lever Operated
- Hook Type
- Safety Hook with Latch
- Approximate Weight
- 7 Kgs
- Packaging Dimension
- 250 × 180 × 140 mm
Configurations
Click a row to switch| Variant | Packaging Dimension | Approximate Weight | Diameter of Load Chain | Capacity Max | Price |
|---|---|---|---|---|---|
| 0.75 Ton 1.5 Meter | 250 × 180 × 140 mm | 7 Kgs | 6 mm | 750 Kgs | ₹3,680 |
| 1.5 Ton 1.5 Meter | 300 × 200 × 160 mm | 11 Kgs | 7.1 mm | 1500 Kgs | ₹5,160 |
| 3 Ton 1.5 Meter | 360 × 240 × 180 mm | 20 Kgs | 8 mm | 3000 Kgs | ₹7,320 |
| 6 Ton 1.5 Meter | 420 × 280 × 210 mm | 32 Kgs | 10 mm | 6000 Kgs | ₹11,100 |
| 9 Ton 1.5 Meter | 450 × 320 × 240 mm | 48 Kgs | 10 mm | 9000 Kgs | ₹20,519 |
Features
- Heavy duty steel body for durability
- Compact and portable design
- High strength load chain
- Smooth ratchet lever mechanism
- Strong safety hooks with latch
- Suitable for lifting and pulling loads
- Reliable braking system for safety
Advantages
- Provides safe and efficient load lifting
- Reduces manual effort during operations
- Strong and durable design for long-term use
- Suitable for various industrial environments
- Reliable performance for heavy lifting tasks
Applications
- Construction sites
- Warehouses and factories
- Equipment installation
- Material handling
- Industrial maintenance work
More questions buyers ask
What is a Ratchet Lever Hoist used for?
Used for pulling, lifting, and positioning heavy loads in industrial and construction applications.
What is the chain length of the Pentagon Ratchet Lever Hoist?
The standard chain length is 1.5 meters across all variants.
What is the power source for this hoist?
It is a manual, hand-lever operated hoist.
Does the hoist come with safety hooks?
Yes, it features strong safety hooks with a latch for secure load handling.
What is the hook type used?
It uses a Safety Hook with Latch.
Is the braking system reliable?
Yes, it includes a reliable braking system to ensure safety during lifting and pulling operations.
What materials are used in its construction?
It has a heavy-duty steel body for maximum durability.
Can it be used in construction sites?
Yes, it is highly suitable for construction sites, warehouses, and equipment installation.
Does it require a power supply?
No, it is completely manual and requires no electrical power.
Is it portable?
Yes, it features a compact and portable design for easy transport and use in various locations.
Who should choose the 0.75 Ton variant?
Ideal for light-duty lifting and pulling tasks up to 750 Kgs, offering a lightweight 7 Kg body.
Who should choose the 1.5 Ton variant?
Perfect for medium-duty applications requiring up to 1500 Kgs capacity with an 11 Kg portable design.
Who should choose the 3 Ton variant?
Best for heavy industrial use, capable of lifting up to 3000 Kgs with an 8 mm load chain.
Who should choose the 6 Ton variant?
Suitable for demanding construction and material handling tasks requiring up to 6000 Kgs capacity.
Who should choose the 9 Ton variant?
Designed for extreme heavy-duty lifting, offering a massive 9000 Kgs capacity with a 10 mm load chain.
What is the difference between the 0.75 Ton and 3 Ton variants?
The 0.75 Ton lifts up to 750 Kgs and weighs 7 Kgs, while the 3 Ton lifts up to 3000 Kgs and weighs 20 Kgs with a thicker 8 mm chain.
How does the chain diameter vary across models?
The chain diameter increases with capacity: 6 mm for 0.75 Ton, 7.1 mm for 1.5 Ton, 8 mm for 3 Ton, and 10 mm for 6 and 9 Ton models.
Which variant is the heaviest to transport?
The 9 Ton variant is the heaviest, weighing approximately 48 Kgs, designed for maximum load capacity.
