Semi Hydraulic All Geared Auto Feed Radial Drilling Machine with Hydraulic Locking and Mechanical lever type feed-speed change system Model Z3040x13 SH
This semi hydraulic radial drilling machine provides reliable hole-making for medium components, featuring a hydraulic locking mechanism and mechanical lever feed-speed control. The setup supports consistent performance across standard fabrication workflows. • 40 mm drilling capacity in steel and cast iron • 2.2 Kw main spindle motor with 6+6 gear speeds • MT4 taper and 1260 mm arm extension for flexible positioning

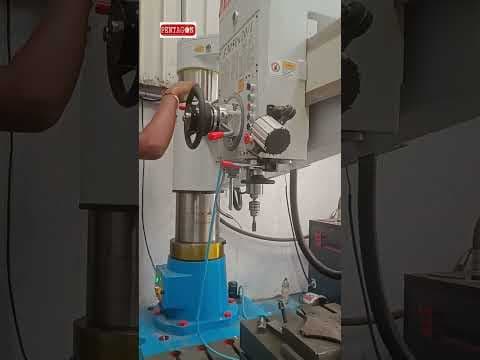

See it in action
Specifications
For: Z3040x13 SH- Model
- Z3040x13 SH
- Locking Mechanism
- Hydraulic type
- Feed- Speed Mechanism
- Mechanical Lever type
- Maximum drilling dia
- 40/45 mm steel/cast Iron
- Distance from spindle centerline to column centerline (minimum-maximum)
- 350 – 1250 mm
- Distance from spindle end face to workbench (minimum-maximum)
- 230-1120 mm
- Travel of spindle
- 220 mm
- Spindle taper
- MT4
- Number of speed changes on spindle
- 6+6 Nos
- Range of spindle speeds
- 34-1220 rpm
- Arm Rotating angle
- 0±180°
- Horizontal movement distance of the spindle box
- 260 – 1050 mm
- Spindle feed rate & No of auto feeds
- 0.10, 0.16, 0.25 mm/rev (3 Nos)
- Main Spindle motor power
- 1.5/2.2 Kw
- Power of the lifting and lowering motor
- 1.1 Kw
- Weight of the machine
- 1550 Kgs
- Packing Dimension
- 1800×800×2300 mm
- Arm Length
- 1260 mm
- Column diameter
- 230 mm
- Max Drilling Capacity (MS)
- 40 mm
- Motor Power
- 2.2Kw
Configurations
Click a row to switch| Variant | Maximum drilling dia | Main Spindle motor power | Feed- Speed Mechanism | Locking Mechanism | Price |
|---|---|---|---|---|---|
| Z3040x13 SH | 40/45 mm steel/cast Iron | 1.5/2.2 Kw | Mechanical Lever type | Hydraulic type | ₹3,57,000 |
| Z3050x16 SH | 50/60 mm steel/cast Iron | 1.5/2.2 Kw | Mechanical Lever type | Hydraulic type | ₹6,75,000 |
| Z3063x20 SH | 60/70 mm steel/cast Iron | 1.5/2.2 Kw | Mechanical Lever type | Hydraulic type | ₹11,35,000 |
Common Buyer Questions
Q: Can this machine handle materials harder than mild steel? A: Yes, it is designed for steel and cast iron with speed adjustments. Q: Is the spindle box lock manual or automatic? A: The mechanical locking system is manually engaged to stabilize the box. Q: What is the maximum capacity for drilling diameters? A: Capacity varies by model but supports standard industrial drilling needs. Q: Does the machine include auto feed for all speeds? A: Geared auto feed rates are available across the standard speed range.
Productivity and Feed Control
- Auto feed rates reduce operator fatigue during long drilling cycles
- Quick speed changes minimize downtime between operations
- Stable spindle box locking reduces setup time for heavy cuts
- Optimized power consumption supports energy-efficient schedules
- Consistent feed control improves surface finish and accuracy
Robust Construction and Stability
• Hydraulic locking and Unlocking Mechanism • Mechanical Lever type speed and Feed Mechanism • Robust motor power delivers consistent torque for continuous use • Precision-machined spindle taper ensures accurate tool alignment • Heavy-duty frame minimizes vibration during high-torque processes • Sealed gearing protects internal mechanisms from chips and coolant • Ergonomic controls facilitate easy operation for skilled machinists
Ideal Industries and Use Cases
- Ideal for maintenance workshops requiring versatile radial drilling
- Supports high-volume industrial production environments effectively
- Handles heavy-duty drilling tasks in steel fabrication settings
- Suitable for foundry environments with cast iron machining needs
- Effective for large component machining where table movement is limited
Operational Versatility and Reach
- Adjustable arm rotation allows 0–180° positioning for flexible access
- Spindle box horizontal movement provides extended reach capabilities
- Wide range of spindle speeds enables efficient machining processes
- Vertical travel accommodates varying workbench heights and thicknesses
- Mechanical gearing ensures reliable power transmission under load
Core Functional Capabilities
- Mechanical locking system stabilizes spindle box during heavy cutting
- Geared auto feed rates ensure consistent hole quality across materials
- Multiple spindle speeds accommodate diverse tooling requirements
- Designed for precision steel and cast iron machining operations
- Available in single and double column configurations for flexibility
Standard Accessories
- Coolant system
- Work light
- Suitable size box table
- Key type Drill chuck size 1-13 mm
- MT4-MT3 reduction sleeve
- JT6 drill chuck arbor
- Electrical control panel with safety features
- Operation Manual
Radial Drill Tapping Attachments, Collets & Table Options
Upgrade your semi-hydraulic radial drilling machine with these compatible precision accessories. Engineered for seamless integration, these options expand your machining capabilities for heavy-duty tapping, metric threading, and angled workpiece setup.
- Tapping Attachment (Model GT24/MT4-MT3): Heavy-duty unit engineered for consistent feed rates and reliable thread cutting on semi-hydraulic auto-feed systems.
- Tap Collets (M5 to M36): Full range of precision-ground collets available in any size to accommodate metric thread standards and reduce tool change downtime.
- Tilting Box Table: Heavy-duty tilting table configuration available in suitable dimensions to support angled drilling and complex workshop layouts.
Accessory Key Specification Compatibility
Tapping Attachment
Model GT24/MT4-MT3
Semi-hydraulic radial drills
Tap Collets
M5 – M36 (Metric)
Standard Morse & DIN tapers
Tilting Table
Custom dimensions available
Machine base mounting
More questions buyers ask
What is a semi-hydraulic radial drilling machine?
It uses a hydraulic locking system for the arm and spindle head combined with mechanical gears for speed and feed control, offering a balance of precision and cost-effectiveness.
What are the key benefits of hydraulic locking?
Hydraulic locking provides superior stability and rigidity to the spindle head and arm during heavy-duty drilling, reducing vibration and improving hole accuracy.
Does this machine have auto-feed?
Yes, it features a mechanical lever-type auto-feed mechanism with multiple feed rates to reduce operator fatigue and ensure consistent drilling quality.
What materials can this radial drill handle?
It is designed for high-performance drilling in steel, cast iron, and other industrial metals commonly found in fabrication workshops.
What is the spindle taper size?
The spindle taper varies by model, typically MT4 for smaller units and MT5 for larger capacity models.
Is this machine suitable for tapping?
Yes, with the addition of a compatible tapping attachment and collets, it can perform efficient metric threading and tapping operations.
What is the arm rotation range?
The arm offers a 0-180 degree rotation, allowing for flexible positioning and access to large or complex workpieces.
Does it come with a warranty?
Pentagon machines come with a standard manufacturer warranty. Please contact our support team for specific terms and service coverage in your region.
Is pan-India delivery available?
Yes, we provide secure, pan-India logistics and delivery for all industrial machinery.
Do you provide GST invoices?
Yes, all purchases include a valid GST invoice for input tax credit claims.
Who should choose the Z3040x13 SH model?
Ideal for medium-sized fabrication workshops requiring a versatile 40mm drilling capacity with reliable hydraulic locking.
Who should choose the Z3050x16 SH model?
Best for heavy-duty industrial applications needing a 50mm drilling capacity and extended reach for larger components.
Who should choose the Z3063x20 SH model?
Designed for large-scale manufacturing and heavy engineering plants requiring maximum 63mm drilling capacity and robust power.
How does the Z3040 compare to the Z3063?
The Z3040 is more compact for general workshop use, while the Z3063 offers significantly higher drilling capacity, motor power, and reach for heavy industrial tasks.
Which model offers the best value for general fabrication?
The Z3040x13 SH is generally the most popular choice for standard fabrication workshops due to its balance of capacity, footprint, and price.
