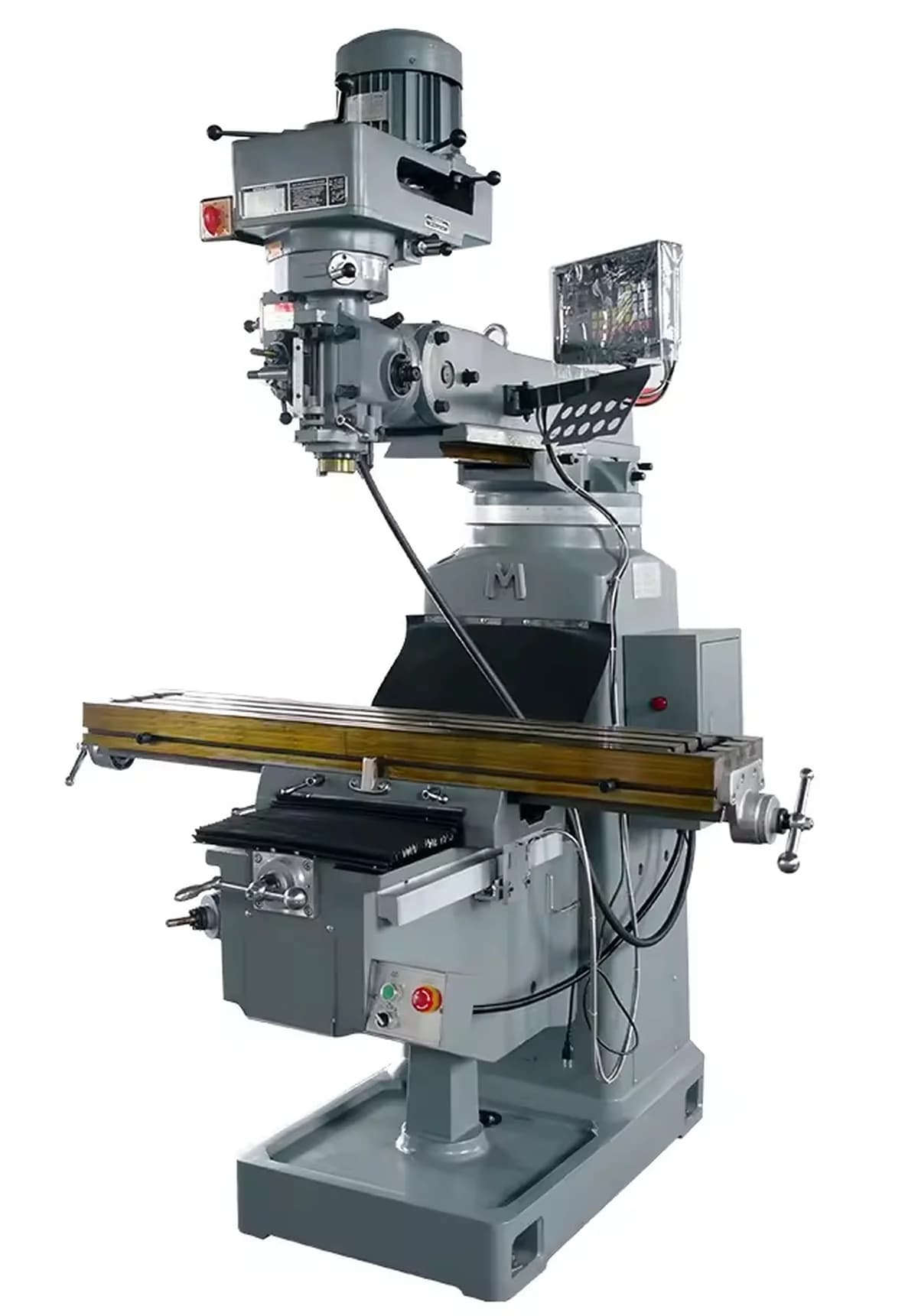

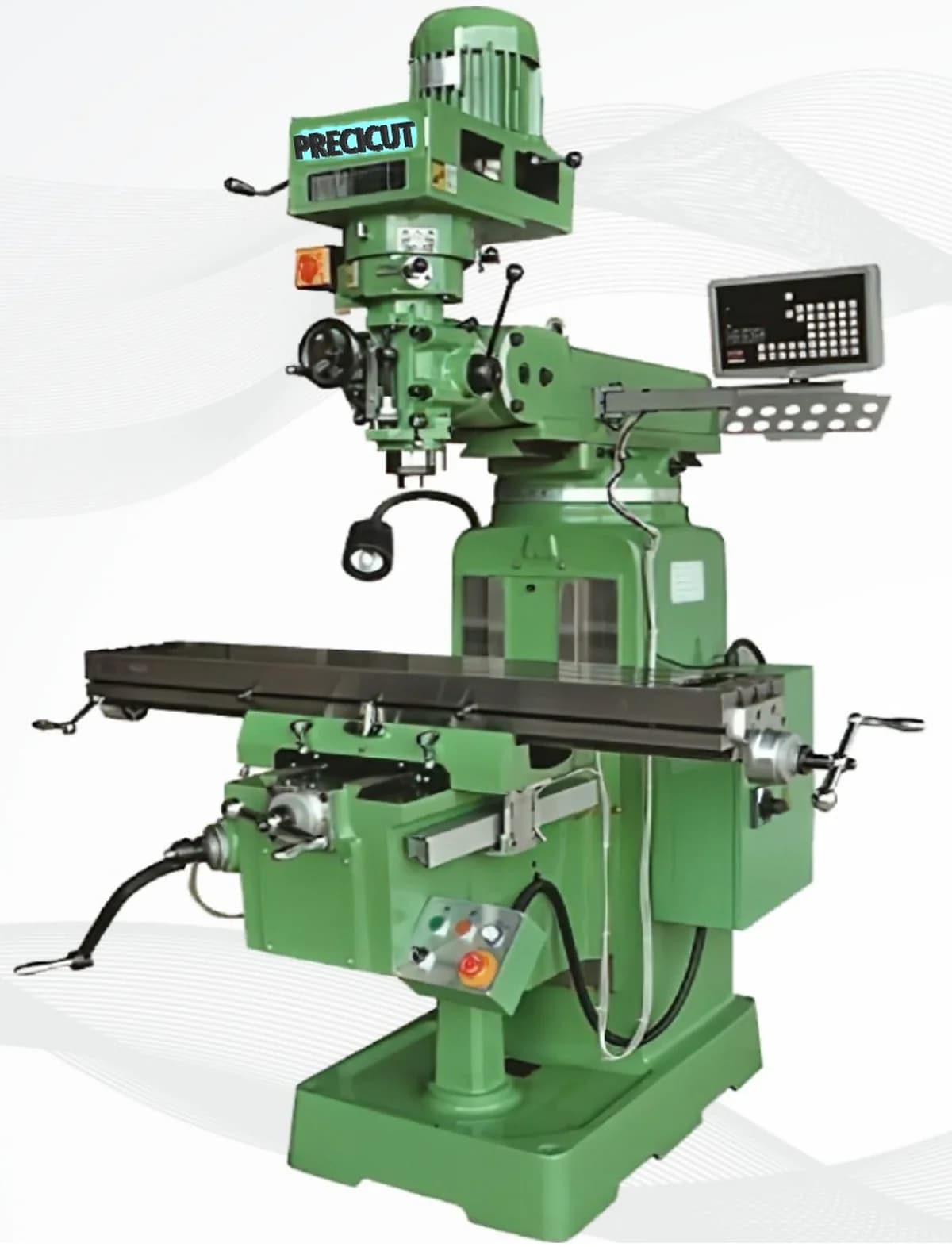

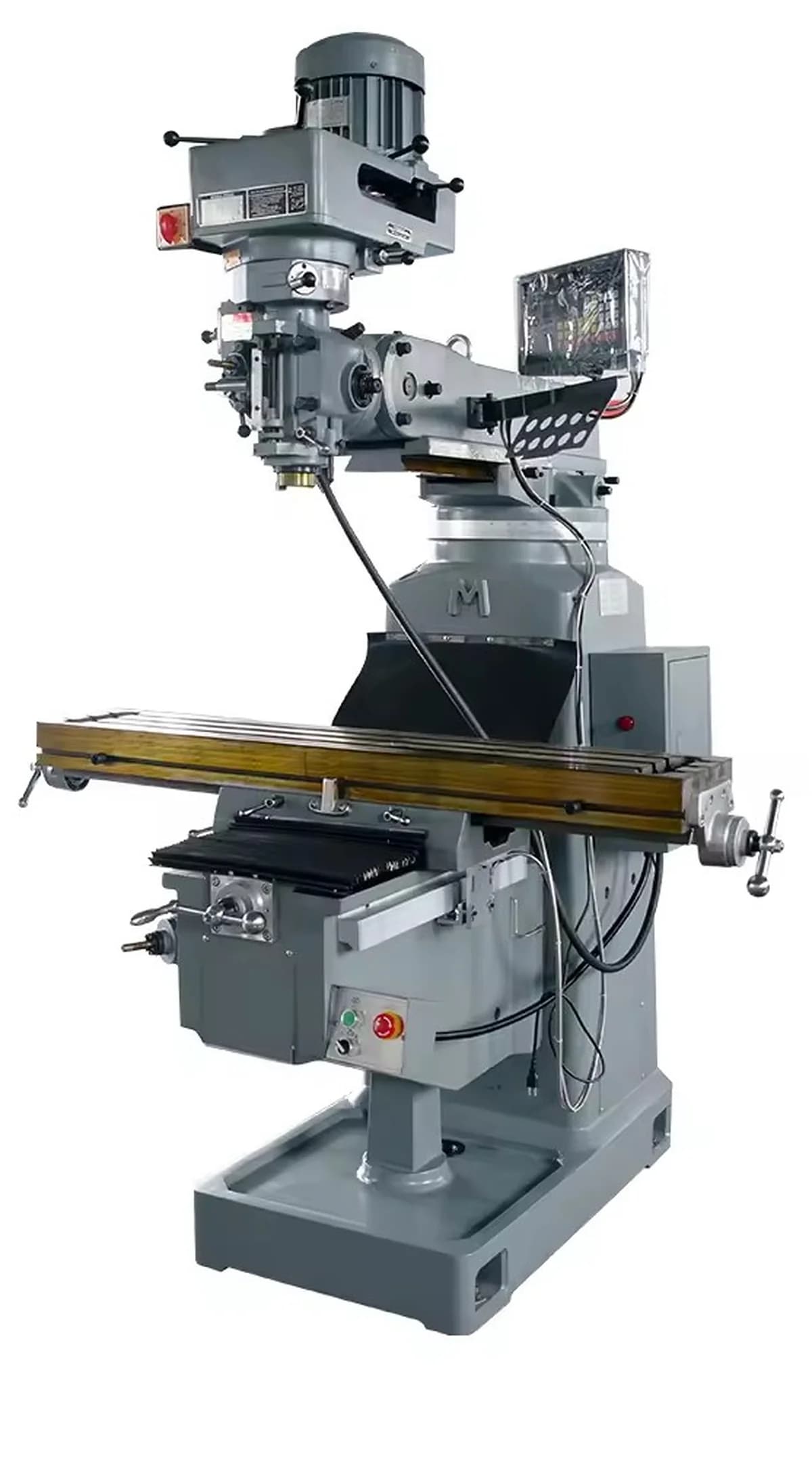

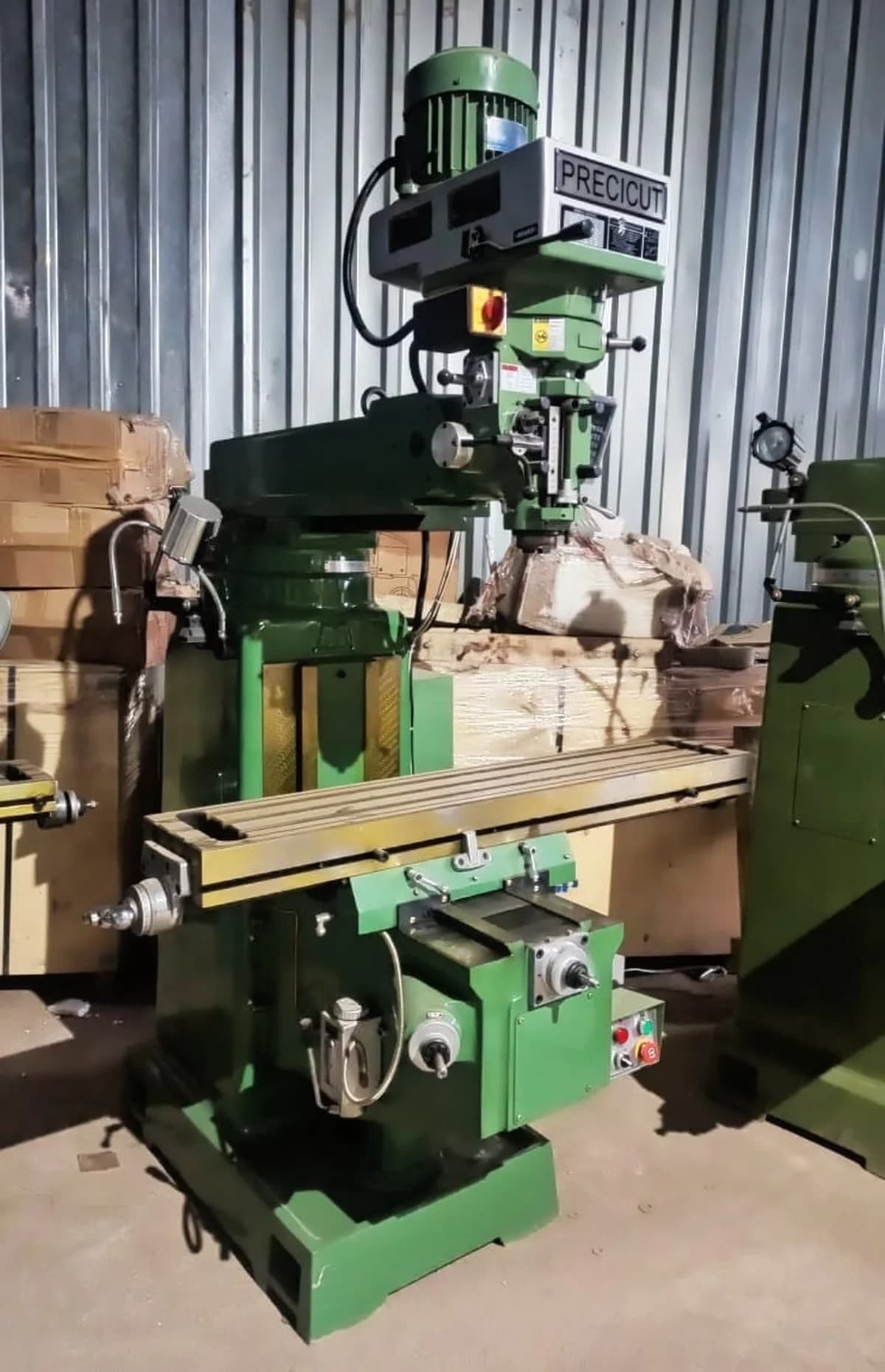

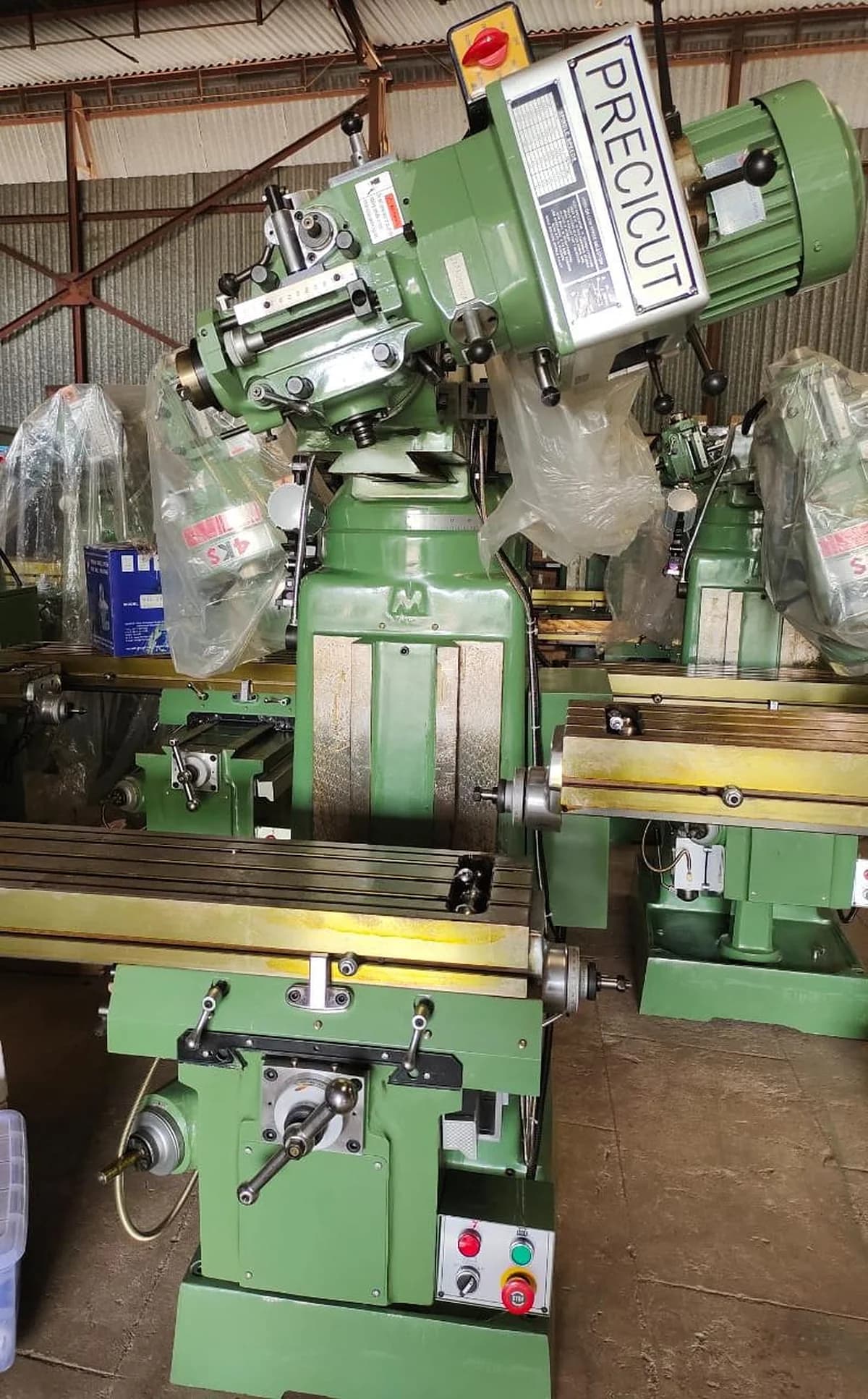

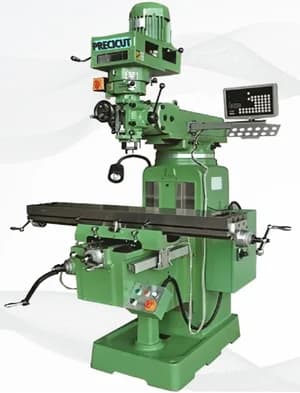

PRECICUT Vertical RAM Turret Milling Machine Model M3P-R8/ISO30-3
This vertical ram turret milling machine offers stable performance for metal cutting and drilling tasks in production environments. • Model M3-R8/ISO30-3 features 3 HP double speed motor at 45-5440 rpm • Table size 1270x254 mm supports max load of 250 Kgs • Longitudinal travel of 850 mm with vertical travel of 400 mm • Weight of 1250 Kgs ensures stability during heavy cuts
See it in action
Specifications
For: M3P-R8/ISO30-3- Machine Model
- M3-R8/ISO30-3
- Table size
- 1270x254 mm
- Head Swivel (F x B)
- 45°
- Ram Travel
- 580 mm
- Cross Travel of table
- 400 mm
- Vertical Travel of Table
- 400 mm
- Spindle Nose to Table
- 500 mm
- Longitudinal Travel of Table
- 850 mm
- Auto Quill Feeds per Revolution
- 0.40/0.08/0.15 mm/rev
- Spindle Speed
- 45-5440 rpm(60Hz)
- Steps of Speeds
- 16 Steps
- Quill Travel
- 127 mm
- Spindle Nose taper
- R8/ISO30
- Spindle Motor
- 3 HP (Double Speed)/415V/50 or 60Hz
- Milling Head Type
- Square
- Z-Axis Guideways
- V Type
- Cross Guideways
- V Type
- Brake Mounting Type
- Side
- Head Swivel (L x R)
- 90°
- Max Load on Table
- 250 Kgs
- Weight of the Machine (Approx.)
- 1250 Kgs
Configurations
Click a row to switch| Variant | Spindle Nose taper | Table size | Brake Mounting Type | Longitudinal Travel of Table | Price |
|---|---|---|---|---|---|
| M3P-R8/ISO30-3 | R8/ISO30 | 1270x254 mm | Side | 850 mm | ₹4,05,000 |
| M3P-ISO40-3 | ISO40 | 1270x254 mm | Side | 850 mm | ₹4,18,000 |
| M4P-R8/ISO30-3 | R8/ISO30 | 1370x254 mm | Side | 930 mm | ₹4,15,000 |
| M4P-ISO40-3 | ISO40 | 1370x254 mm | Side | 930 mm | ₹4,27,000 |
Description
The Vertical Ram Turret Milling Machine is designed for precision machining operations such as milling, drilling, boring, and slotting. Its robust construction and flexible ram-type design allow the operator to position the spindle head at multiple angles and directions, enhancing versatility for toolroom and production environments.
PENTAGON Vertical RAM Turret Milling table 1270x254 mm and 1370x254 mm V and Square Guideways in Y axis with two axis DRO and standard accessories listed in offer and mentioned optional accessories package: 1. Machine vice swivel base type 150 mm opening, 2. Clamping kit M12 Type 58 Pcs set, 3. Collet set 11/10 pcs set box
Features
1. The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
2. The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360 Degree on the machine bed, for the processing range can be greater than the table size
3. The speed of milling head is rather high and it makes the machine especially good working with small cutters
4. This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing
5. Robust construction and heavy duty design
6. The machine body is made of Meehanite cast iron
7. The milling head is made of SCM-21.Imported from Taiwan
8. The milling head can swing 90 Degree right and left side, 45 Degree front and back side
9. The ram can swing 180 Degree horizontally
10. High-precision spindle: R8 or ISO 30/40 taper with smooth speed control.
11. Adjustable ram movement: Extends and retracts to position the spindle optimally.
12. Tilting & swiveling head: Allows angular machining for complex components.
13. Heavy-duty table (1270×254 mm and 1370x254 mm): Provides stability and supports larger workpieces.
14. Auto feed on X/Y (optional): Improves machining efficiency.
15. Central lubrication system: Ensures smooth, reliable machine operation.
16. Measuring devices (DRO optional): Enhances accuracy and repeatability.
Advantages
1. Enhanced Precision: The machine's design ensures high accuracy, reducing the need for rework.
2. Increased Productivity: The versatility and efficiency of the machine contribute to higher output.
3. Durability: Constructed with high-quality materials, ensuring long service life.
4. Ease of Operation: User-friendly controls and DRO systems simplify complex machining tasks.
5. High flexibility for different machining operations.
6. Ideal for toolrooms, maintenance workshops, and small to medium industries.
7. Easy to set up and operate, even for angular machining.
8. Strong, vibration-free construction ensures consistent accuracy.
9. Suitable for precision jobs and batch production.
Standard Accessories
- 1. DRO 2 Axis with suitable linear scales fitted in machine
- 2. Coolant Pump with fitting
- 3. Machine Lamp
- 4. Rear and front bellow cover set
- 5. Suitable draw bar set
- 6. Central Lubrication unit
- 7. Electrical cabinet with 110/220 V output
- 8. Tool Box with essential tools
- 9. Operation manual with machine test certificate
- 10. Swivel base Acculock type machine vice 150 mm jaw opening
- 11. Clamping kit M12 Type 58 Pcs set
- 12. Collet set ER32 type 10/11 pcs set
Optional Accessories
- 1. 3 axis DRO set with suitable size of linear scale
- 2. Reduction sleeve MT3
- 3. Reduction sleeve MT2
- 4. X axis table auto power feeder 110V type
- 5. Y axis table auto power feeder 110V type
- 6. H-V Rotary table
- 7. Semi Universal dividing head with tail stock soft jaws Indexing plates
- 8. Splash Tray/Chip Tray
- 9. Integrated type keyless drill chuck with intact suitable arbor
- 10. Micro boring head F-12 or F-18 with suitable Shank
- 11. Mechanical Edge Finder/Edge Sensor
- 12. Boring bar dia 18 mm set of 12 pcs
- 13. keyless drill chuck with intact suitable arbor
- 14. Mechanical Gear box Power feeder 380V
Applications
- The Vertical RAM Turret Milling Machine is ideal for a wide range of applications, including:
- 1. Drilling and Tapping: Precise hole-making and threading operations.
- 2. Slotting and Keyway Milling: Creating slots and keyways with high accuracy.
- 3. Face Milling and End Milling: Surface finishing and contouring tasks.
- 4. Jig Boring: High-precision boring operations for tool and die making.
More questions buyers ask
What is a Vertical RAM Turret Milling Machine used for?
It is a versatile machine tool used for milling, drilling, boring, slotting, and reaming operations in toolrooms and production shops.
What are the key features of the PENTAGON PRECICUT series?
Key features include a 3HP motor, 16-speed steps, Meehanite cast iron construction, 2-axis DRO, and a swiveling head for angular machining.
What is the difference between R8/ISO30 and ISO40 spindles?
R8/ISO30 is standard for general-purpose milling, while ISO40 provides higher rigidity and torque for heavier-duty machining applications.
Does the machine come with a DRO?
Yes, the PENTAGON PRECICUT series comes equipped with a 2-axis Digital Readout (DRO) system for enhanced machining accuracy.
What is the table size of the PENTAGON M3P and M4P models?
The M3P model features a 1270x254 mm table, while the M4P model features a larger 1370x254 mm table.
What is the warranty period for this milling machine?
The PENTAGON PRECICUT Vertical RAM Turret Milling Machine comes with a 1-year manufacturer warranty.
Is the machine suitable for batch production?
Yes, its robust construction, automation features, and precision make it suitable for both toolroom work and batch production.
What voltage is required to operate this machine?
The machine operates on a 415V 3-phase power supply.
Are there optional accessories available?
Yes, optional accessories include 3-axis DRO, power feeders, rotary tables, and various boring/drilling tools.
How is the machine delivered?
We provide pan-India delivery with professional logistics support to ensure safe transit to your facility.
Who should choose the M3P-R8/ISO30-3 model?
Ideal for general-purpose toolroom milling and drilling where standard R8 or ISO30 tooling is preferred.
Who should choose the M3P-ISO40-3 model?
Best for workshops needing the extra rigidity and heavy-duty performance of an ISO40 spindle on a standard-sized table.
Who should choose the M4P-R8/ISO30-3 model?
Recommended for users who need the larger 1370mm table capacity but are comfortable with R8/ISO30 spindle tooling.
Who should choose the M4P-ISO40-3 model?
The top-tier choice for heavy-duty, large-workpiece machining requiring both maximum table space and ISO40 spindle strength.
How does the M3P compare to the M4P?
The M3P is more compact with an 850mm longitudinal travel, while the M4P offers an extended 930mm longitudinal travel for larger components.
Why choose ISO40 over R8/ISO30?
ISO40 is a larger, more robust taper that handles higher cutting forces and provides better stability for heavy-duty milling tasks.
