PENTAGON R-Series Plate Chamfering Machine Price in India — R-200 (0-3 mm)

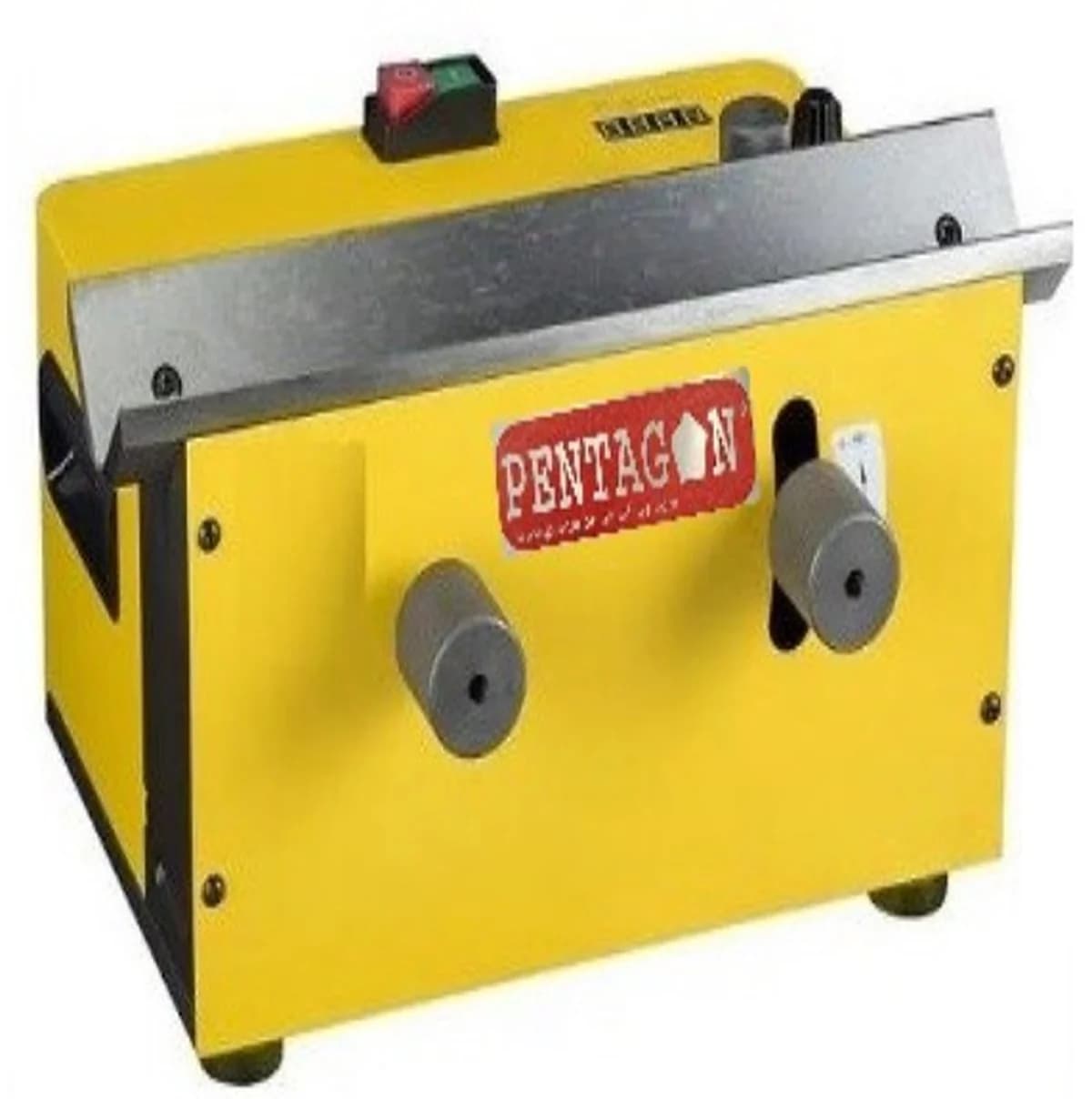

PENTAGON Plate Chamfering Machine Model R-300 The R-300 Plate Chamfering Machine is a compact, efficient, and easy-to-operate solution designed for clean and accurate edge-chamfering of metal plates and components. Built for workshops, fabrication units, and tool rooms, the R-300 delivers consistent chamfer quality without requiring workpiece clamping, making it ideal for batch production

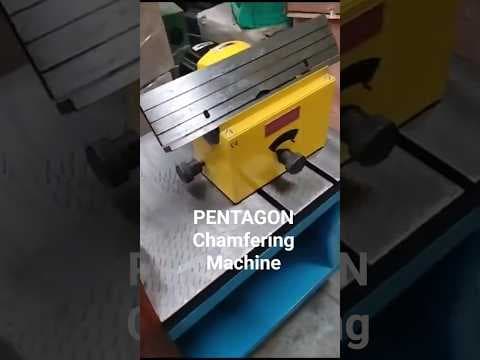

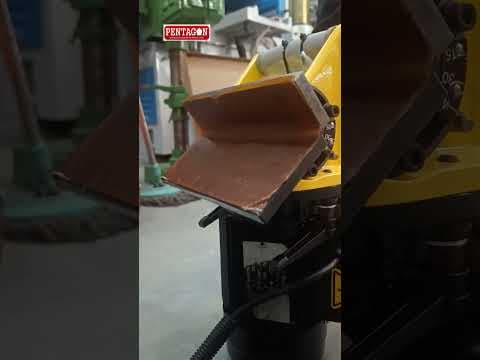

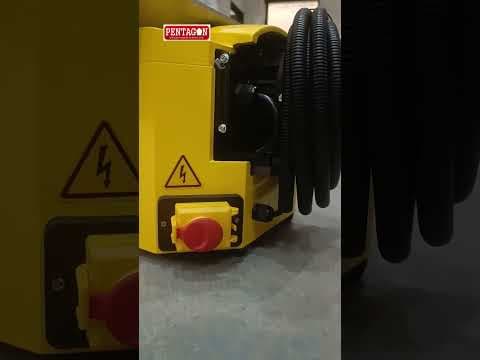

See it in action
Specifications

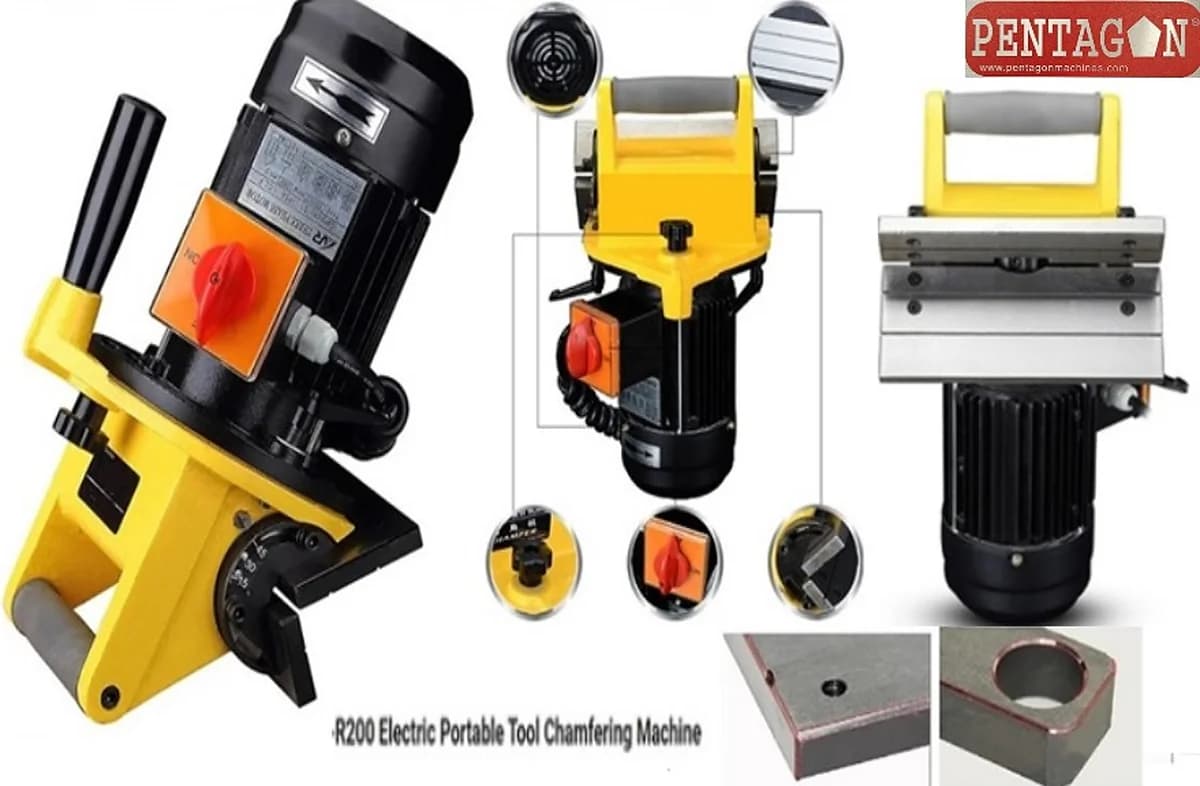

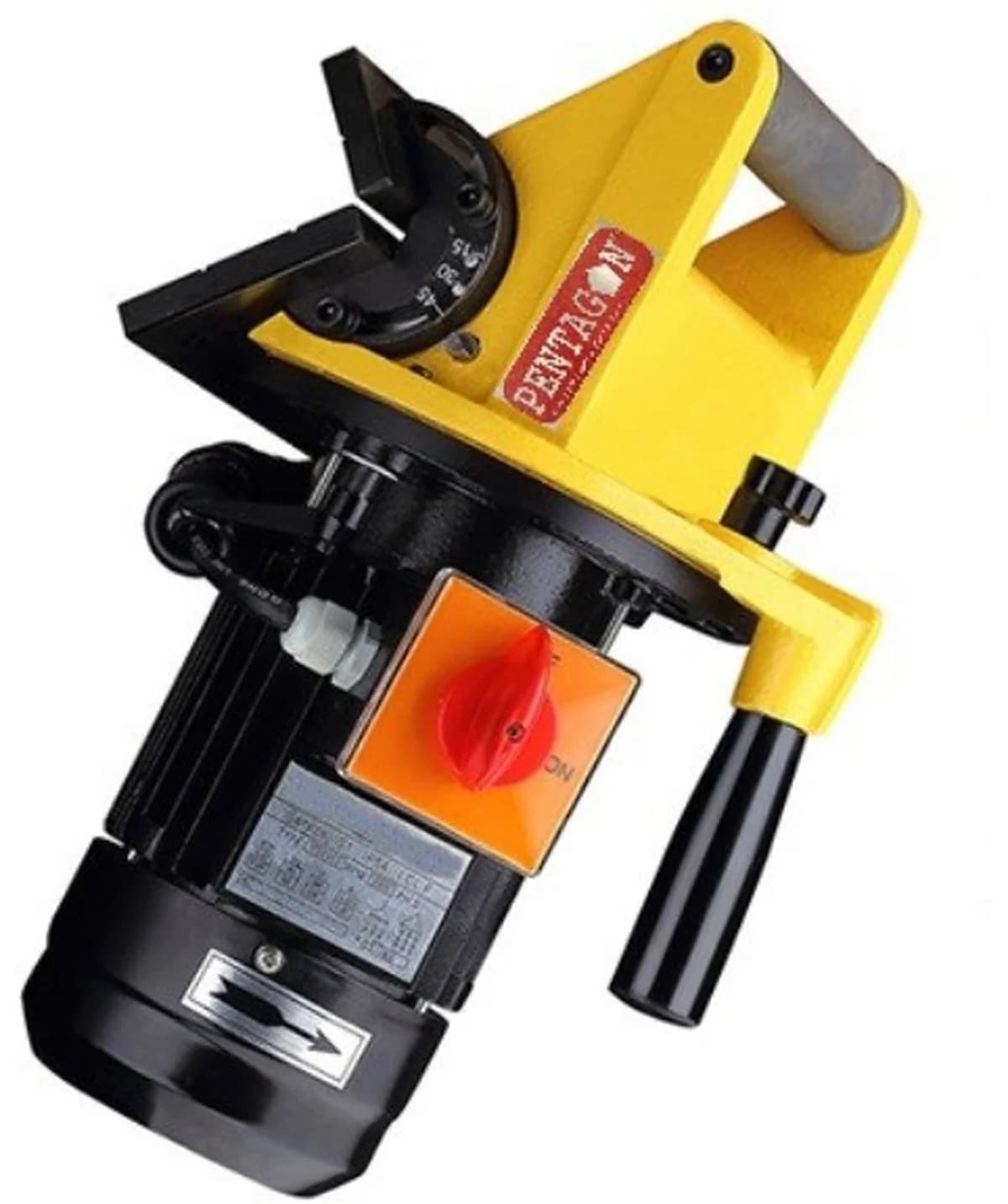

For: R-200 (0-3 mm)- Model
- R-200
- Chamfering angle Straight line angle:
- 15° to 45°
- Chamfering Height
- 0-9 mm
- Speed Straight Line / Curved
- 8500 rpm
- Main Motor Power
- 750 W, 380 V (or 220 V in some listings)
- Dimension
- 38 × 24 × 24.5 cm
- Weight Appx
- 11-13 kg
Configurations
Click a row to switch| Variant | Chamfering Height | Chamfering angle Straight line angle: | Speed Straight Line / Curved | Price |
|---|---|---|---|---|
| R-300 (0-3 mm) | 0 to 3 mm | 15°-45° | 8500 rpm | ₹35,600 |
| R-200 (0-3 mm) | 0-9 mm | 15° to 45° | 8500 rpm | ₹29,800 |

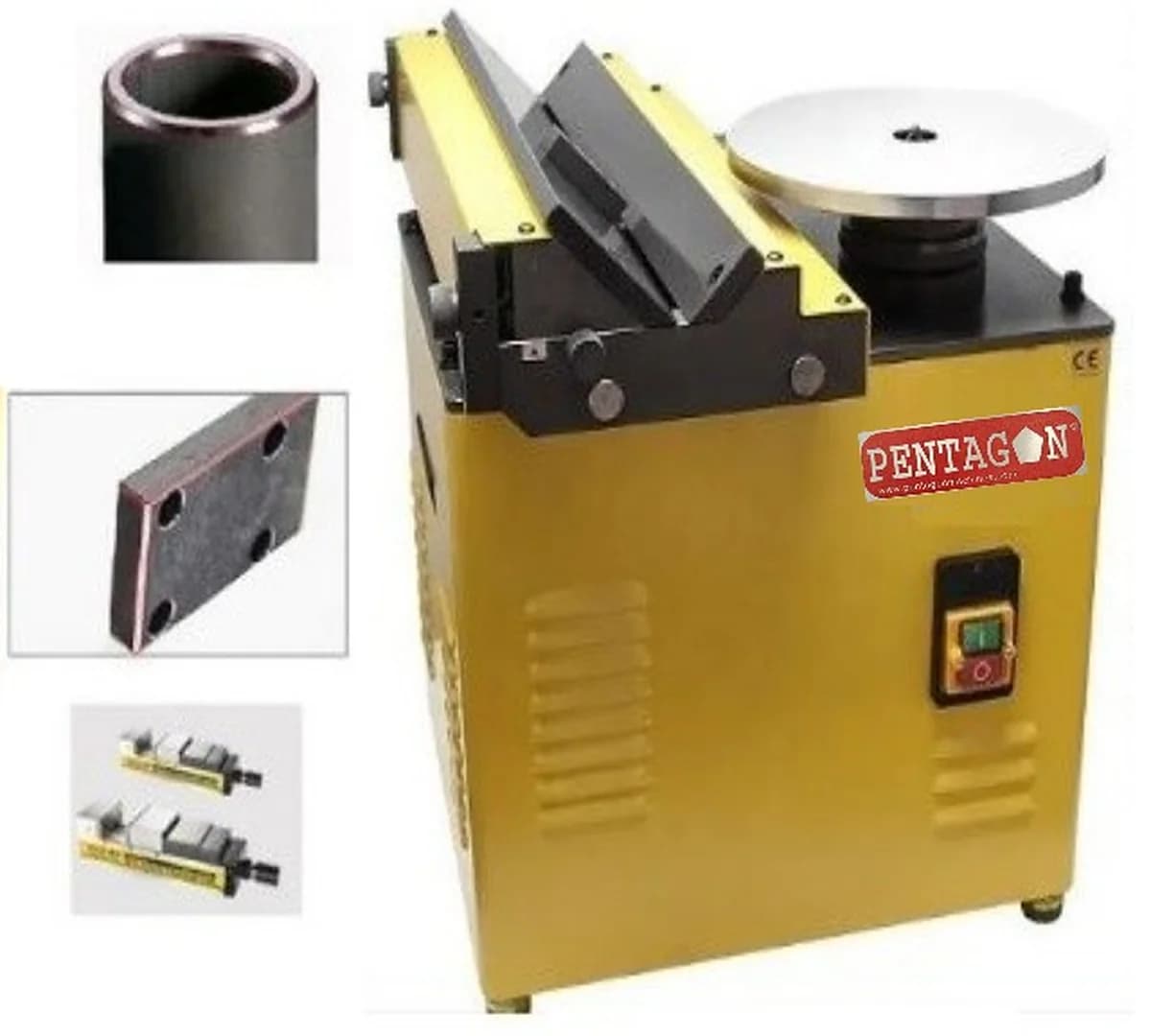

| R-900 (0-5 mm) | 0-5mm (2mm every time) | 45° Curved angle: 45° | 8500rpm Curved: 12000 rpm | ₹93,600 |
Description
This machine is suitable for the workpieces without heat treatment, such as the chamfering of various moulds and mechanical parts.
Suitable for iron metal parts chamfering.
The slide rail is treated with high quality steel plate through heat treatment, and it is durable.
No need to clamp, simple operation, chamfering, easy adjustment, economic reliability, efficiency greatly improved, suitable for batch processing parts enterprises.
In operation, the slide rail is leaned to the workpiece and is cut in the direction of the arrow.
Cutting by side milling cutter, the 4130511 square blade of hard alloy (Wu Gang) is convenient and quick to replace. The old blade used by the milling machine can also be used.
The exact surface roughness of the chamfering angle is good.
Note: it is best to keep the grinding amount of 2mm.
Features
- The sliding saddle (table) is made from heat-treated steel, giving good durability
- Uses a side milling cutter with tungsten-carbide 4-flute insert blade, which is replaceable
- No clamping is required — the workpiece doesn’t need to be fixed with clamps, simplifying batch operations

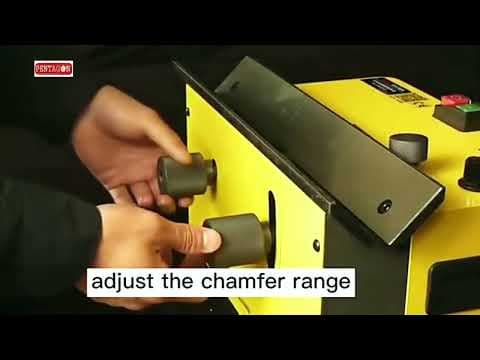

- Easy adjustment to control chamfer size; well suited for batch processing
Key Highlights
- Compact, portable plate chamfering machine
- Chamfer capacity: up to approx. 0–3 mm (varies by manufacturer)
- Adjustable chamfer angle: 15°–45°
- High-speed motor with approx. 2800 RPM cutter
- Carbide tipped cutter for long life and smooth finish
- No clamping required—ideal for batch work
- Strong steel slide base for stability and precision
Applications
- Ideal for moulds, mechanical parts, and other workpieces without heat treatment
- Very good for batch chamfering work because of its ease of operation and adjustment
- Produces clean, neat chamfered surfaces thanks to its precision cutter and controlled feed
More questions buyers ask
What is a plate chamfering machine used for?
A plate chamfering machine is used to create a beveled or angled edge on metal plates. This is often done to prepare the plates for welding, to remove sharp edges for safety, or for aesthetic finishing.
What is the difference between chamfering and beveling?
In machining, chamfering typically refers to creating a 45-degree edge, while a bevel can be any angle. However, the terms are often used interchangeably. The PENTAGON R-Series can create angles between 15 and 45 degrees.
Is the PENTAGON chamfering machine portable?
Yes, the PENTAGON R-200, R-300, and R-900 are all designed as portable machines, allowing for easy transport and use in various locations within a workshop or on a job site.
What materials can this machine work with?
These machines are designed to work with mild steel (MS) and stainless steel (SS) plates that have not undergone heat treatment.
What is the power source for this machine?
The motor specifications vary by model, but they are available in both single-phase (220V) and three-phase (380V) options. Please check the specifications for each model.
Does it require clamping of the workpiece?
No, one of the key features of these machines is that they do not require the workpiece to be clamped, which simplifies operation and is ideal for batch production.
What is the chamfering capacity?
The chamfering height capacity varies by model, ranging from 0-3mm for the R-300 up to 0-9mm for the R-200.
What is the chamfering angle range?
The machines offer an adjustable chamfer angle, typically between 15 and 45 degrees.
What is the warranty on PENTAGON machines?
Gearo provides a standard manufacturer's warranty on all PENTAGON machines. For specific warranty details and duration, please contact our sales team.
Where can I buy PENTAGON machines in India?
You can purchase the PENTAGON Portable Plate Beveling & Chamfering Machine directly from Gearo. We offer competitive pricing, GST invoices, and deliver across India.
Who should choose the PENTAGON R-200 model?
The R-200 is ideal for users who need a lightweight, highly portable machine for smaller to medium-sized jobs. Its 11-13 kg weight and 0-9mm chamfering height make it versatile for various on-site applications.
Who should choose the PENTAGON R-300 model?
The R-300 is a great mid-range option, offering a balance between portability and stability. At 36 kg, it's a robust machine suitable for workshop use where it might be moved occasionally, ideal for consistent batch work with a 0-3mm chamfer.
Who should choose the PENTAGON R-900 model?
The R-900 is the heavyweight model, designed for heavy-duty, industrial applications. Its 70 kg weight provides maximum stability for high-precision, larger-scale chamfering up to 5mm.
What is the main difference between the R-200, R-300, and R-900 models?
The primary differences are weight, chamfering capacity, and motor power. The R-200 is the lightest and most portable, the R-900 is the heaviest and most powerful for industrial use, and the R-300 is a balanced model in between.
Which PENTAGON chamfering model is best for heavy-duty work?
The PENTAGON R-900 is the best choice for heavy-duty work due to its powerful 750W motor, heavy frame (70 kg) for stability, and capacity for chamfering up to 5mm.
Which model offers the best value for a small workshop?
The R-200 often represents the best value for small workshops, offering the lowest price point, excellent portability for space-constrained environments, and a versatile 0-9mm chamfering range.
