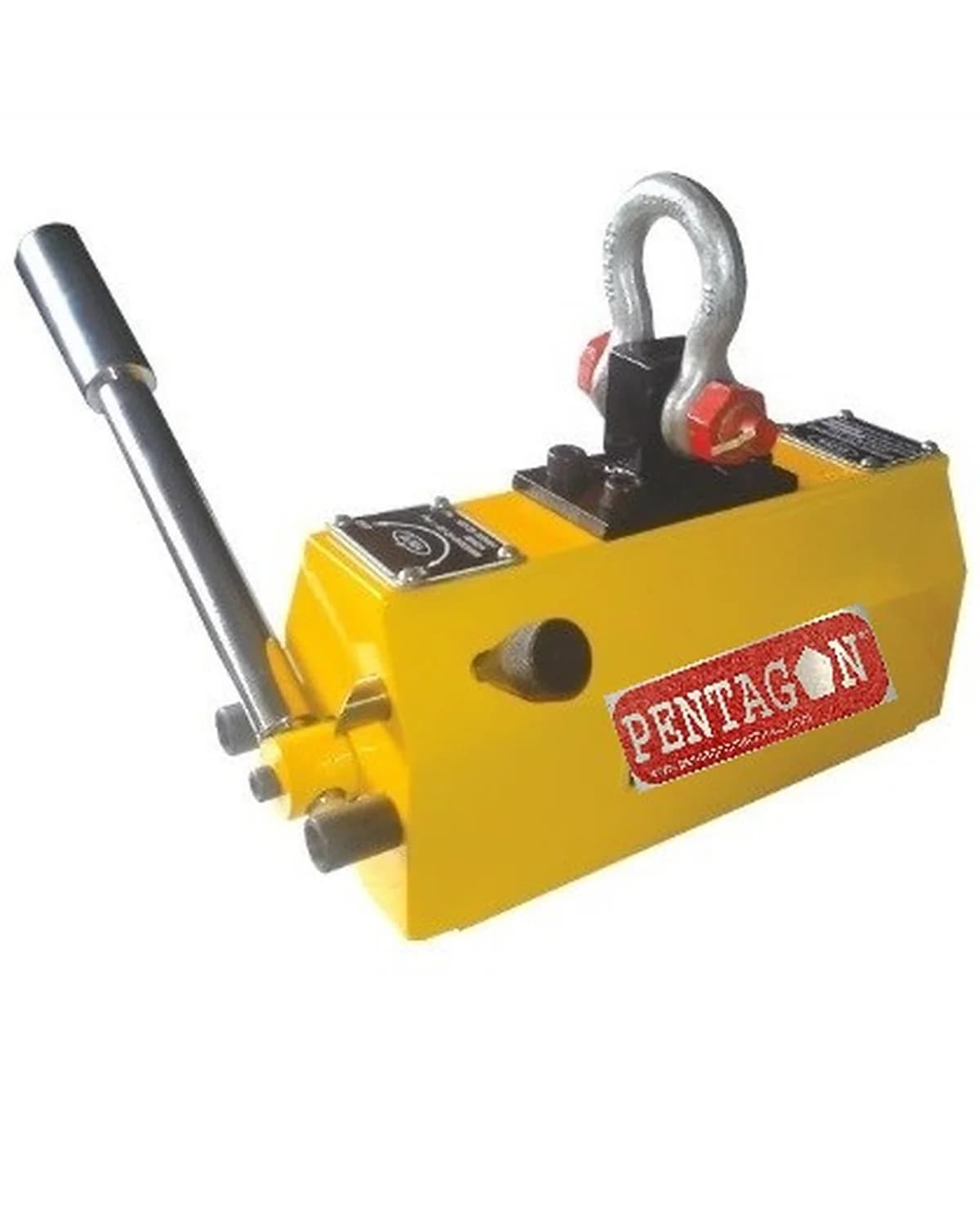

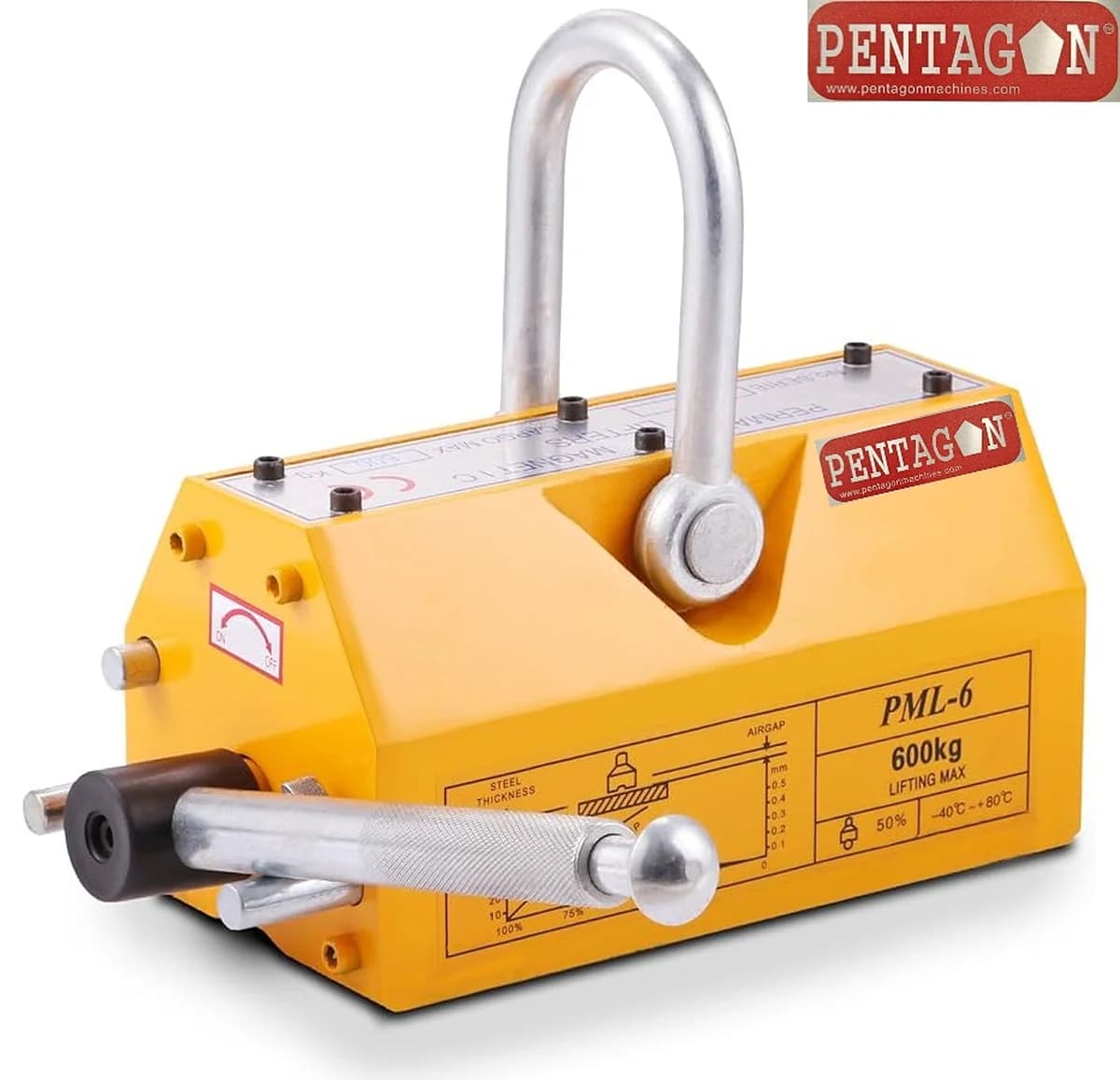

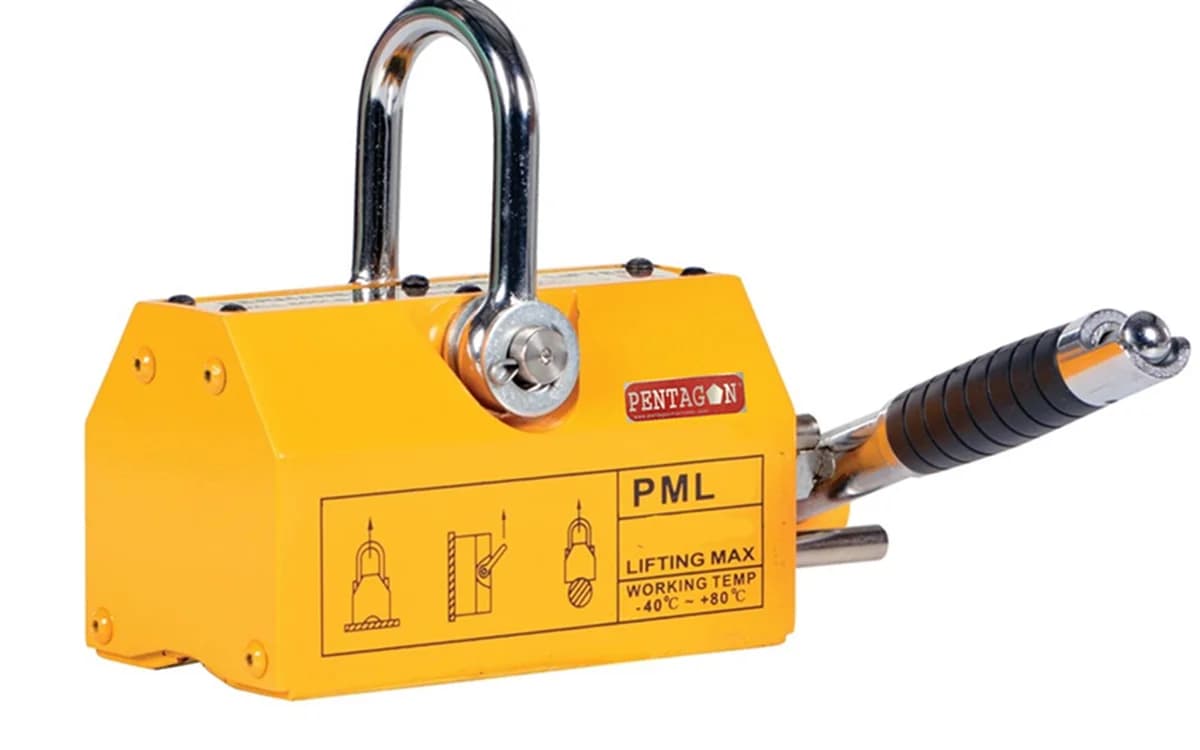

Permanent Magnetic Lifter or lifting magnet Model PML-600
This magnetic lifter secures ferrous metal loads up to 600 kg on flat surfaces without electricity. Weighing 20 kg, it supports heavier plate handling in engineering environments. • Lifting capacity of 300 kg on cylindrical surfaces • Robust frame measuring 210 mm length and 120 mm width • Efficient manual operation for stable load positioning
See it in action
Specifications
For: PML-600- Max Load Lifting Capacity (Flat Surface)
- 600 Kgs
- Dimension
- 240x140x140 mm
- Weight
- 20 Kgs
- HSN Code
- 85051900
- Handle Length
- 230 mm
- Height
- 120 mm
- Length
- 210 mm
- Width
- 120 mm
Configurations
Click a row to switch| Variant | Max Load Lifting Capacity (Flat Surface) | Weight | Dimension | Price |
|---|---|---|---|---|
| PML-200 | 200 Kgs | 5.4 Kgs | 160x95x90 mm | ₹4,900 |
| PML-400 | 400 Kgs | 11 Kgs | 210x120x115 mm | ₹7,800 |
| PML-600 | 600 Kgs | 20 Kgs | 240x140x140 mm | ₹10,200 |
| PML-1000 | 1000 Kgs | 40 Kgs | 290x160x190 mm | ₹16,900 |
| PML-2000 | 2000 Kgs | 74 Kgs | 380x200x200 mm | ₹34,900 |
| PML-3000 | 3000 Kgs | 105 Kgs | 480x240x240 mm | ₹48,600 |
| PML-5000 | 5000 Kgs | 248 Kgs | 600x280x300 mm | ₹85,000 |
Common Buyer Questions
Q: Can this lifter work on painted steel surfaces? A: Yes, permanent magnets grip effectively on painted ferrous metal. Q: Does the magnet lose strength over time? A: High-strength neodymium magnets maintain stability for years. Q: Is external power required to operate the lifter? A: No, it operates mechanically without electricity or batteries.
Safety & Compliance
- Complies with standard industrial safety protocols
- Classified under HSN Code 85051900 for customs tracking
- Features fail-safe mechanisms to prevent accidental drops
- Requires proper training for optimal operator safety
- Meets industry standards for magnetic lifting equipment
Industrial Applications
- Ideal for steel fabrication shops and manufacturing plants
- Suitable for material handling in foundries and warehouses
- Supports lifting of structural steel and raw metal sheets
- Useful for loading and unloading trucks or machinery
- Compatible with overhead cranes and hoisting systems
Operational Efficiency
- Eliminates dependency on external power sources or batteries
- Reduces operational costs associated with electric lifting tools
- Simplifies workflow for moving steel plates and coils
- Enhances safety by minimizing manual handling risks
- Quick engagement and disengagement for faster cycle times

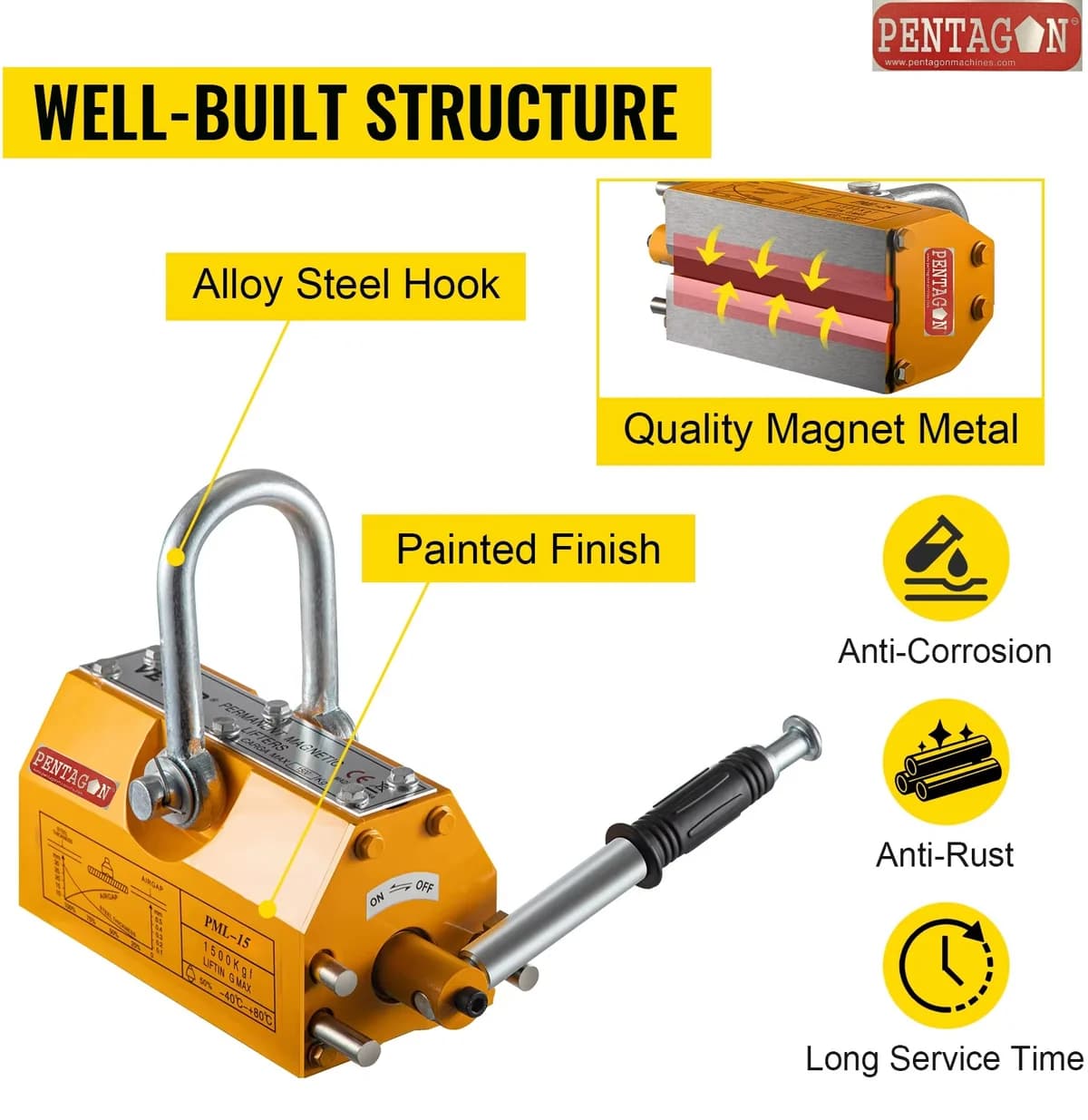

Robust Construction Design
- Durable construction supports heavy-duty workshop use
- Robust housing protects internal magnetic mechanisms
- Designed to withstand rigorous industrial environments
- Long service life reduces replacement frequency
- Reliable performance under continuous lifting cycles
Core Lifting Capabilities
- Provides safe handling of ferrous metal loads without external power
- Capacities range from 200 kg – 5000 kg for various industrial tasks
- Effective on both flat and cylindrical steel surfaces
- Engineered with high-strength neodymium magnets
- Ensures secure gripping during transport in workshop settings
More questions buyers ask
What is a permanent magnetic lifter?
A permanent magnetic lifter is a mechanical device that uses high-strength permanent magnets to lift and move ferrous metal objects without needing electricity.
How does the magnetic lifter work?

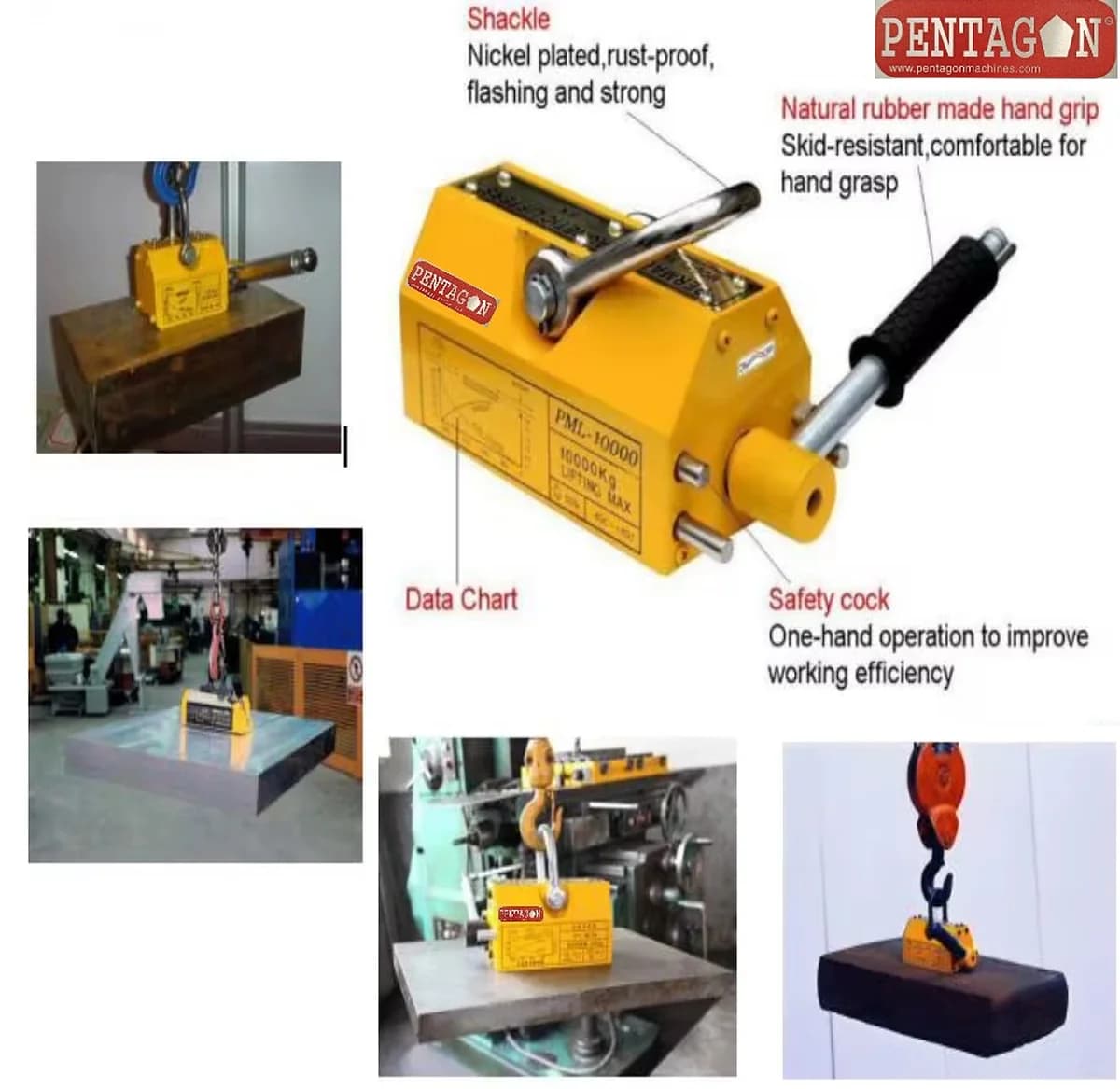

It uses a manual handle to rotate internal magnets, which aligns or misaligns the magnetic flux to engage or release the load.
Does it require electricity?
No, these lifters are purely mechanical and do not require batteries or external power sources.
Can it lift cylindrical objects?
Yes, most models are designed to lift both flat plates and cylindrical steel bars, though capacity varies.
Is it safe to use?
Yes, they feature a safety locking mechanism on the handle to prevent accidental release during operation.
What is the maintenance required?
Minimal maintenance is needed; keep the magnetic face clean and free of debris for maximum lifting power.
Can it lift painted steel?
Yes, permanent magnets can grip through thin layers of paint or rust, though the air gap reduces lifting capacity.
What is the safety factor?
These lifters typically feature a 3:1 safety factor to ensure secure handling of rated loads.
Are spare parts available?
Yes, we provide support for inspection, certification, and spare parts for all Pentagon magnetic lifters.
What is the HSN code?
The HSN code for permanent magnetic lifters is 85051900.
Who should choose the PML-200?
Ideal for small workshops and light-duty fabrication tasks requiring up to 200kg lifting capacity.
Who should choose the PML-1000?
Best for medium-sized manufacturing units handling steel plates up to 1000kg.
Who should choose the PML-5000?
Designed for heavy-duty industrial environments, foundries, and large-scale steel handling up to 5000kg.
PML-200 vs PML-600: Which one do I need?
Choose the PML-200 for occasional light tasks, while the PML-600 offers higher versatility for frequent, heavier loads.
How do I compare the PML-1000 and PML-2000?
The PML-2000 is built for double the capacity of the PML-1000, making it necessary for heavier structural steel components.
