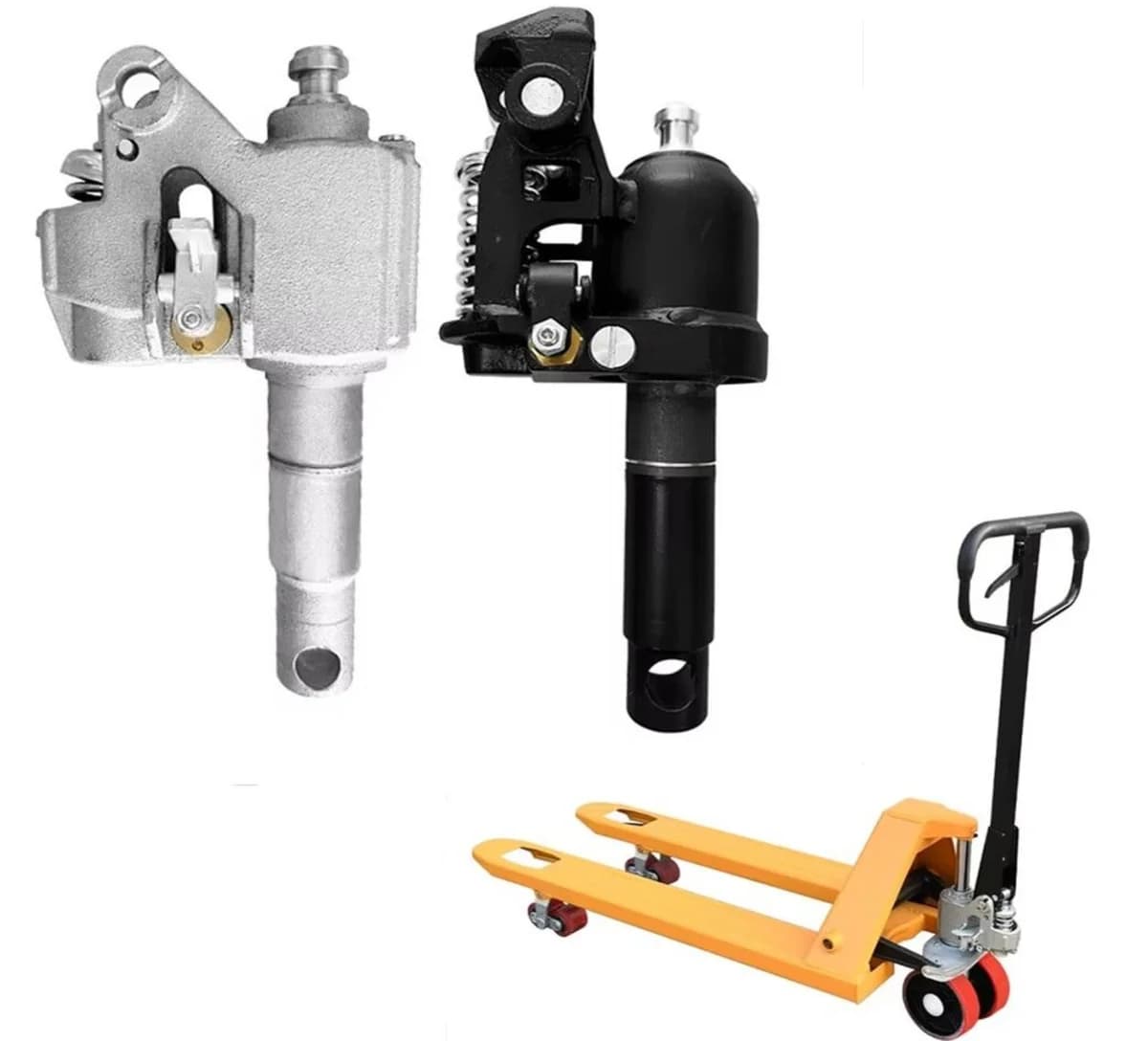

Pentagon Hydraulic Pallet Truck Release Valve Assembly | Buy Online — 2.5T/3T
Precision-engineered release valve assemblies designed for reliable hydraulic control in material handling equipment. Ensures smooth lift and lower operations for standard pallet trucks. • High-grade alloy steel construction resists wear and corrosion • Compatible with 2.5T to 5T hydraulic hand pallet trucks • Bolt-on installation simplifies maintenance and replacement
Specifications
For: 2.5T/3T- Product Name
- Release Valve Assembly
- Suitable For
- Hydraulic Hand Pallet Truck
- Load Capacity Compatibility
- 3 Ton (3000 kg)
- Material
- High-grade Cast Steel / Alloy Steel
- Surface Finish
- Zinc Plated / Powder Coated

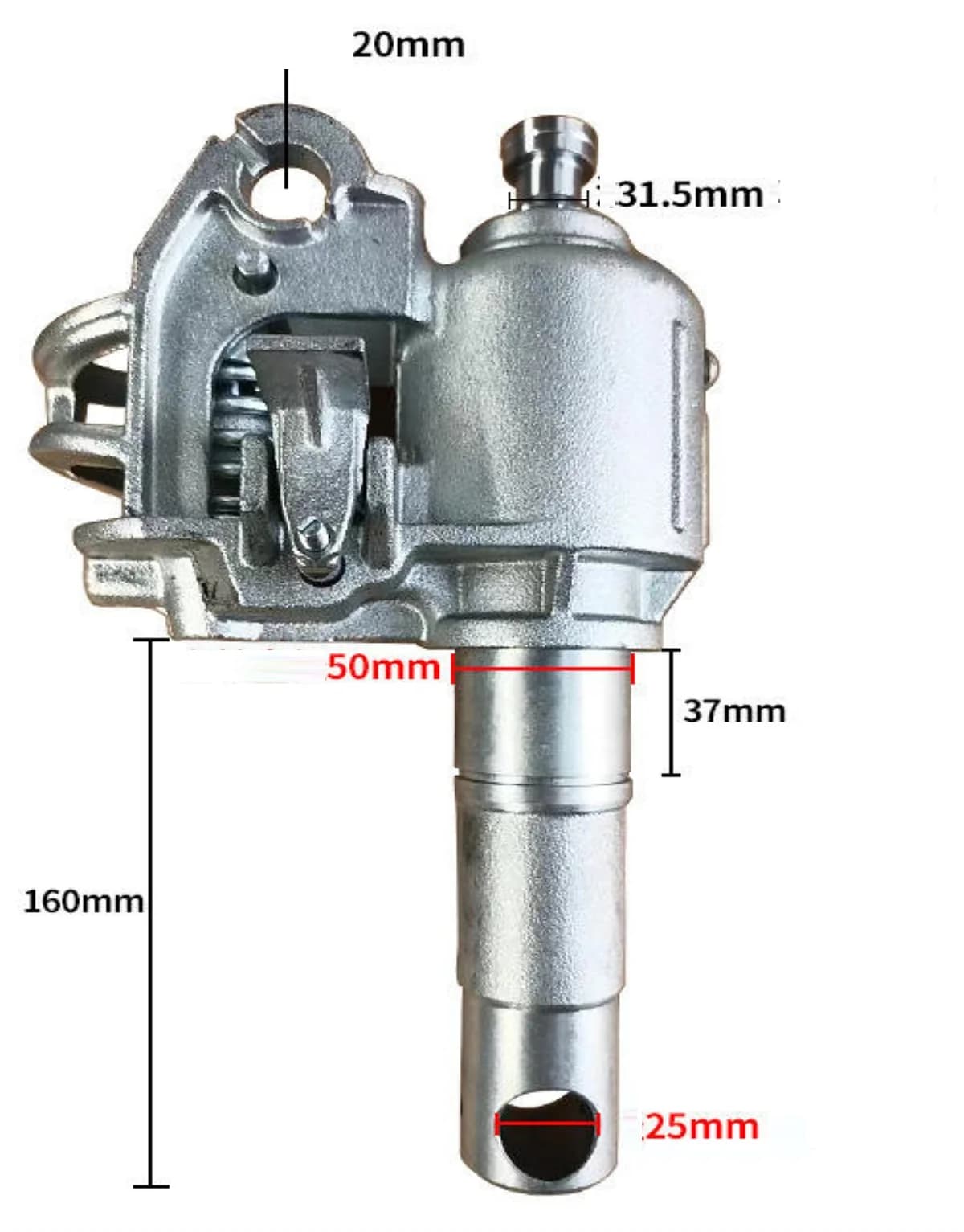

- Overall Length
- 160 mm
- Mounting Hole Dia
- 20 mm
- Body Width
- 50 mm
- Shaft Diameter
- 31.5 mm
- Upper Shaft Length
- 37 mm
- Bottom Hole Dia
- 25 mm
- Mechanism Type
- Spring Loaded Lever Type
- Operation
- Manual Control (Lift / Lower)
- Corrosion Resistance
- Yes
- Installation Type
- Bolt-On / Pin Fit
- Compatibility
- Standard 2.5T/3T Pallet Trucks
Configurations
Click a row to switch| Variant | Price |
|---|---|
| 2.5T/3T | ₹4,900 |
| 5T | ₹9,900 |
Common Buyer Questions
Q: Is this assembly compatible with all pallet truck brands? A: It is designed for standard 2.5T/3T pallet trucks with matching shaft dimensions. Q: How do I install this release valve assembly? A: It features a bolt-on installation type for simplified maintenance and replacement. Q: What material is used for the valve body? A: The body is made from high-grade cast steel or alloy steel for durability.
Operational Reliability & Maintenance
- Complete unit reduces assembly errors during installation
- Consistent pressure release prevents accidental load dropping
- Reduces downtime during equipment maintenance and repair
- Compatible with standard 2.5T/3T pallet truck configurations
- Ensures reliable hydraulic control for material handling equipment
Corrosion Resistance & Surface Finish
- Surface finish options include zinc plated or powder coated
- Corrosion resistance ensures longevity in industrial environments
- Resists wear and tear during frequent hydraulic cycling
- Maintains structural integrity under heavy load conditions
- Provides a durable protective layer against moisture and chemicals
Simplified Installation & Fitment
- Bolt-on installation simplifies maintenance and replacement tasks
- Mounting hole diameter of 20 mm fits standard bracket systems
- Bottom hole diameter of 25 mm accommodates secure pin fit
- Upper shaft length of 37 mm aligns with lever control points
- Suitable for hydraulic hand pallet truck applications
Robust Construction & Dimensions
- High-grade alloy steel construction resists wear and corrosion
- Overall length of 160 mm ensures compact integration
- Body width measures 50 mm for stable structural support
- Shaft diameter of 31.5 mm matches standard pump requirements
- Constructed from high-grade cast steel or alloy steel materials
Precision Hydraulic Control & Capacity
- Precision-engineered release valve for reliable hydraulic control
- Ensures smooth lift and lower operations for standard pallet trucks
- Compatible with 2.5T – 5T hydraulic hand pallet trucks
- Designed for 3 Ton (3000 kg) load capacity compatibility
- Features spring loaded lever type mechanism for manual operation
More questions buyers ask
What is a hydraulic pallet truck release valve assembly?
It is a precision-engineered component designed for reliable hydraulic control in material handling equipment, ensuring smooth lift and lower operations for standard pallet trucks.
What materials are used in this release valve assembly?
The assembly is constructed from high-grade cast steel and alloy steel, which resists wear and corrosion in industrial environments.
Is this assembly compatible with all pallet truck brands?
It is designed to be compatible with standard 2.5T, 3T, and 5T hydraulic hand pallet trucks with matching shaft and mounting dimensions.
How do I install this release valve assembly?
It features a bolt-on installation type with a pin fit, which simplifies maintenance and replacement tasks.
What is the mounting hole diameter?
The mounting hole diameter is 20 mm for the 2.5T/3T variant and 22 mm for the 5T variant, fitting standard bracket systems.
What is the bottom hole diameter?
The bottom hole diameter is 25 mm for the 2.5T/3T variant and 28 mm for the 5T variant, accommodating a secure pin fit.
What is the upper shaft length?
The upper shaft length is 37 mm for the 2.5T/3T variant and 45 mm for the 5T variant, aligning with lever control points.
Does this assembly have corrosion resistance?
Yes, it offers excellent corrosion resistance to ensure longevity in demanding industrial environments.
What surface finishes are available?
The surface finish options include zinc plated or powder coated, providing additional protection against wear and tear.
What is the mechanism type of this valve?
It utilizes a spring-loaded lever type mechanism for consistent pressure release and manual control of lifting and lowering.
What is the overall length of the assembly?
The overall length is 160 mm for the 2.5T/3T variant and 170 mm for the 5T variant.
Does it come with a control lever?
Yes, it is a complete unit that includes the control lever, reducing assembly errors during installation.
Who should choose the 2.5T/3T variant?
The 2.5T/3T variant is ideal for users operating standard 2.5 Ton or 3 Ton hydraulic hand pallet trucks requiring a 31.5 mm shaft diameter and 20 mm mounting hole.
Who should choose the 5T variant?
The 5T variant is designed for heavy-duty applications, suitable for 5 Ton pallet trucks that require a larger 35 mm shaft diameter and 22 mm mounting hole.
What is the difference between the 2.5T/3T and 5T variants?
The main differences lie in their load capacity compatibility and dimensions. The 5T variant has a larger body width (55 mm vs 50 mm), shaft diameter (35 mm vs 31.5 mm), and overall length (170 mm vs 160 mm) to handle heavier loads.
Does the 5T variant have a larger shaft diameter?
Yes, the 5T variant features a 35 mm shaft diameter, compared to the 31.5 mm shaft diameter on the 2.5T/3T variant, providing increased strength for higher capacities.
Are the mounting hole diameters different between the variants?
Yes, the 2.5T/3T variant has a 20 mm mounting hole diameter, while the 5T variant has a 22 mm mounting hole diameter to accommodate different bracket systems.
