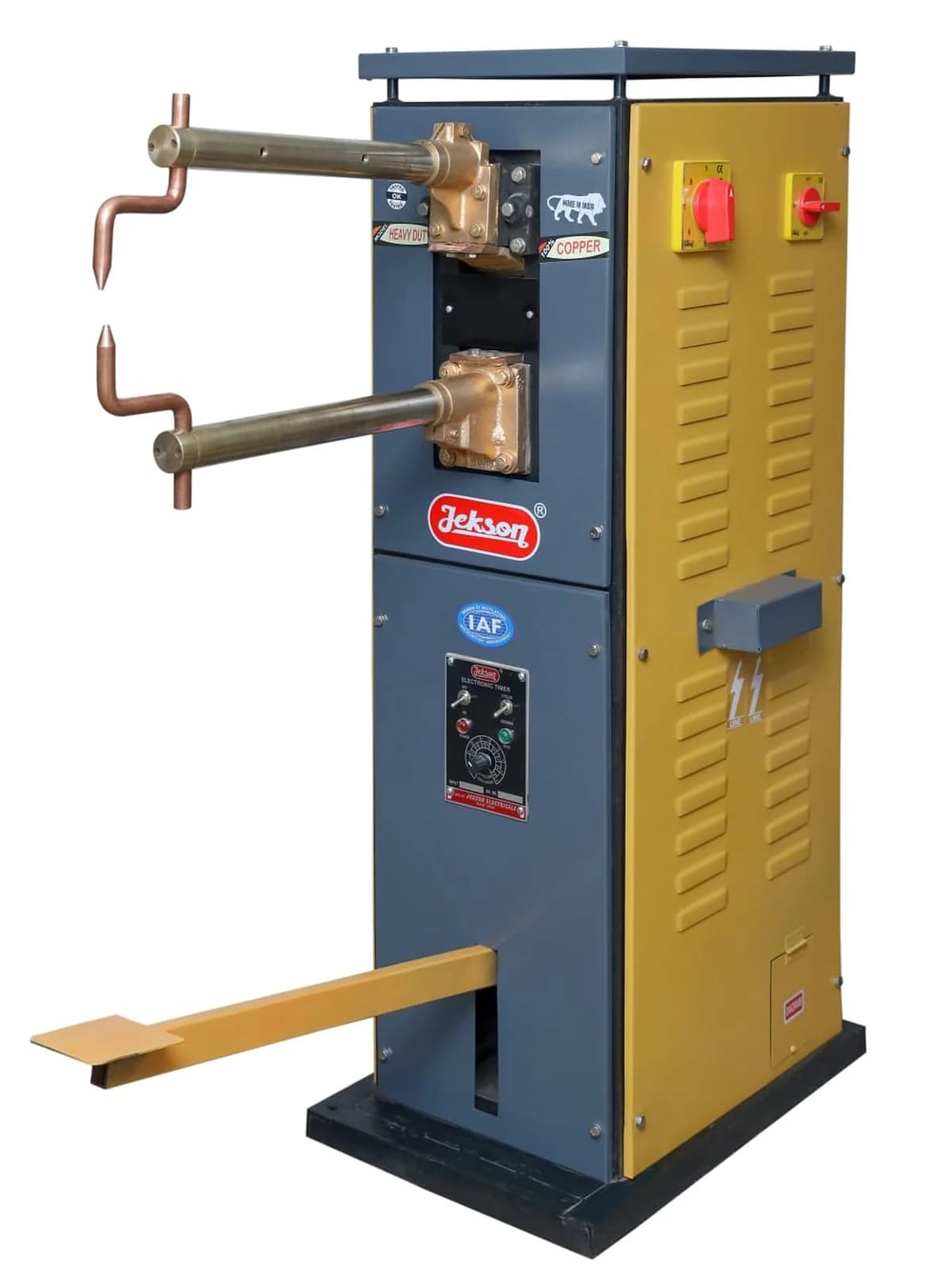

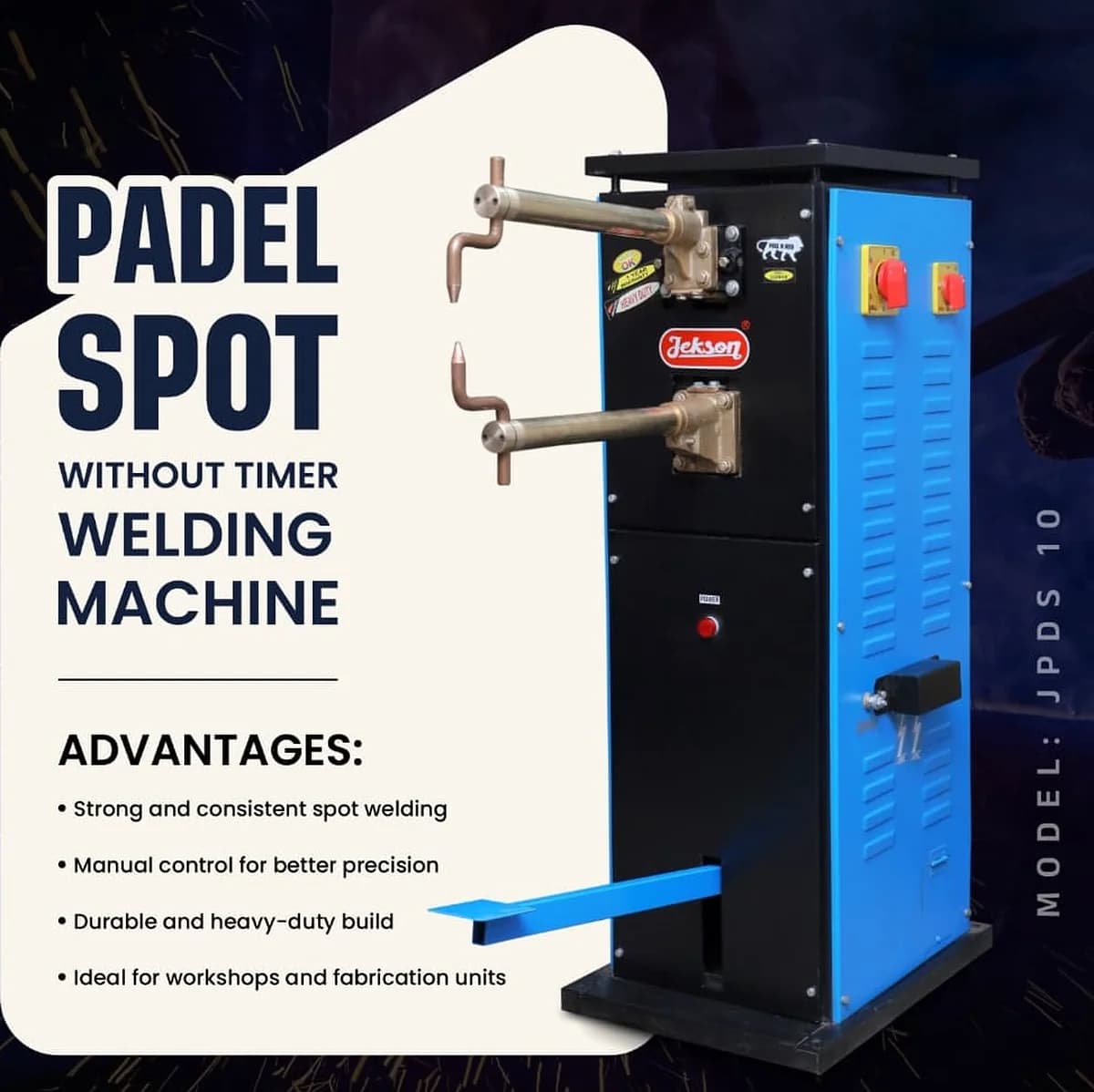

Paddle Type Spot Welder — JSP-10 (Without Timer)
A paddle type spot welder is a resistance welding machine used for joining sheet metals by applying high current and pressure through electrode paddles. It features foot/hand operation, adjustable current control, and fast welding cycles, ensuring strong and precise welds. Ideal for sheet metal, automotive, and fabrication applications.
Specifications
For: JSP-10 (Without Timer)- Model
- JSP-10 (Without Timer)
- Rating
- 10 KVA
- Input Supply
- 230/440 V
- Phase
- 1/2
- Insulation Class
- Class F
- Nomination Throat Clearance
- 180 mm
- Throat Depth
- 250 – 300 mm
- Max. Electrode Stroke
- 40 – 60 mm
- Nominal Electrode Force
- 80 – 120 kgf
- Max. Available Short Circuit Current
- 10,000 – 12,000 A
- Material Welding Range: MS-Brass-SS
- 0.6 + 0.6 mm to 1.5 + 1.5 mm
- Cooling for Arms & Electrodes
- Water
- Weight
- 100 kg
- Dimension
- 1150 × 600 × 400 mm

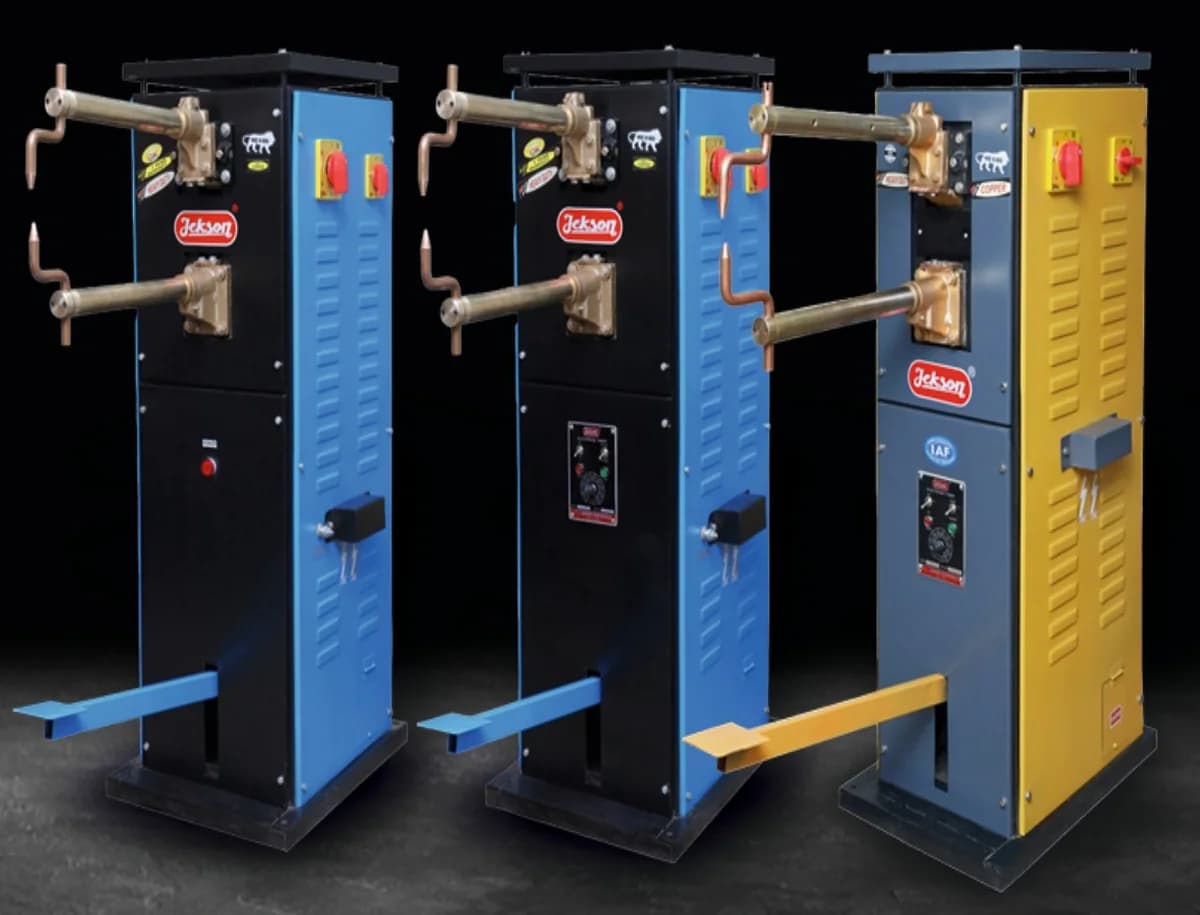

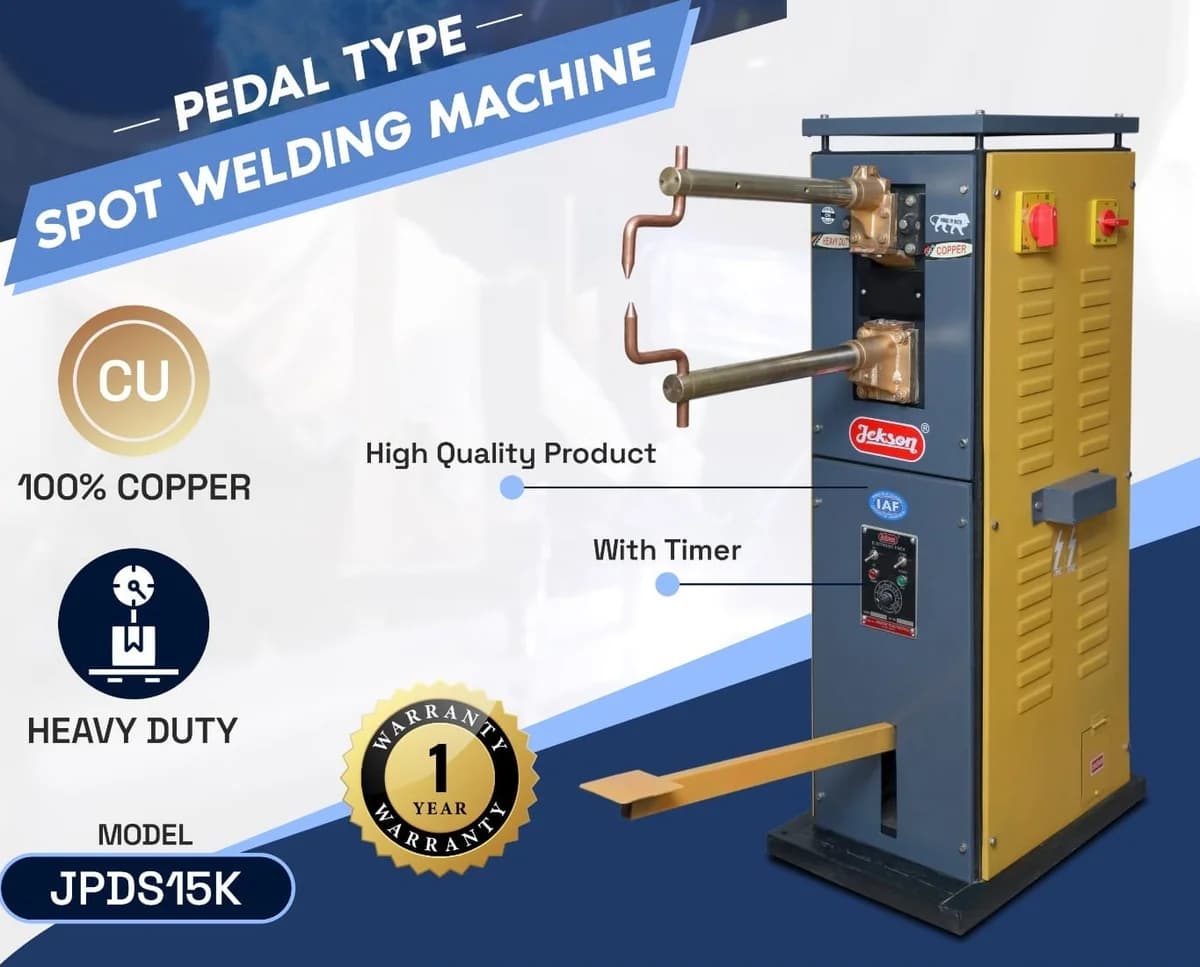

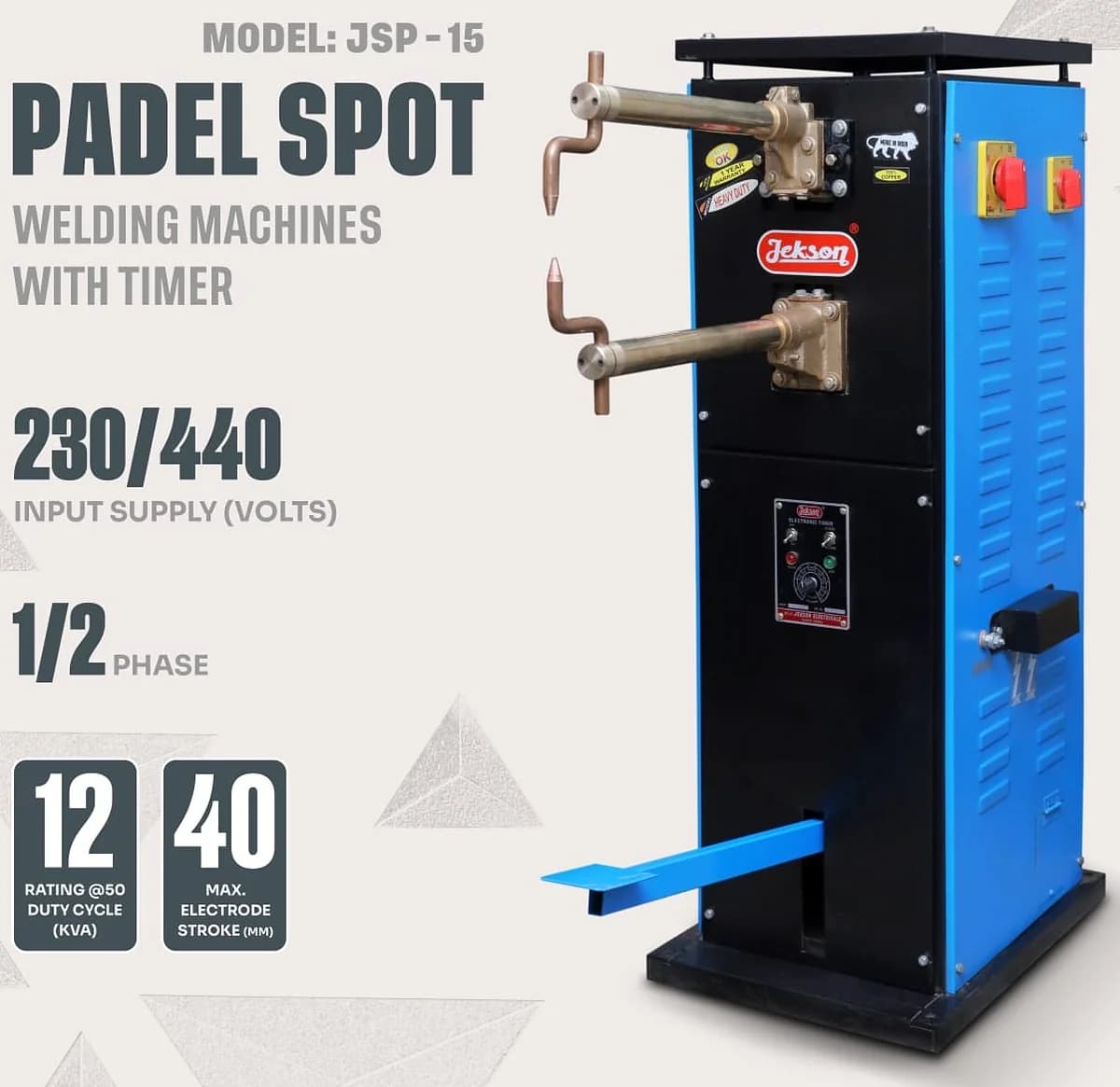

Configurations
Click a row to switch| Variant | Input Supply | Model | Insulation Class | Throat Depth | Price |
|---|---|---|---|---|---|
| JSP-10 (Without Timer) | 230/440 V | JSP-10 (Without Timer) | Class F | 250 – 300 mm | ₹56,440 |
| JSP-10 (With Timer) | 230/440 V | JSP-10 (With Timer) | Class F | 250 – 300 mm | ₹59,160 |
| JSP-12 (Without Timer) | 230/440 V | JSP-12 (Without Timer) | Class F | 300 – 350 mm | ₹59,432 |
| JSP-12 (With Timer) | 230/440 V | JSP-12 (With Timer) | Class F | 300 – 350 mm | ₹62,832 |
| JSP-15 (WithoutTimer) | 230/440 V | JSP-15 (Without Timer) | Class F | 350 – 400 mm | ₹72,080 |
| JSP-15 (WithTimer) | 230/440 V | JSP-15 (With Timer) | Class F | 350 – 400 mm | ₹76,160 |
| JSP-20 (WithoutTimer) | 230/440 V | JSP-20 (Without Timer) | Class F | 400 – 450 mm | ₹78,880 |
| JSP-20 (WithTimer) | 230/440 V | JSP-20 (With Timer) | Class F | 400 – 450 mm | ₹85,680 |
Standard & Optional Accessories
Supplied along with machine:
- 17" Brass rod
- Z type copper Point and Paddle
Can bought brass rod extra if required @ Rs. 230 per Inch
Material Compatibility & Power Supply
- Wide welding capacity for various metal thicknesses
- Compatible with Mild Steel, Stainless Steel, and Brass
- Supports 1/2 phase power supply configurations
- Input supply options include 230/440 V
- Class A insulation with copper windings for safety
- High short circuit current capability for deep penetration
Robust Construction & Durability
- Robust steel fabricated body for industrial strength
- Rigid construction minimizes deflection and ensures durability
- Efficient transformer design with low leakage
- Proper insulation ensures long service life
- Compact and industrial design fits workshop environments
- Suitable for MS, SS, and brass sheets welding
Operational Control & Efficiency
- Pedal operated rocker arm type for easy operation
- Adjustable current control with multi-step tap switch
- Electronic timer control for accurate and repeatable welds
- High electrode force ensures strong and reliable weld joints
- Water cooled electrodes and arms for improved performance
- Consistent welding pressure for quality results
- Ideal for continuous production use
Frequently asked
What materials can this welder handle?
Suitable for MS, SS, and brass sheets welding.
How is the machine cooled?
Features water cooling for arms and electrodes.
Is operation manual or automatic?
Offers foot/hand operation with adjustable current.
More questions buyers ask
What is a Paddle Type Spot Welder used for?
A Paddle Type Spot Welder, also known as a pedal-operated spot welder, is used for joining sheet metals like Mild Steel (MS), Stainless Steel (SS), and Brass by applying pressure and electric current to create a strong weld nugget.
What is the welding capacity of the Pentagon Spot Welder?
The welding capacity depends on the model (10 KVA to 20 KVA). It ranges from 0.6mm + 0.6mm to 4.0mm + 4.0mm thickness for MS, SS, and Brass sheets.
Does this machine require water cooling?
Yes, the Pentagon Paddle Type Spot Welder features a water-cooling system for the arms and electrodes to prevent overheating during continuous operation.
Is the operation manual or automatic?
This is a manual/semi-automatic machine operated via a foot pedal (paddle) or hand lever, giving the operator control over the pressure applied.
What is the difference between models with and without a timer?
Models with a timer allow for precise control over the welding duration, ensuring consistent weld quality and preventing burn-through. Models without a timer rely on the operator's judgment for weld time.
What power supply is required for this spot welder?
The machine supports both 1-phase and 2-phase power supplies with input options of 230V or 440V, making it versatile for different workshop setups.
Does the machine come with a warranty?
Yes, Pentagon spot welders come with a standard manufacturer warranty against manufacturing defects. Please check the specific warranty terms at the time of purchase.
Can I get a GST invoice for my purchase?
Yes, we provide a fully compliant GST invoice with every purchase, allowing B2B customers to claim input tax credit.
Do you deliver this machine across India?
Yes, we offer pan-India delivery for the Pentagon Paddle Type Spot Welder, ensuring it reaches your workshop or factory safely.
What accessories are included with the machine?
The machine typically comes with standard electrodes. Additional accessories like specific electrode tips can be purchased separately.
Who should choose the JSP-10 model?
The JSP-10 (10 KVA) is ideal for lighter fabrication work involving thinner sheets (up to 1.5mm + 1.5mm). It is cost-effective for small workshops.
Who should choose the JSP-12 model?
The JSP-12 (12 KVA) offers slightly more power than the JSP-10, suitable for medium-duty tasks requiring welding of sheets up to 2.0mm + 2.0mm.
Who should choose the JSP-15 model?
The JSP-15 (15 KVA) is a robust choice for general fabrication, capable of welding sheets up to 3.0mm + 3.0mm, balancing power and versatility.
Who should choose the JSP-20 model?
The JSP-20 (20 KVA) is the most powerful option in this series, designed for heavy-duty applications involving thick sheets up to 4.0mm + 4.0mm.
Why choose the 'With Timer' variant?
Choose the 'With Timer' variant if you require high consistency in weld quality, especially for production runs where uniformity is critical.
What is the main difference between the JSP-10 and JSP-20?
The main difference is the power rating and welding capacity. JSP-10 is 10 KVA for thinner sheets (max 1.5mm), while JSP-20 is 20 KVA for thicker sheets (max 4.0mm).
How does the throat depth affect the choice of machine?
Throat depth determines how far into a sheet you can weld. Larger models like the JSP-20 have a deeper throat (400-450mm) compared to the JSP-10 (250-300mm), allowing for larger workpieces.
Is the 'Without Timer' model difficult to use?
The 'Without Timer' model requires a skilled operator to manually time the weld. It is simpler and cheaper but less consistent than the timer version for less experienced users.
