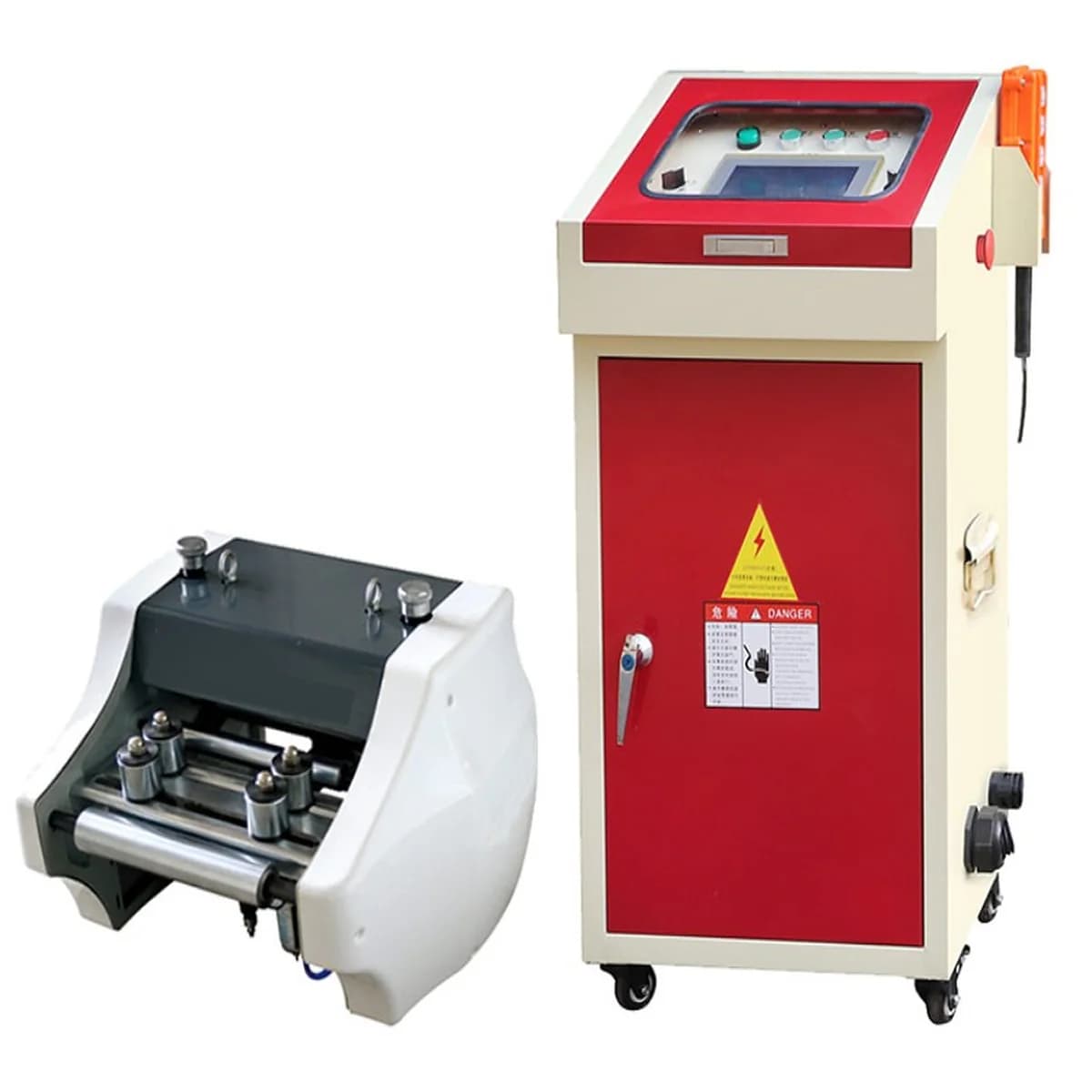

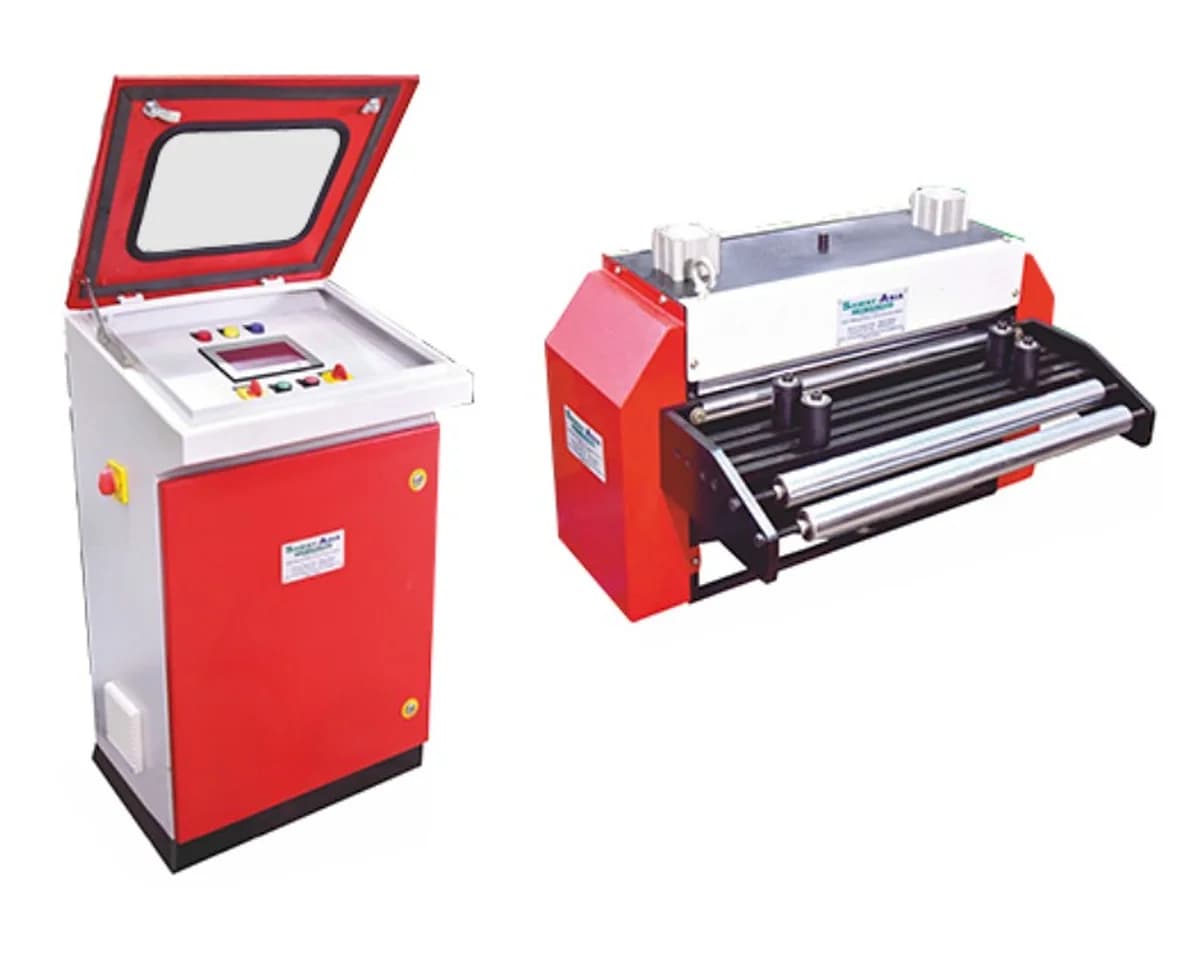

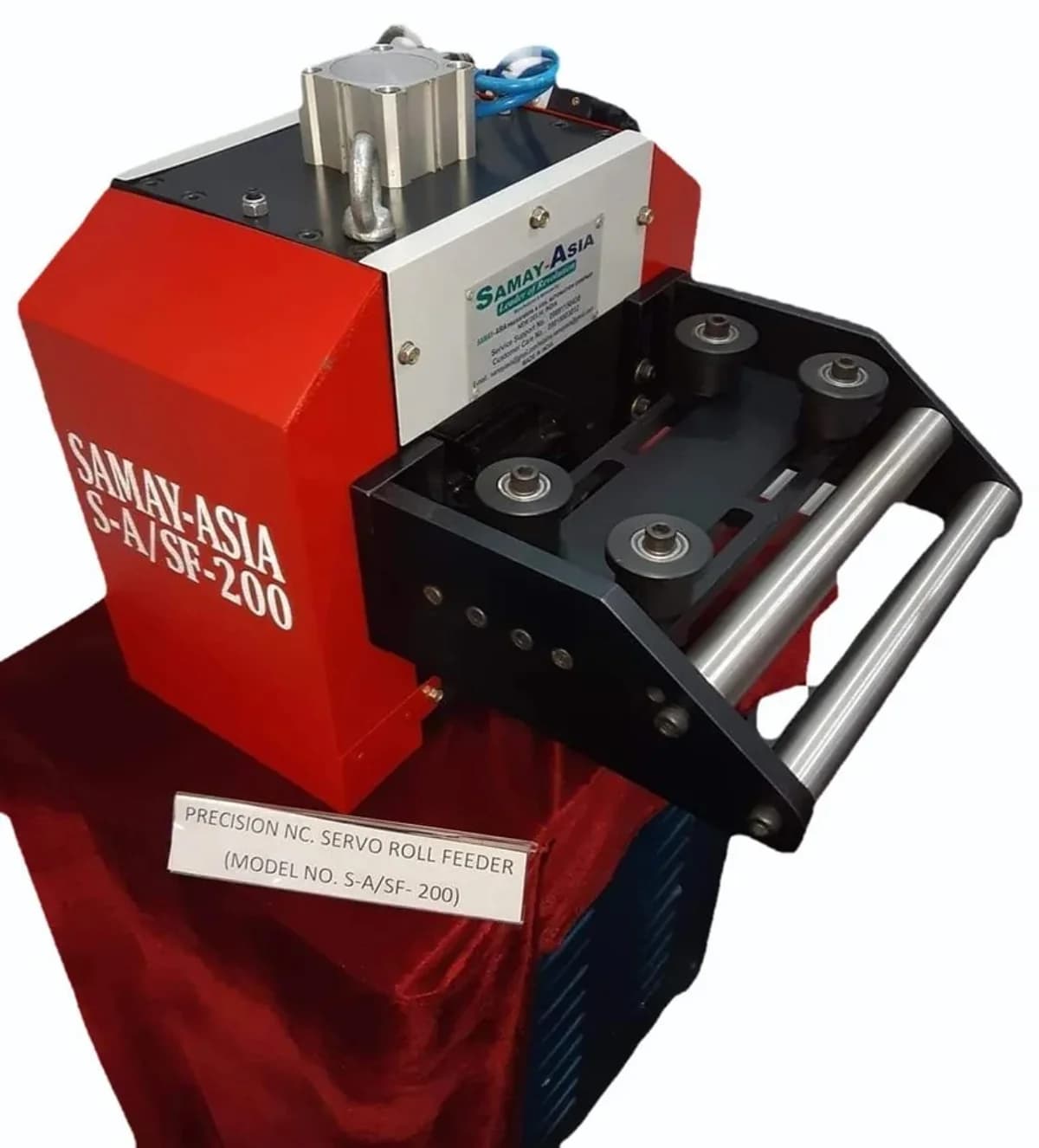

Samay-Asia High Precision NC Servo Roll Feeder Machine — S-A/SF-200
Automated feeding systems for sheet metal fabrication lines ensure consistent material delivery to press brakes. S-A/SF-200 series supports 200 mm width and thicknesses up to 3.20 mm. • Closed-loop control with 10 micron feeding precision • Brushless servo motor with belt drive • Adjustable feeding height from 40 to 140 mm • Rated for speeds up to 20 meters per minute

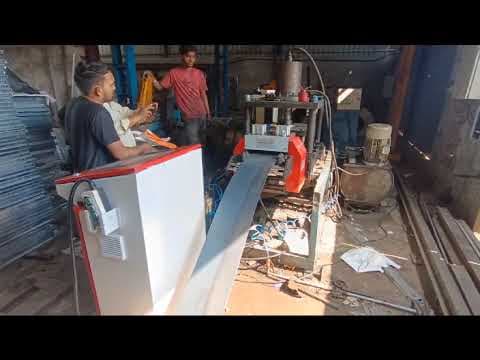

See it in action
Specifications
For: S-A/SF-200- Model
- S-A/SF-200
- Feeding Direction
- Left to Right (Standard)
- Feeding Precision
- Within 10 microns
- Control System
- Closed-loop feedback computer control
- Encoder Type
- High-sensitivity, high-resolution decoder
- Drive Motor
- High-quality brushless servo motor
- Transmission
- Timing belt (low abrasion, noiseless, lubrication-free)
- Roller Finish
- Hard chromium plated
- Roller Hardness
- HRC 60° to 62°
- Adjustable Feeding Height
- 40 mm to 140 mm above bolster top level
- Operation Modes
- Manual Mode & Auto Mode
- Material Width
- 200
- Material Thickness
- up to 3.20 mm
- Speed
- 20 Meter/Min
- Feeding Length
- 9999.99 mm
- Power Supply
- 380V/415V
Configurations
Click a row to switch| Variant | Material Width | Material Thickness | Price |
|---|---|---|---|
| S-A/SF-200 | 200 | up to 3.20 mm | ₹5,01,431 |
| S-A/SF-300 | 300 | up to 3.20 mm | ₹5,33,264 |
| S-A/SF-400 | 400 | up to 3.20 mm | ₹5,94,986 |
| S-A/SF-600 | 600 | up to 3.20 mm | ₹7,88,414 |
| S-A/SF-800 | 800 | up to 3.20 mm | ₹10,38,825 |
| S-A/SF-1000 | 1000 | up to 3.20 mm | ₹12,73,320 |
| S-A/SF-1200 | 1200 | up to 3.20 mm | ₹15,00,525 |
| S-A/SF-1600 | 1600 | up to 3.20 mm | ₹19,13,625 |
| S-A/SF-HD-200 | 200 | up to 4.50 mm | ₹6,05,070 |
| S-A/SF-HD-300 | 300 | up to 4.50 mm | ₹6,71,895 |
| S-A/SF-HD-400 | 400 | up to 4.50 mm | ₹7,38,720 |
| S-A/SF-HD-600 | 600 | up to 4.50 mm | ₹9,29,475 |
| S-A/SF-HD-800 | 800 | up to 4.50 mm | ₹11,88,270 |
| S-A/SF-HD-1000 | 1000 | up to 4.50 mm | ₹14,51,925 |
| S-A/SF-HD-1200 | 1200 | up to 4.50 mm | ₹17,13,150 |
| S-A/SF-HD-1600 | 1600 | up to 4.50 mm | ₹23,36,445 |
Common Questions
Q: Can this feeder handle varying material thicknesses? A: Yes, the system is designed to accommodate thicknesses up to 3.20 mm depending on roller configuration. Q: Is lubrication required for the transmission system? A: No, the timing belt drive is lubrication-free and designed to eliminate gear abrasion. Q: How many production programs can be stored? A: The control system natively stores up to 10 programs for quick job setups and changeovers.
Operational Efficiency & Control
- Cam-synchronized release device responds directly to press cam signal for high efficiency
- Feeding length capability ranges up to 9999.99 mm for complex multi-stage operations
- Three manual speed selections allow operators to fine-tune output during setup phases
- Standard Left-to-Right feeding direction aligns with typical press line configurations
- Power supply options include 380V or 415V to match standard industrial facility requirements
Applications & Industries
- Precision Metal Stamping: High-accuracy feeding for progressive die stamping operations
- Automotive Component Manufacturing: Ideal for producing high-tolerance car body parts
- Hardware & Appliance Production: High-speed punching for appliance panels and structural clips
- Toolroom & Job Shop Manufacturing: Perfect for flexible low-to-mid volume batch production
- Electronic Connectors: Suitable for manufacturing parts requiring strict dimensional tolerances
Construction & Durability
- Heavy-duty stabilized steel frame provides robust reliability during high-speed operation
- Hollow rollers feature hard chromium plating with HRC 60° to 62° surface hardness
- Low-inertia design reduces wear while maintaining consistent material feeding tension
- Adjustable feeding height accommodates various bolster top levels between 40 mm and 140 mm
- Roller finish resists abrasion to extend service life under continuous industrial use
Key Features
- Closed-loop feedback computer control ensures micro-precision feeding within 10 microns
- Brushless servo motor delivers rapid acceleration and minimal adjustment downtime
- Timing belt transmission eliminates gear abrasion, noise, and lubrication needs
- Dual Auto and Manual operation modes support flexible workflow requirements
- Native memory stores up to 10 programs for quick job setup and changeovers
More questions buyers ask
What is the feeding precision of the Samay-Asia NC Servo Roll Feeder?
The system provides micro-precision feeding within 10 microns.
What material thickness can this servo feeder handle?
The standard series handles up to 3.20 mm, while the Heavy-Duty (HD) series handles up to 4.50 mm.
Does the feeder require lubrication?
No, it uses a timing belt drive that is lubrication-free and designed to eliminate gear abrasion.
How many programs can be stored in the control system?
The control system natively stores up to 10 programs for quick job setups.
What is the maximum feeding length?
The system supports feeding lengths up to 9999.99 mm.
What power supply is required?
The machine operates on a 380V/415V three-phase power supply.
What is the feeding speed?
The standard feeding speed is 20 meters per minute.
Is the roller surface durable?
Yes, the hollow rollers are hard chromium plated with a surface hardness of HRC 60° to 62°.
What industries is this feeder suitable for?
It is ideal for precision metal stamping, automotive component manufacturing, hardware production, and electronic connectors.
Does it support different operation modes?
Yes, it features both Manual and Auto operation modes for flexible workflow.
Who should choose the Standard Series?
Manufacturers working with standard sheet metal up to 3.20mm thickness who need reliable, high-precision feeding for progressive die stamping.
Who should choose the Heavy-Duty (HD) Series?
Industrial users processing thicker materials up to 4.50mm who require a more robust, heavy-duty feeding solution for demanding production environments.
How does the Standard Series compare to the HD Series?
The Standard Series is optimized for materials up to 3.20mm, while the HD Series is reinforced for heavier materials up to 4.50mm, offering greater durability for thicker gauge stamping.
Is the Samay-Asia feeder better than manual roll feeders?
Yes, the NC Servo Feeder offers superior precision (10 microns), programmable memory, and automated operation, significantly increasing productivity and reducing material waste compared to manual systems.
